Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh

Export reference
From $90,278
MSRP ¥65M CNY
Rated payload:: 6.02ton
Wheelbase:: 7050mm
Cargo box type:: Wing Van
Model code (announced):: QCC5183XYKBEVE1
Type:: enclosed cargo truck
Box length class:: 9.6m
Drive 4X2 (6 wheels)
CLTC range: 282km
Motor 1 Brand: Suzhou Green Control
Curb Weight: 11.85ton

Overview

The Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh is a Medium-duty truck featuring 282km battery/range, Suzhou Green Control motor, 4X2 (6 wheels) drive and 6.02t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC5183XYKBEVE1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7050mm
Box length class: 9.6m
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.99m
CLTC range: 282km
Curb Weight: 11.85ton
Rated payload: 6.02ton
GVWR: 18ton
Max. speed: 88km/h
Origin: Wuhu, Anhui
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ370XS-LKM1114
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 110kW
Peak power: 180kW
Battery/Charging
Battery Brand: Guoxuan
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 282.62kWh
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.7m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: Dana 365
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:

Photos

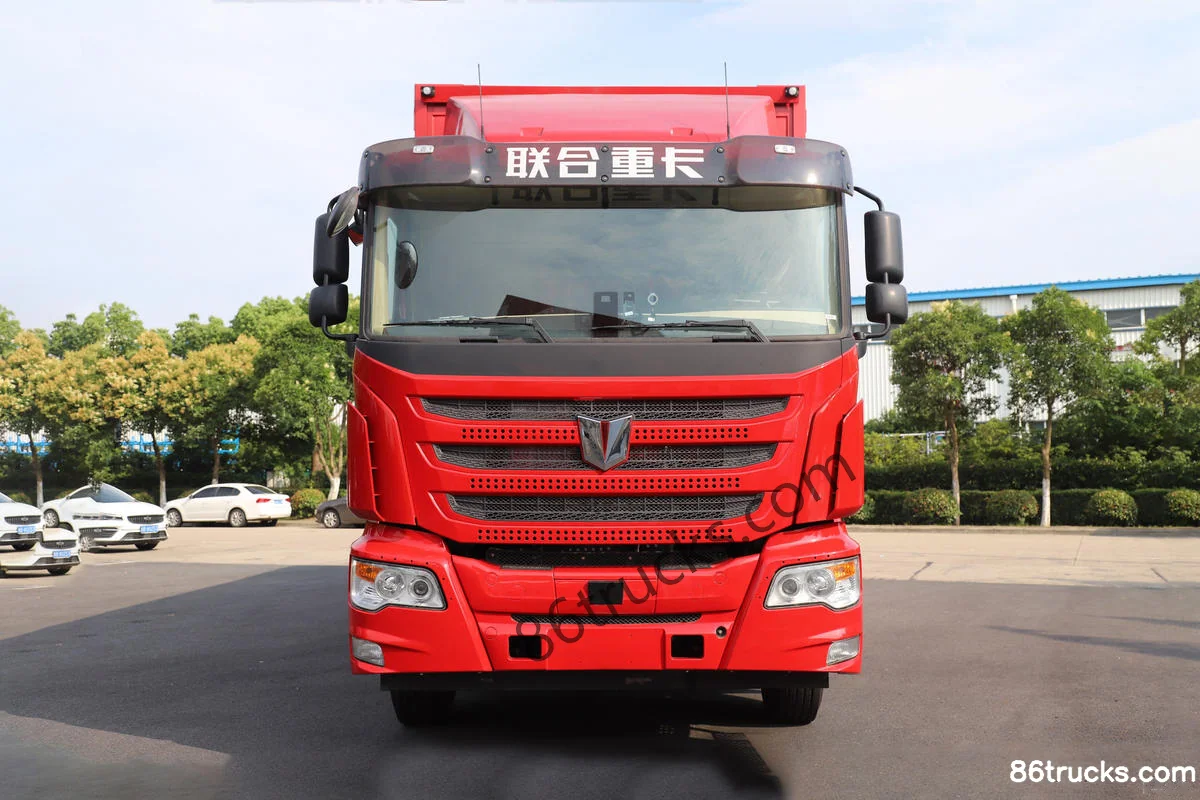

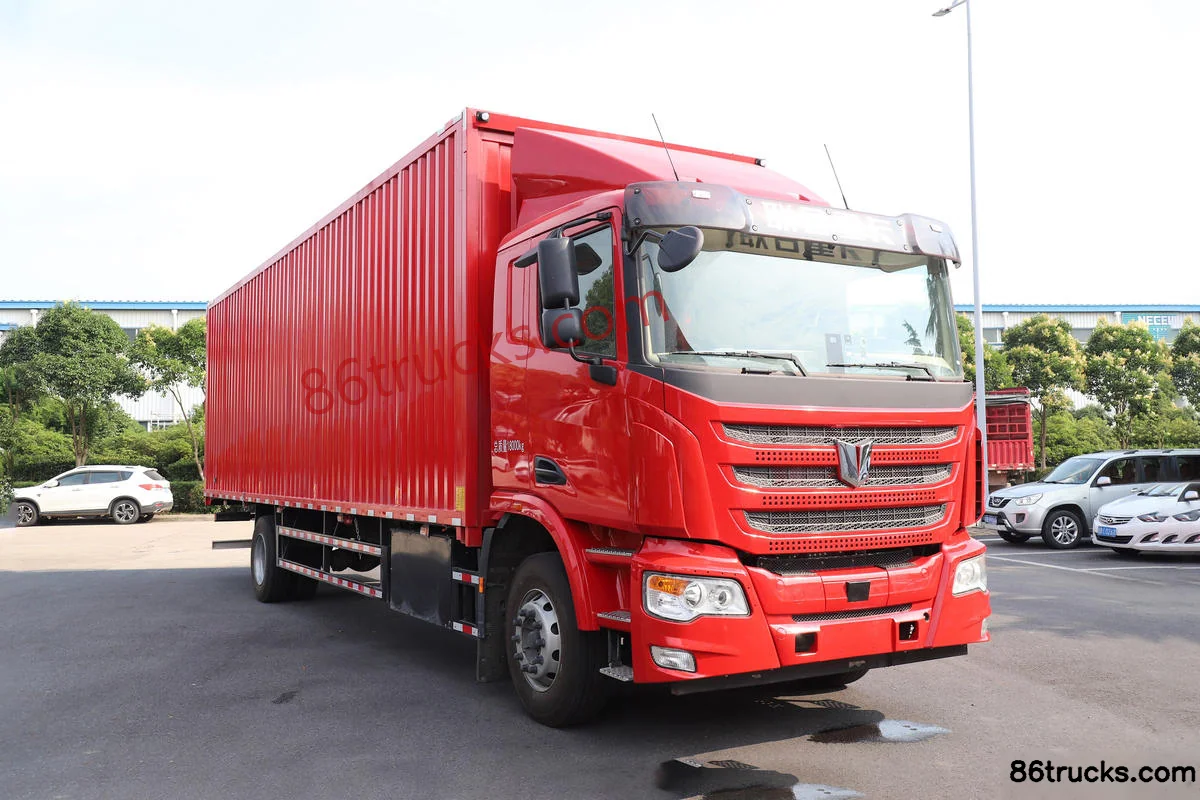

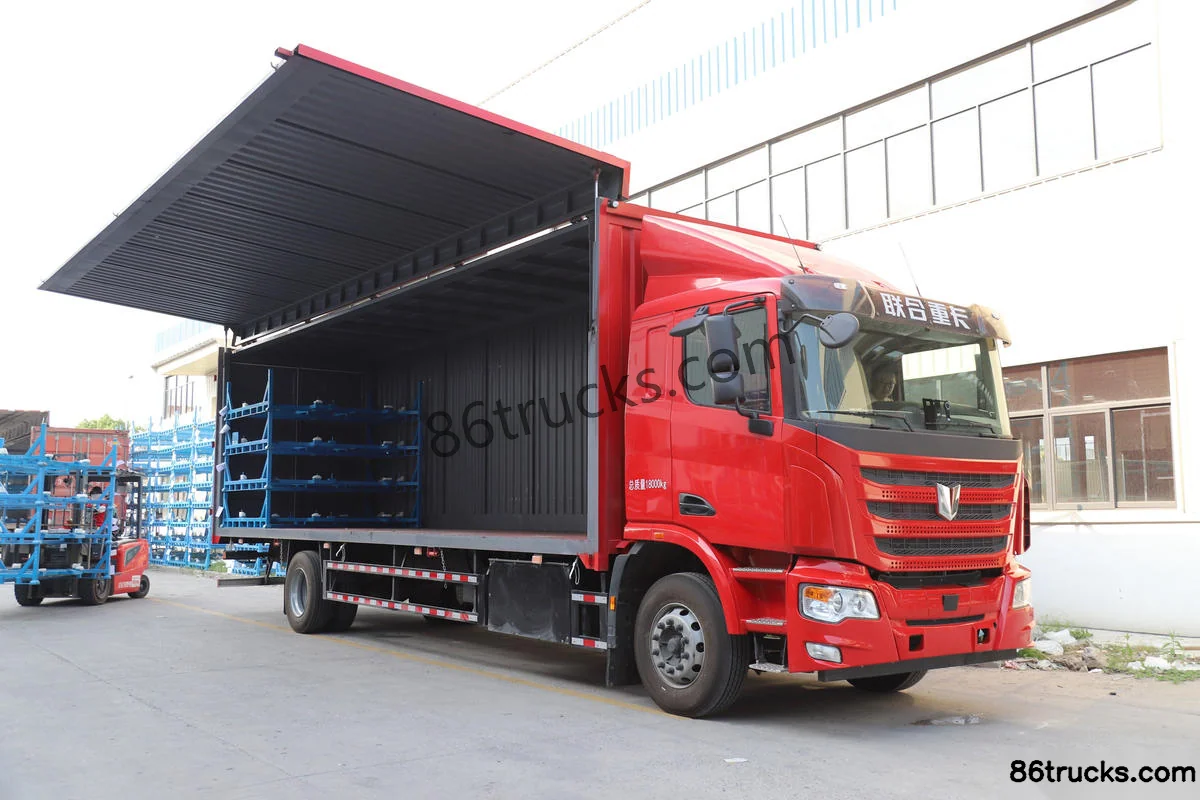

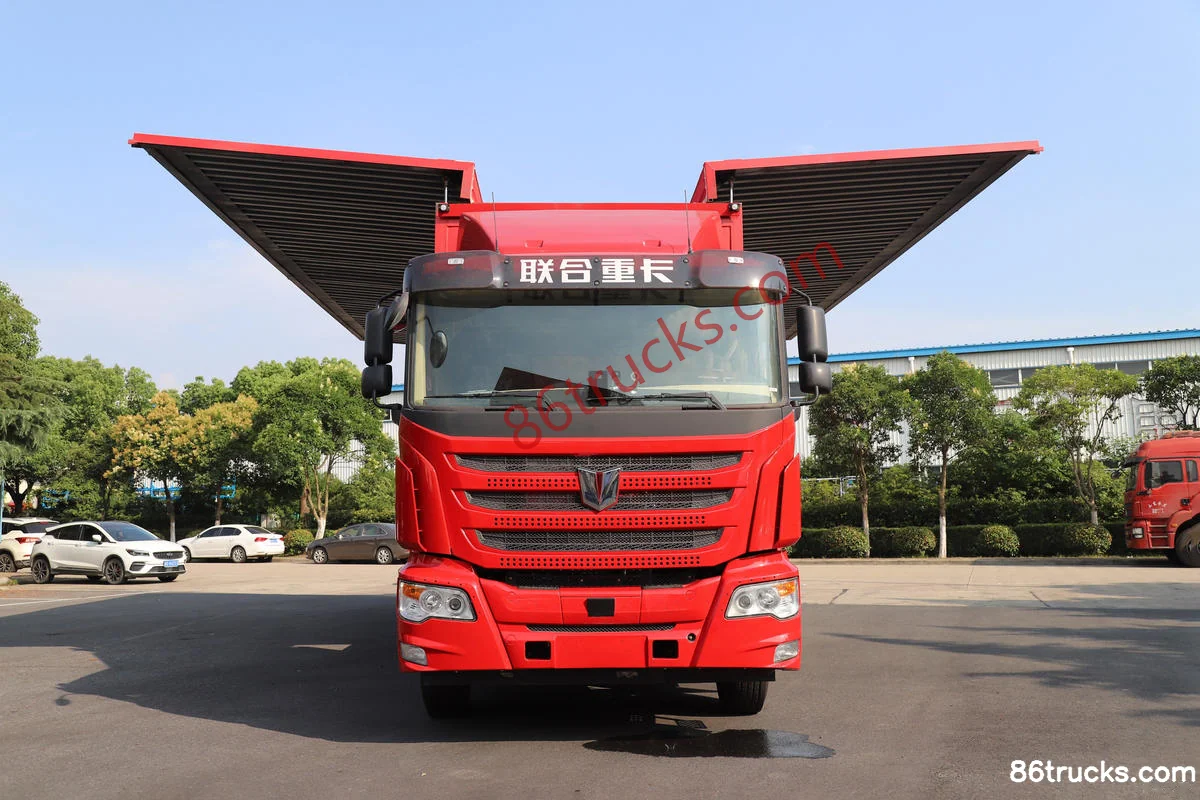

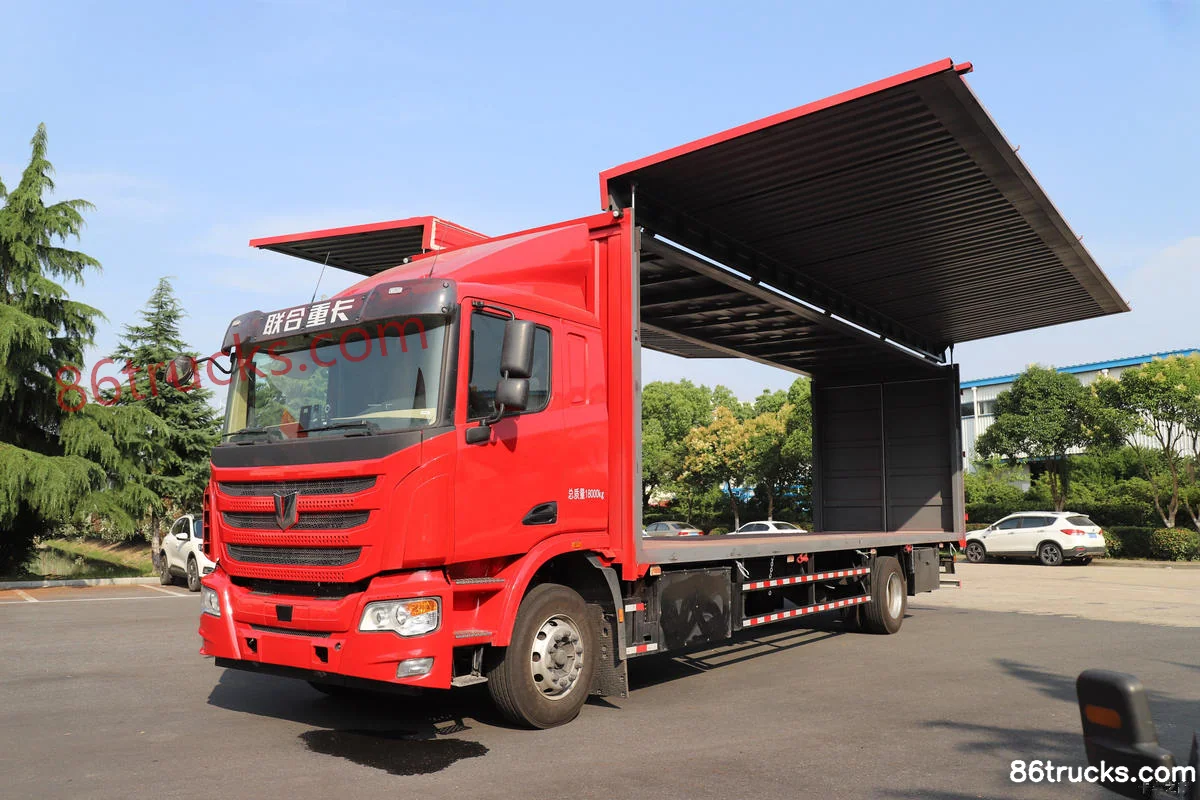

Exterior3

Cab3

6 photos

FAQ

What is the export price of Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh, and what does it include?

Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh export reference is about From $90,278; MSRP is ¥65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh?

Key specs of Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh suited for?

Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh differ from other variants in the same series?

Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh belongs to Union Truck U+ Series (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U⁺ 4X2(6 wheels) 18T 9.6m Electric Wing Opening Van 282.62kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
