Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh

Export reference
From $88,611
MSRP ¥63.8M CNY
Rated payload:: 6.37ton
Wheelbase:: 2000+5000+1400mm
Cargo box type:: Dump type
Model code (announced):: BJ3319EVGRF-07
Cab length:: 11.99m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 200km
Motor 1 Brand: Tebest
Curb Weight: 24.5ton

Overview

The Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh is a Heavy truck featuring 200km battery/range, Tebest motor, 8X4 (12 wheels) drive and 6.37t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3319EVGRF-07
Drive type: 8X4
Wheelbase: 2000+5000+1400mm
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.85m
CLTC range: 200km
Curb Weight: 24.5ton
Rated payload: 6.37ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Beijing
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ400XSTPG36
Motor Type: Permanent magnet synchronous motor
total rated power: 360kW
Peak power: 500kW
Motor 1 Peak Power: 500kW
Electronic Control
ECU Brand: Ligong Huachuang
Battery/Charging
Battery Brand: CATL
Charging method: Dual-gun fast charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400kWh
Transmission Parameters
Number of gears: 6Gear
shift type: AMT manual/auto
Transmission Model: TS-0624
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 8.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat top (optional high top)
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 16t 300 reinforced dual reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

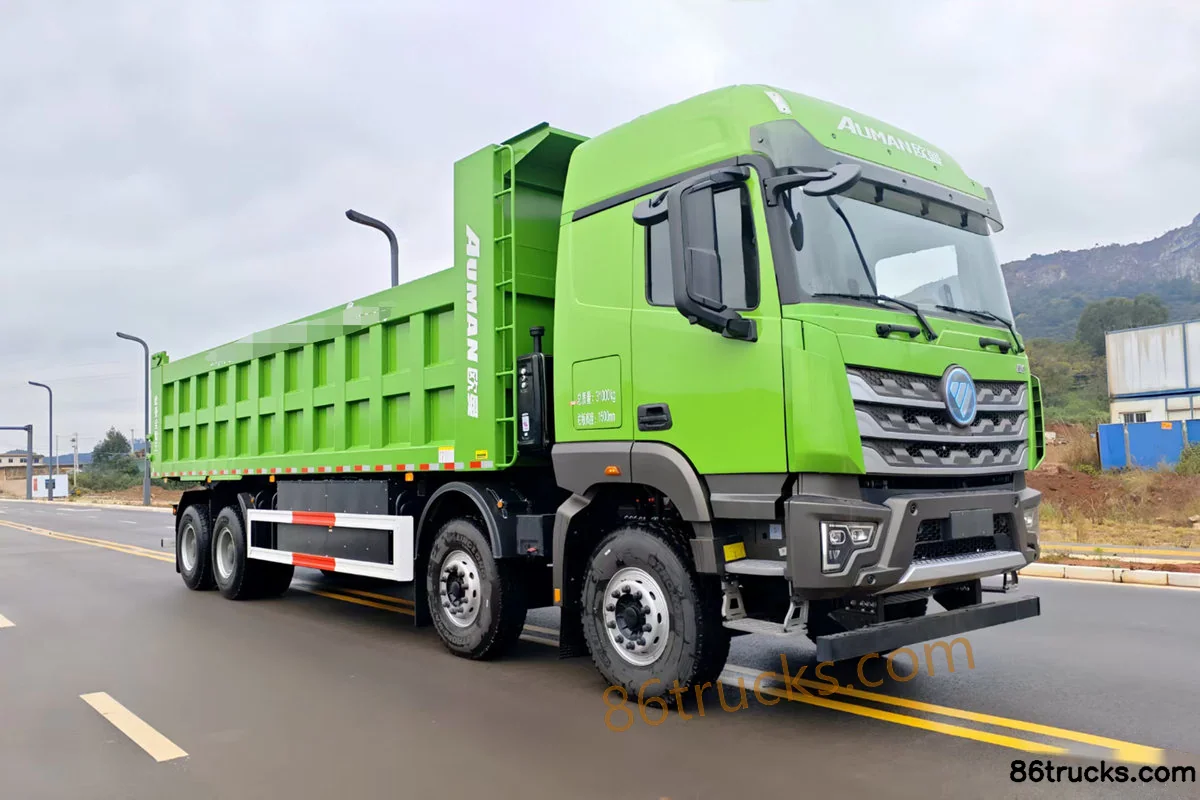

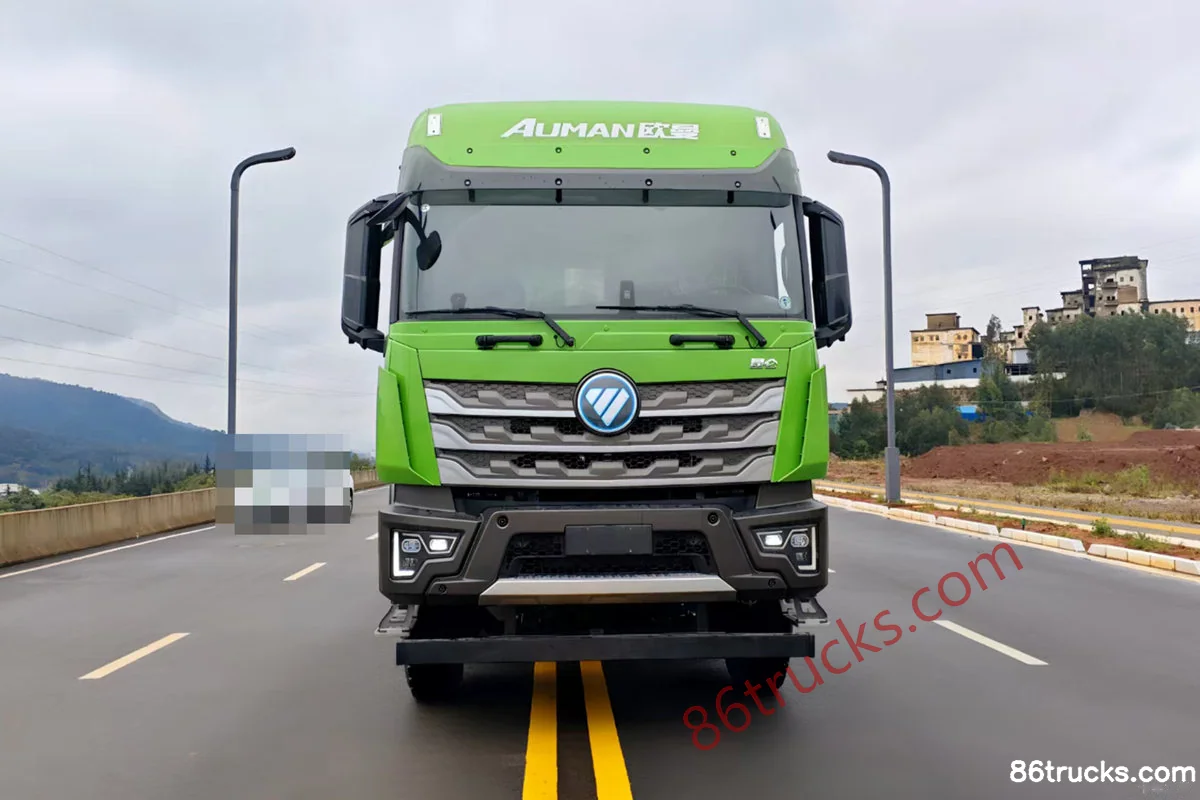

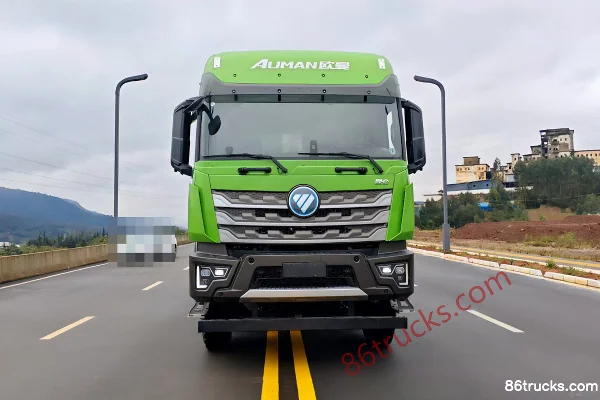

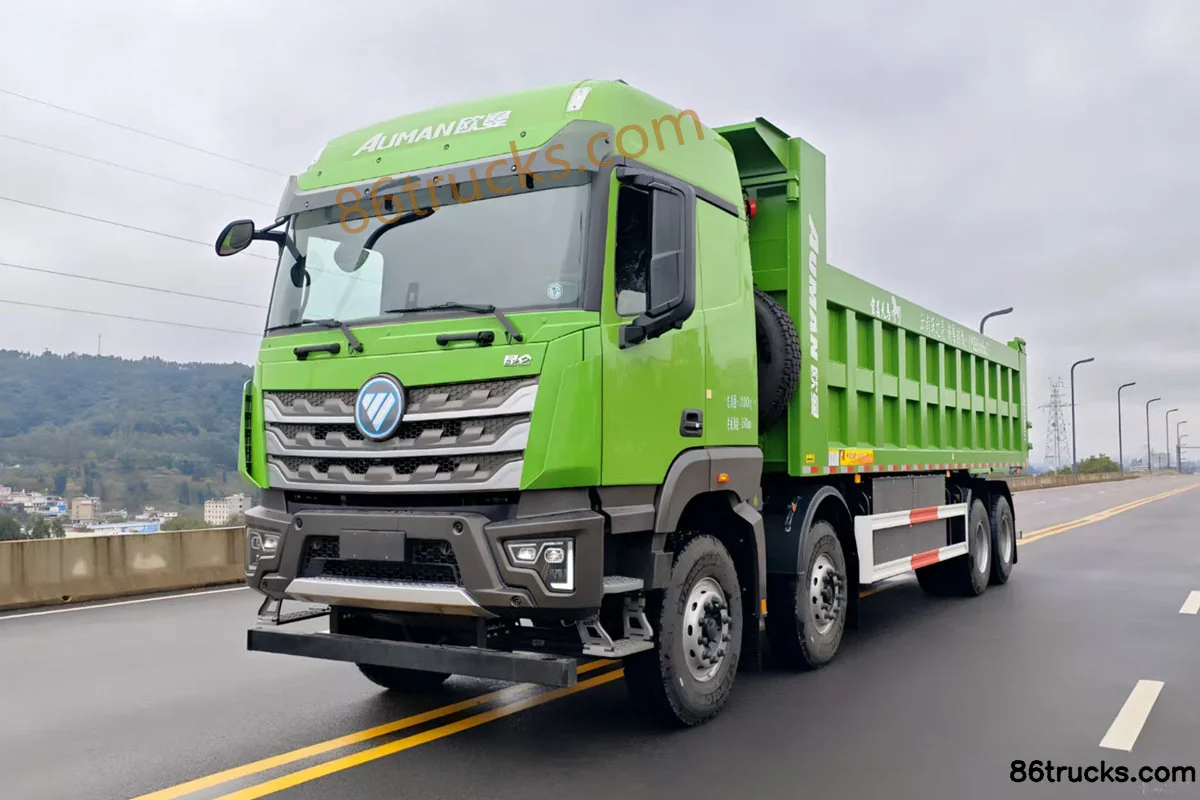

Exterior3

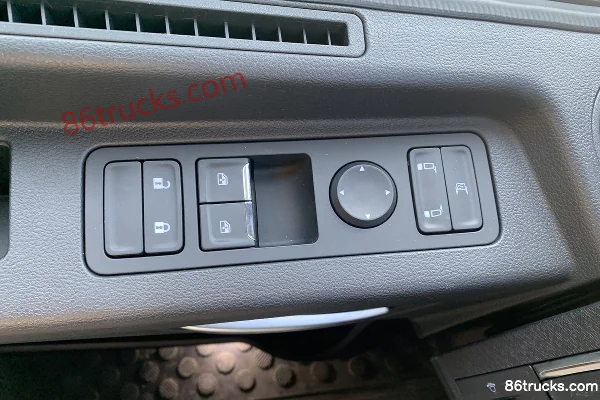

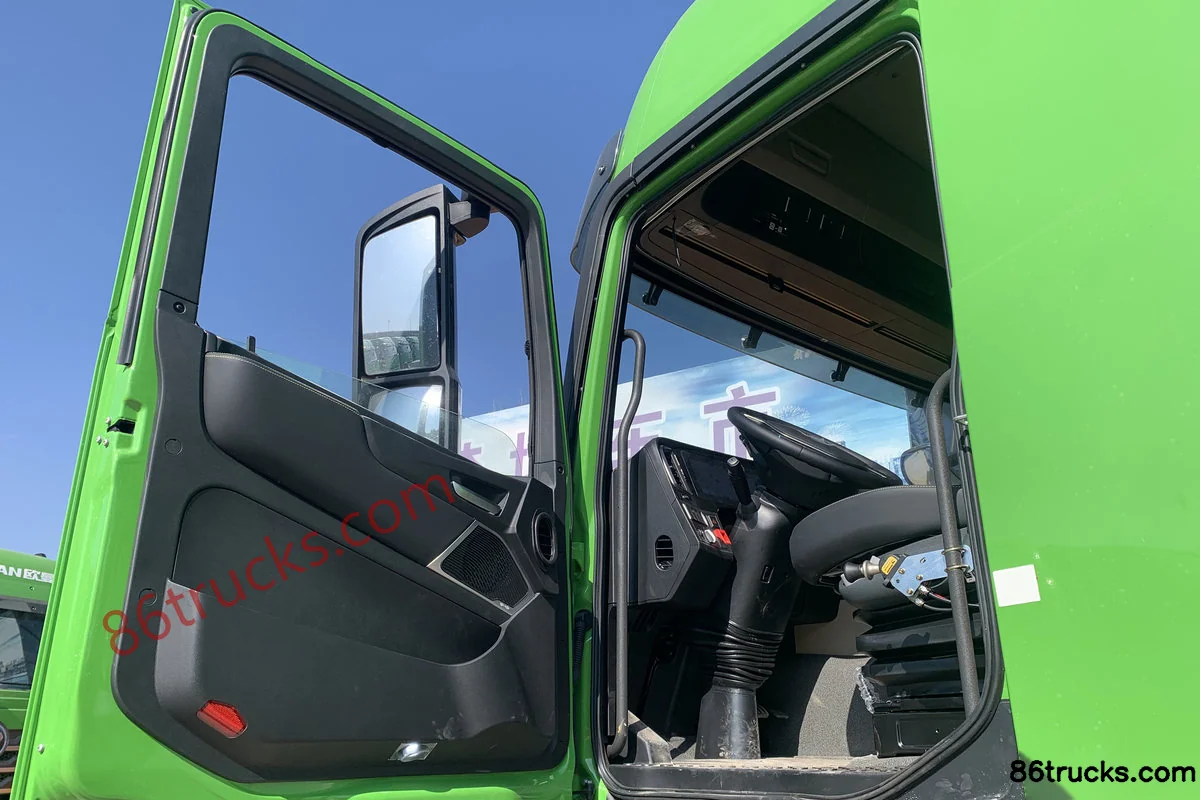

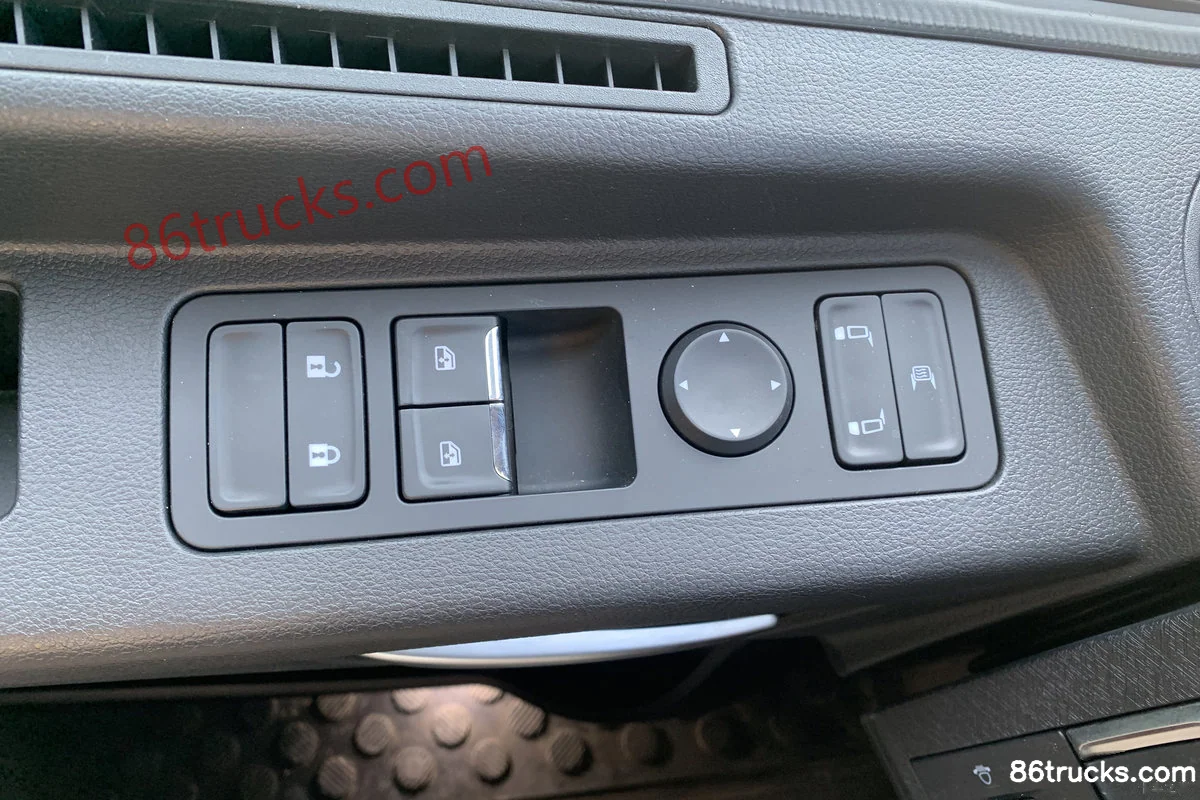

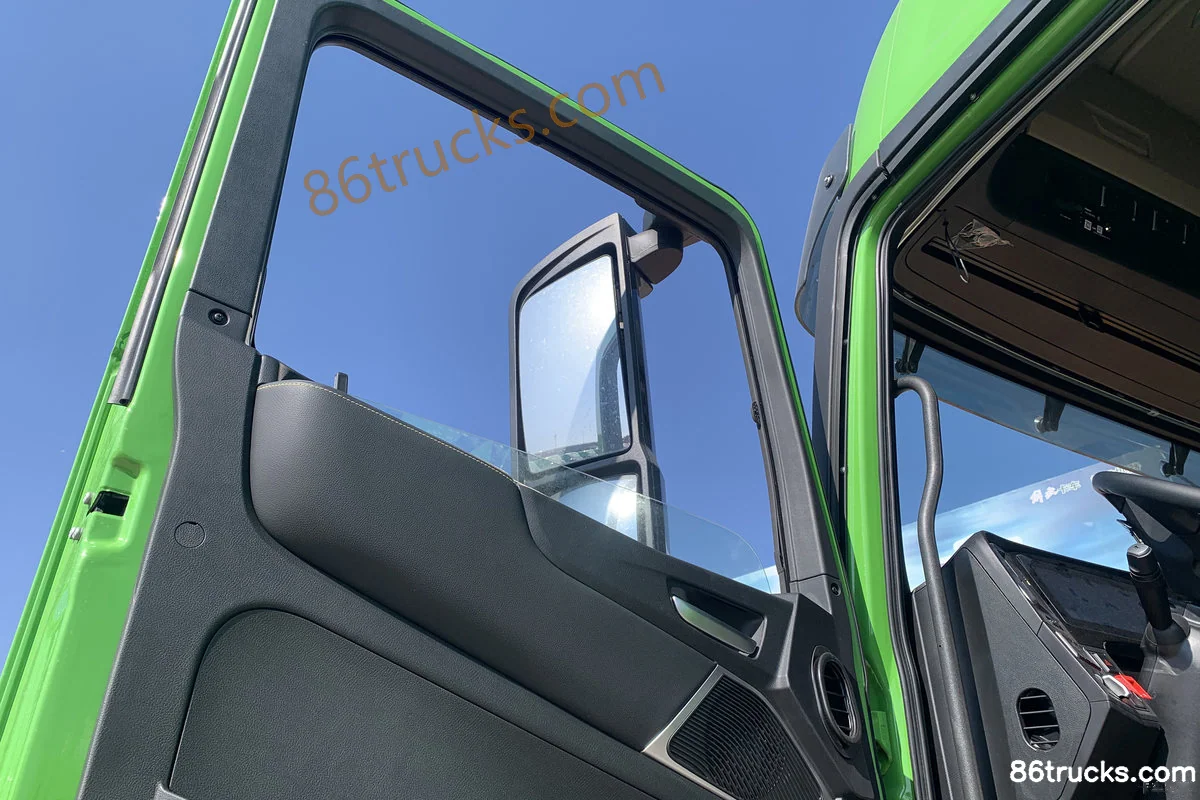

Cab3

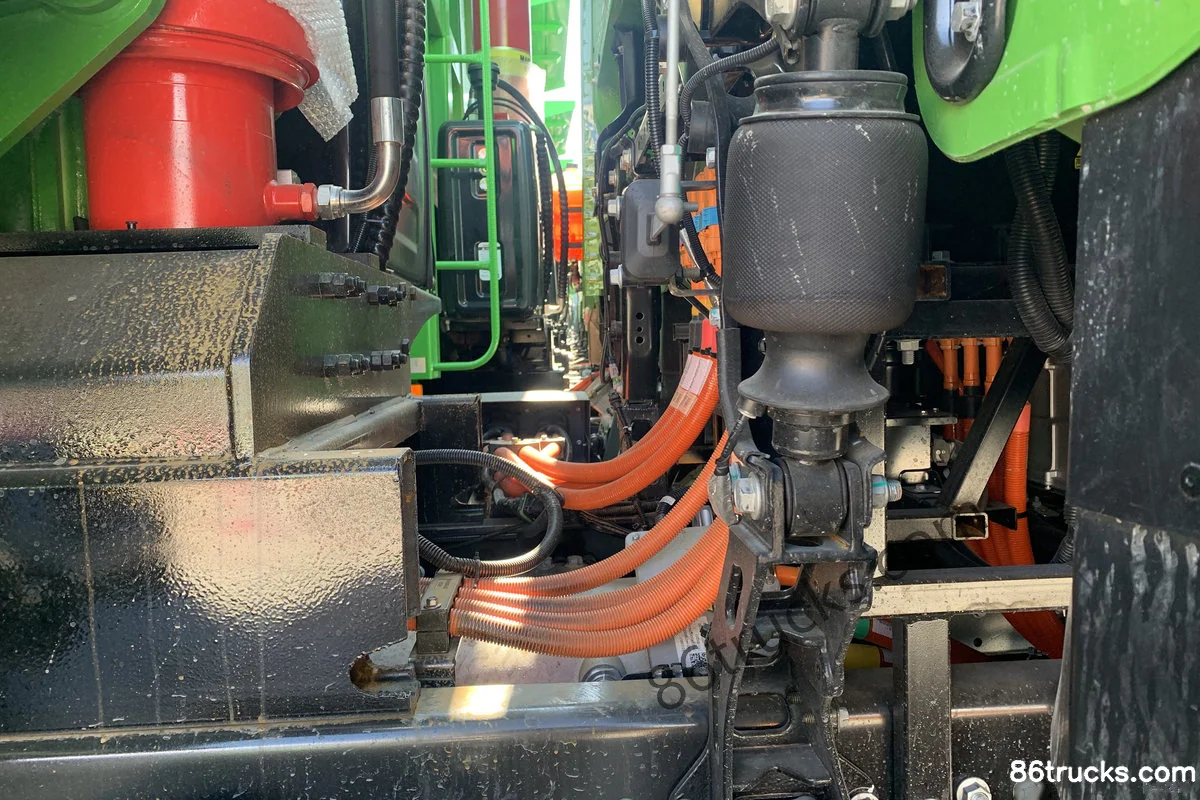

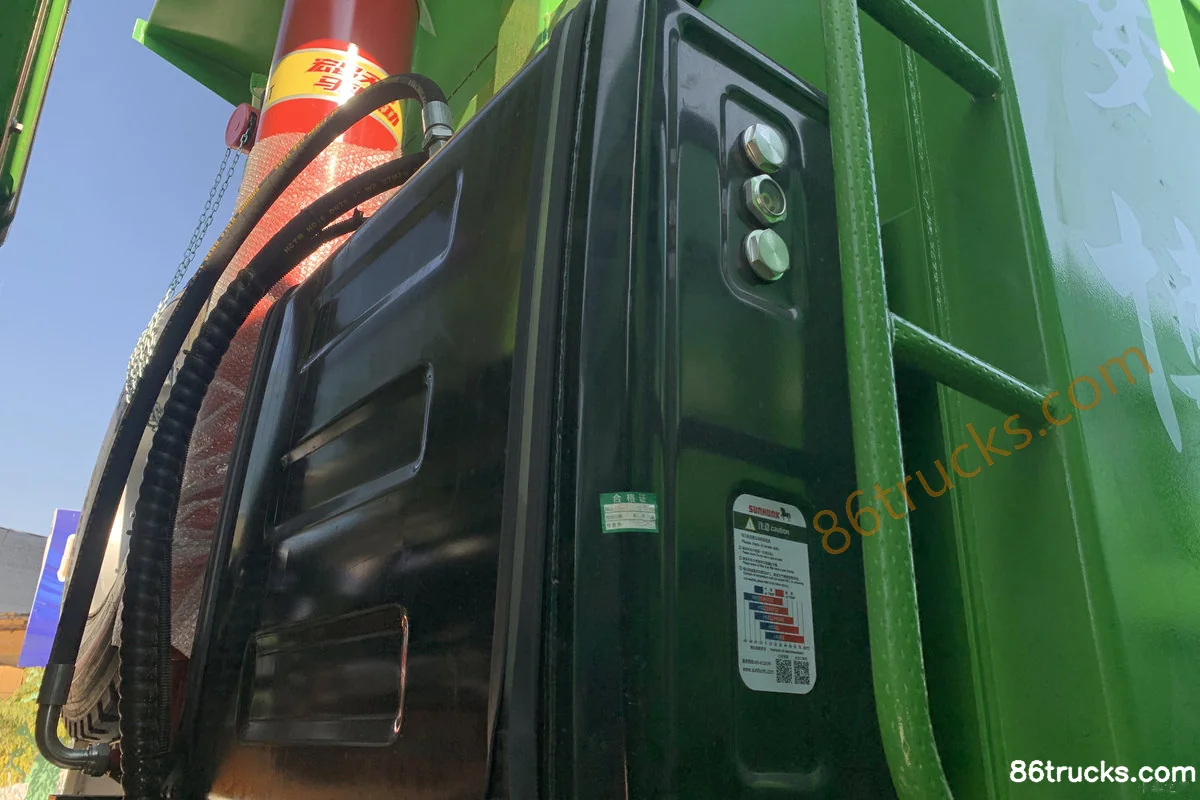

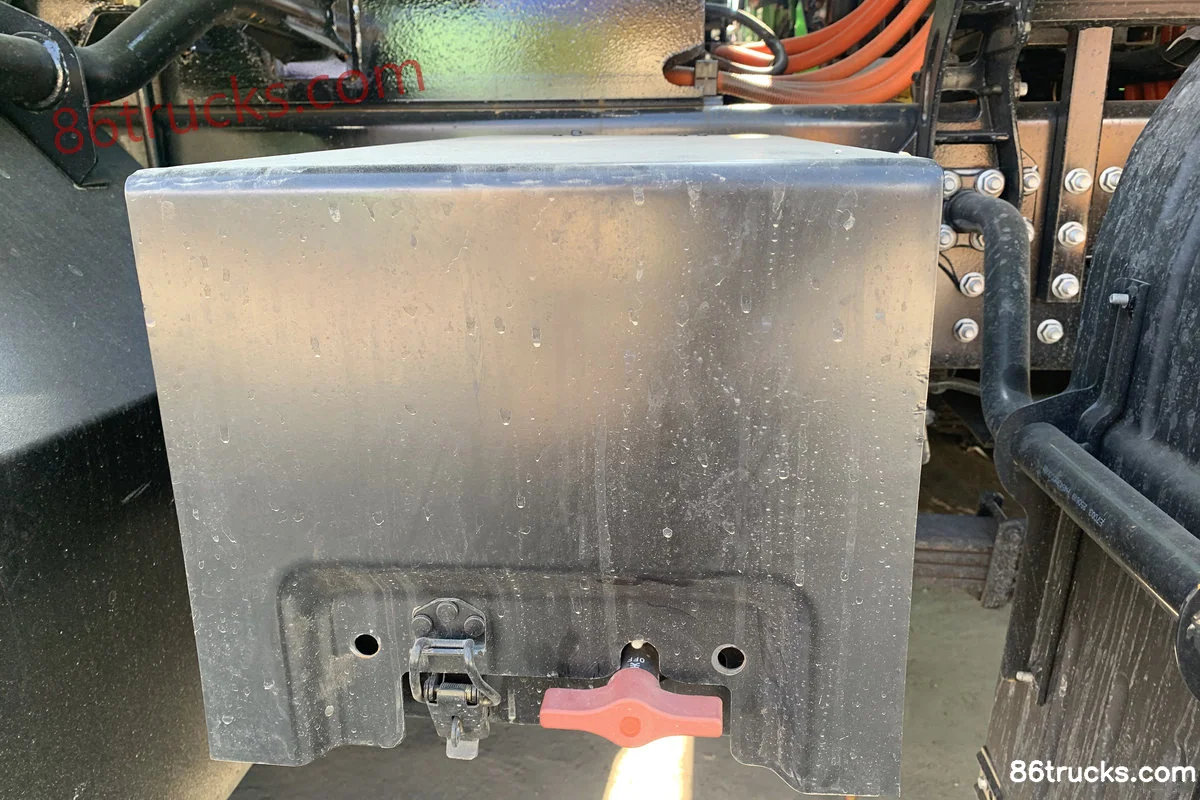

Chassis3

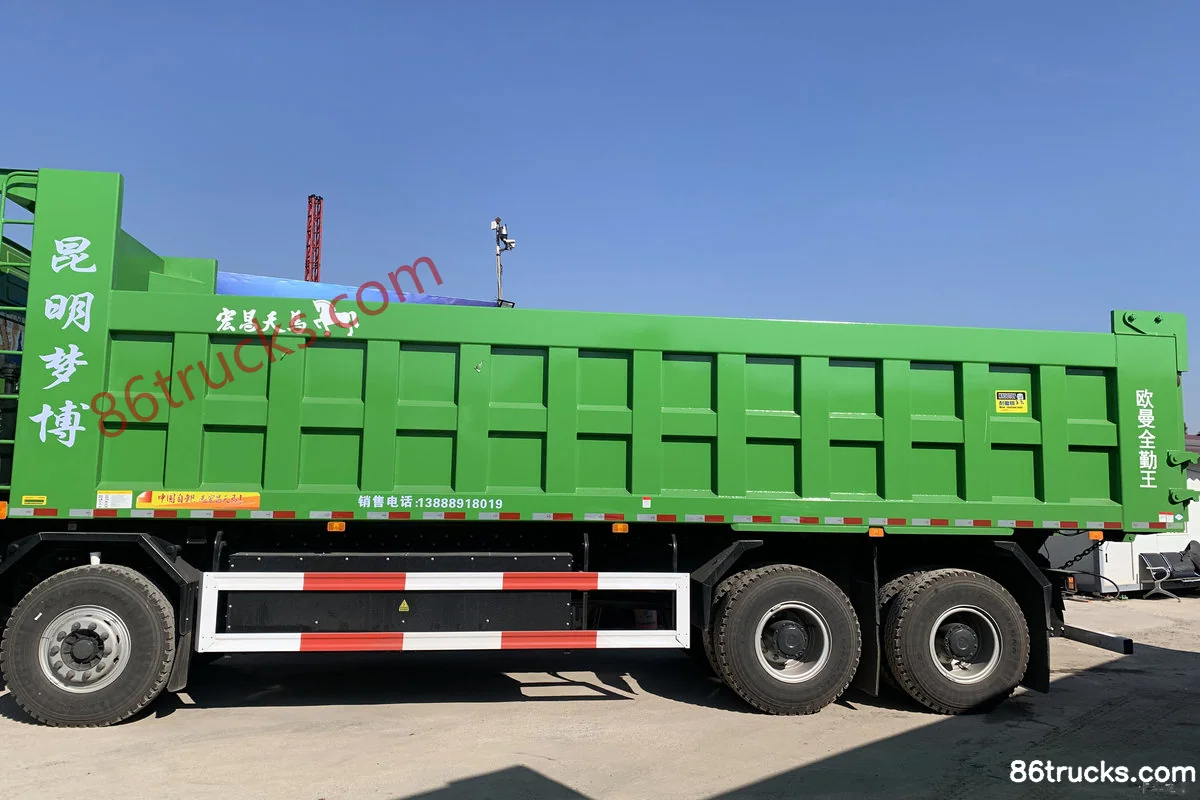

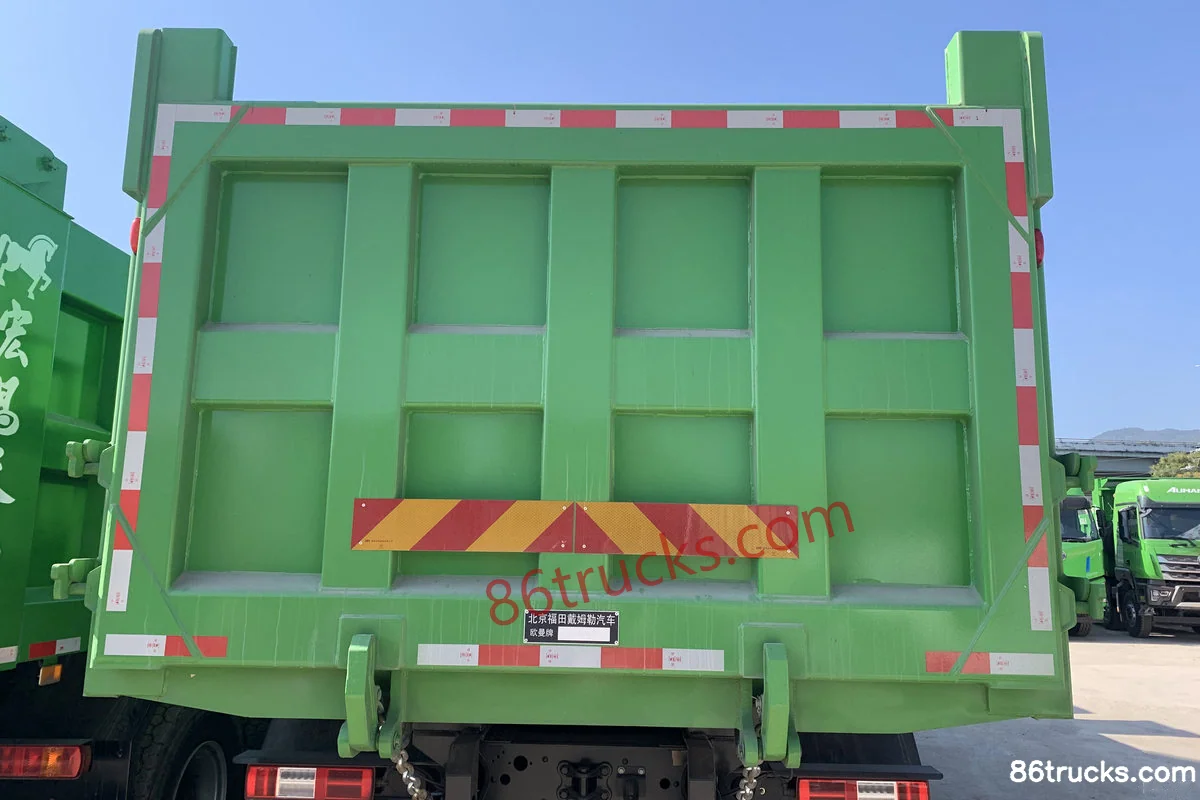

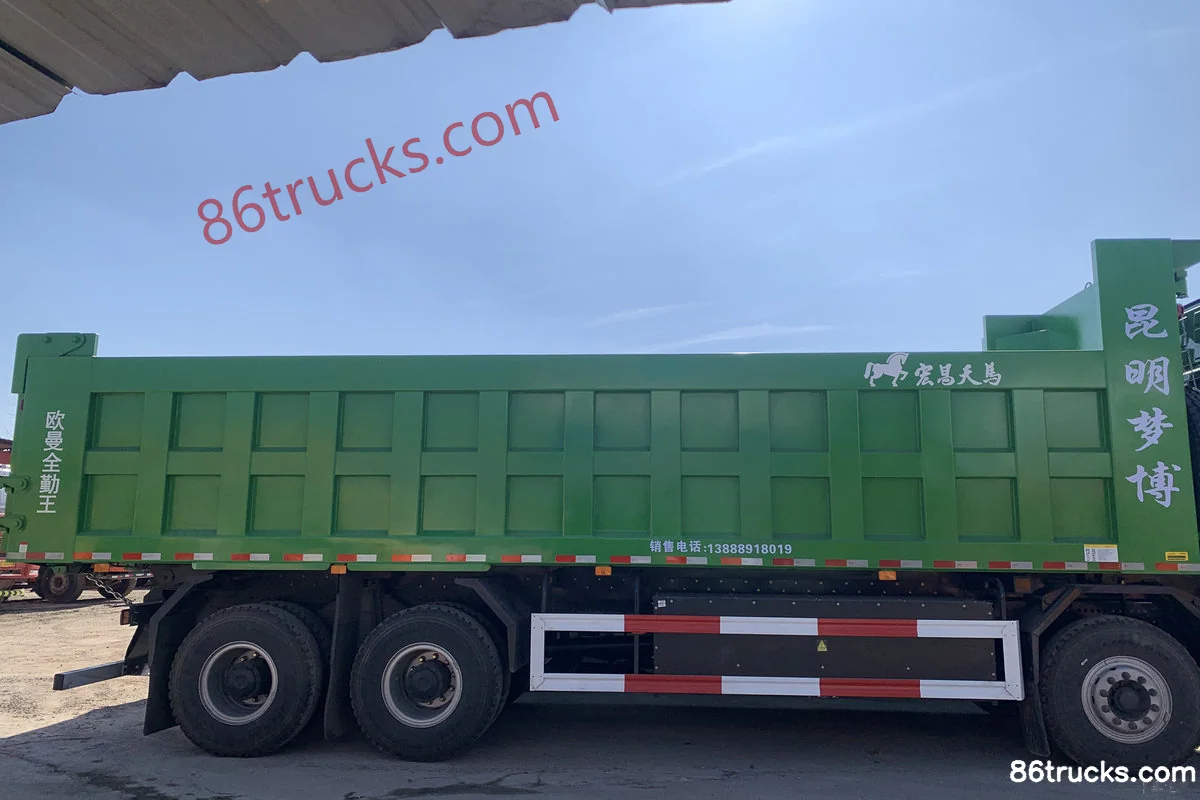

Body3

12 photos

FAQ

What is the export price of Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh, and what does it include?

Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh export reference is about From $88,611; MSRP is ¥63.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh?

Key specs of Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh suited for?

Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh differ from other variants in the same series?

Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh belongs to Foton Auman Kunlun Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Auman Kunlun 8X4(12 wheels) 8.8m Pure Electric Dump Truck CATL 400kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
