Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed)

Export reference
From $22,222
MSRP ¥16M CNY
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: Yuchai496
Transmission: Xingrui
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) is a Light Truck featuring 4.165m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai496 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ1041QDA33V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: YuchaiYC4FA130-50
transmission: Xingrui 5-35CY2K
Cab length: 5.995m
Cab width: 2.4/2.55m
Cab height: 2.5m
Front track width: 1755mm
rear track: 1604mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.12/1.575m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA130-50
Engine info: Yuchai496
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.982L
Emission standard: China V
Max output power: 95kW
Max hp: 130Horsepower
Max torque: 340N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Xingrui 5-35CY2K
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.165m
Cargo box width: 2.3/2.42m
Cargo box height: 0.55m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Leaf spring count: 3/9+7
Tire
Tire Size: 7.50R16 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

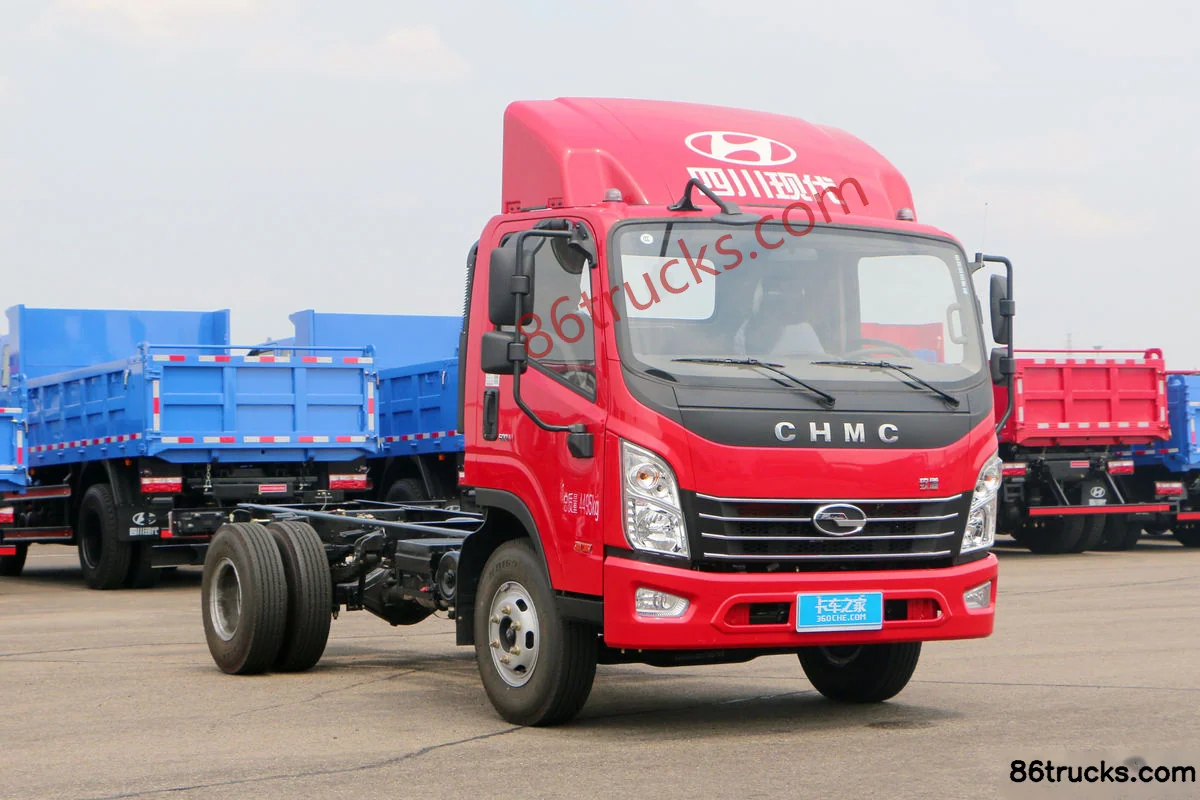

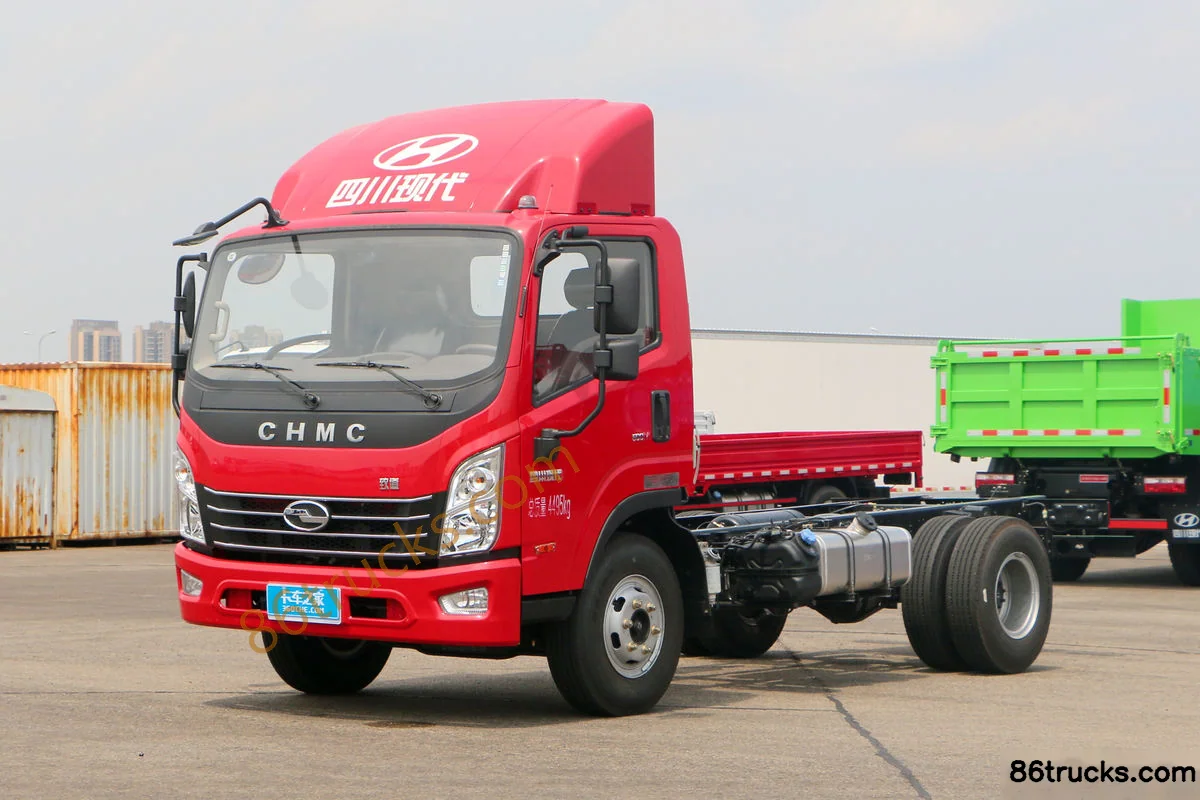

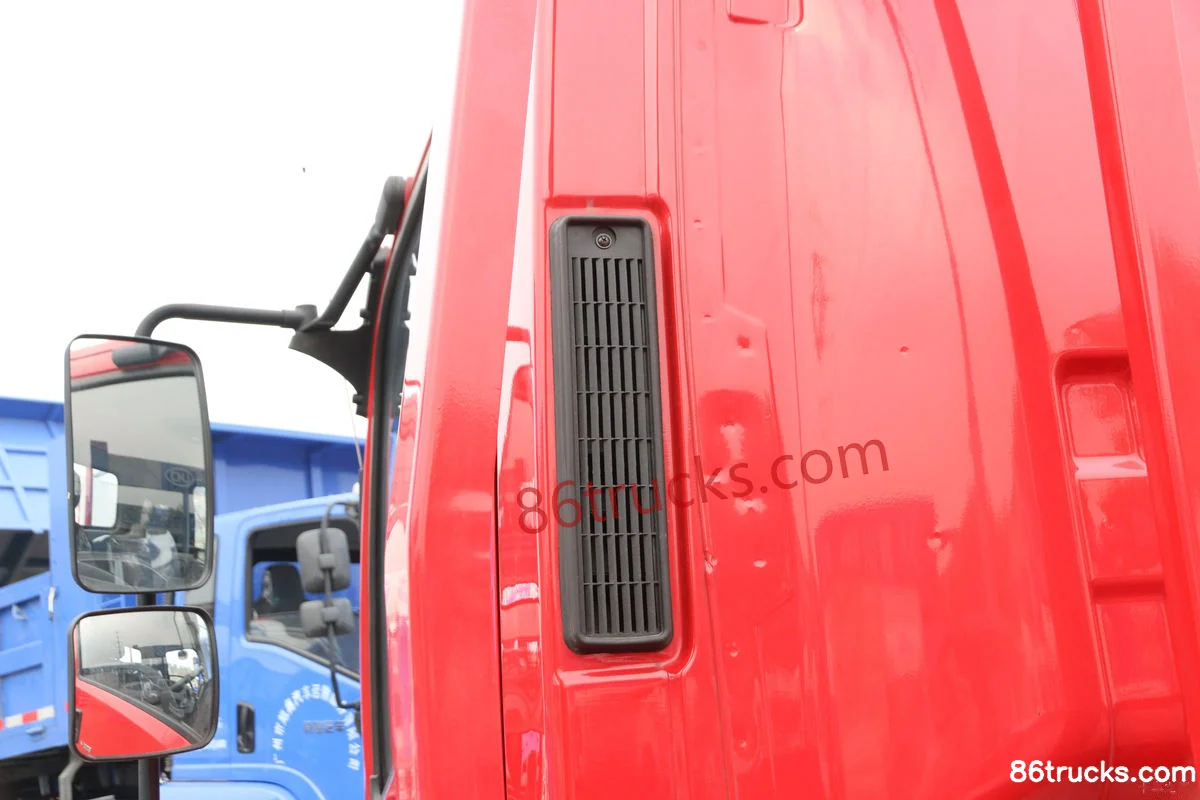

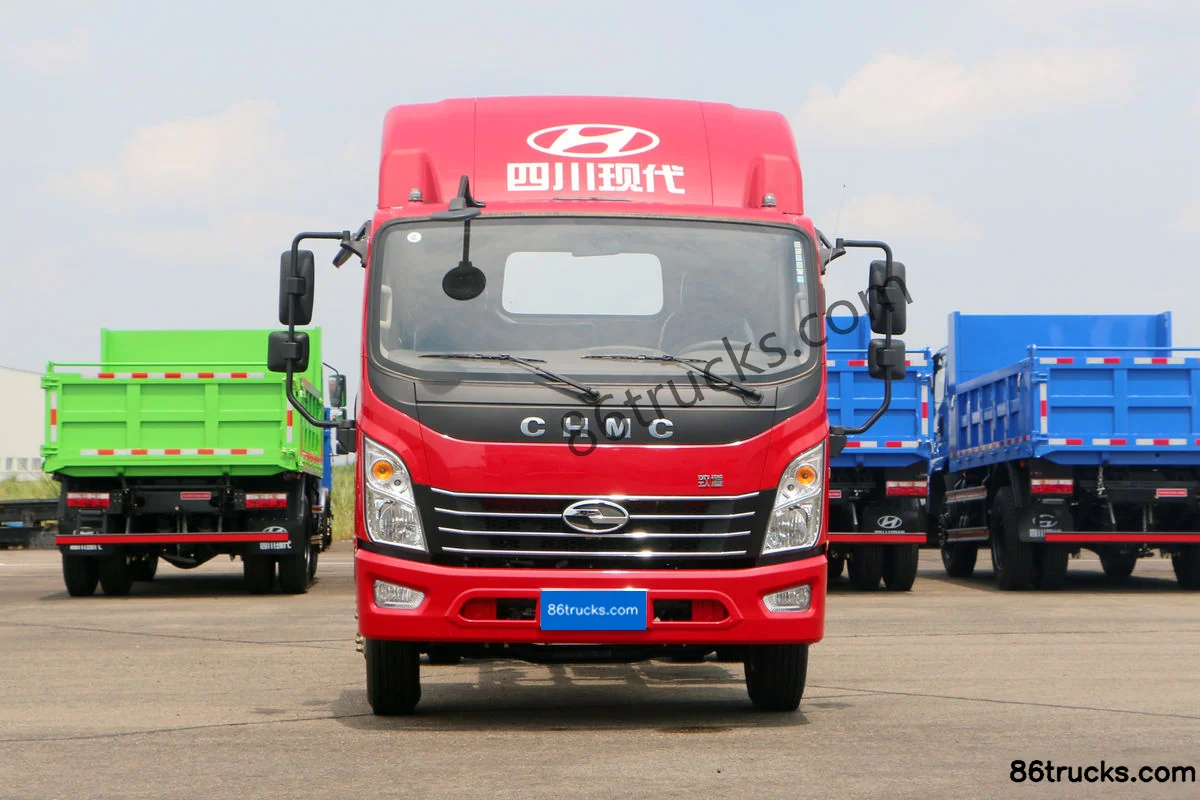

Exterior3

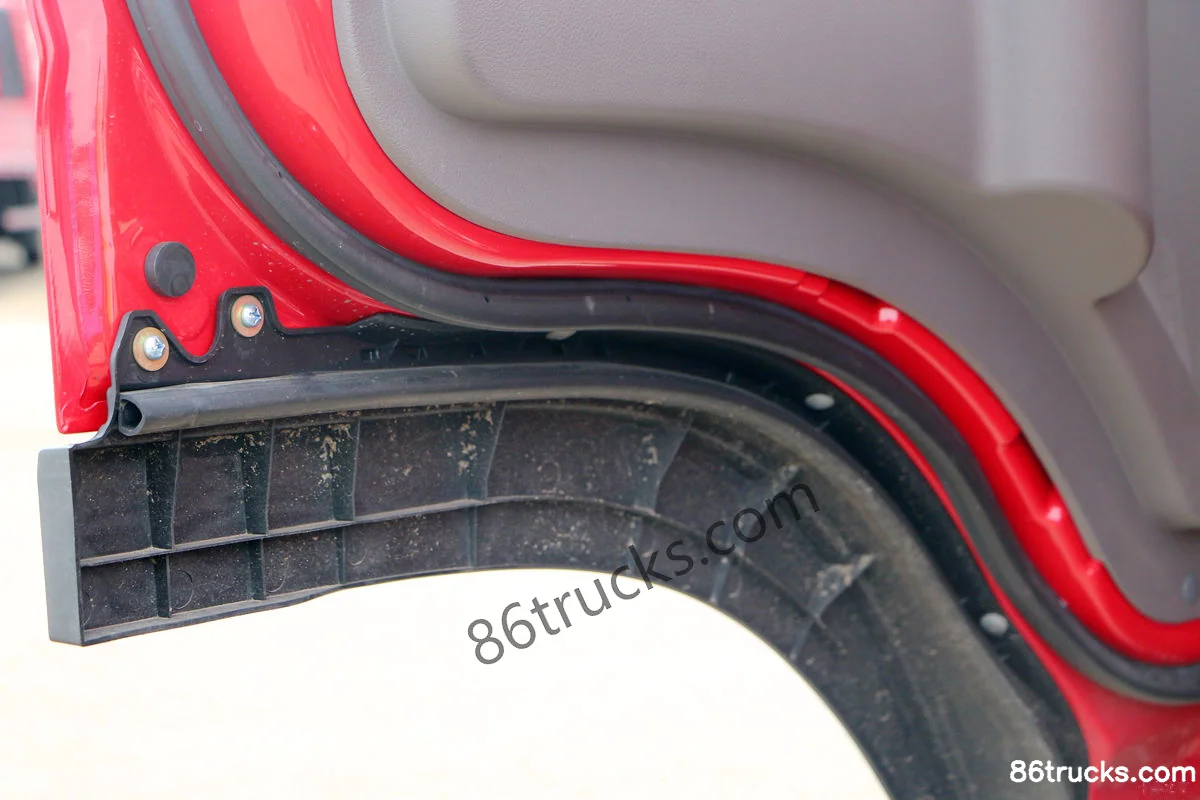

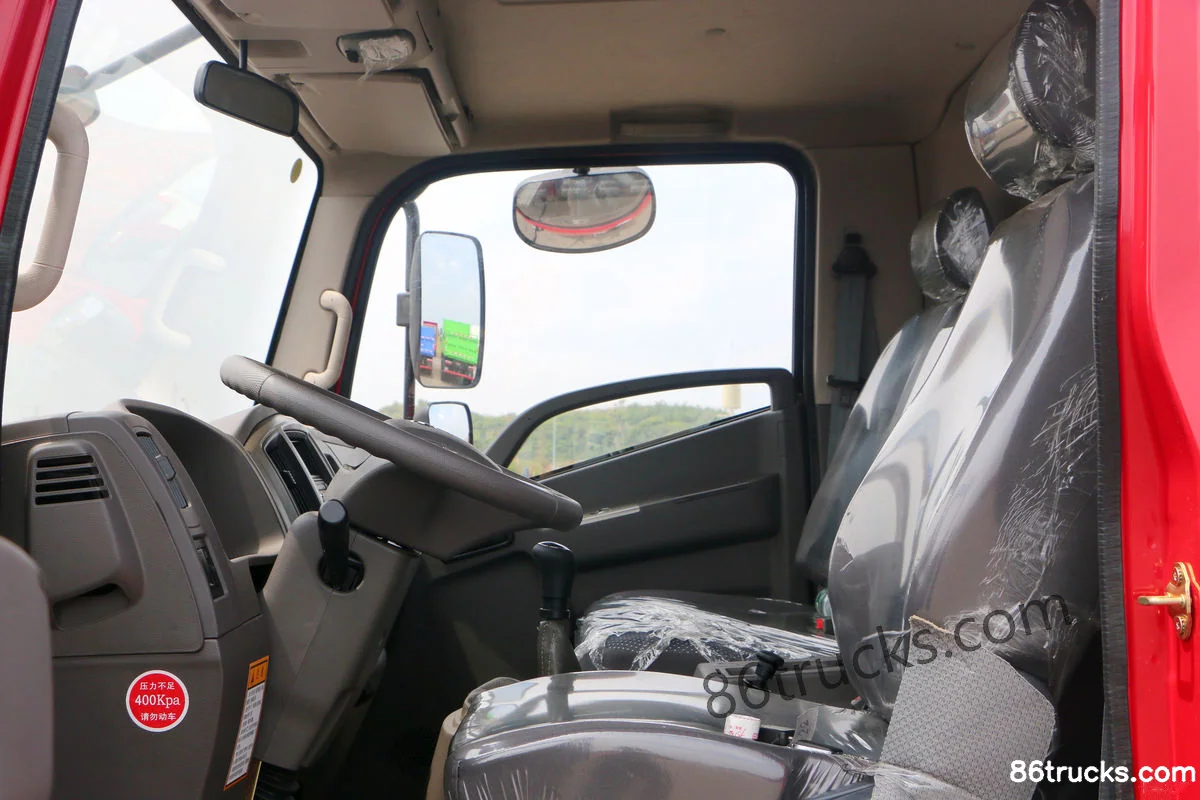

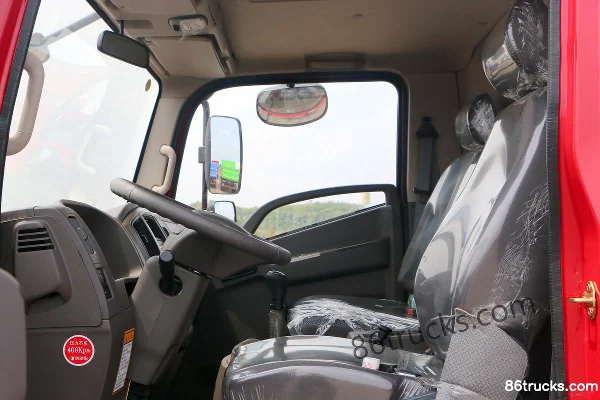

Cab3

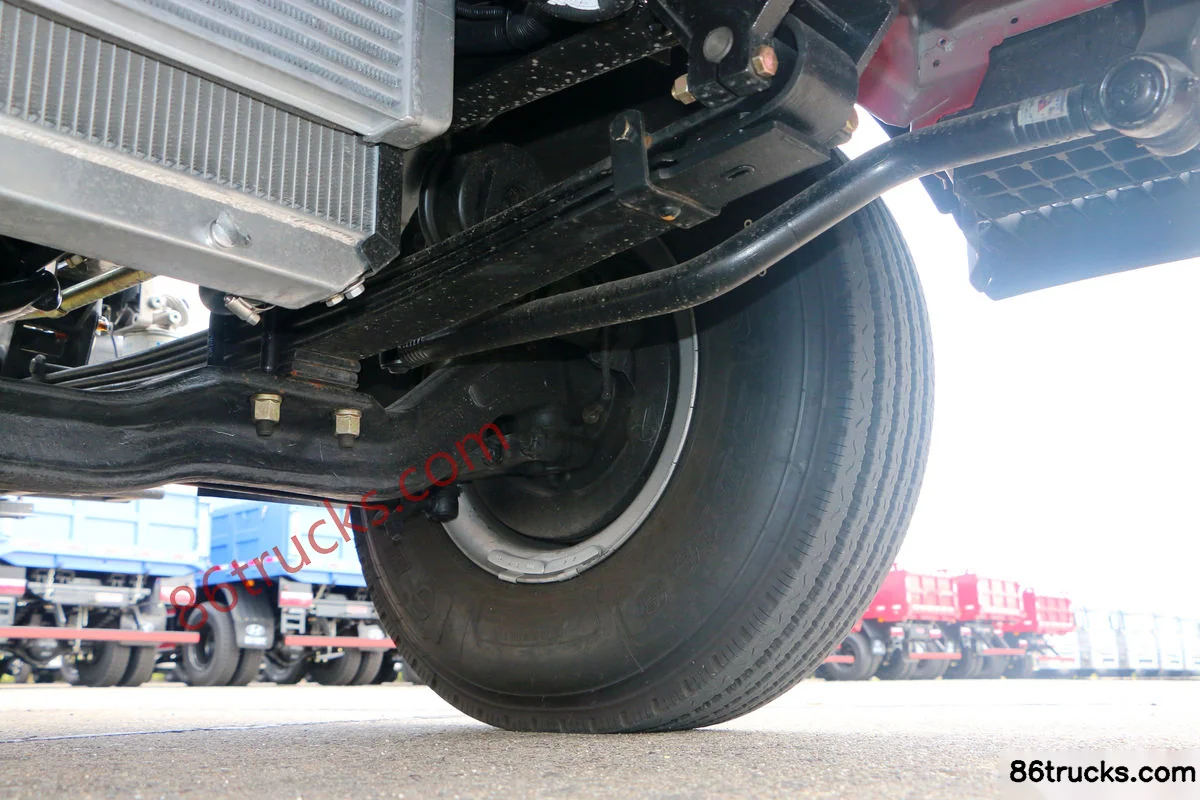

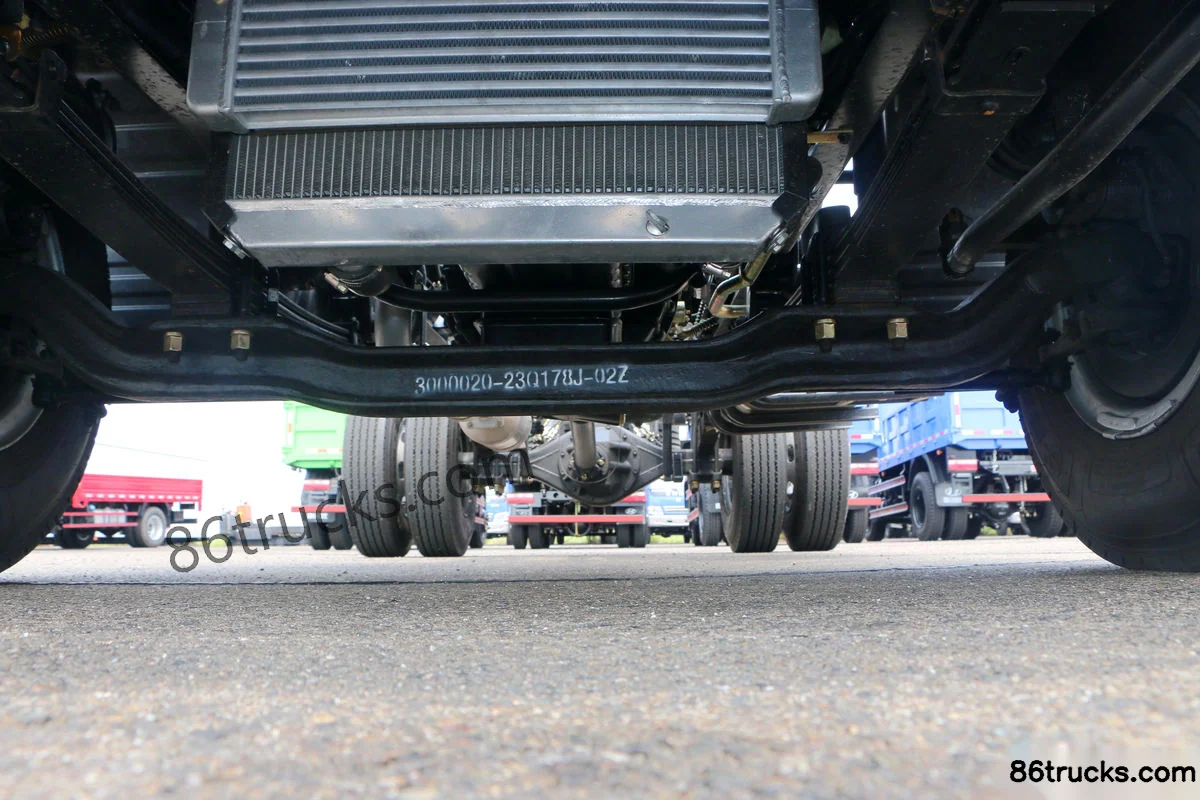

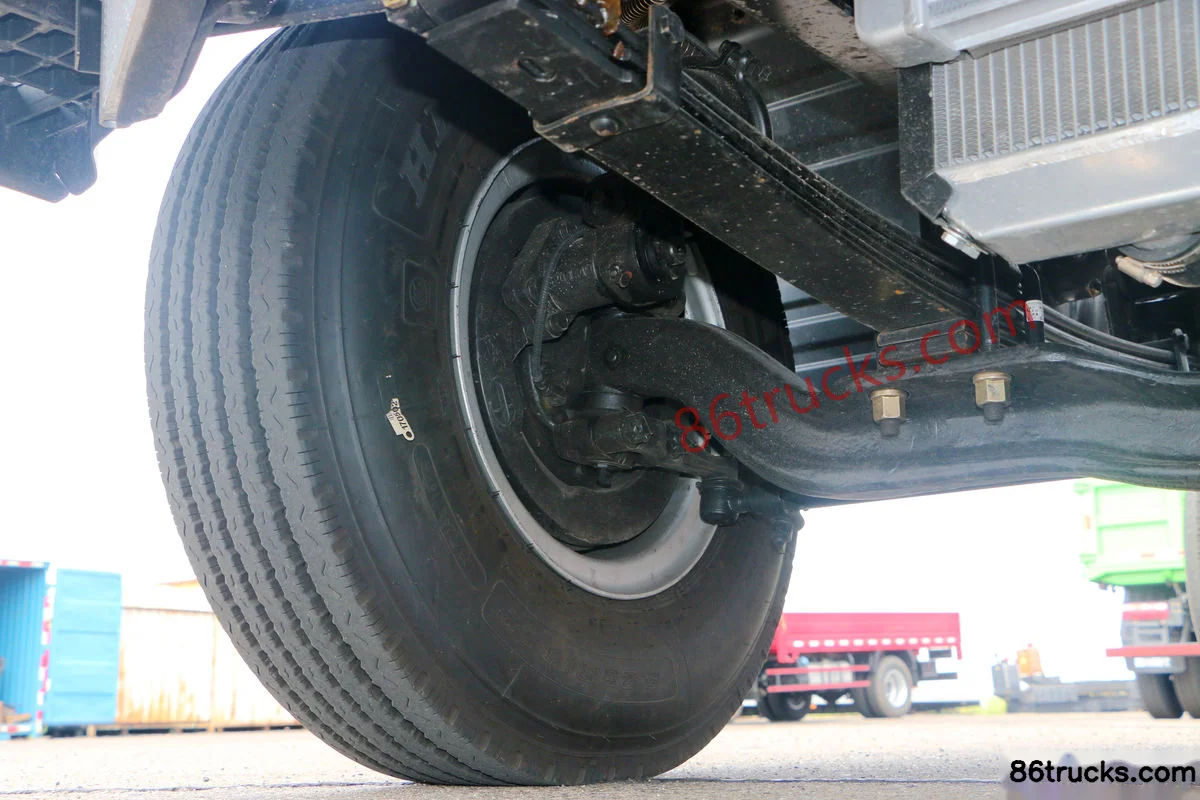

Chassis3

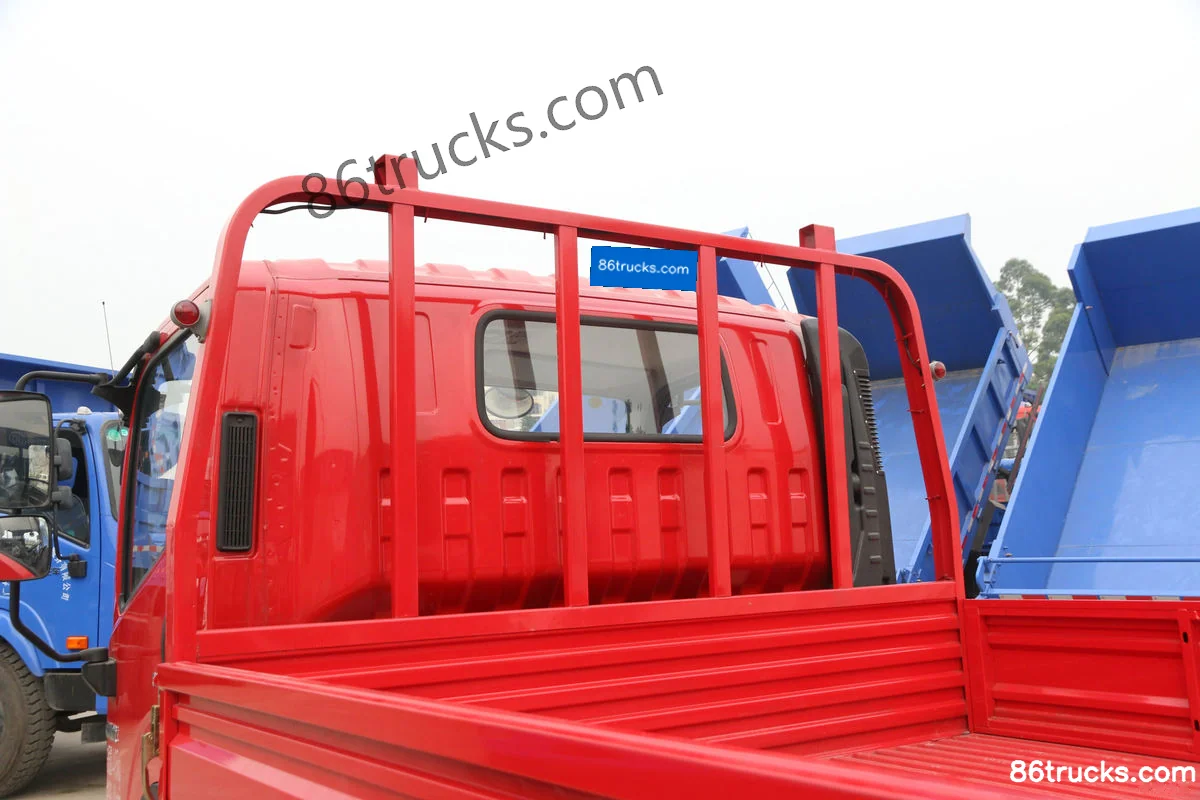

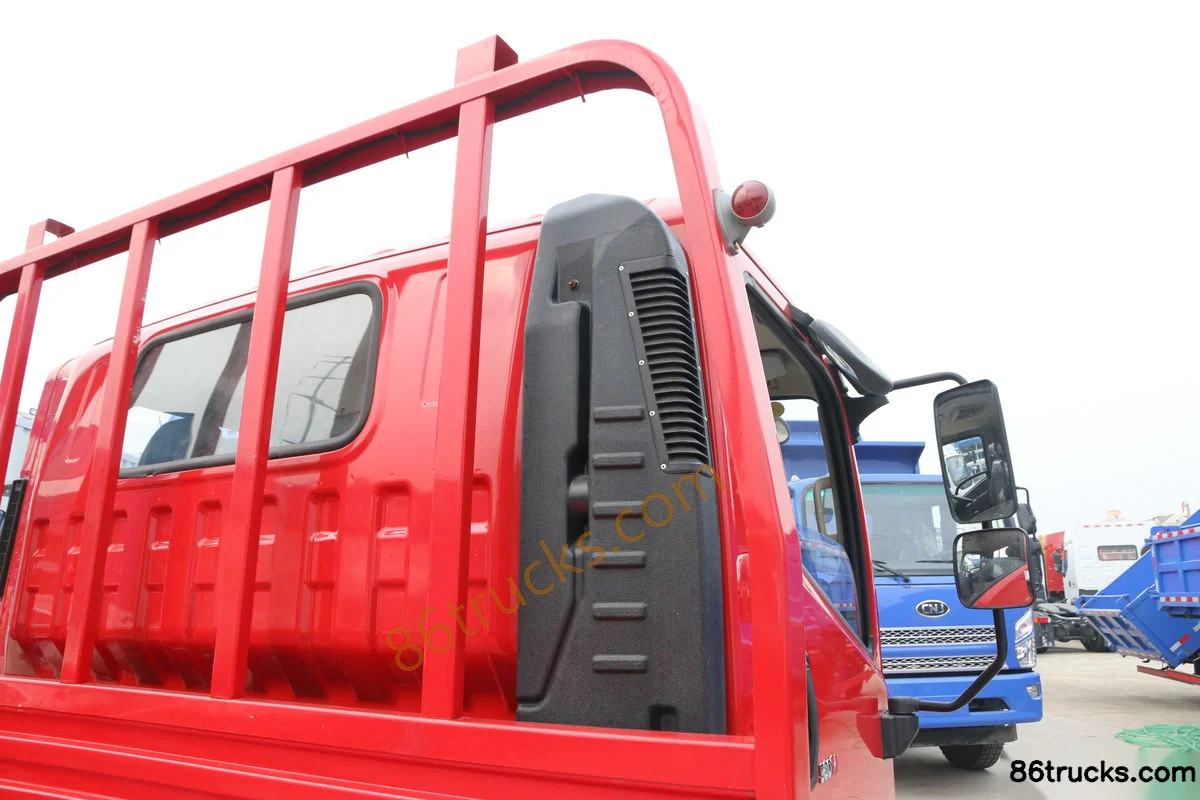

Body3

12 photos

FAQ

What is the export price of Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed), and what does it include?

Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) export reference is about From $22,222; MSRP is ¥16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed)?

Key specs of Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed): Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai496; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) suited for?

Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) differ from other variants in the same series?

Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed) belongs to Sichuan Hyundai Zhidao 500 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle Zhidao 500M 130hp 4X2(6 wheels) 4.165m single-row stake truck (Xingrui 5-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
