Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand)

Export reference
MSRP N/A
Curb Weight:: 3.675ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 3280mm
Cab dimensions:: 5.98×2.05×2.38m
Truck Type:: fuel tanker truck
Tank Size: 3.7×1.53×1.03m
Rated payload: 3.49ton
Drive 4X2 (6 wheels)
Horsepower 130

Overview

The Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand) is a fuel tanker truck featuring 3.7×1.53×1.03m tank capacity, 3.49t payload, 4.2m³ volume and 7.36t GVW. On the powertrain side, it comes with 130 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.98×2.05×2.38m
Truck Type: fuel tanker truck
Drive type: 4X2
Vehicle origin: Jinan, Shandong
Wheelbase: 3280mm
Front track width: 1615mm
rear track: 1560mm
Curb Weight: 3.675ton
Rated payload: 3.49ton
GVWR: 7.36ton
Max. speed: 80km/h
Front/rear suspension: 1.165/1.535m
Energy Type: Diesel
Body Parameters
Tank Size: 3.7×1.53×1.03m
Tank Volume: 4.2m3
Transport medium: Diesel
Vehicle certification code: JYJ5077GJYF
Body Brand: Luye Brand
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled
Chassis Specs
Chassis Brand: Sinotruk (China)
Chassis Series: Hohan
Chassis Model: ZZ1077F3315F174
Axle ratio: 4.875
Leaf spring count: 3/3+2
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Tire
Tire Size: 7.00R16LT,7.50R16LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
External audio input (AUX/USB/iPod etc.):

Photos

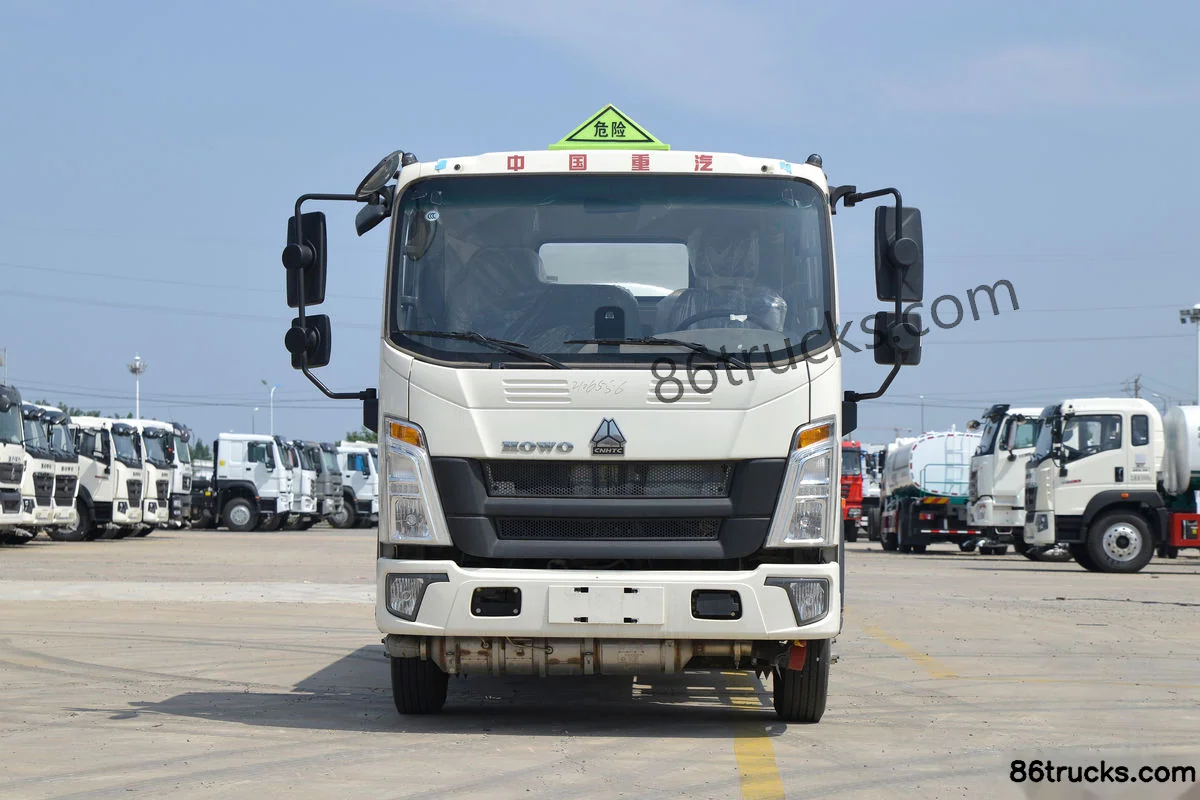

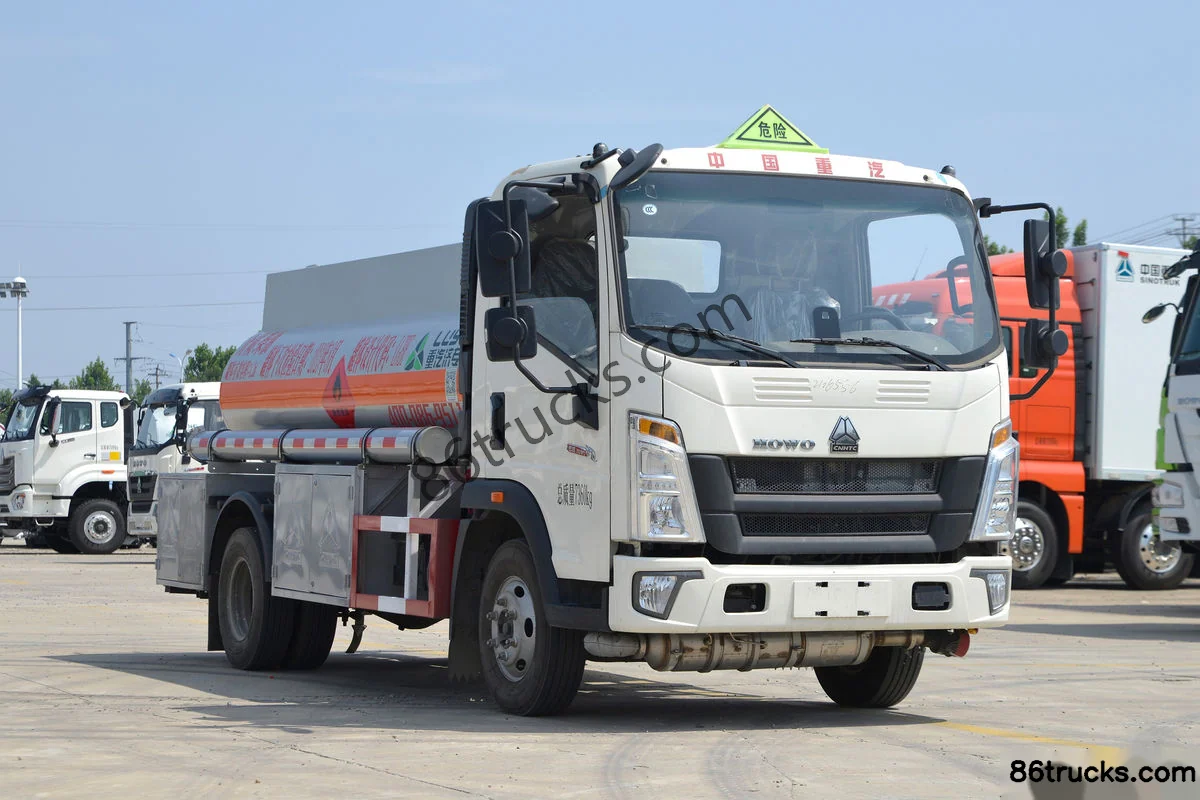

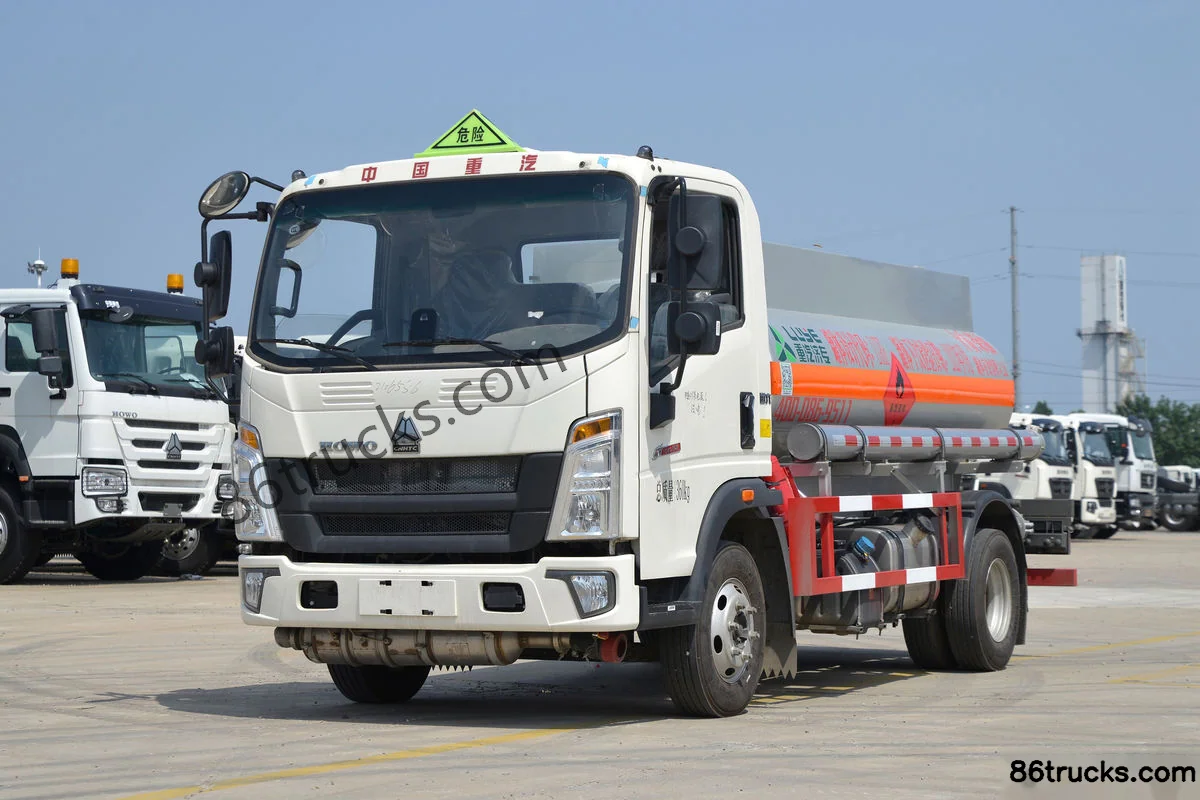

Exterior3

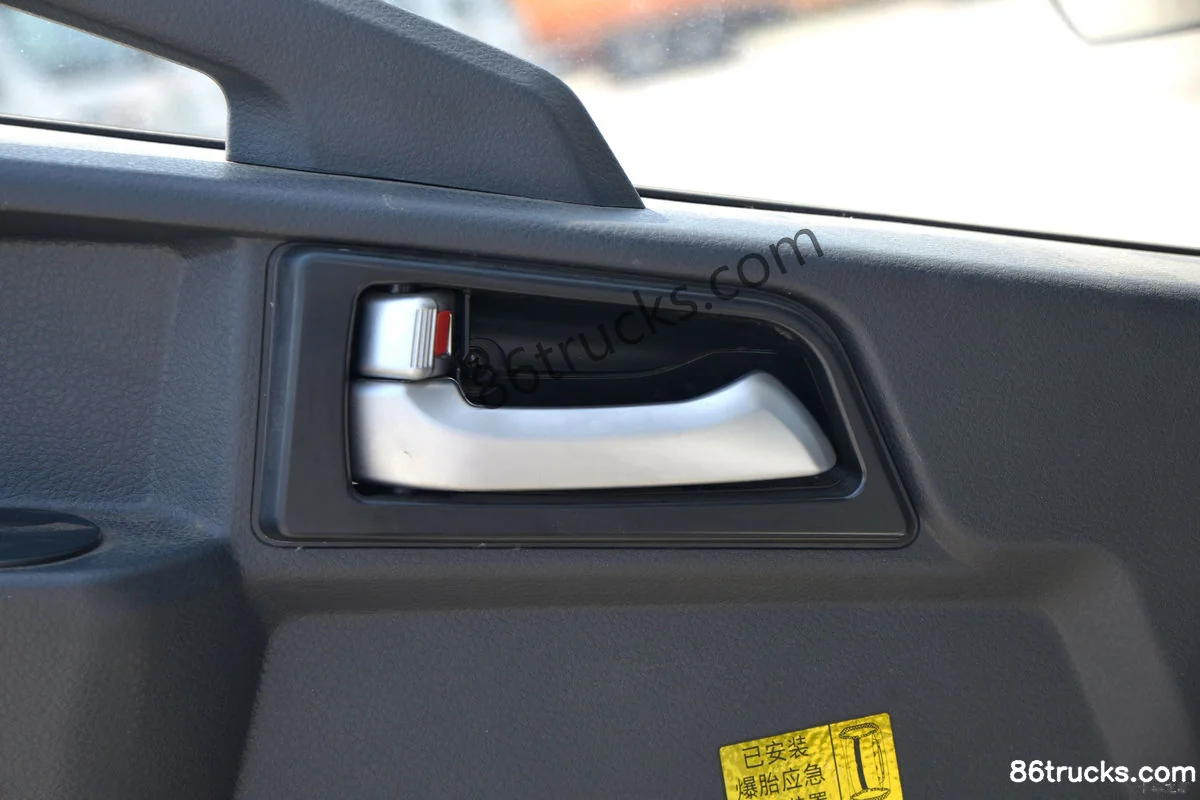

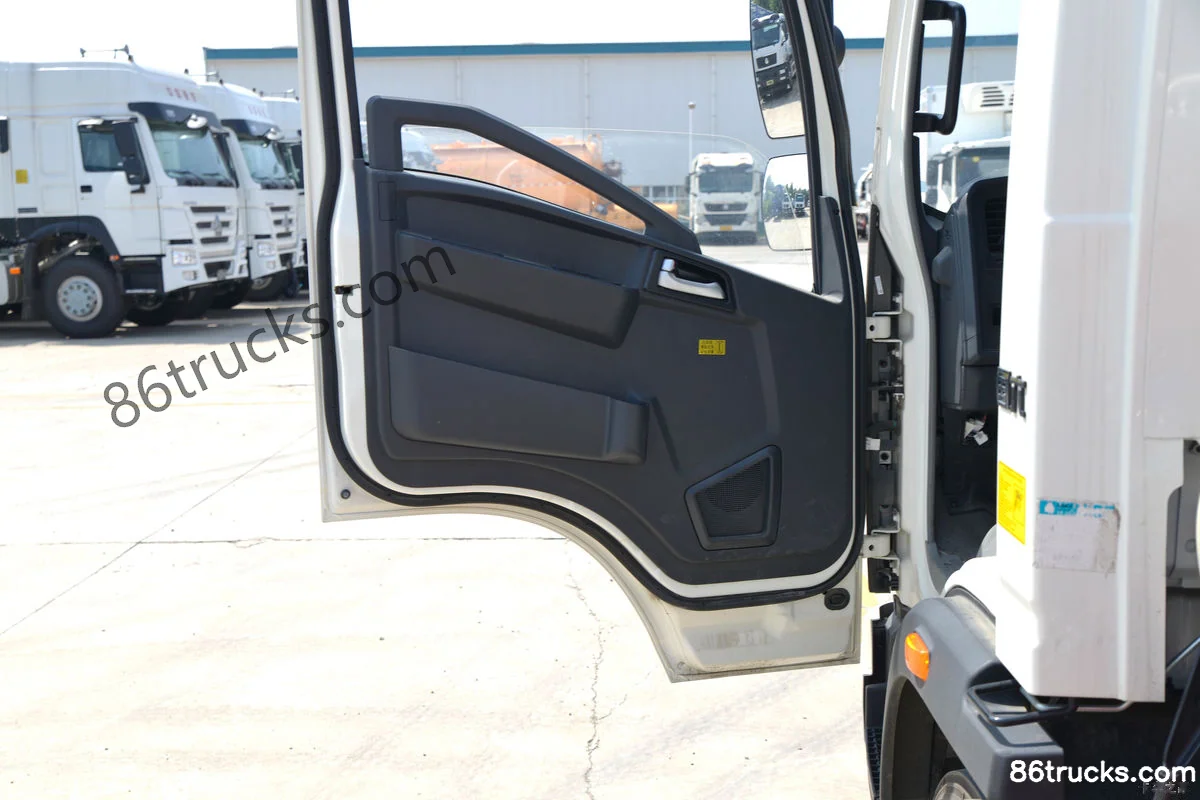

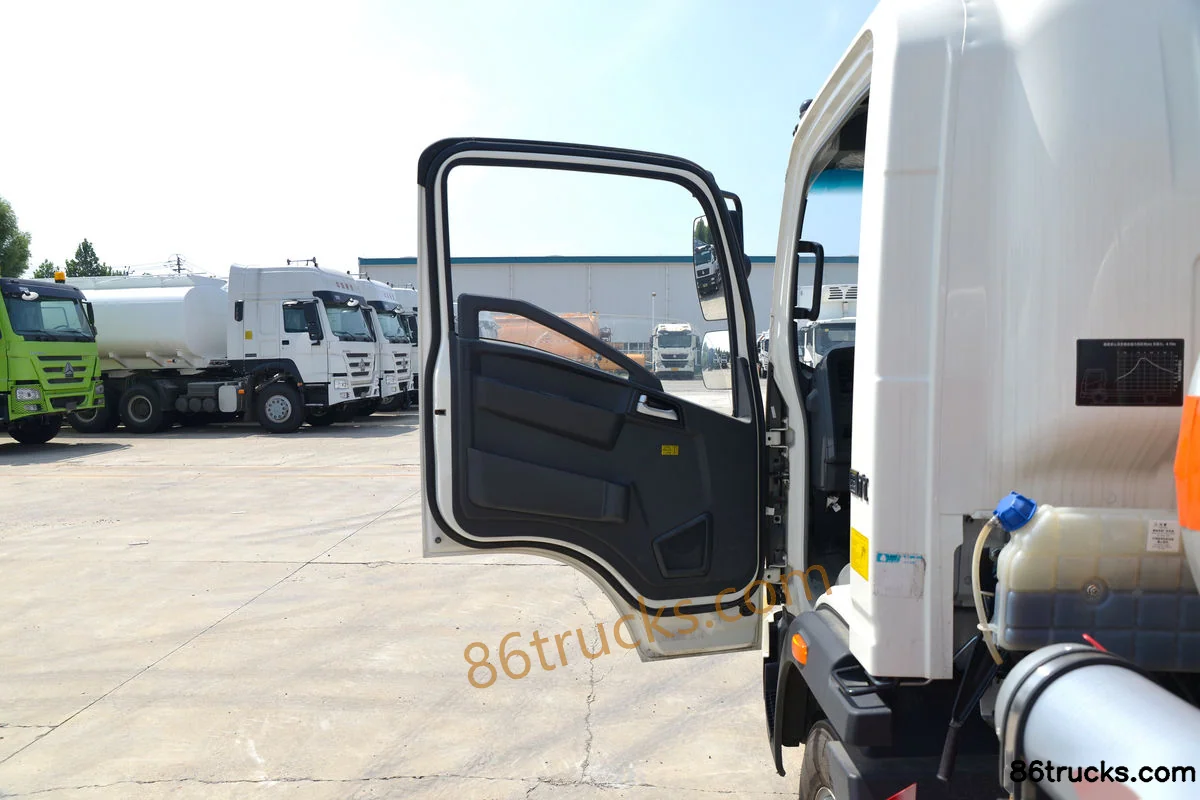

Cab3

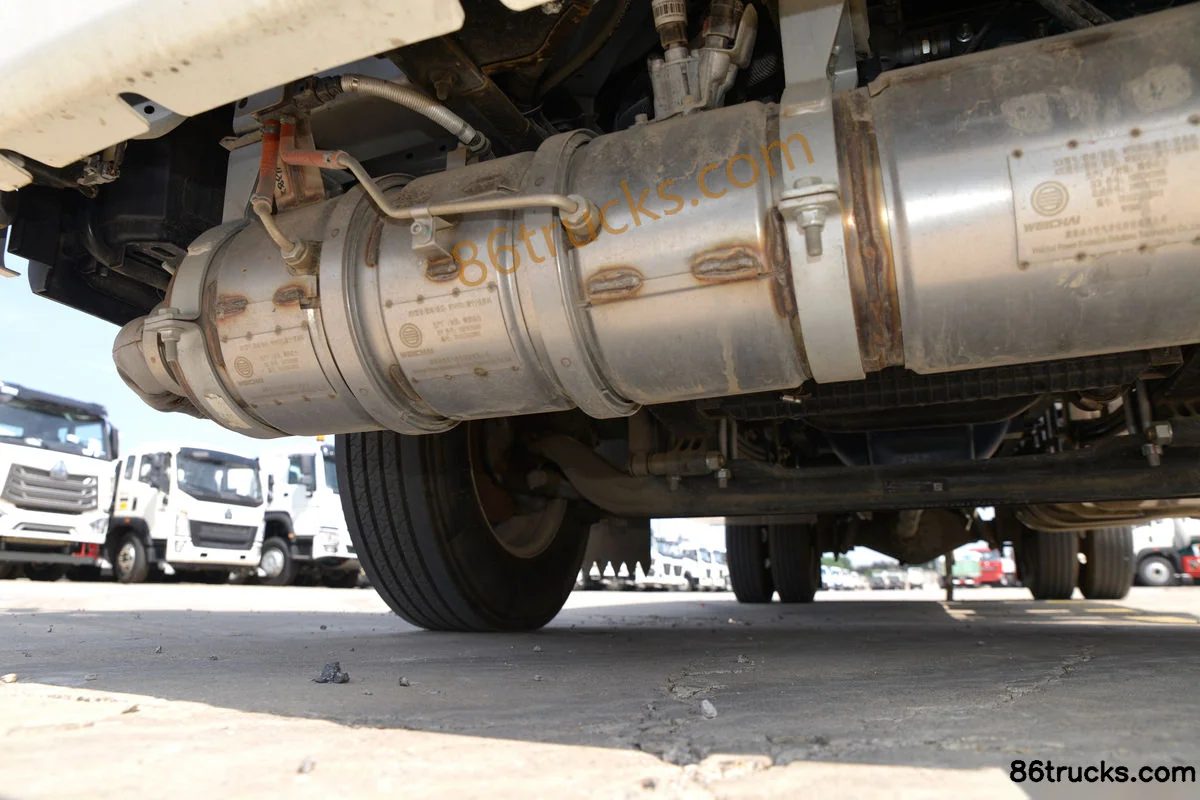

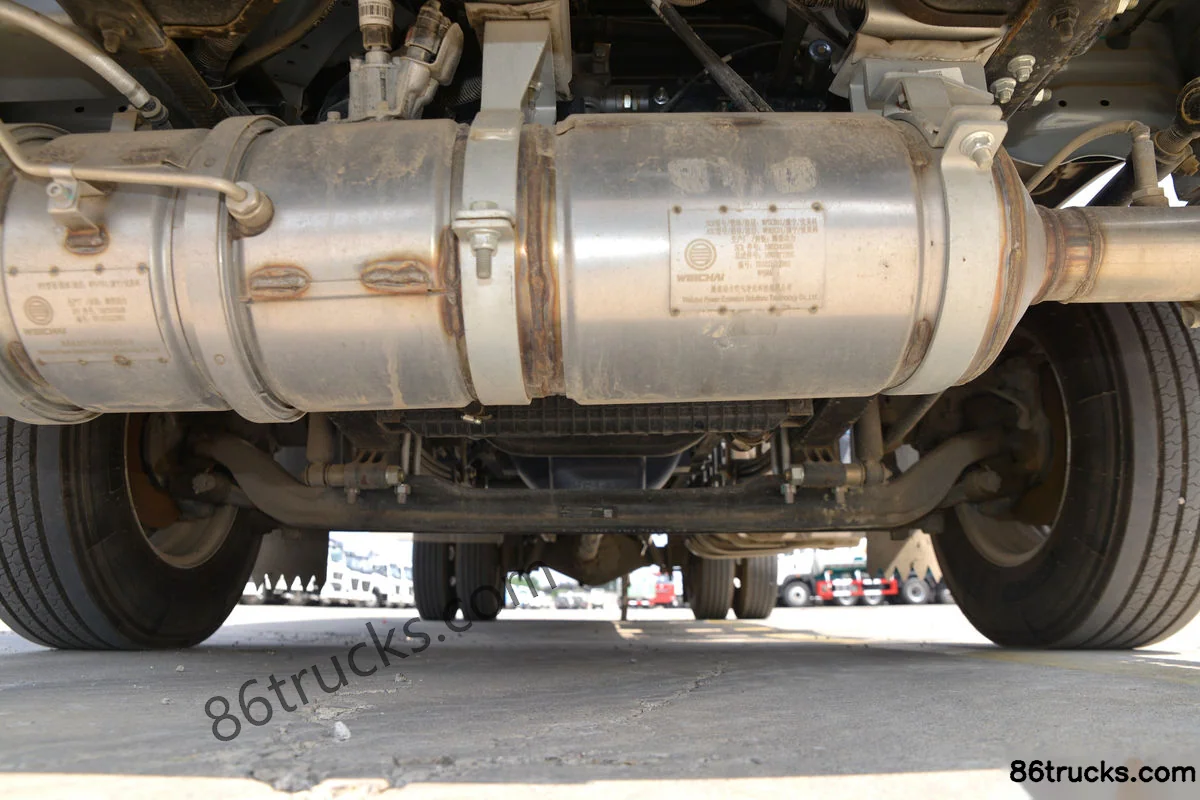

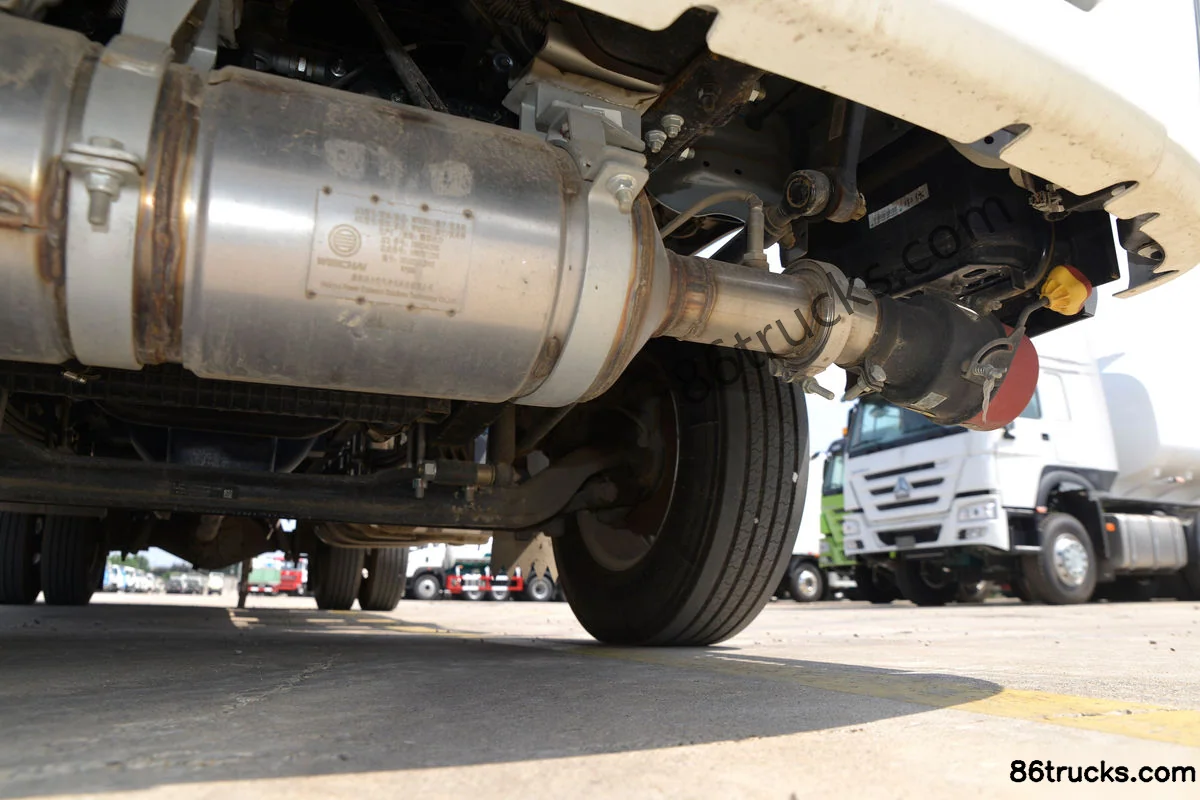

Chassis3

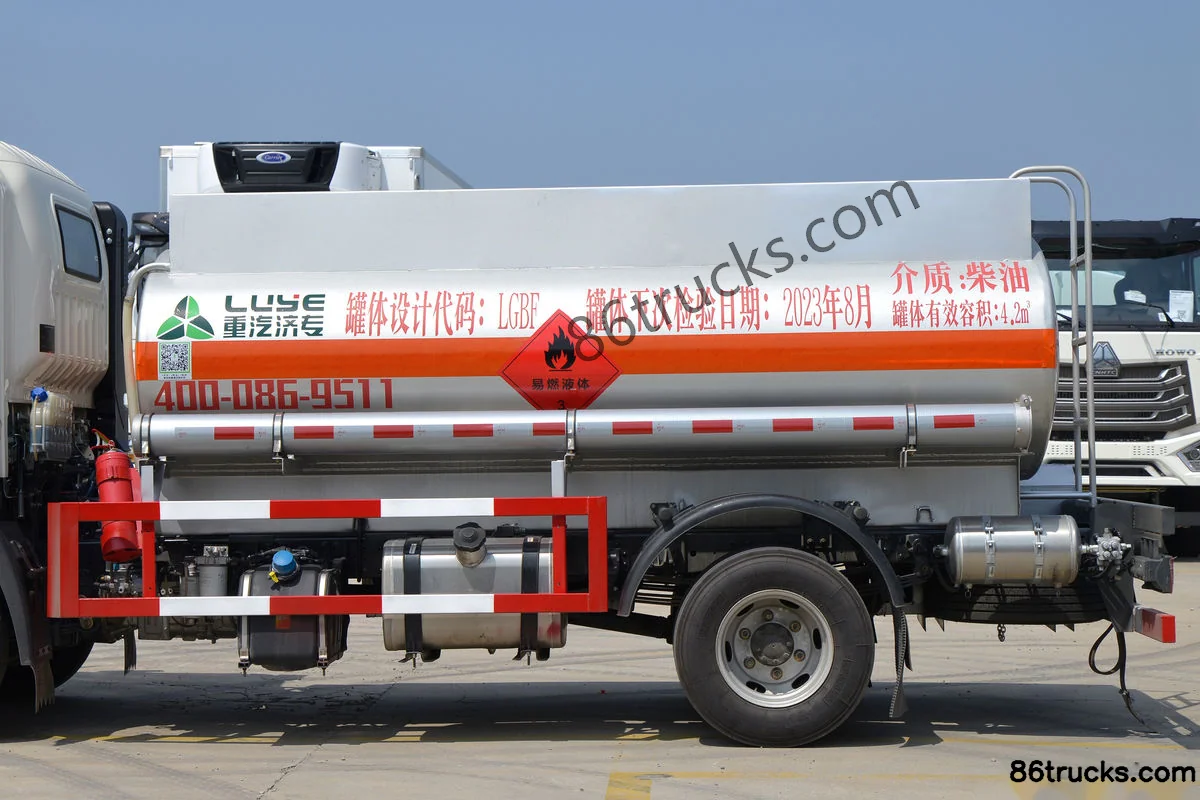

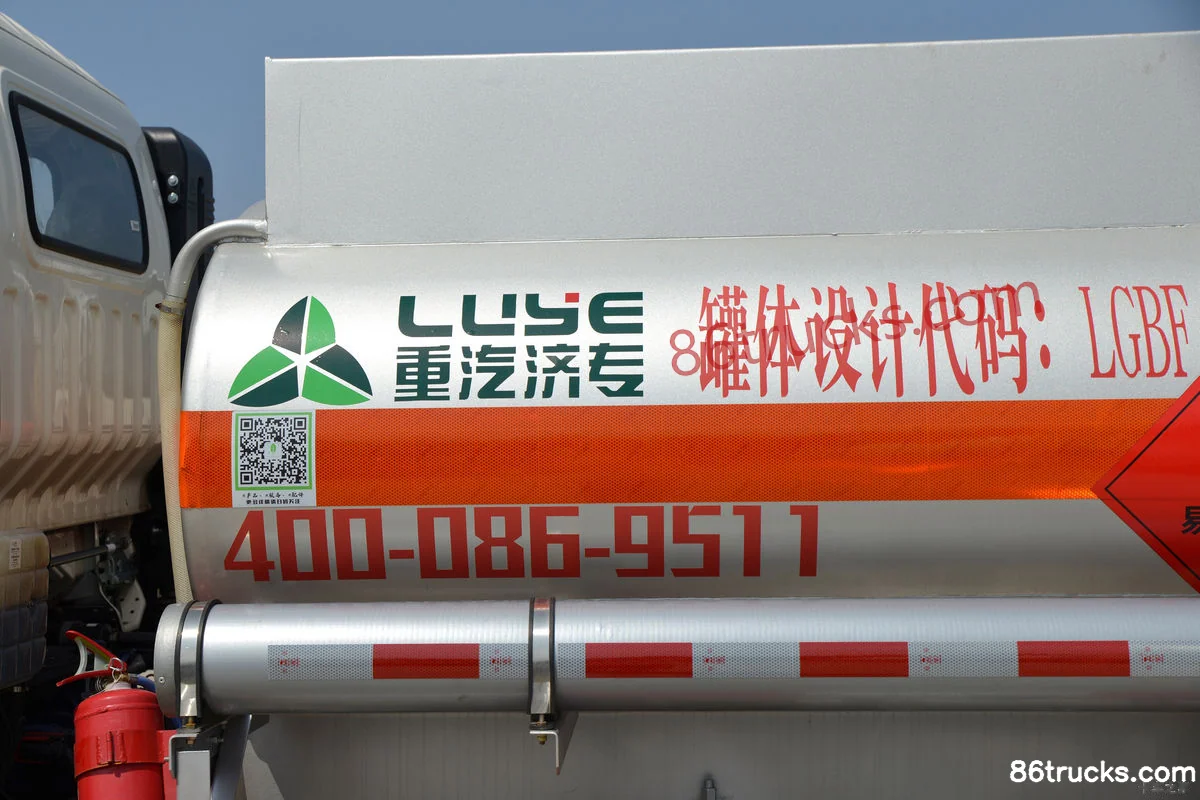

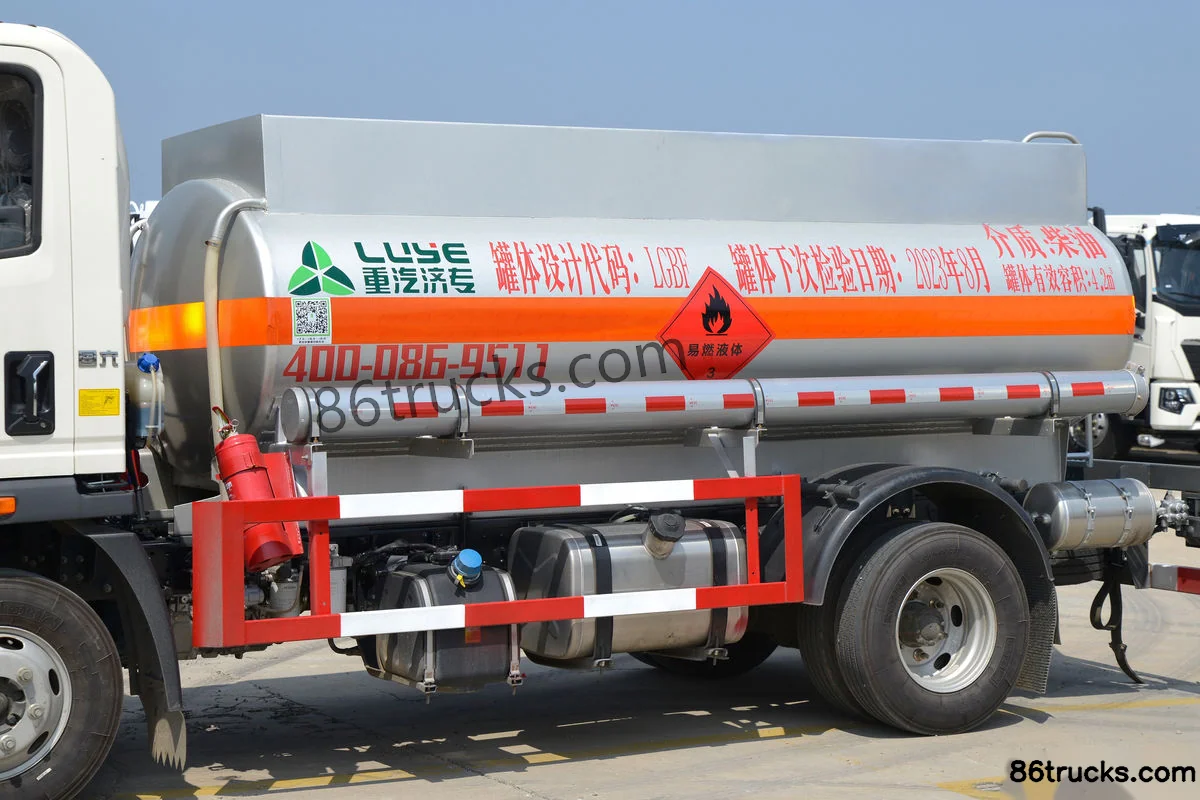

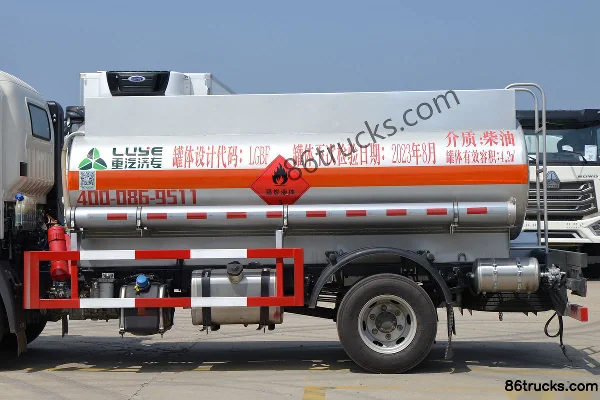

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand)?

Key specs of Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand) suited for?

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand) belongs to Jinan Sinotruk (Lvye Brand) Jinan Sinotruk (Lvye Brand) (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) Oil Tank Truck (Luye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
