SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh

Export reference
From $19,972
MSRP ¥14.38M CNY
Cargo box volume:: 5.28
Model code (announced):: JKC5035XXYA0X9BEV
Cab length:: 4.5m
GVWR:: 2.51ton
Max. speed:: 90km/h
Version:: Startup
SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh exterior
View more photos (9)
CLTC range: 290km
Motor 1 Brand: Hefei Sunshine
Curb Weight: 1.38ton
Wheelbase: 2925mm

Overview

The SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh is a Electric Panel Van featuring 290km battery/range, Hefei Sunshine motor, 1t payload and 5.28 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JKC5035XXYA0X9BEV
Wheelbase: 2925mm
Cab length: 4.5m
Cab width: 1.68m
Cab height: 1.99m
CLTC range: 290km
Curb Weight: 1.38ton
Rated payload:
GVWR: 2.51ton
Max. speed: 90km/h
Version: Startup
Energy Type: Electric
electric motor
Motor 1 Brand: Hefei Sunshine
Motor 1 Model: TZ185XS022XY
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge, Slow Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38.64kWh
Energy Density: 138.92
Body parameters
Cargo box volume: 5.28
Max body depth: 2.51
Max body width: 1.475
Cargo Box Height: 1.35
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 5
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 175/70R14C
Rear Wheel Specification: 175/70R14C
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:

Photos

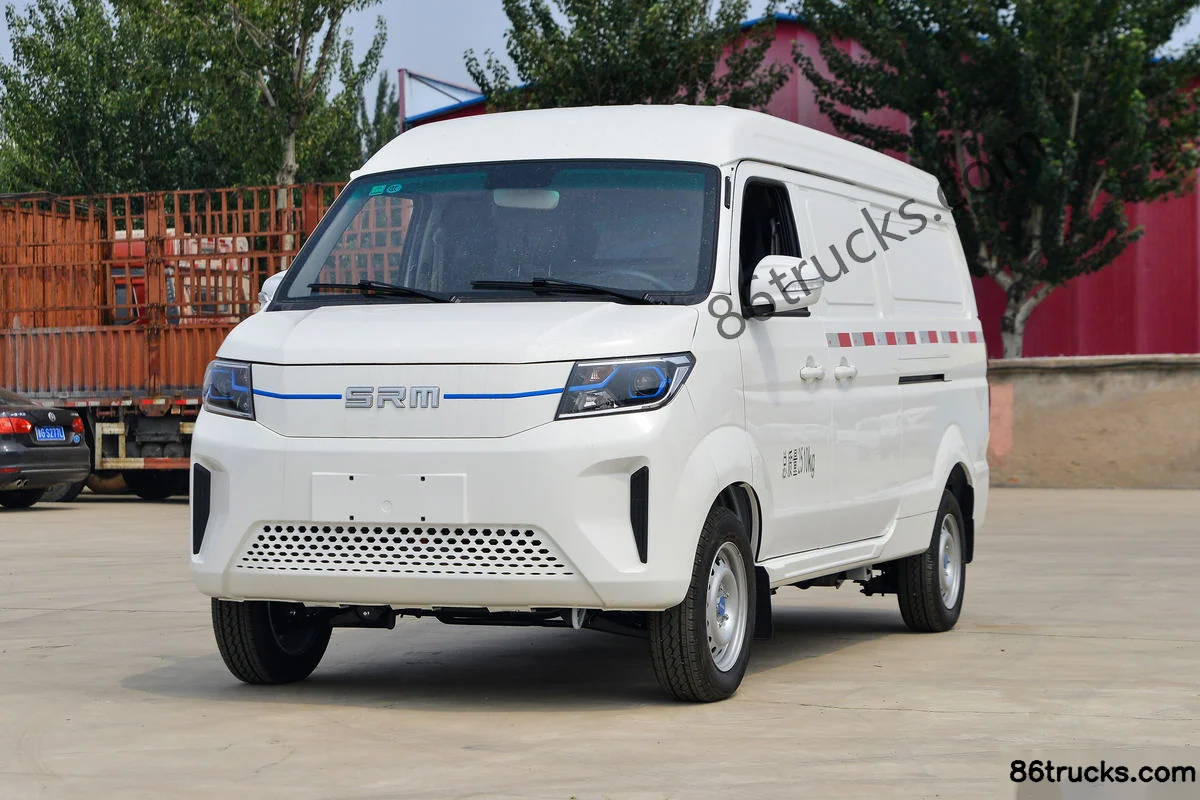

Exterior3

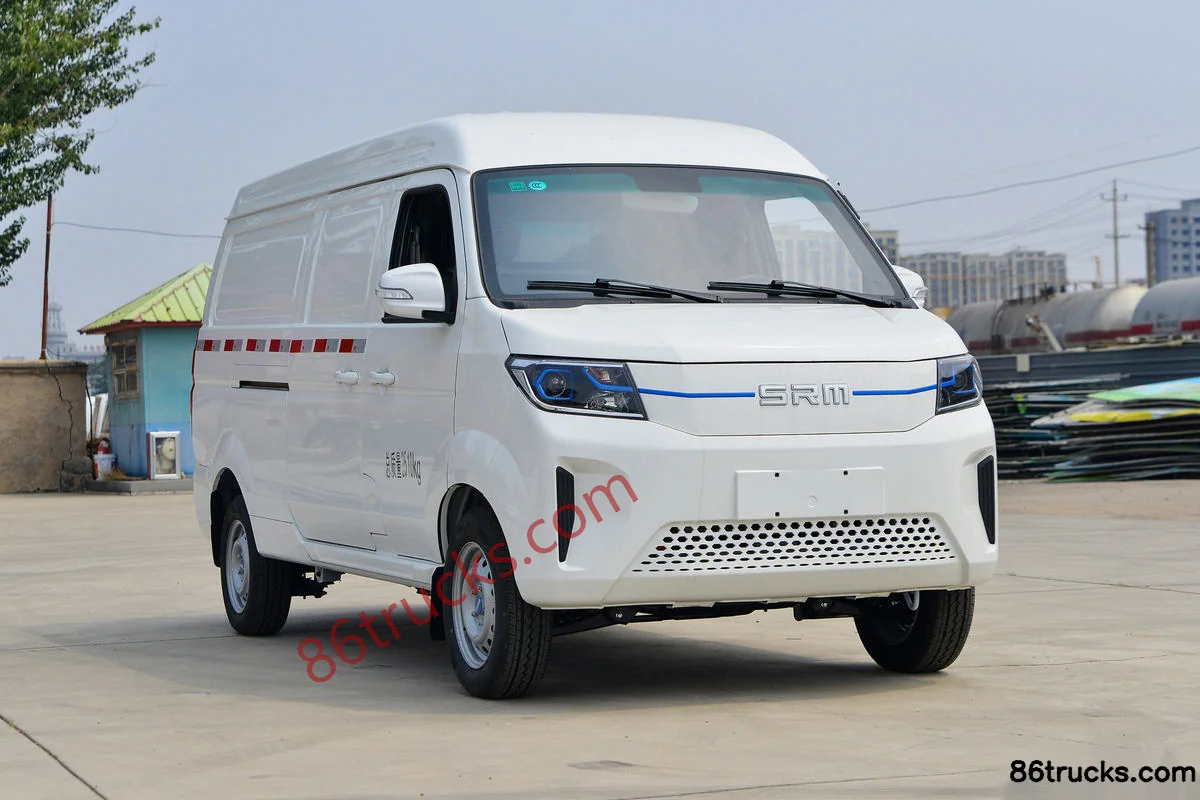

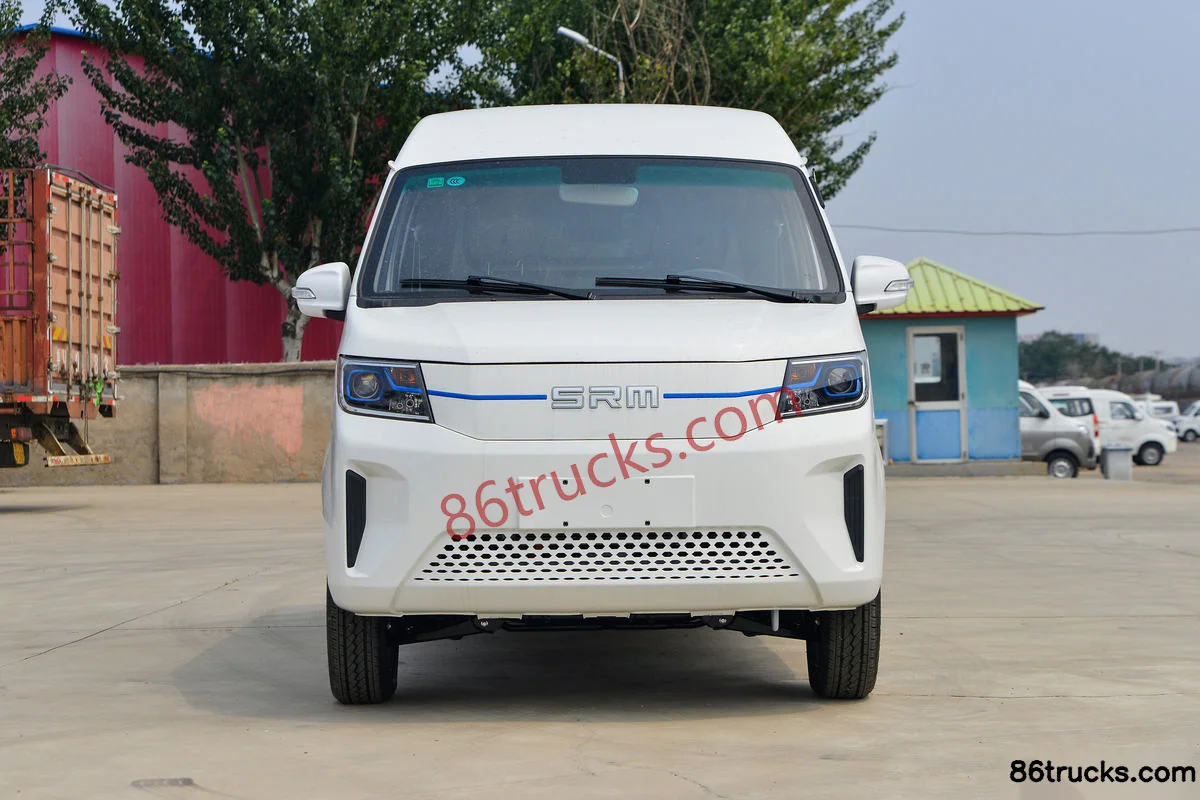

SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Exterior (1) | 86Trucks SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Exterior (2) | 86Trucks SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Exterior (3) | 86Trucks

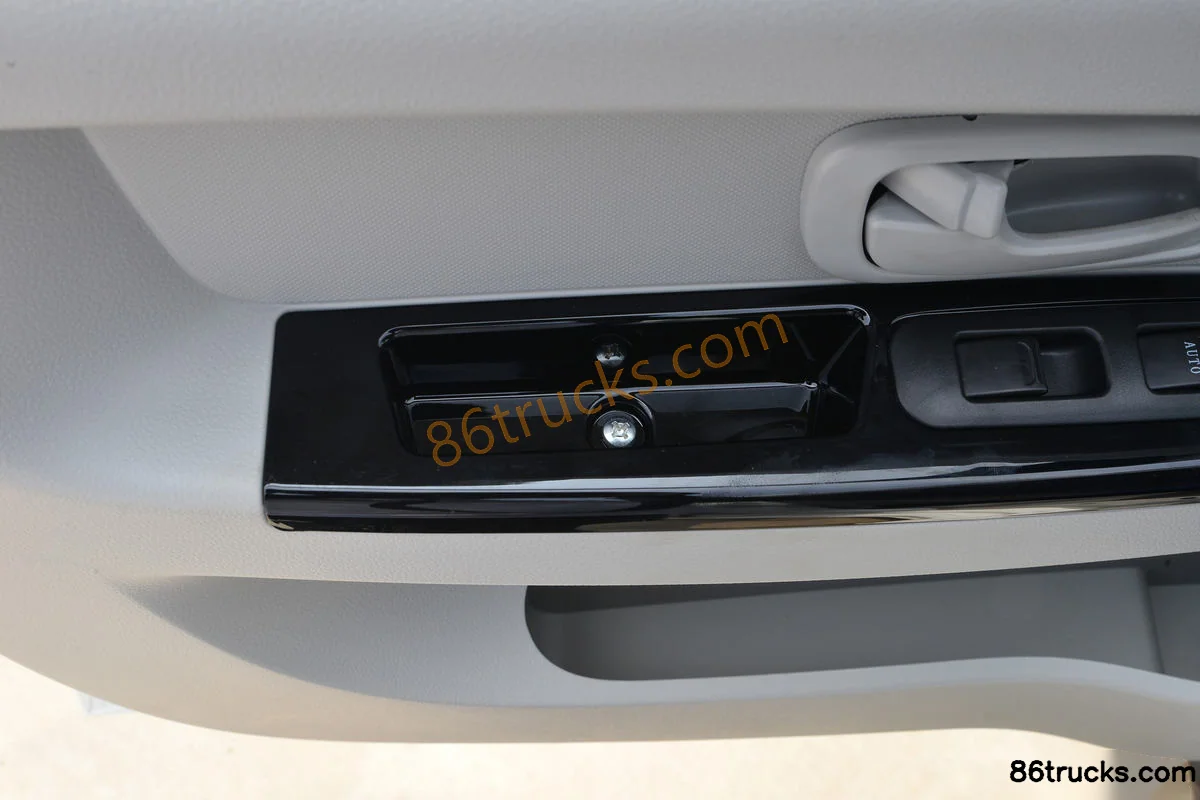

Cab3

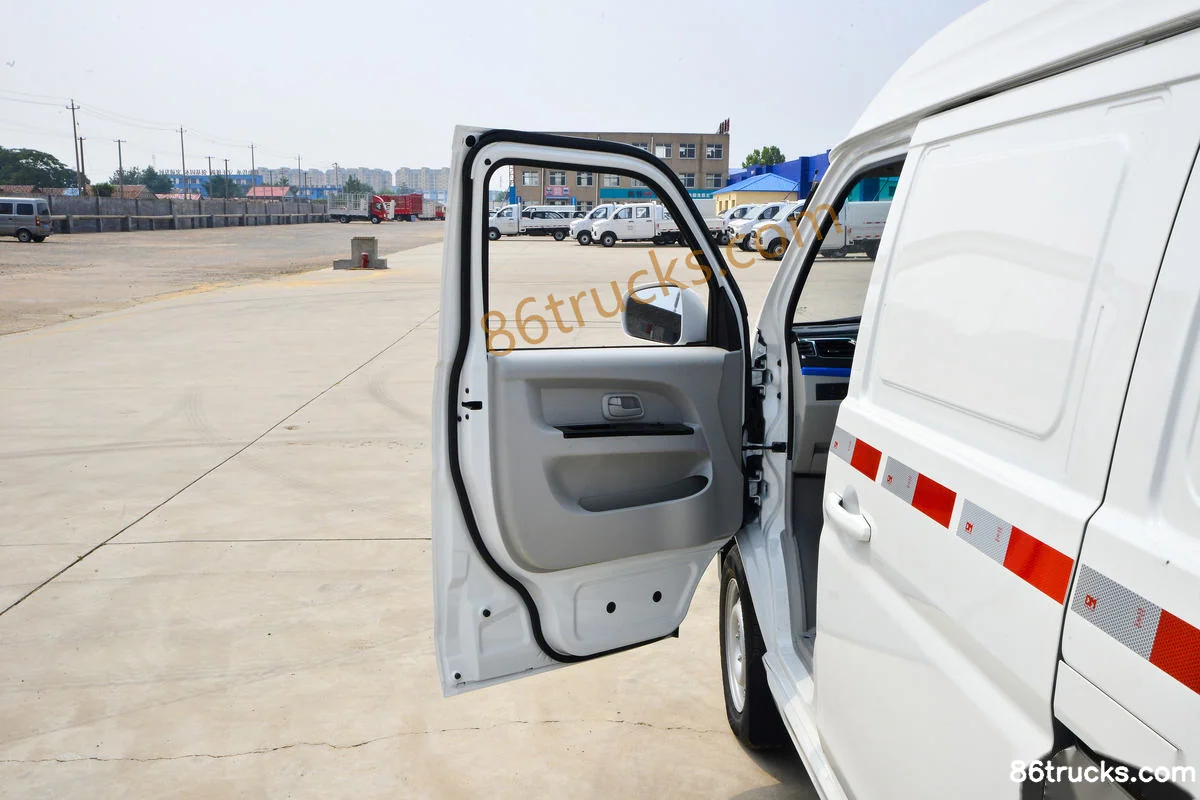

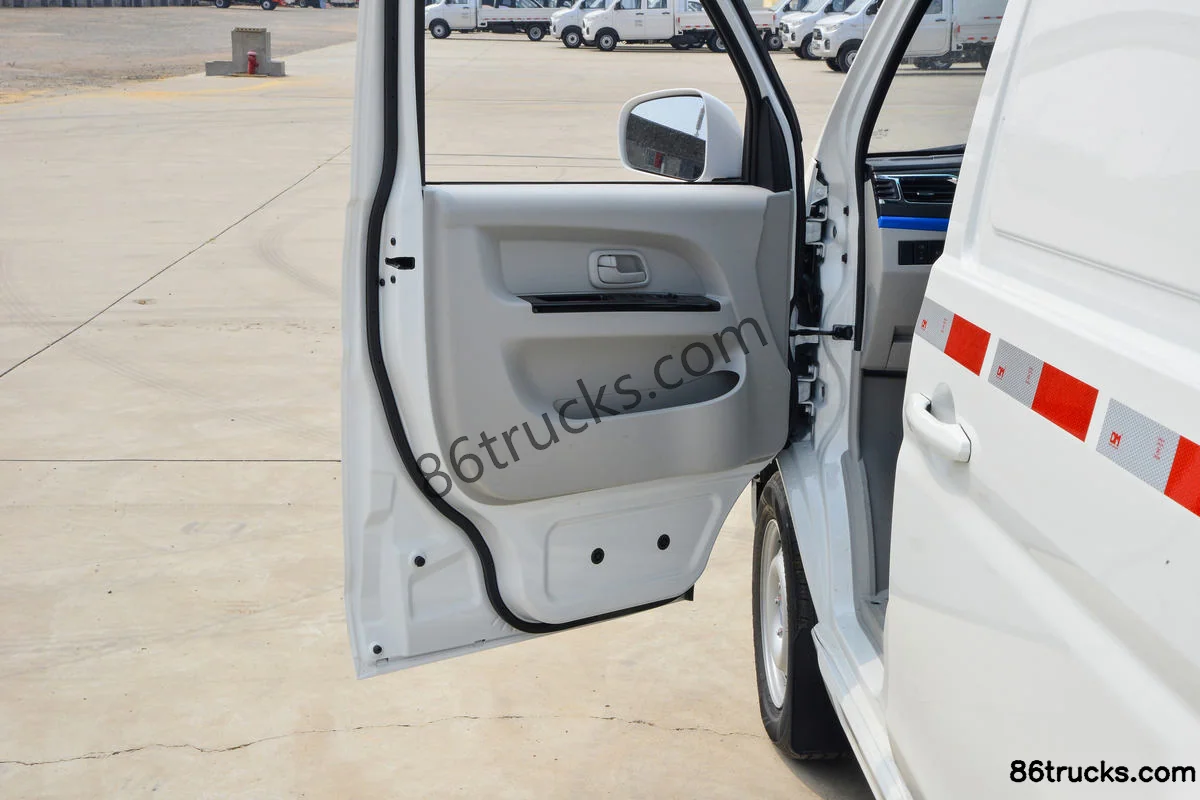

SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Cab (1) | 86Trucks SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Cab (2) | 86Trucks SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Cab (3) | 86Trucks

Chassis3

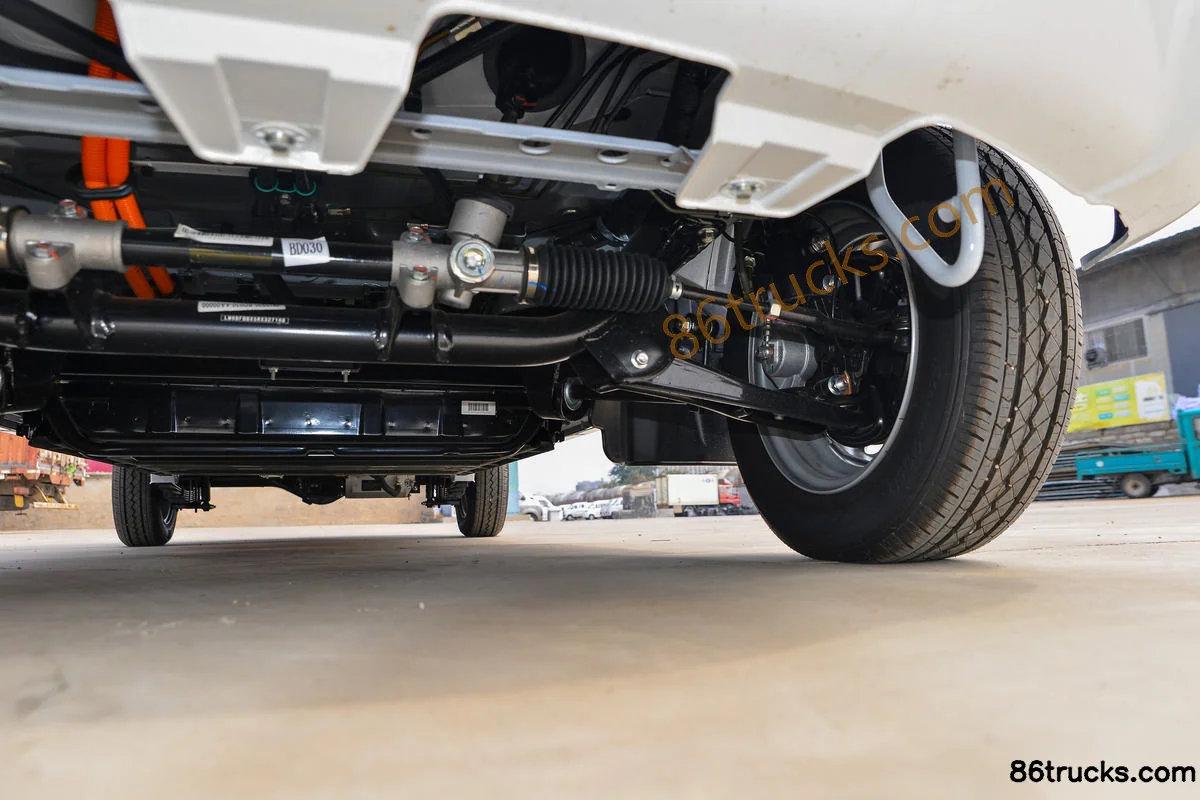

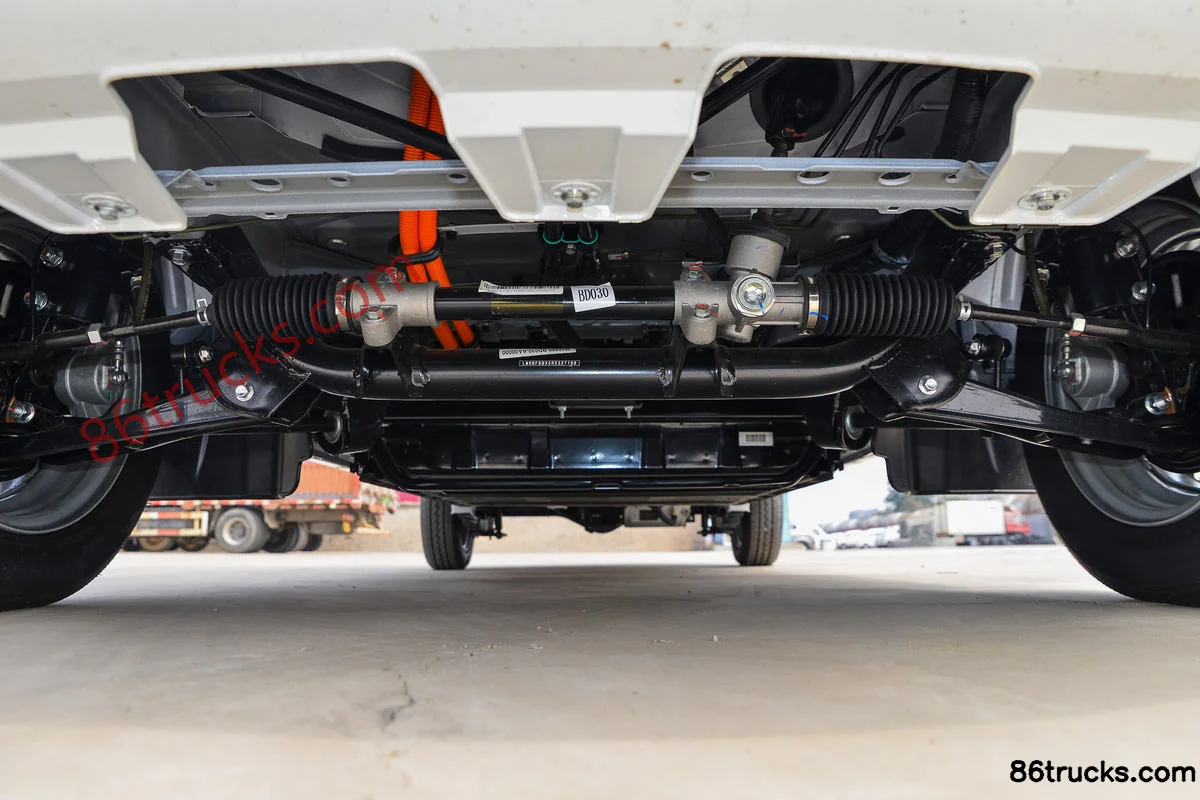

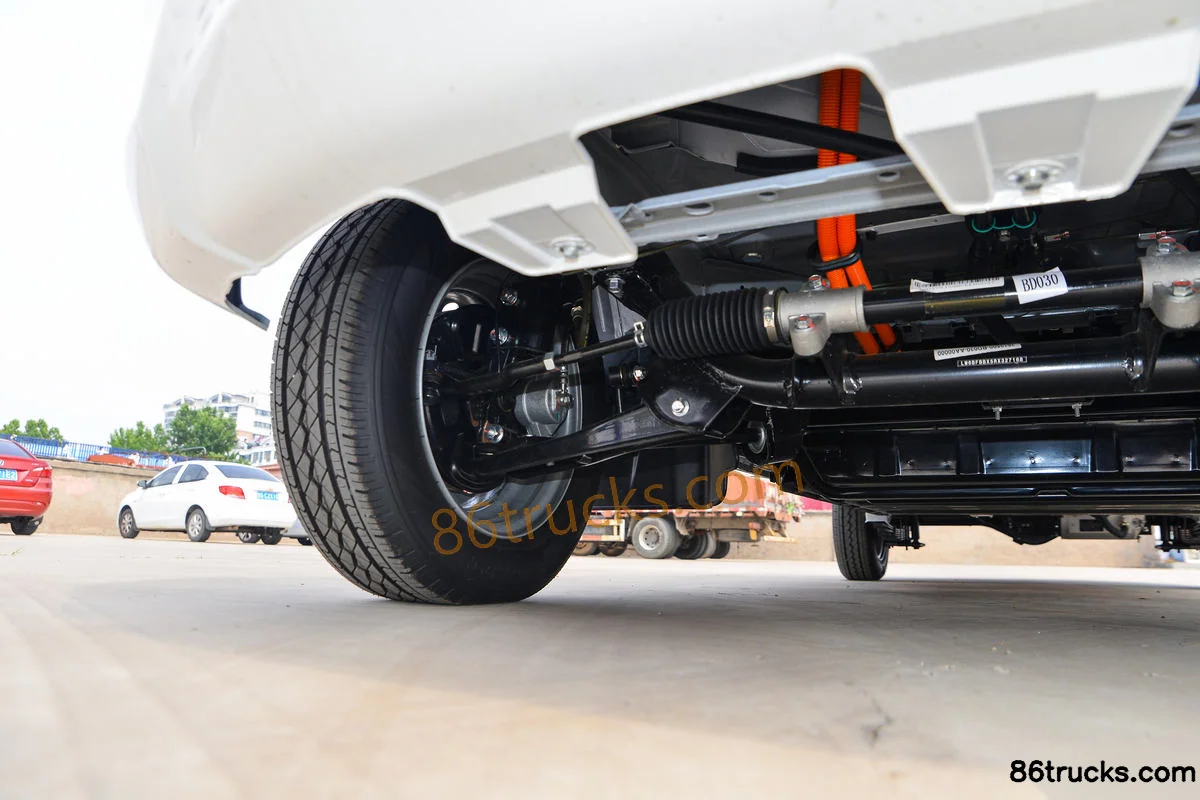

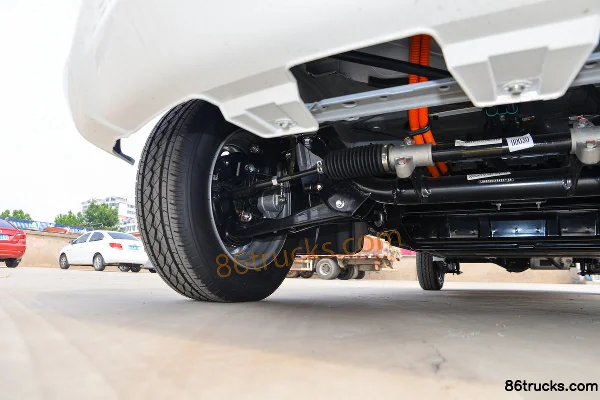

SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Chassis (1) | 86Trucks SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Chassis (2) | 86Trucks SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh, and what does it include?

SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh export reference is about From $19,972; MSRP is ¥14.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh suited for?

SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh differ from other variants in the same series?

SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh belongs to SRM Xinyuan New Energy Haoyun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan Haoyun 2023 Chuangye Type 2.5T 4.5m Electric Cargo Van 38.64kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
