FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck

Export reference
From $19,153
MSRP ¥13.79M CNY
Horsepower: 120
Emission: China IV
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: WLY
Curb Weight:: 2.16ton
seating capacity: 2Personnel
Rated payload: 1.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck is a Light Truck featuring 4.2m cargo length, stake body cargo body, 2Personnel volume and 1.99t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 120 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1040K35L3E4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3520mm
Box length class: 4.2m
engine: YuchaiYC4D120-41
transmission: WLYWLY6TS55
Rear Axle Ratio: 5.286
Cab length: 5.99m
Cab width: 2.33m
Cab height: 2.63m
Front track width: 1640mm
rear track: 1650mm
Curb Weight: 2.16ton
Rated payload: 1.99ton
GVWR: 4.345ton
Max. speed: 90km/h
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 26°
departure angle: 23°
market segment: Building materials, agricultural products
Front/rear suspension: 1.135/1.335m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D120-41
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.214L
Emission standard: China IV
Max output power: 90kW
Max hp: 120Horsepower
Max torque: 380N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 2.24m
Cargo box height: 0.45m
*Cargo box interior width: 2.2400000095367
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 1740kg
rear axle allowable load: 2605kg
Axle ratio: 5.286
Leaf spring count: 9/11+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.50-16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

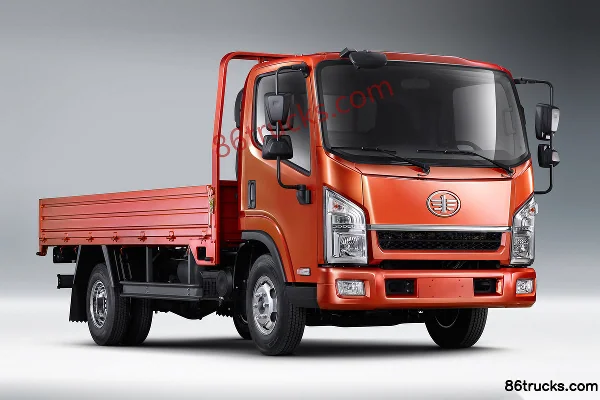

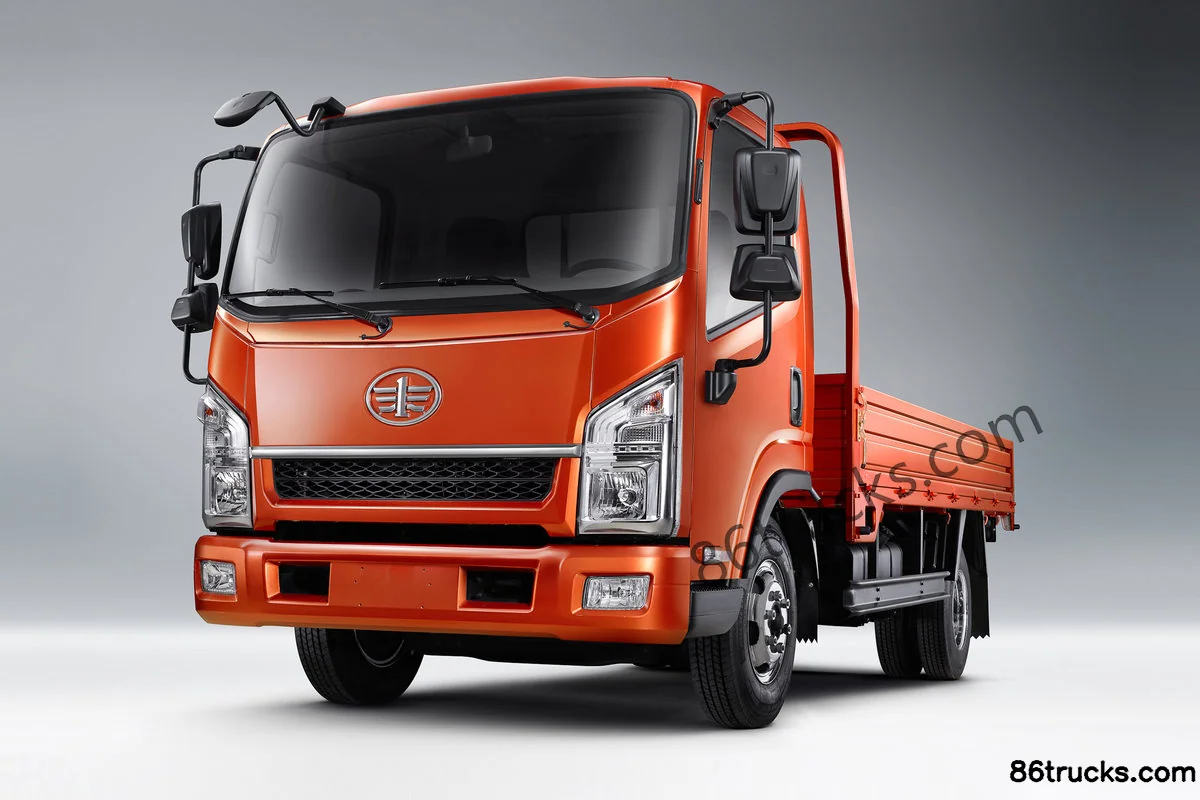

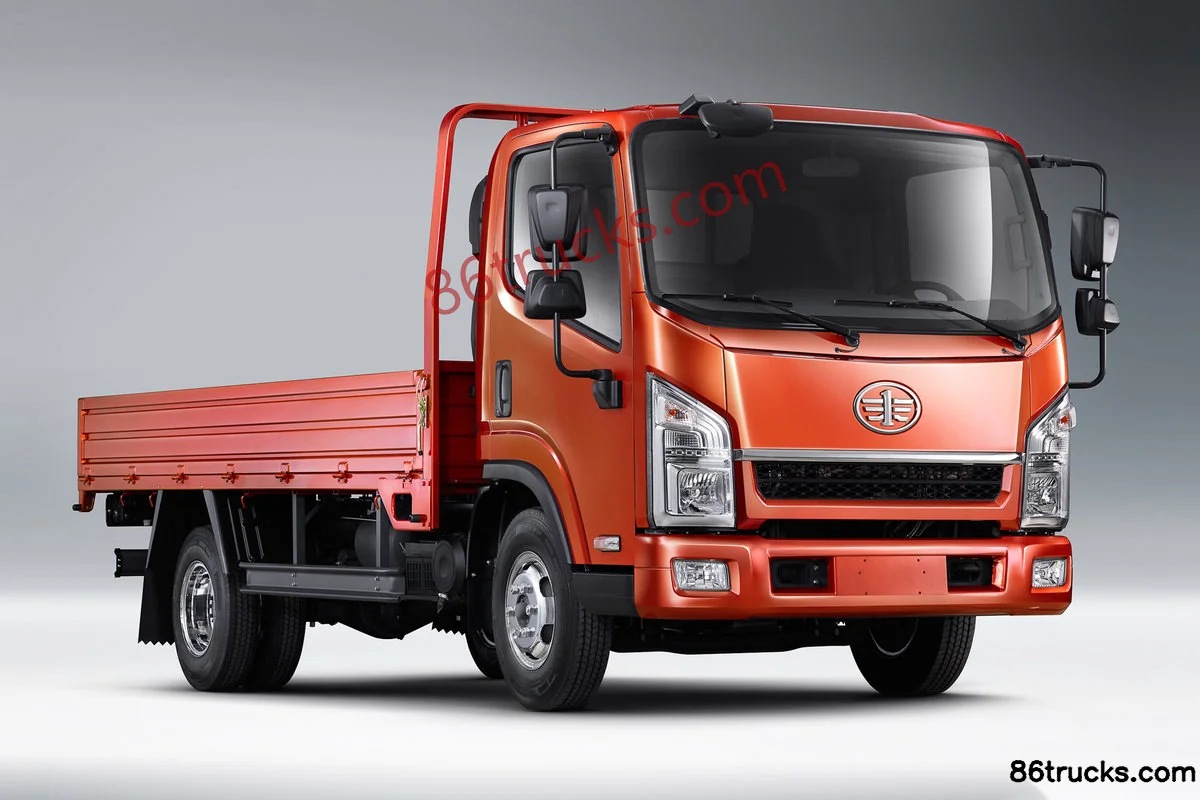

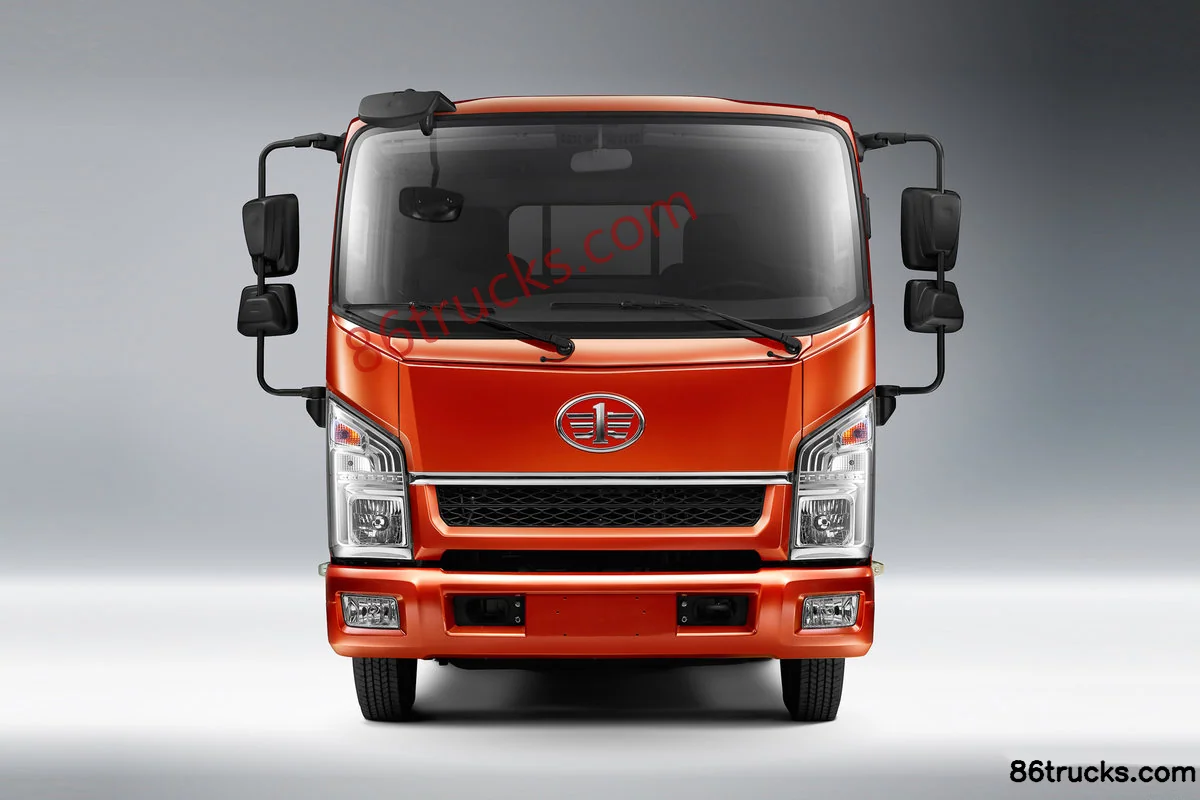

Photos

Official Photos3

3 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck, and what does it include?

FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck export reference is about From $19,153; MSRP is ¥13.79M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck?

Key specs of FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck suited for?

FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck differ from other variants in the same series?

FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck belongs to FAW Hongta FAW Jiefang Jinling Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Xinjinling 120 hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
