Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck

Export reference
From $15,194
MSRP ¥10.94M CNY
Horsepower: 118
Emission: China V
Fuel: Diesel
Engine: Fukang 2.8
Transmission: JMC
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck is a Light Truck featuring 4.23m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 2.8 engine, 118 hp, 4X2 (6 wheels) drive and China V emissions.

China V 118 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1049V9JD6-A4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonISF2.8s5R117
transmission: JMCJC528
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.33m
Front track width: 1490mm
rear track: 1425mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 99km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 22°
departure angle: 16°
market segment: Building materials, agricultural products
Remarks: Optional standard type (manual tilt/tubeless tires (imperial) 7.00R16/manual windows & mirrors/MP3/no cargo box, no side guard); optional ratio 5.375; emission standard optional Beijing V
Series: 3-series
Front/rear suspension: 1.095/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5R117
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 87kW
Max hp: 118Horsepower
Max torque: 260N·m
Max torque speed: 1200-3200rpm
Rated speed: 3200rpm
Engine Type: HPCR CEGR DPF
Transmission Parameters
Transmission Model: JMCJC528
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.23m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: Flat roof
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle description: 2.2T
Front axle allowable load: 1850kg
Frame Dimensions: 170×60×5mm
rear axle description: 4.5T
rear axle allowable load: 2645kg
Axle ratio: 4.875
Leaf spring count: 3/5+4
Tire
Tire Size: 7.00R16
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
smart configuration
Cruise control (CCS):

Photos

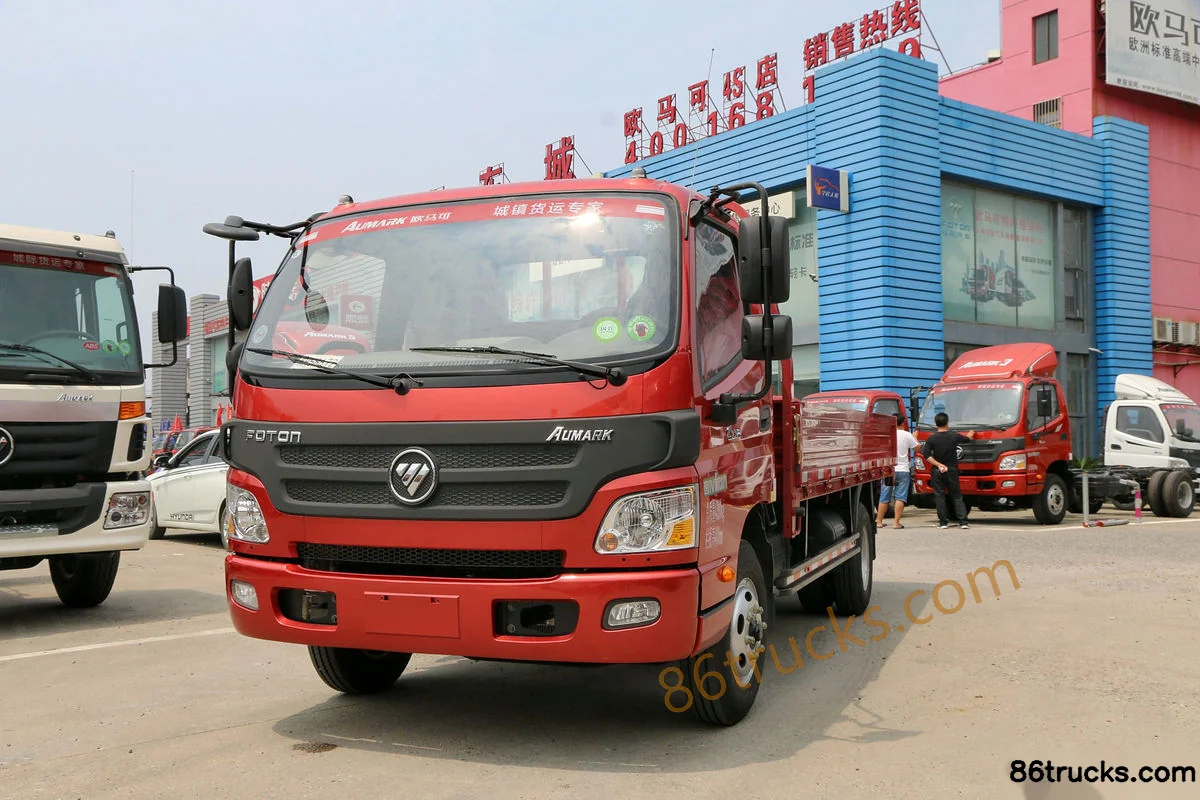

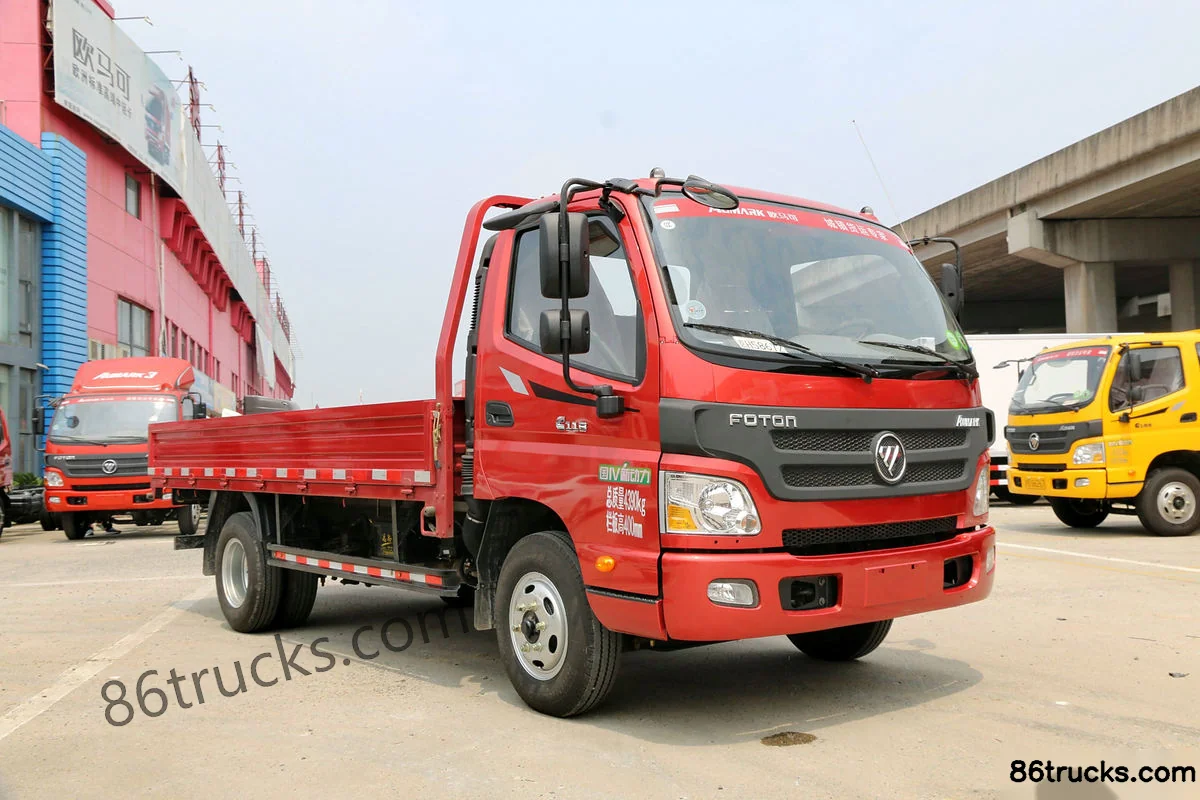

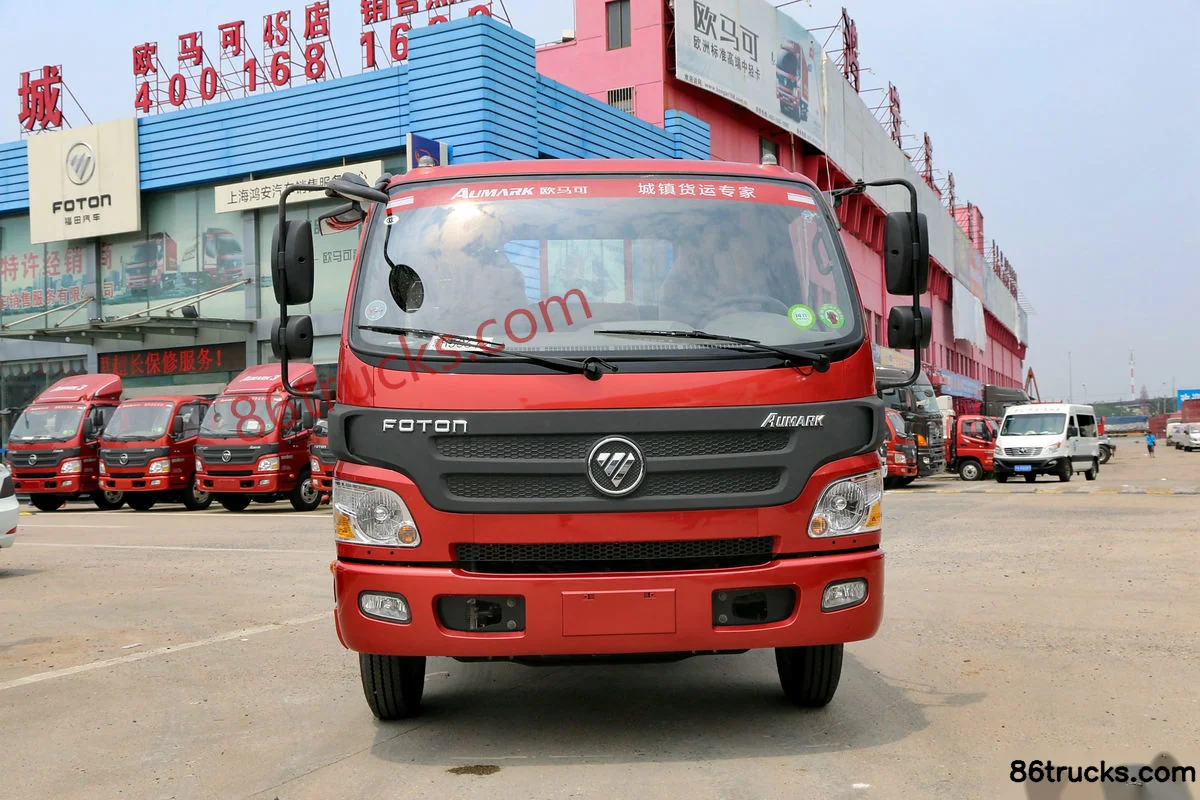

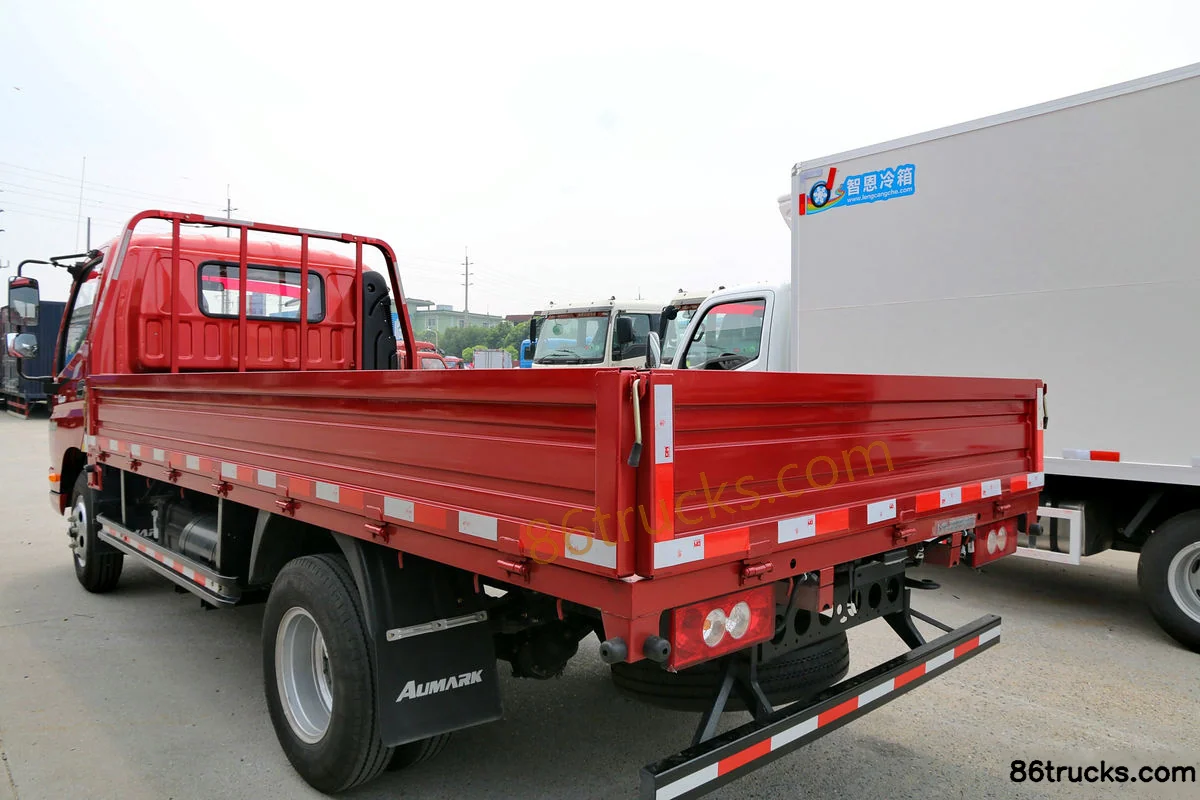

Exterior3

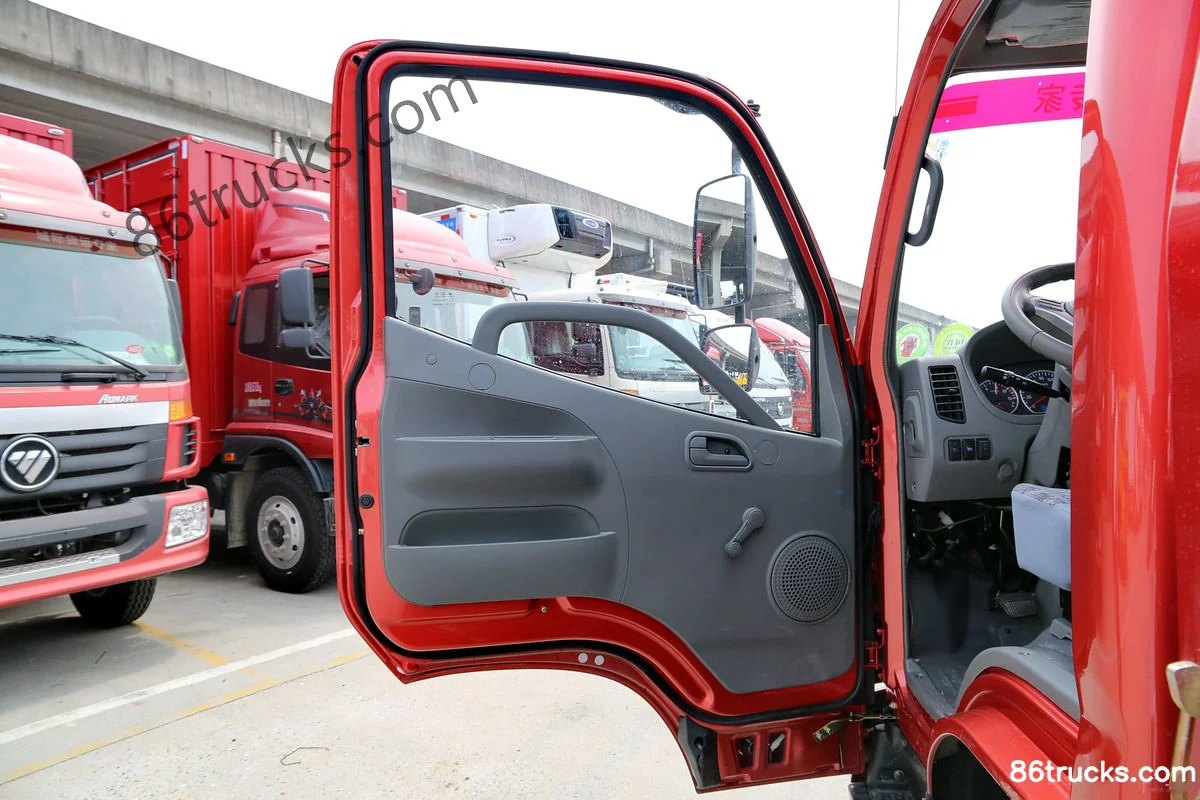

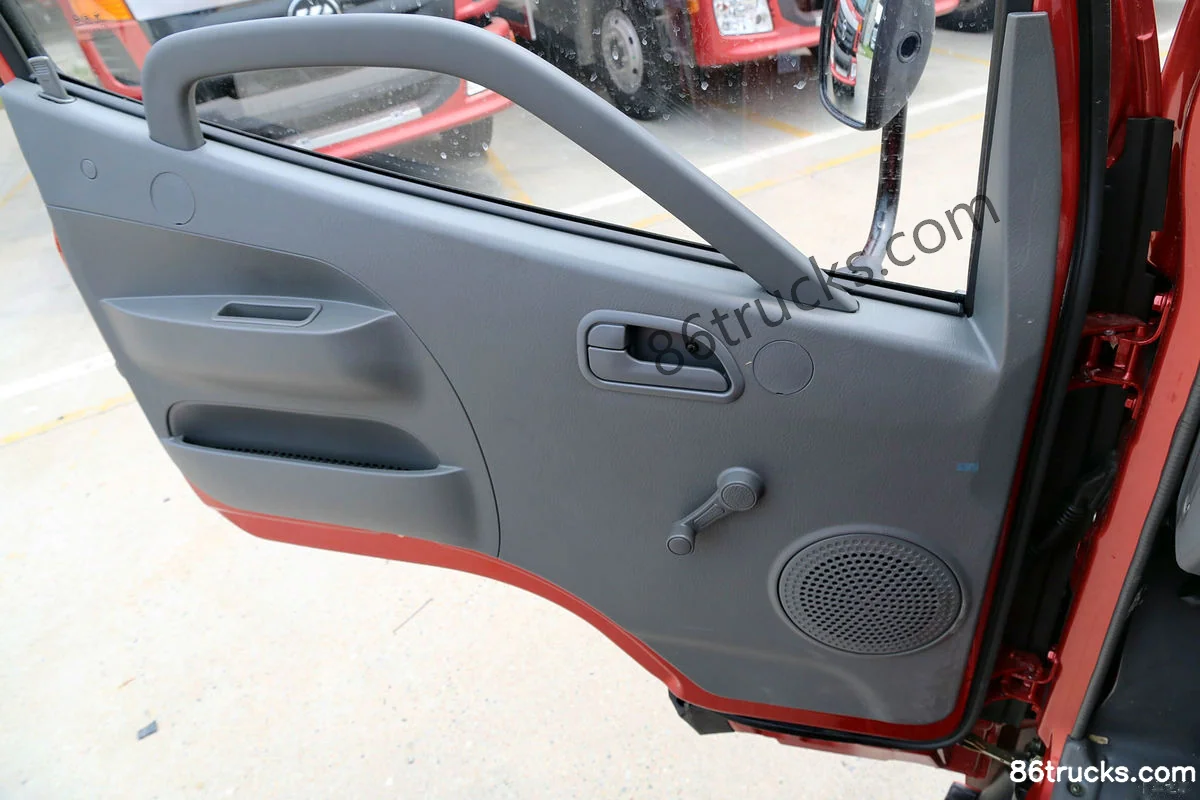

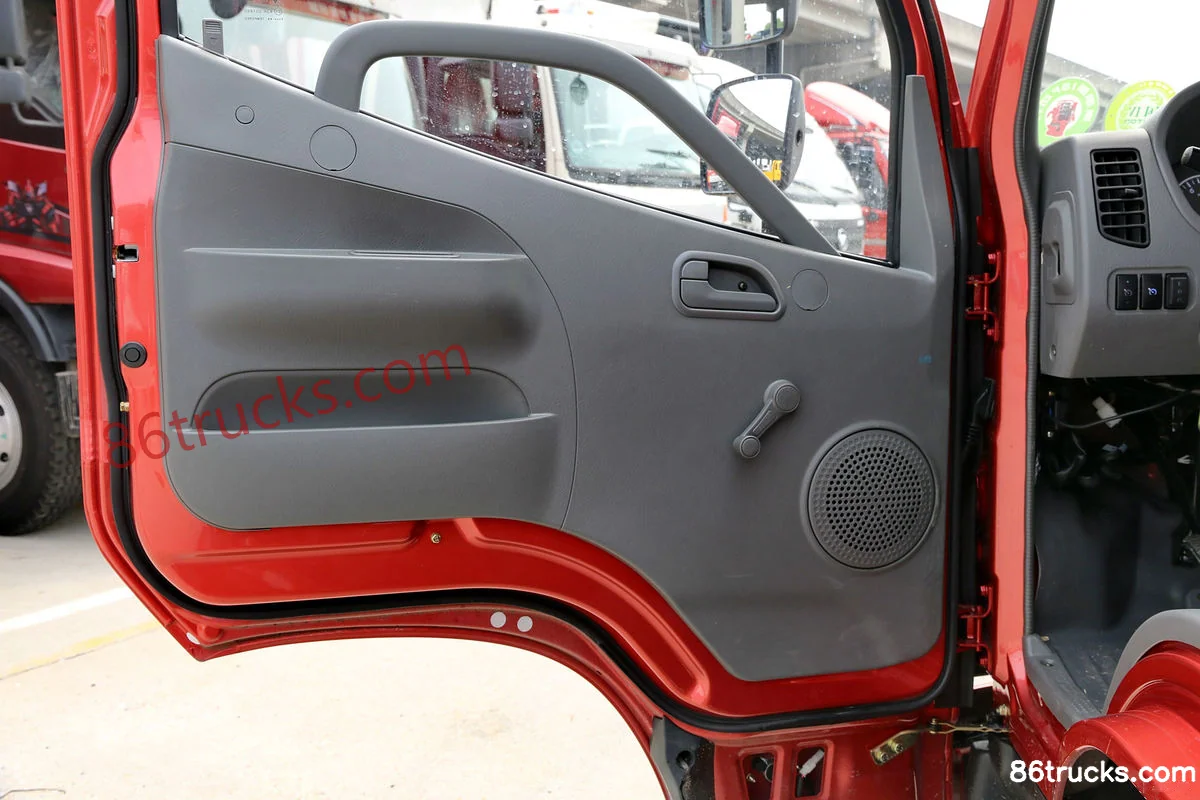

Cab3

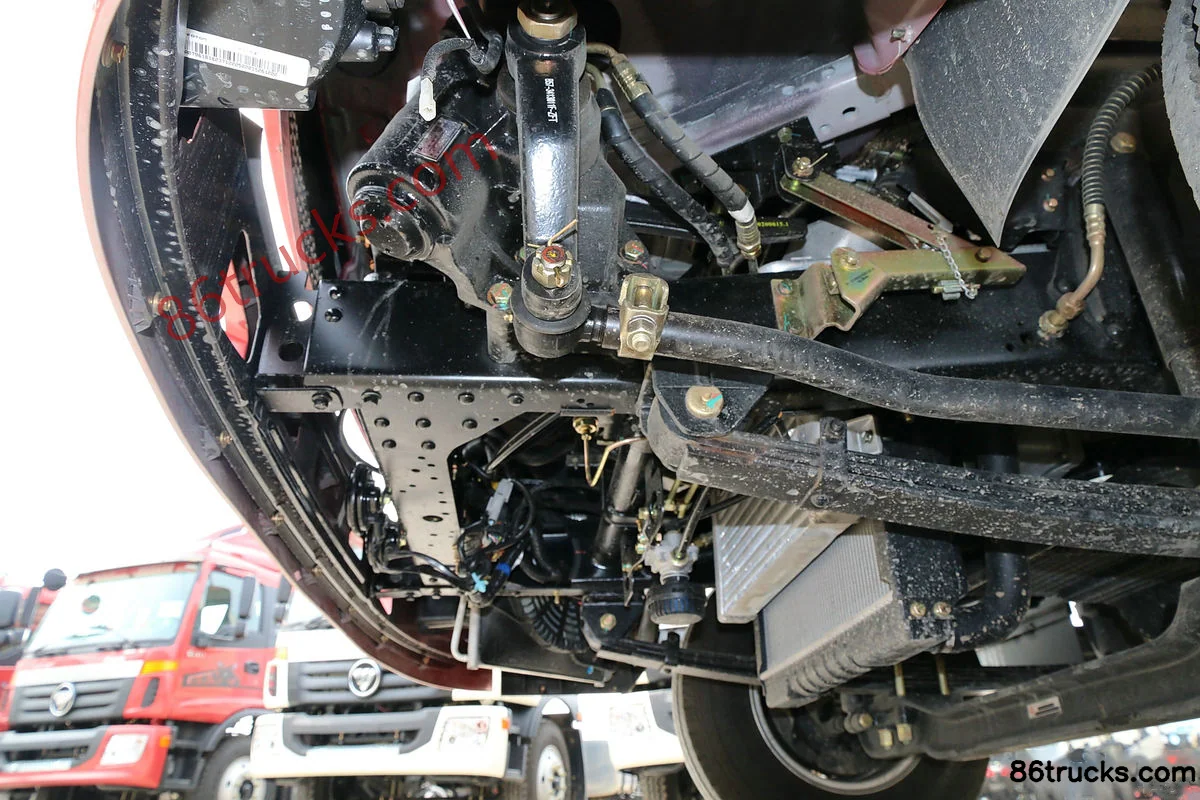

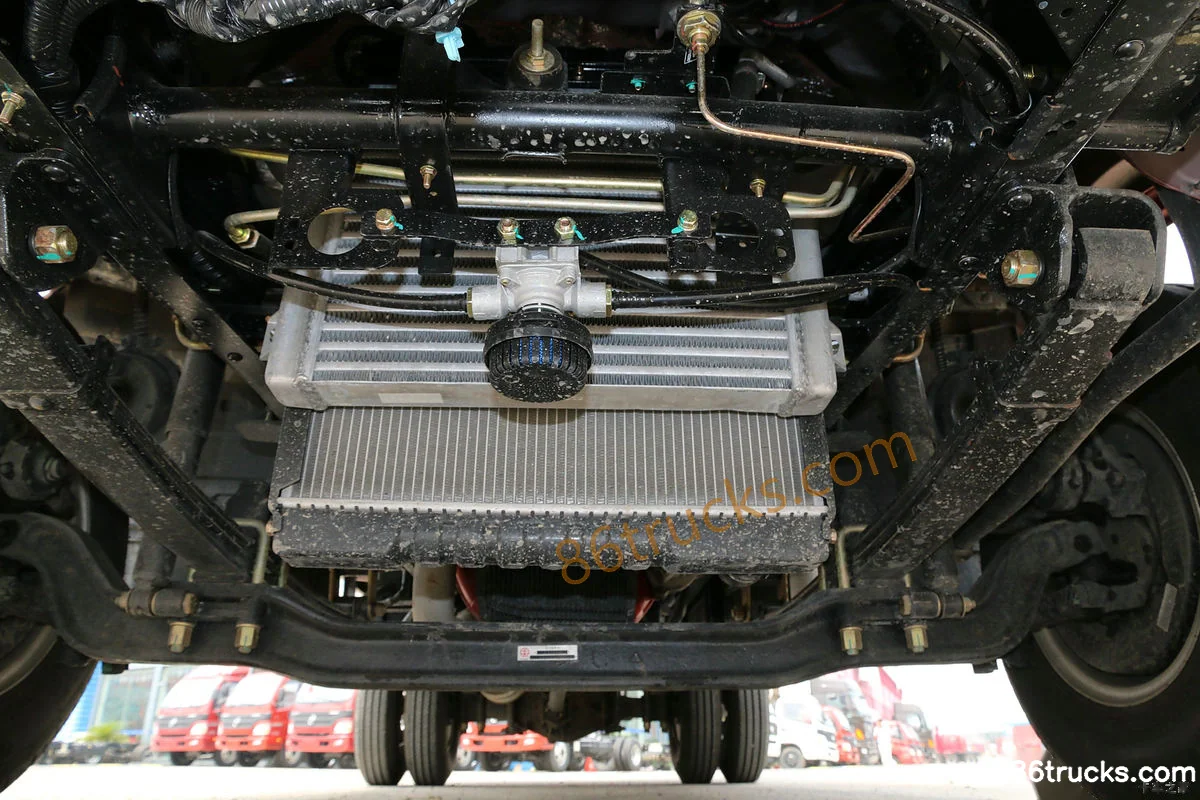

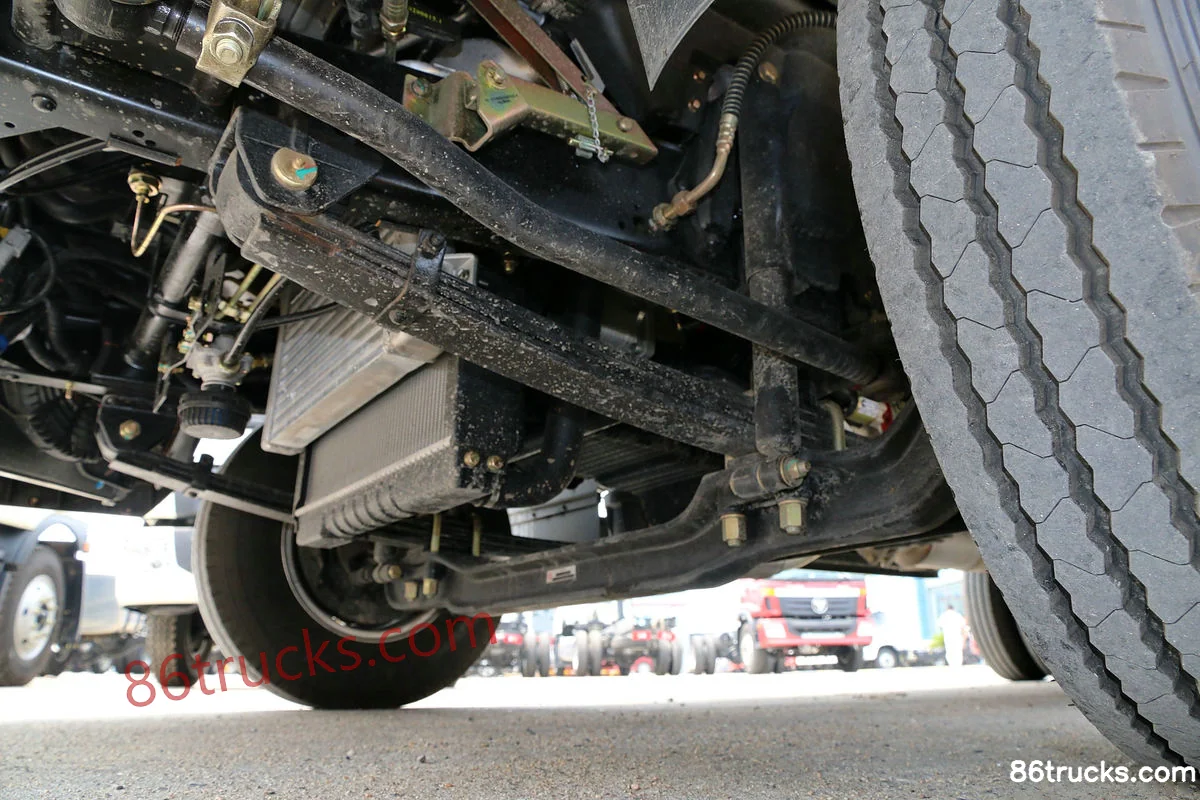

Chassis3

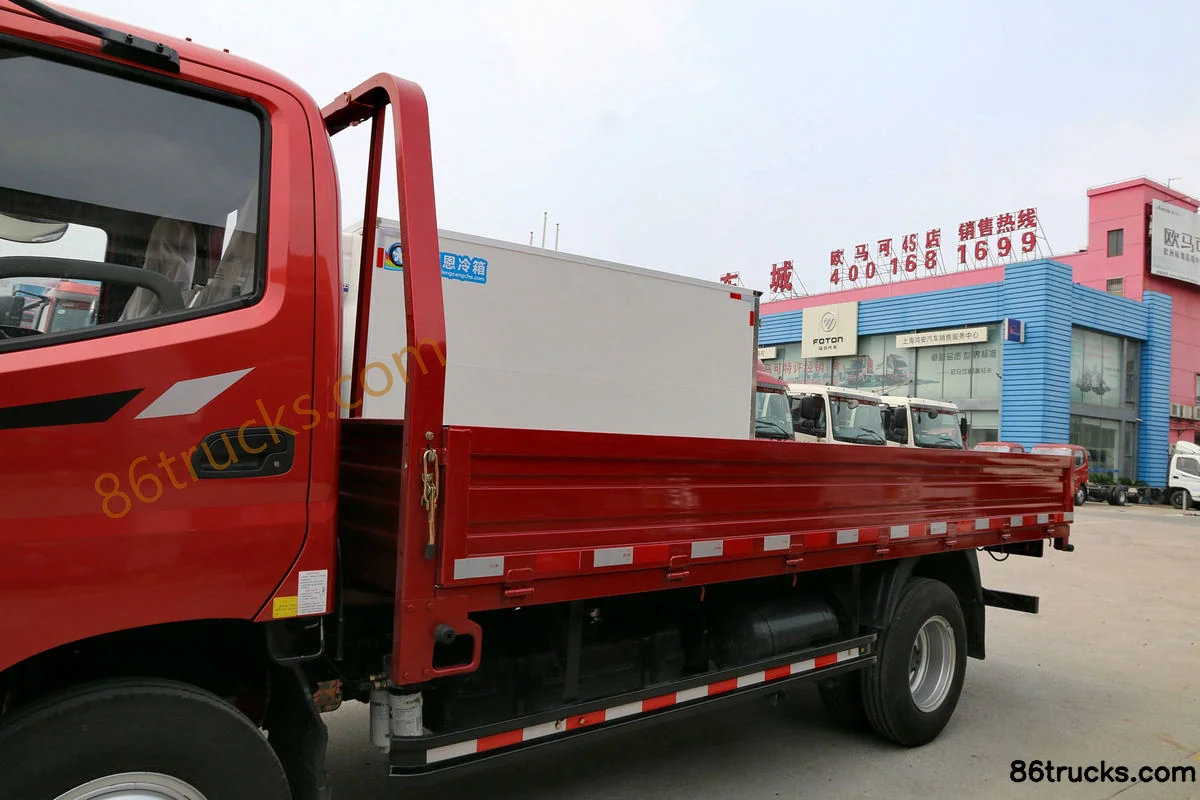

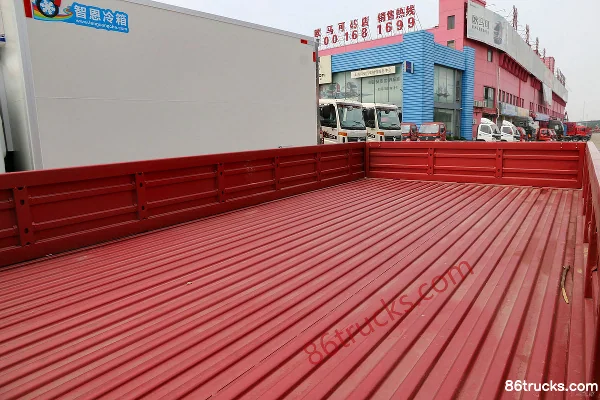

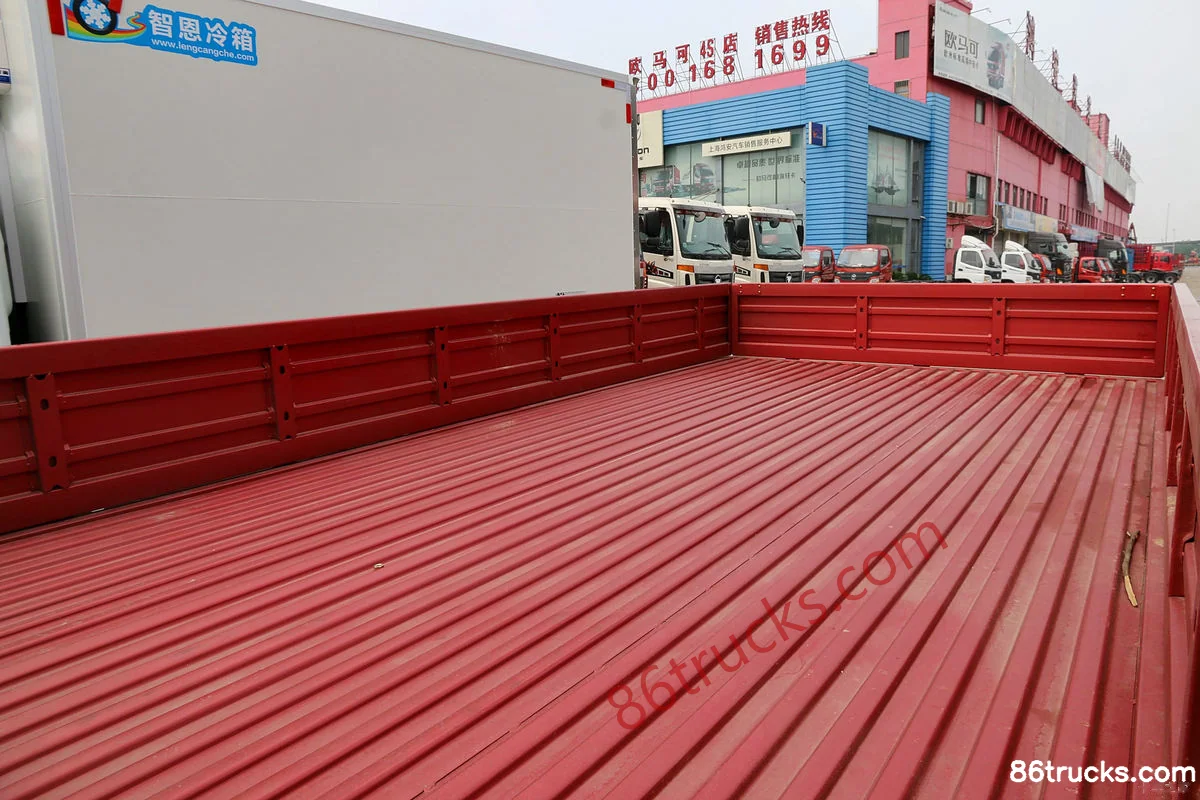

Body3

12 photos

FAQ

What is the export price of Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck, and what does it include?

Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck export reference is about From $15,194; MSRP is ¥10.94M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck?

Key specs of Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck: Drive: 4x2; Horsepower: 118 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 2.8; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck suited for?

Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck differ from other variants in the same series?

Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck belongs to Foton 3 Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark 3 Series 118 hp 4X2(6 wheels) 4.23m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
