SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck

Export reference
MSRP N/A
Gross Trailer Weight:: 37.27ton
Tire Size:: 12.00R20
Displacement:: 14.6L
engine:: WeichaiWP15H680E68S
Rear Axle Ratio:: 6.733
Cab length:: 7.06m
SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck exterior
View more photos (6)
Drive 6X4 (10 wheels)
Horsepower 680
Transmission Fast Gear
Fuel Diesel

Overview

The SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 680 hp, 37.27ton GVW and High roof cab. On the powertrain side, it comes with a WeichaiWP15H680E68S engine, Fast Gear transmission and Diesel fuel.

680 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Drive type: 6X4
engine: WeichaiWP15H680E68S
transmission: Fast GearS16MO
Rear Axle Ratio: 6.733
Cab length: 7.06m
Cab width: 2.55m
Cab height: 3.98m
Gross Trailer Weight: 37.27ton
Curb Weight: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: Door welcome lights, illuminated logo, ambient lighting, 4-way camera + Tianxingjian Zhixing version, ESC, side toolbox, construction-use bumper, ring curtain, electric window lifters
Version: Elite Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WP15H680E68S
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 14.6L
Max output power: 500kW
Max hp: 680Horsepower
Transmission Parameters
Transmission Model: S16MO
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Air tank capacity: 1100L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: Hande 7.5t drum front axle
Frame Dimensions: 300x（8+7+8）mm
rear axle description: Hande 25t drum drive axle
Axle ratio: 6.733
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

Exterior3

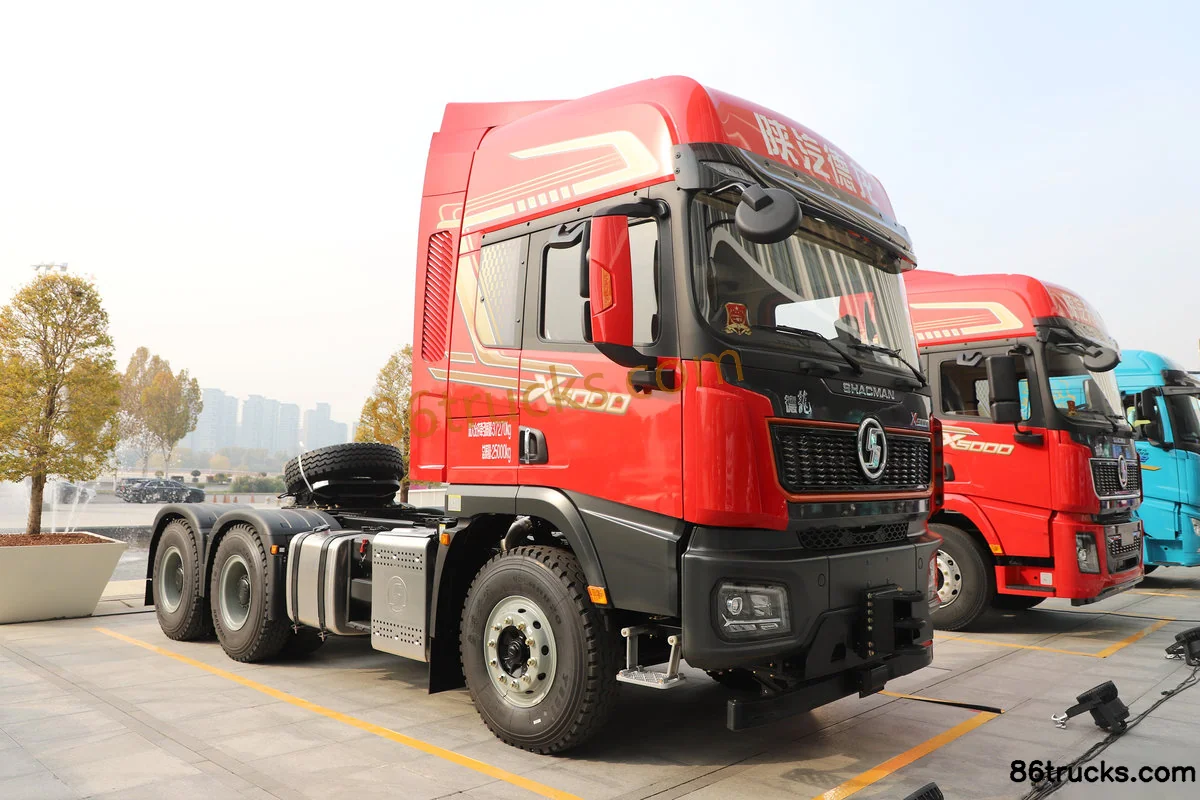

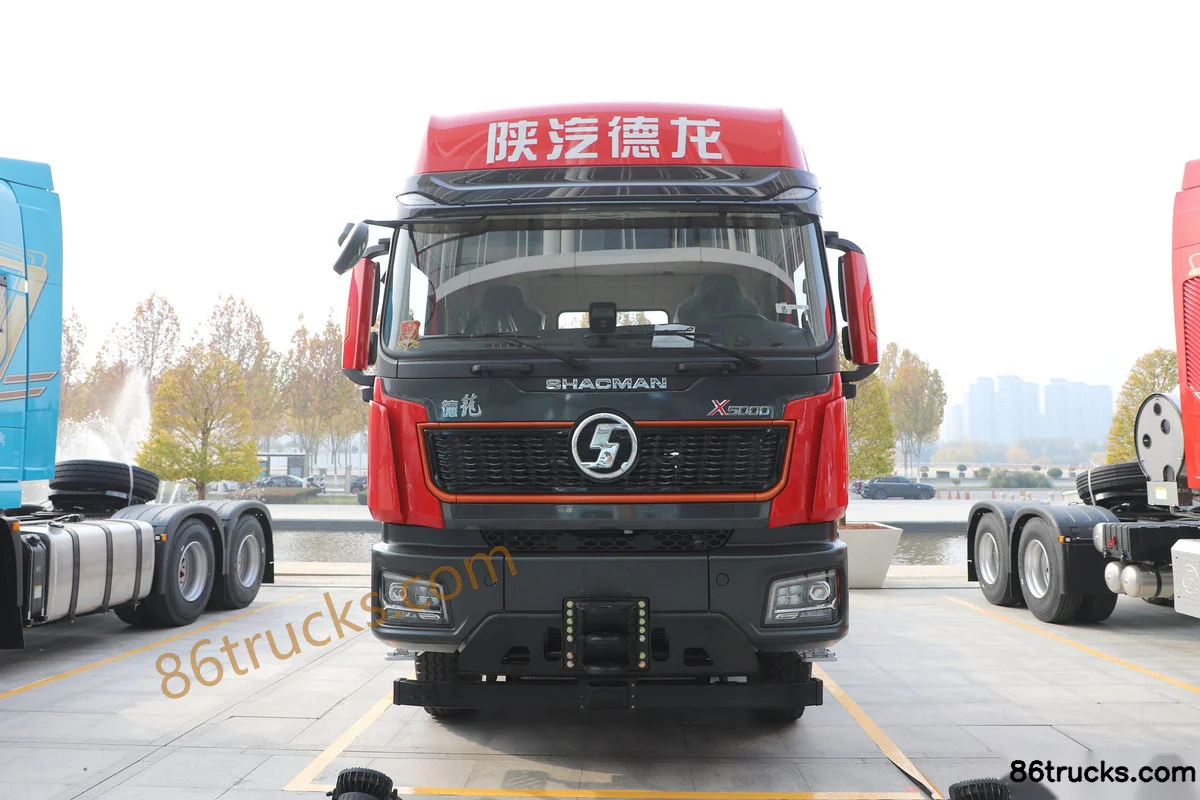

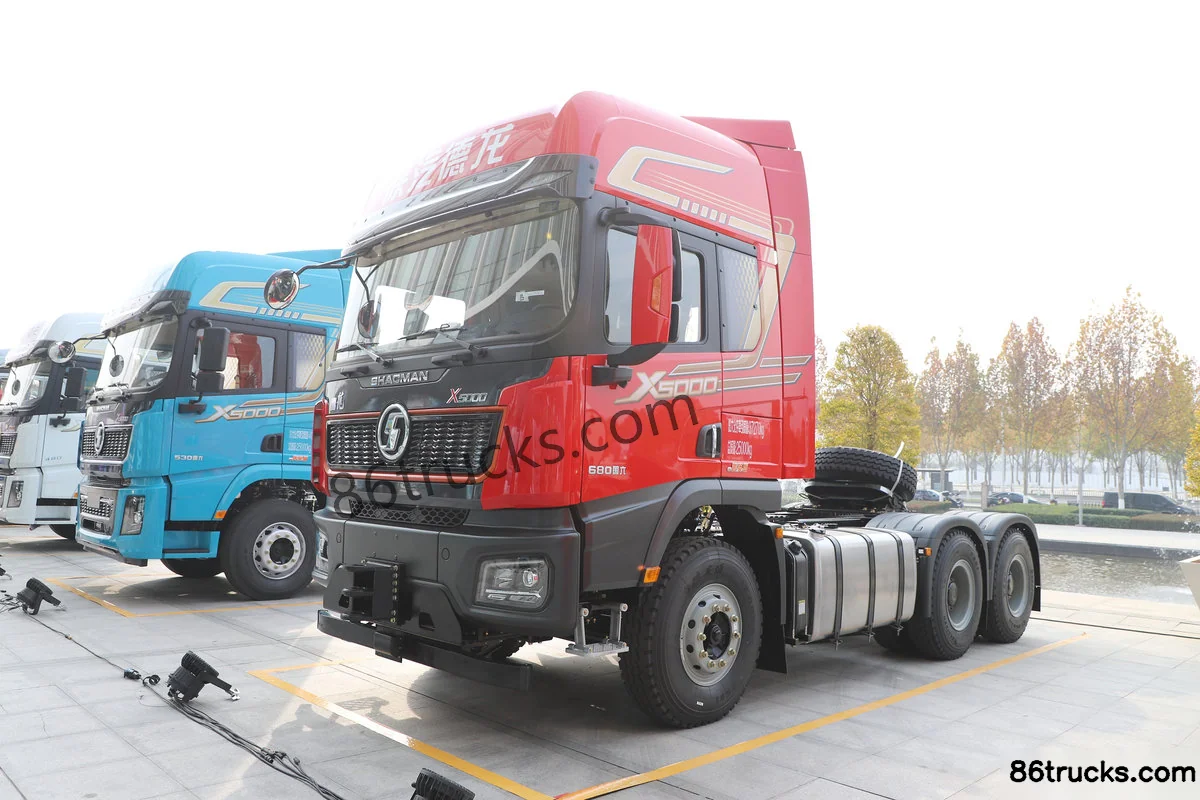

SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck Exterior (1) | 86Trucks SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck Exterior (2) | 86Trucks SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck Exterior (3) | 86Trucks

Chassis3

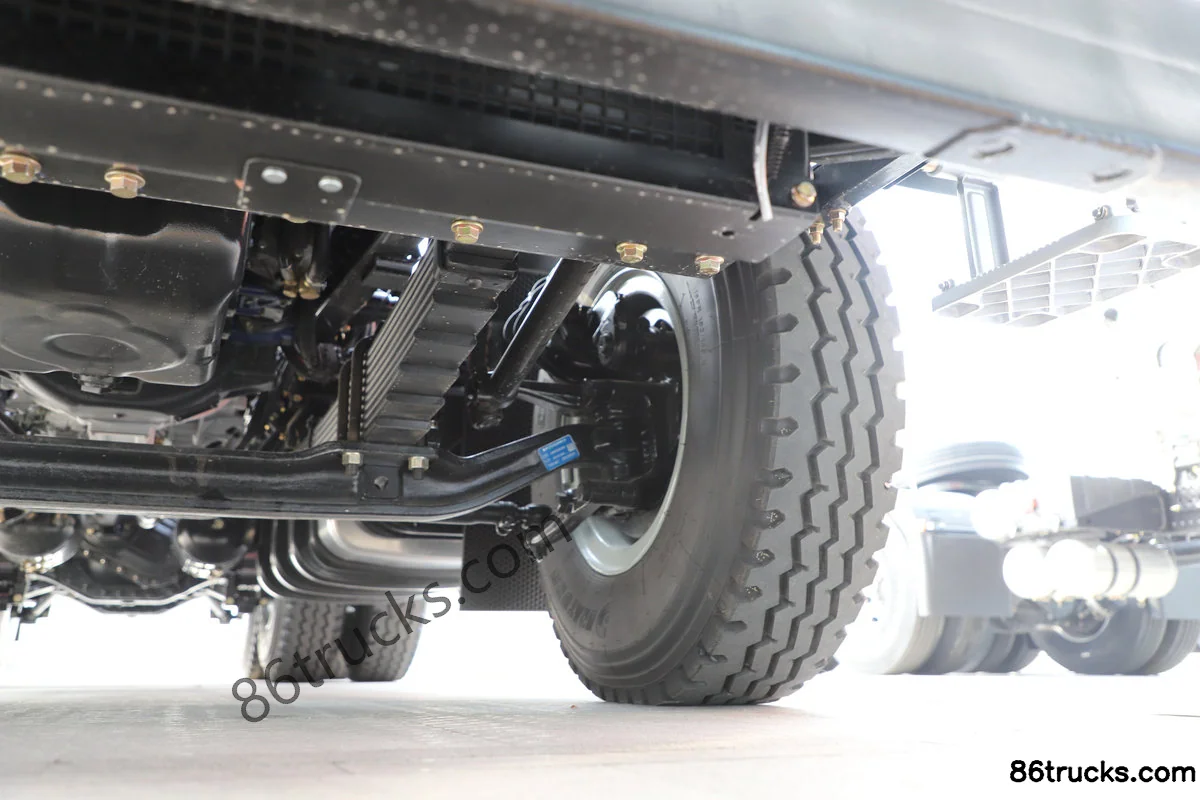

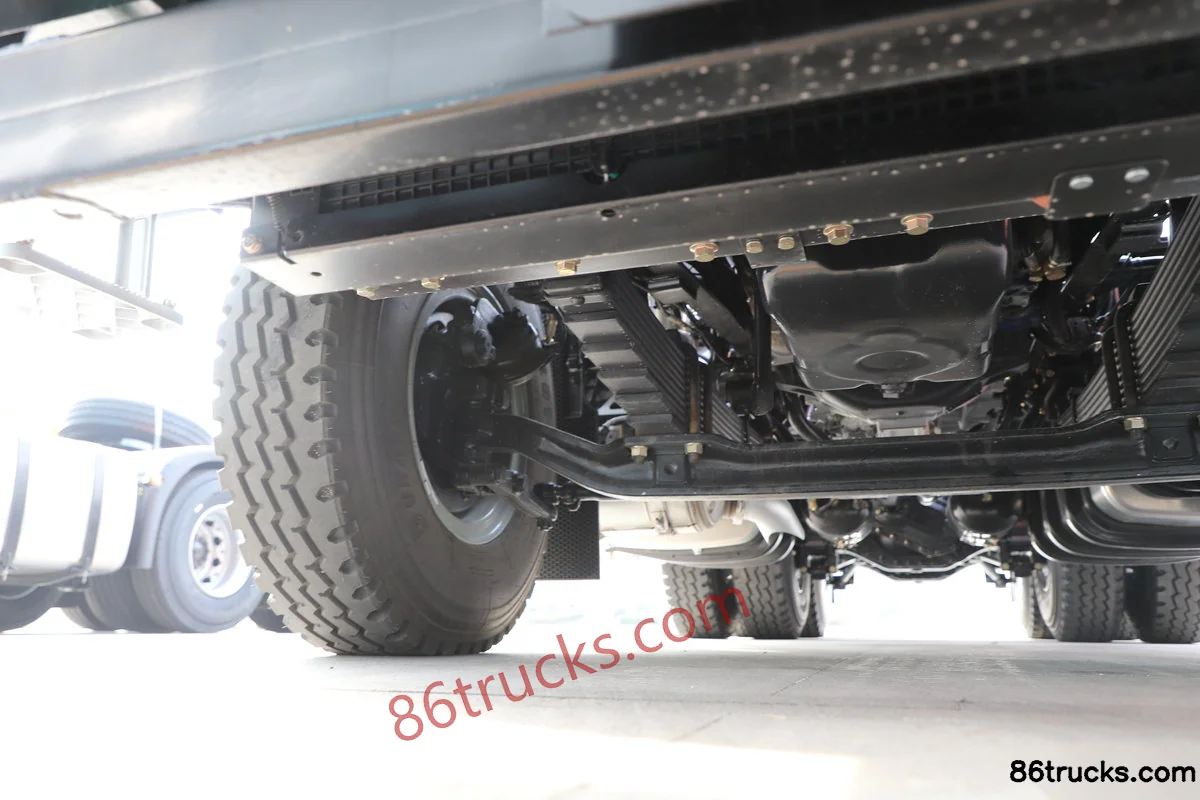

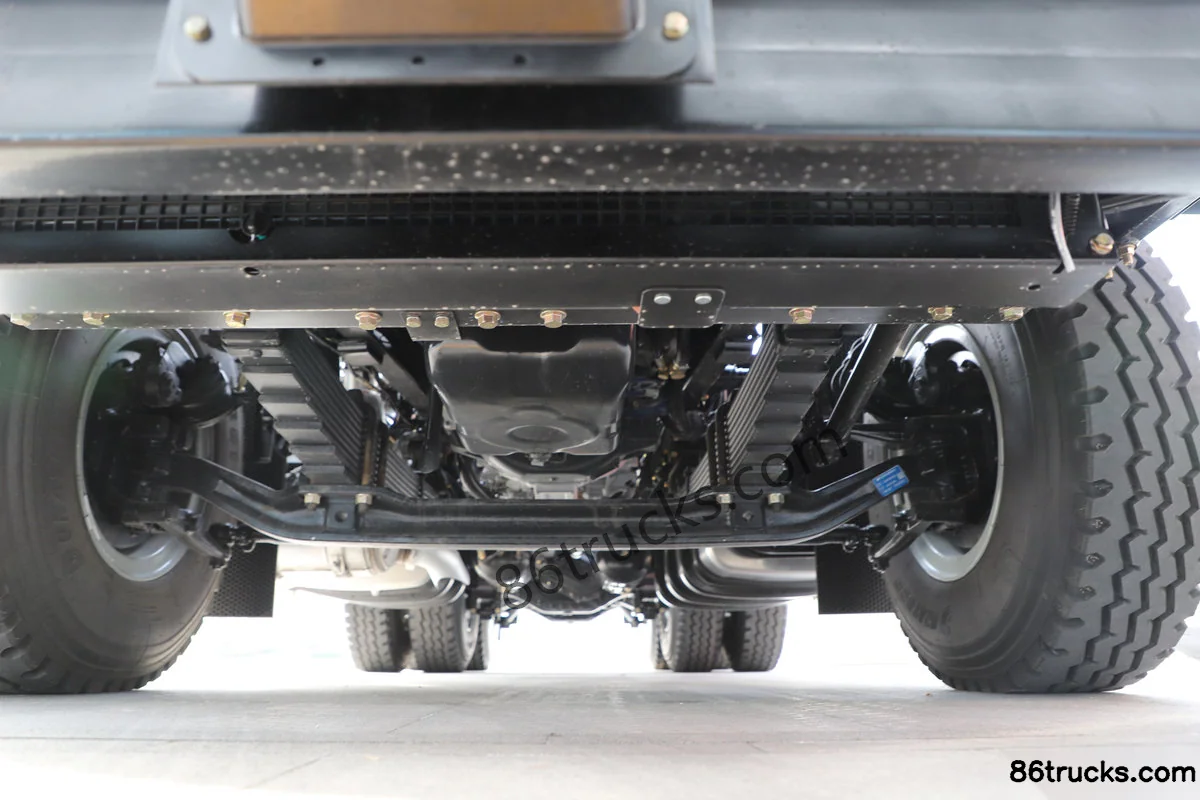

SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck Chassis (1) | 86Trucks SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck Chassis (2) | 86Trucks SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck Chassis (3) | 86Trucks

6 photos

FAQ

What are the key specs of SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck?

Key specs of SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck: Drive: 6x4; Horsepower: 680 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck suited for?

SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck differ from other variants in the same series?

SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck belongs to SHACMAN Delong X5000 (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X5000 Jingying Edition 14.6L Diesel 680hp 6X4(10 wheels) Fast Gear 16-Speed Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
