Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh

Export reference
MSRP N/A
Type:: vacuum sweeper truck
Front/rear track width:: 1845/1735mm
Front/rear suspension:: 1.195/1.775m
Engine Model:: TZ370XS-LKM1102
Vehicle certification code:: SX5127TXCBF421BEV
Body Brand:: Dechuang Future
Drive 4X2 (6 wheels)
Rated mass: 2.32ton
Wheelbase: 4250mm
Cab dimensions: 7.22×2.265×2.85m

Overview

The Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh is a vacuum sweeper truck featuring 2.32ton GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a TZ370XS-LKM1102 engine.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.22×2.265×2.85m
Type: vacuum sweeper truck
Drive type: 4X2
Front/rear track width: 1845/1735mm
Wheelbase: 4250mm
Rated mass: 2.32ton
Curb Weight: 11.85ton
Front/rear suspension: 1.195/1.775m
Engine parameters
Engine Model: TZ370XS-LKM1102
Body Parameters
Vehicle certification code: SX5127TXCBF421BEV
Body Brand: Dechuang Future
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande E9
Chassis Model: SX1127BF1EV
Leaf spring count: 3/11+5
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs

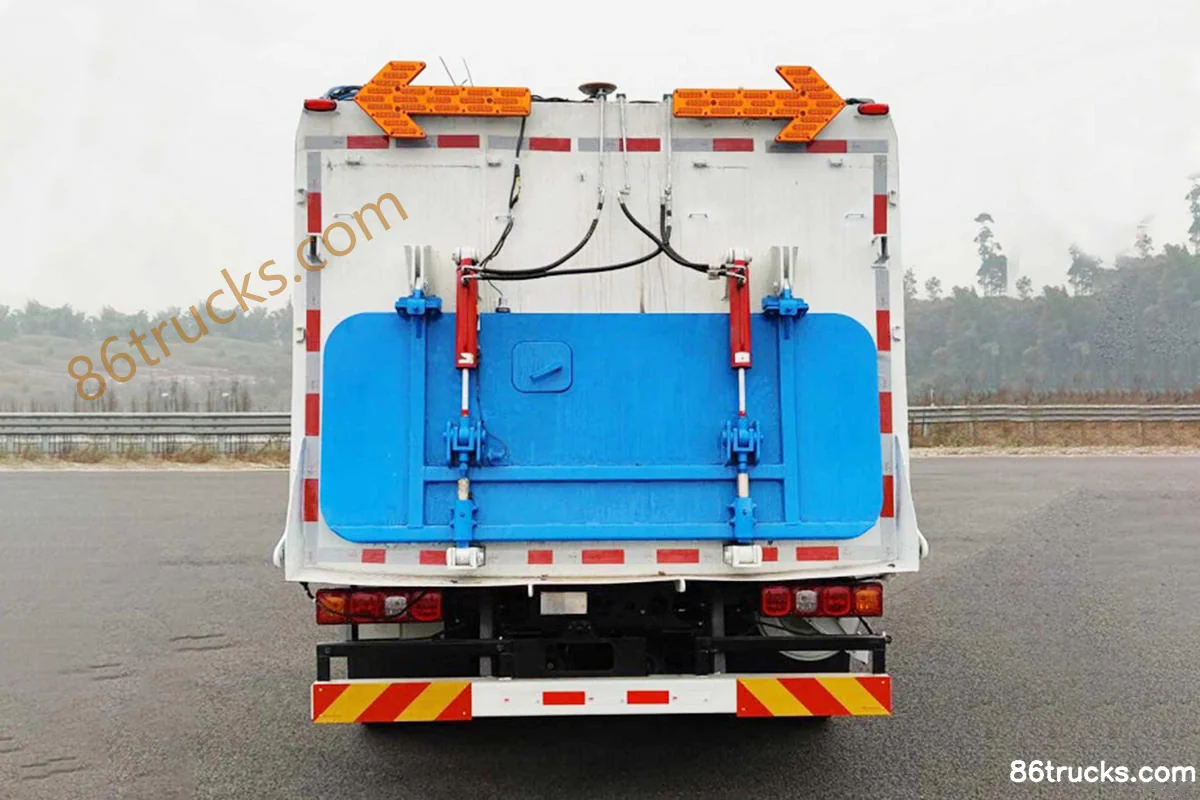

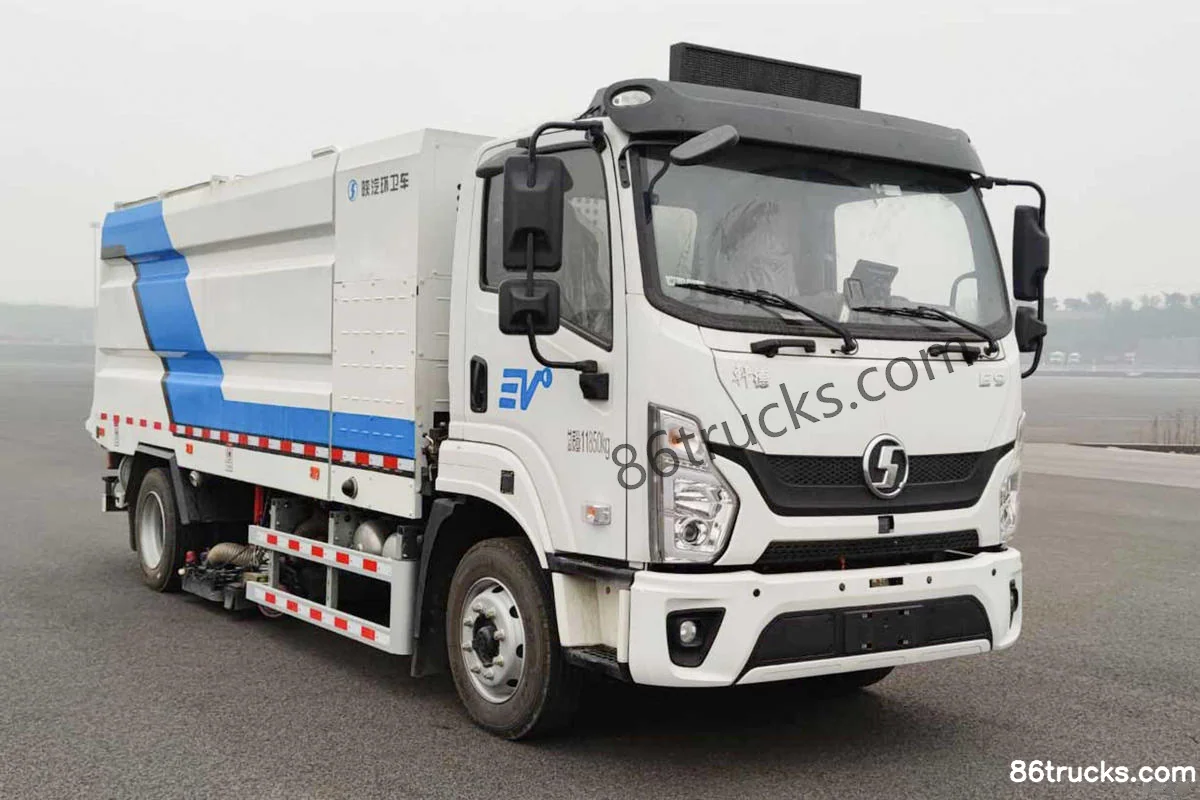

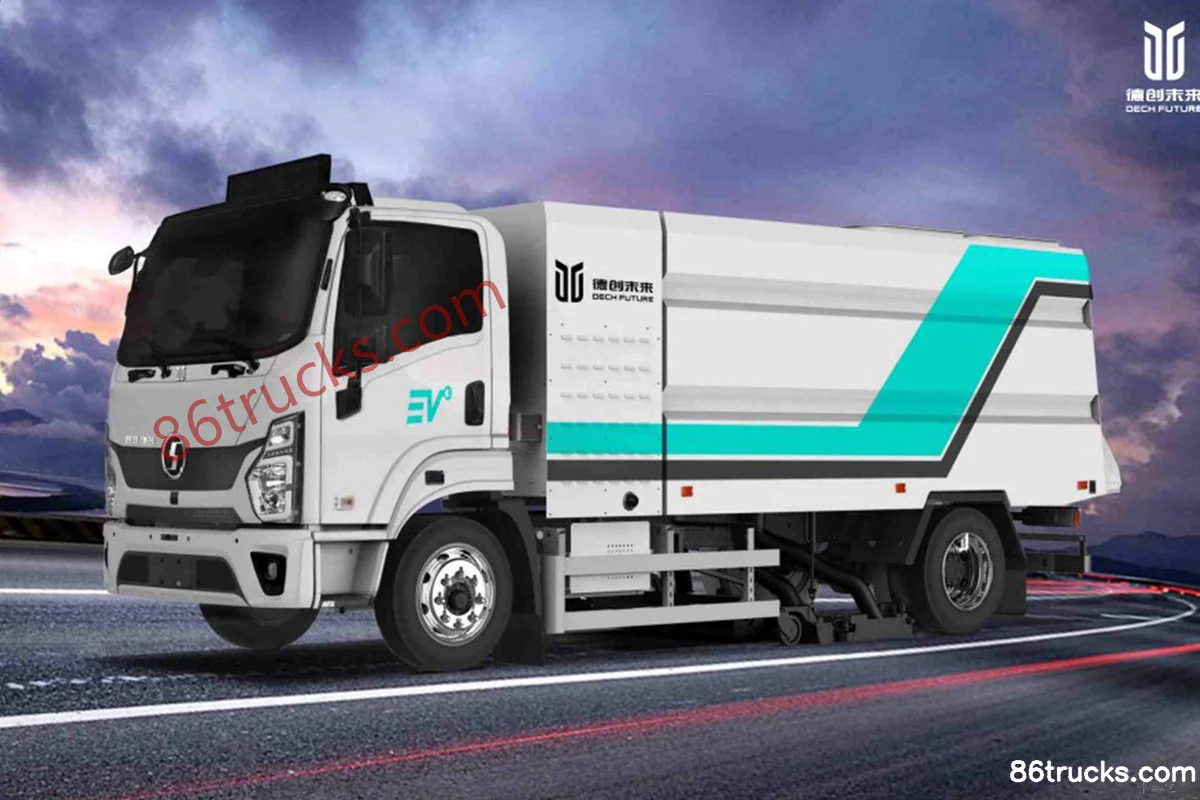

Photos

Exterior3

3 photos

FAQ

What are the key specs of Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh?

Key specs of Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh suited for?

Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh is a vacuum sweeper truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh differ from other variants in the same series?

Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh belongs to Dechuang Battery-Electric Truck (vacuum sweeper truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Proton Auto Charging Version 12T 4X2(6 wheels) Battery Electric Vacuum Truck 175kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
