FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck

Export reference
From $62,917
MSRP ¥45.3M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 295/80R22.5
Front axle allowable load:: 7000kg
Displacement:: 12.52L
Drive 6X4 (10 wheels)
Horsepower 550
Emission China V
Transmission FAW Jiefang

Overview

The FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck is a Heavy truck featuring 6X4 (10 wheels) drive, 550 hp, 25t GVW and China V emissions. Its segment focus covers Logistics, Coal Transport and Bulk Material, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DM3-55E52 engine, FAW Jiefang transmission and Diesel fuel.

China V 550 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P77K25T1E5
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: XichaiCA6DM3-55E52
transmission: FAW JiefangCA12TAX230M3
Rear Axle Ratio: 3.727
Cab length: 6.915m
Cab width: 2.55m
Cab height: 4m
Front track width: 2100mm
rear track: 1830/1830mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Logistics, Coal Transport, Bulk Material, Industrial Goods
Remarks: 2150mm max cab interior height, 810mm wide bunk, integrated switches, flat floor, front/rear wedge brakes, lane departure warning + forward collision warning, fleet management system, energy-saving control system, self-contained air-assisted urea system, integrated anti-splash mudguard
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-55E52
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China V
Max output power: 407kW
Max hp: 550Horsepower
Max torque: 2600N·m
Max torque speed: 1200-1300rpm
Rated speed: 1800rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX230M3
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1000L
Cab parameters
Cab: High-roof flat floor
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Suspension type: leaf spring suspension
Front axle description: F7N
Fifth wheel: 90#
Front axle allowable load: 7000kg
Frame Dimensions: 300x80x8mm
rear axle description: 465 upgraded stamped-welded axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.727
Leaf spring count: 2/4
Suspension (front/rear): leaf spring suspension
Tire

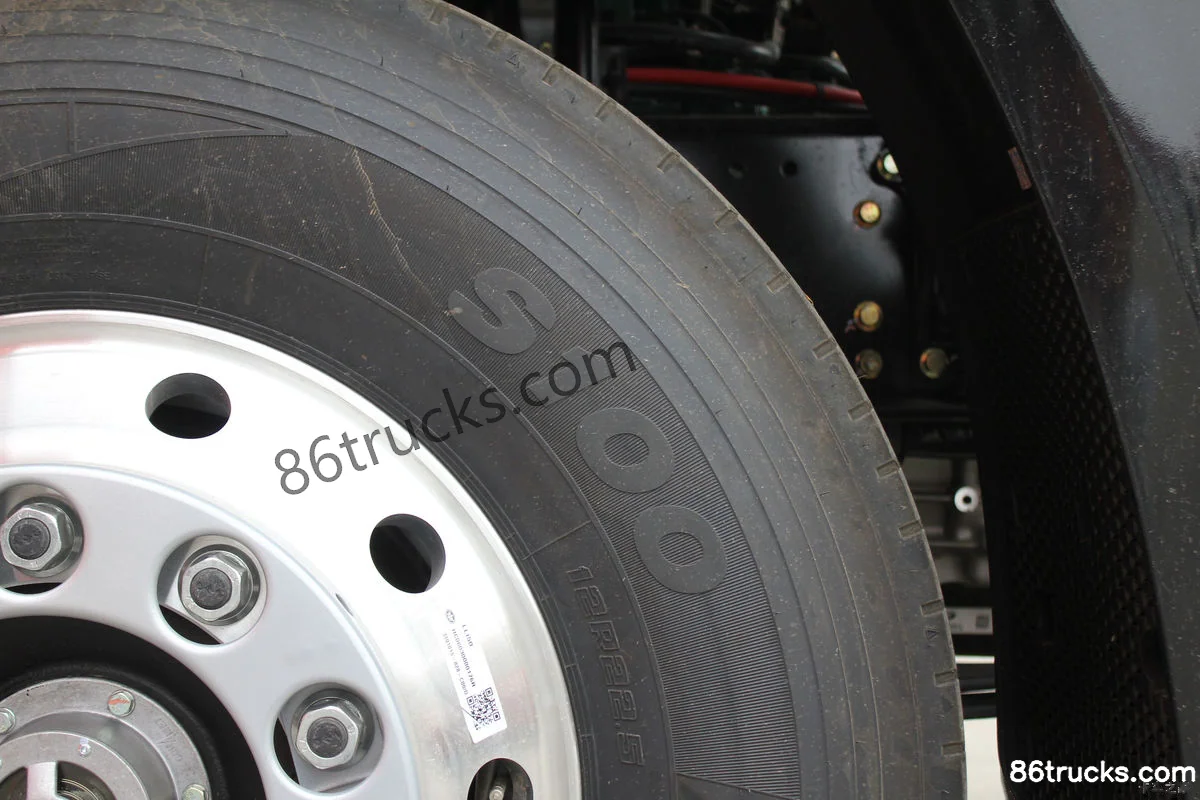

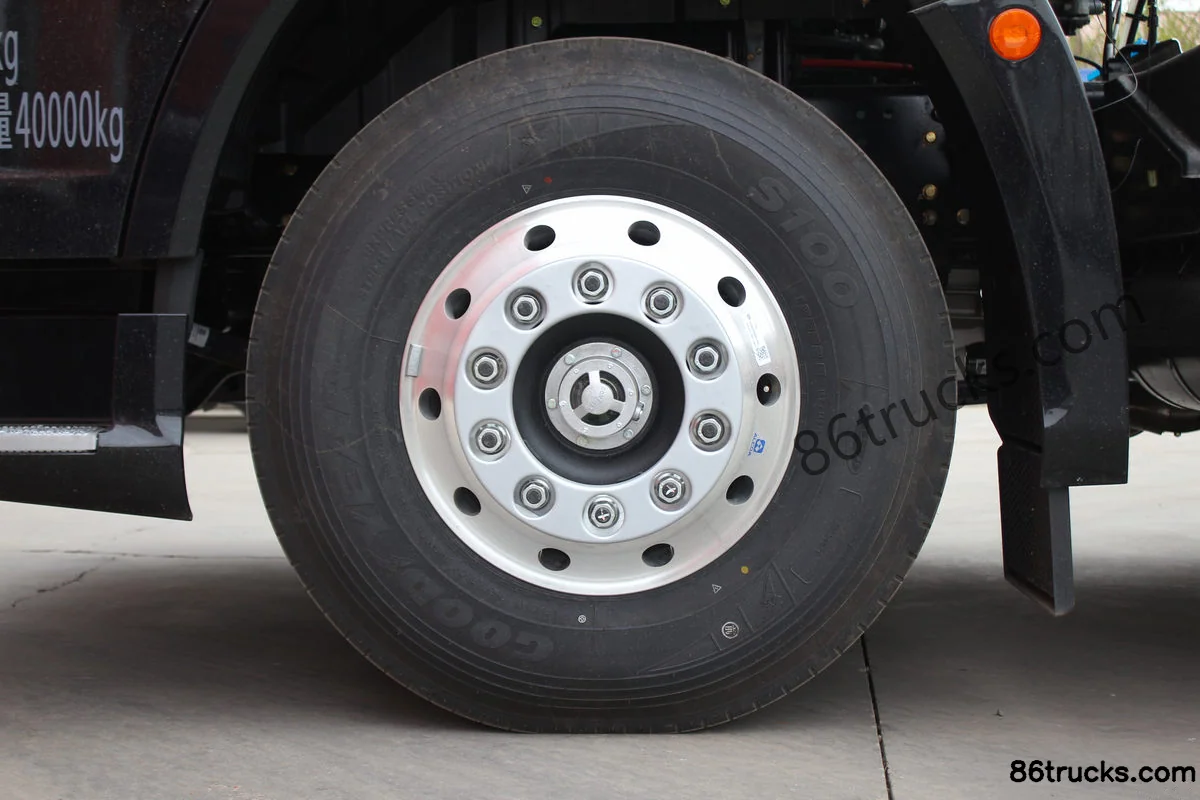

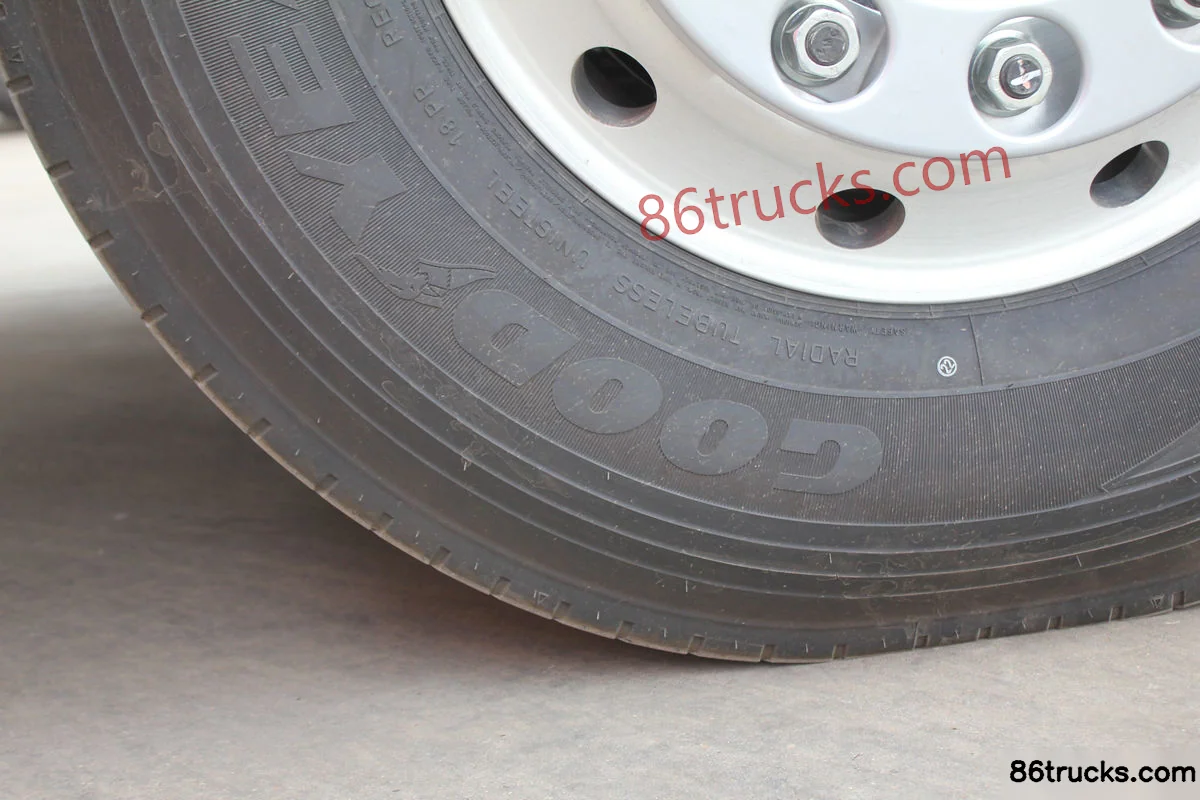

Tire Size: 295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:
ASR traction control:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Independent AC:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

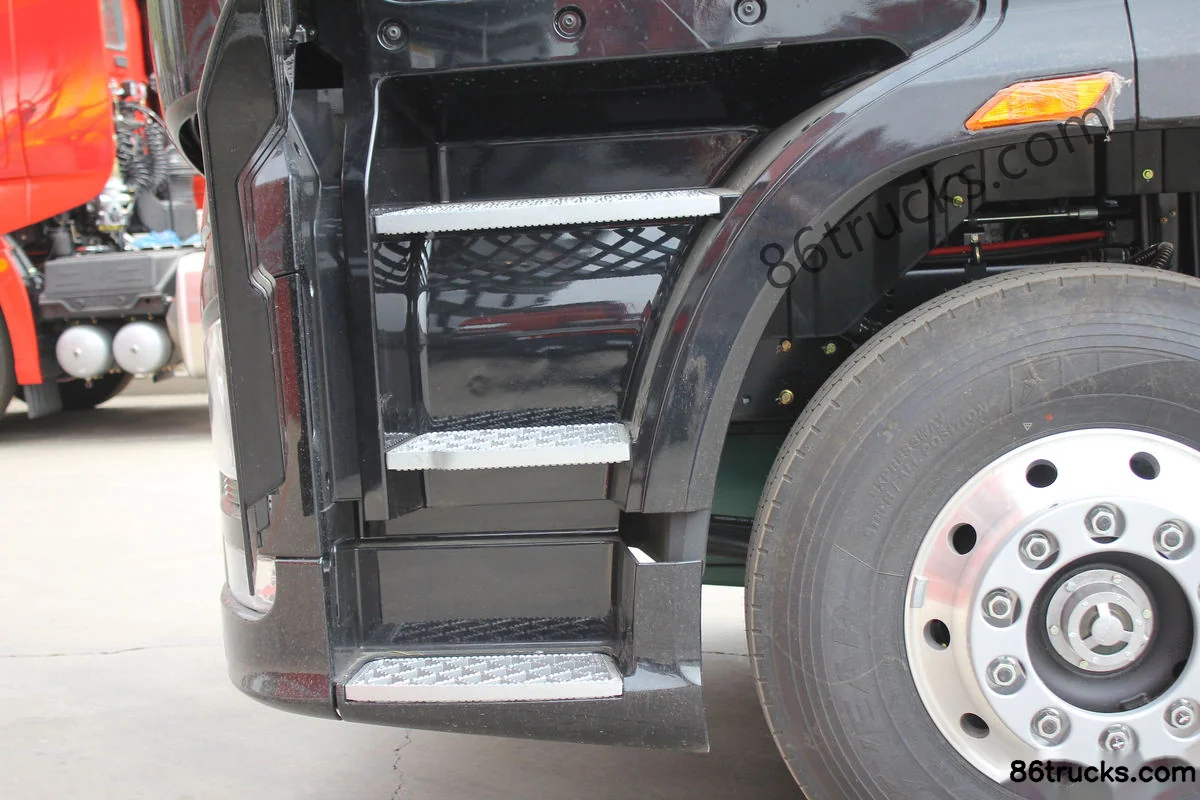

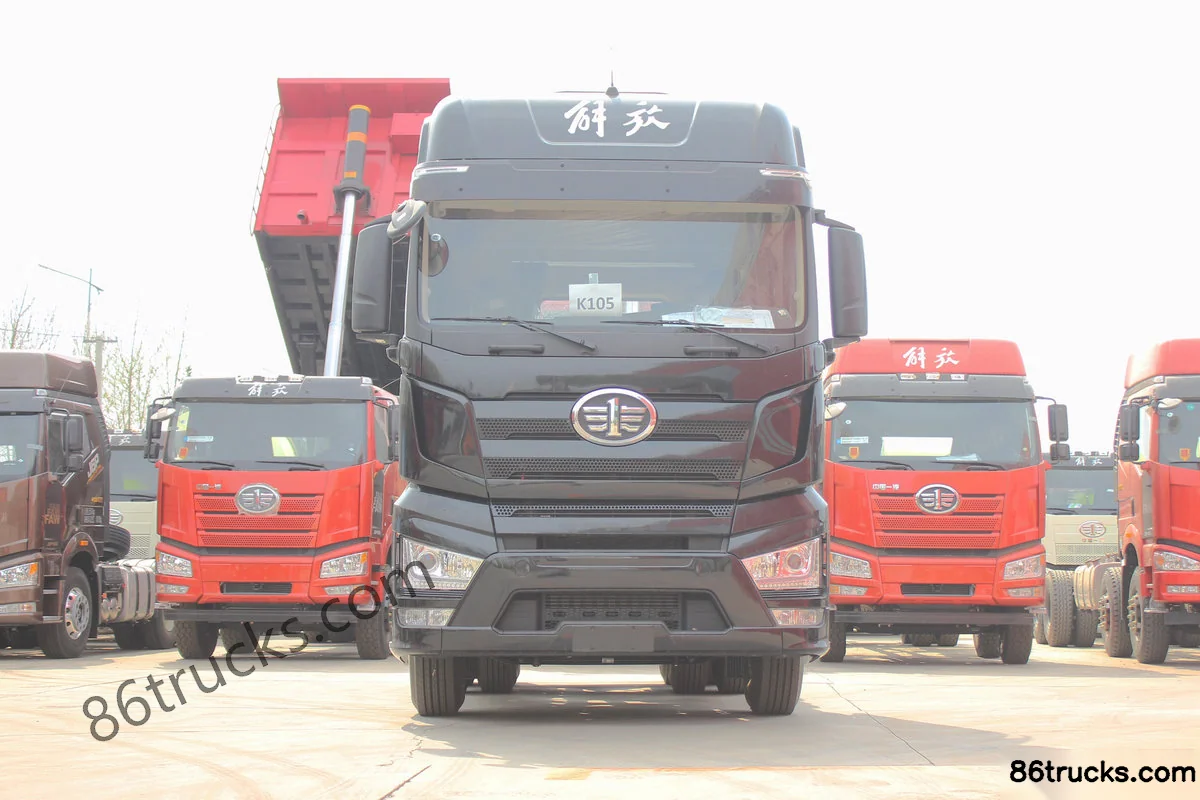

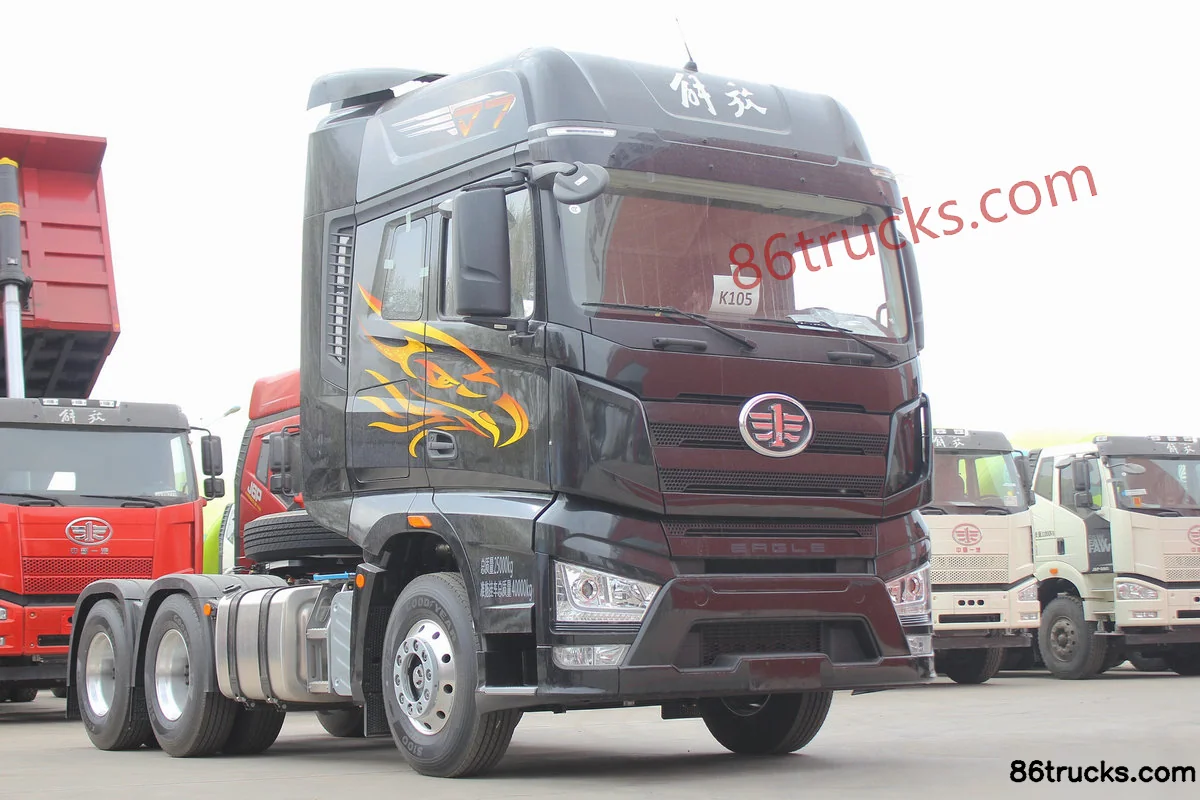

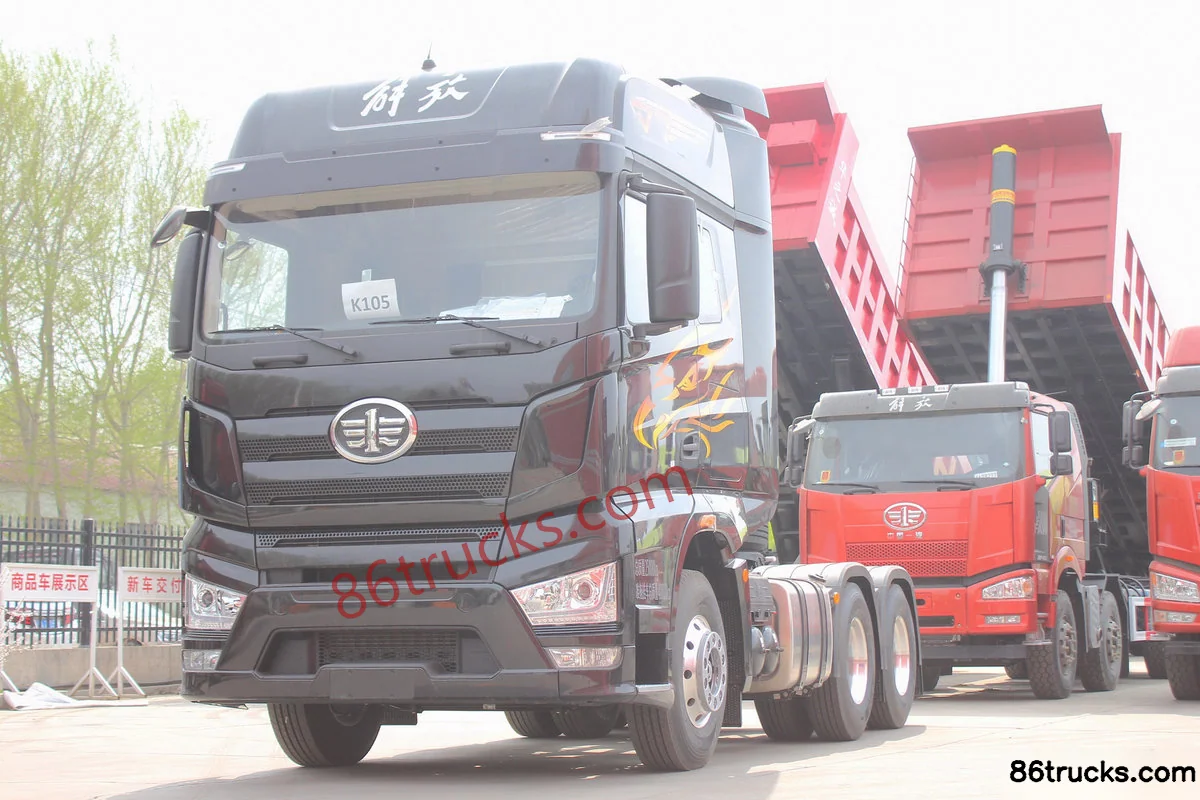

Exterior3

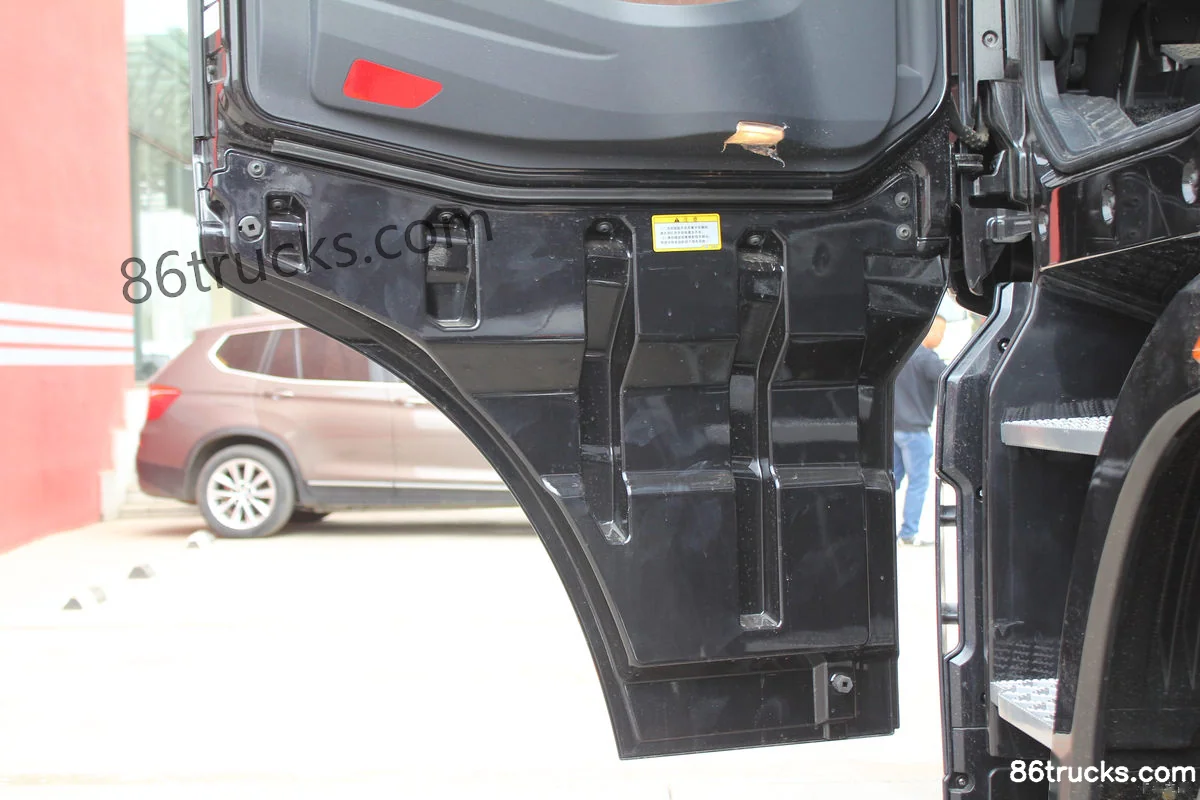

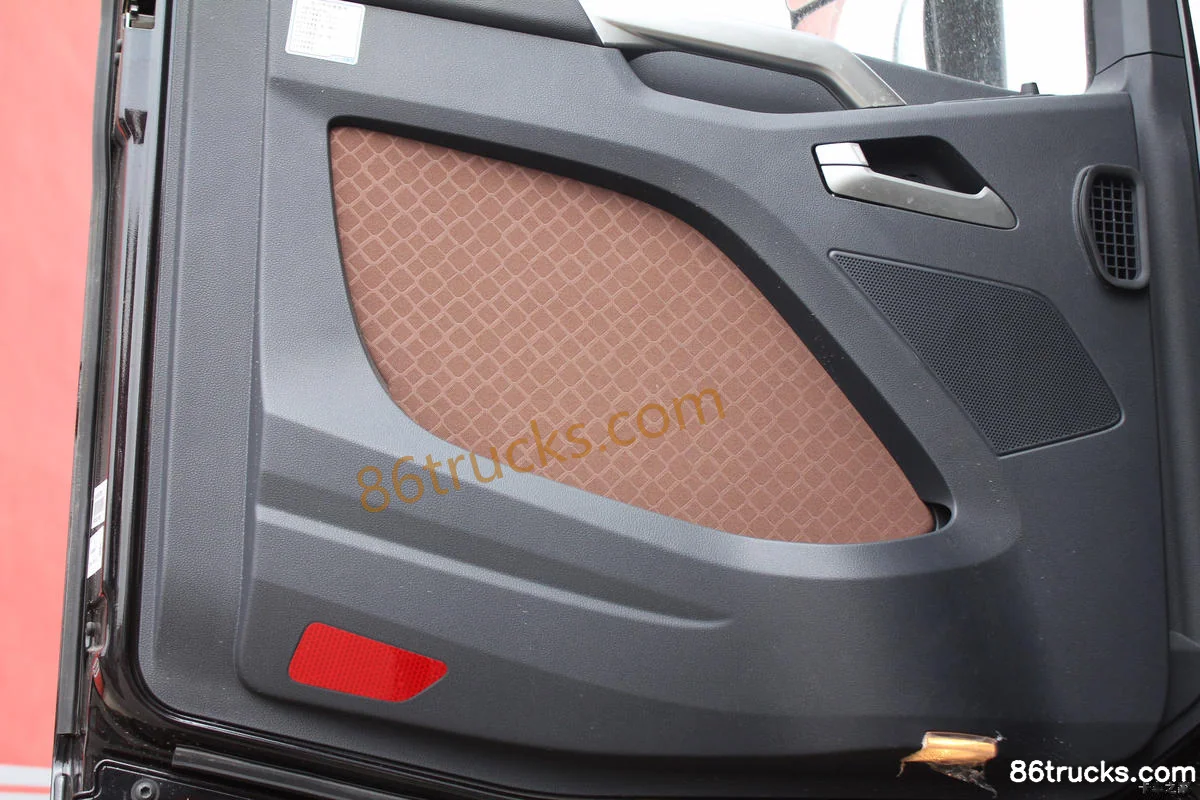

Cab3

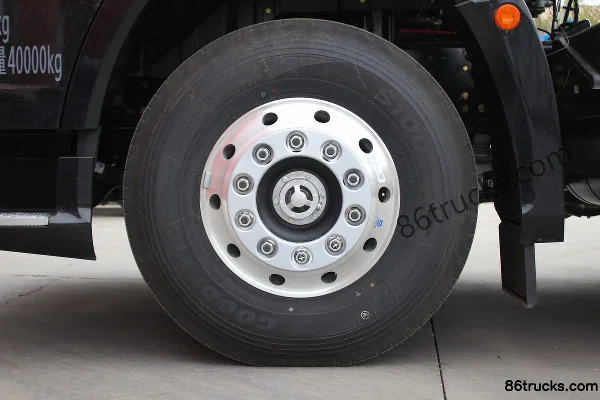

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck, and what does it include?

FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck export reference is about From $62,917; MSRP is ¥45.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck?

Key specs of FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck: Drive: 6x4; Horsepower: 550 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck suited for?

FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck differ from other variants in the same series?

FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck belongs to FAW Jiefang J7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J7 heavy truck 550hp 6X4(10 wheels) tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
