Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck

Export reference
From $21,778
MSRP ¥15.68M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D30
Transmission: WLY
Curb Weight:: 2.72ton
Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck is a Light Truck featuring 3.83m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5048CCY-A1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: Yunnei PowerD30TCIE1
transmission: WLYWLY6G40
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.4m
Cab height: 3.19m
Front track width: 1730mm
rear track: 1615mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.12/1.515m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE1
Engine info: Yunnei Dewei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.83m
Cargo box width: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: M4 flat roof
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1665kg
rear axle allowable load: 2830kg
Axle ratio: 4.33
Leaf spring count: 3/7+6
Tire
Tire Size: 8.25R16LT 6PR;7.50R16LT
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Optional manual.
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
LCD instrument cluster:
lighting configuration
daytime running lights:
Halogen Headlights:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

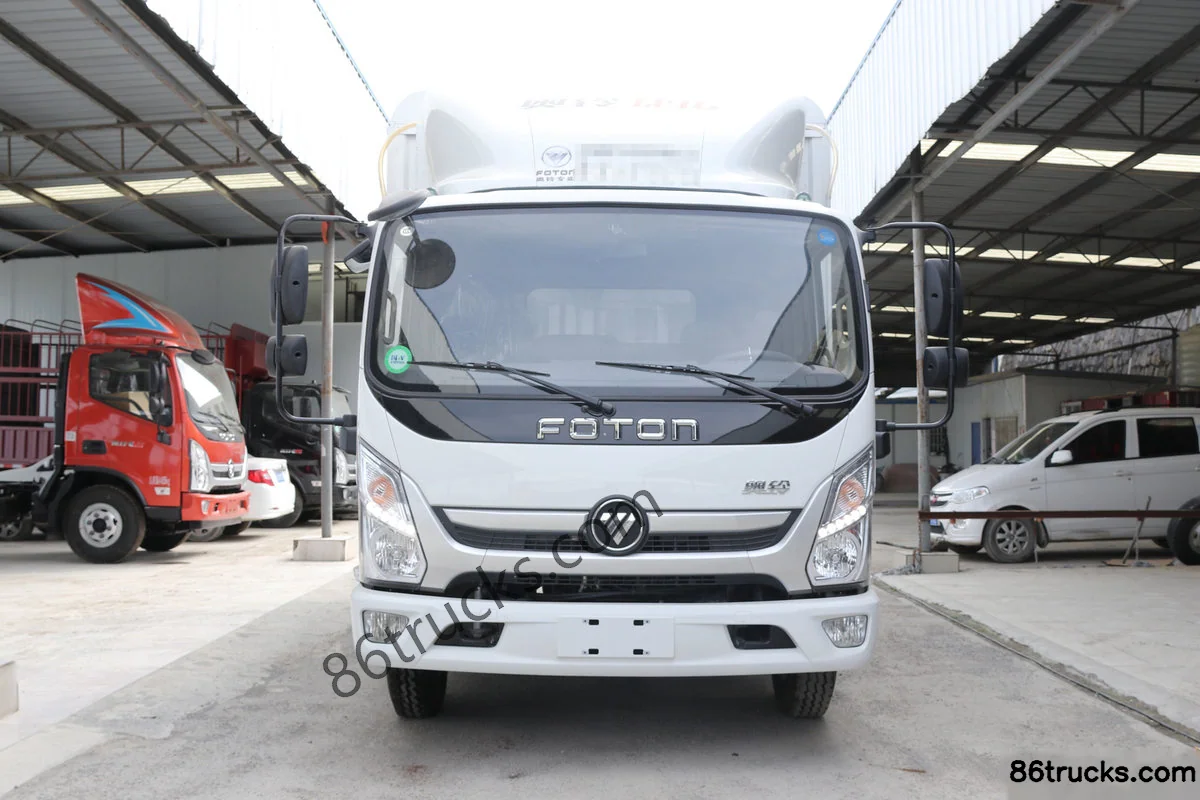

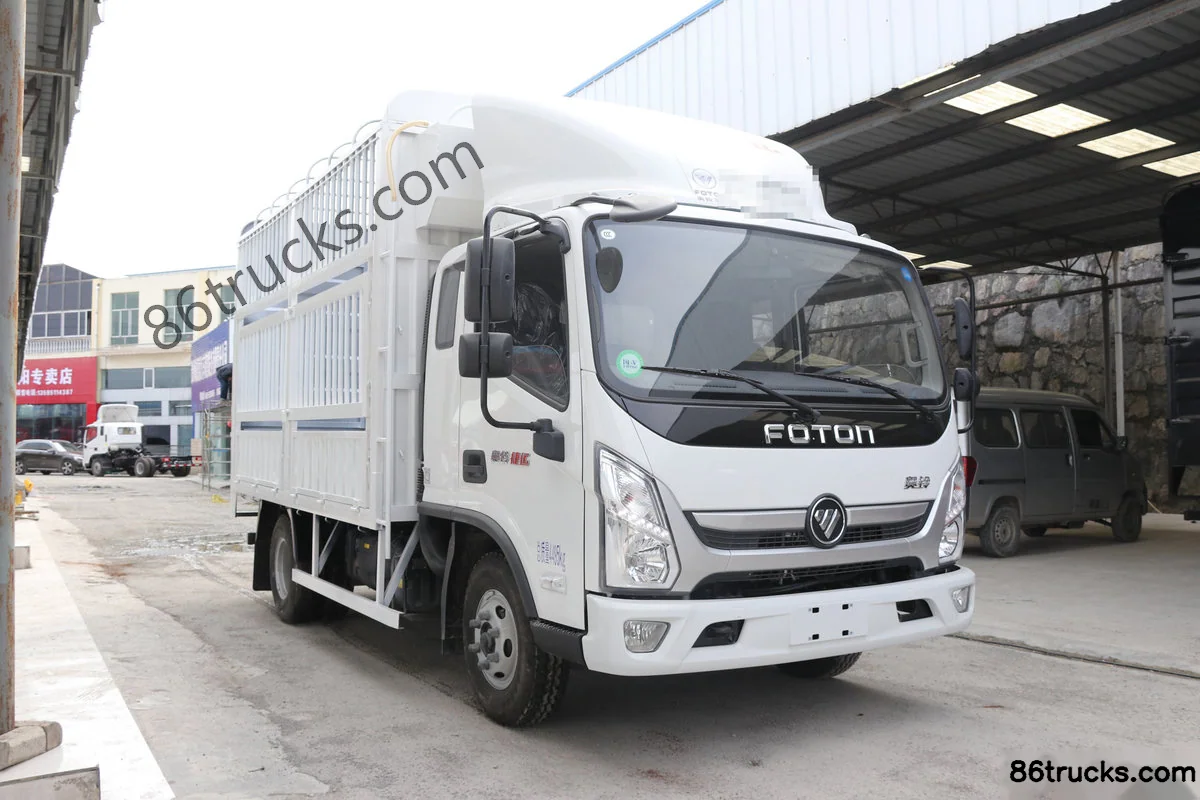

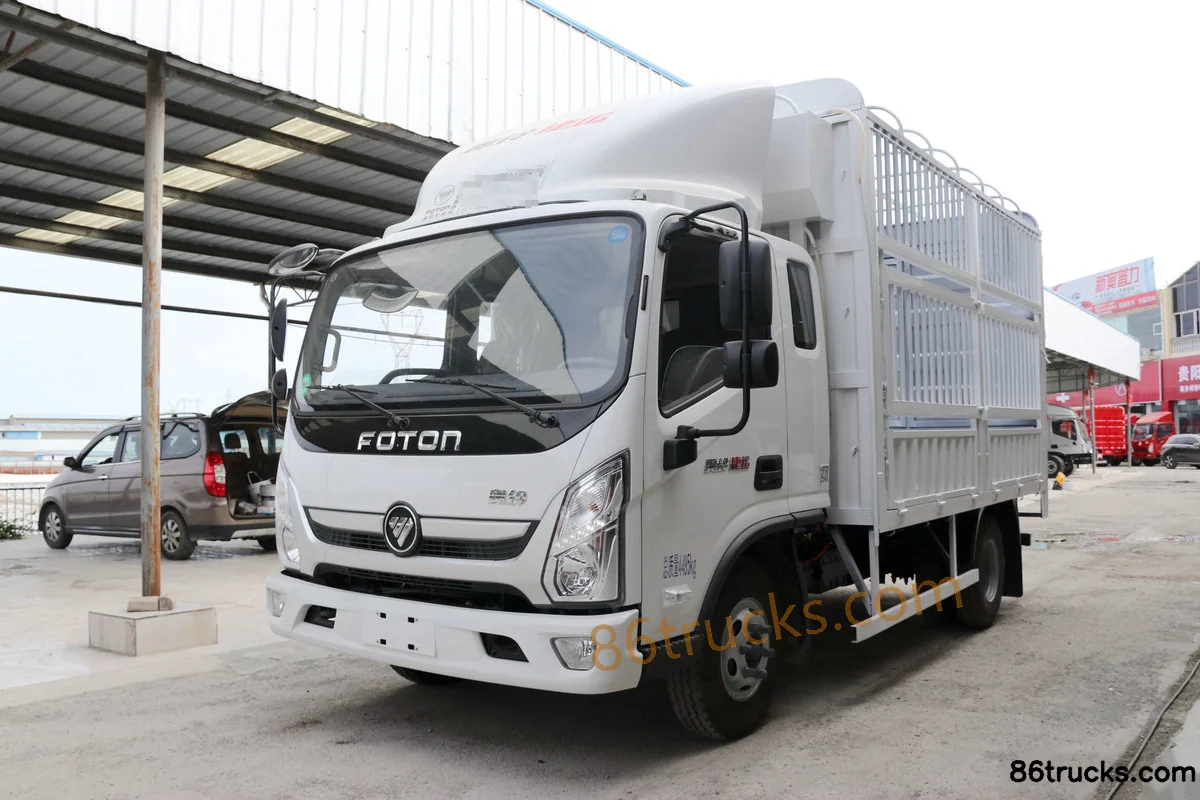

Exterior3

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Exterior (1) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Exterior (2) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Exterior (3) | 86Trucks

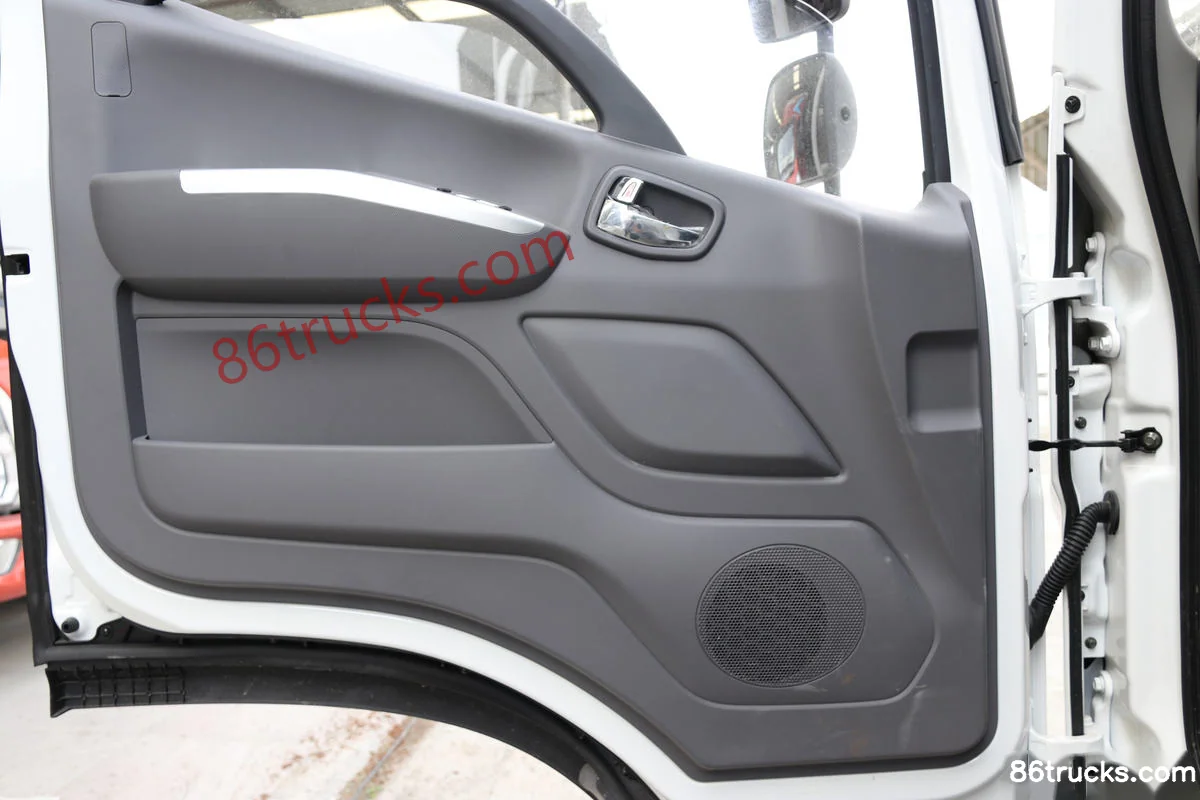

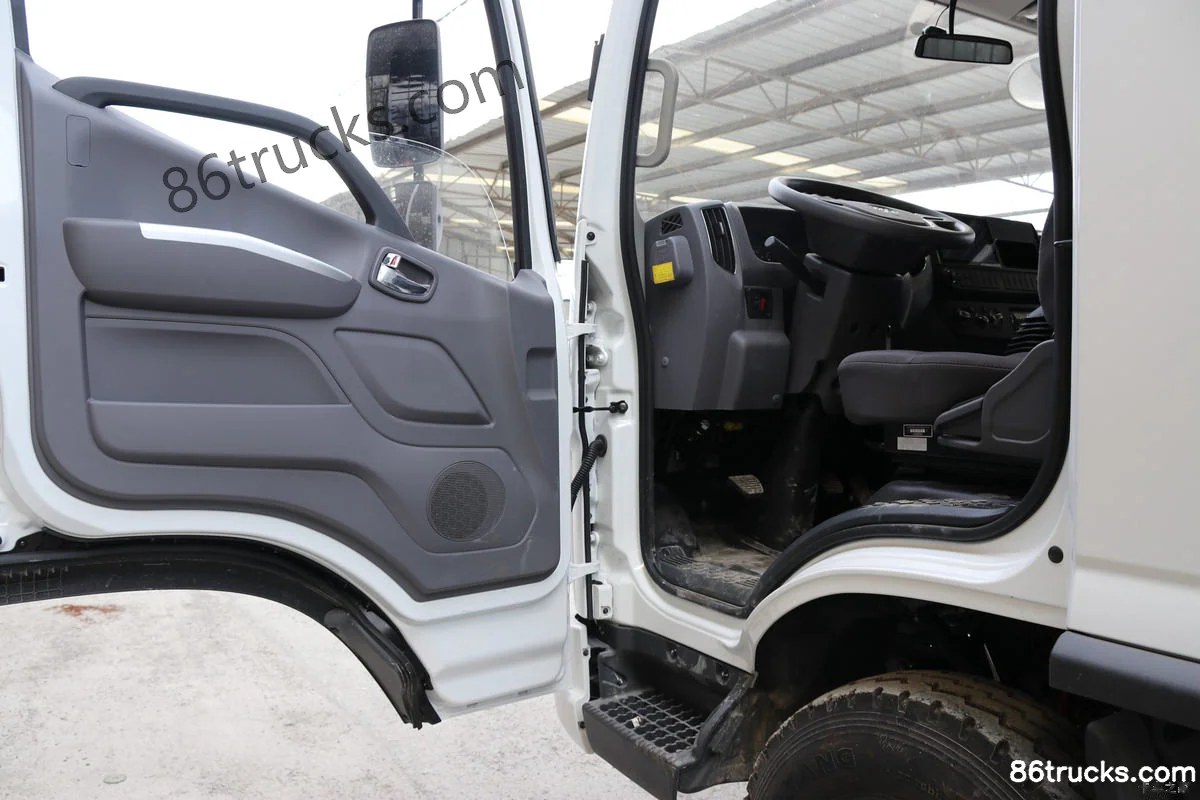

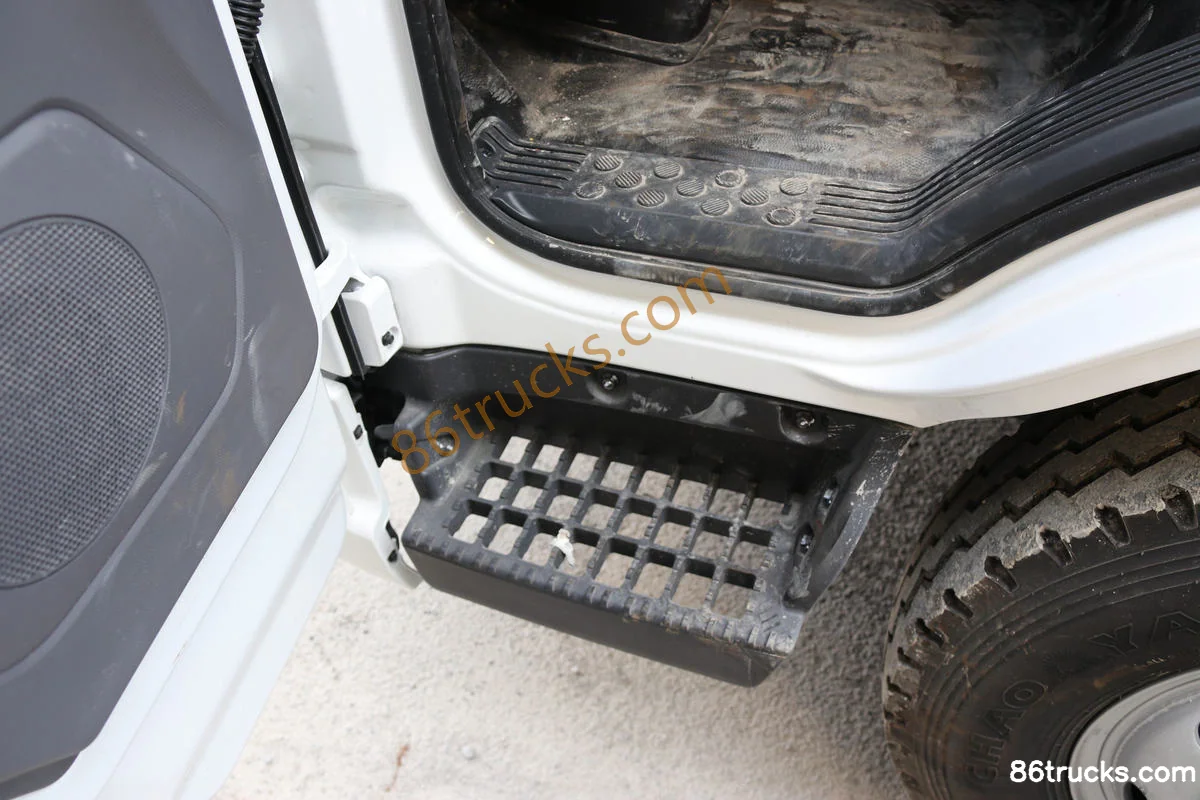

Cab3

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Cab (1) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Cab (2) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Cab (3) | 86Trucks

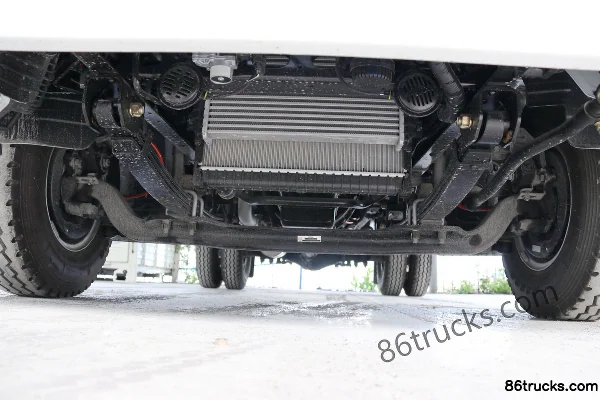

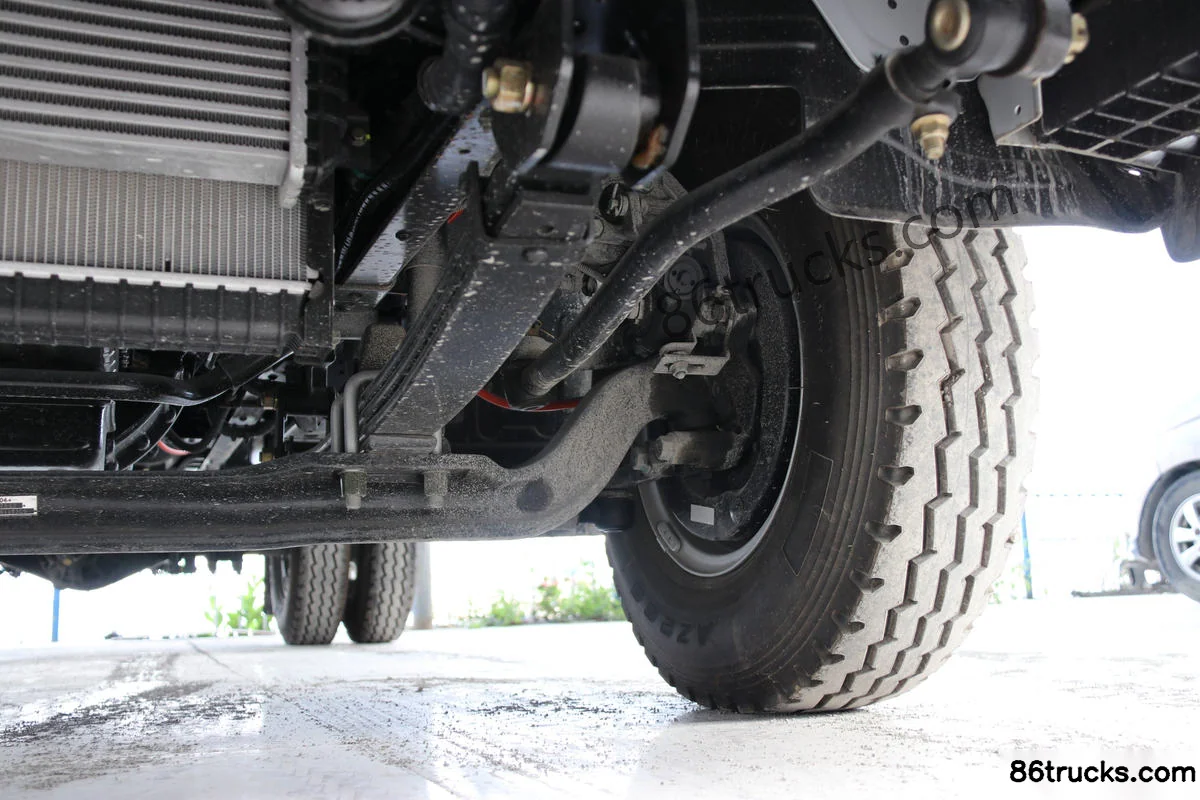

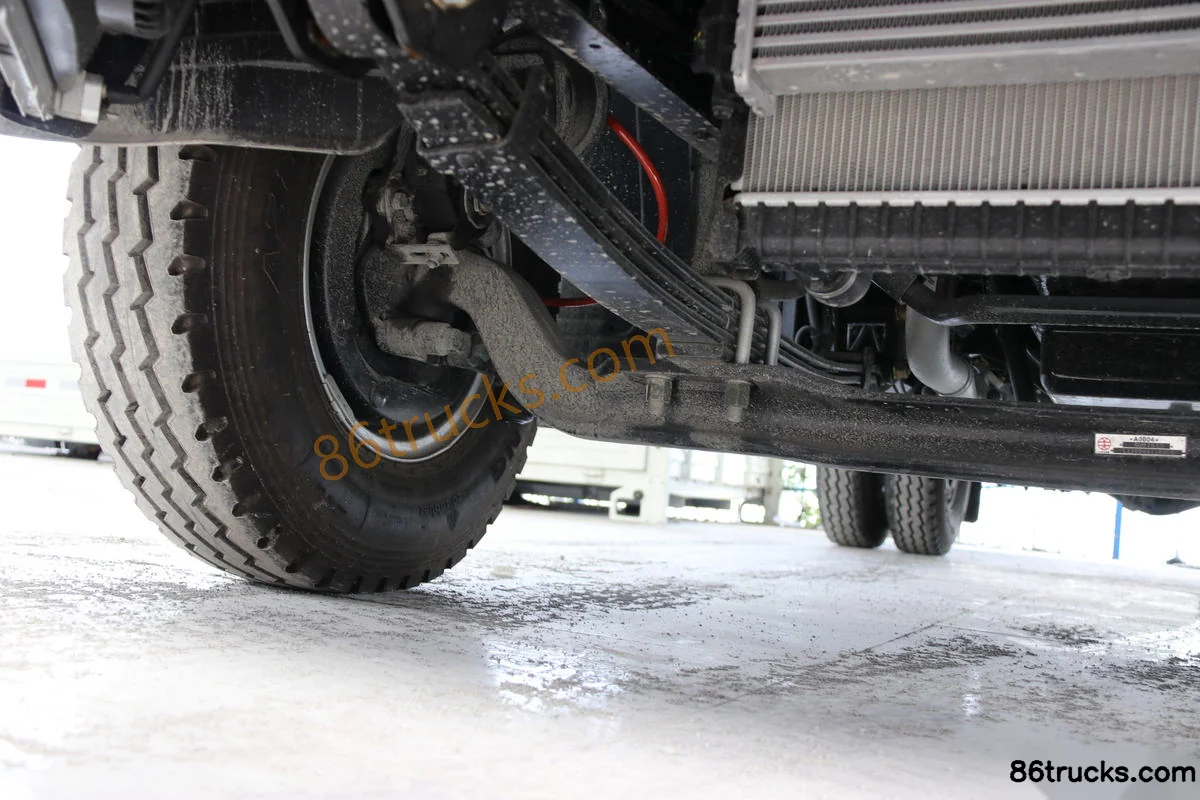

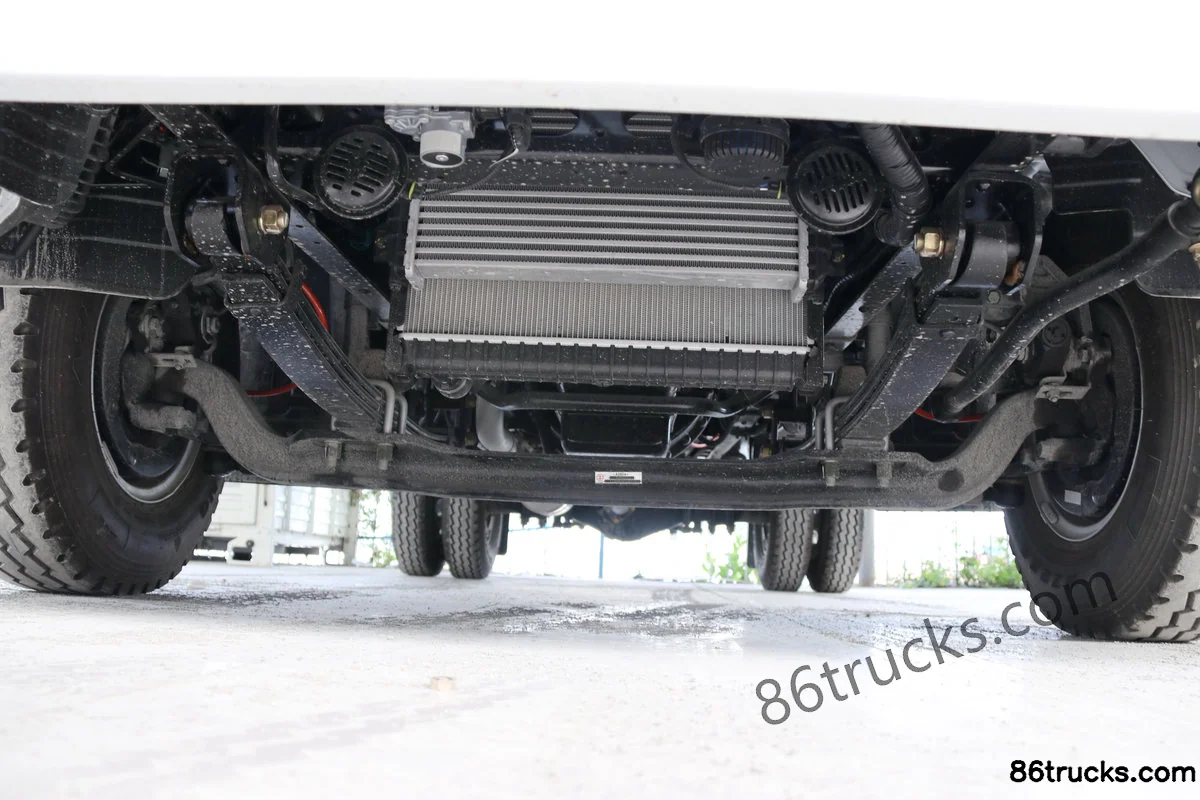

Chassis3

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Chassis (1) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Chassis (2) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Chassis (3) | 86Trucks

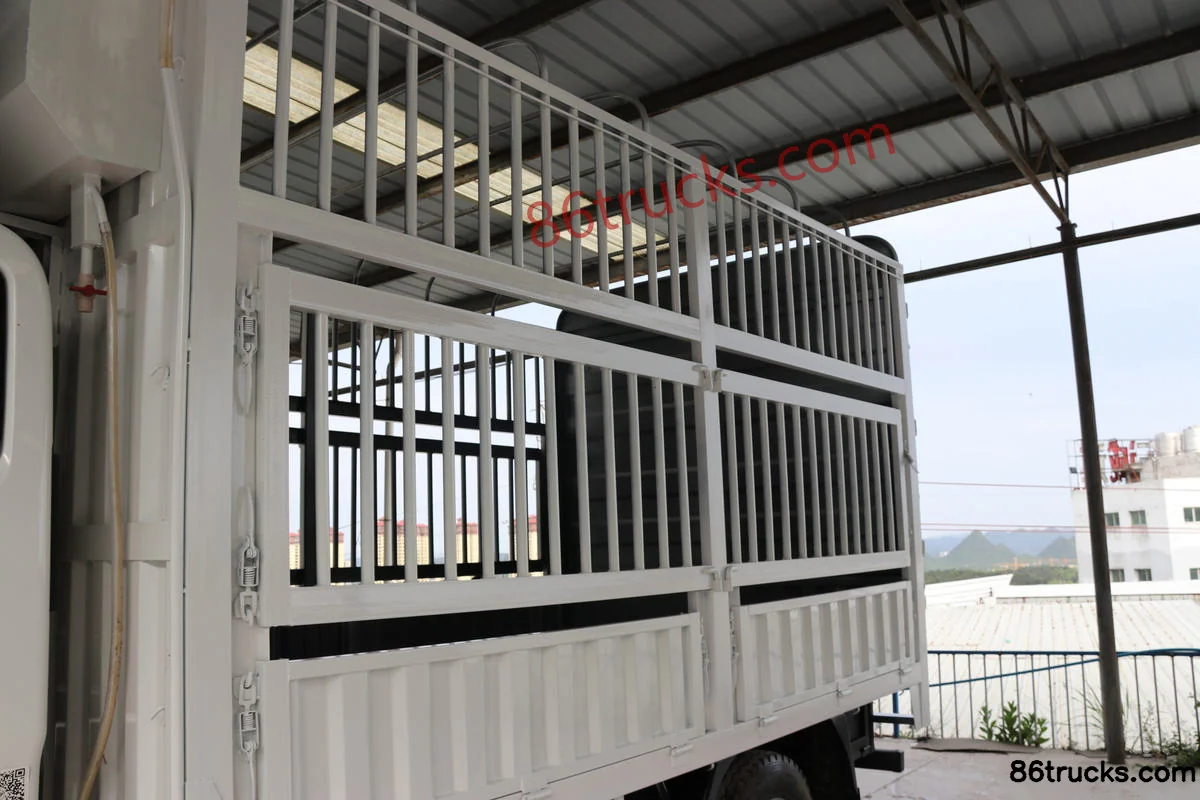

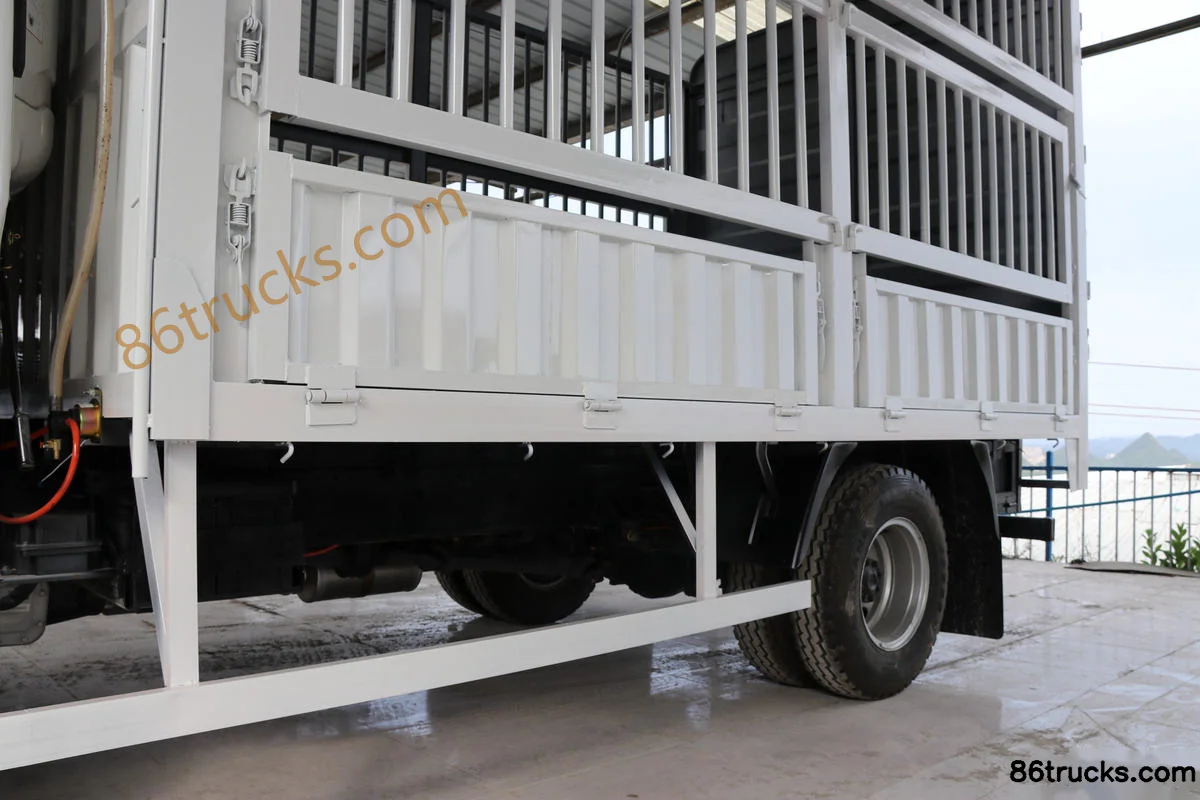

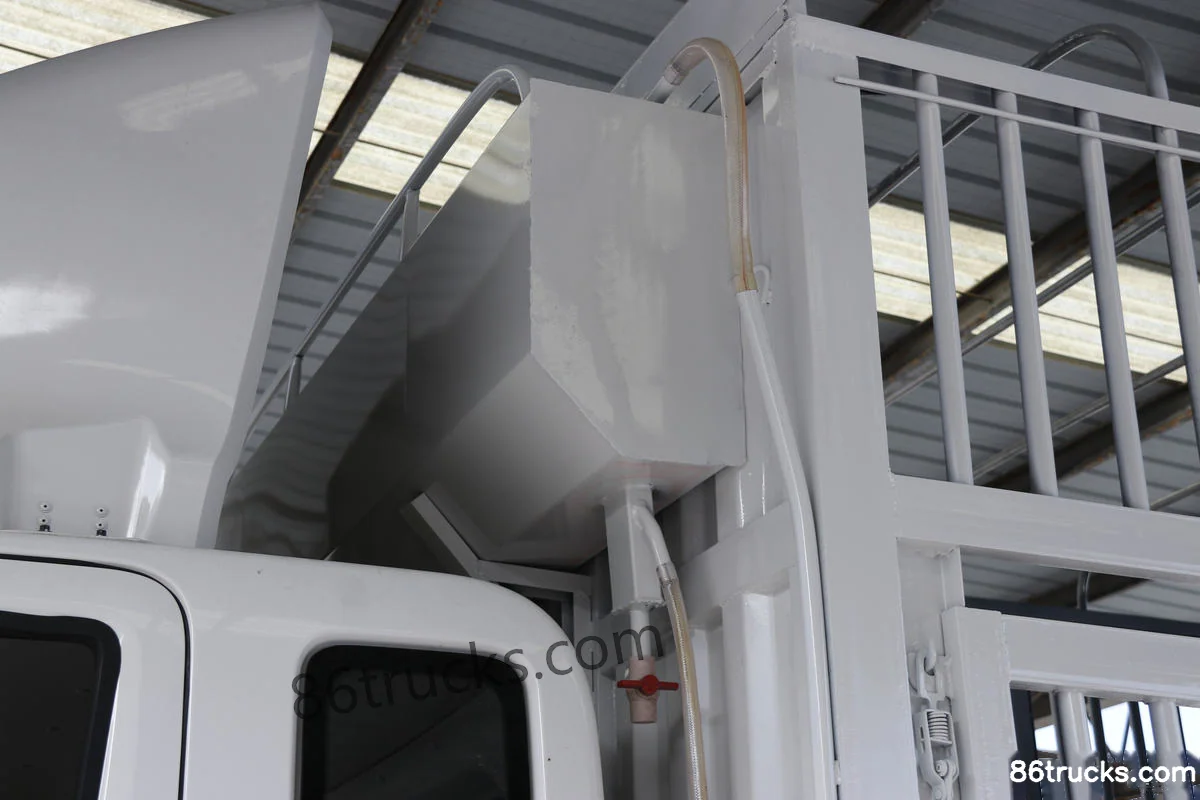

Body3

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Body (1) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Body (2) | 86Trucks Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck, and what does it include?

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck export reference is about From $21,778; MSRP is ¥15.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck?

Key specs of Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D30; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck suited for?

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck differ from other variants in the same series?

Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck belongs to Foton New Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auling Xinjieyun 156hp 4X2(6 wheels) 3.83m semi-row railed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
