JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels)

Export reference
From $36,083
MSRP ¥25.98M CNY
Curb Weight:: 3.76ton
Rated payload:: 0.54ton
Wheelbase:: 3365mm
Cargo box width:: 2.1m
Emission: China VI
Model code (announced):: HFC5043XLCPHEV3
Drive 4X2 (6 wheels)
CLTC range: 50km
Motor Type: Permanent magnet synchronous motor
Horsepower 160

Overview

The JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 50km battery/range, Permanent magnet synchronous motor motor, 4X2 (6 wheels) drive and 0.54t payload. On the powertrain side, it comes with 160 hp.

China VI 160 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043XLCPHEV3
Drive type: 4X2
Wheelbase: 3365mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.35m
CLTC range: 50km
Curb Weight: 3.76ton
Rated payload: 0.54ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Hefei, Anhui
Energy Type: Hybrid
electric motor
Motor Type: Permanent magnet synchronous motor
total rated power: 30kW
Peak power: 65kW
total rated torque: 130N·m
Battery/Charging
Battery Brand: JAC Huating
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 17.28kWh
Engine parameters
Engine Model: Anhui CumminsHFC4DE3-2E9
Number of cylinders: 4cylinder
Displacement: 2.499L
Emission standard: China VI
Max output power: 117kW
Max hp: 160Horsepower
Chassis Specs
Chassis Series: Shuailing HS7
Chassis Model: HFC1043PHEV3
Leaf spring count: 4/4+2,4/5+6
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.2m
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

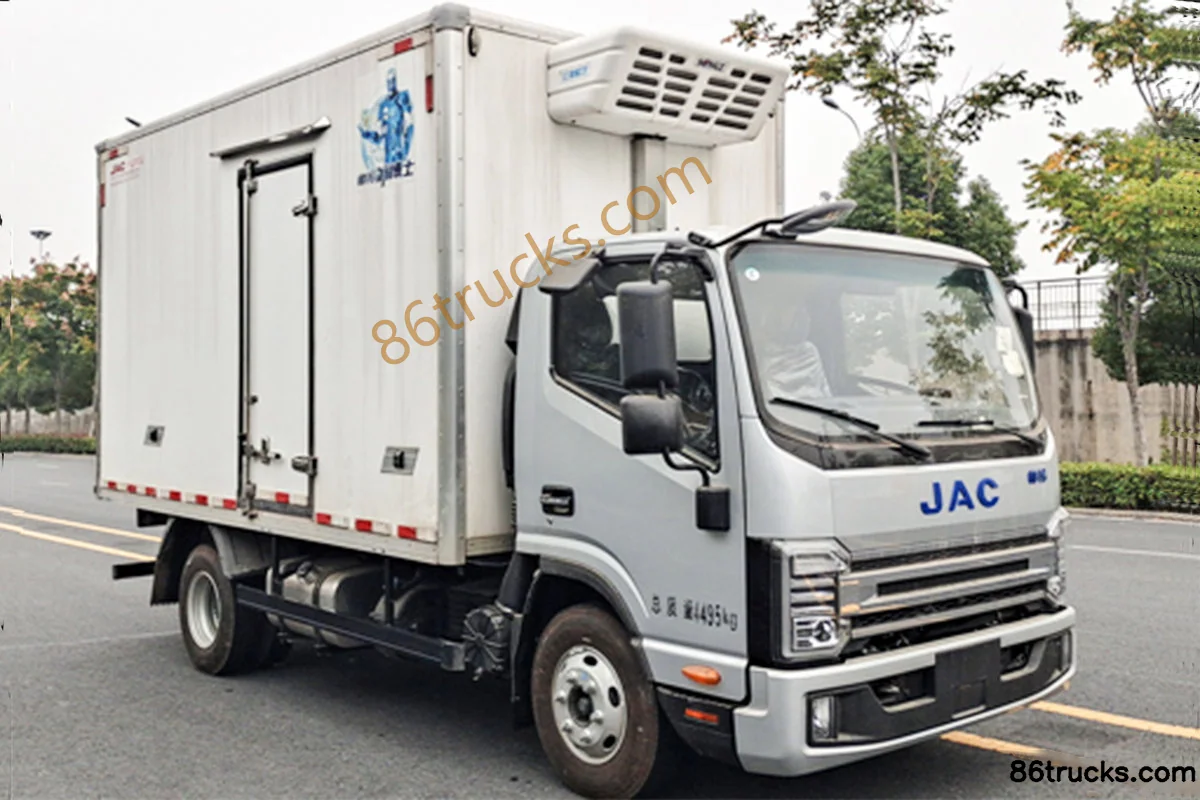

Exterior1

1 photos

FAQ

What is the export price of JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels), and what does it include?

JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) export reference is about From $36,083; MSRP is ¥25.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels)?

Key specs of JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 160 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) suited for?

JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels) belongs to JACHS7 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing HS7 4.5T 4.015m single-row plug-in hybrid refrigerated truck 17.28kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
