King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh

Export reference
From $19,139
MSRP ¥13.78M CNY
Wheelbase:: 2890mm
Model code (announced):: NJL5038XXYBEV7
Cab length:: 5.2m
GVWR:: 3.25ton
Max. speed:: 100km/h
Energy Type:: Electric
CLTC range: 218km
Motor 1 Brand: King Long
Curb Weight: 1.9ton
Rated payload: 1.22ton

Overview

The King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh is a Electric Panel Van featuring 218km battery/range, King Long motor, 1.22t payload and 3.25t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJL5038XXYBEV7
Wheelbase: 2890mm
Cab length: 5.2m
Cab width: 1.7m
Cab height: 2.24m
CLTC range: 218km
Curb Weight: 1.9ton
Rated payload: 1.22ton
GVWR: 3.25ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: PM6030L100
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 55kW
Peak power: 100kW
total peak torque: 310N·m
Battery/Charging
Battery Brand: Liantianyi
Battery type: NMC lithium battery pack
Battery capacity: 48.5kWh
Energy Density: 132
Battery Model: LD18650-3000
Chassis Specs
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Tailgate type: back door
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195/70R15LT 10PR
Rear Wheel Specification: 195/70R15LT 10PR
Control configuration
ABS:

Photos

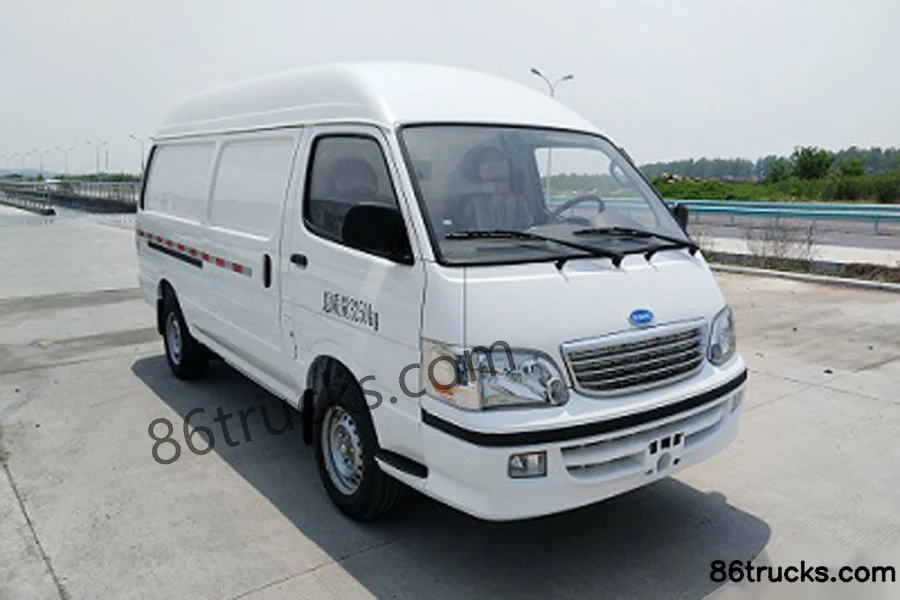

Exterior1

1 photos

FAQ

What is the export price of King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh, and what does it include?

King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh export reference is about From $19,139; MSRP is ¥13.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh suited for?

King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh differ from other variants in the same series?

King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh belongs to King Long Skyworth D10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Kaiwo D10 3.3T 5.2m High Roof Electric Panel Van 48.5kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
