Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck

Export reference
From $20,139
MSRP ¥14.5M CNY
Horsepower: 154
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck is a Light Truck featuring 4.14m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Logistics Freight and City Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China V emissions.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5048XXY-FM
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonISF3.8s5154
transmission: WLYWLY6T120
Cab length: 5.995m
Cab width: 2.44m
Cab height: 3.49m
Front track width: 1705mm
rear track: 1800mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 16°
departure angle: 11°
market segment: Logistics Freight, City Distribution
Front/rear suspension: 1.13/1.505m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6T120
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.14m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1575kg
rear axle allowable load: 2920kg
Leaf spring count: 3/4+3
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake

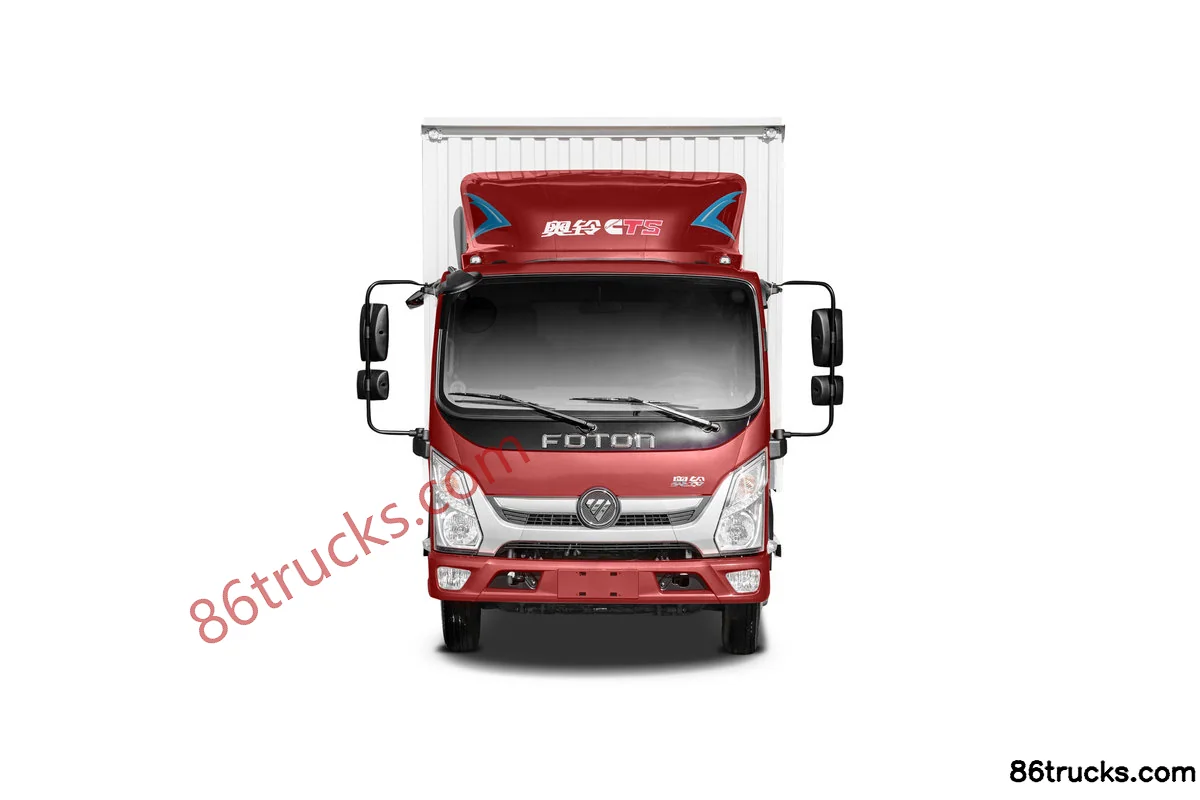

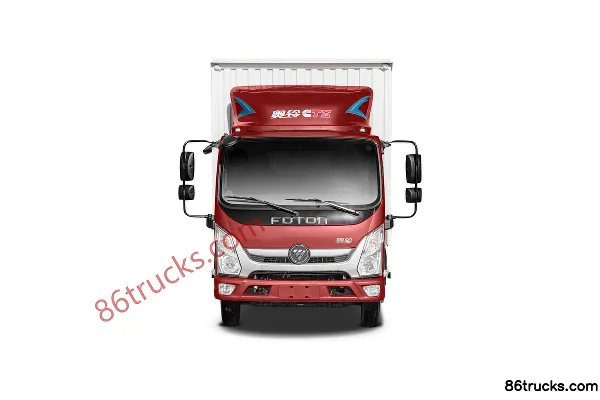

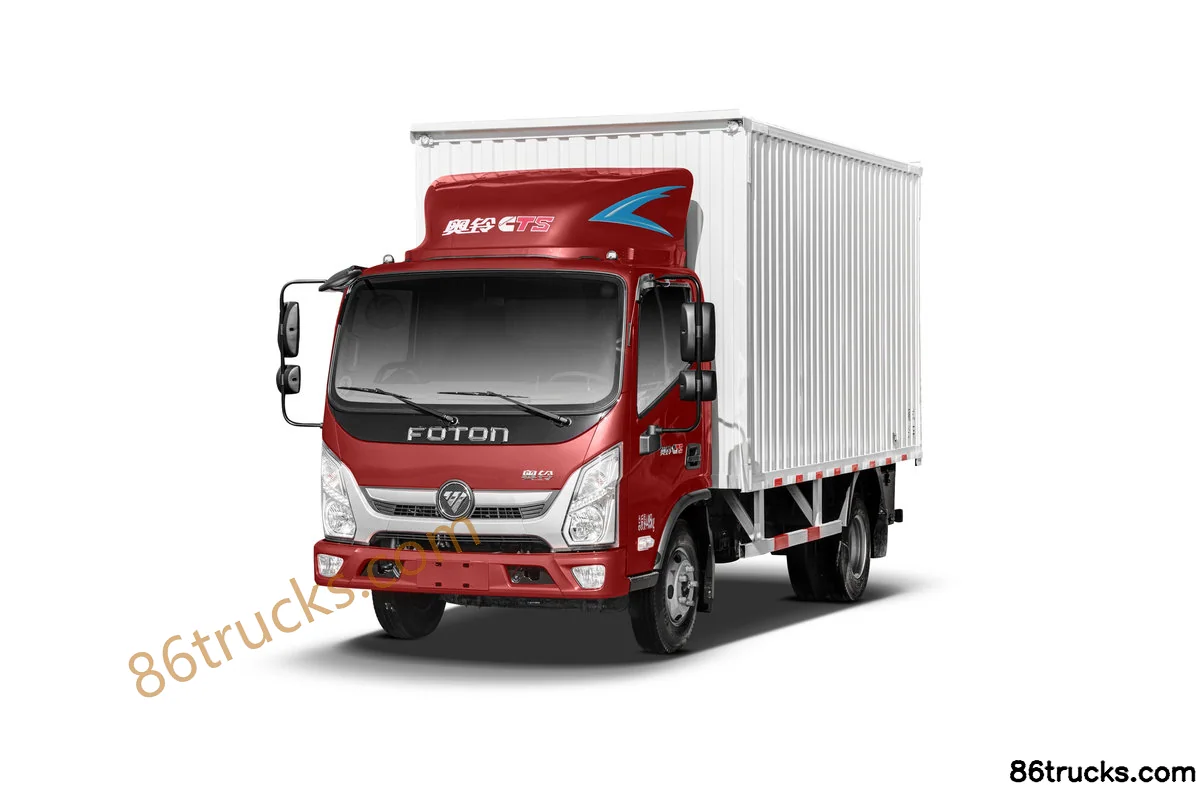

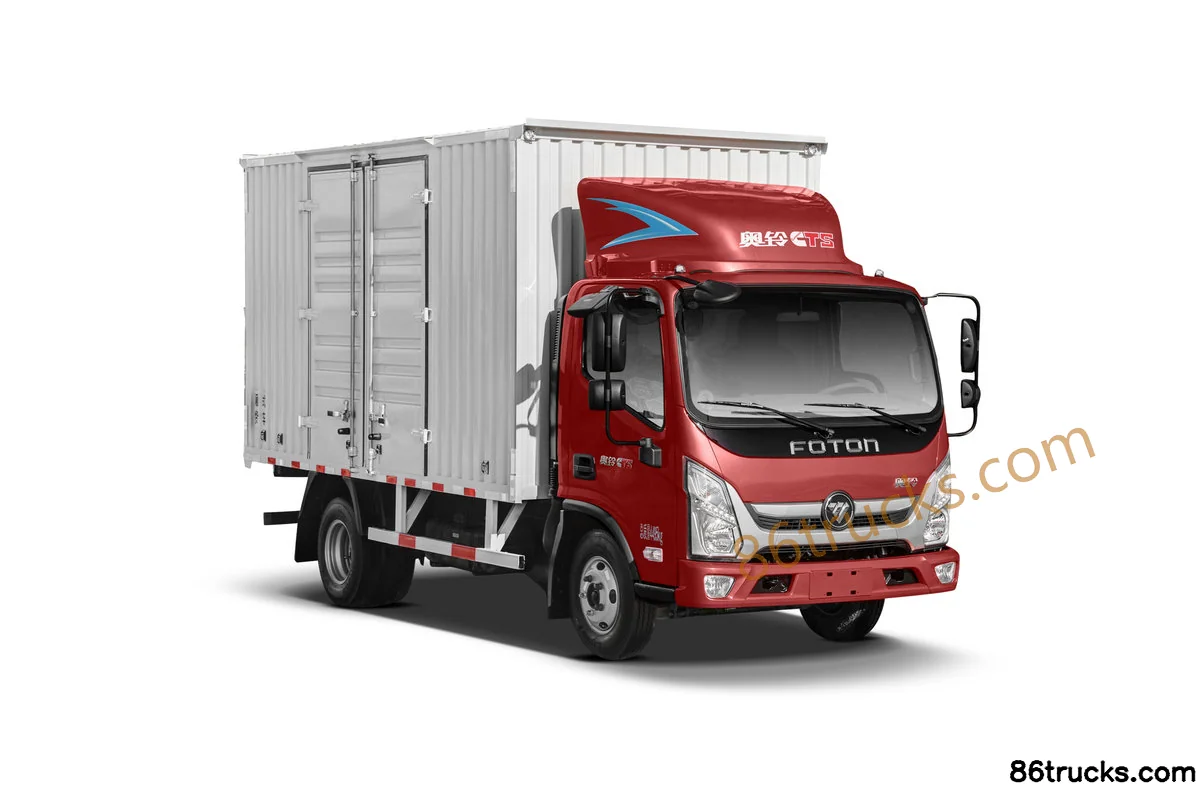

Photos

Official Photos3

3 photos

FAQ

What is the export price of Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck, and what does it include?

Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck export reference is about From $20,139; MSRP is ¥14.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck?

Key specs of Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck suited for?

Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck differ from other variants in the same series?

Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck belongs to Foton CTS Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark CTS 156 hp 4X2(6 wheels) 4.14m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
