JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875)

Export reference
From $32,931
MSRP ¥23.71M CNY
Horsepower: 200
Emission: China V
Fuel: Diesel
Engine: Weichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 10.9ton
seating capacity: 3Personnel
Rated payload: 13.905ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Van body cargo body, 3Personnel volume and 13.905t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Weichai 6-cylinder engine, 200 hp, 6X2 (8 wheels) drive and China V emissions.

China V 200 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5251XXYP2K3D54S3V
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1900+5400mm
Box length class: 9.5m
engine: WeichaiWP6.200E50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2040/2040mm
rear track: 1840mm
Curb Weight: 10.9ton
Rated payload: 13.905ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 10°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Remarks: Fuel tank material & capacity optional: 400L aluminum alloy
Front/rear suspension: 1.495/3.205m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6.200E50
Engine info: Weichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.75L
Emission standard: China V
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 760N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 2.5m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: A5X High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280×80×8mm
rear axle description: 153
rear axle allowable load: 11000kg
Axle ratio: 4.875
Leaf spring count: 3/3/9+7,9/9/9+7,3/3/4+3,4/-/9+7
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:

Photos

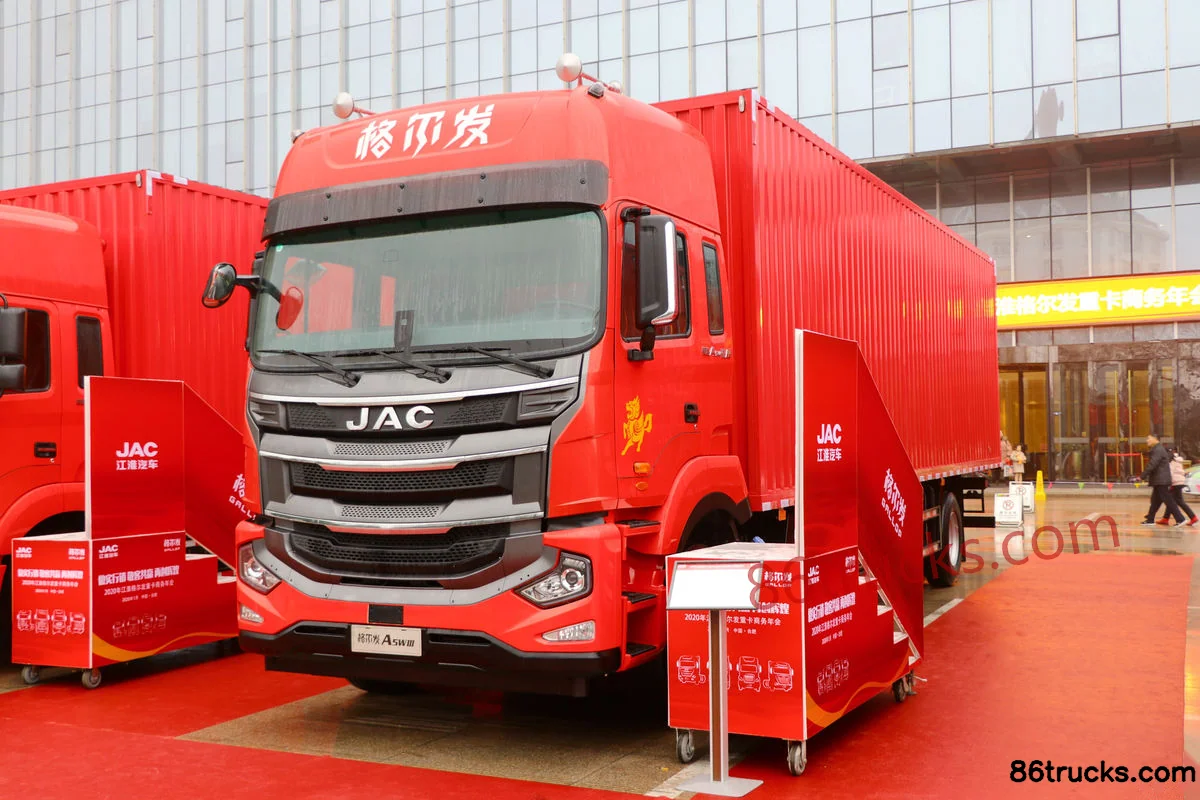

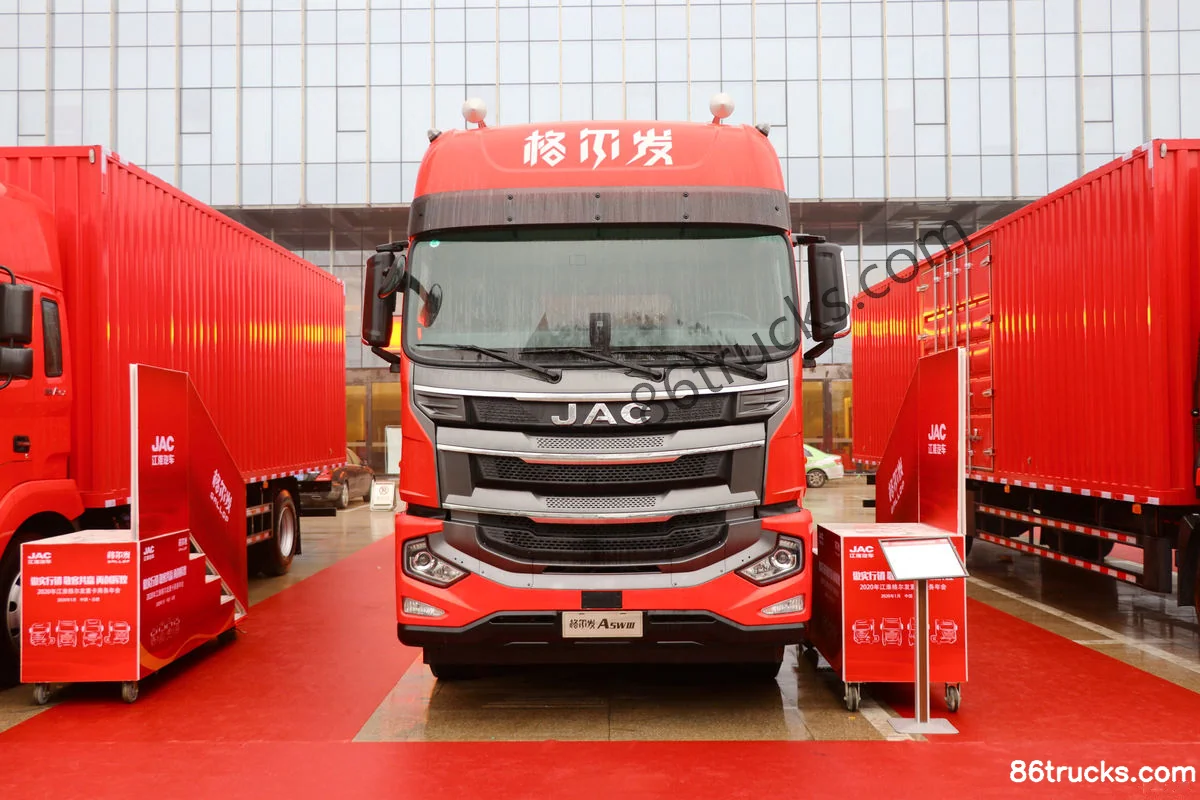

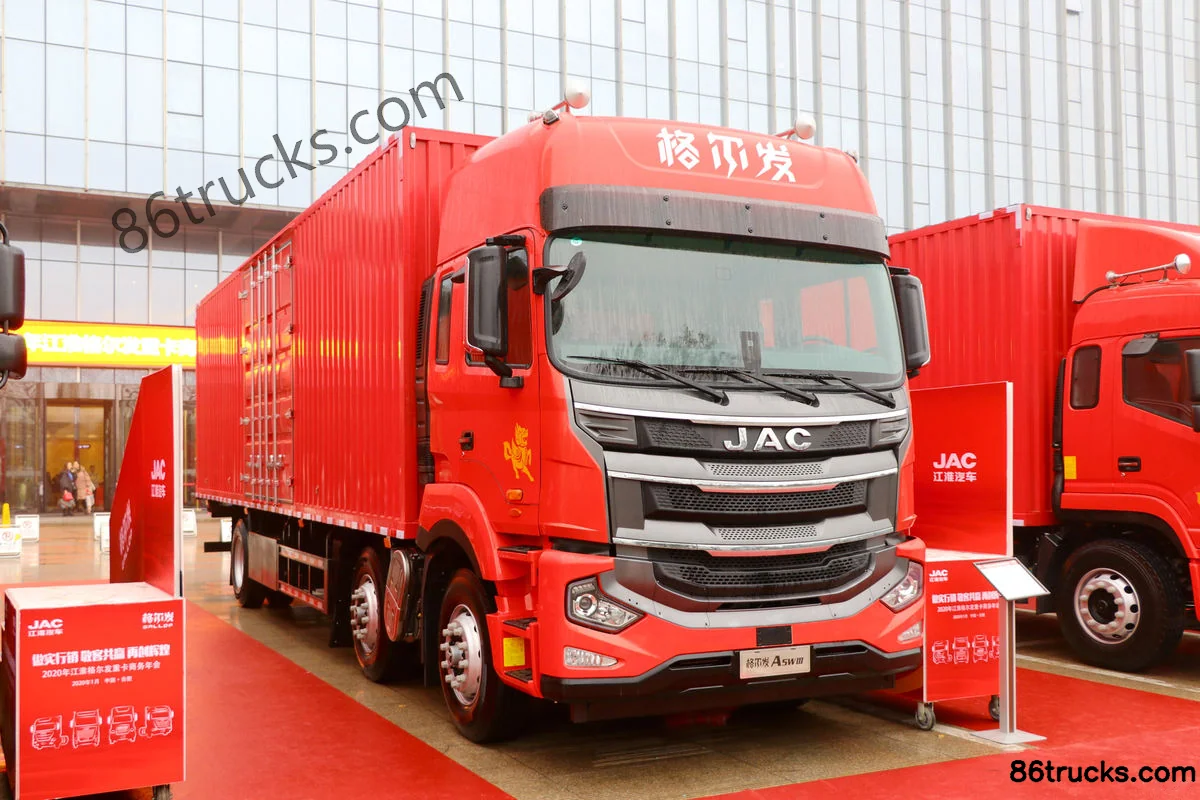

Exterior3

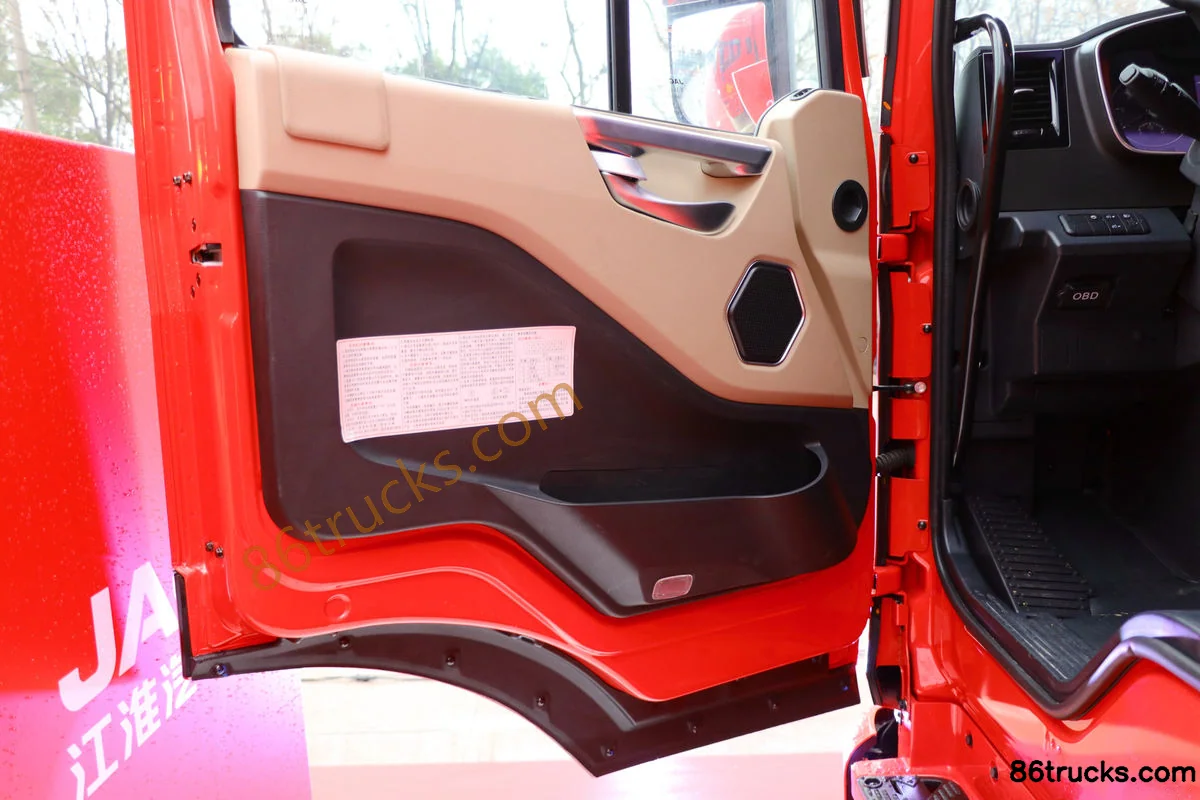

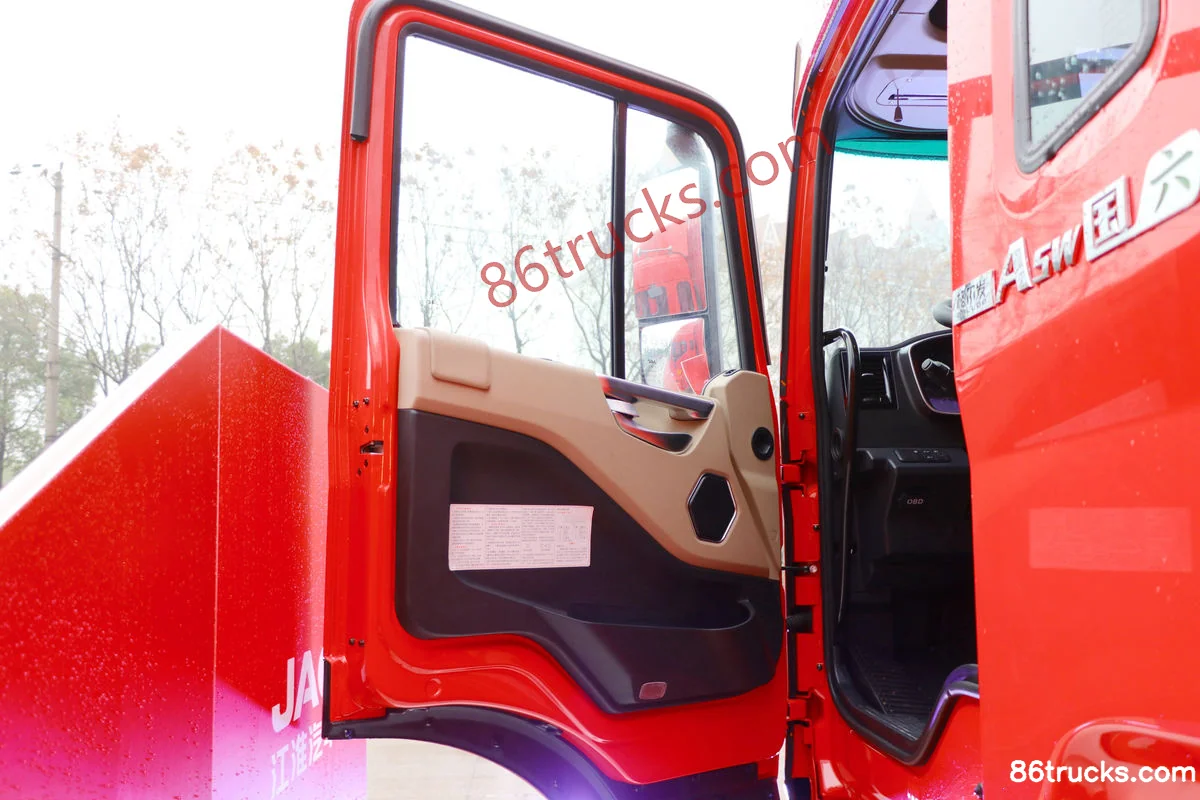

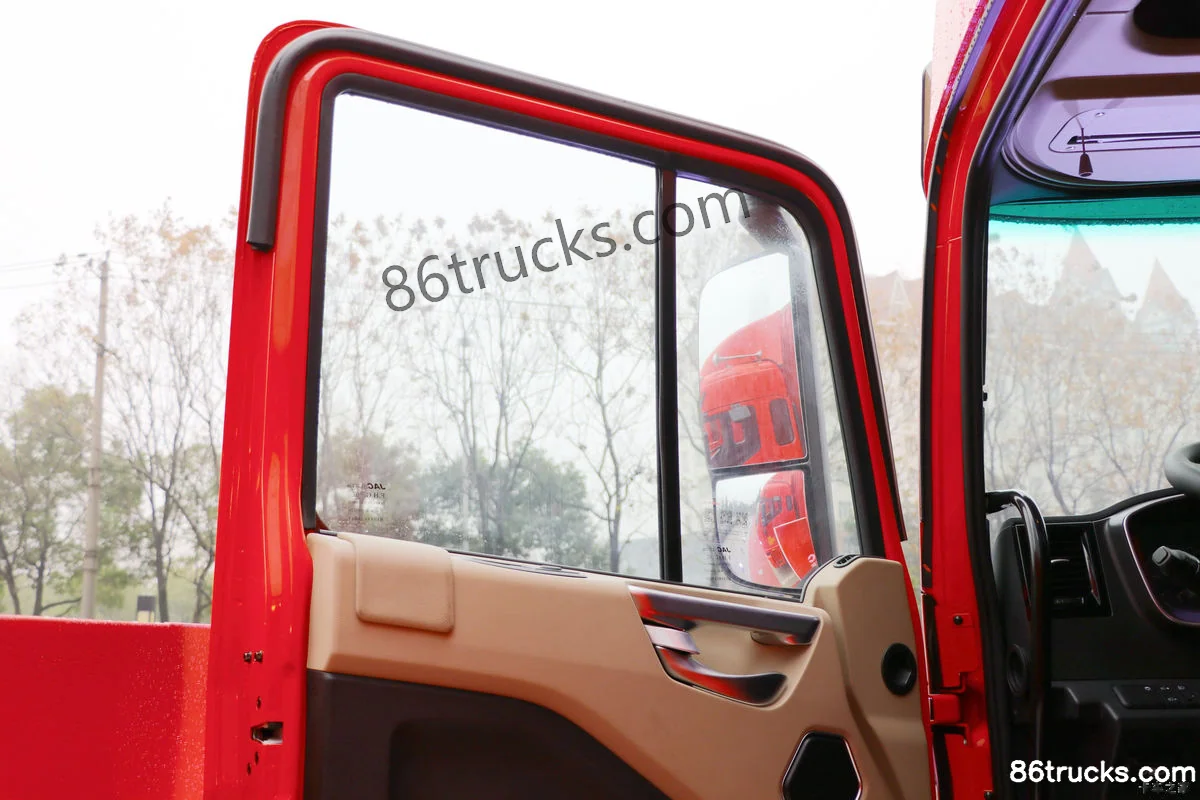

Cab3

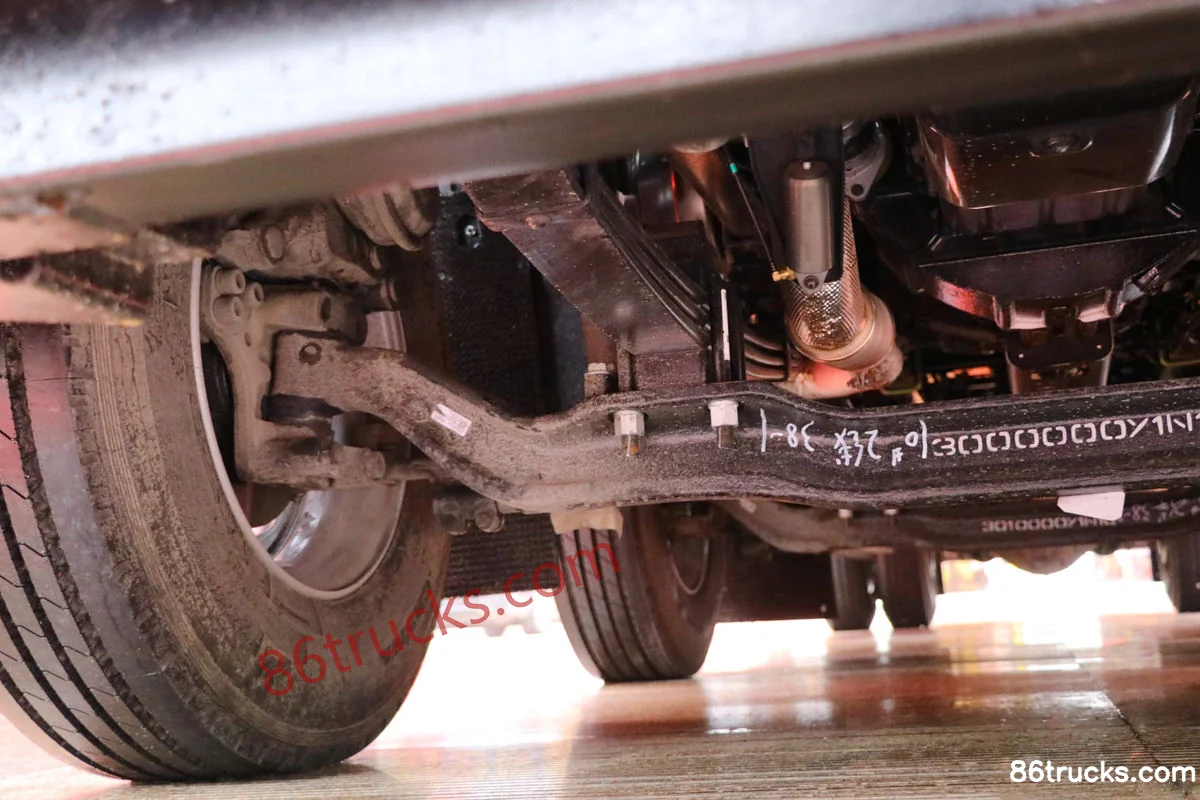

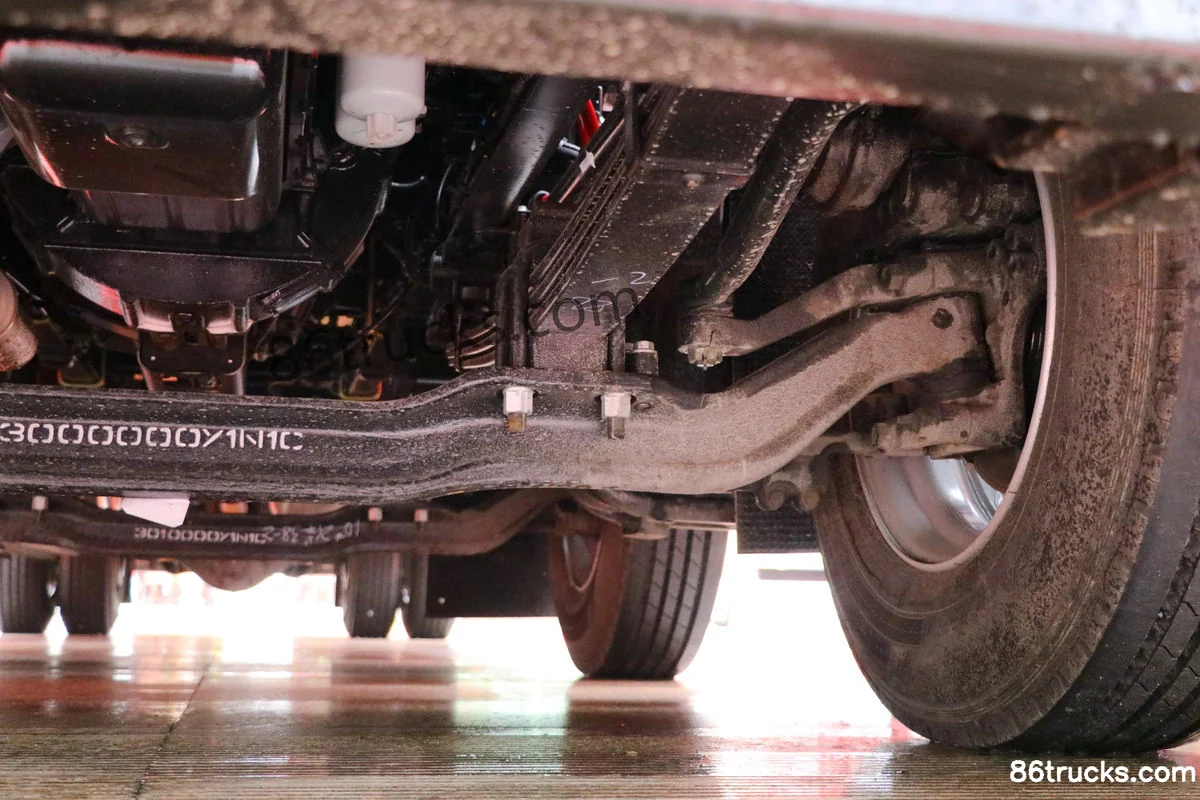

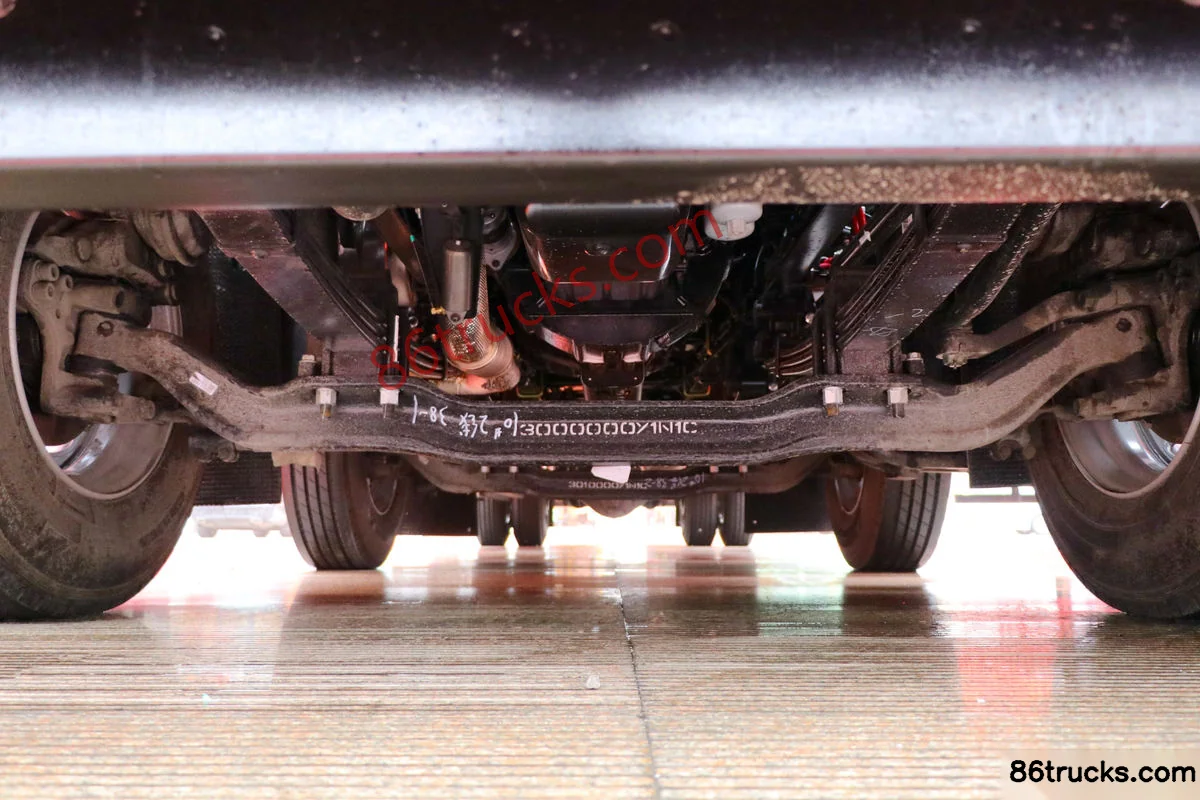

Chassis3

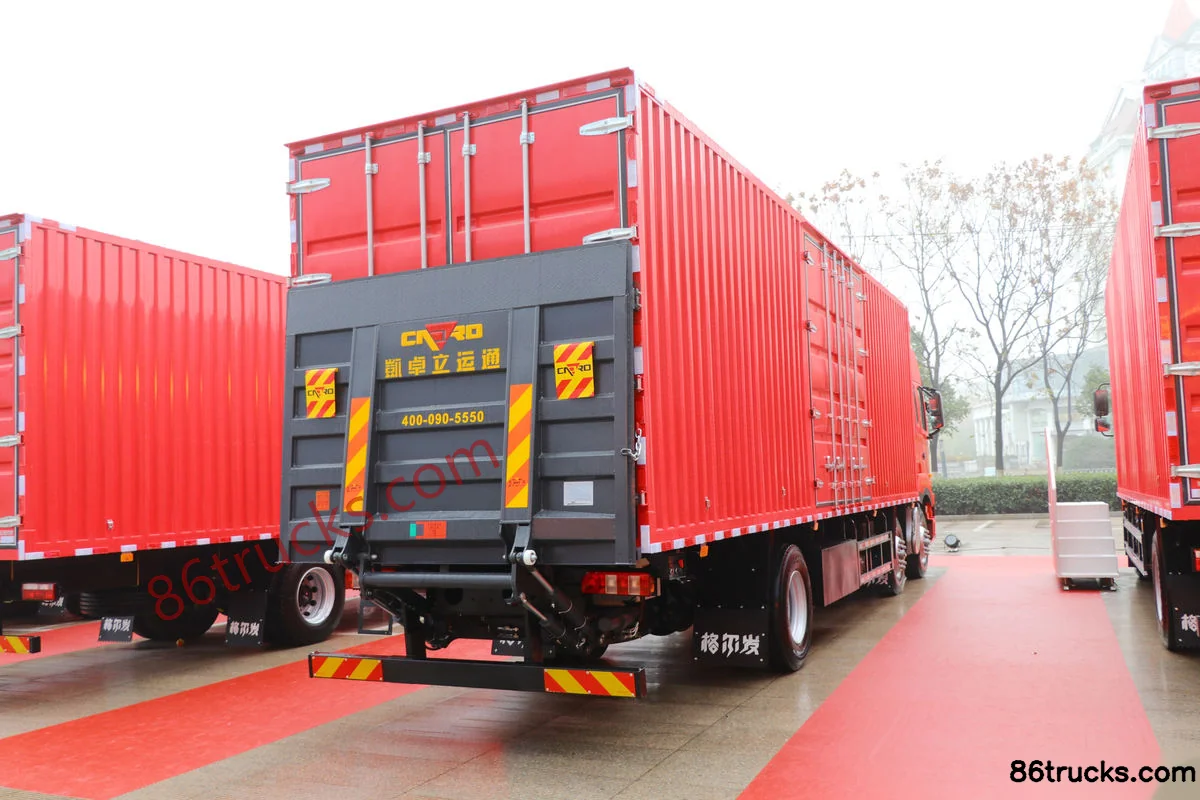

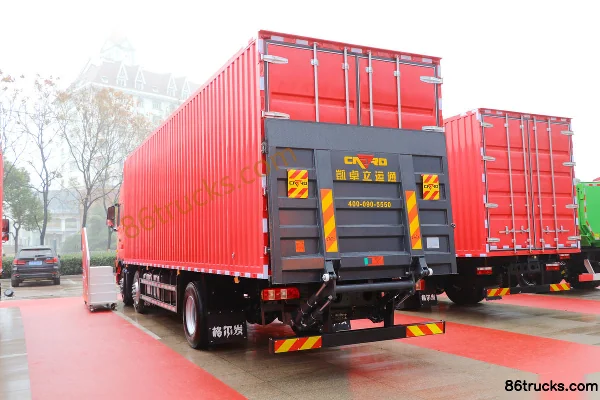

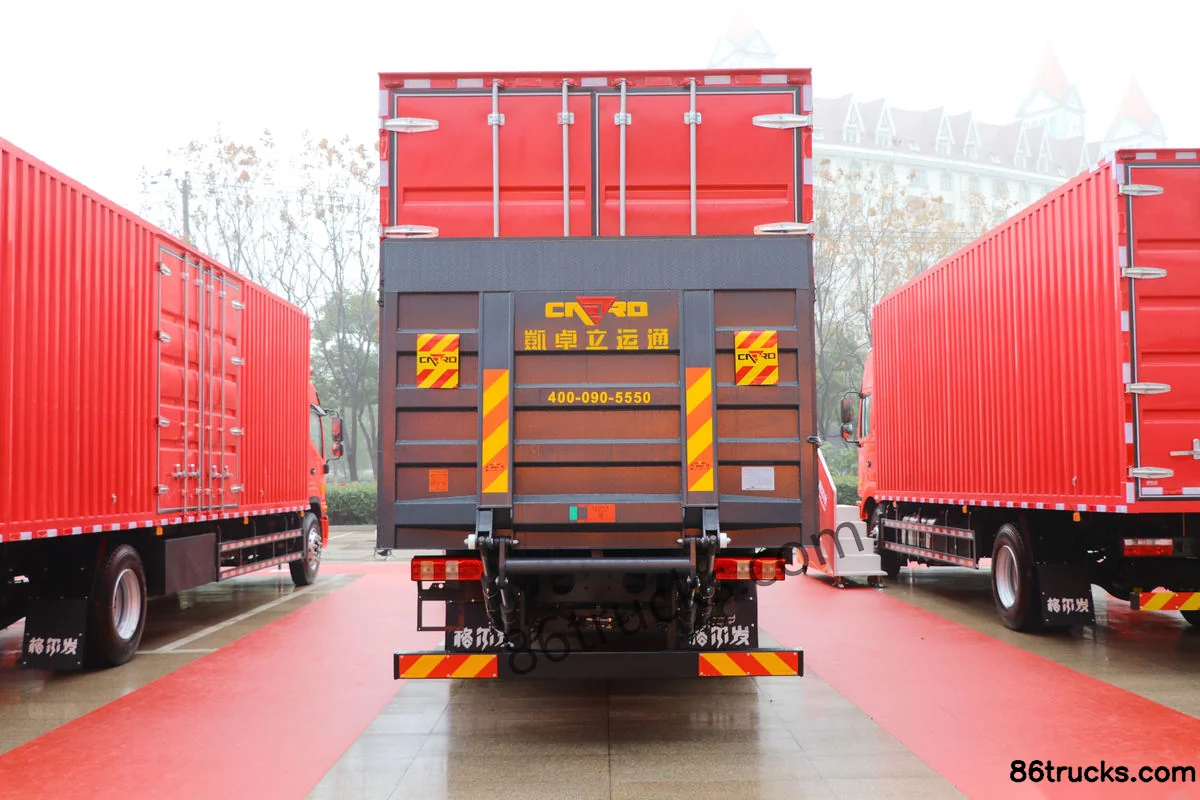

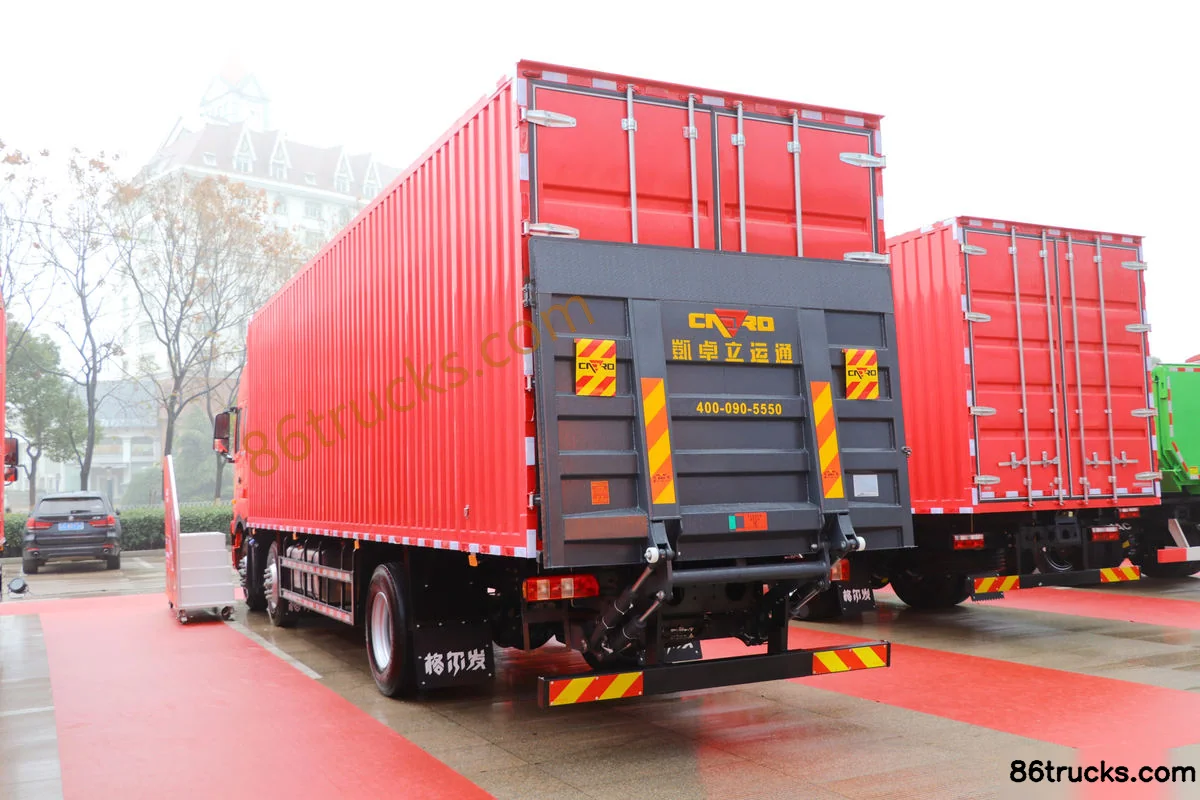

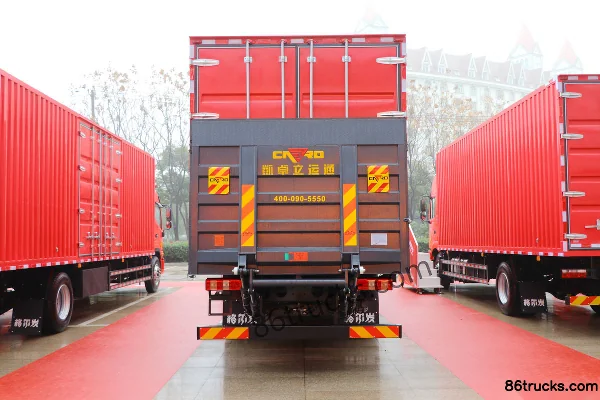

Body3

12 photos

FAQ

What is the export price of JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875), and what does it include?

JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) export reference is about From $32,931; MSRP is ¥23.71M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875)?

Key specs of JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875): Drive: 6x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel; Engine: Weichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) suited for?

JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) differ from other variants in the same series?

JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875) belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5X Heavy Truck 200hp 6X2(8 wheels) 9.5m van cargo truck (axle ratio 4.875)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
