Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck

Export reference
From $16,736
MSRP ¥12.05M CNY
Horsepower: 154
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 4.2ton
seating capacity: 3Personnel
Rated payload: 3.885ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck is a Medium-duty truck featuring 5.15m cargo length, Van body cargo body, 3Personnel volume and 3.885t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5085XXY-2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3800mm
Box length class: 5.2m
engine: FotonISF3.8S4R154
transmission: WLYWLY6T53
Rear Axle Ratio: 4.333
Cab length: 6.999m
Cab width: 2.25m
Cab height: 3.165m
Front track width: 1665mm
rear track: 1615mm
Curb Weight: 4.2ton
Rated payload: 3.885ton
GVWR: 8.28ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 14°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.135/2.064m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8S4R154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 500N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection
Transmission Parameters
Transmission Model: WLYWLY6T53
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.15m
Cargo box width: 2.07m
Cargo box height: 2m
*Cargo box interior width: 2.0699999332428
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 2610kg
rear axle description: NPR
rear axle allowable load: 5670kg
Axle ratio: 4.333
Leaf spring count: 9/11+7
Tire
Tire Size: 8.25R16 (optional 7.50R16)
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Independent Heater:
Power Windows:
Service brake
Parking brake: Spring brake

Photos

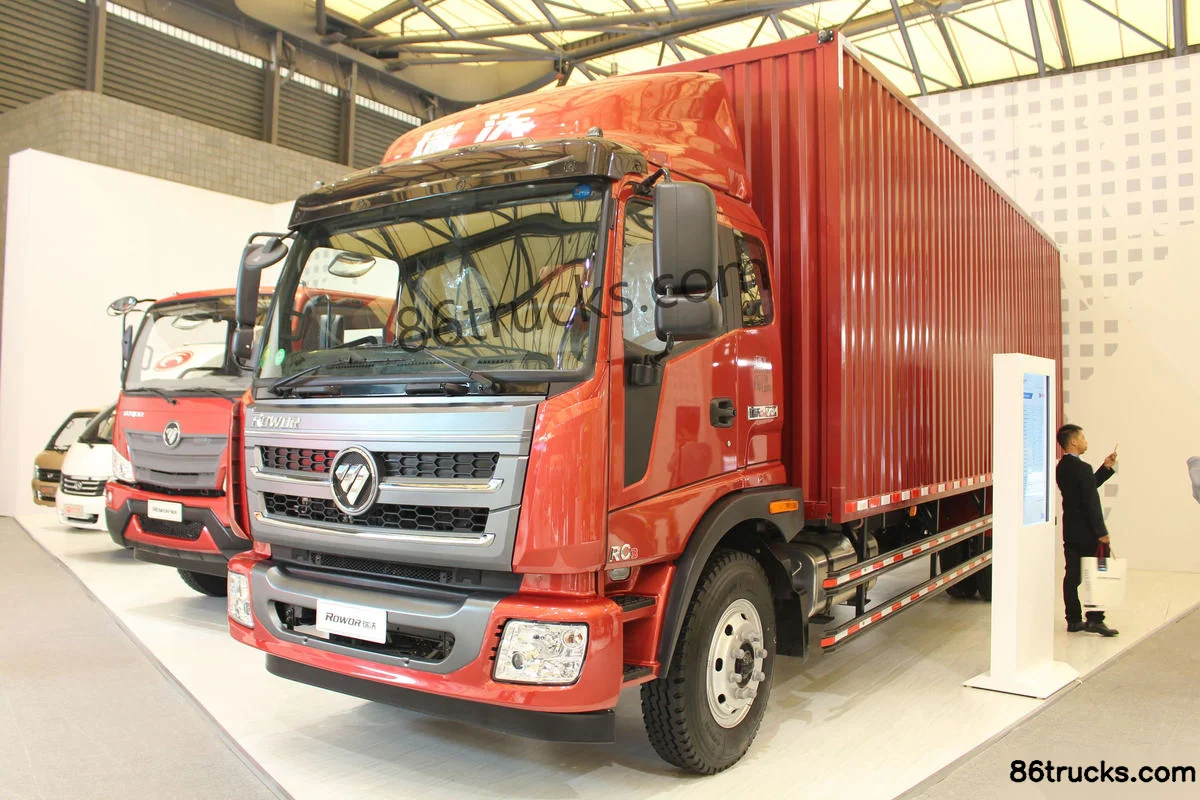

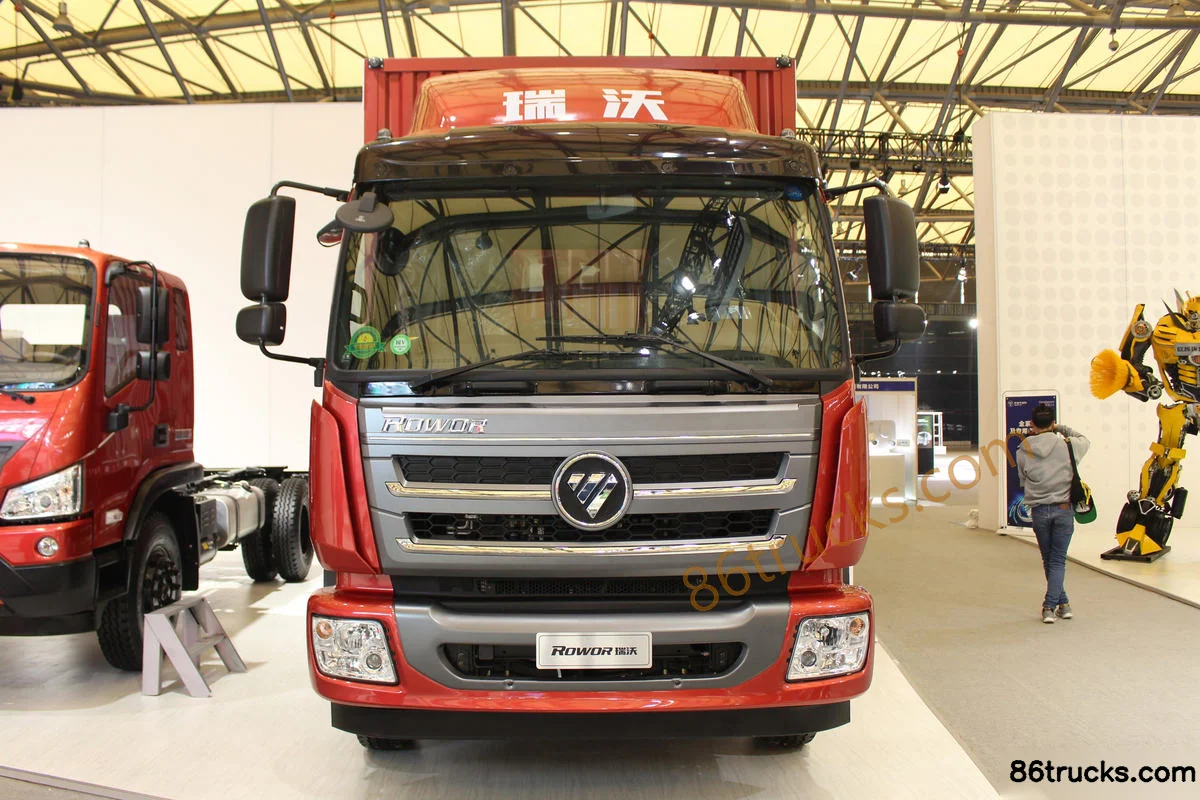

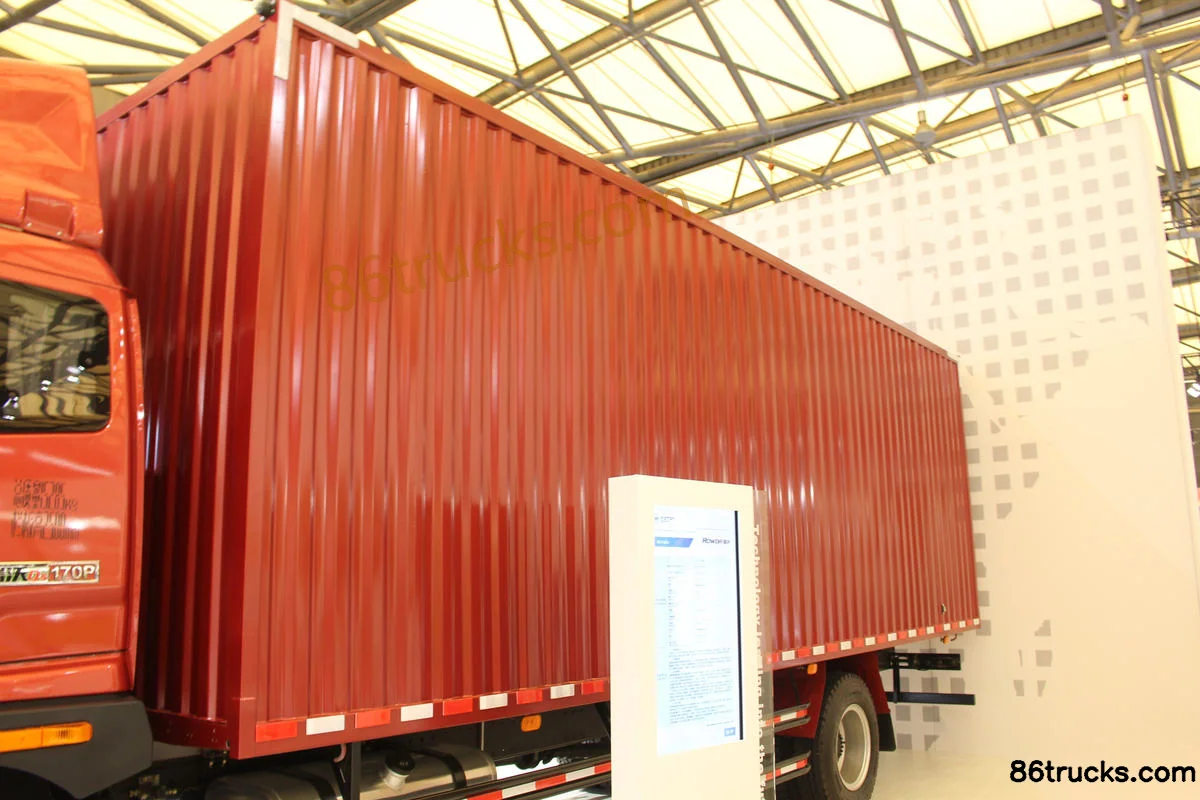

Exterior3

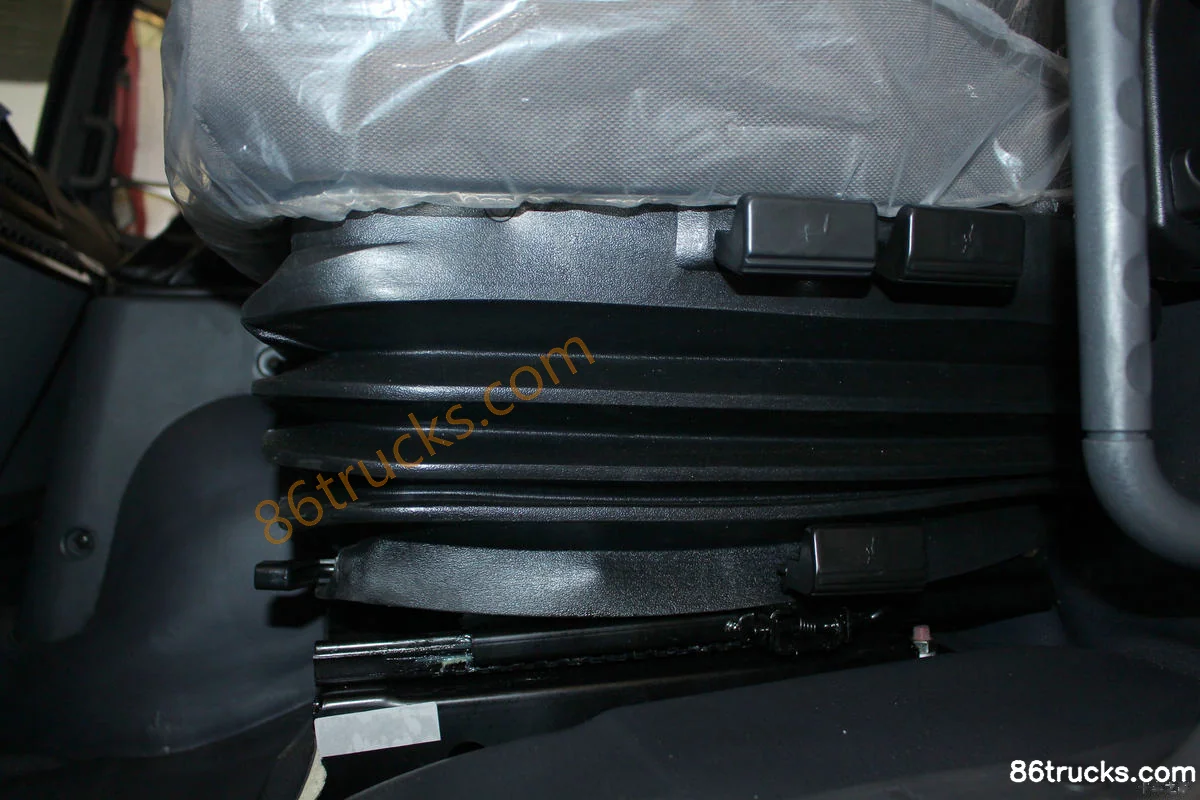

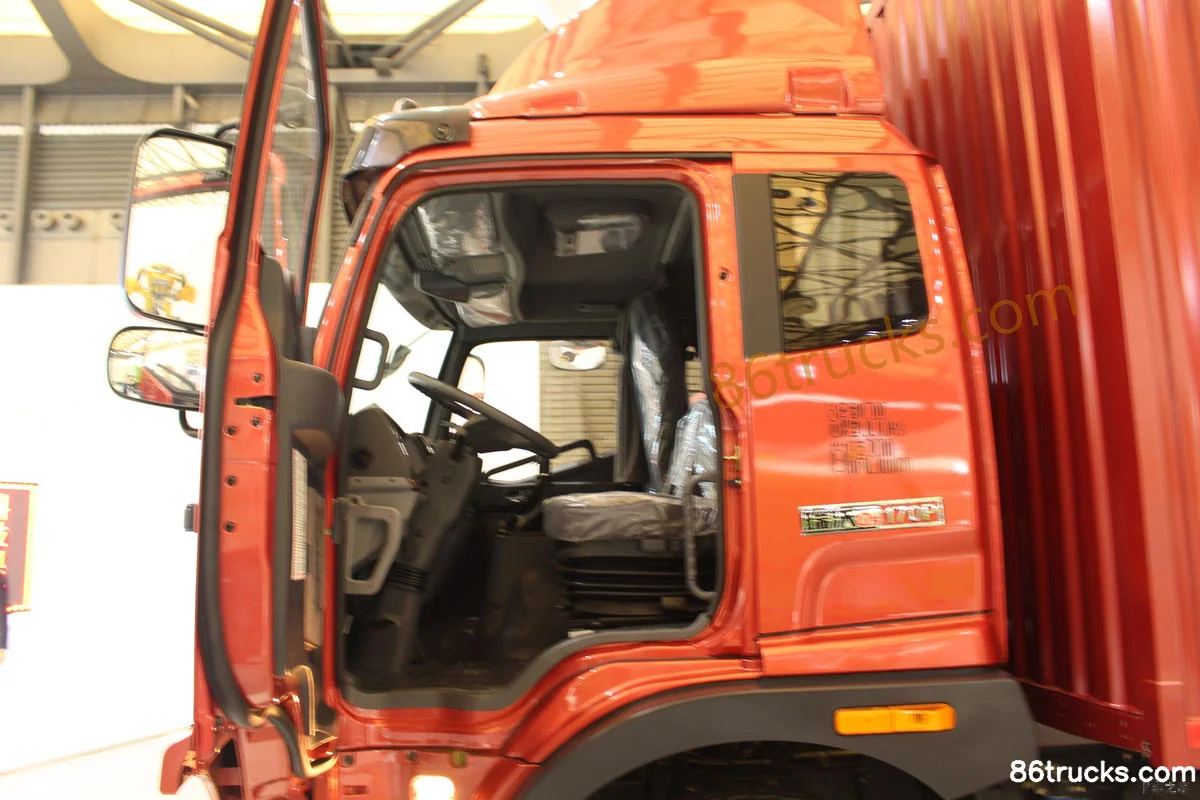

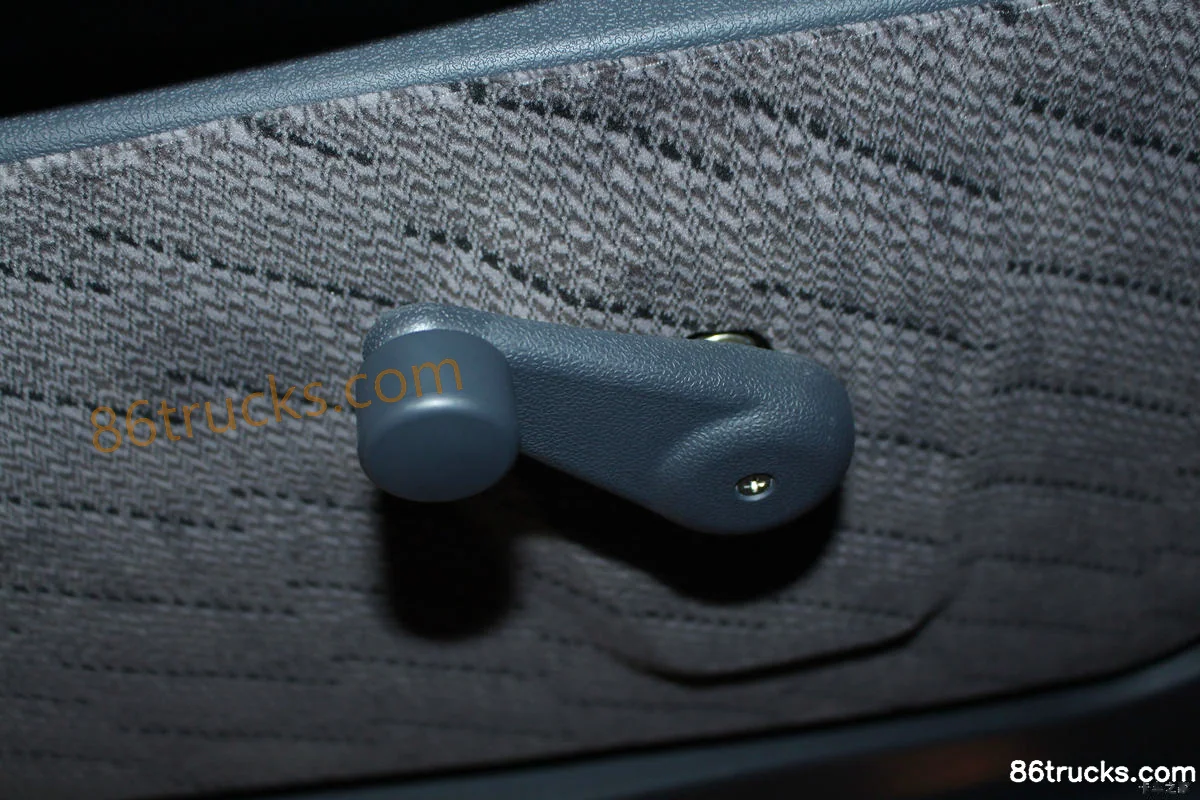

Cab3

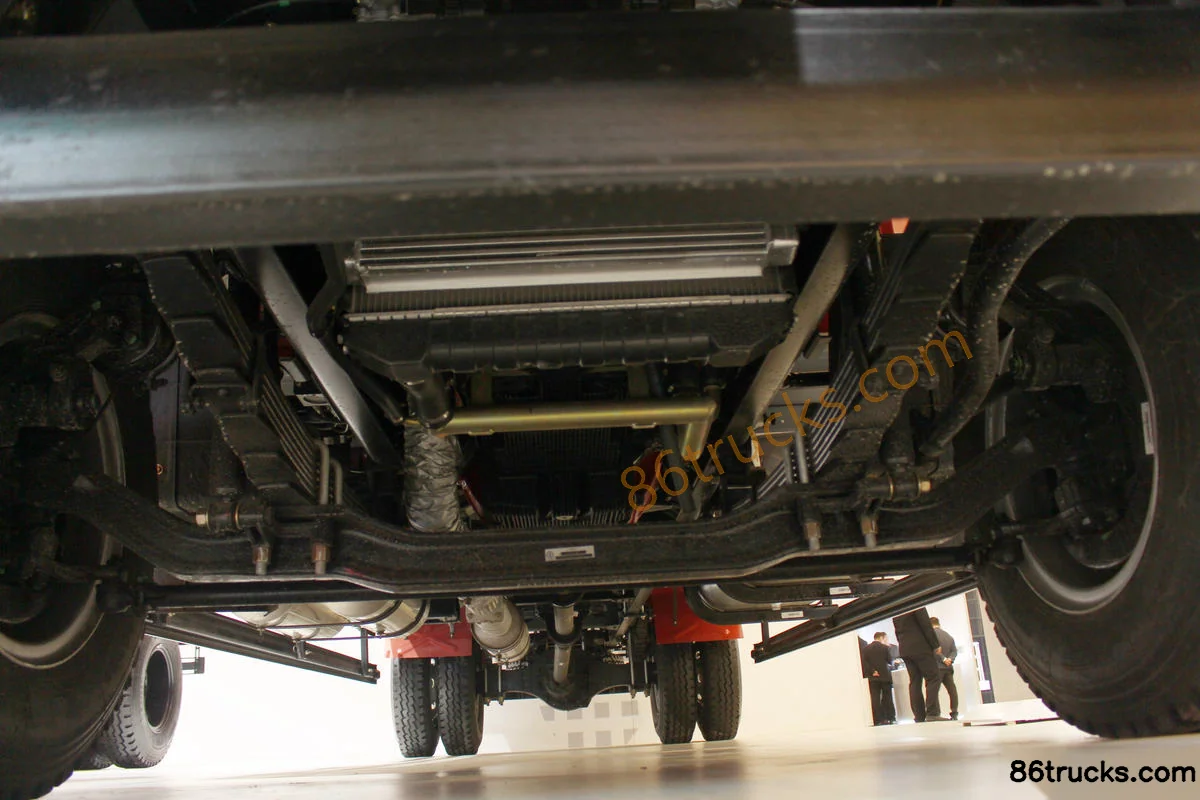

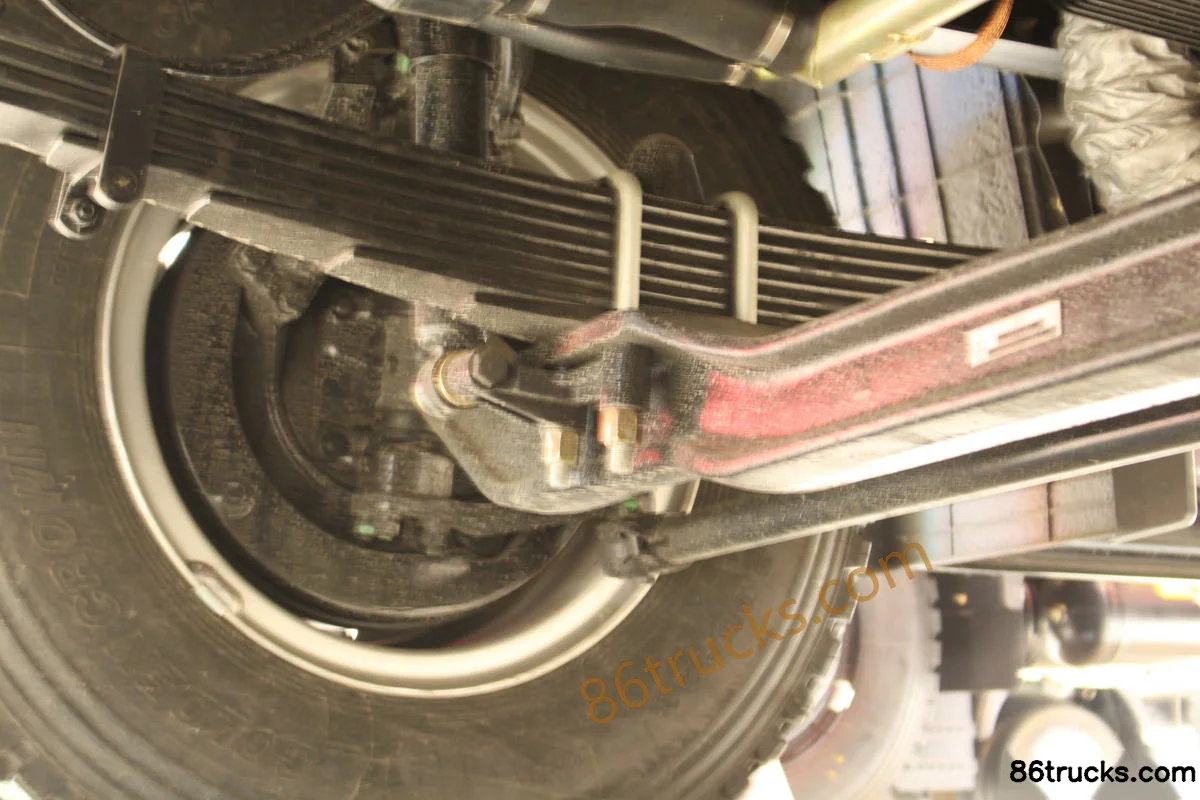

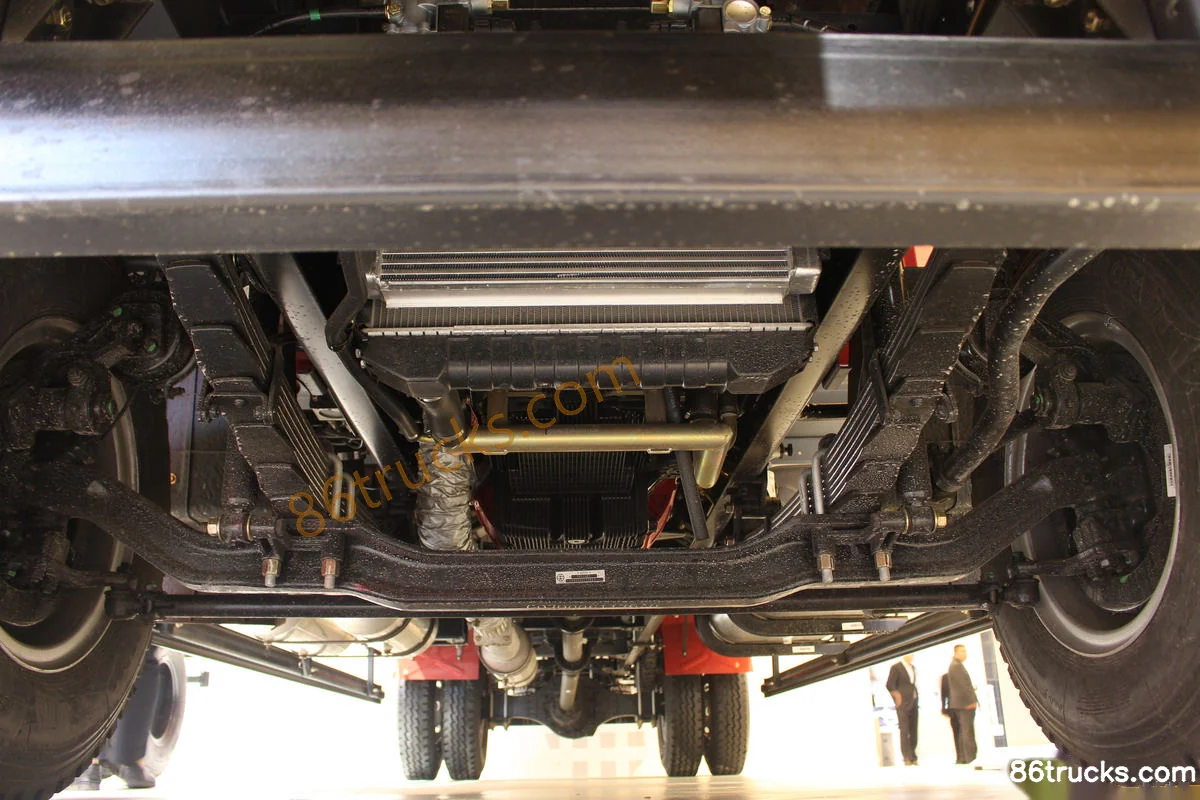

Chassis3

9 photos

FAQ

What is the export price of Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck, and what does it include?

Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck export reference is about From $16,736; MSRP is ¥12.05M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck?

Key specs of Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck: Drive: 4x2; Horsepower: 154 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck suited for?

Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck differ from other variants in the same series?

Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruowo 154 hp 4X2(6 wheels) 5.2m Single Row Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
