Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck

Export reference
From $9,278
MSRP ¥6.68M CNY
Horsepower: 87
Emission: China IV
Fuel: Diesel
Engine: Xichai490
Curb Weight:: 2.4ton
Wheelbase:: 2680mm
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck is a Light Truck featuring 3.34m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. On the powertrain side, it comes with a Xichai490 engine, 87 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 87 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5043CCYHA1A4
Type: stake truck
Drive type: 4X2
Wheelbase: 2680mm
Box length class: 3.3m
engine: Xichai4DW93-84E4
transmission: MT85 overdrive
Rear Axle Ratio: 5.833
Cab length: 5.25m
Cab width: 1.91m
Cab height: 2.83m
Front track width: 1440mm
rear track: 1440mm
Curb Weight: 2.4ton
Rated payload: 1.495ton
GVWR: 4.025ton
Max. speed: 90km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 24°
departure angle: 23°
Front/rear suspension: 1.23/1.34m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E4
Engine info: Xichai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.54L
Emission standard: China IV
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: MT85 overdrive
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.34m
Cargo box width: 1.76m
Cargo box height: 0.4m
*Cargo box interior width: 1.7599999904633
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 1040X1
Front axle allowable load: 1800kg
rear axle description: 1040WP1
rear axle allowable load: 2225kg
Axle ratio: 5.833
Leaf spring count: 3/5+3
Suspension (front/rear): Leaf spring
Tire
Tire Size: 6.50R16LT6PR
Number of tires: 6pcs

Photos

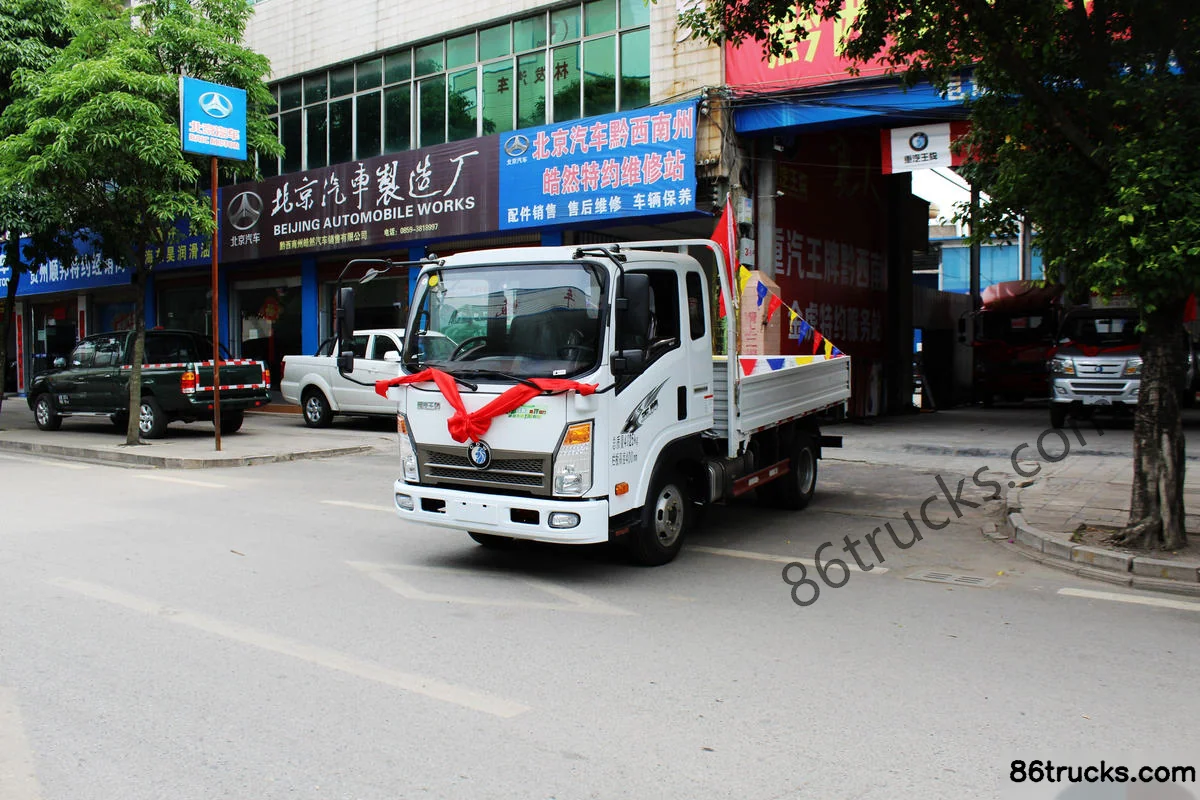

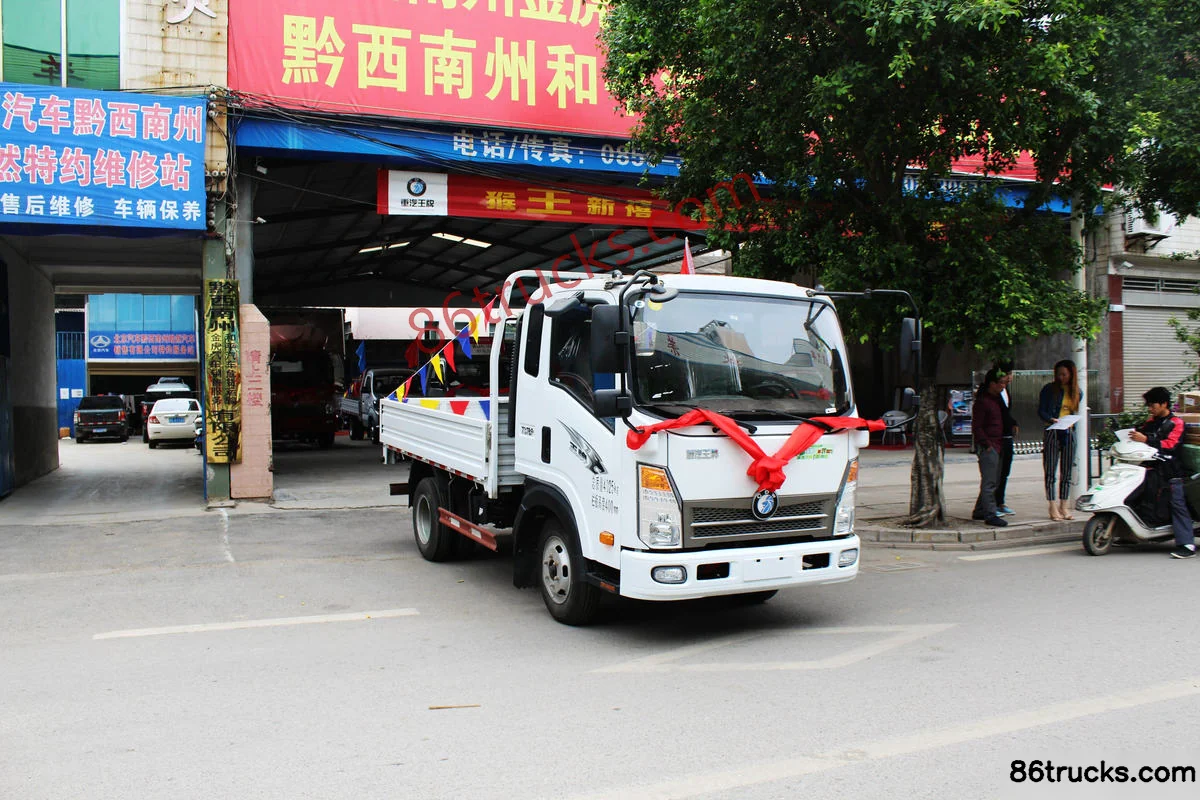

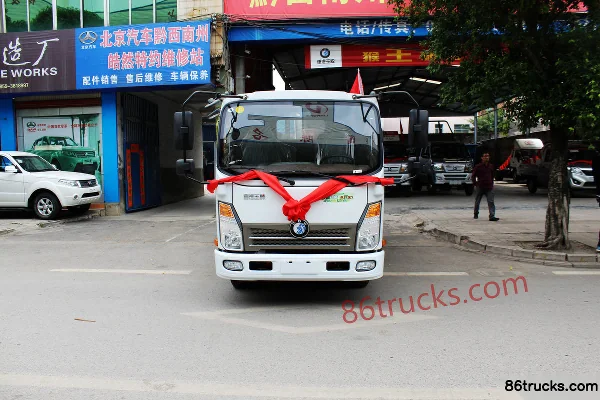

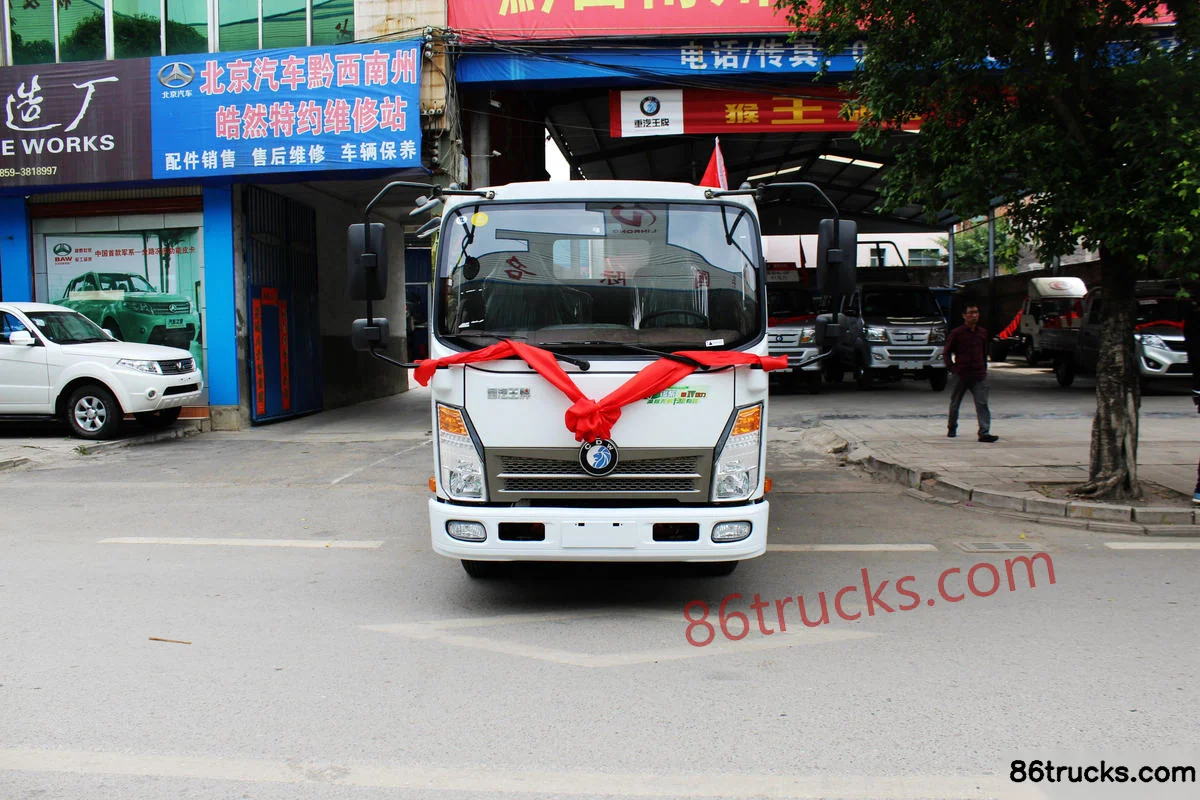

Exterior3

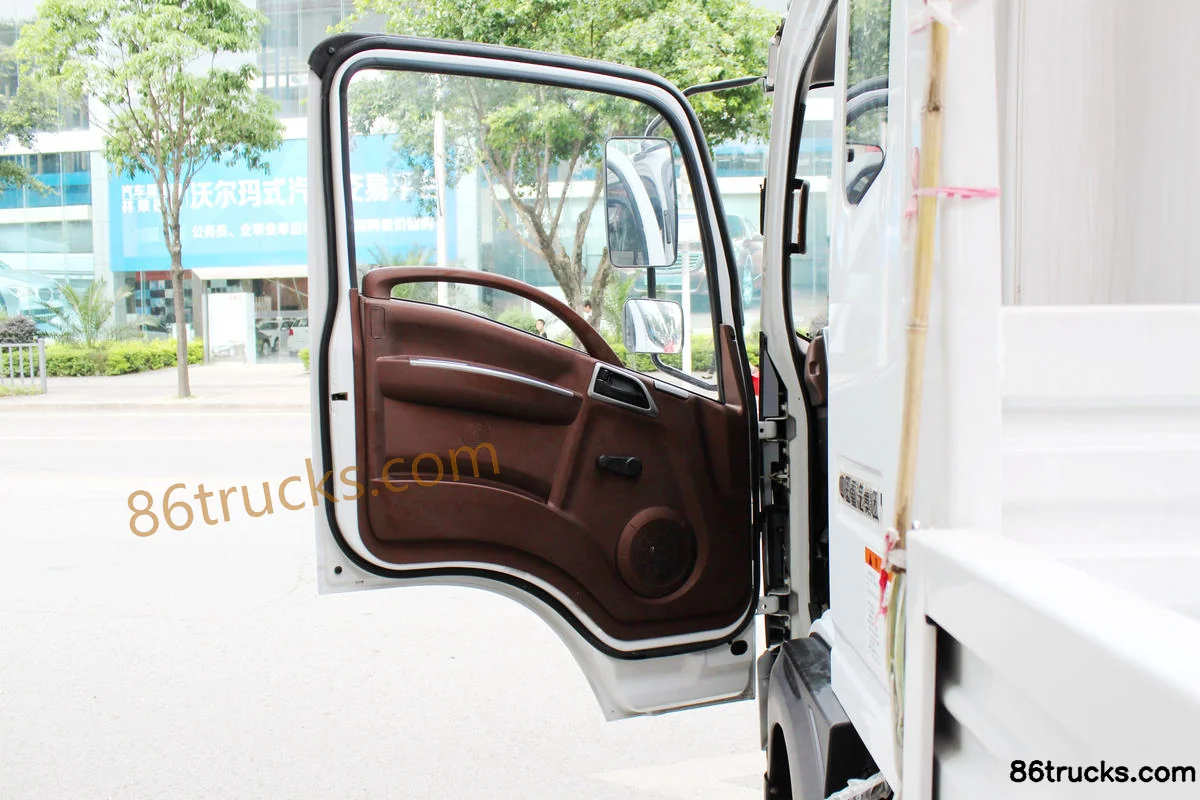

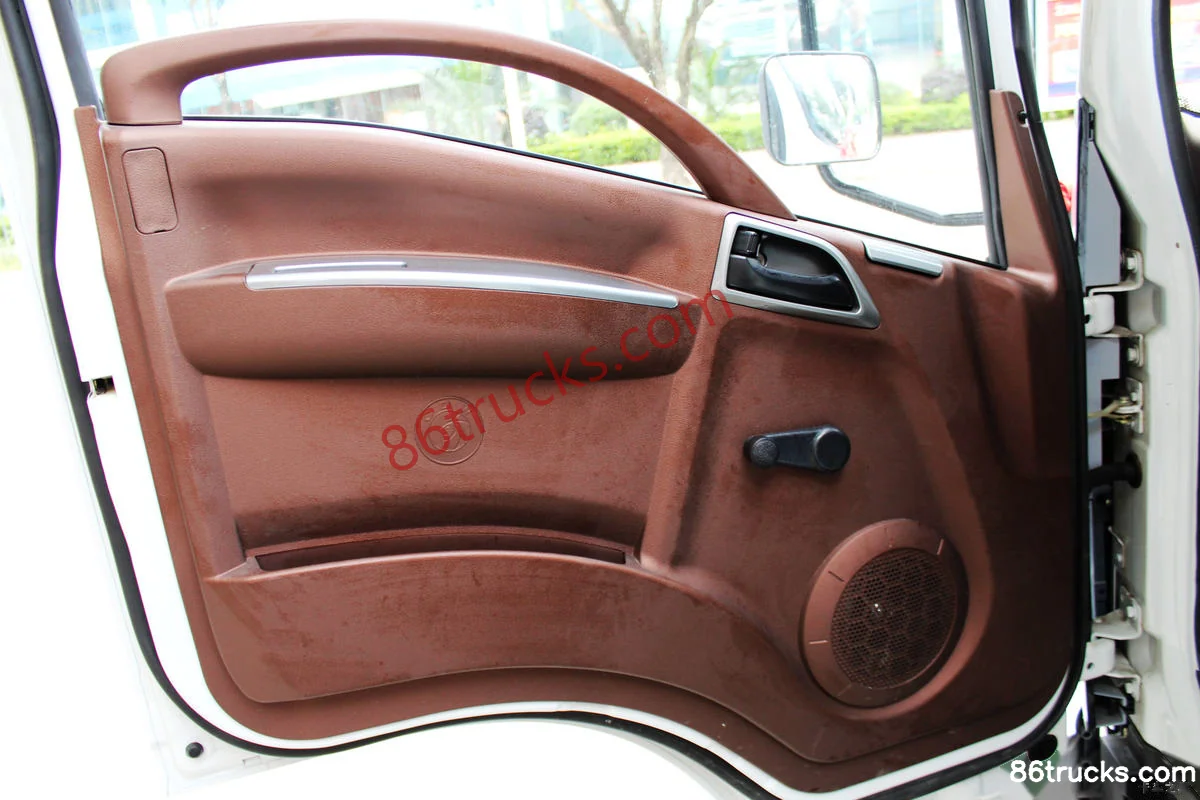

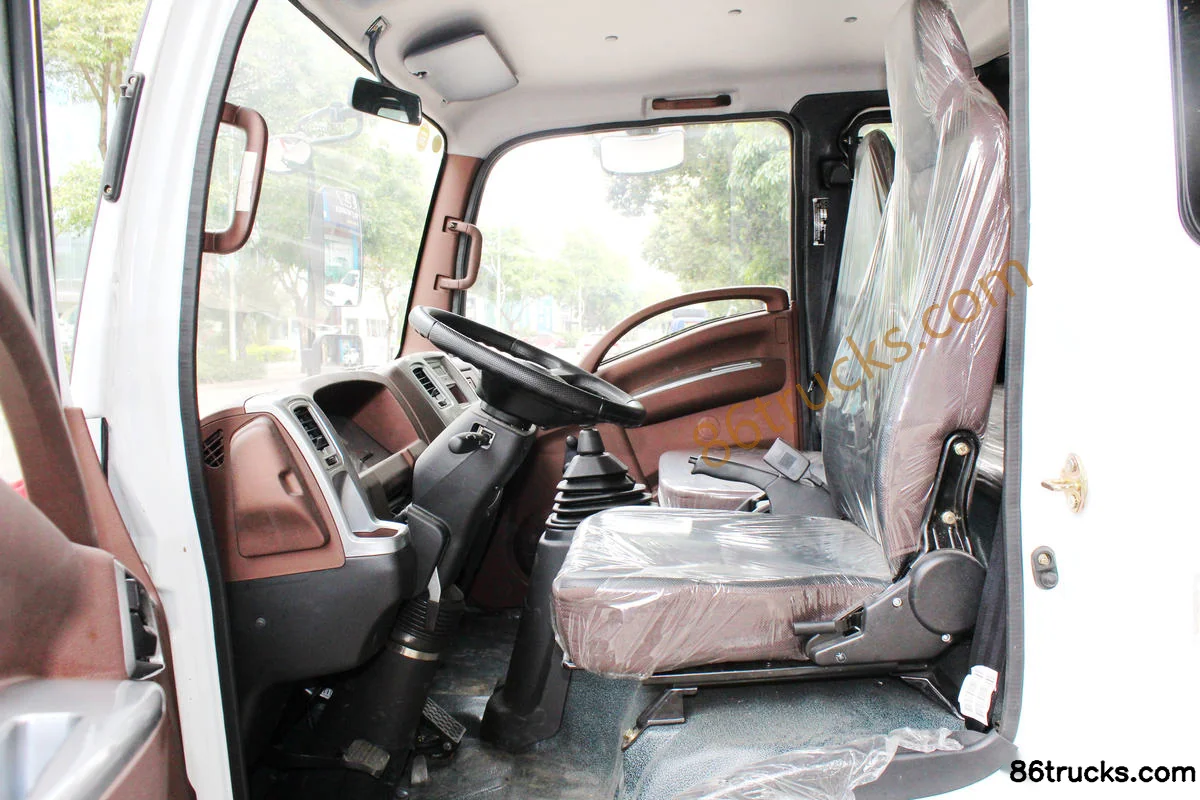

Cab3

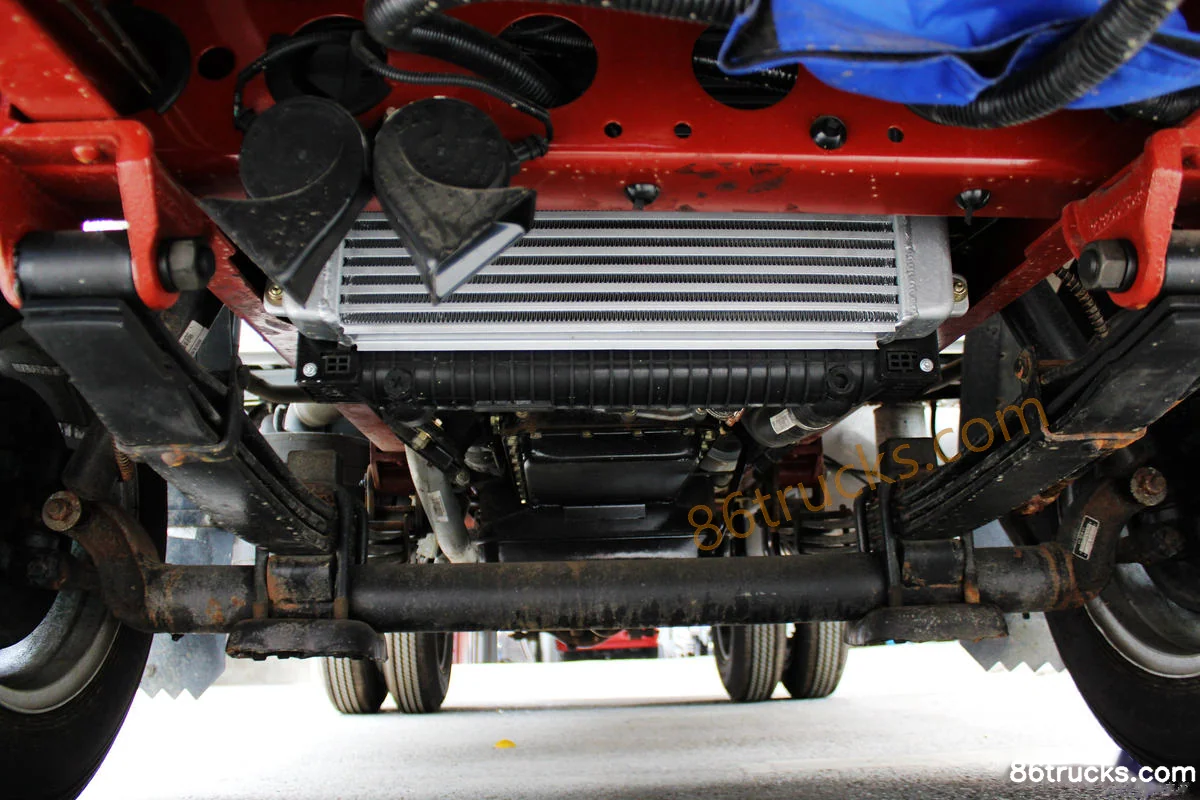

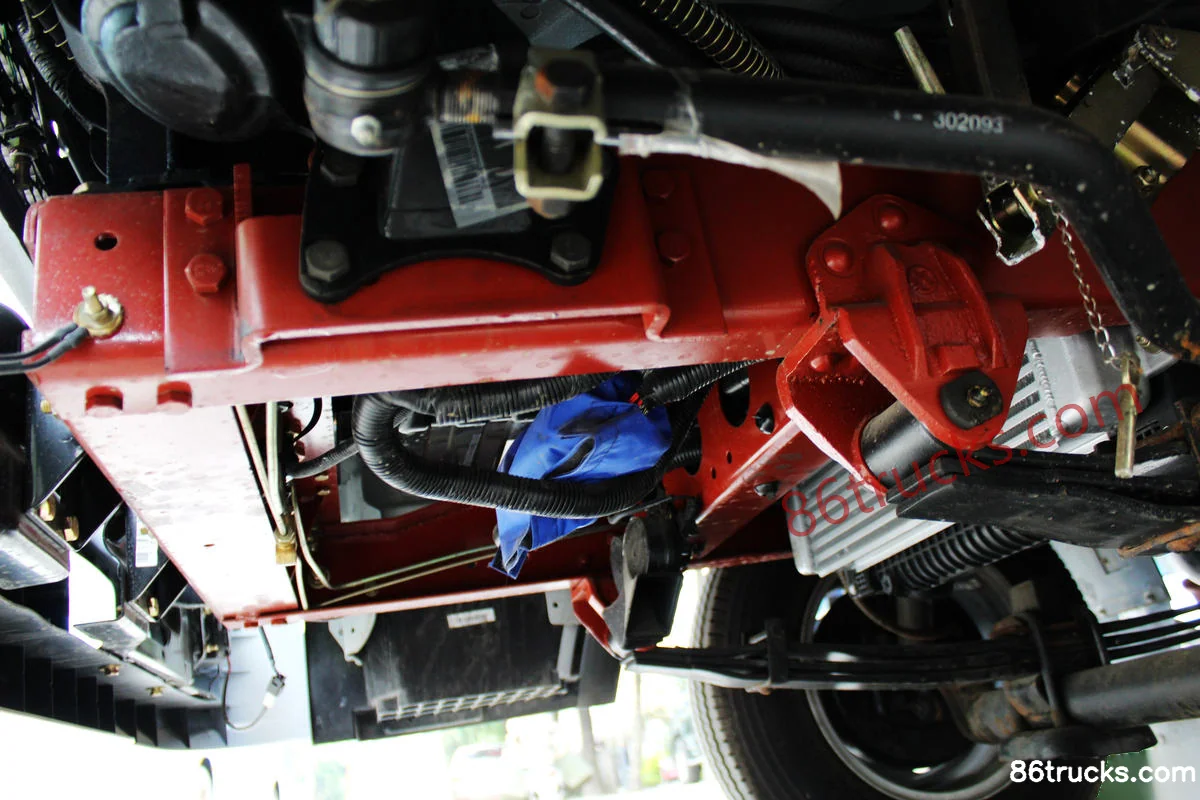

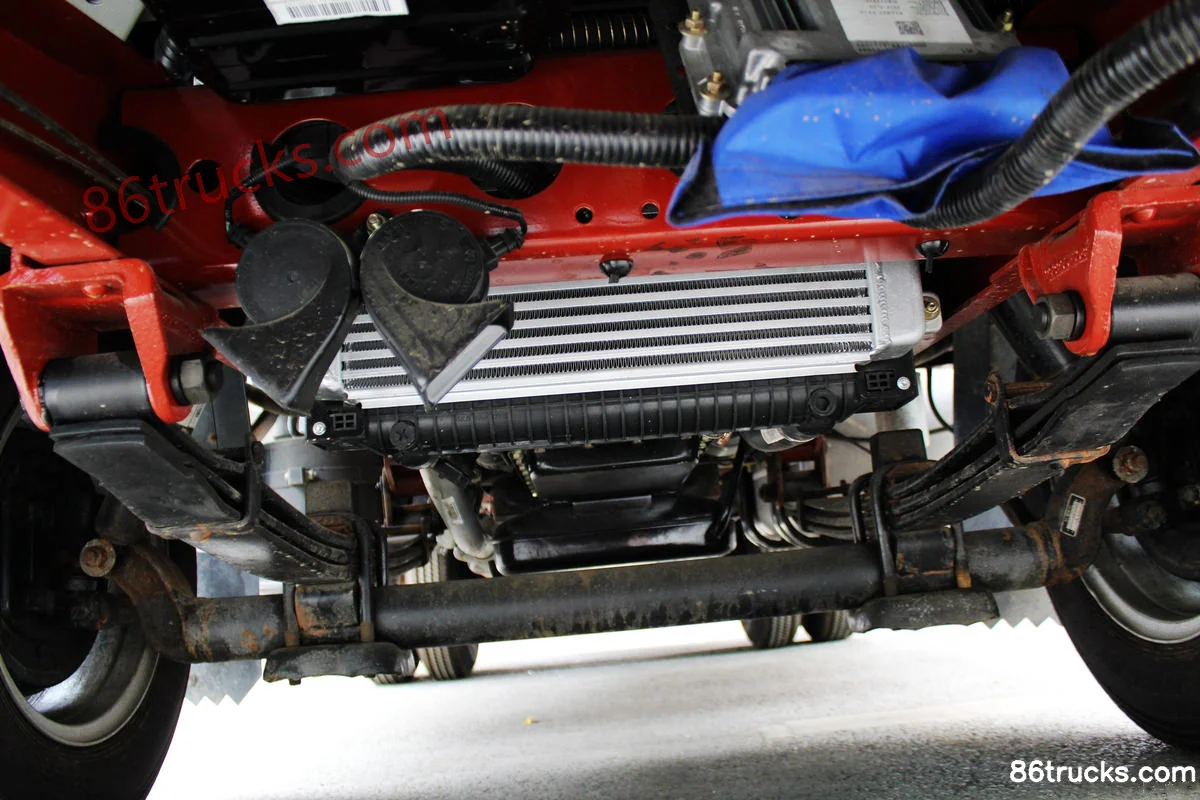

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck, and what does it include?

Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck export reference is about From $9,278; MSRP is ¥6.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck?

Key specs of Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck: Drive: 4x2; Horsepower: 87 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai490. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck suited for?

Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck differ from other variants in the same series?

Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck belongs to Sinotruk Wangpai 7 series light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 87 hp 4X2(6 wheels) 3.3m Semi-row Cage Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
