Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI)

Export reference
From $18,569
MSRP ¥13.37M CNY
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: De Wei D30
Transmission: Fast Gear
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) is a Light Truck featuring 3.79m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a De Wei D30 engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH5043XXYZFDDWZ
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: Yunnei PowerD30TCIF1
transmission: Fast Gear8JS75TE-C
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.17m
Cab height: 2.88m
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 14°
market segment: Urban Distribution
Remarks: 7-inch LCD instrument cluster, full-wrap interior, frame-type mirrors, MP3, smart instrument cluster, frameless wipers, exhaust brake, dual 24V batteries, smart working conditions, aluminum air tank, welcome light, patterned floor; options: auto door lock, telematics, sleeper seat, 130L aluminum fuel tank, 210SMC air deflector, 230 fiberglass air deflector, 8.25R16 6PR tires, front anti-roll bar, ETC, leather+cloth seat, seat lumbar support, extra-wide mirrors, sun visor
Front/rear suspension: 1.118/1.569m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Engine info: De Wei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Engine Oil Change Interval: 10000 km / 6 months
Transmission Parameters
Transmission Model: Fast Gear8JS75TE-C
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Transmission oil change interval: 40000km/12 months
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.79m
Cargo box width: 2.3m
Cargo box height: 1.8m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: H500
Cab width: 2050mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1595kg
Frame Dimensions: 190×65×(6+4) (constant-section)mm
rear axle description: 6T
rear axle allowable load: 2900kg
Axle ratio: 4.33
Leaf spring count: 10/9+7
Frame Type: Straight-through frame
rear axle oil change interval: 80,000 km / 12 months
Tire
Tire Size: 7.50R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
Service brake
Engine brake: none
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
maintenance service
Vehicle Warranty Period: 5 years unlimited mileage
24-hour service hotline: 4008281893
Rescue service:

Photos

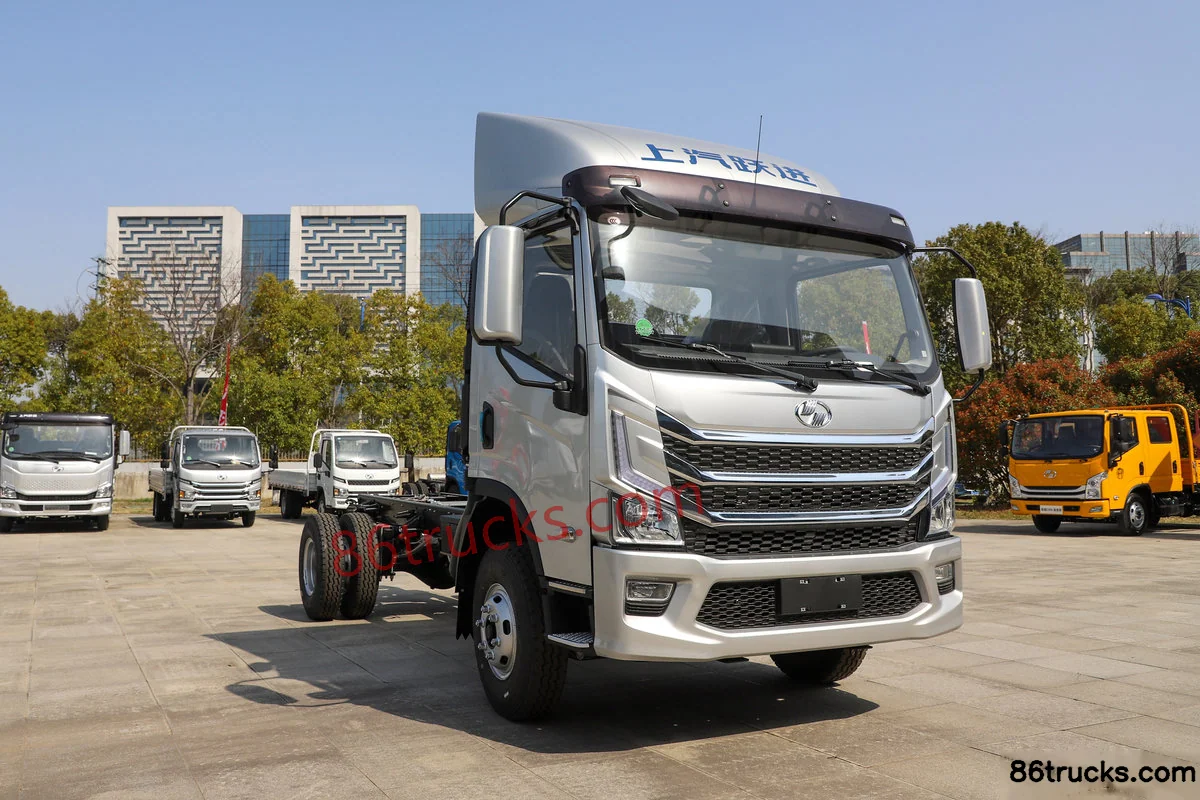

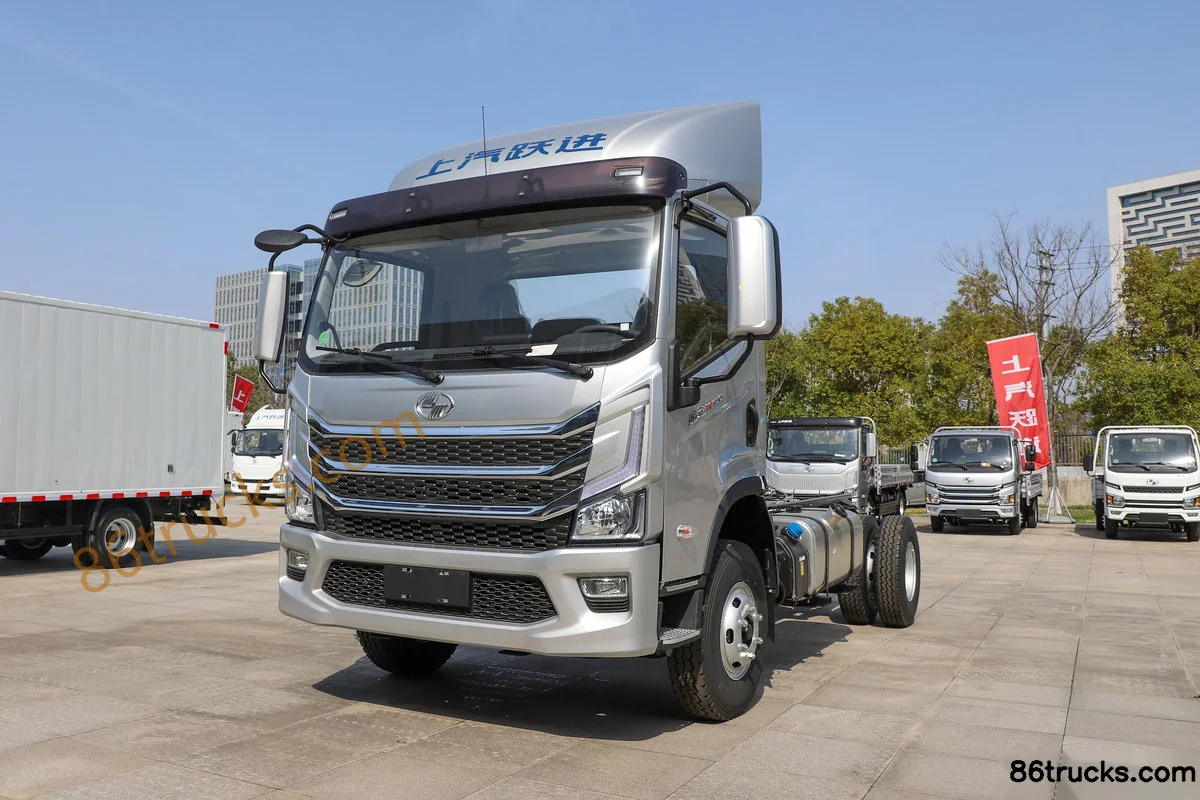

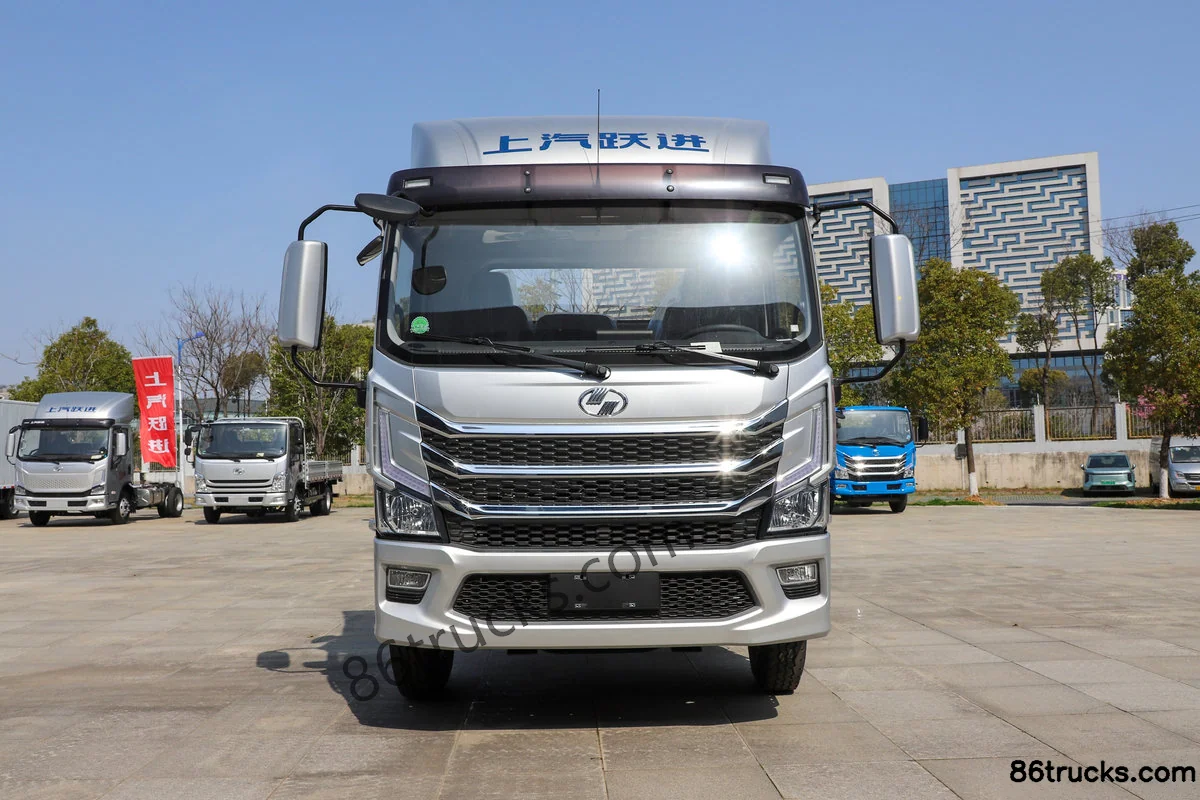

Exterior3

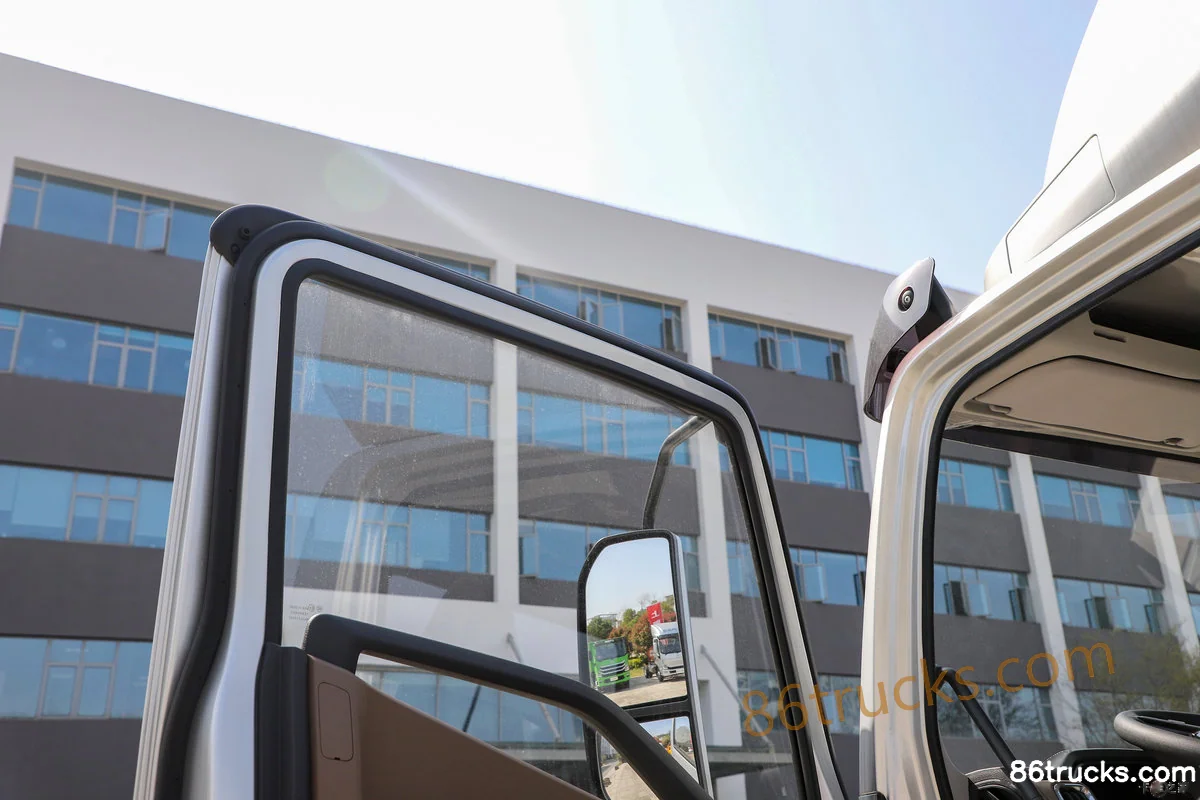

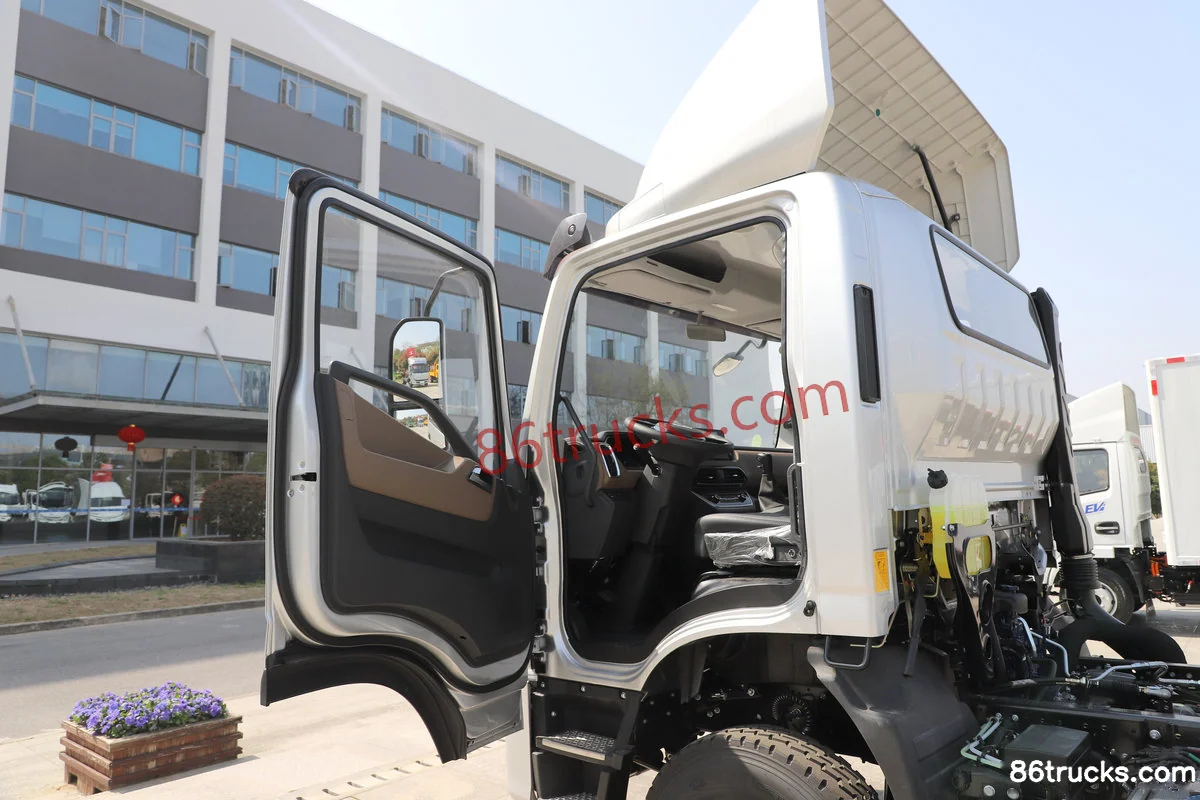

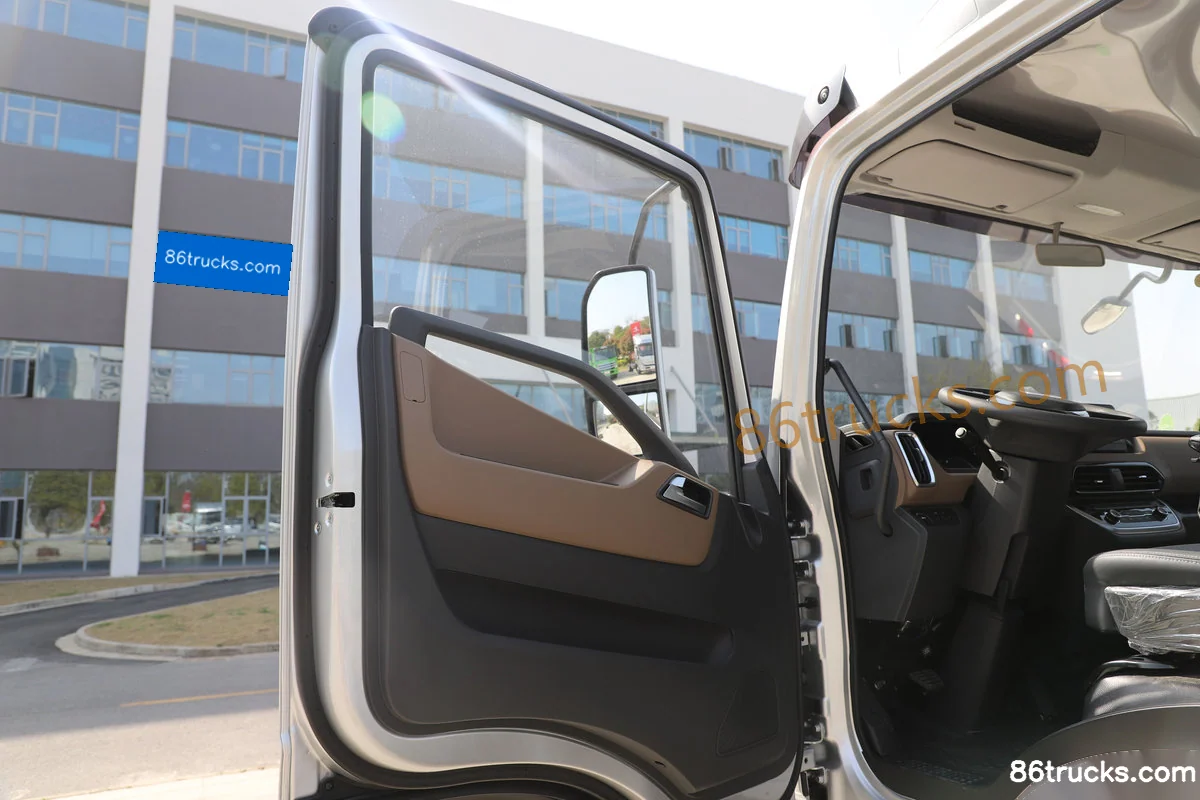

Cab3

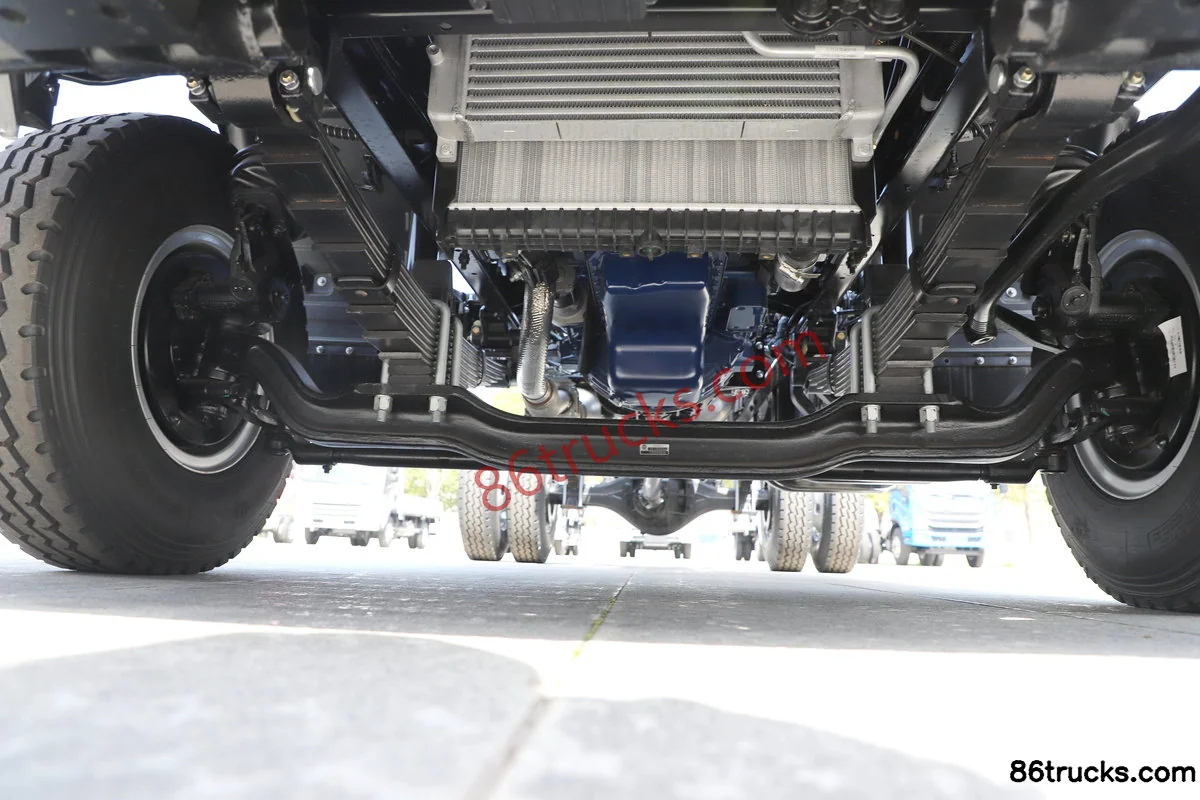

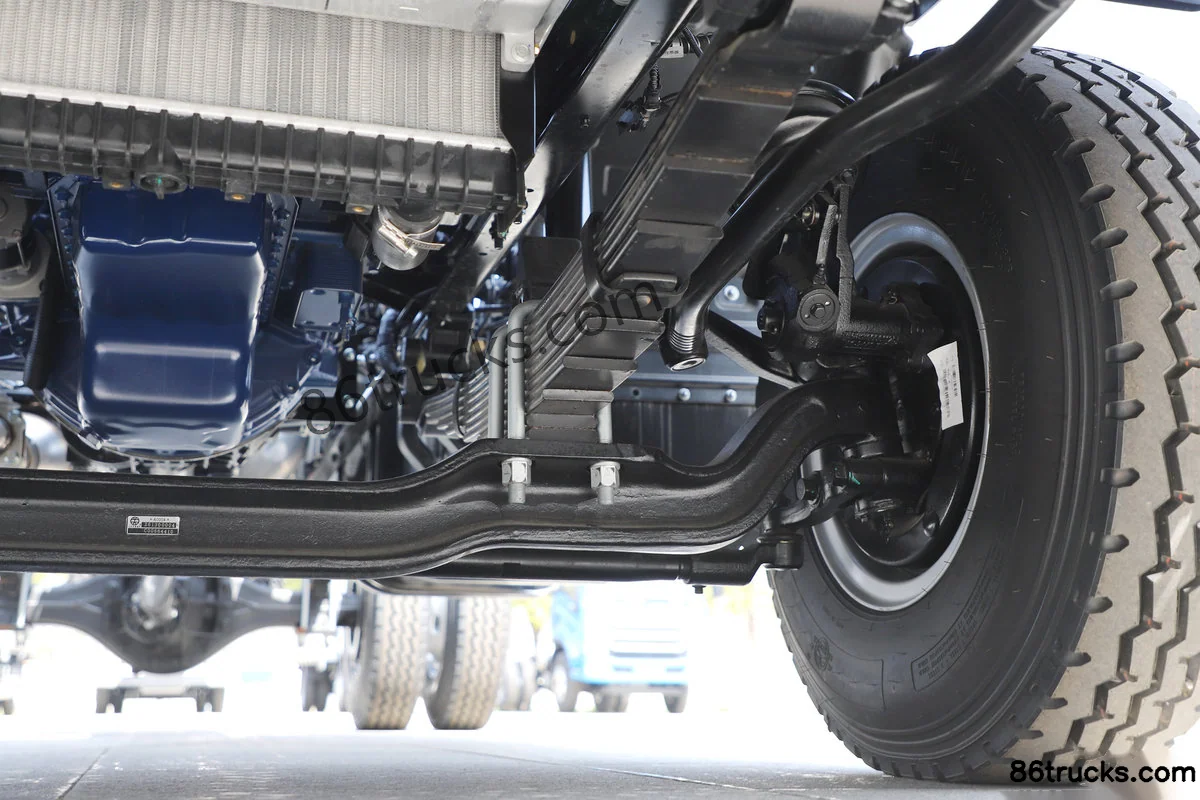

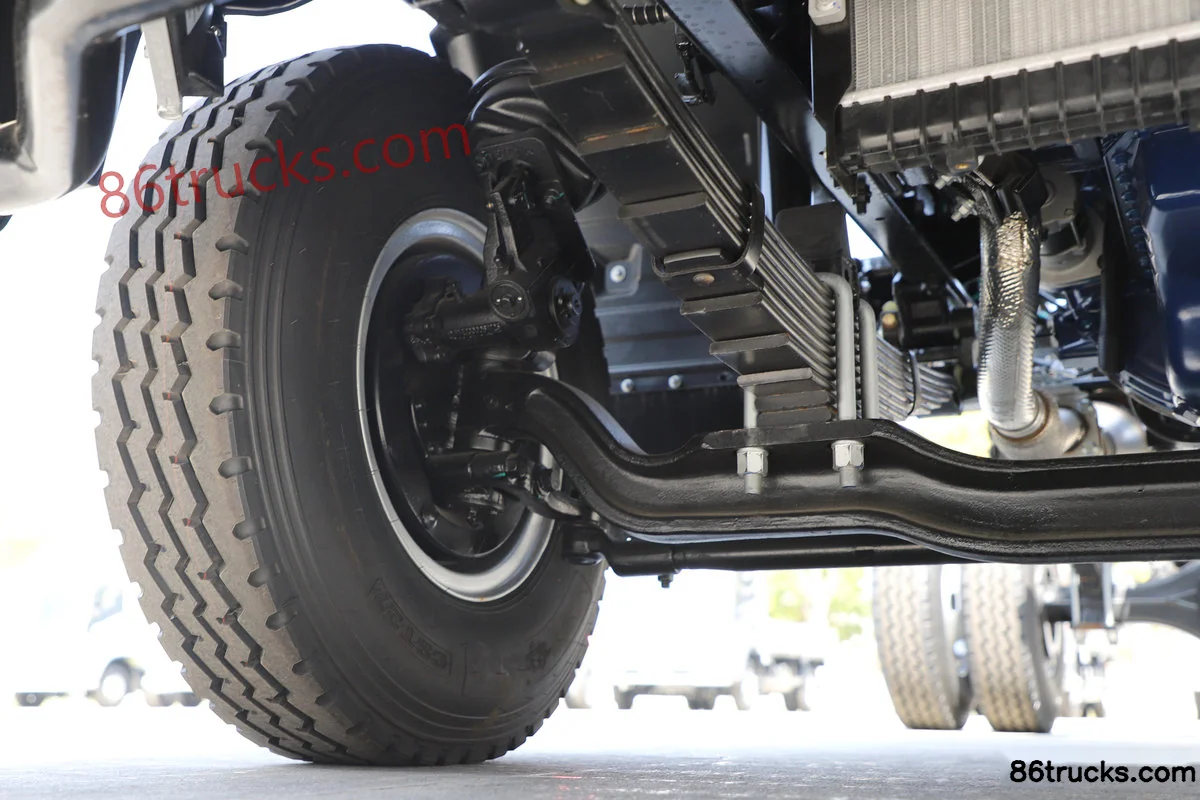

Chassis3

9 photos

FAQ

What is the export price of Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI), and what does it include?

Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) export reference is about From $18,569; MSRP is ¥13.37M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI)?

Key specs of Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI): Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: De Wei D30; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) suited for?

Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) differ from other variants in the same series?

Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI) belongs to Yuejin Chaoyue H Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyun H500 170hp 4X2(6 wheels) 3.79m semi-row van light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
