Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck

Export reference
From $37,500
MSRP ¥27M CNY
Machine dimensions: L×W×H:: 9.87X2.4X3.28m
Max travel speed:: 84km/h
Max gradeability:: 30%
Approach/departure angle:: 21/11.5°
Max lift height - base boom:: 8m
Max lift height:: 30.3m
Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck exterior
View more photos (3)
total counterweight: 12.495ton
Max output power: 96kW
Wheelbase: 4000mm
Model: SMQ5125JQZ

Overview

The Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck is a crane truck featuring 12.495ton GVW and 96kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: SMQ5125JQZ
Machine dimensions: L×W×H: 9.87X2.4X3.28m
total counterweight: 12.495ton
Wheelbase: 4000mm
Max travel speed: 84km/h
Max gradeability: 30%
Approach/departure angle: 21/11.5°
Lifting capacity
Max lift height - base boom: 8m
Max lift height: 30.3m
Max lifting height - main boom + jib: 30.3m
Boom length - fully extended: 28.3m
Boom length - main boom + jib: 8m
Operating Parameters
Outrigger span: longitudinal × lateral: 4.2×5m
Engine parameters
Engine Model: ChaochaiCY4BK251
Max output power: 96kW
Rated speed: 2800rpm
Chassis Specs
Chassis Model: LT1120JBC1

Photos

Exterior3

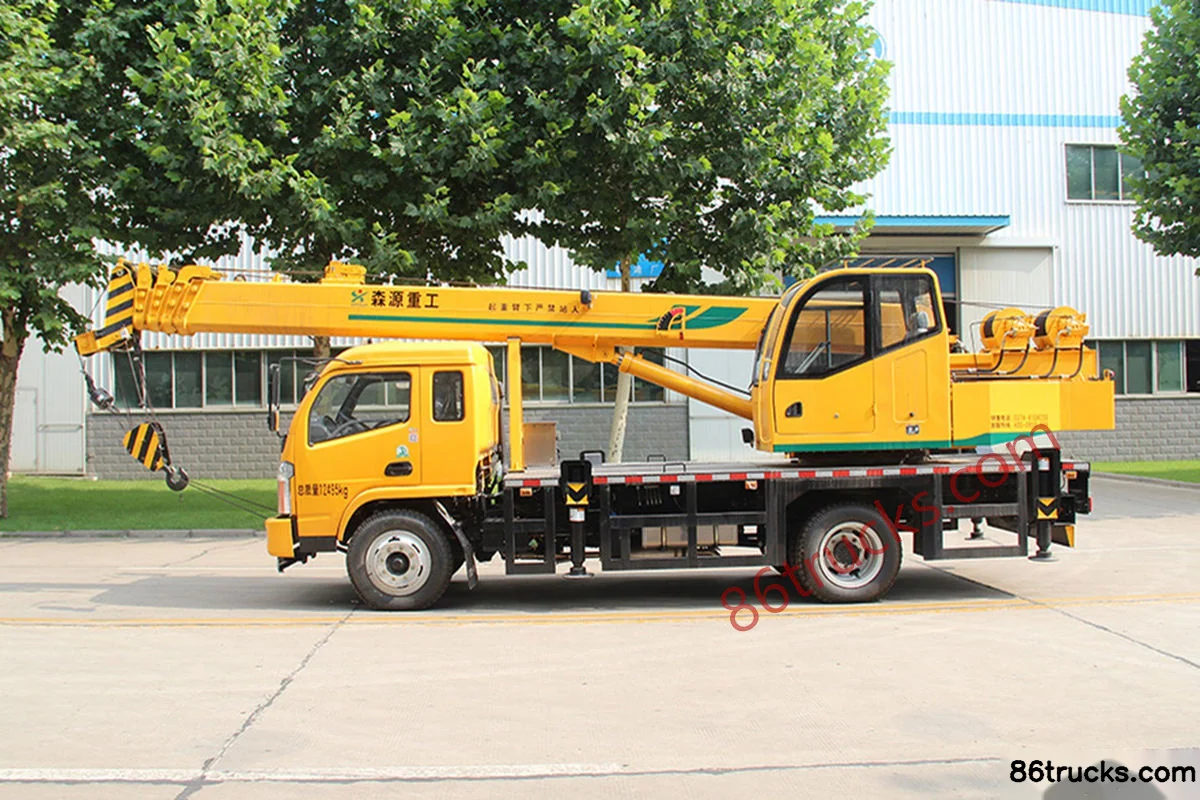

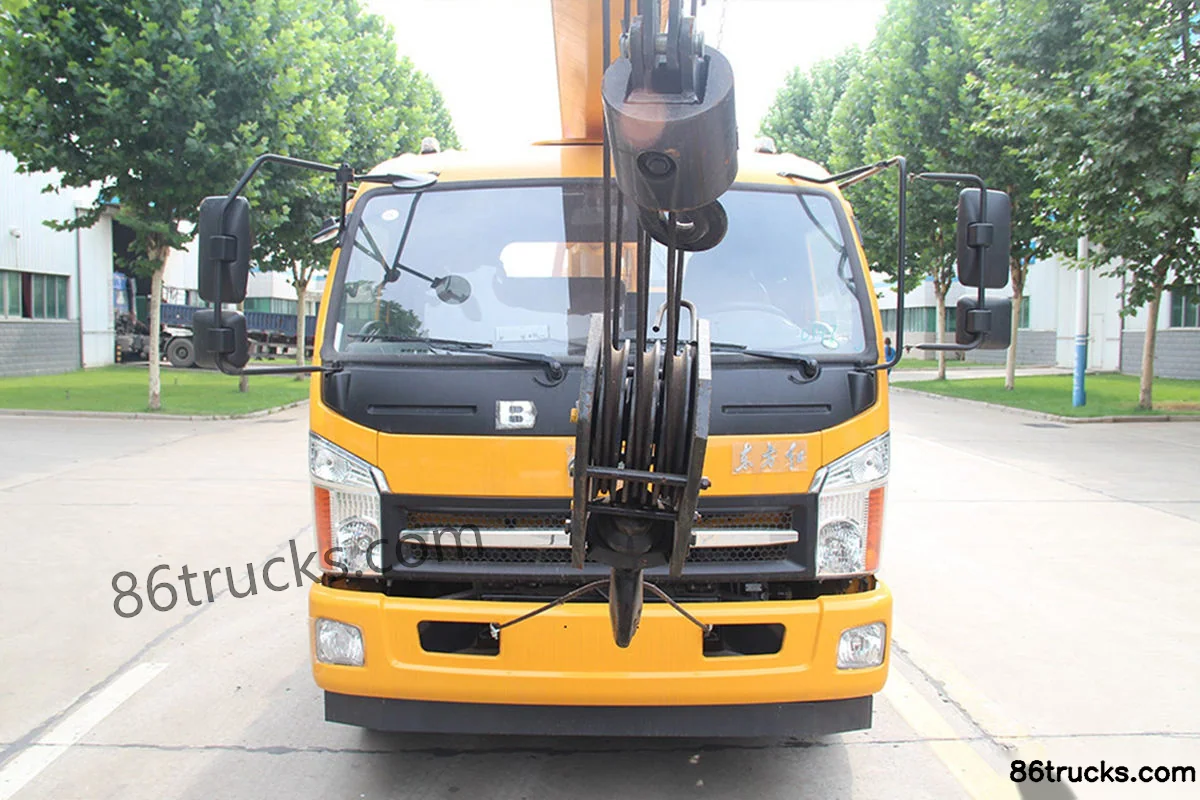

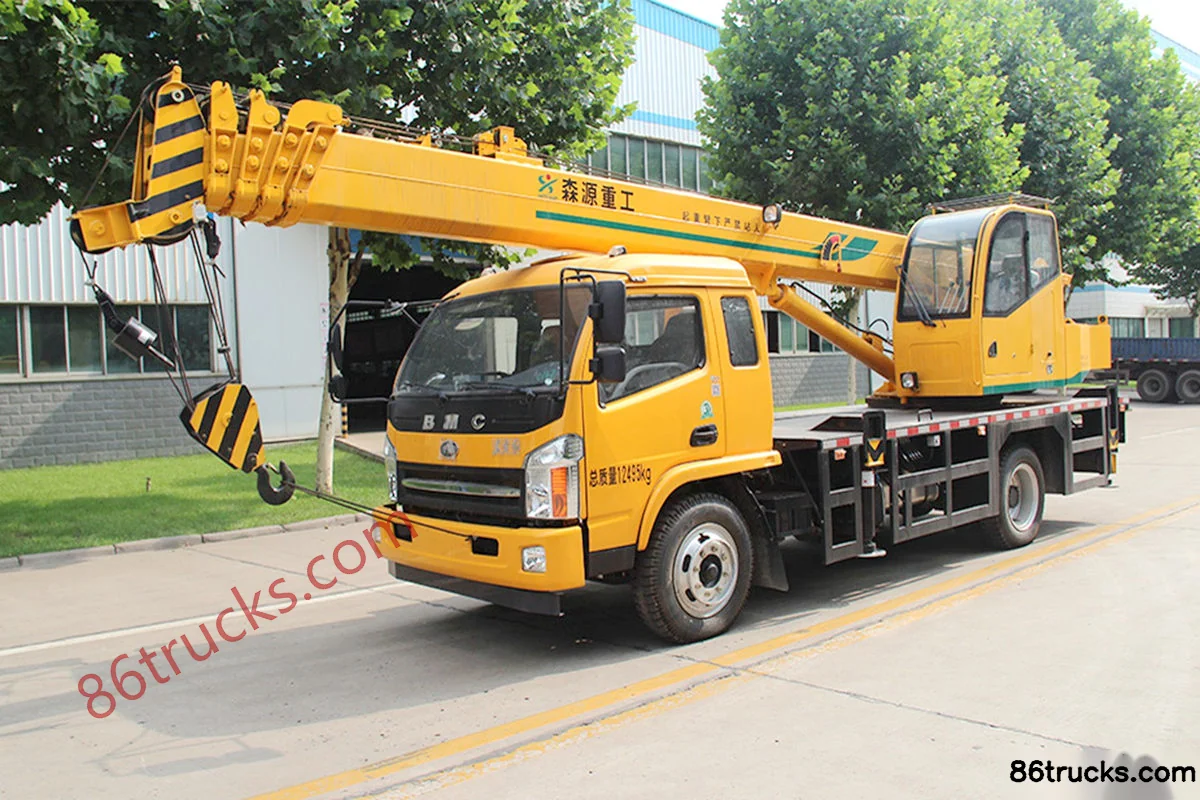

Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck Exterior (1) | 86Trucks Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck Exterior (2) | 86Trucks Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck, and what does it include?

Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck export reference is about From $37,500; MSRP is ¥27M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck suited for?

Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck differ from other variants in the same series?

Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck belongs to Senyuan Heavy Industry Yituo Dongfanghong (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Senyuan Heavy Industry 8 Ton Dongfanghong Chassis Crane Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
