FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6)

Export reference
From $54,944
MSRP ¥39.56M CNY
Horsepower: 460
Emission: China VI
Fuel: Diesel
Curb Weight:: 13.2ton
Wheelbase:: 2100+4500+1350mm
Tire Size:: 12R22.5
Fuel tank capacity: 1000L
Rated payload: 17.305ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.55×2.42×2.5m

Overview

The FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) is a Refrigerated Truck featuring 9.55×2.42×2.5m cargo body, 1000L volume, 17.305t payload and 2022 J6P Interior Upgrade High Roof Large Sleeper (Sloped Roof) Cab cab. On the powertrain side, it comes with 460 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 460 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×4m
Truck Type: Refrigerated Truck
Drive type: 8X4
Vehicle origin: Changchun, Qingdao, Chengdu
Wheelbase: 2100+4500+1350mm
Front track width: 2050/2050mm
rear track: 1878mm
Curb Weight: 13.2ton
Rated payload: 17.305ton
Max. speed: 105km/h
Front/rear suspension: 1.5/2.55m
Energy Type: Diesel
Engine parameters
Engine Model: XichaiCA6DM2-46E6
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.05L
Emission standard: China VI
Max output power: 338kW
Max hp: 460Horsepower
Max torque: 2300N·m
Rated speed: 1800rpm
Cargo box parameters
Cargo box dimensions: 9.55×2.42×2.5m
Cargo box width: 2.42m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: CA5320XLCP66K24L7T4E6
Body Brand: FAW Jiefang
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6P
Chassis Model: CA1320P66K24L7T4E6
Front axle description: New F5N-2050 front axle (ConMet hub)
Frame Dimensions: 300×80×8mm
rear axle description: Ф435 stamped-welded axle
Axle ratio: 3.727
Leaf spring count: 3/3/-
Transmission Parameters
Number of gears: 12Gear
Transmission Model: FAWCA12TAX230M
Cab parameters
Cab: 2022 J6P Interior Upgrade High Roof Large Sleeper (Sloped Roof) Cab
fuel tank
Fuel tank capacity: 1000L
Tire

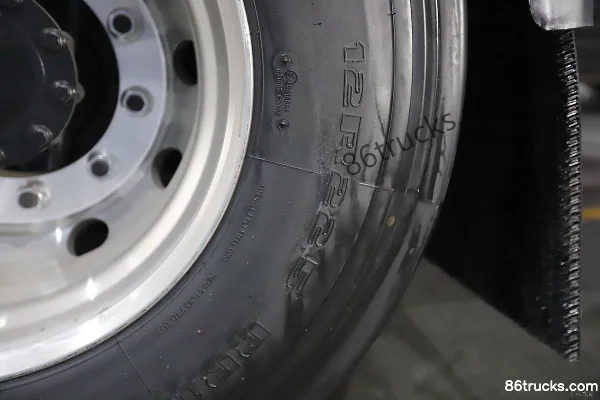

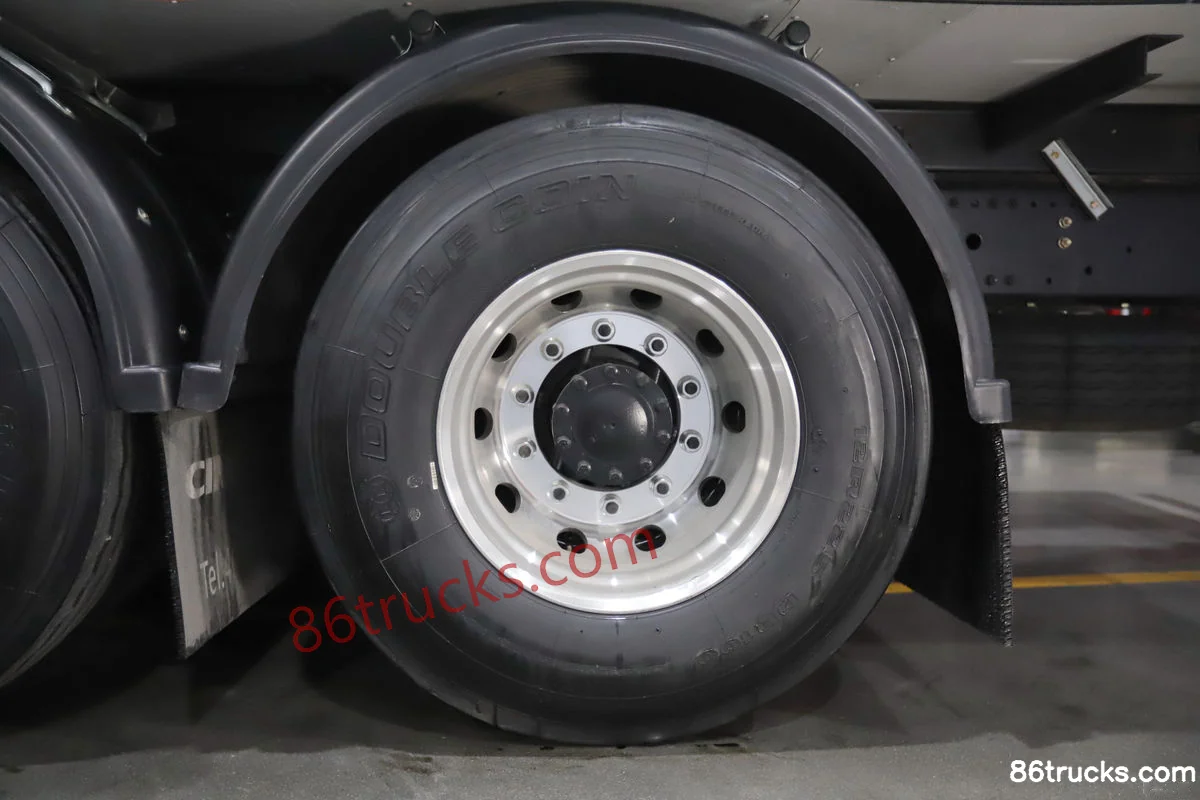

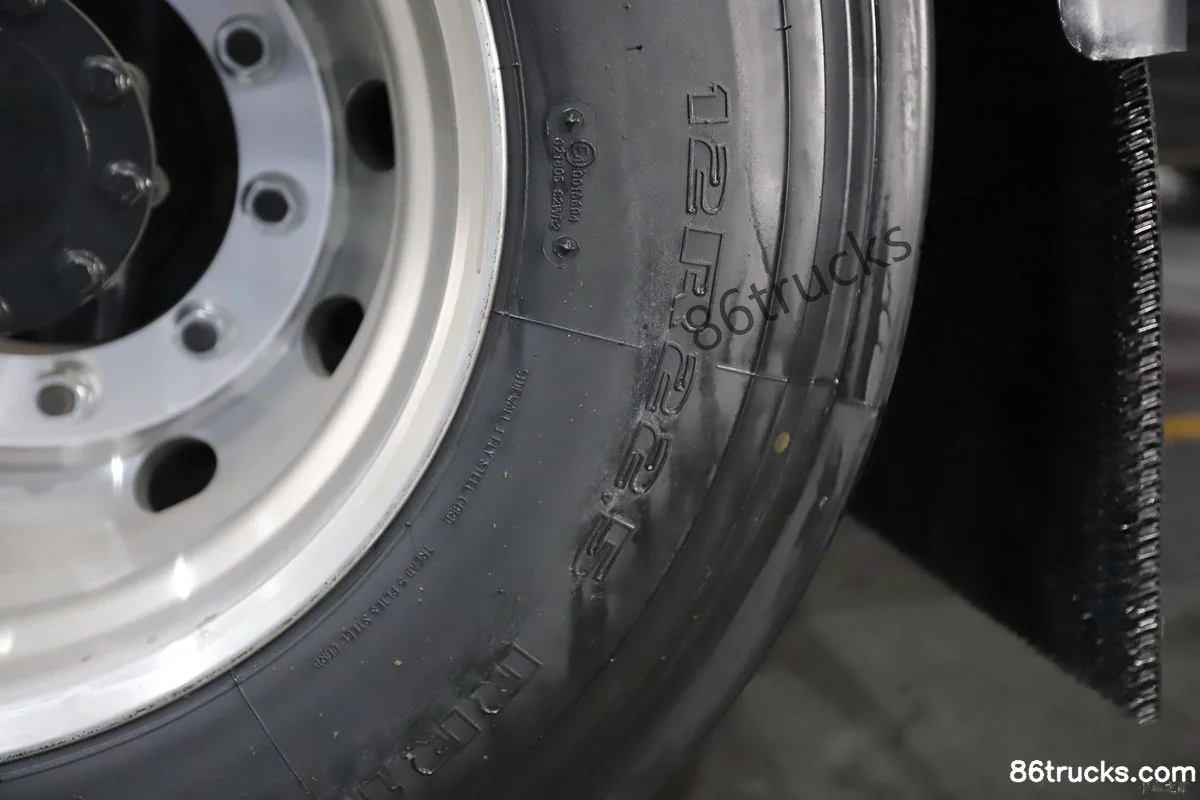

Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

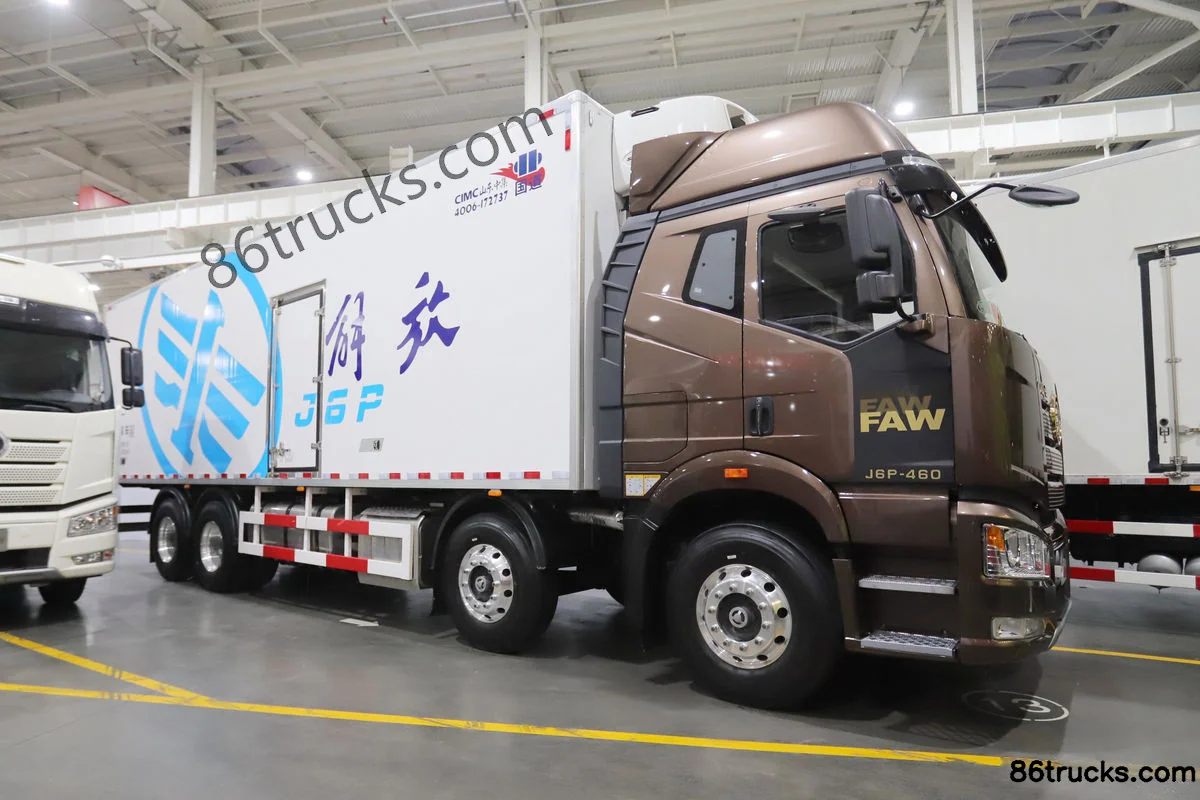

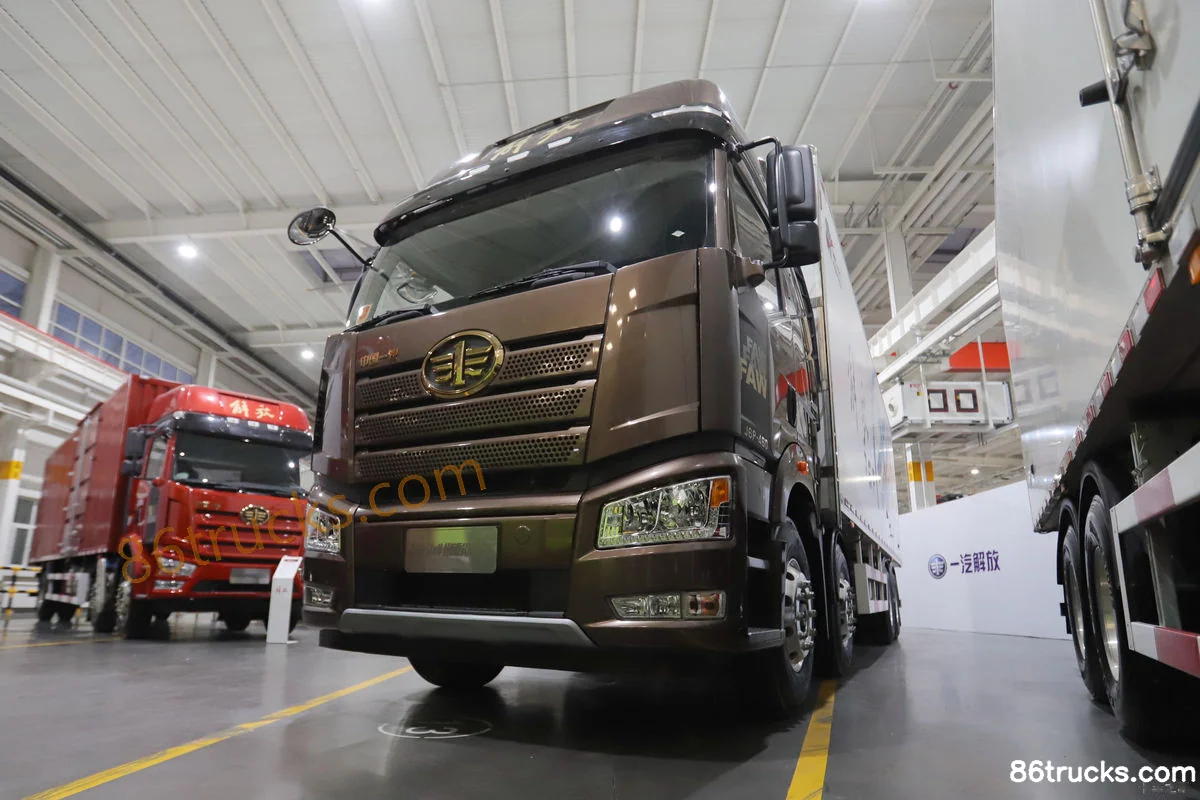

Exterior3

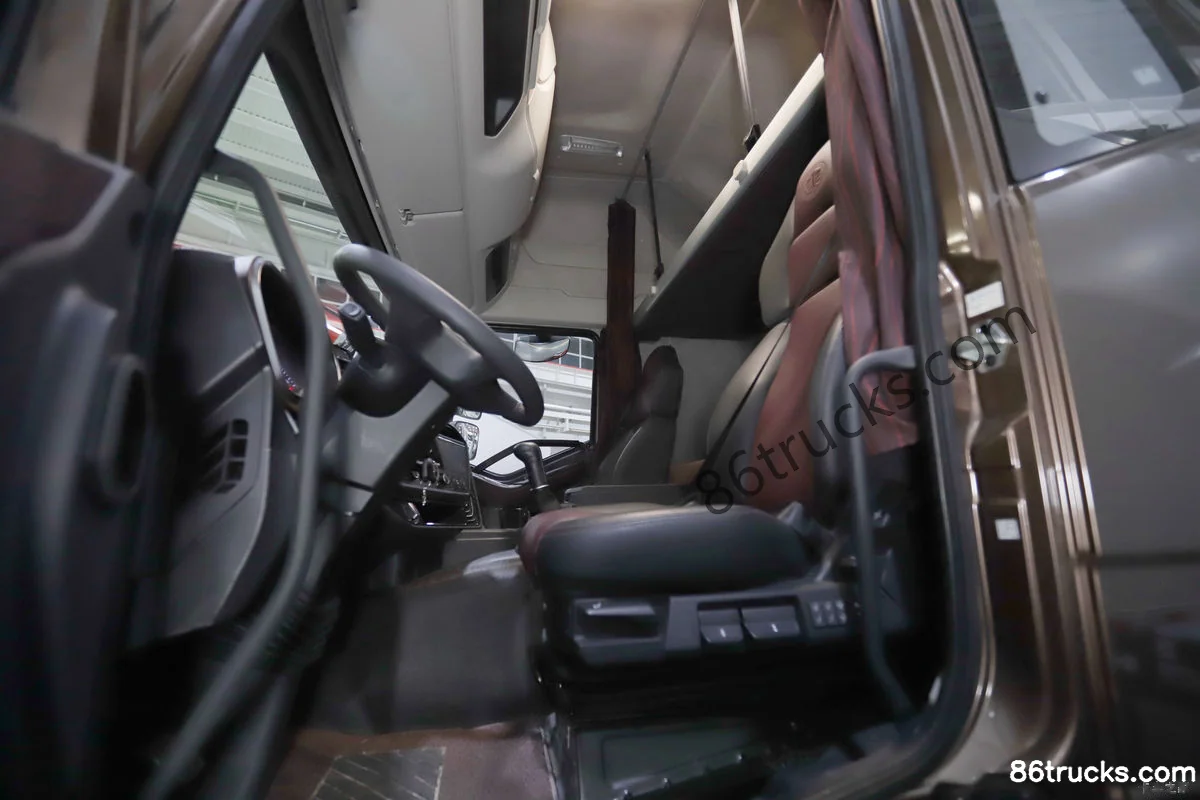

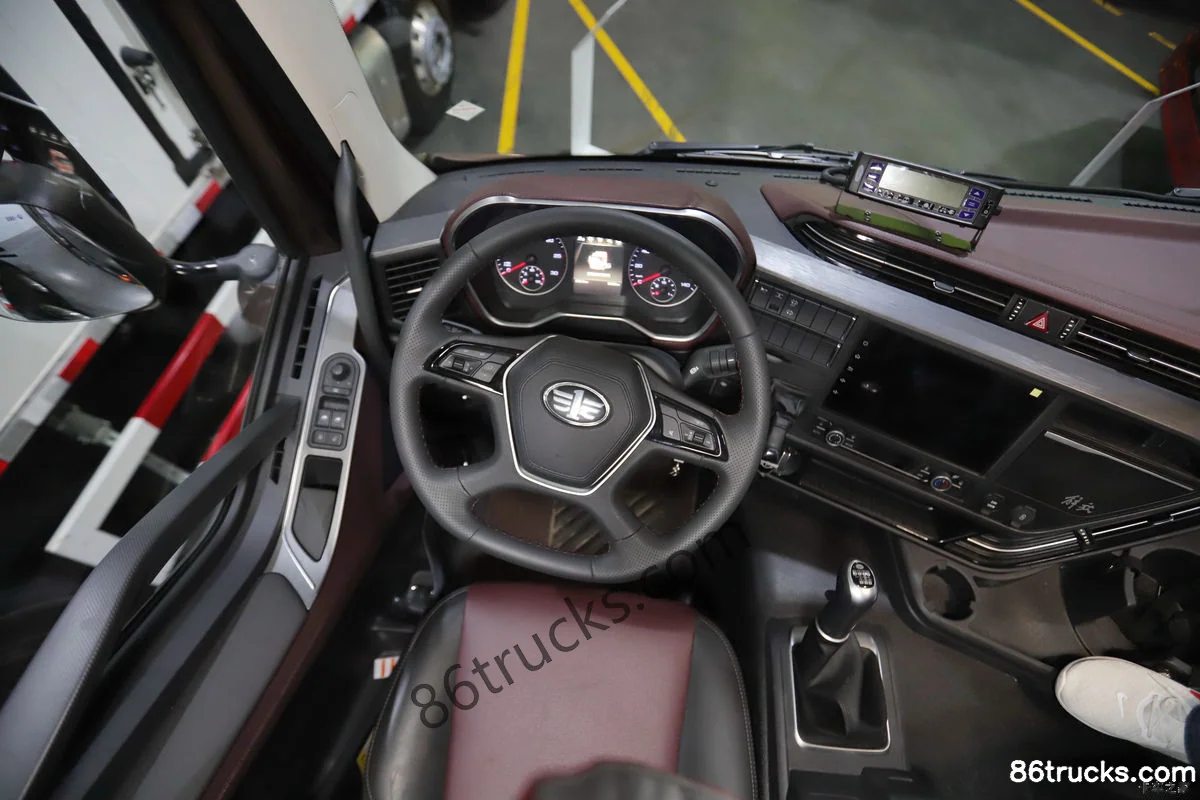

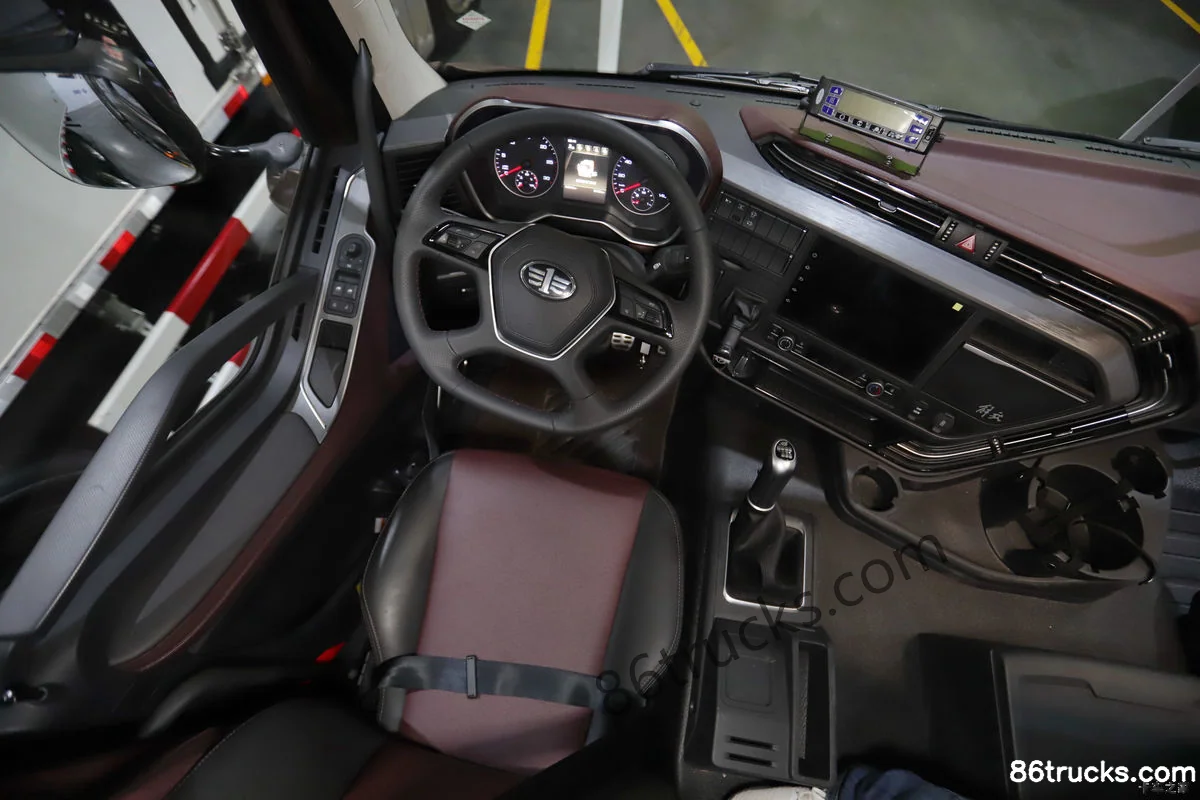

Cab3

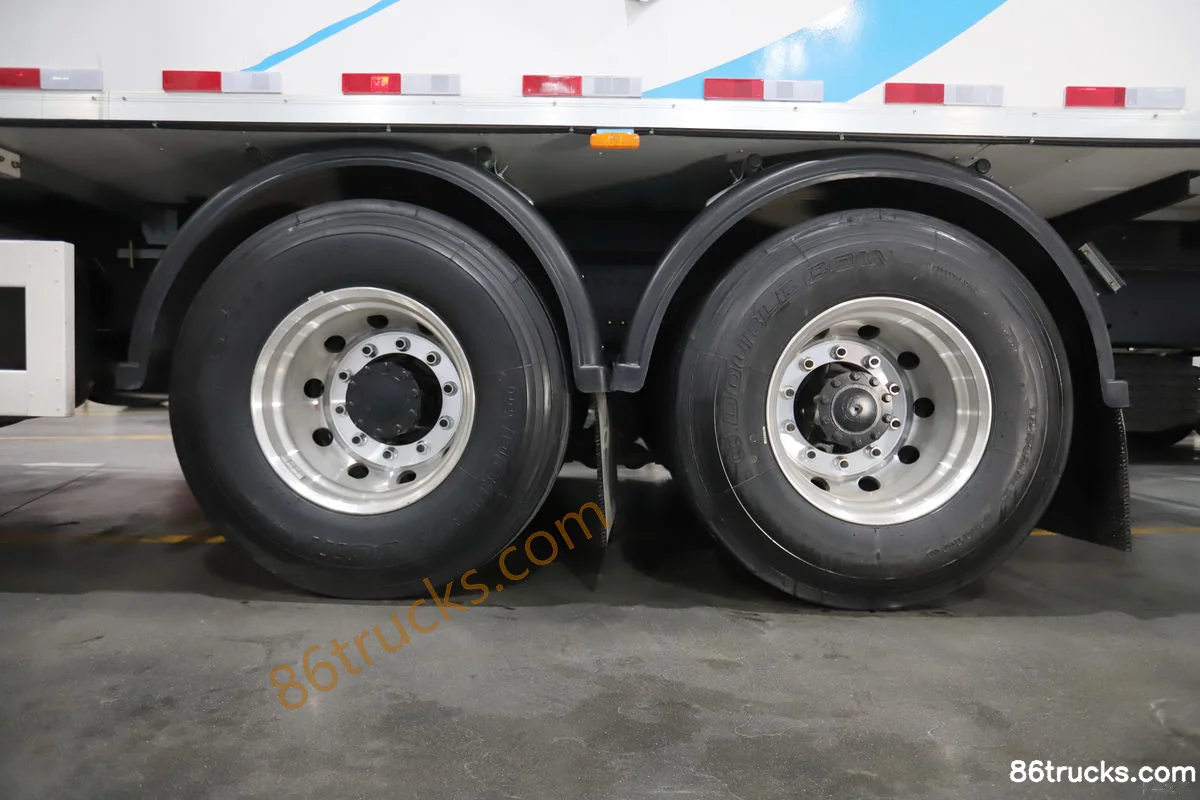

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6), and what does it include?

FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) export reference is about From $54,944; MSRP is ¥39.56M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6)?

Key specs of FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6): Drive: 8x4; Horsepower: 460 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) suited for?

FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) differ from other variants in the same series?

FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6) belongs to FAW Jiefang J6P Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New J6P Heavy Truck Pilot Edition 3.0 460 hp 8X4(12 wheels) Refrigerated Truck (China VI) (CA5320XLCP66K24L7T4E6)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
