FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck

Export reference
From $13,611
MSRP ¥9.8M CNY
Horsepower: 120
Emission: China III / Euro III
Fuel: Diesel
Engine: Dachai498
Curb Weight:: 3.35ton
Wheelbase:: 3860mm
seating capacity: 3Personnel
Rated payload: 5.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Hongta FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck is a Light Truck featuring 4.87m cargo length, stake body cargo body, 3Personnel volume and 5.99t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai498 engine, 120 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1102PK26L3R5-3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3860mm
Box length class: 4.8m
engine: DachaiCA4DC2-12E3
transmission: 5-38
Cab length: 6.995m
Cab width: 2.26m
Cab height: 2.385m
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 3.35ton
Rated payload: 5.99ton
GVWR: 9.535ton
Max. speed: 95km/h
Origin: Harbin, Heilongjiang
tonnage class: Light Truck
market segment: Building materials, agricultural products
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-12E3
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China III / Euro III
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 245N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: 5-38
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.87m
Cargo box width: 2.115m
Cargo box height: 0.55m
*Cargo box interior width: 2.1150000095367
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 75L
Chassis Specs
rear axle allowable load: 5535kg
Leaf spring count: 7/8+9
Tire
Tire Size: 8.25R16
Number of tires: 6pcs

Photos

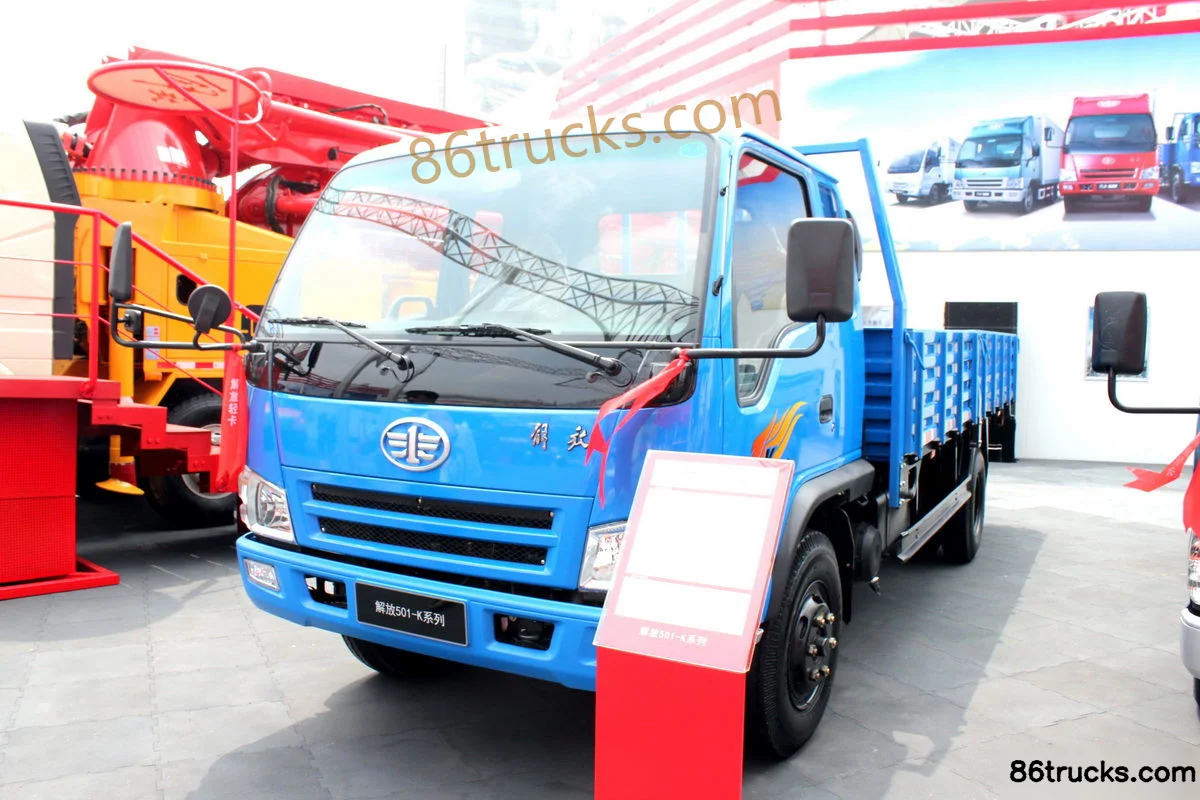

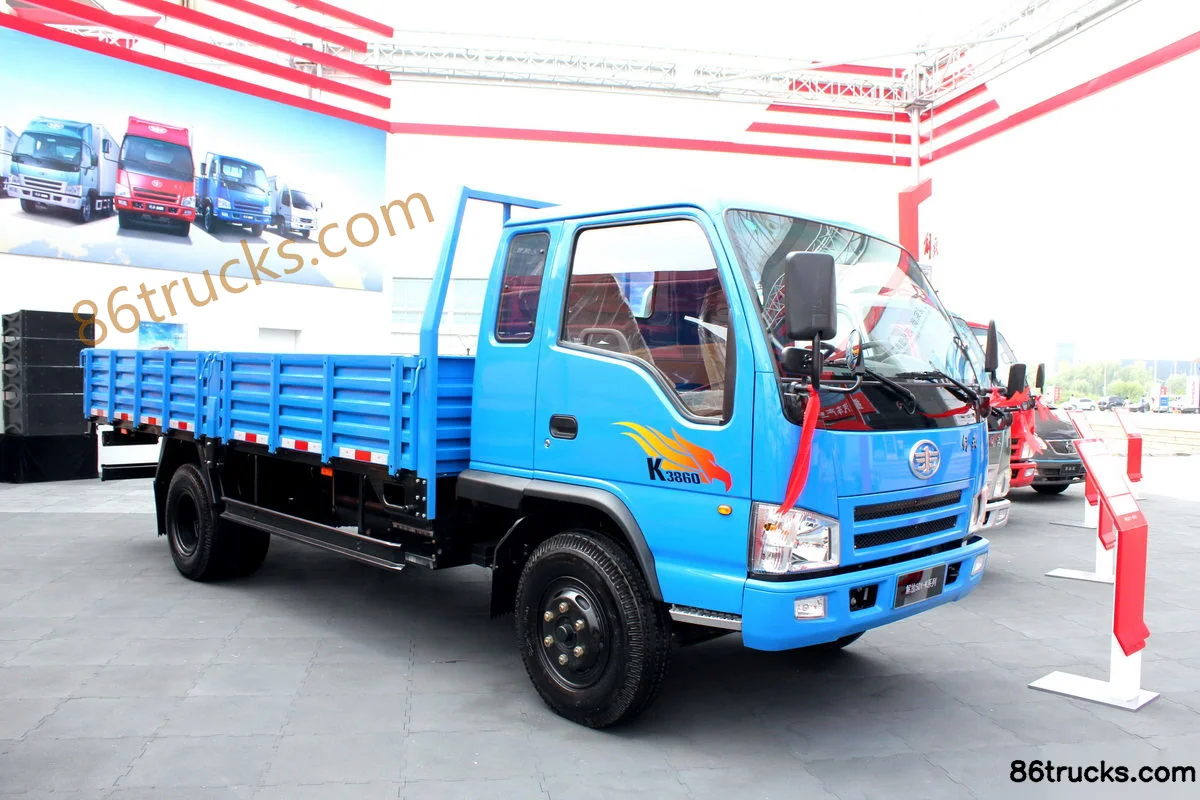

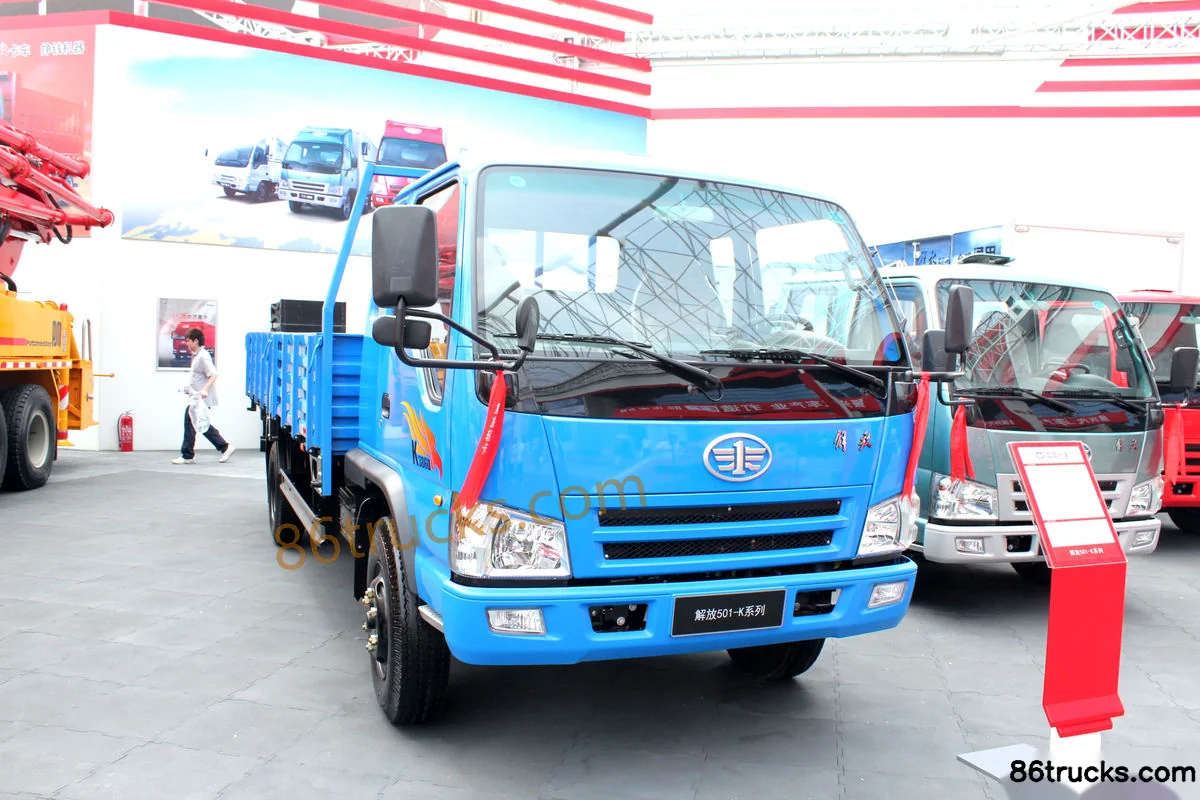

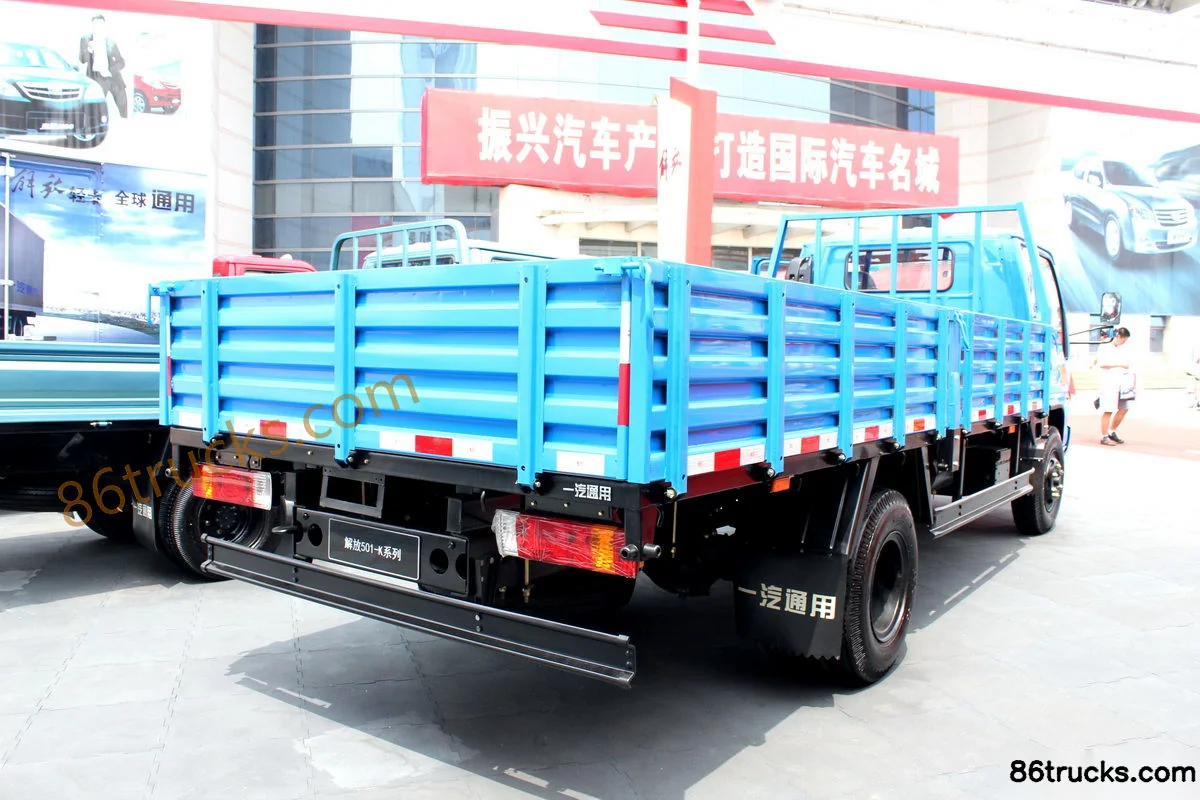

Exterior3

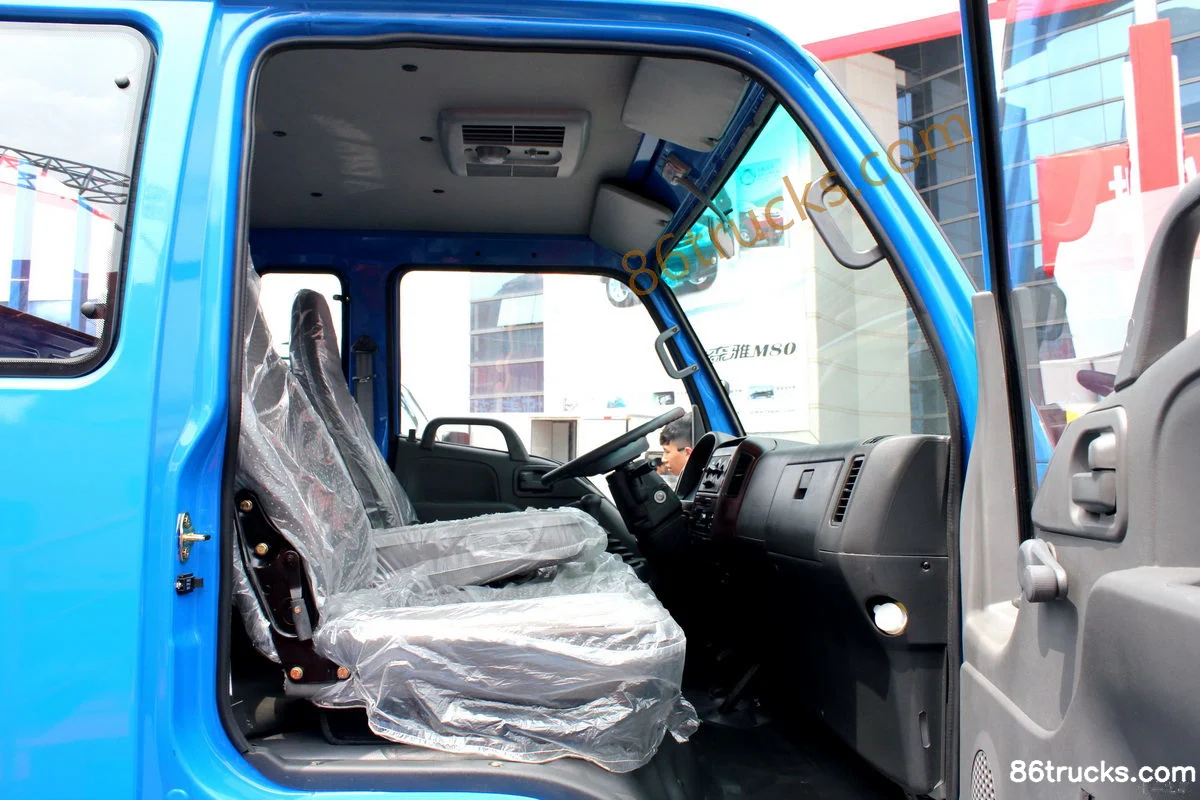

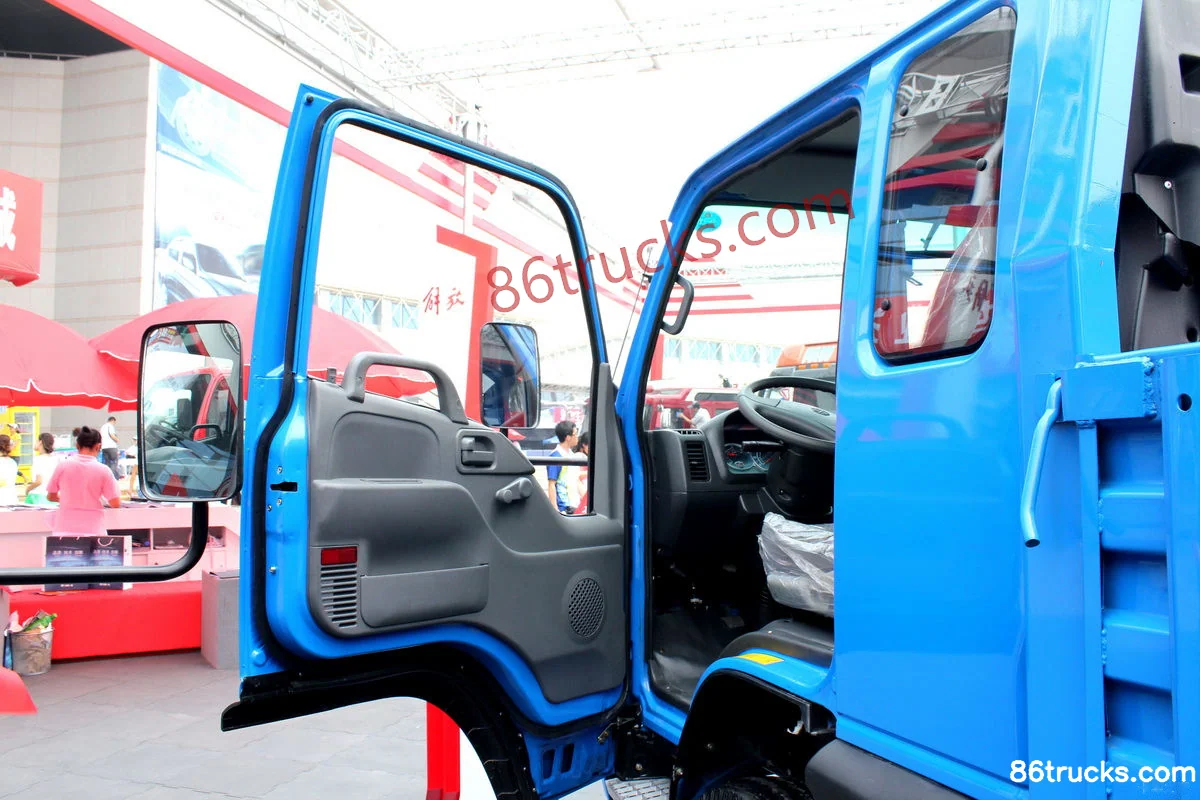

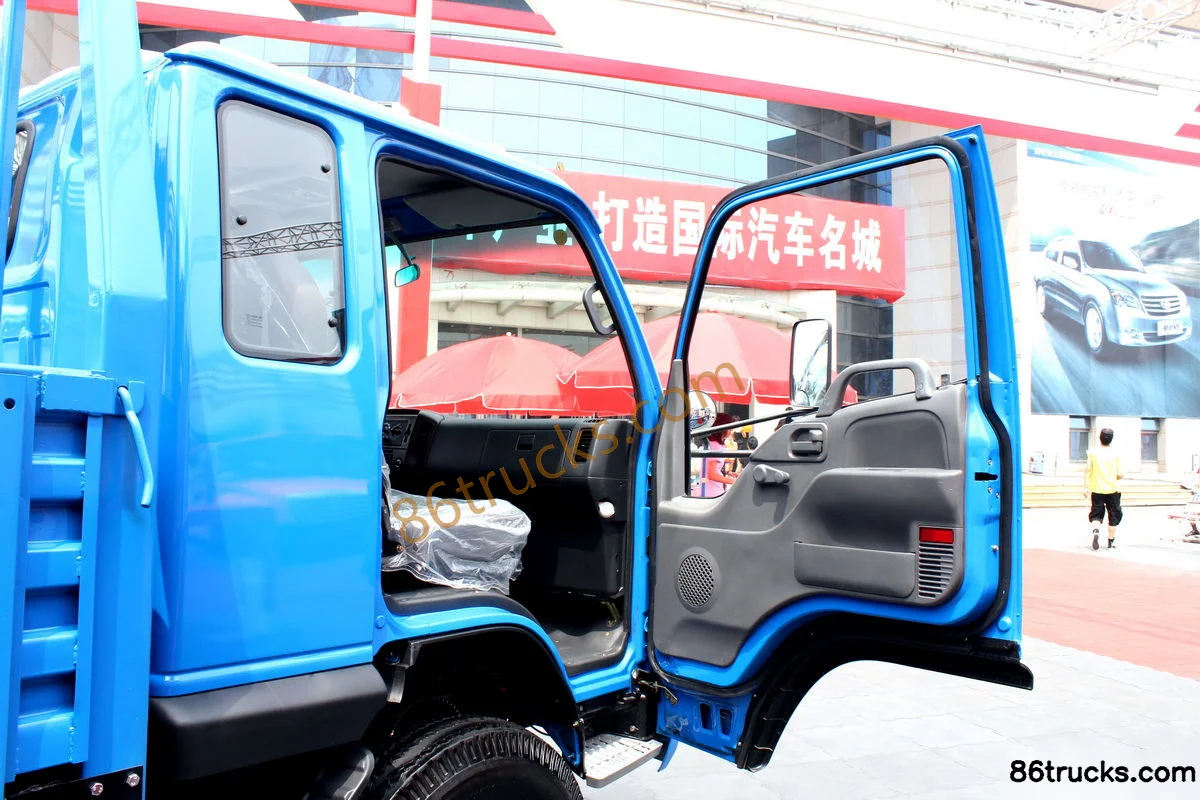

Cab3

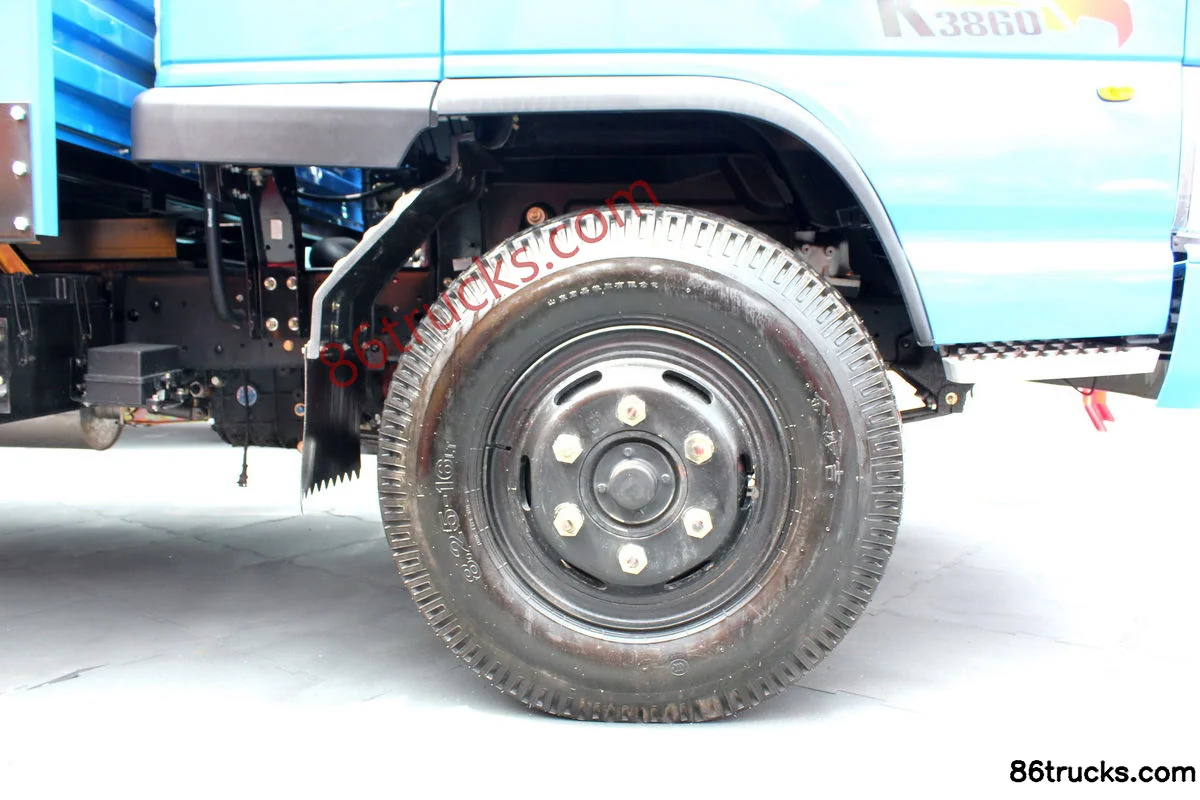

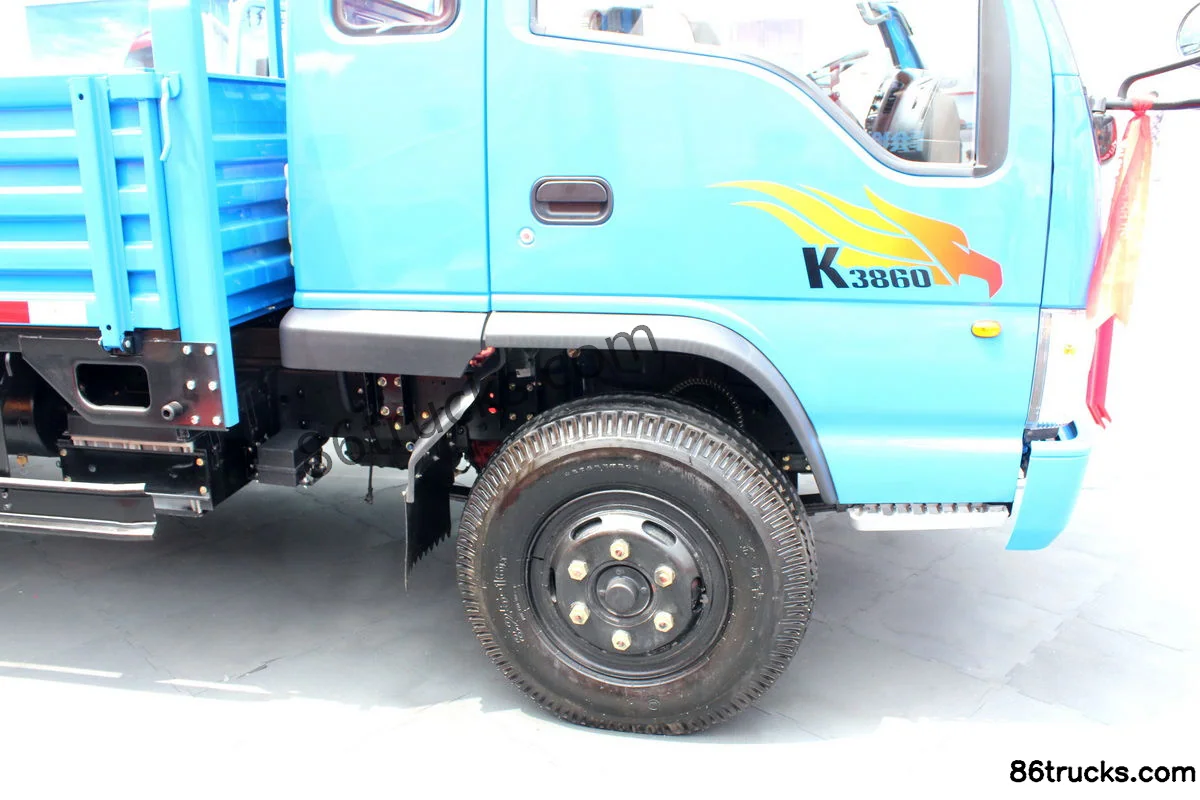

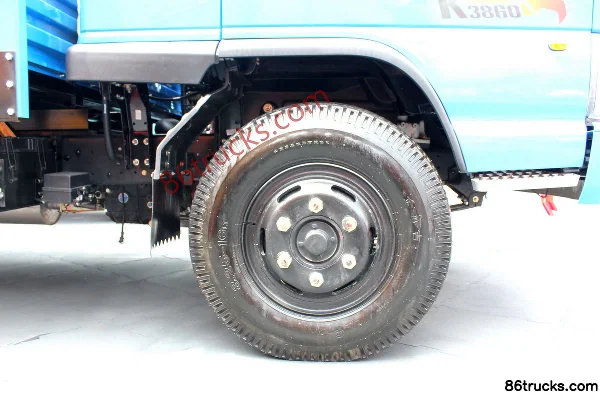

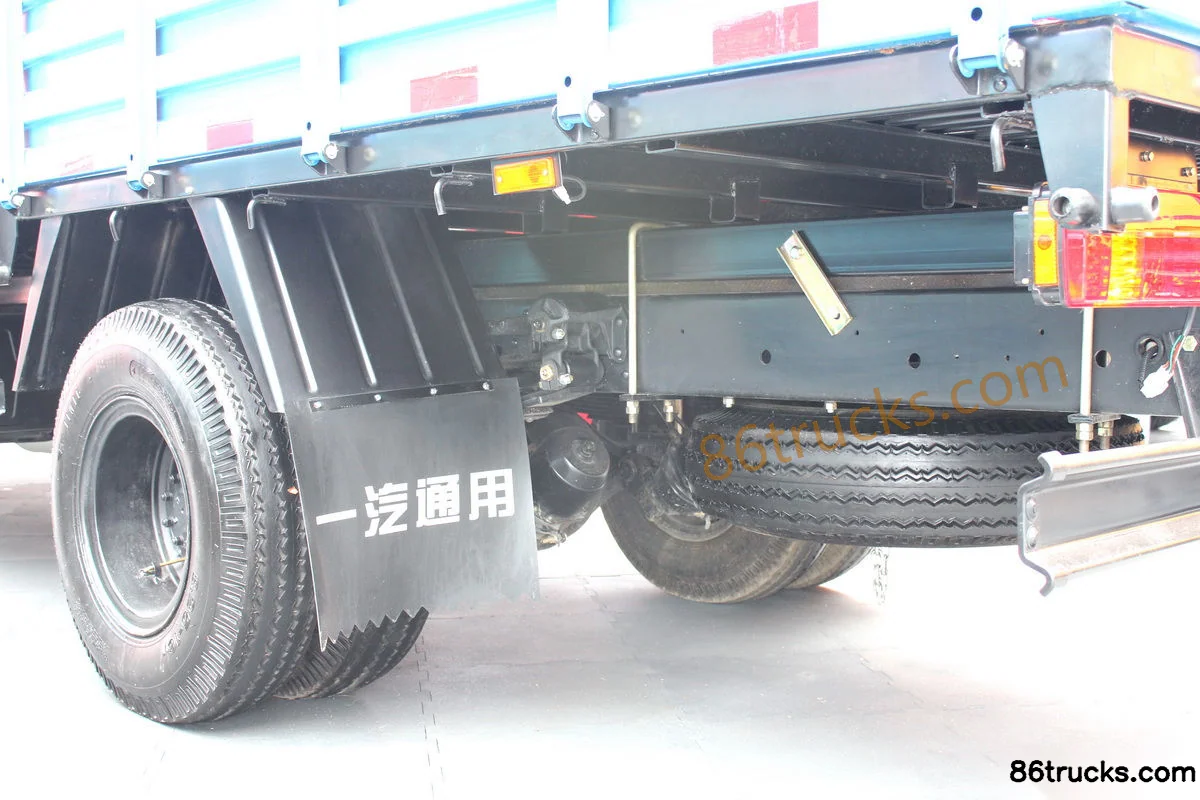

Chassis3

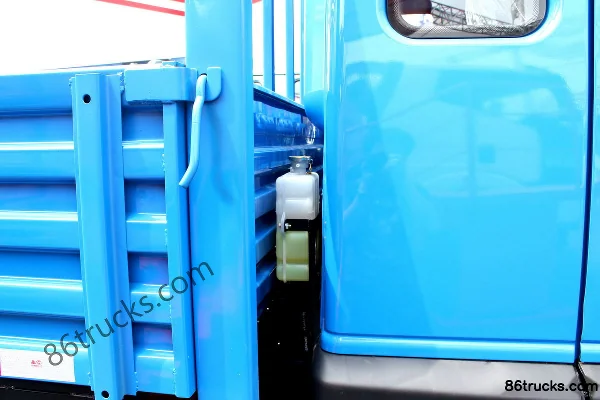

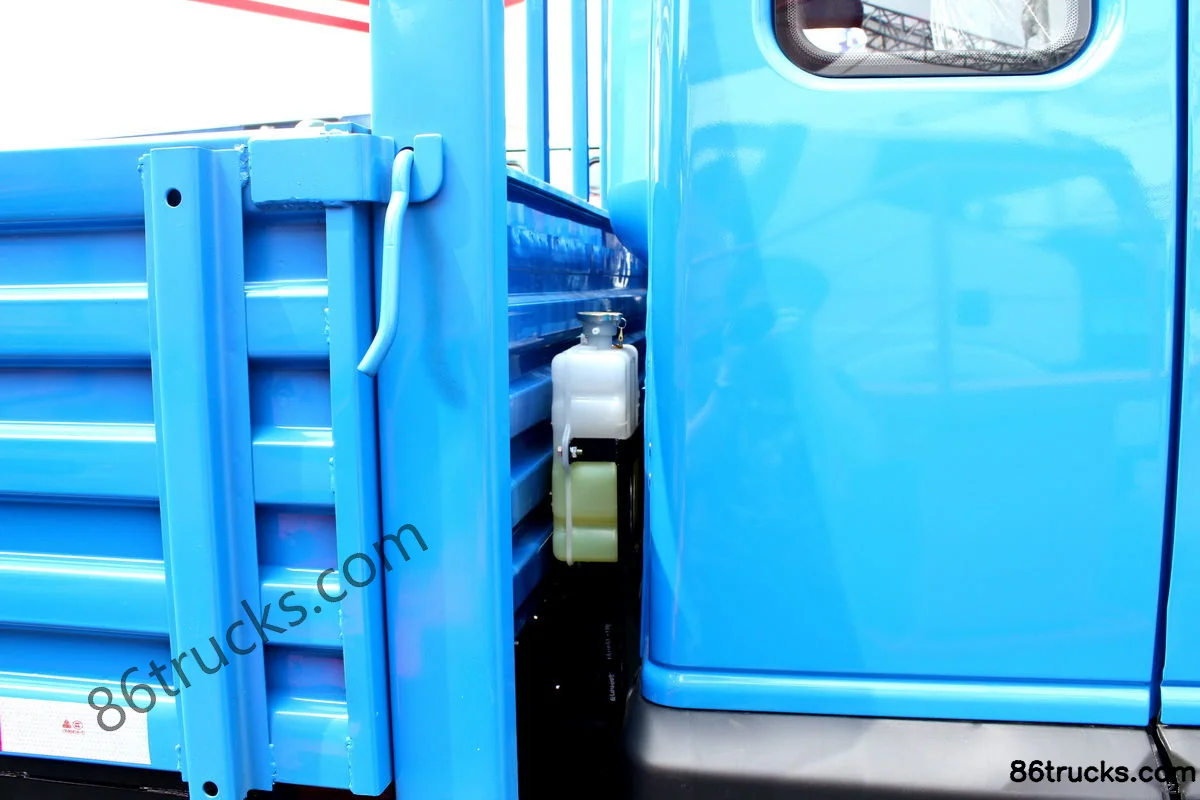

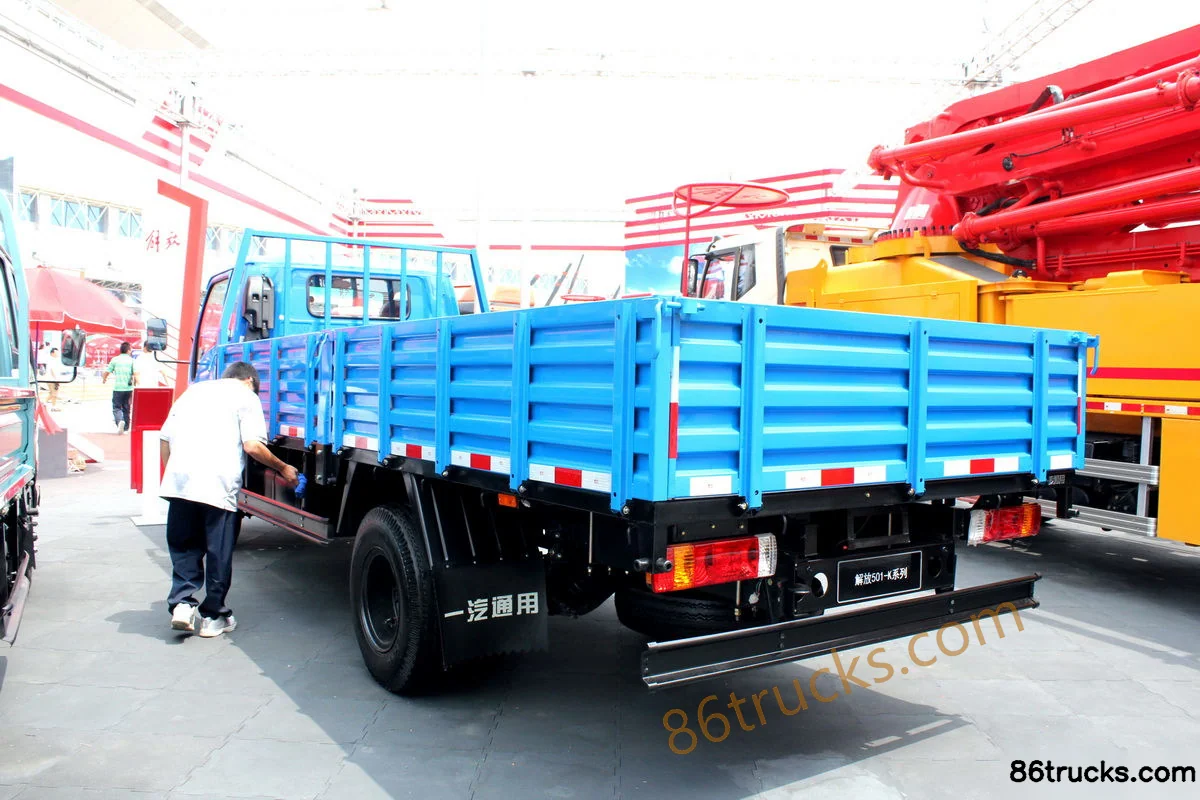

Body3

12 photos

FAQ

What is the export price of FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck, and what does it include?

FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck export reference is about From $13,611; MSRP is ¥9.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck?

Key specs of FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck: Drive: 4x2; Horsepower: 120 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Dachai498. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck suited for?

FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck differ from other variants in the same series?

FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck belongs to FAW Hongta 501 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW-GM 501-K series 120hp 4X2(6 wheels) 4.8m semi-panel cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
