FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis

Export reference
MSRP N/A
Horsepower: 124
Emission: China IV
Fuel: Diesel
Engine: Dachai498
Transmission: WLY
Curb Weight:: 3.265ton
seating capacity: 3Personnel
Rated payload: 1.93ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis is a Light Truck featuring 4.25m cargo length, Stake type cargo body, 3Personnel volume and 1.93t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Dachai498 engine, 124 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5051CCYP40K2L2E4A85-1
Type: Chassis
Drive type: 4X2
Wheelbase: 3560mm
Box length class: 4.2m
engine: DachaiCA4DC2-12E4
transmission: WLY6TS40
Rear Axle Ratio: 6.167
Cab length: 6.398m
Cab width: 2.29m
Cab height: 3.18m
Front track width: 1665mm
rear track: 1590mm
Curb Weight: 3.265ton
Rated payload: 1.93ton
GVWR: 5.39ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.15/1.688m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-12E4
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China IV
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: WLYWLY6TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.25m
Cargo box width: 2.1m
Cargo box height: 0.6m
*Cargo box interior width: 2.0999999046326
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 2250kg
Frame Dimensions: 216x75x6mm
rear axle description: 1068 stamped-welded axle
rear axle allowable load: 3140kg
Axle ratio: 6.167
Leaf spring count: 7/10+3
Tire
Tire Size: 8.25R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:
Service brake
Parking brake: Spring brake

Photos

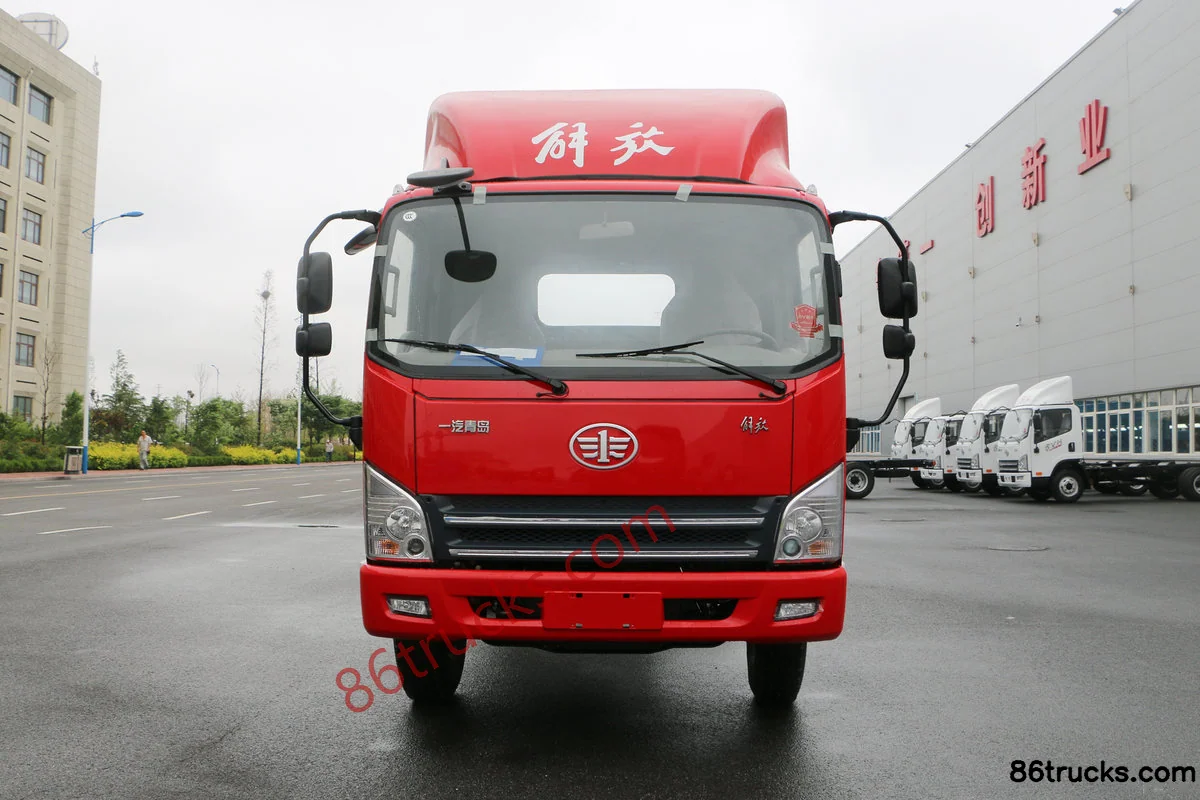

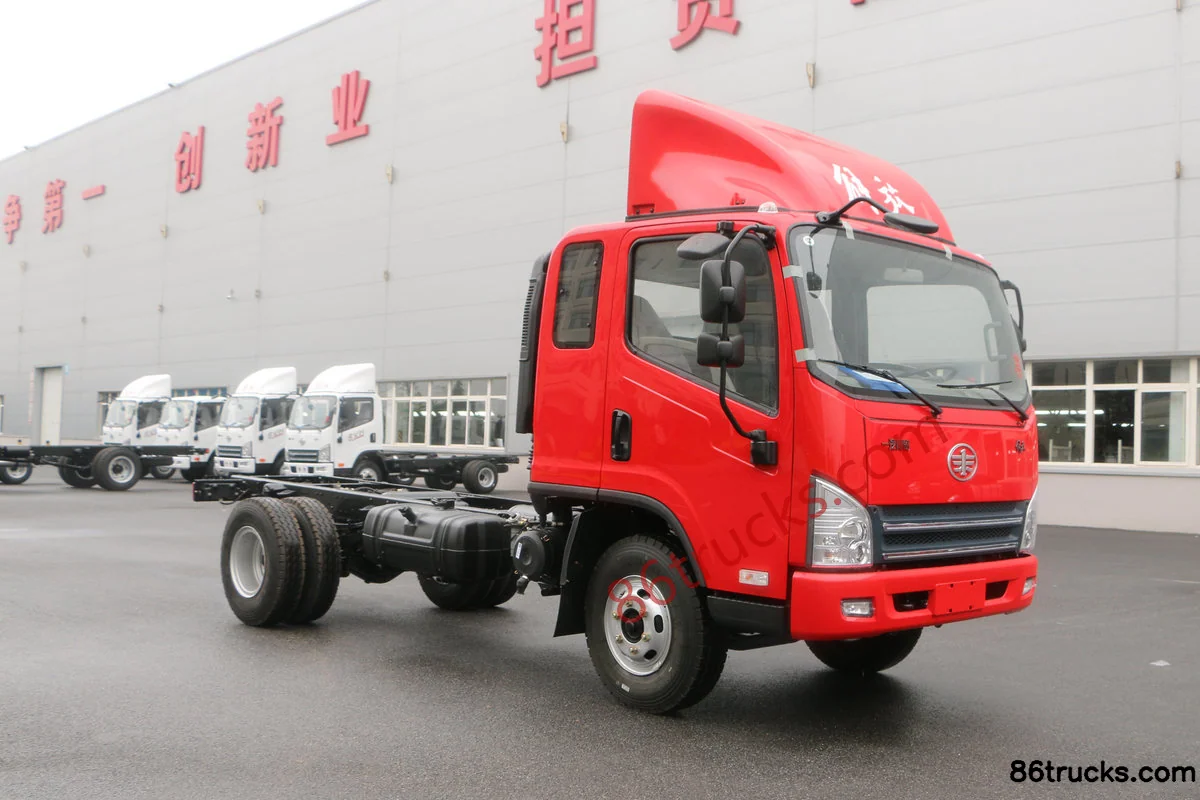

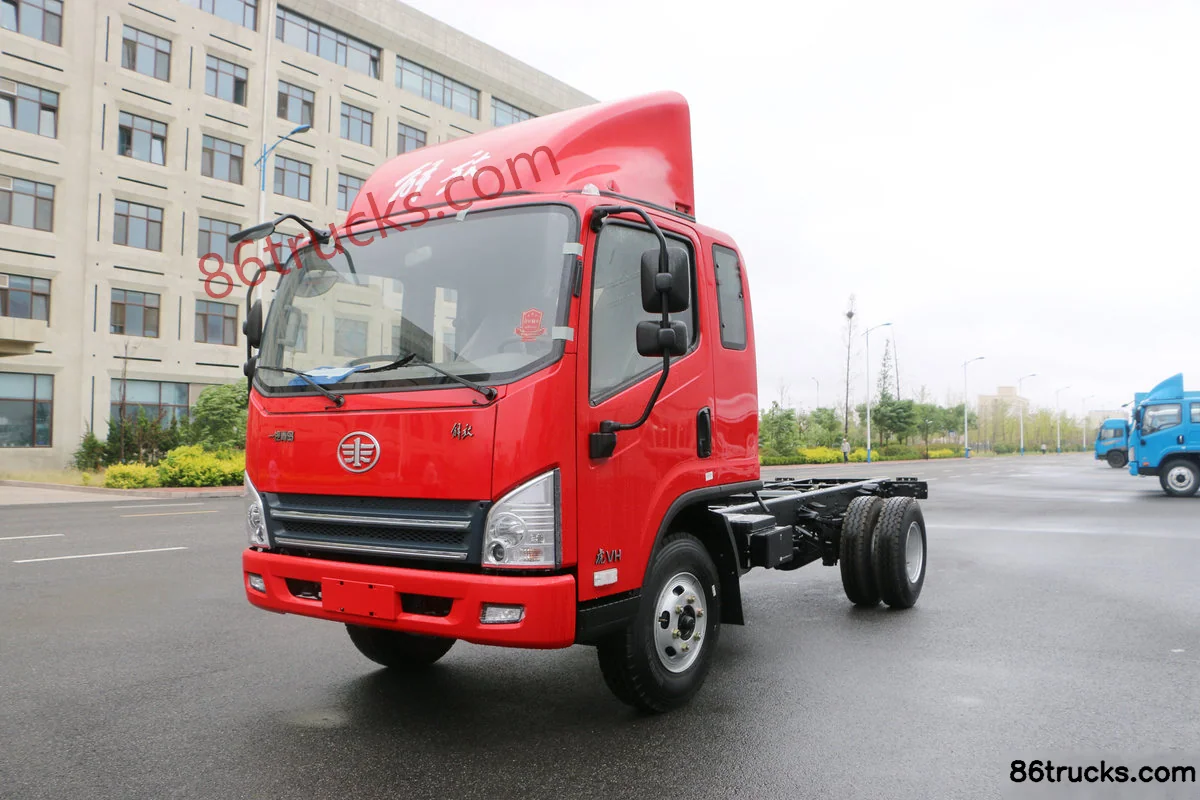

Exterior3

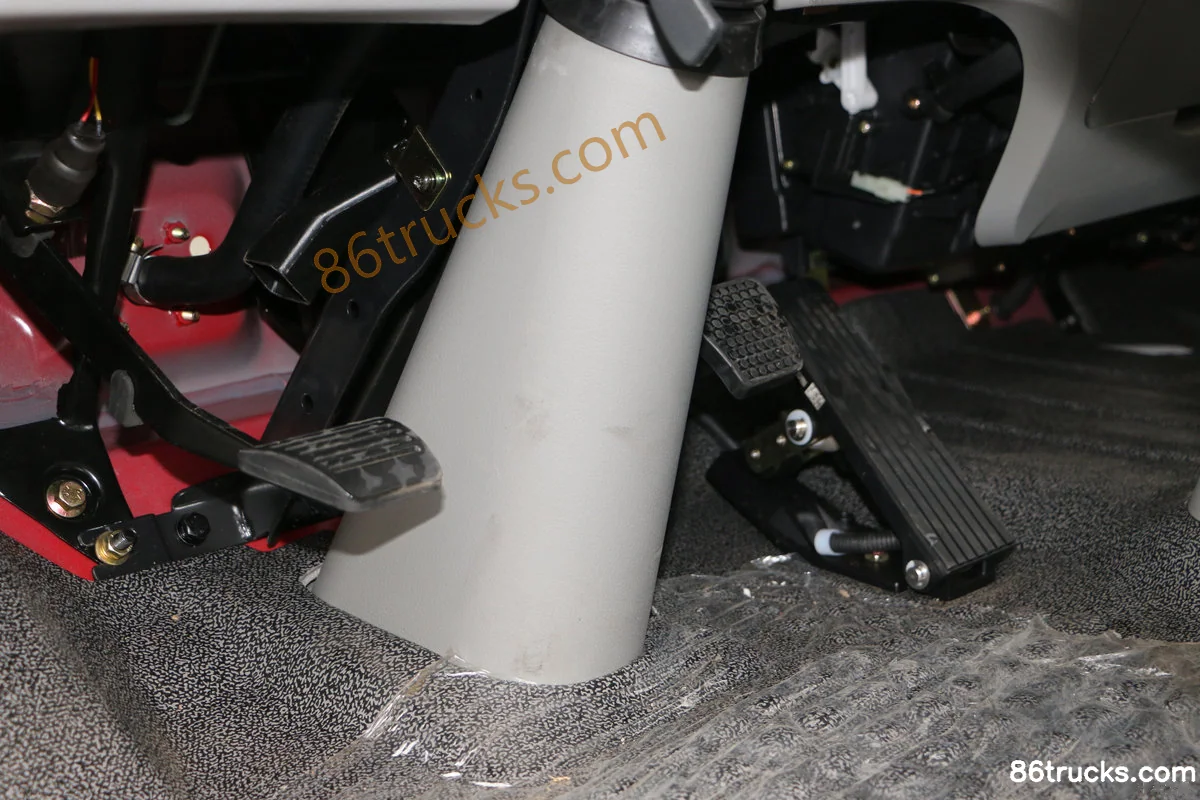

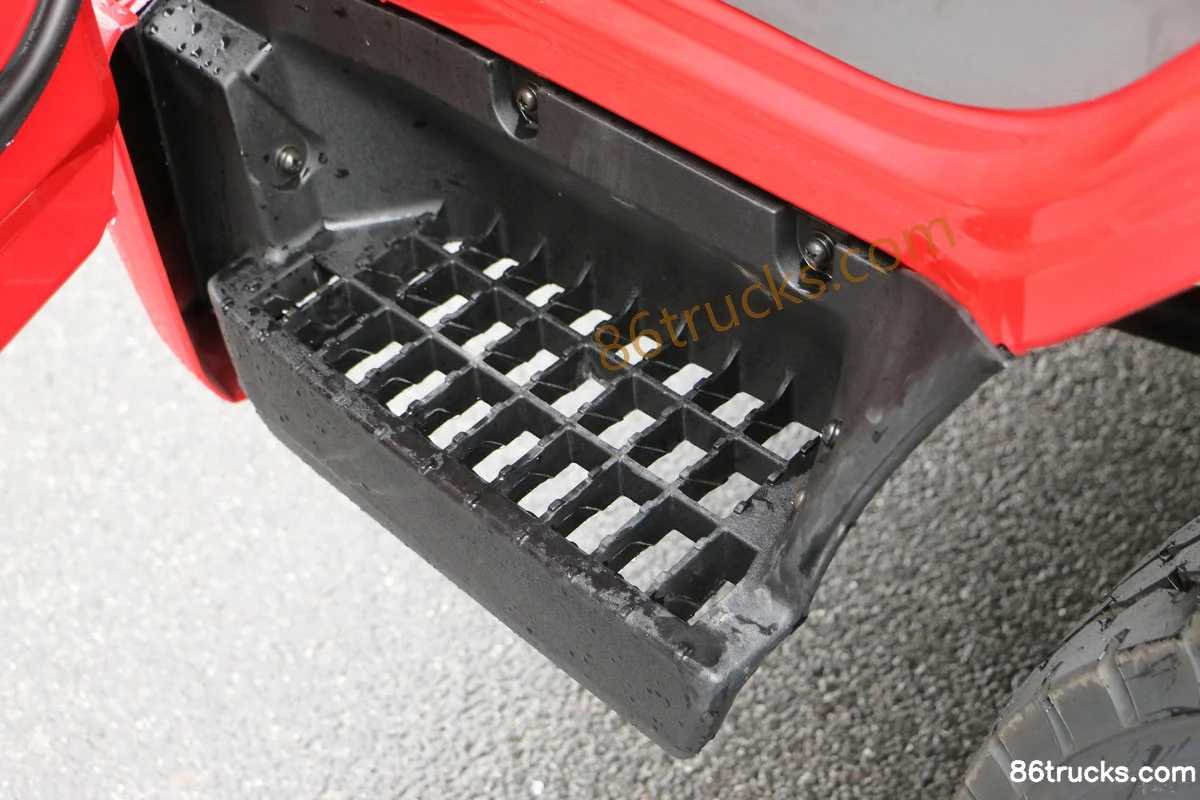

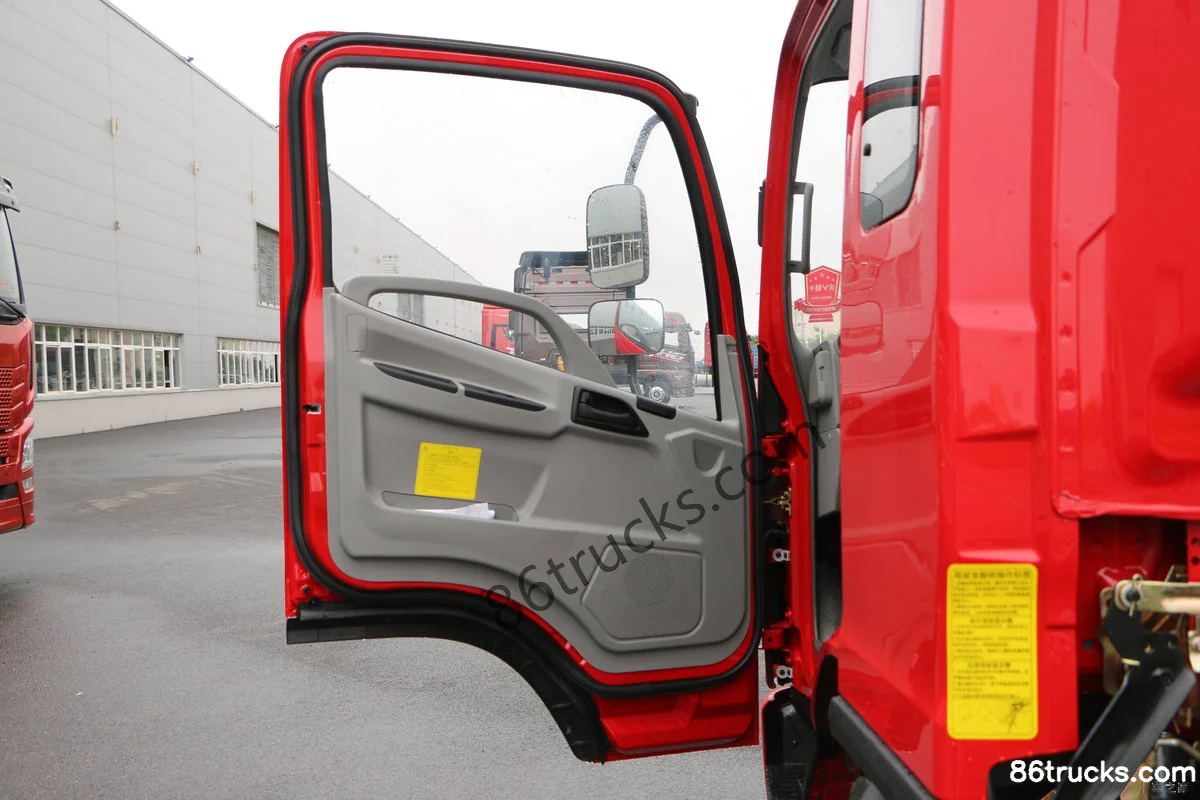

Cab3

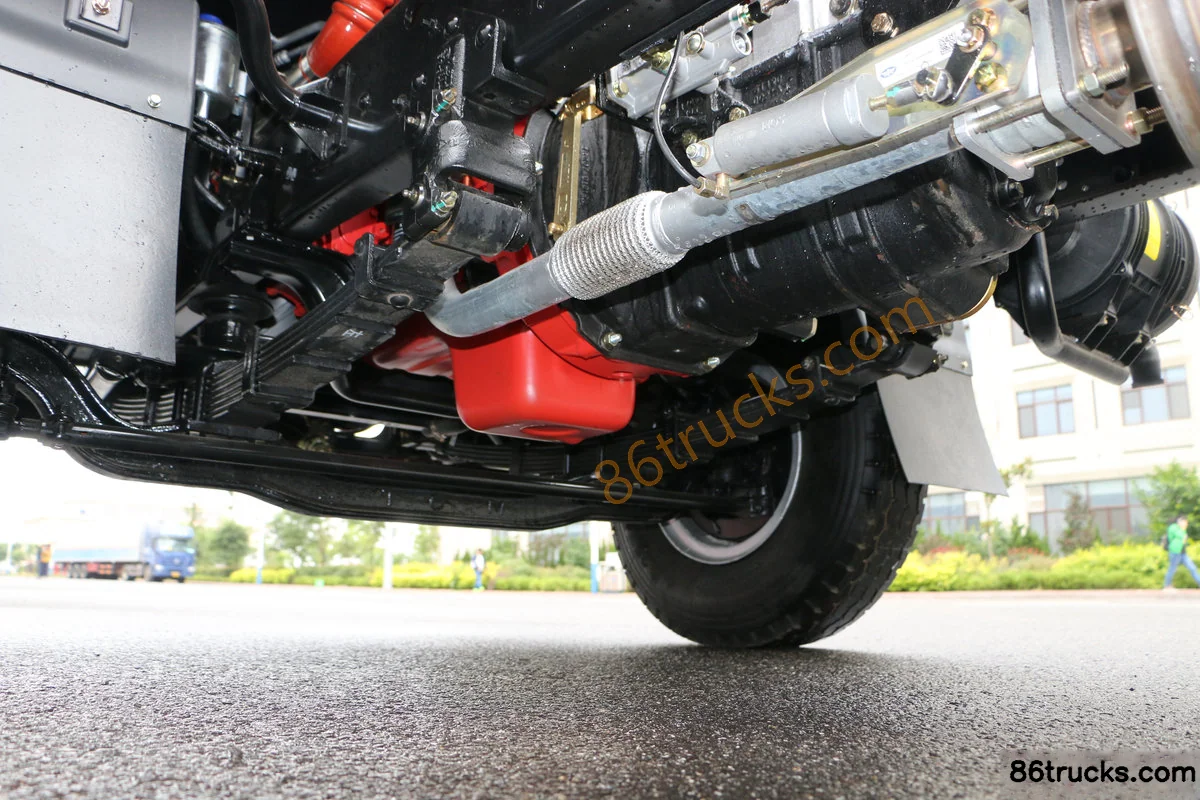

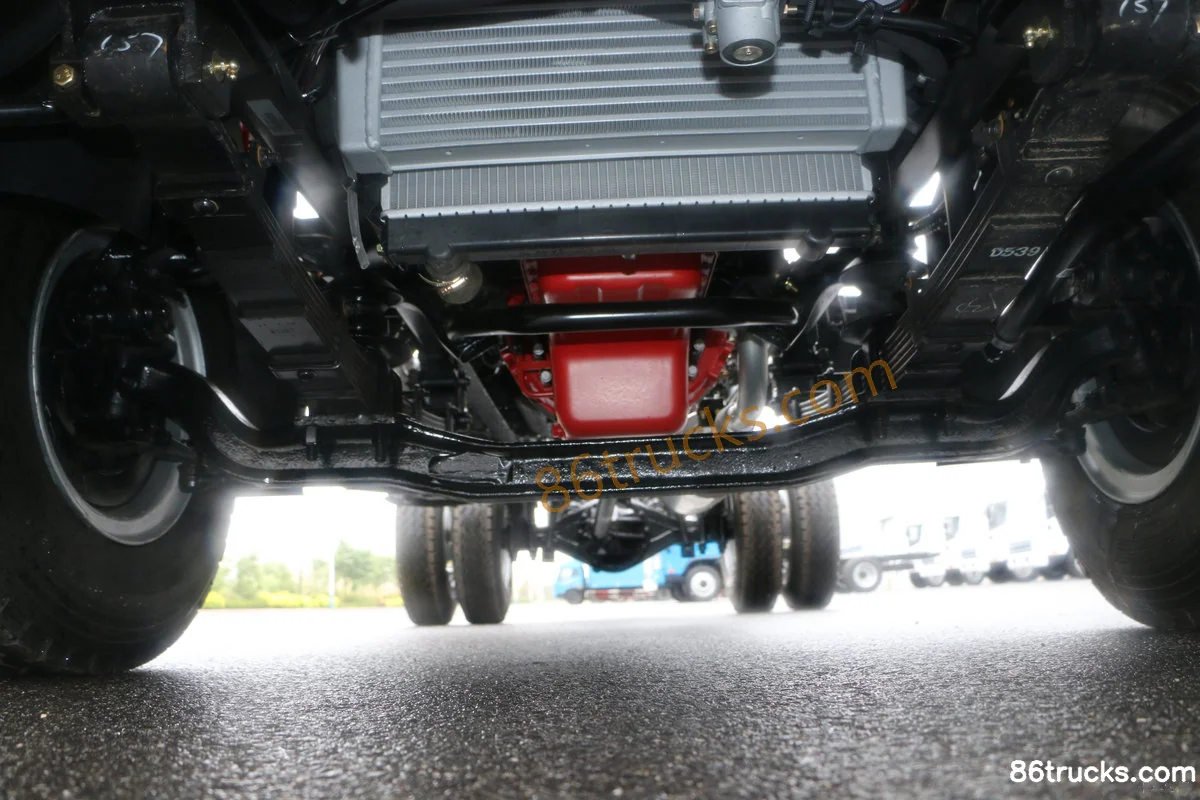

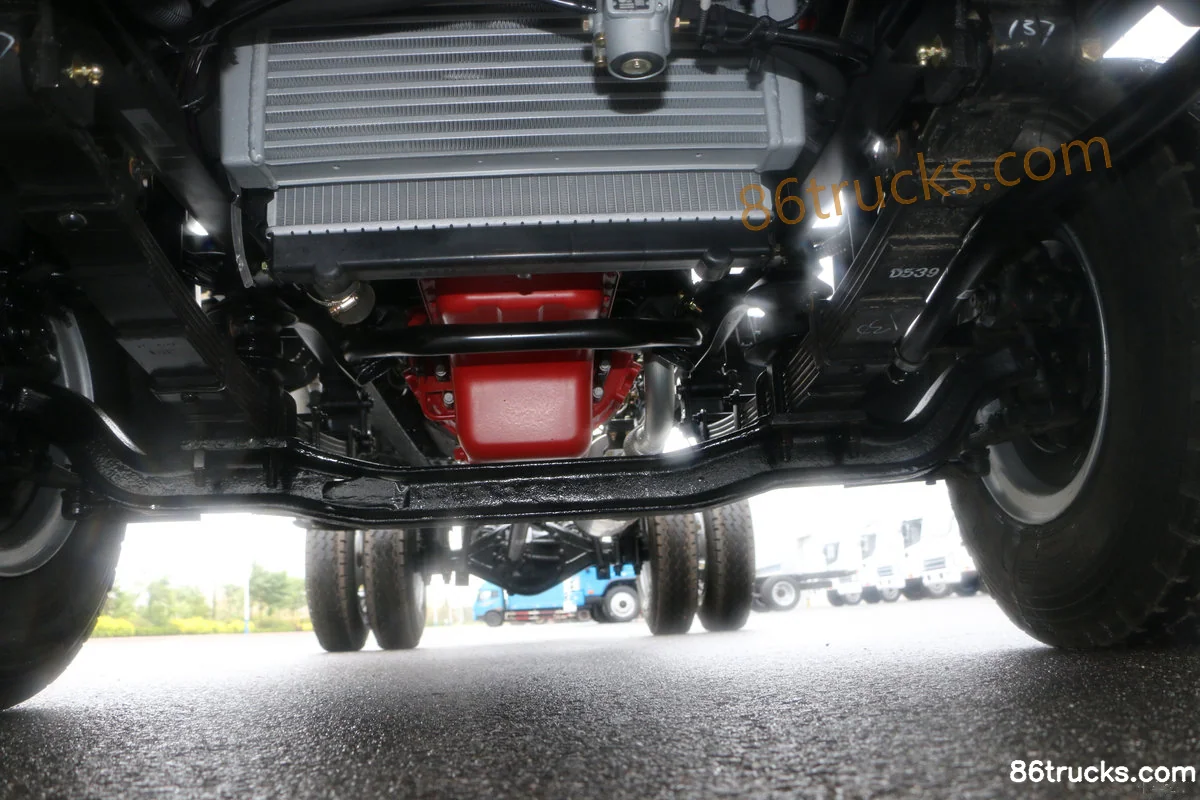

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis?

Key specs of FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis: Drive: 4x2; Horsepower: 124 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai498; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis suited for?

FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis differ from other variants in the same series?

FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 124 hp 4X2(6 wheels) 4.25m semi-row stake truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
