Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels)

Export reference
From $45,000
MSRP ¥32.4M CNY
Rated payload:: 1.13ton
Wheelbase:: 3360mm
Cargo box volume:: 13.12m³
Model code (announced):: ZKH5043CCYBEV1
Type:: stake truck
Box length class:: 4.2m
Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: Shenlan
Motor 1 Brand: Yutong
Curb Weight: 3.17ton

Overview

The Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) is a Light Truck featuring Shenlan battery/range, Yutong motor, 4X2 (6 wheels) drive and 1.13t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZKH5043CCYBEV1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.19m
Cab height: 3.075/2.975/2.875/2.81/2.775/2.47m
Curb Weight: 3.17ton
Rated payload: 1.13ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Zhengzhou, Henan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Yutong
Motor 1 Model: TZ220XSYTB89
Max torque: 355N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 120kW
total peak torque: 355N·m
total rated torque: 170N·m
Electronic Control
ECU Brand: Inovance
Battery/Charging
Charging method: Fast Charge
Battery Brand: Shenlan
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 521.64V
fast charge time:
Battery capacity: 90.236kWh
Energy Density: 157.2
fast charge range: 20-100%
Cargo box parameters
Cargo box volume: 13.12m³
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.1m
Cab parameters
Cab: Wide body
Cab width: 1995mm
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1820kg
rear axle description: Electric Drive Axle
rear axle allowable load: 2675kg
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

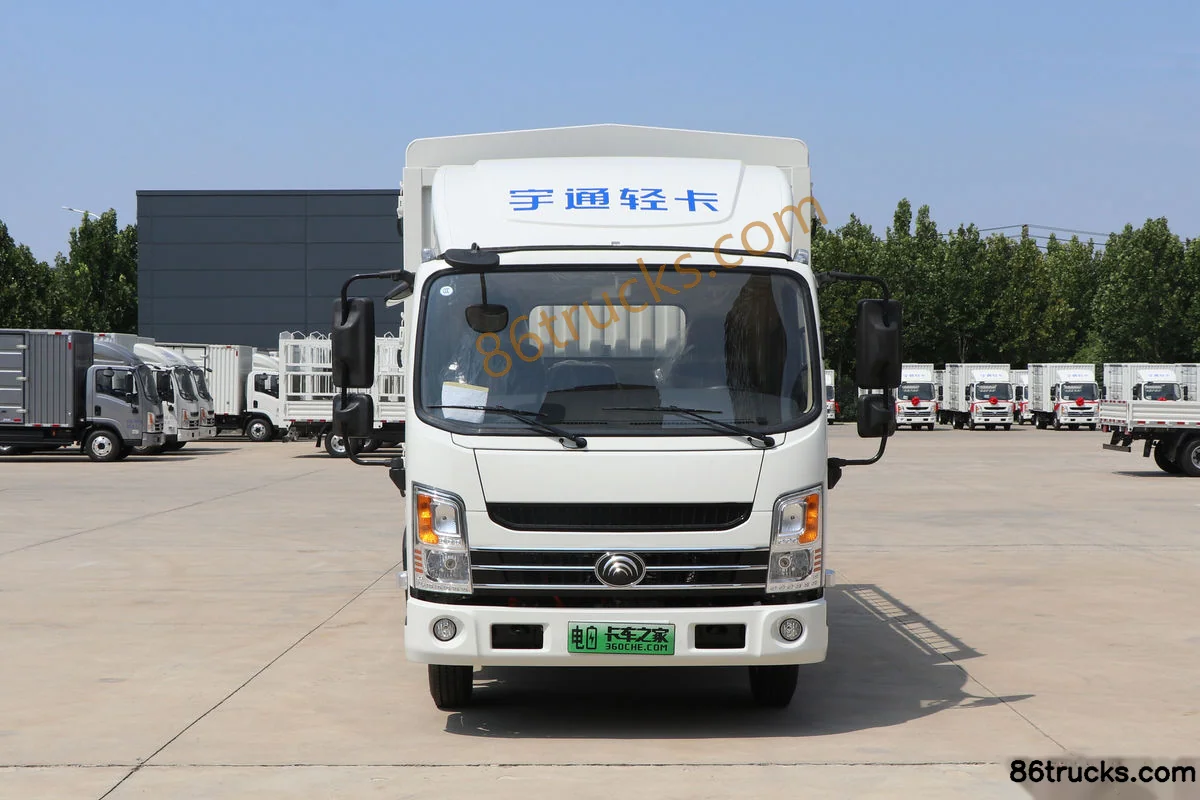

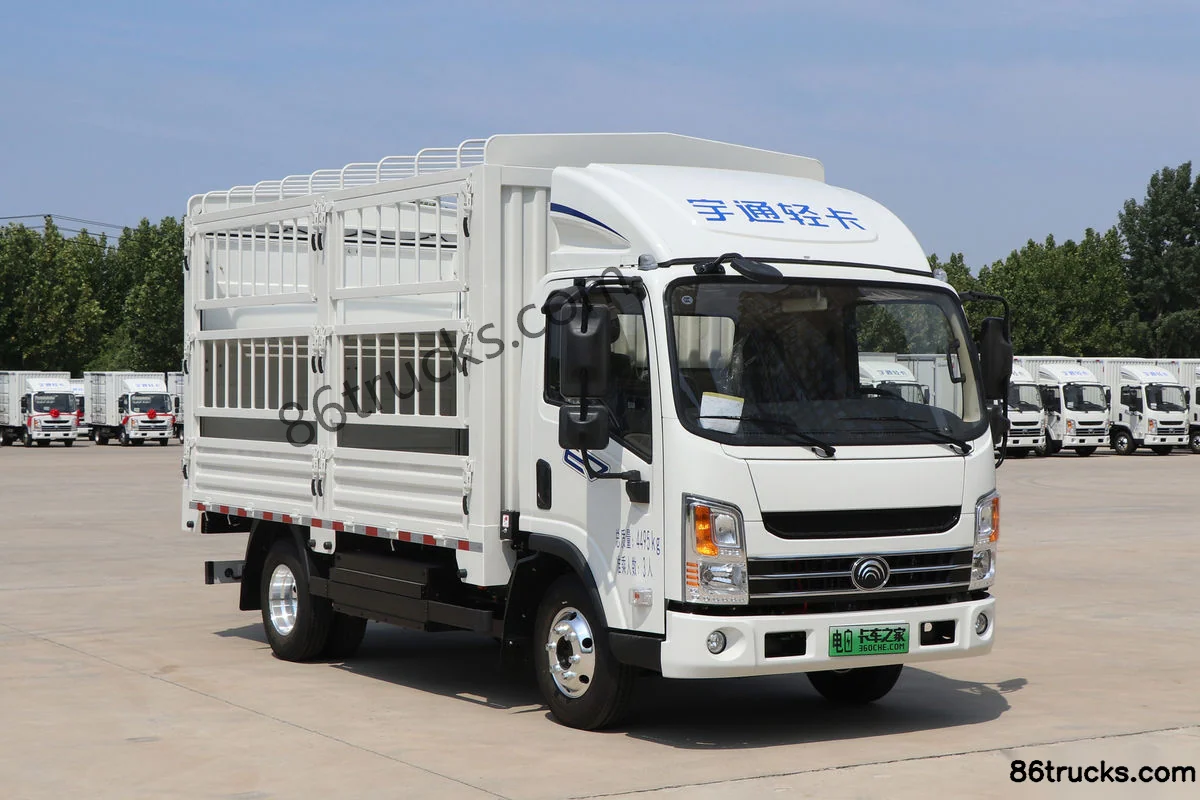

Exterior3

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Exterior (1) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Exterior (2) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Exterior (3) | 86Trucks

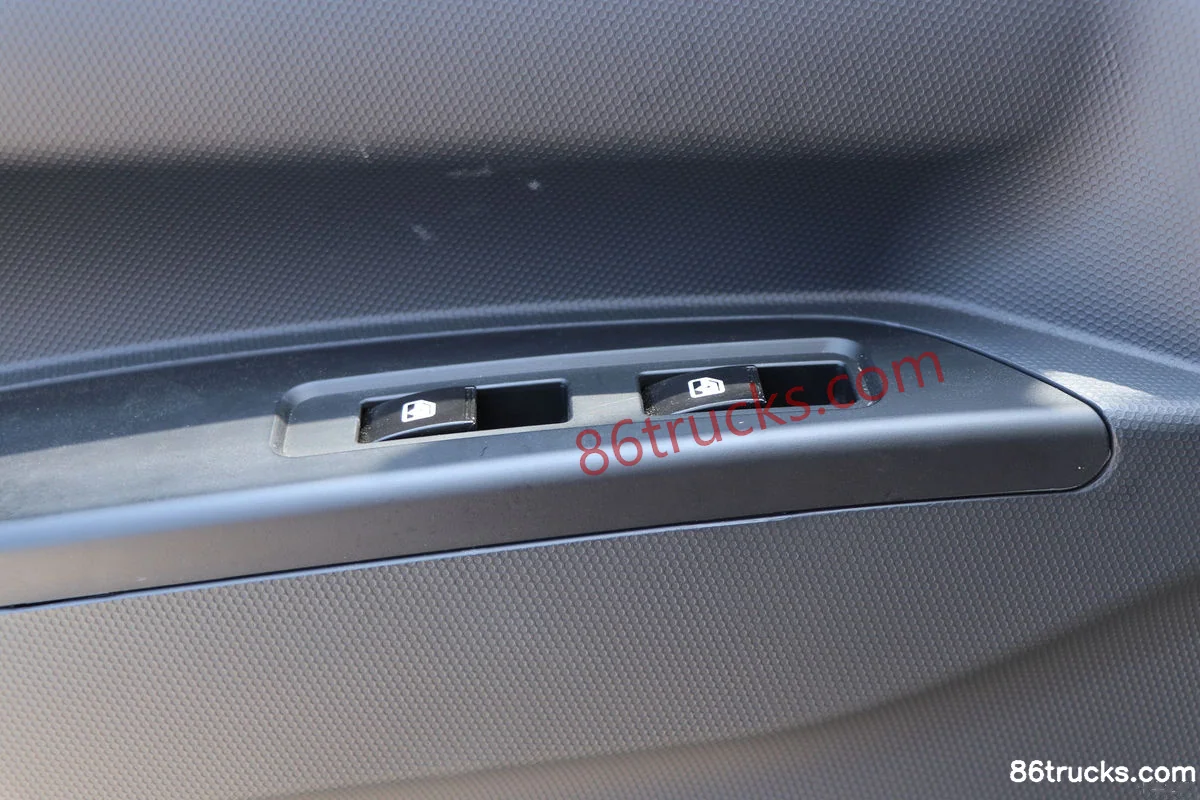

Interior3

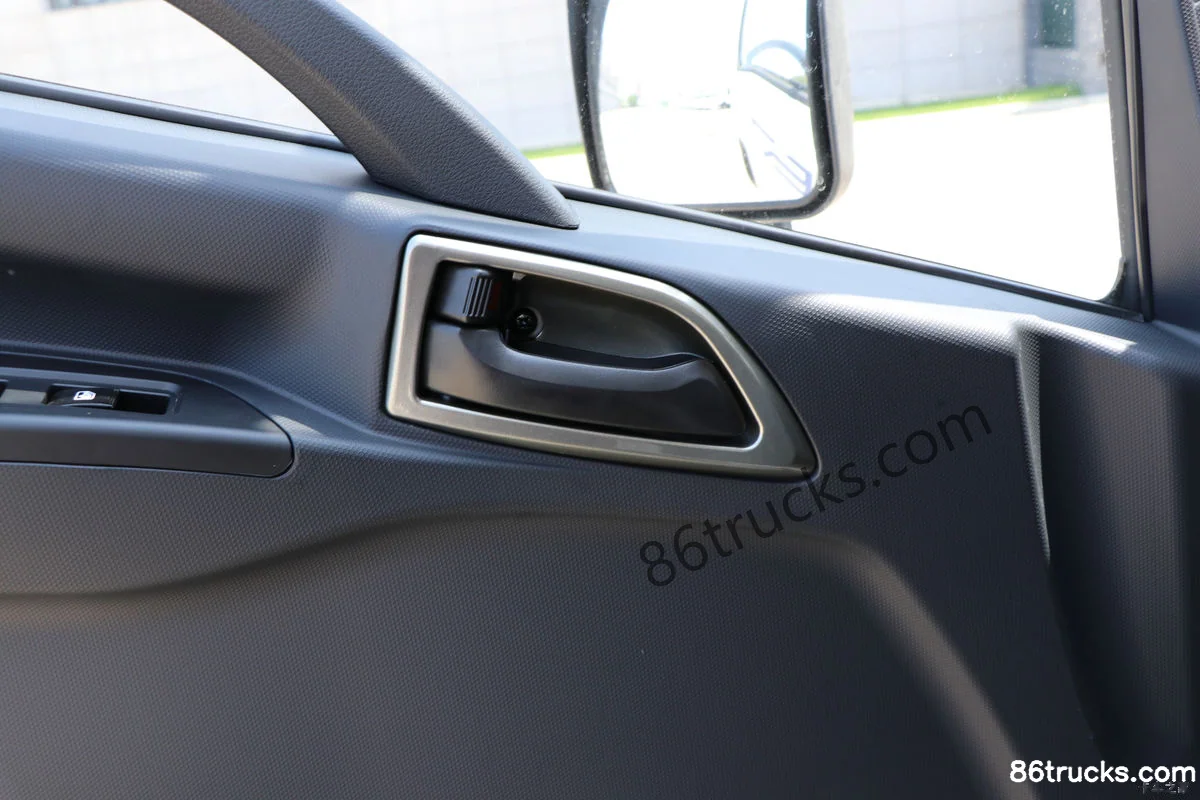

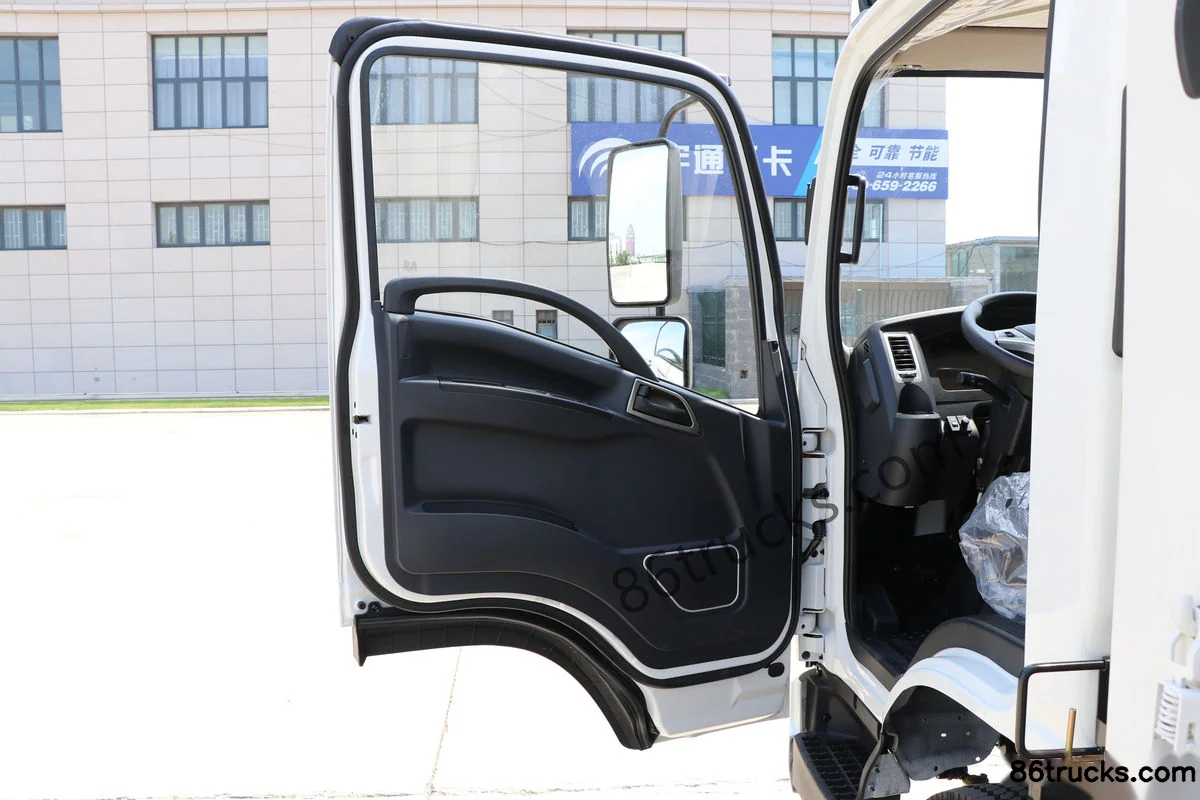

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Interior (1) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Interior (2) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Interior (3) | 86Trucks

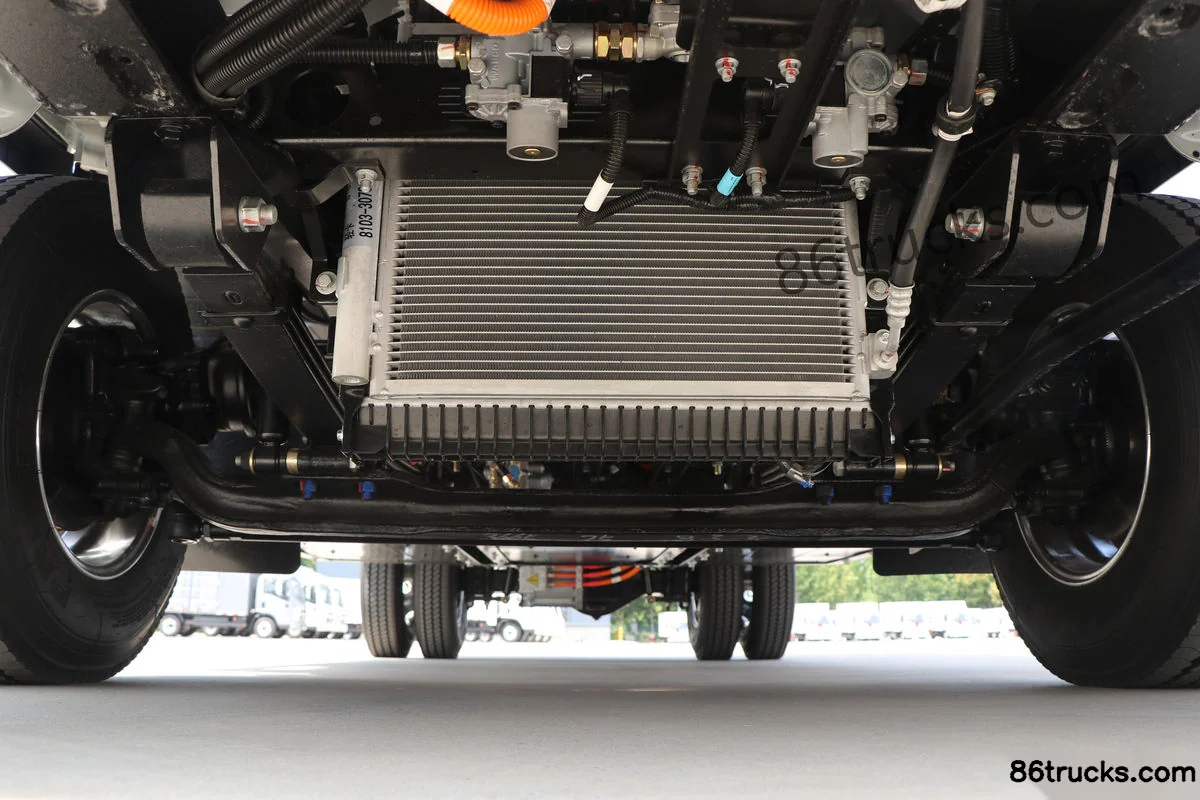

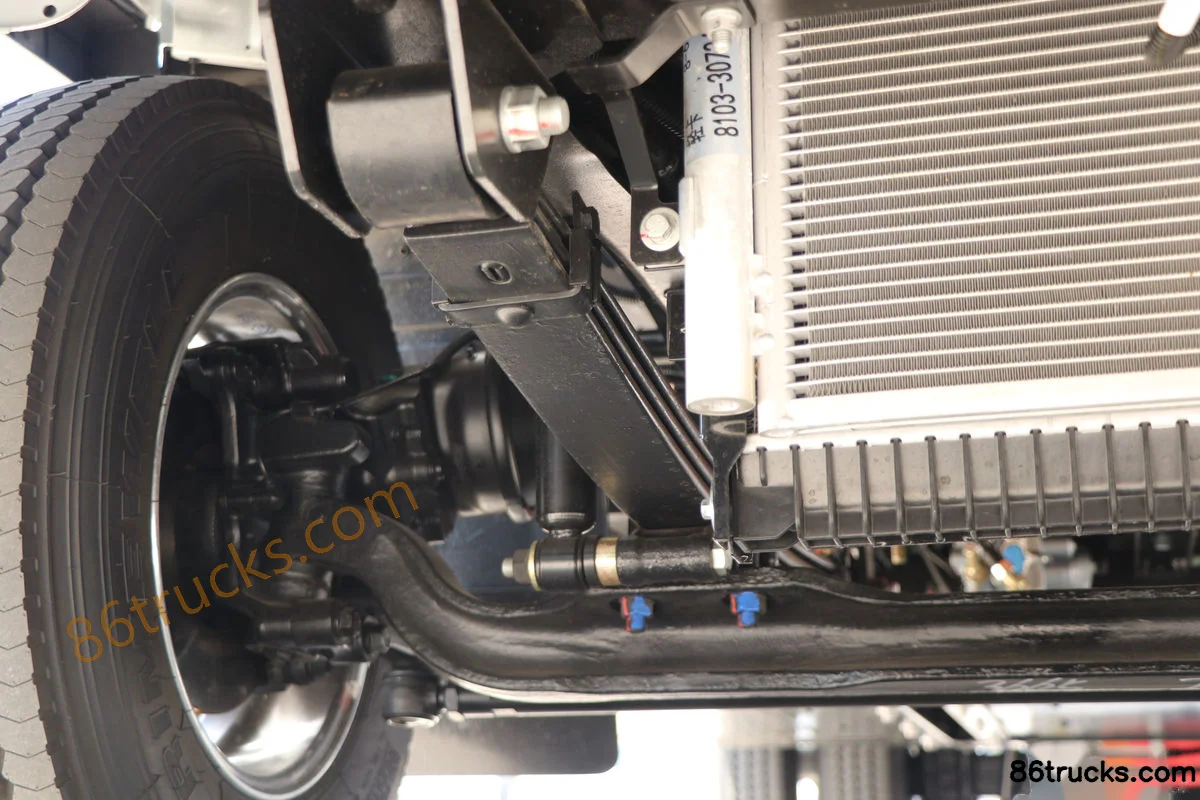

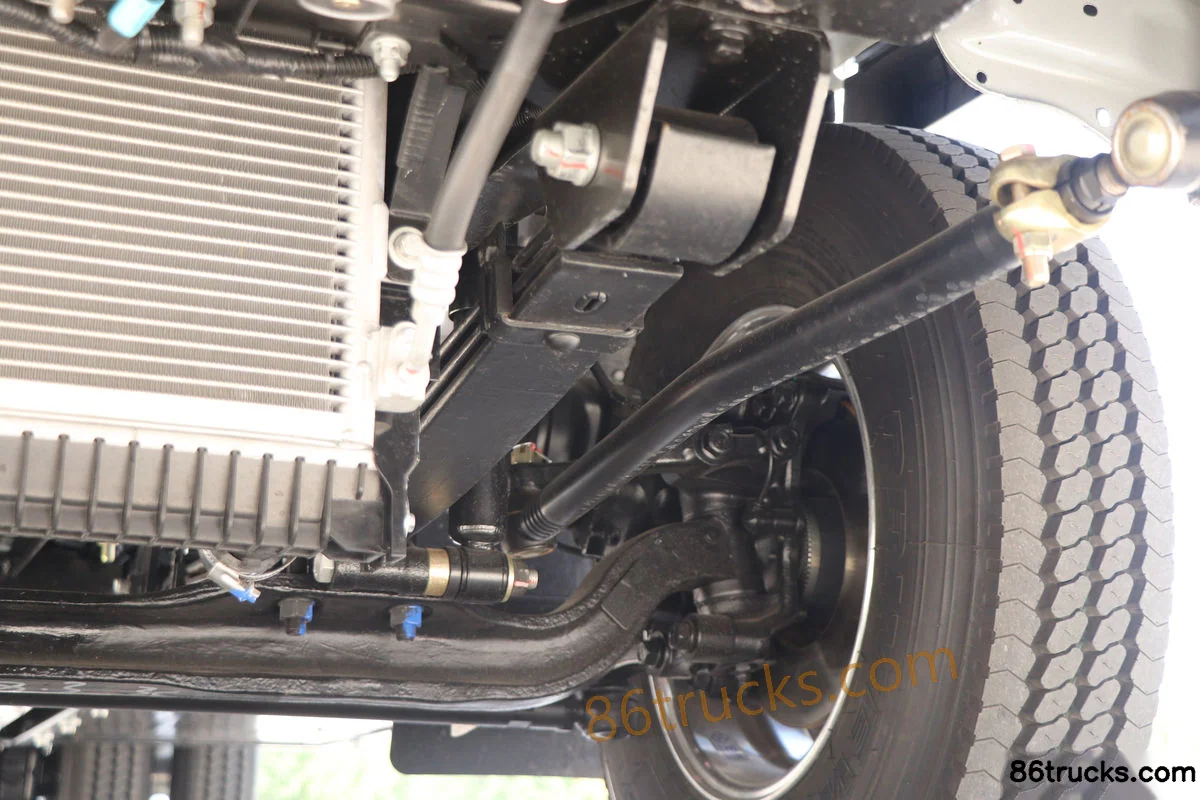

Chassis3

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Chassis (1) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Chassis (2) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) Chassis (3) | 86Trucks

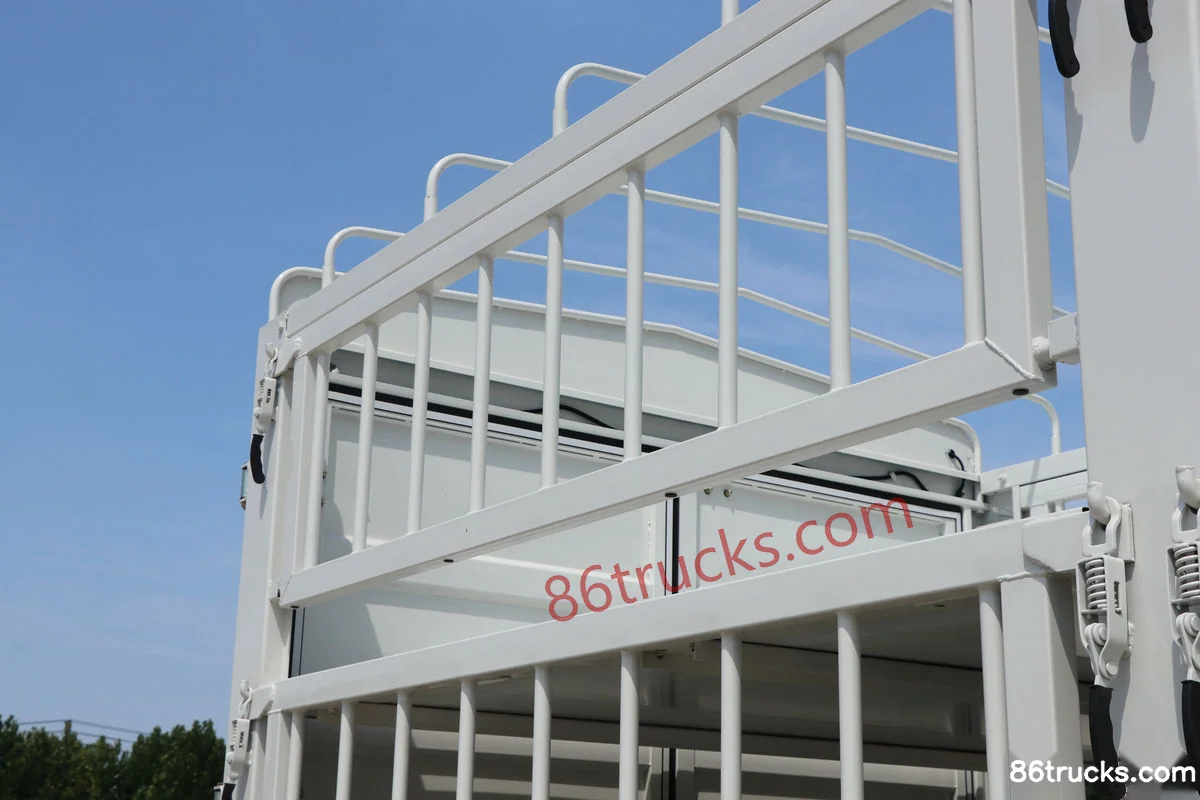

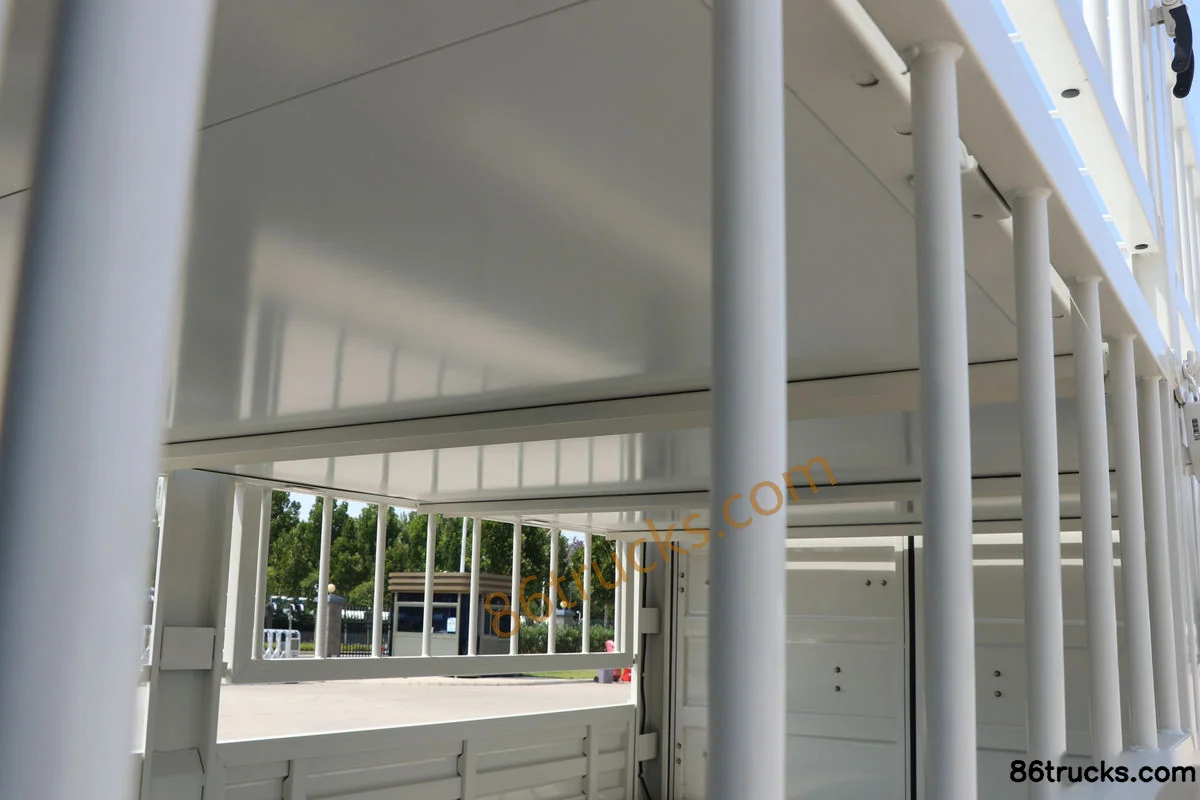

Body3

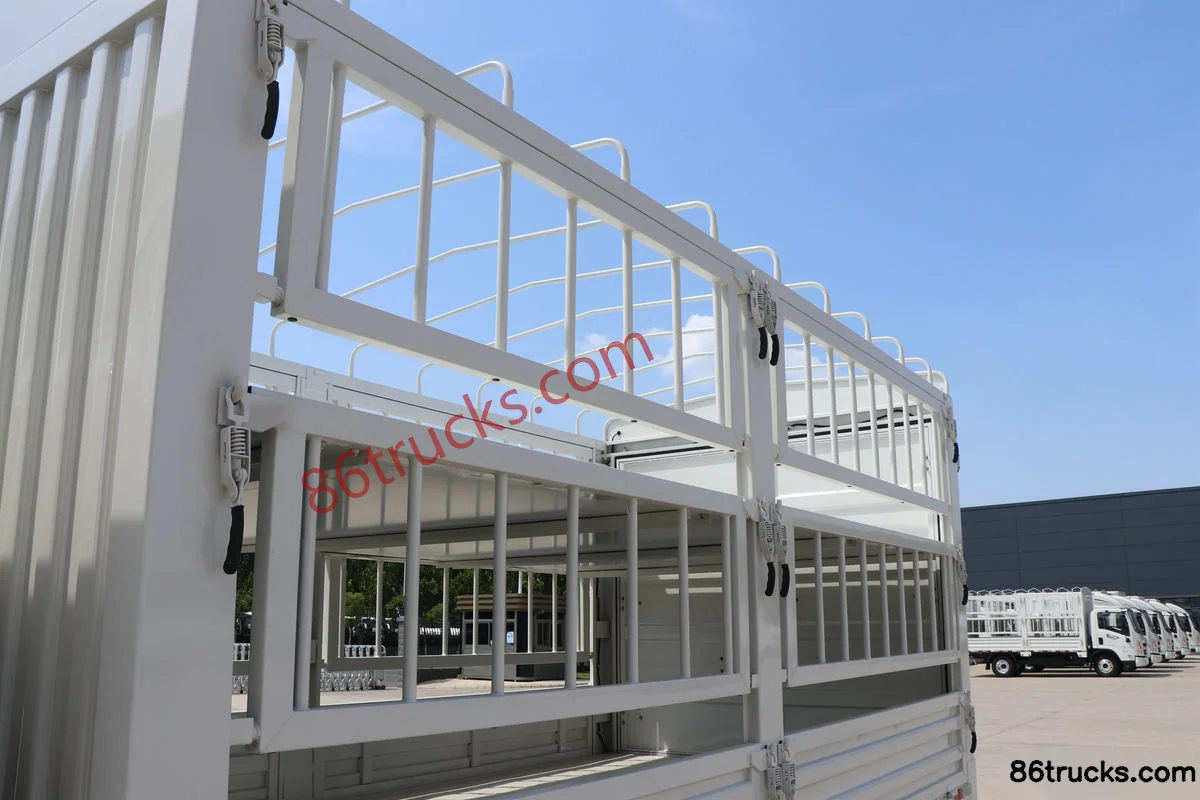

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) (1) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) (2) | 86Trucks Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) (3) | 86Trucks

12 photos

FAQ

What is the export price of Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels), and what does it include?

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) export reference is about From $45,000; MSRP is ¥32.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels)?

Key specs of Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) suited for?

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) differ from other variants in the same series?

Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels) belongs to Yutong Classic (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yutong Wide Body 4.18m Single Row Electric Stake Light Truck 90.236kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
