Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Yuchai6.9L
Transmission: Fast Gear
Curb Weight:: 7.815ton
seating capacity: 3Personnel
Rated payload: 10.055ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 10.055t payload. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.9L engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ1182M3AB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 6.8m
engine: YuchaiYC6JA240-50
transmission: Fast Gear8JS95E-C
Rear Axle Ratio: 3.909
Cab length: 9m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2046mm
rear track: 1860mm
Curb Weight: 7.815ton
Rated payload: 10.055ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 12°
market segment: Daily industrial goods transport
Remarks: Metallic paint, laminated glass, automatic slack adjuster, optional ratio 4.364
Front/rear suspension: 1.34/2.56m
Version: High-spec version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA240-50
Engine info: Yuchai6.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS95E-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.47m
Cargo box height: 0.6m
*Cargo box interior width: 2.4700000286102
Cab parameters
Cab: H53S
Cab suspension: Front mechanical, rear air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 450L
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 6500kg
Frame Dimensions: 264(6)mm
rear axle description: 9T
rear axle allowable load: 11500kg
Axle ratio: 3.909
Leaf spring count: 11/12+9
Aluminum wheels:
Tire
Tire Size: 275/80R22.5
Tire Type: Front aluminum rim
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Radio:
smart configuration
Cruise control (CCS):

Photos

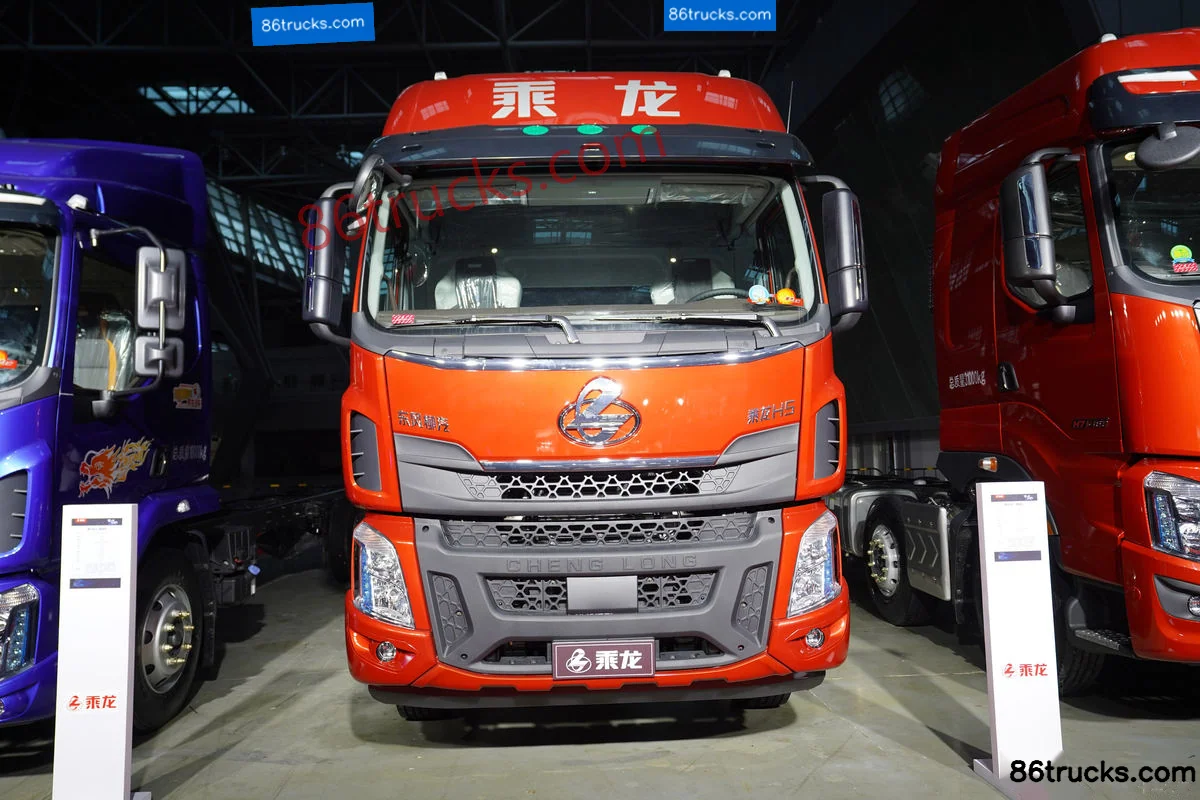

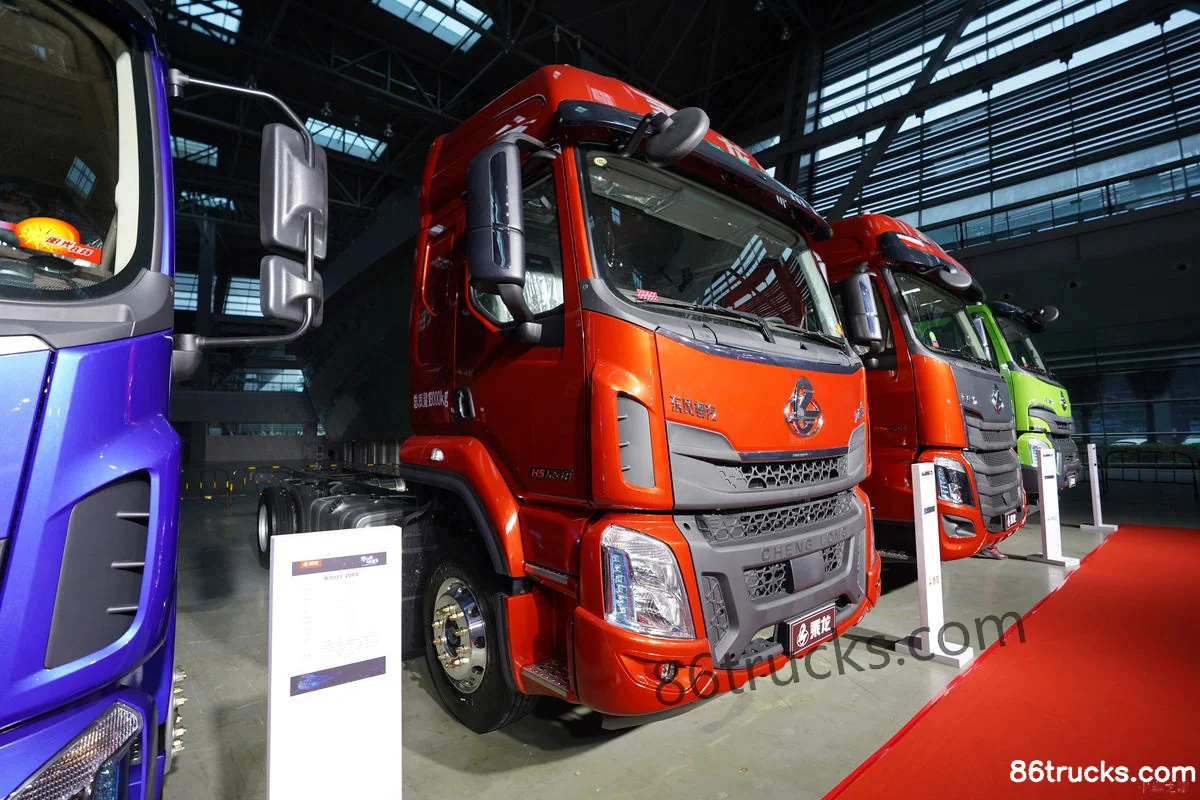

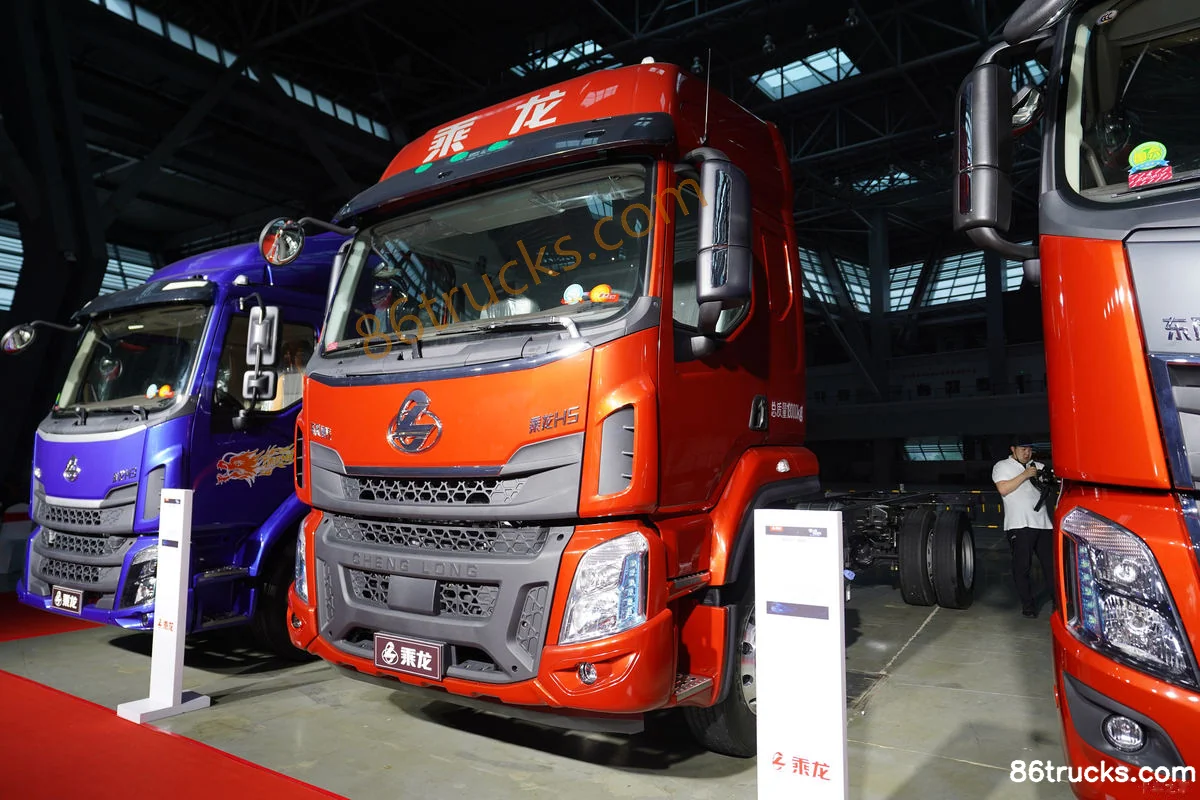

Exterior3

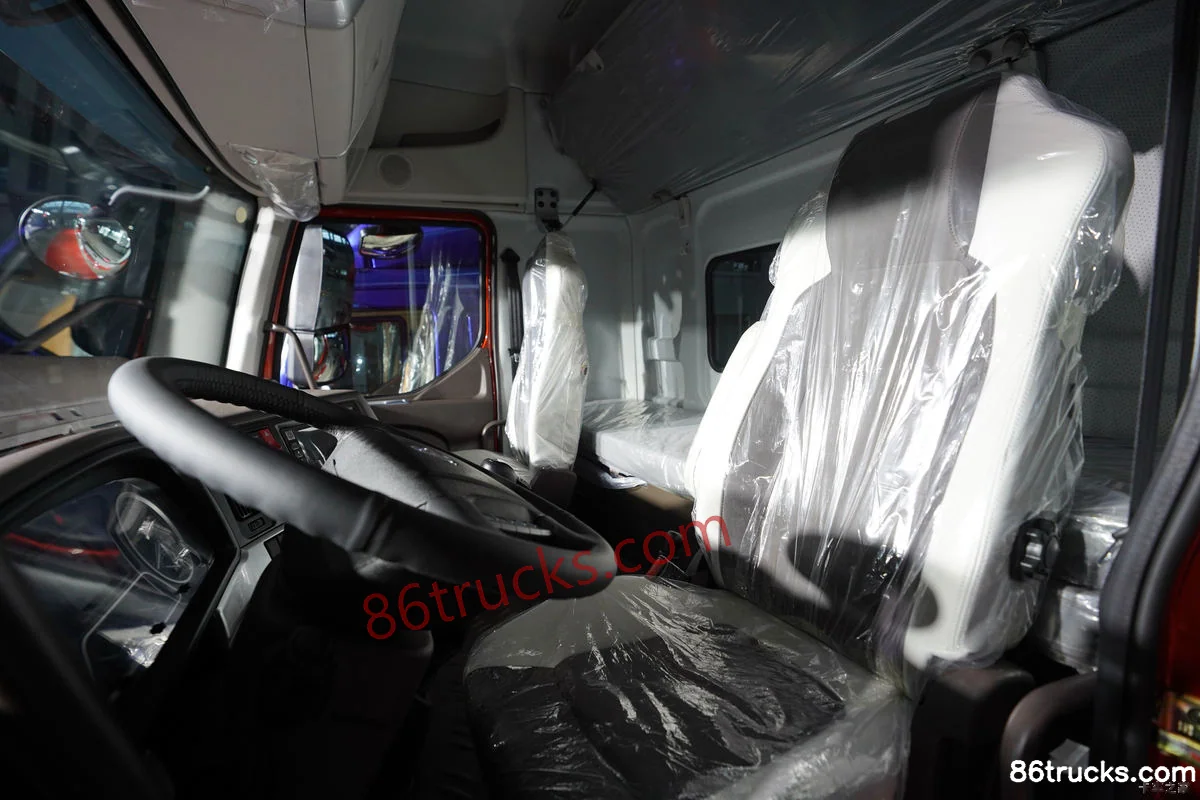

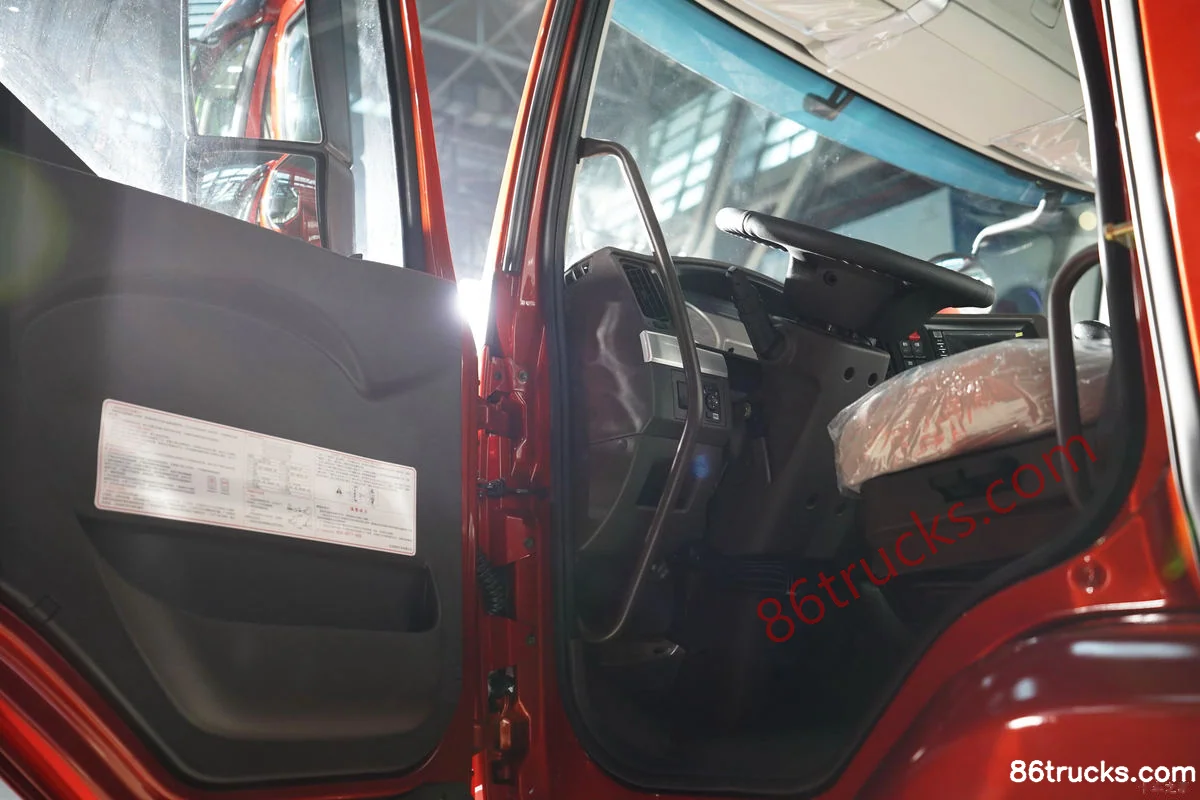

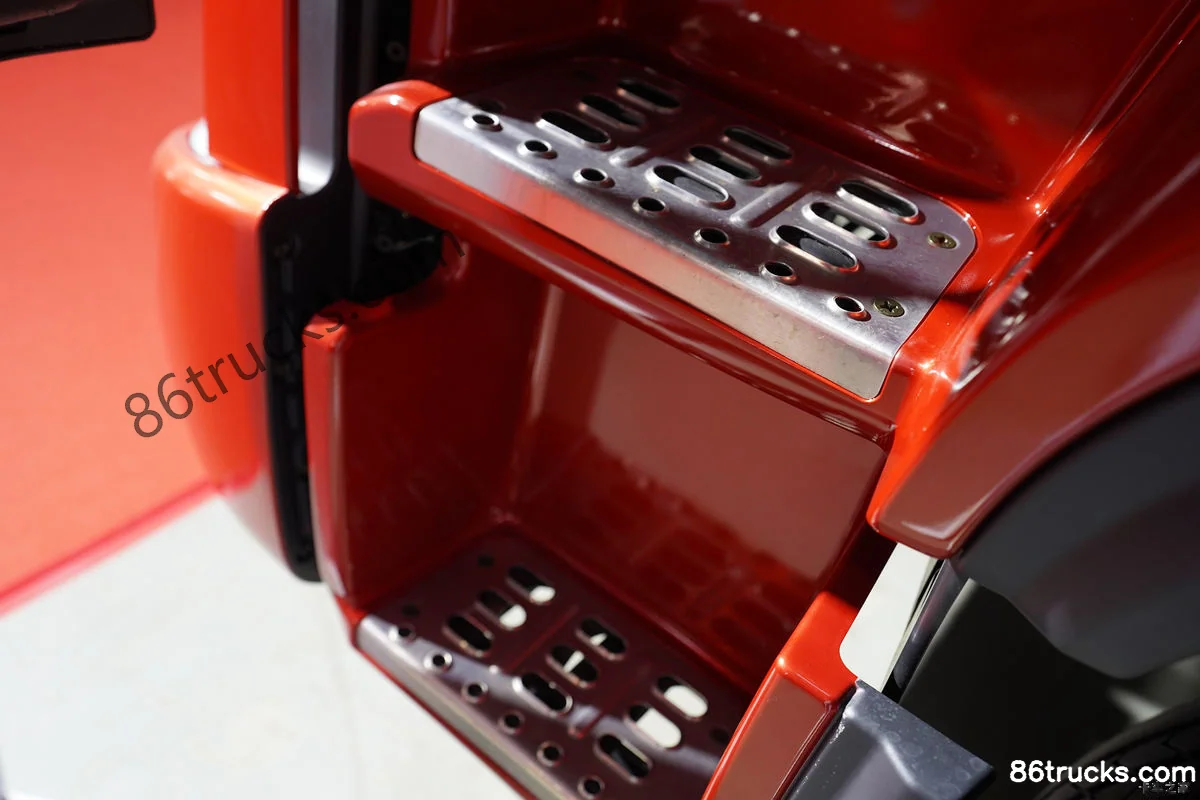

Cab3

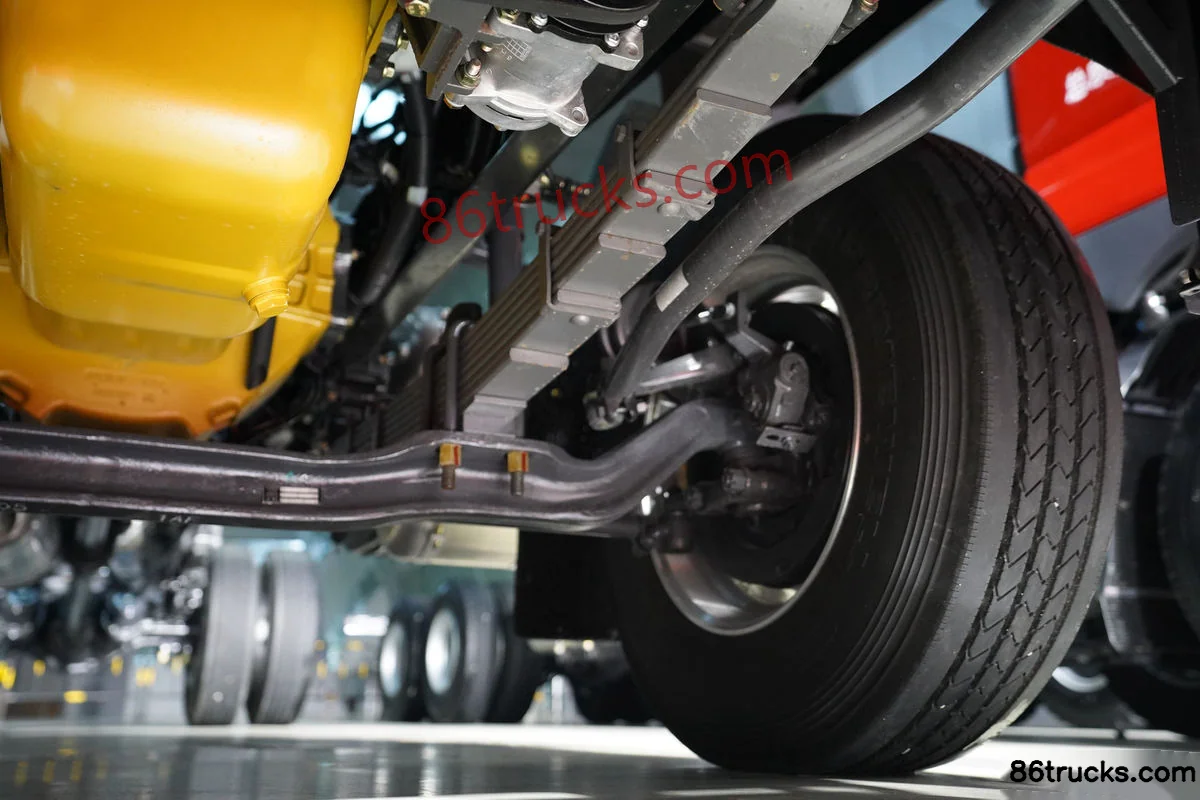

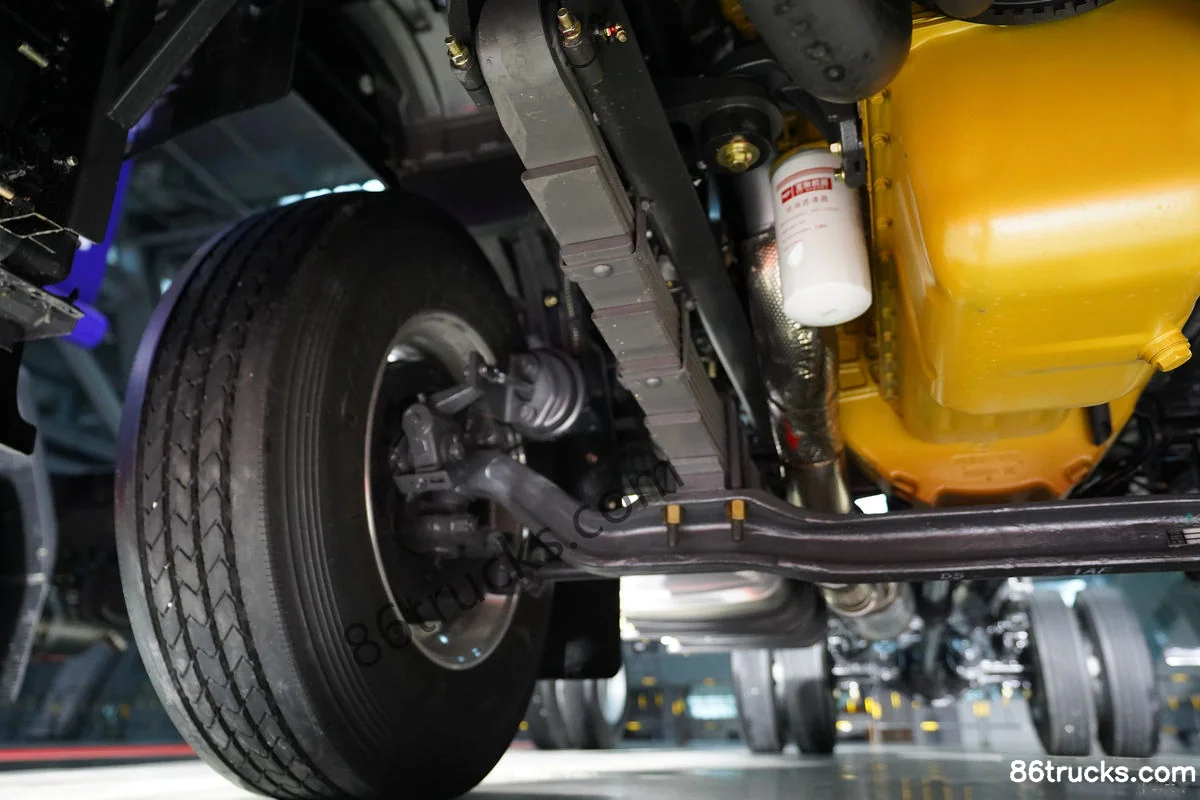

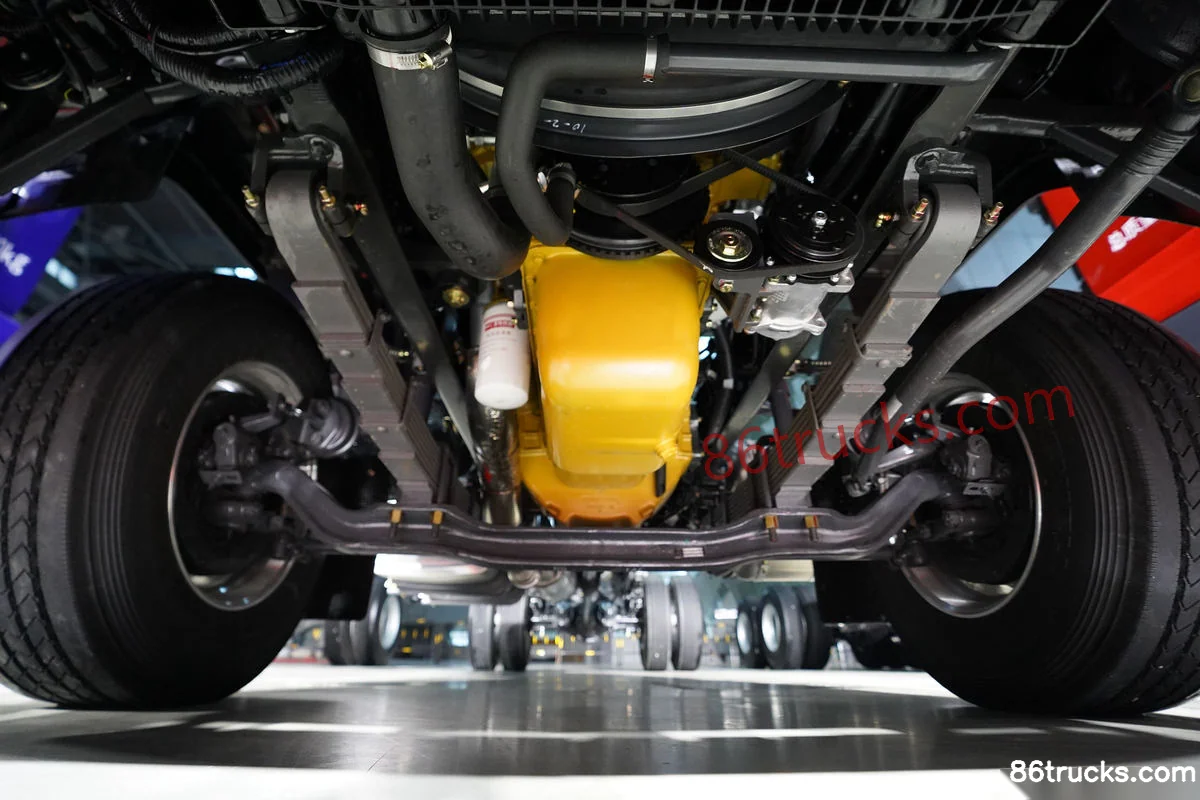

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Key specs of Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck suited for?

Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck belongs to Dongfeng H5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 Medium Truck High-End Edition 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
