Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis

Export reference
From $17,889
MSRP ¥12.88M CNY
Horsepower: 168
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 5.7ton
seating capacity: 3Personnel
Rated payload: 9.9ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis is a Medium-duty truck featuring 6.25m cargo length, Chassis cargo body, 3Personnel volume and 9.9t payload. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1167G471CD1
Type: Chassis
Drive type: 4X2
Wheelbase: 4700mm
engine: FotonISF3.8S4R168
transmission: WLYWLY6T53
Rear Axle Ratio: 4.33
Cab length: 8.445m
Cab width: 2.498m
Cab height: 2.65m
Front track width: 1801mm
rear track: 1796mm
Curb Weight: 5.7ton
Rated payload: 9.9ton
GVWR: 15.795ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 20°
Front/rear suspension: 1.24/2.505m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 600N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: WLYWLY6T53
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 6.25m
Cargo box width: 2.3m
Cargo box height: 0.55m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: 2080 Semi-High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 5850kg
rear axle description: 1080 reinforced type
rear axle allowable load: 9945kg
Axle ratio: 4.33
Leaf spring count: 11/9+7
Tire
Tire Size: 8.25R20/9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

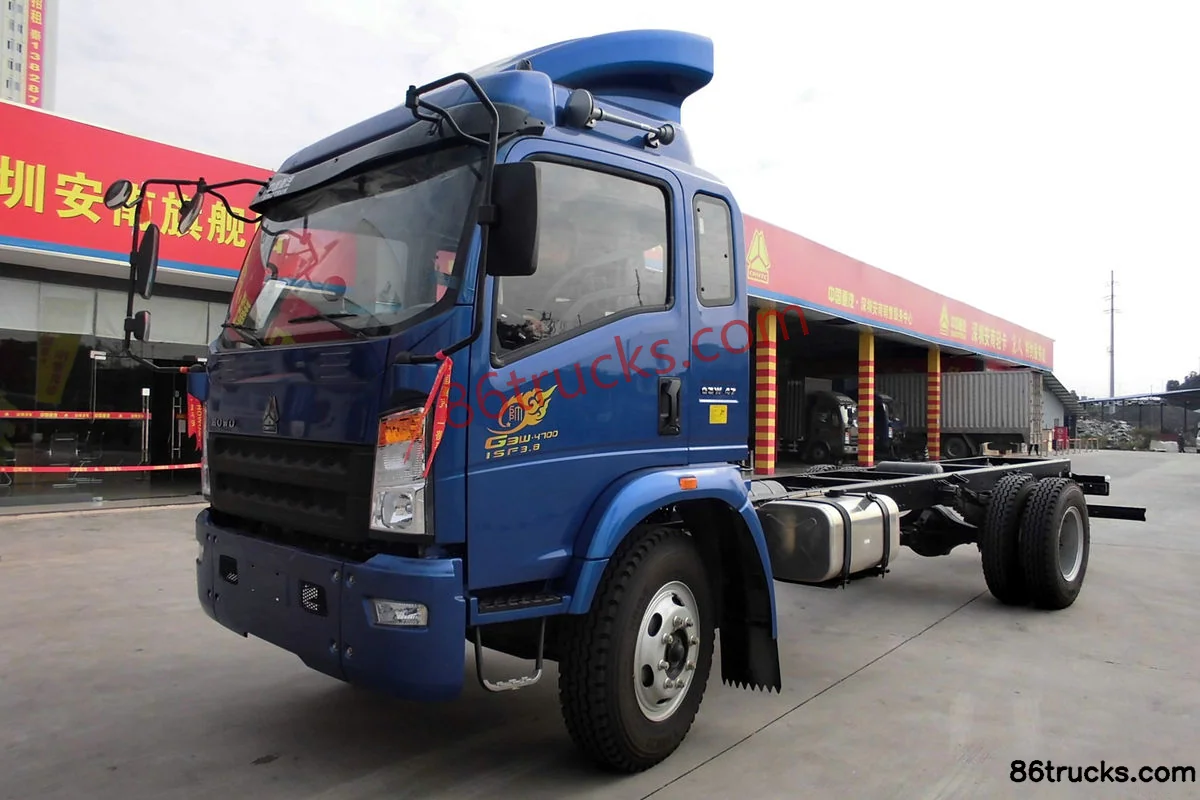

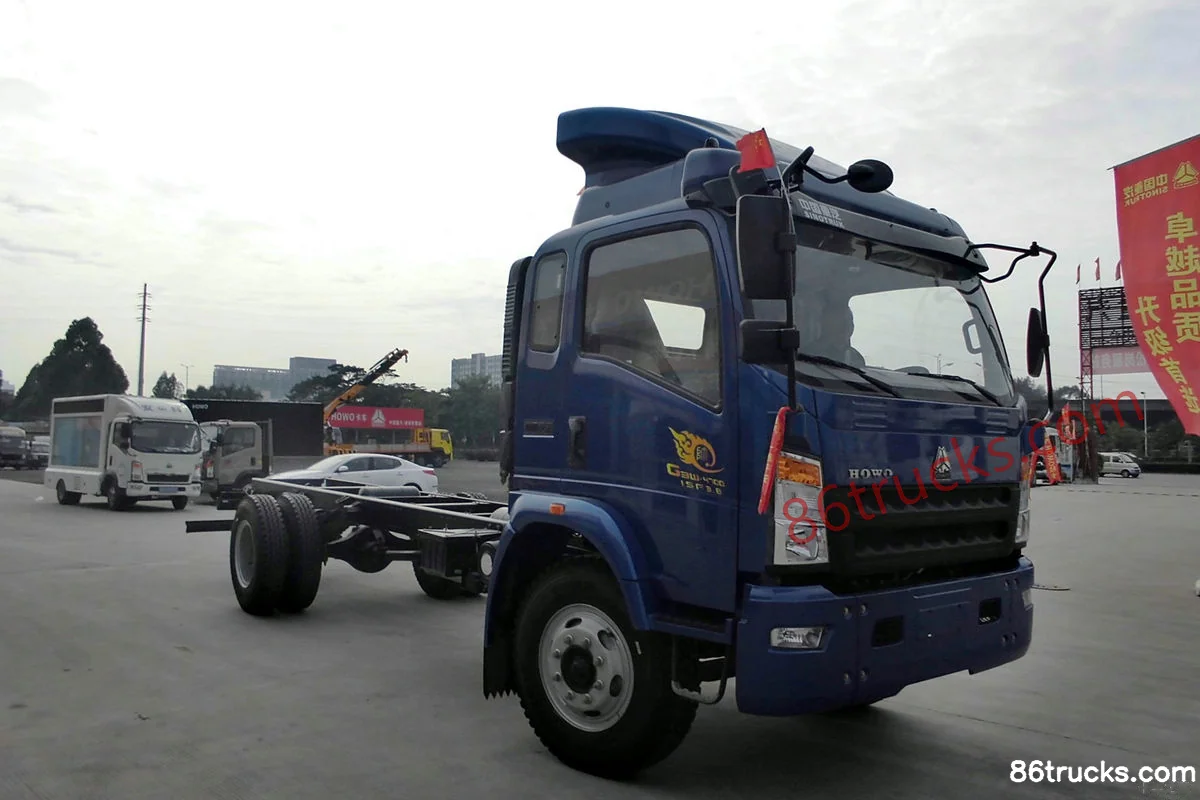

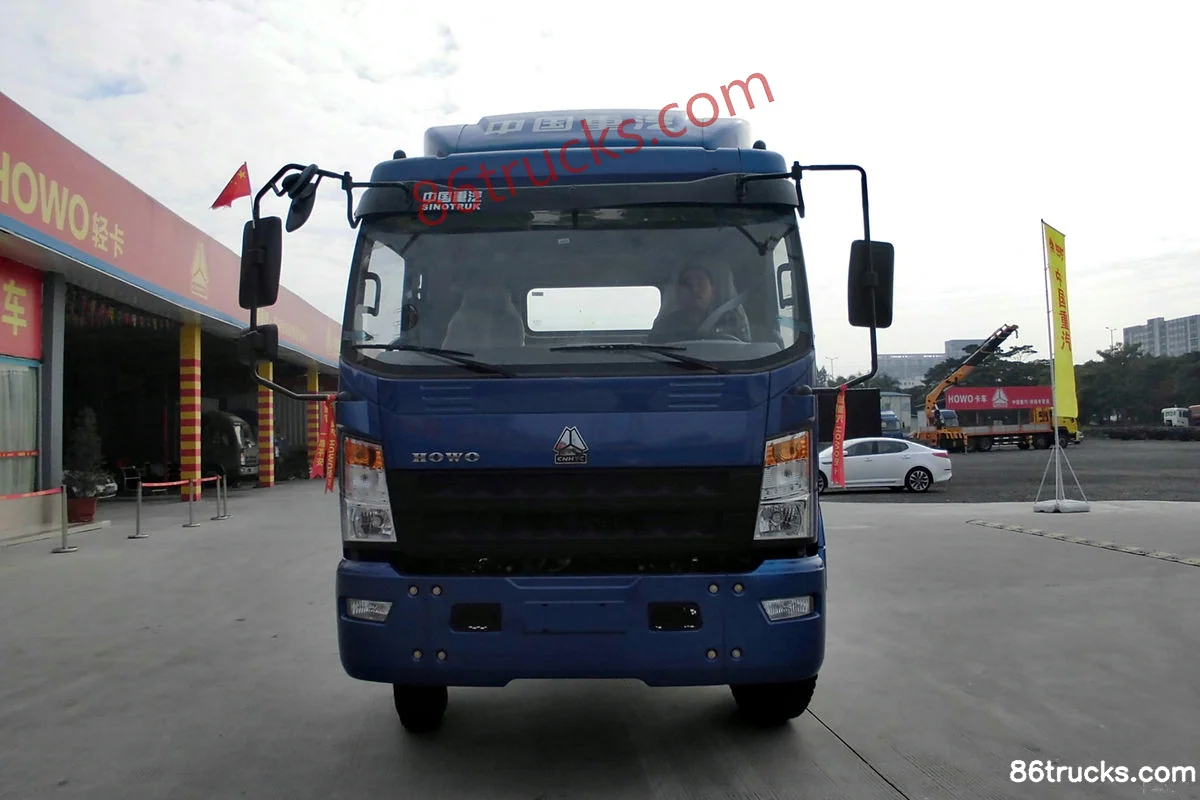

Exterior3

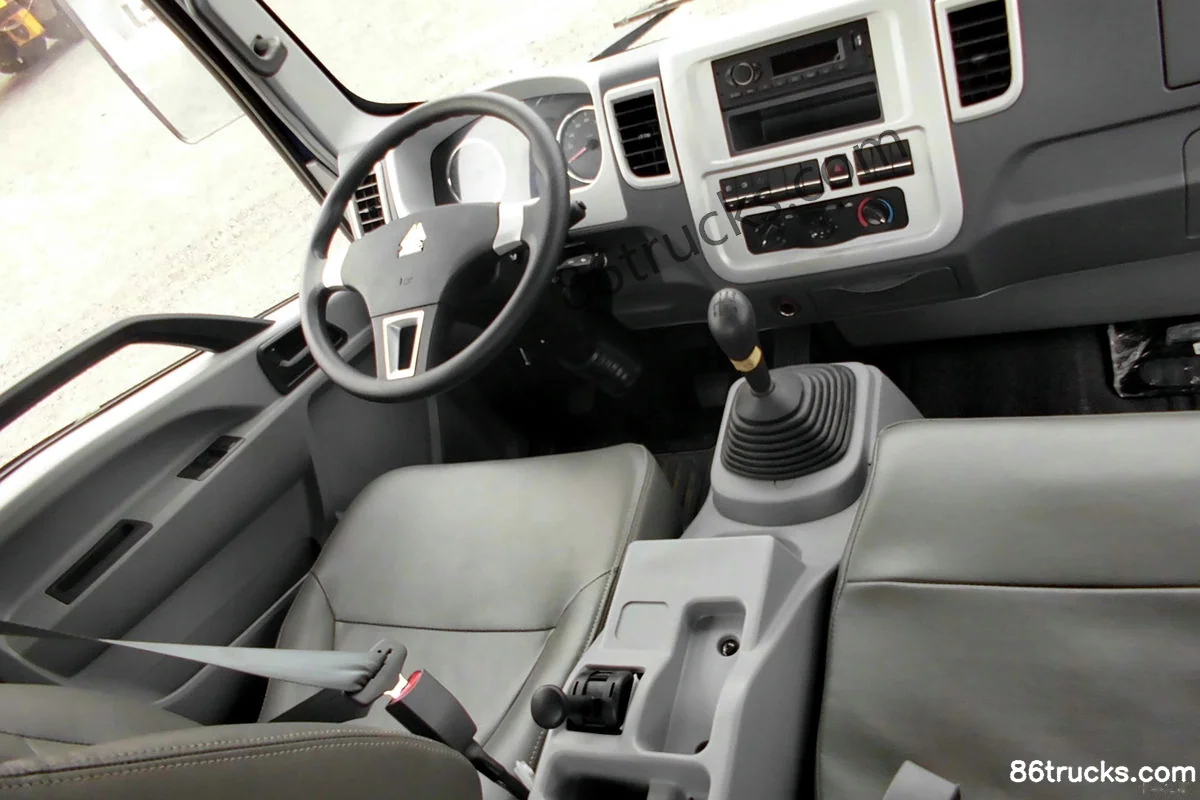

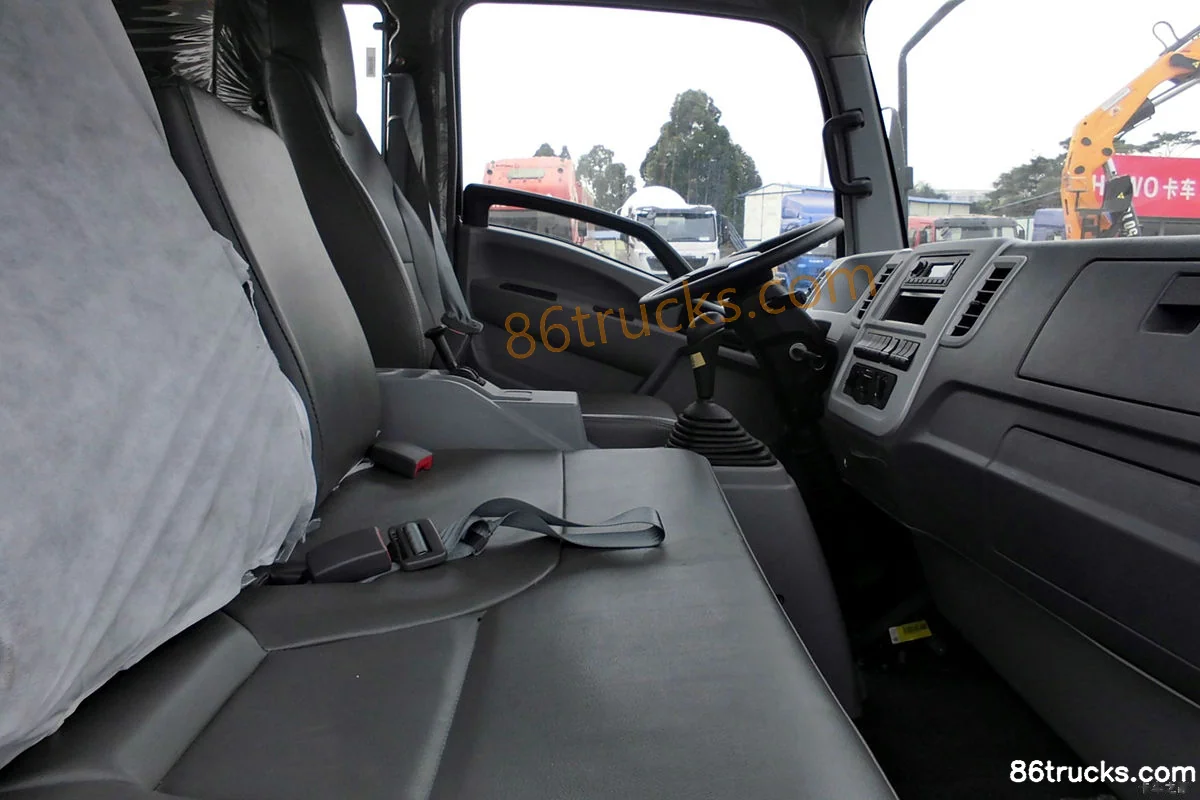

Cab2

5 photos

FAQ

What is the export price of Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis, and what does it include?

Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis export reference is about From $17,889; MSRP is ¥12.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis?

Key specs of Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis: Drive: 4x2; Horsepower: 168 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis suited for?

Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis differ from other variants in the same series?

Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis belongs to Sinotruk Tongshuai Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Tongshuai Medium Truck 168hp 4X2(6 wheels) 4700mm Wheelbase Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
