Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 4750mm
Cab dimensions:: 8.61×2.51×3.295m
Type:: Explosives Transport Truck
Front/rear track width:: Front: 1721,1778mm; Rear: 1740
GVWR:: 15.795ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 9.4ton
Emission China V

Overview

The Shandong Zhengtai Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand) is a Explosives Transport Truck featuring 15.795t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China V emissions and Diesel fuel.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.61×2.51×3.295m
Type: Explosives Transport Truck
Drive type: 4X2
Wheelbase: 4750mm
Front/rear track width: Front: 1721,1778mm; Rear: 1740
Rated mass: 9.4ton
GVWR: 15.795ton
Max. speed: 79km/h
Front/rear suspension: 1.21/2.65m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Transport medium: Individually packaged black powder, compressed black powder, electric detonators, blasting explosives, fuse igniters, nitroamine explosives, fireworks
Vehicle certification code: ZZT5160XQY-5
Body Brand: Xier brand
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC4H180Q5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 660N·m
Max torque speed: 1900rpm
Rated speed: 2300rpm
Cargo box parameters
Cargo box dimensions: 6.3×2.365×1.95m
Chassis Specs
Chassis Brand: Yuejin
Chassis Series: Chaoyue C500
Chassis Model: SH1162ZNDDWZ
Leaf spring count: 9/9+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6G120
Tire
Tire Size: 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs

Photos

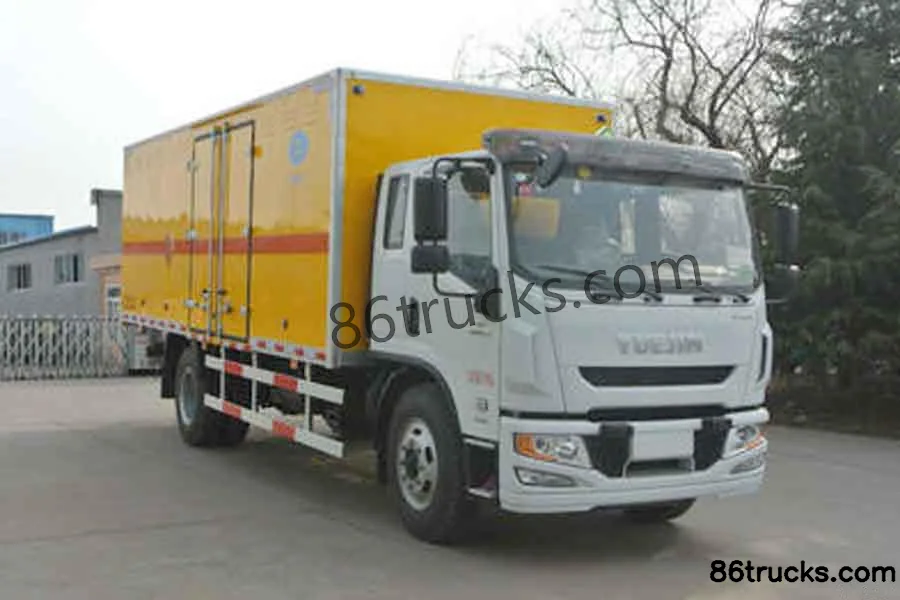

Exterior1

1 photos

FAQ

What emission standard does Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand)?

Key specs of Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand): Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand) suited for?

Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand) differ from other variants in the same series?

Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand) belongs to Shandong Zhengtai Yuejin Chassis (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Beyond C500 180 hp 4X2(6 wheels) 6.3m explosive material transport truck (Xier brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
