Nannei brand NQ100AN5 90 hp 2.77L China V natural gas engine

Export reference
MSRP N/A
Min. fuel consumption at full load:: 210g/kW.h
Compression ratio:: 10.5:1
Bore × Stroke:: 93x102mm
Engine Model: NQ100AN5
Engine Series: Natural gas series
Intake type: Turbocharged Air-to-Air Intercooling

Overview

The Dongfeng Nannei brand NQ100AN5 90 hp 2.77L China V natural gas engine is a parts product with spec NQ100AN5.

China V 90 Natural gas (LNG/CNG)

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: Natural gas series
Engine manufacturer: Dongfeng
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 210g/kW.h
Engine Dimensions: 734X612X680mm
Compression ratio: 10.5:1
Bore × Stroke: 93x102mm
firing order: 1-3-4-2
Engine Brand: Dongfeng
Engine Model: NQ100AN5
Number of cylinders: 4cylinder
fuel type: Natural gas (LNG/CNG)
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 68kW
Max hp: 90Horsepower
Max torque: 250N·m
Max torque speed: 1800-2200rpm
Rated speed: 3600rpm
Engine Type: Inline, 4-stroke, liquid-cooled, turbocharged intercooled, single-point electronic injection, spark-ignited NG engine

Photos

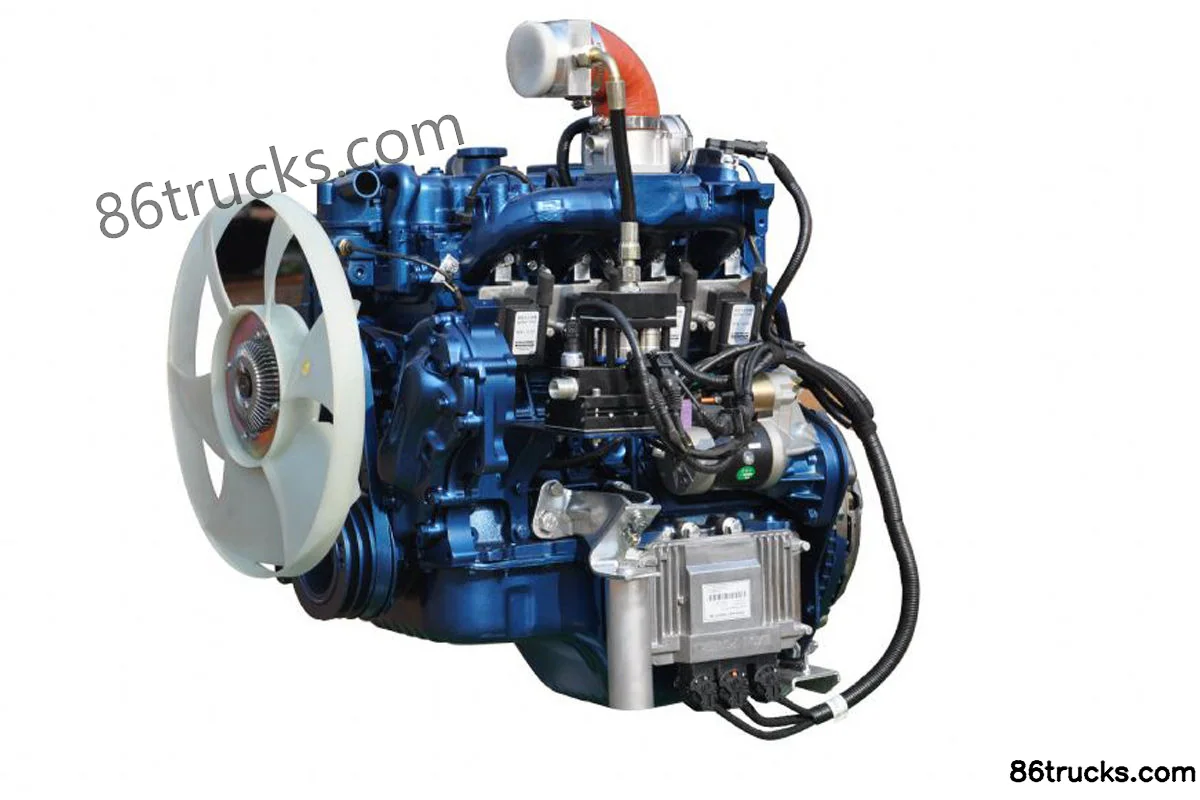

Exterior1
