Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck

Export reference
From $16,431
MSRP ¥11.83M CNY
Horsepower: 148
Emission: China V
Fuel: Diesel
Engine: Fukang 2.8
Transmission: WLY
Curb Weight:: 2.55ton
seating capacity: 3Personnel
Rated payload: 1.75ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck is a Light Truck featuring 4.1m cargo length, stake body cargo body, 3Personnel volume and 1.75t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 2.8 engine, 148 hp, 4X2 (6 wheels) drive and China V emissions.

China V 148 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH1040BX
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.1m
engine: FotonISF2.8s5148T
transmission: WLYWLY6G40
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.55m
Cab height: 2.6m
Front track width: 1765mm
rear track: 1600mm
Curb Weight: 2.55ton
Rated payload: 1.75ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 16.3°
departure angle: 15°
market segment: Building materials, agricultural products
Remarks: Rear axle ratio 4.33
Front/rear suspension: 1.365/1.33m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5148T
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 110kW
Max hp: 148Horsepower
Max torque: 360N·m
Max torque speed: 1500-2900rpm
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.1m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 1945kg
rear axle description: Dongfeng3.5T
rear axle allowable load: 2550kg
Axle ratio: 4.875
Leaf spring count: 7/8+5
Tire
Tire Size: 215/75R16 8RP,7.00R16 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

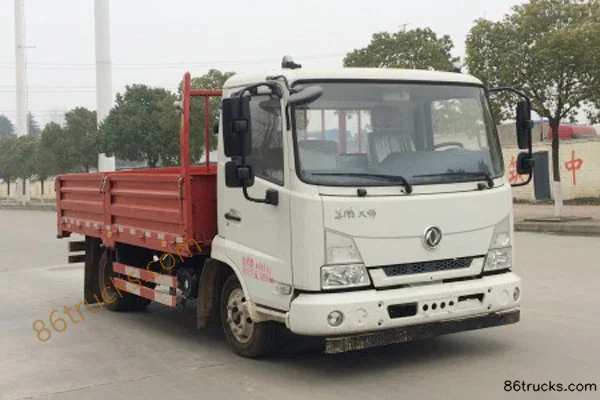

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck, and what does it include?

Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck export reference is about From $16,431; MSRP is ¥11.83M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck?

Key specs of Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck: Drive: 4x2; Horsepower: 148 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 2.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck suited for?

Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck differ from other variants in the same series?

Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck belongs to Dongfeng Tianjin KS light-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KS 148hp 4X2(6 wheels) 4.1m Single Row Flatbed Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
