JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck

Export reference
From $27,500
MSRP ¥19.8M CNY
Horsepower: 200
Emission: China V
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 8.25ton
seating capacity: 3Personnel
Rated payload: 9.555ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck is a Medium-duty truck featuring 7.8m cargo length, Wing Van cargo body, 3Personnel volume and 9.555t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 200 hp, 4X2 (6 wheels) drive and China V emissions.

China V 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5181XYKP3K1A50V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.8m
engine: YuchaiYC4EG200-50
transmission: Fast Gear8JS85C
Cab length: 10m
Cab width: 2.55m
Cab height: 3.91m
Front track width: 1920mm
rear track: 1810mm
Curb Weight: 8.25ton
Rated payload: 9.555ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Urban Distribution
Front/rear suspension: 1.4/2.9m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG200-50
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.73L
Emission standard: China V
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1300-1500rpm
Rated speed: 2500rpm
Engine Type: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 7.8m
Cargo box width: 2.46m
Cargo box height: 2.5m
*Cargo box interior width: 2.460000038147
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Leaf spring count: 3/9+7
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

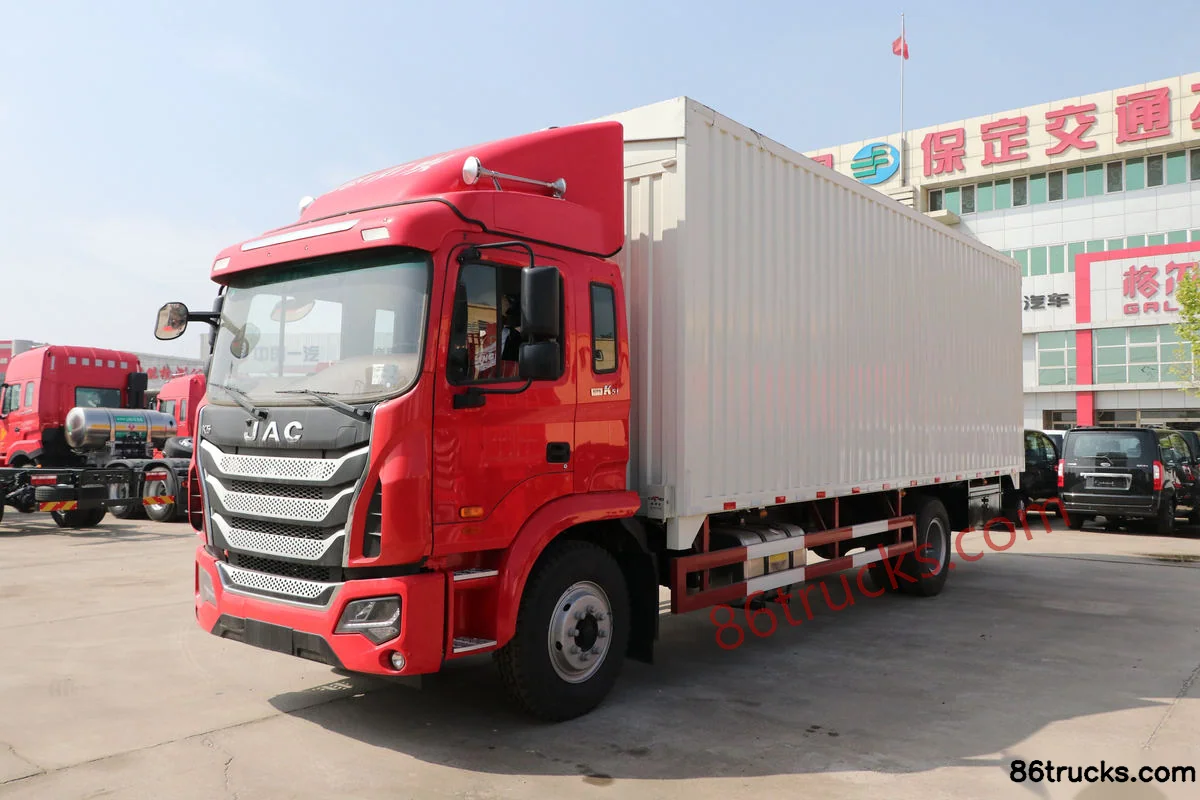

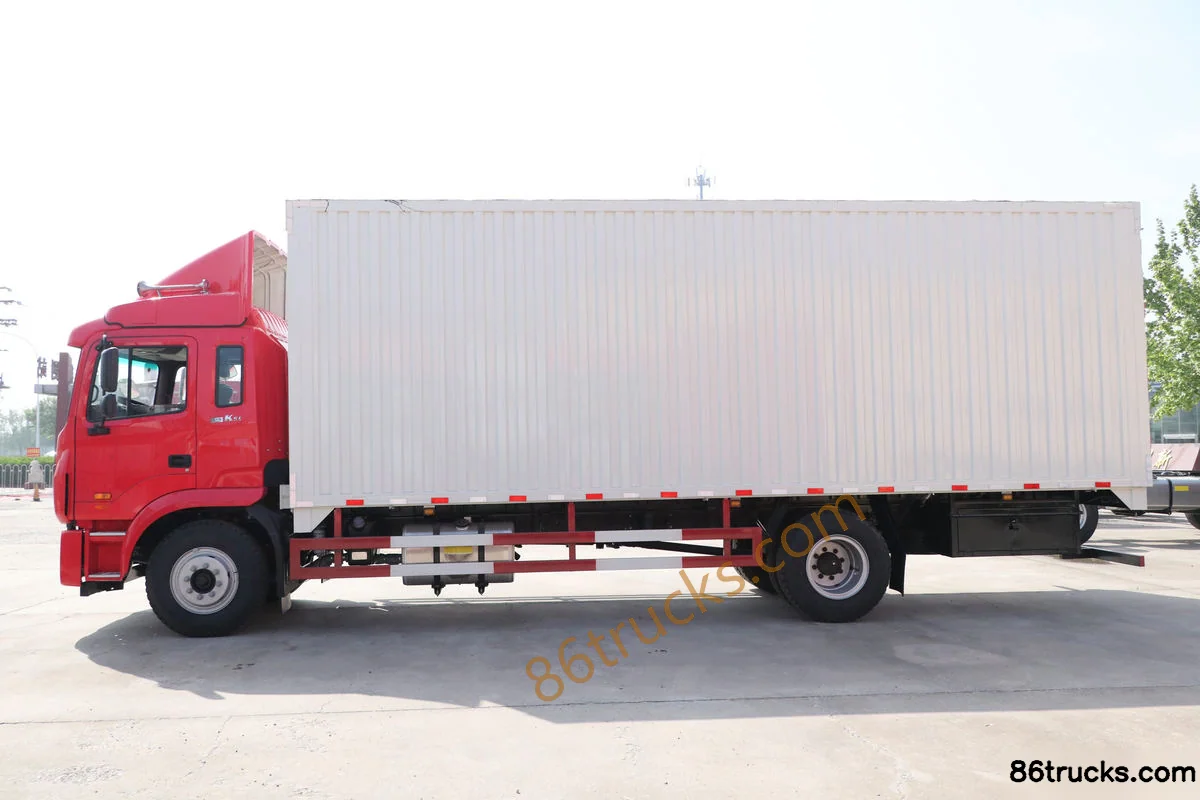

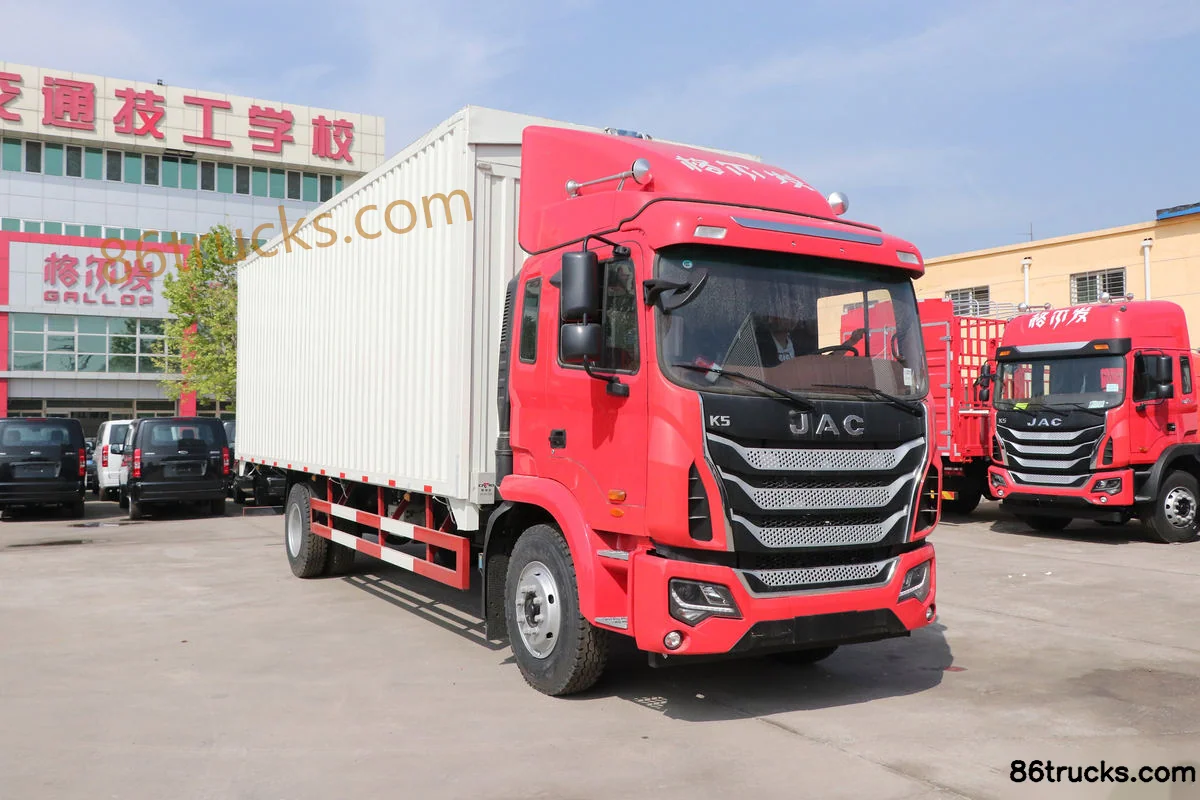

Exterior3

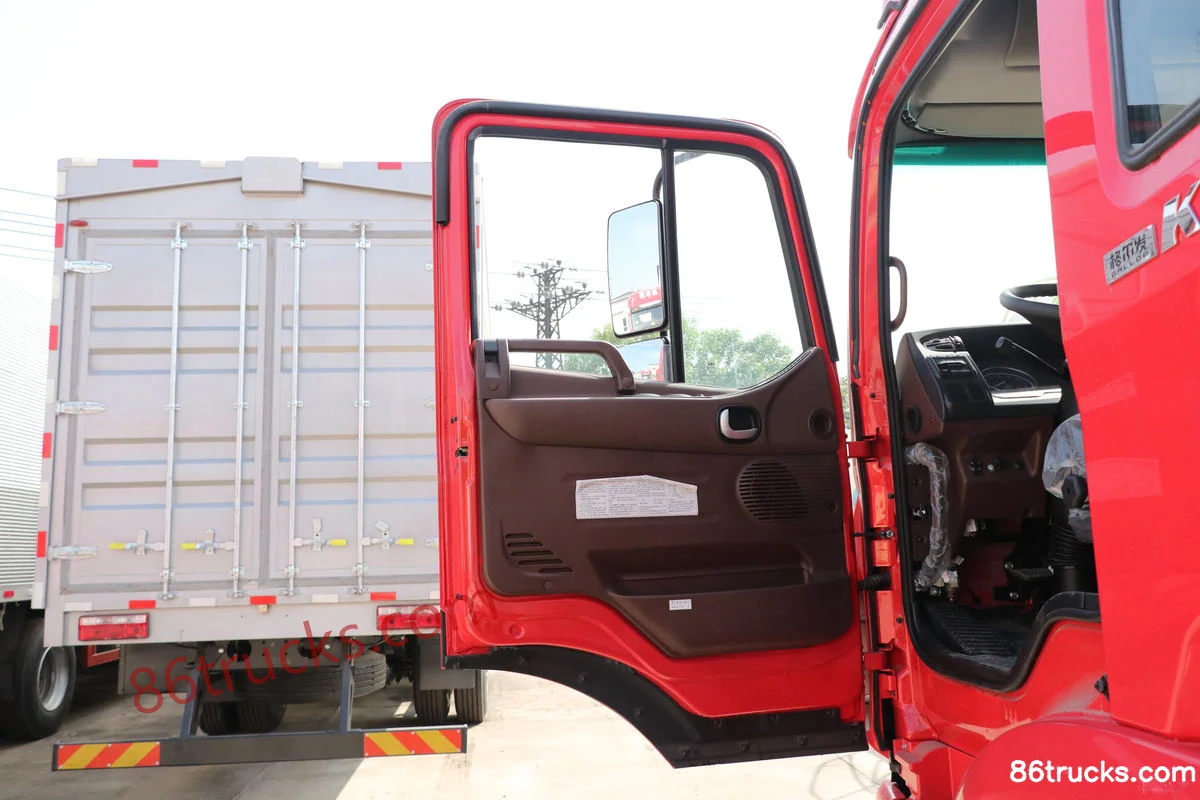

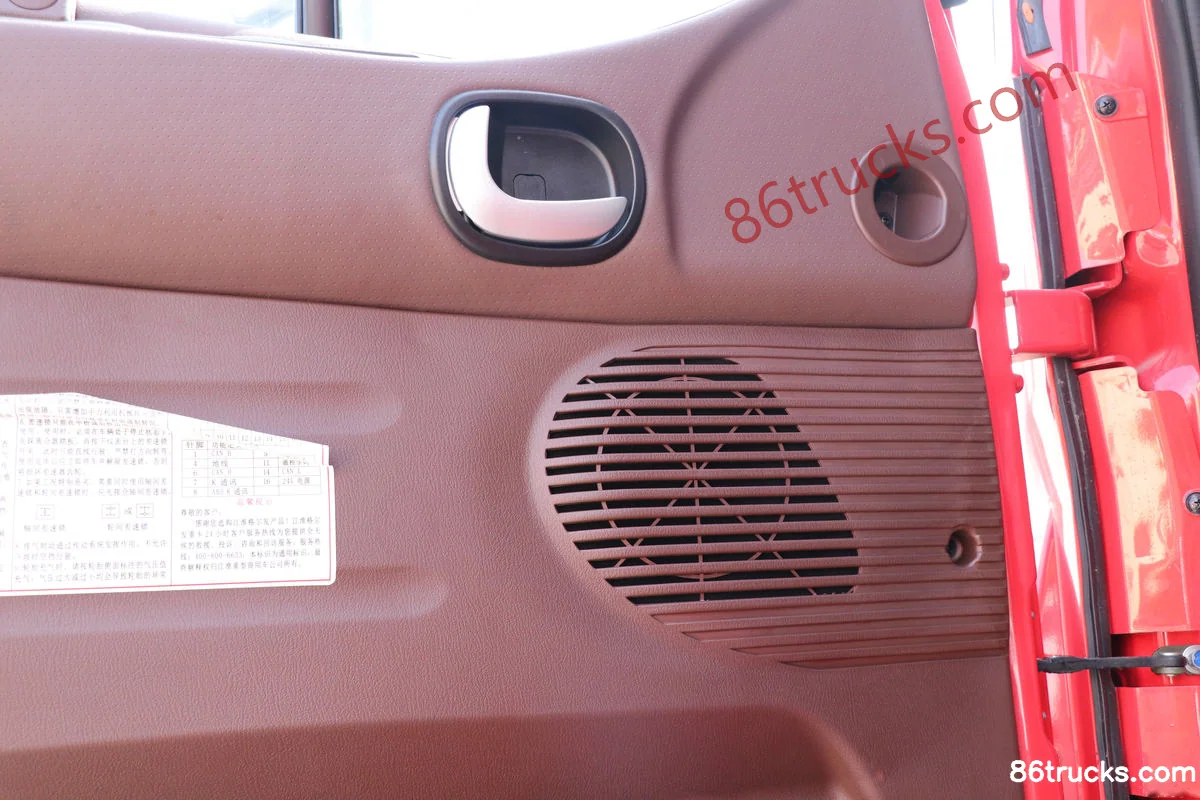

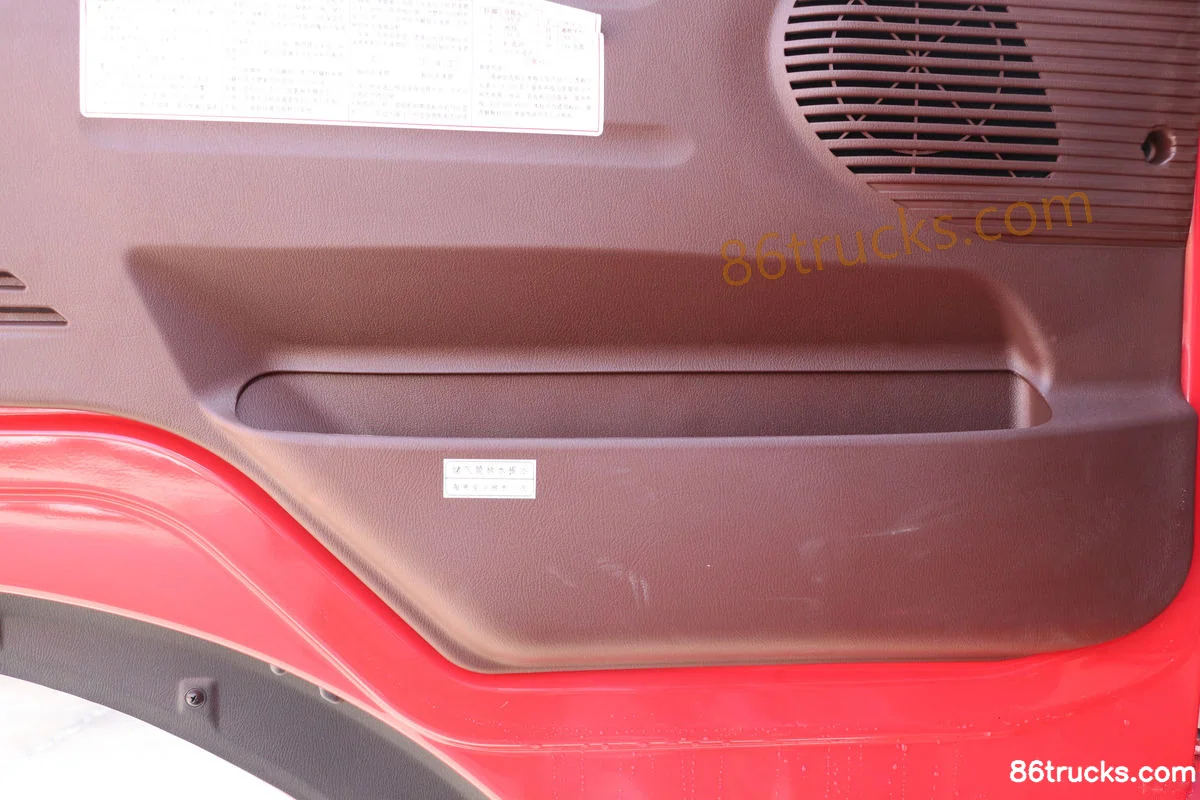

Cab3

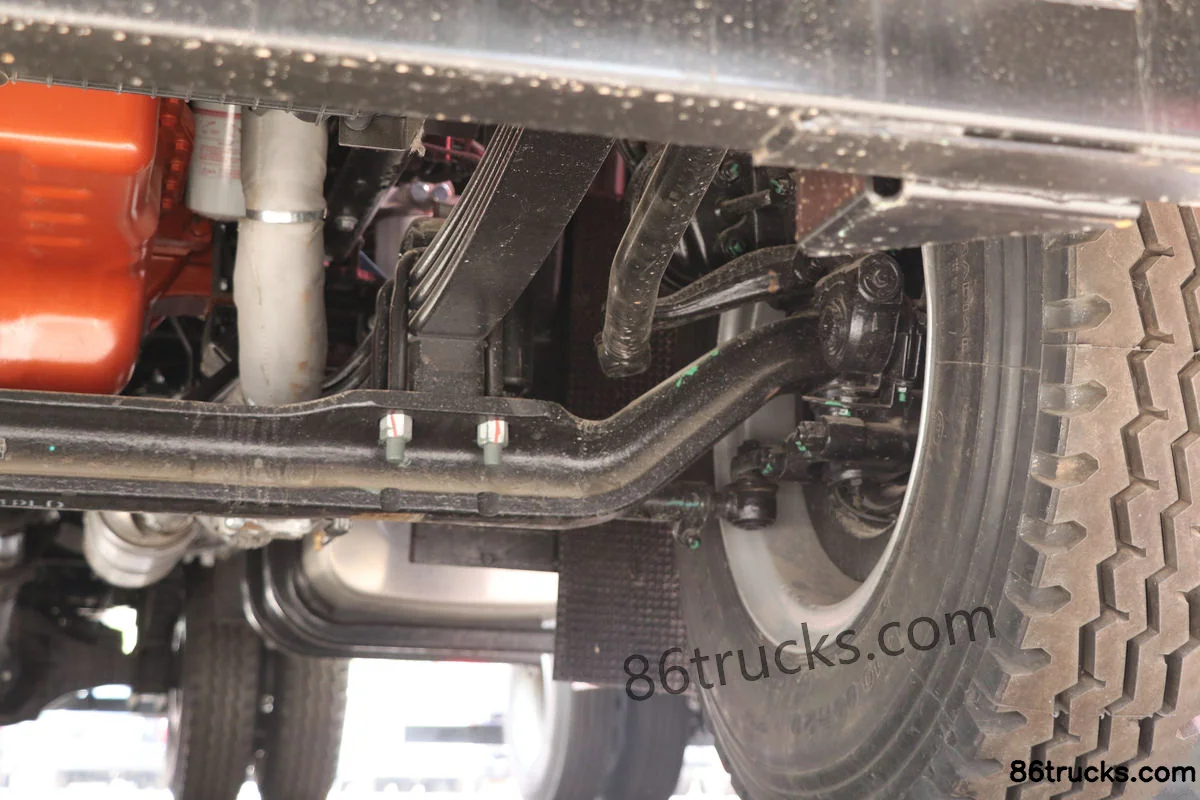

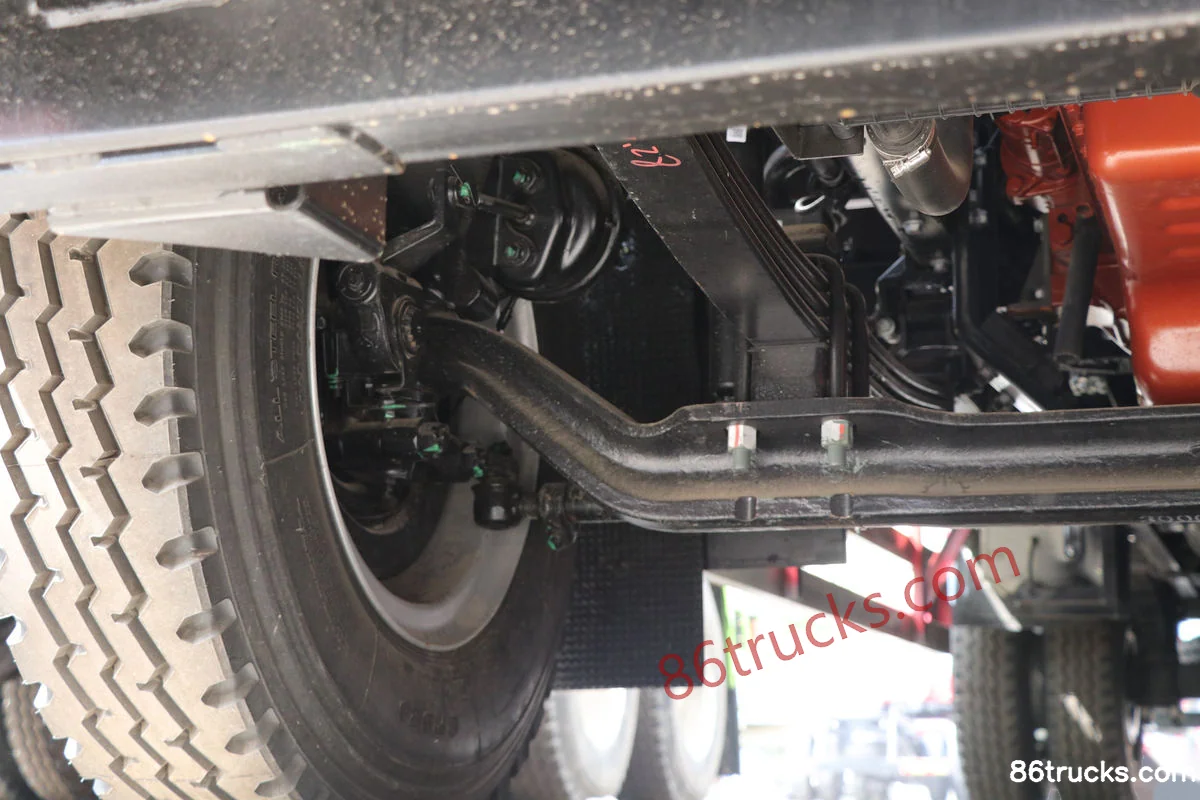

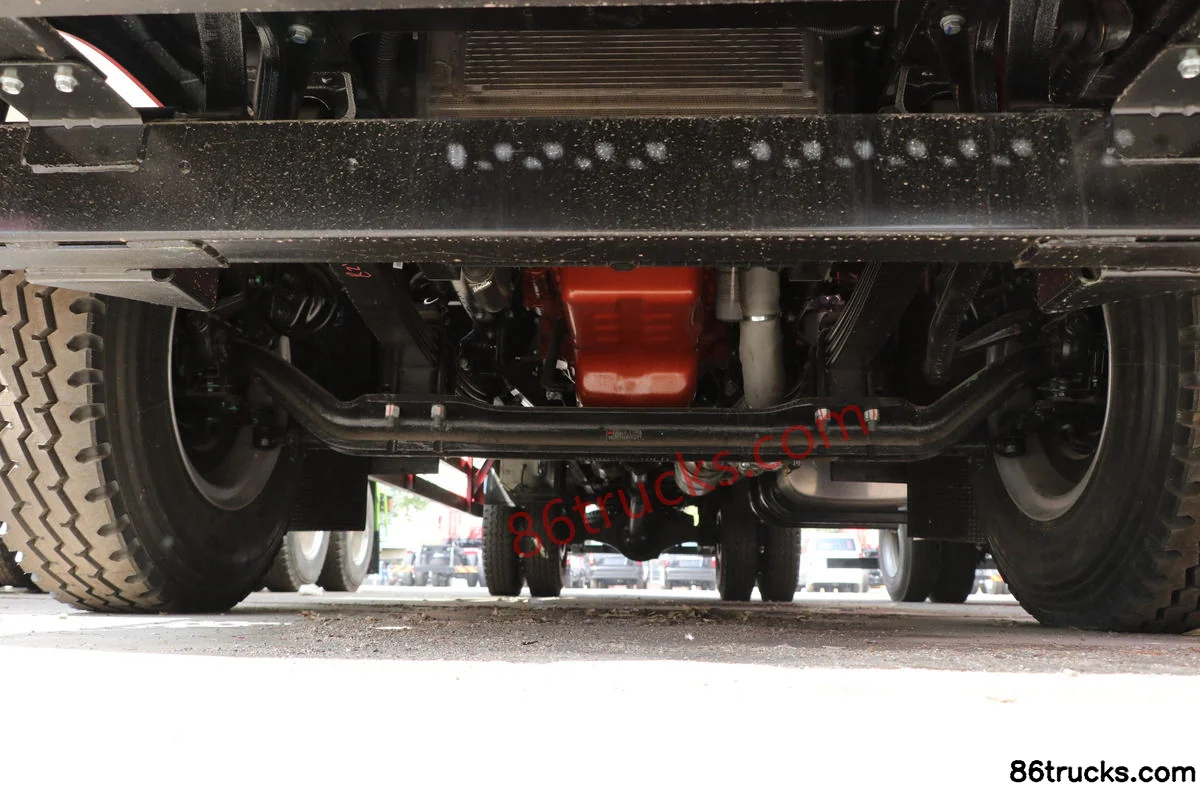

Chassis3

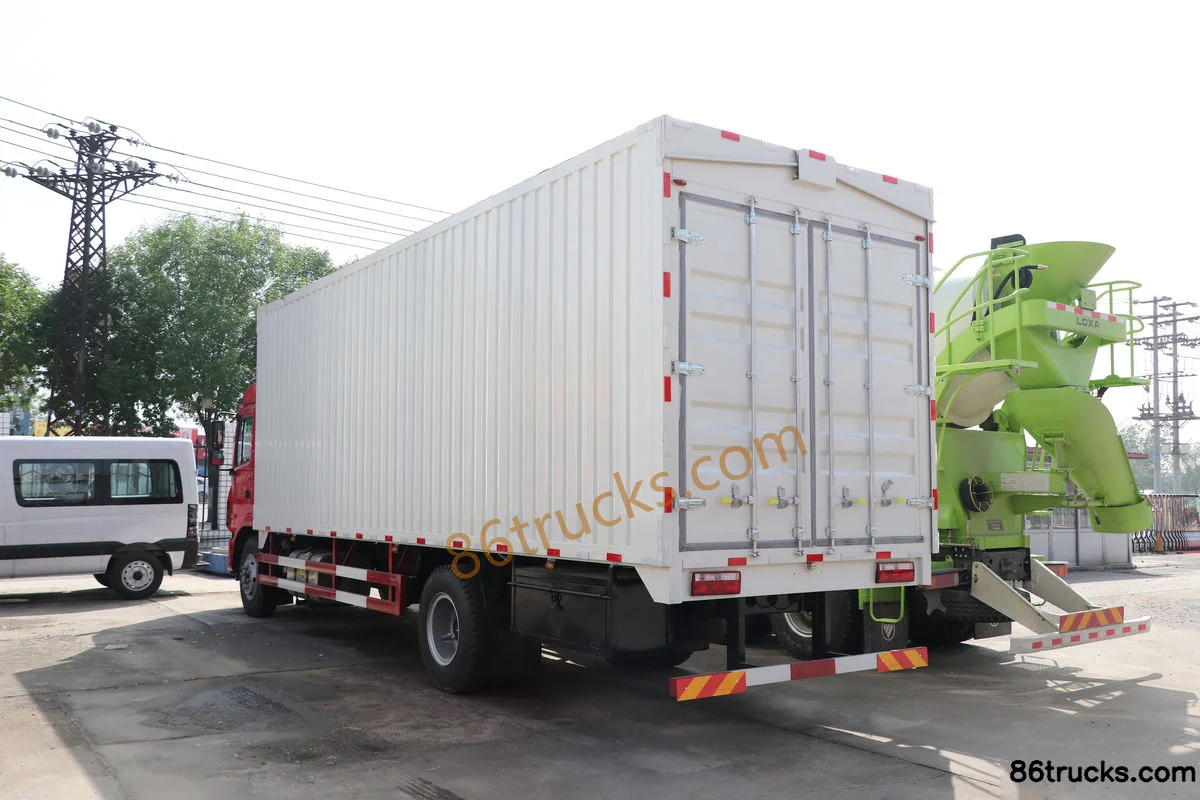

Body3

12 photos

FAQ

What is the export price of JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck, and what does it include?

JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck export reference is about From $27,500; MSRP is ¥19.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck?

Key specs of JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck: Drive: 4x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck suited for?

JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck differ from other variants in the same series?

JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5X Medium Truck 200 hp 4X2(6 wheels) 7.8m Half Row Wing Opening Box Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
