Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai)

Export reference
MSRP N/A
Horsepower: 68
Emission: China IV
Fuel: Diesel
Engine: Quanchai480
Transmission: Mengwo
Curb Weight:: 1.46ton
Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) exterior
View more photos (3)
seating capacity: 2Personnel
Rated payload: 1.9ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Heibao Auto Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) is a mini truck featuring 2.92m cargo length, stake body cargo body, 2Personnel volume and 1.9t payload. On the powertrain side, it comes with a Quanchai480 engine, 68 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 68 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1036P10FS
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2700mm
Box length class: 2.9m
engine: Quanchai4A1-68C43
transmission: MengwoMT70
Cab length: 5.03m
Cab width: 1.728m
Cab height: 2.055m
Front track width: 1280mm
rear track: 1200mm
Curb Weight: 1.46ton
Rated payload: 1.9ton
GVWR: 3.49ton
Max. speed: 90km/h
Origin: Beijing
tonnage class: mini truck
Approach angle: 29°
departure angle: 17°
Front/rear suspension: 0.92/1.41m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A1-68C43
Engine info: Quanchai480
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.809L
Emission standard: China IV
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 1800rpm
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: MengwoMT78
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.92m
Cargo box width: 1.59m
Cargo box height: 0.35m
*Cargo box interior width: 1.5900000333786
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1230kg
rear axle allowable load: 2260kg
Leaf spring count: 3/5
Tire
Tire Size: 6.00-13LT 8PR，6.00-14LT 8PR
Number of tires: 6pcs

Photos

Exterior3

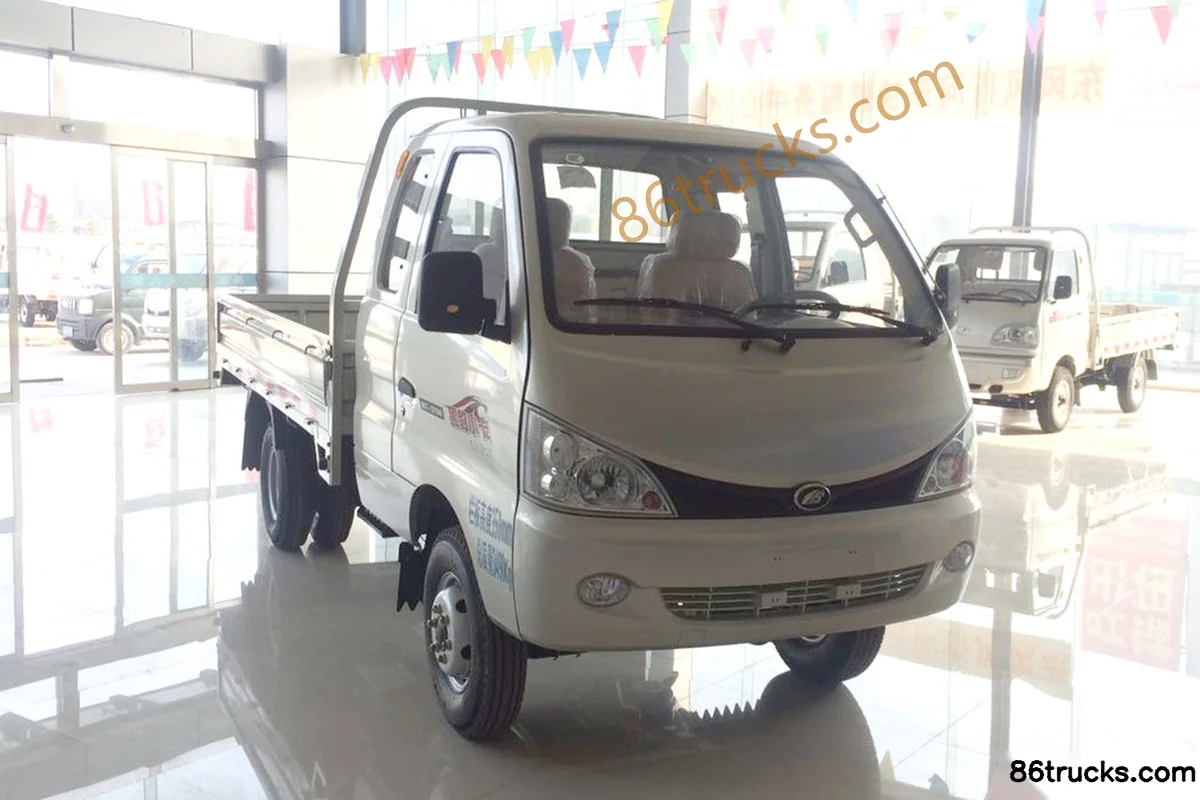

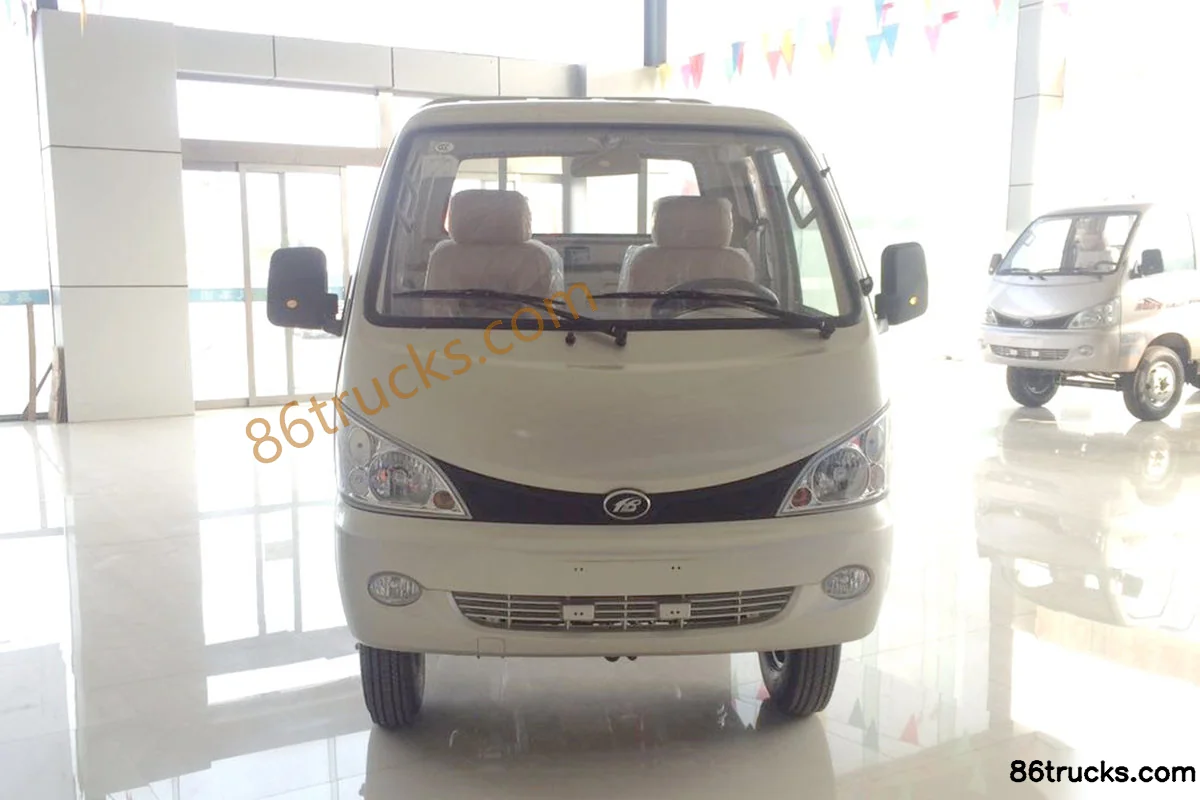

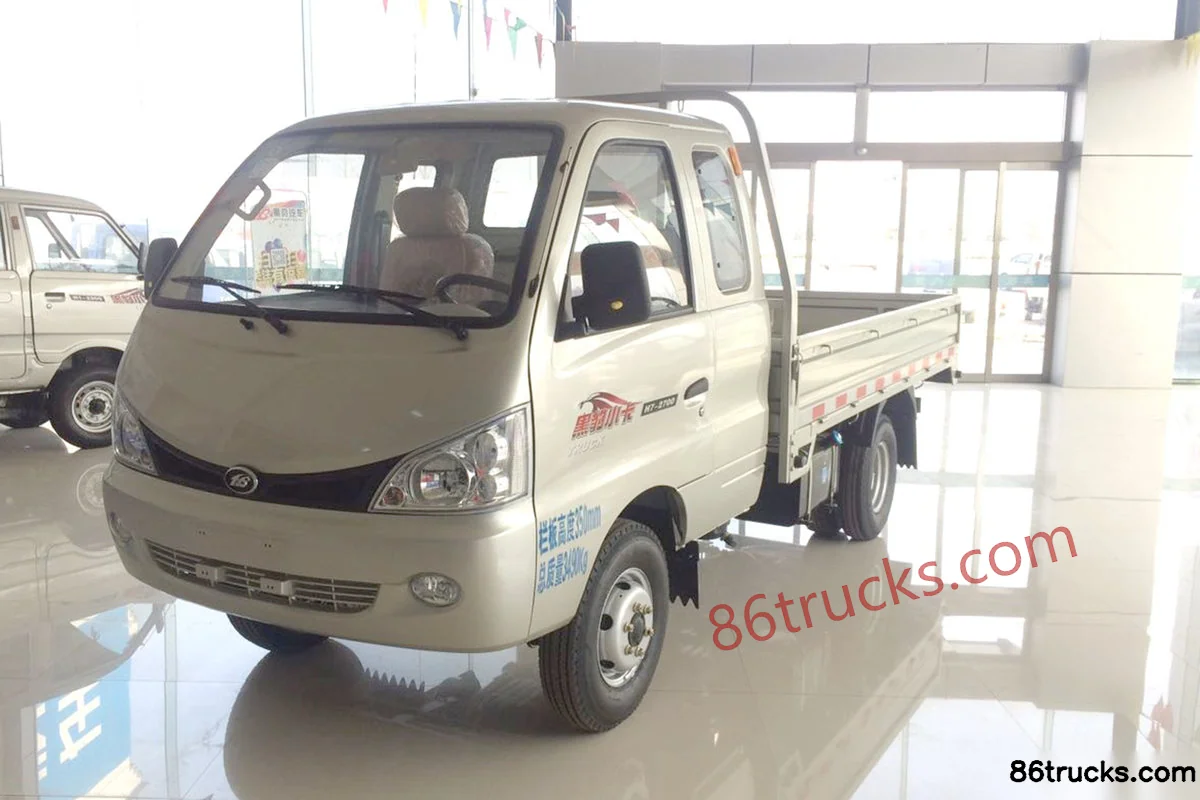

Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) Exterior (1) | 86Trucks Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) Exterior (2) | 86Trucks Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai)?

Key specs of Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai): Drive: 4x2; Horsepower: 68 hp; Emission: China IV; Fuel: Diesel; Engine: Quanchai480; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) suited for?

Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) differ from other variants in the same series?

Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai) belongs to BAIC Heibao H7 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiqi Heibao H7 68hp 4X2(6 wheels) Diesel 2.9m Semi-row Flatbed Truck (Quanchai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
