FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: Fast Gear
Curb Weight:: 5.8ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai4DK engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1160P62K1L4A1E5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: DachaiCA4DK1-18E5
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.333
Cab length: 9m
Cab width: 2.495m
Cab height: 2.9m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 5.8ton
Rated payload: 9.8ton
GVWR: 15.795ton
Max. speed: 96km/h
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Building materials, agricultural products
Remarks: 2015 Model J6L Semi-Float Flat-Roof Small Day Cab, Power Windows, Manual Mirrors, Mechanical Suspension Driver Seat, Single DIN BeiDou Compatible In-Vehicle System
Front/rear suspension: 1.4/2.3m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-18E5
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.76L
Emission standard: China V
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: J6L semi-floating flat top small cab with half row cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 5800kg
rear axle description: Axle Ф378
rear axle allowable load: 9995kg
Axle ratio: 4.333
Leaf spring count: 7/7+6,10/12+8,7/7+-
Tire
Tire Size: 9.00R20,10R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

Photos

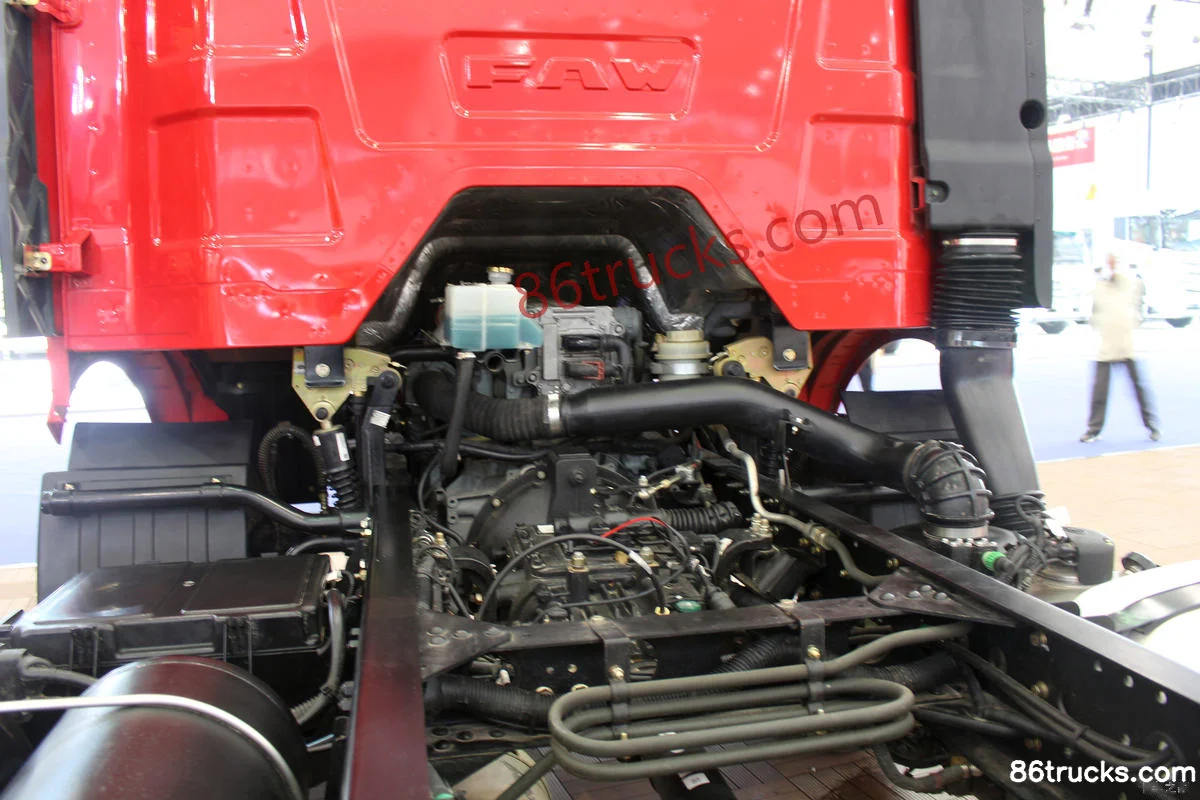

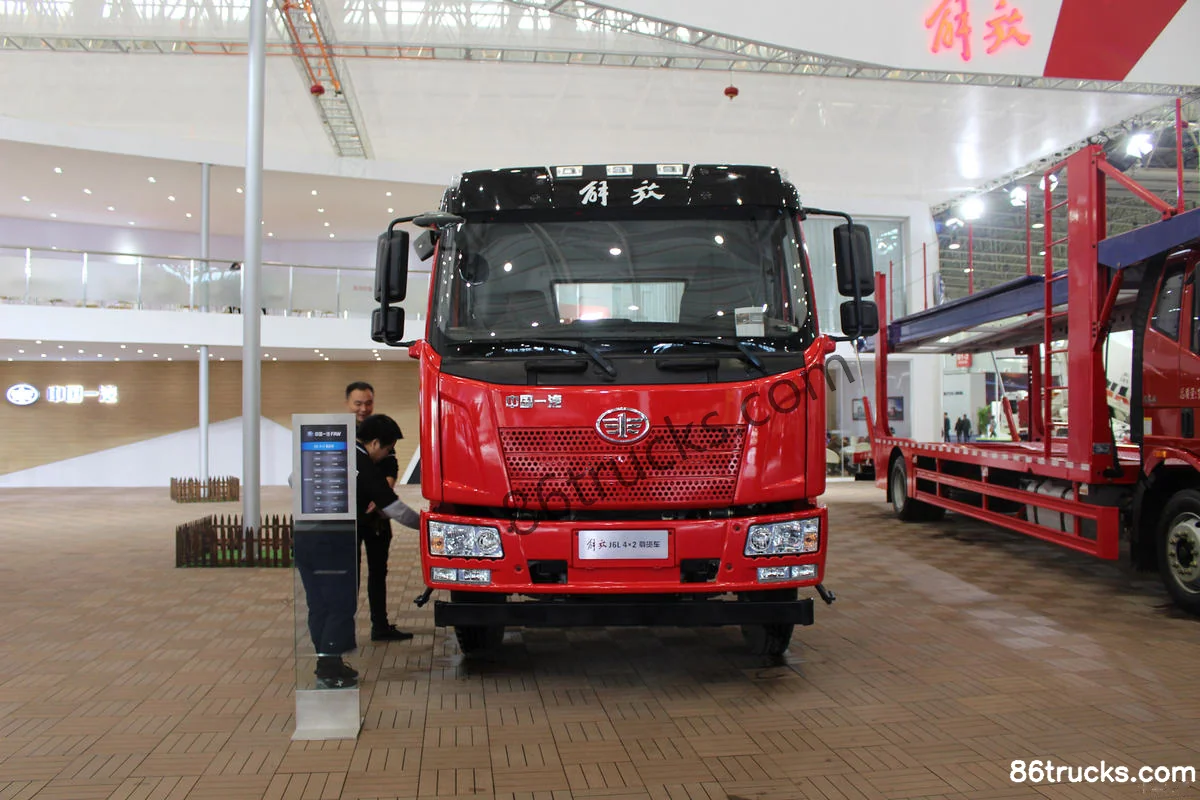

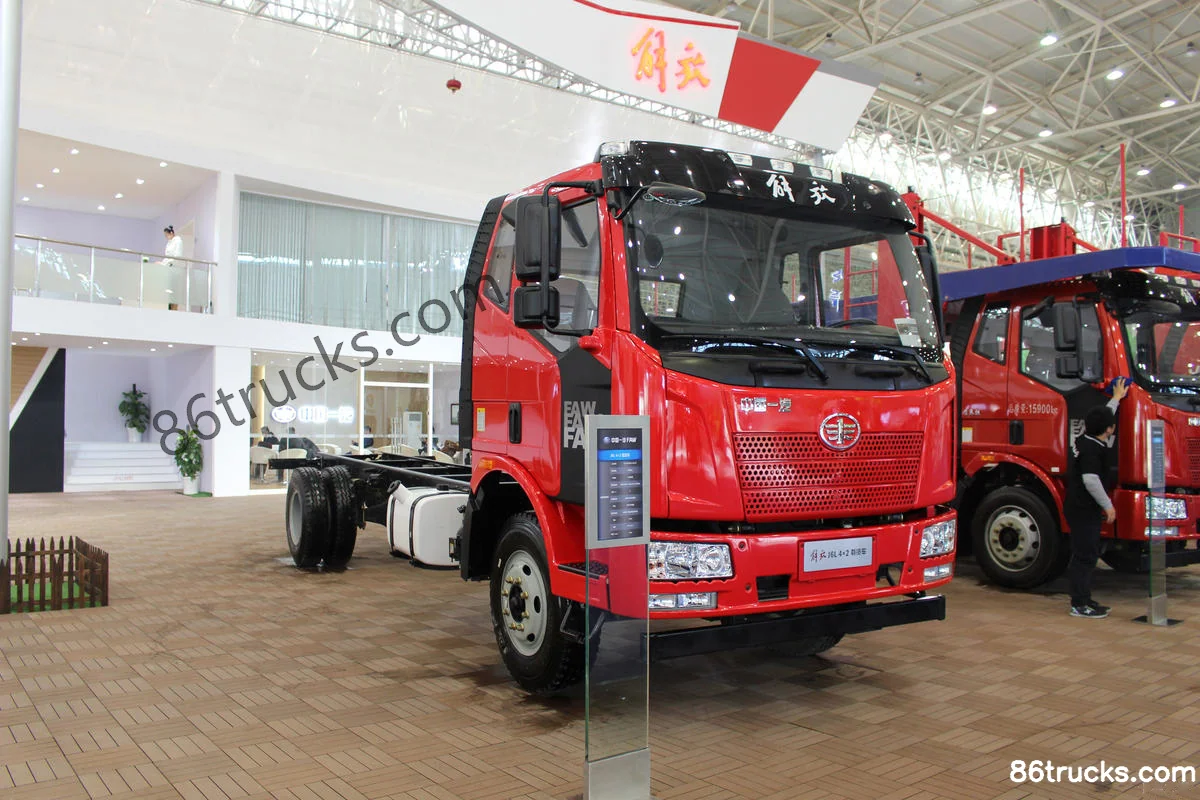

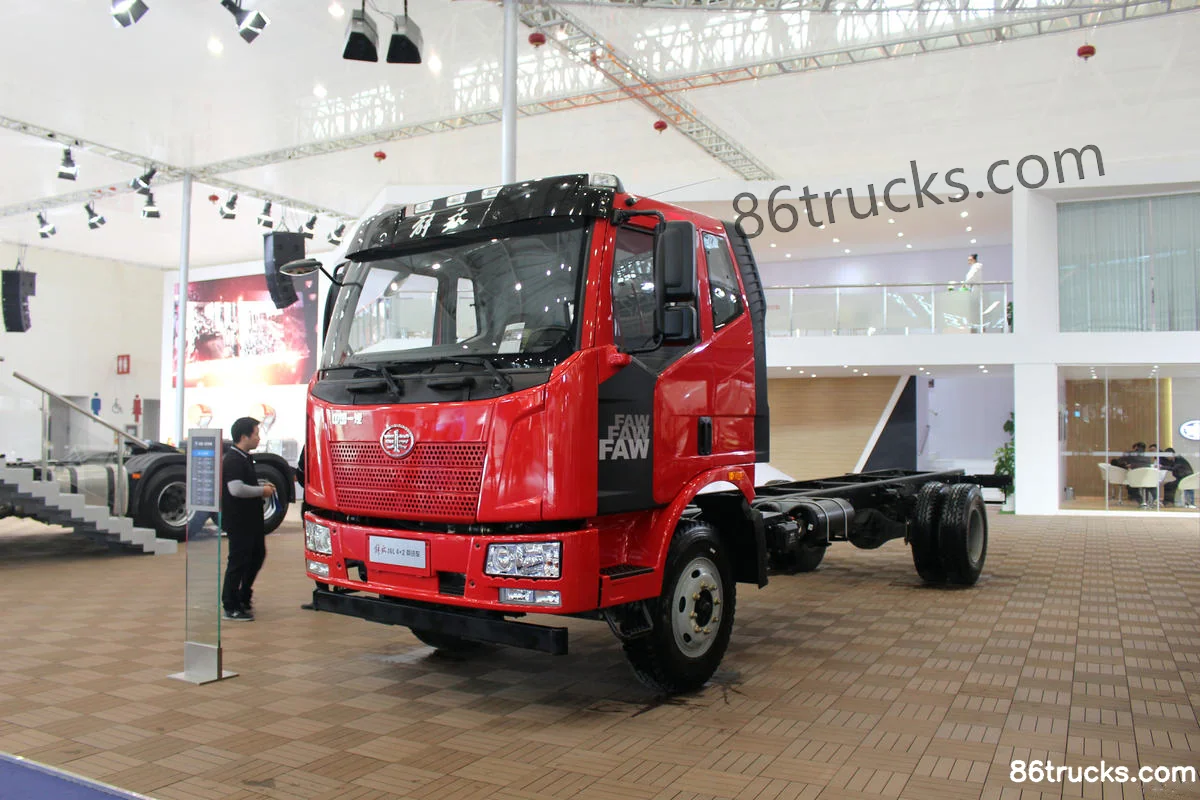

Exterior3

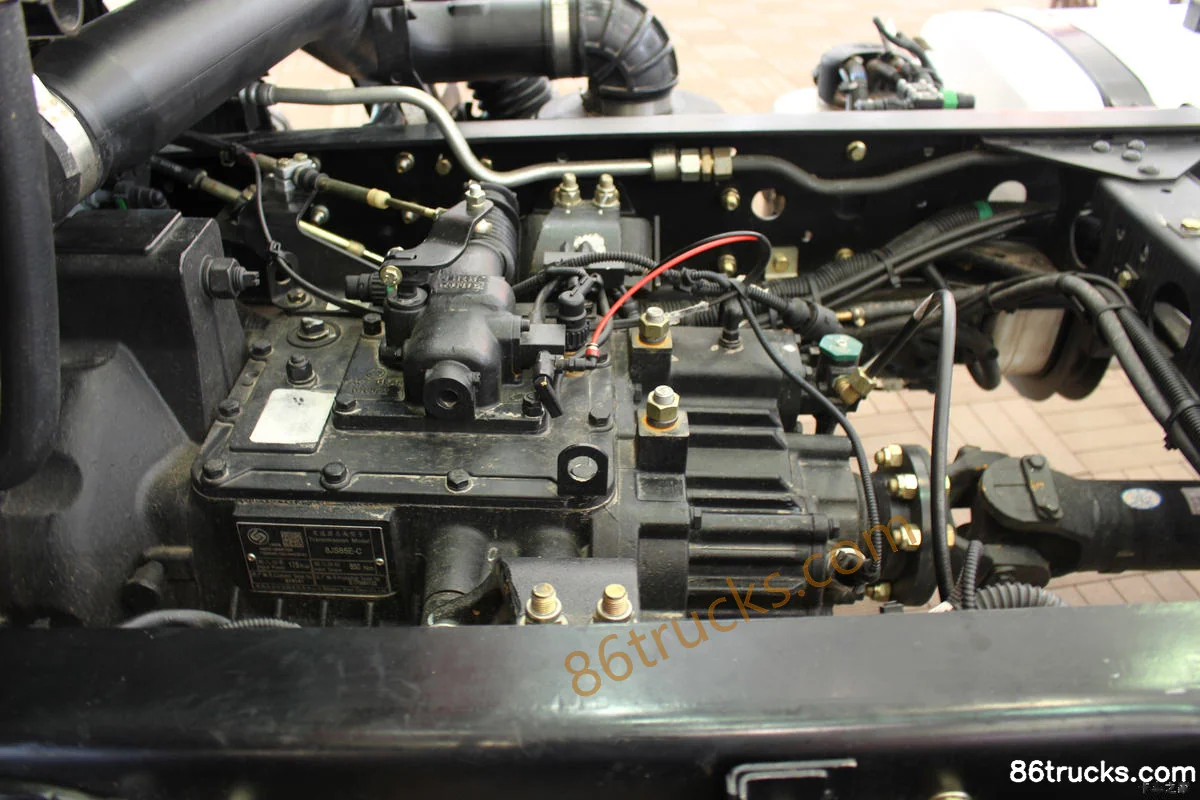

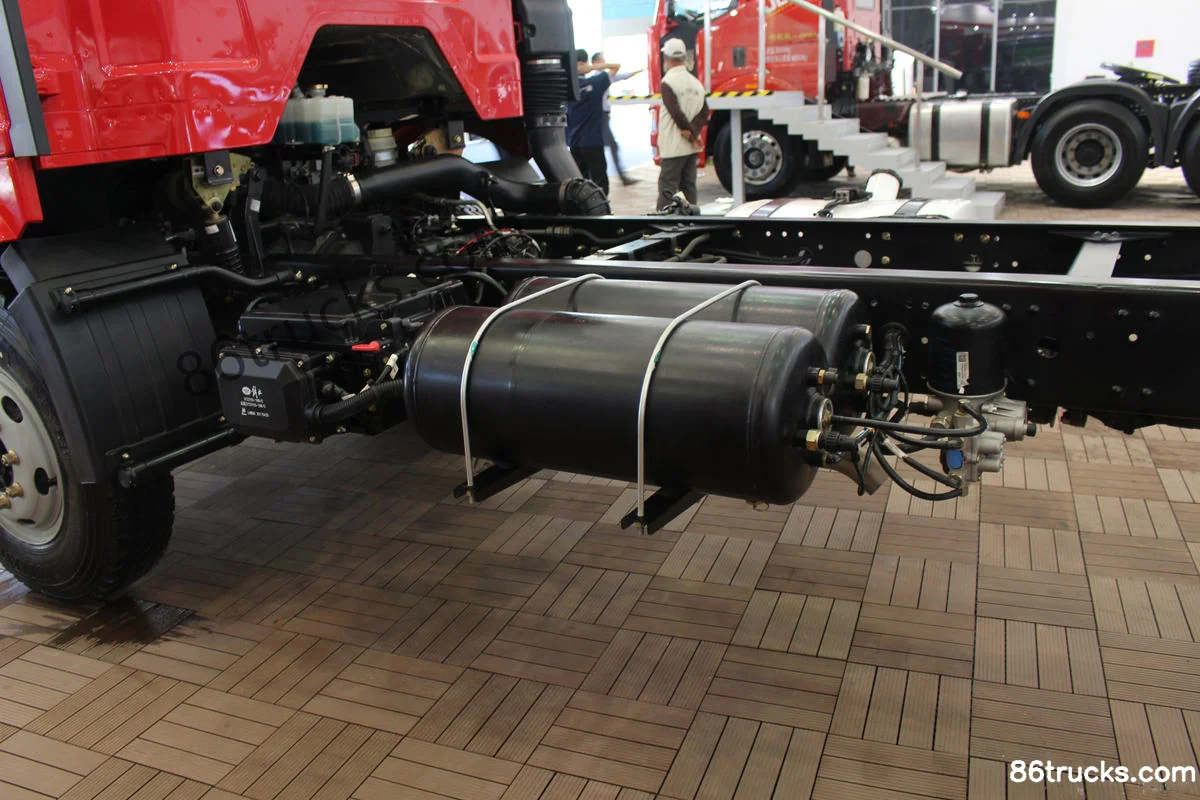

Chassis3

6 photos

FAQ

What emission standard does FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck?

Key specs of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck suited for?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck differ from other variants in the same series?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 6.8m Side Panel Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
