Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body)

Export reference
MSRP N/A
Horsepower: 124
Emission: China IV
Fuel: Diesel
Engine: Chaochai4102
Transmission: JMC
Curb Weight:: 3.515ton
seating capacity: 3Personnel
Rated payload: 4.47ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body) is a Light Truck featuring 3.8m cargo length, Van body cargo body, 3Personnel volume and 4.47t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 124 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5080XXYH30D
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: ChaochaiCY4102-CE4C
transmission: JMC5MTI280P
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.2m
Front track width: 1680mm
rear track: 1525mm
Curb Weight: 3.515ton
Rated payload: 4.47ton
GVWR: 8.18ton
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 23°
departure angle: 15°
market segment: Urban Distribution
Front/rear suspension: 1.125/1.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4102-CE4C
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China IV
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 345N·m
Max torque speed: 1300-1500rpm
Rated speed: 2800rpm
Engine Type: Vertical in-line, 4-stroke, turbocharged & intercooled, electronic high-pressure common rail
Technology route: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: JMC5MTI280P
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.8m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 2832kg
rear axle description: 4T heavy-duty axle
rear axle allowable load: 5348kg
Leaf spring count: 8/4+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.00-16LT,7.00R16LT
Number of tires: 6pcs
Control configuration
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
steering wheel adjustment: pneumatic
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Radio:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

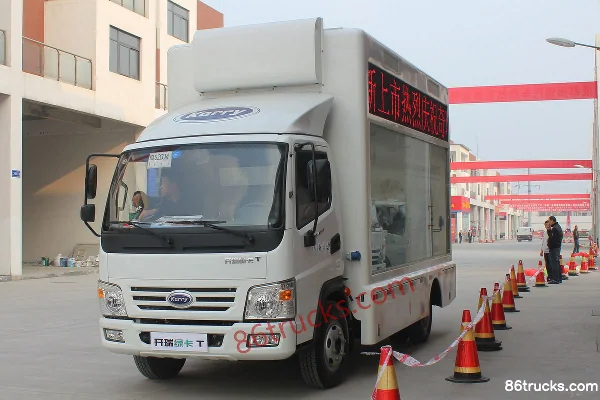

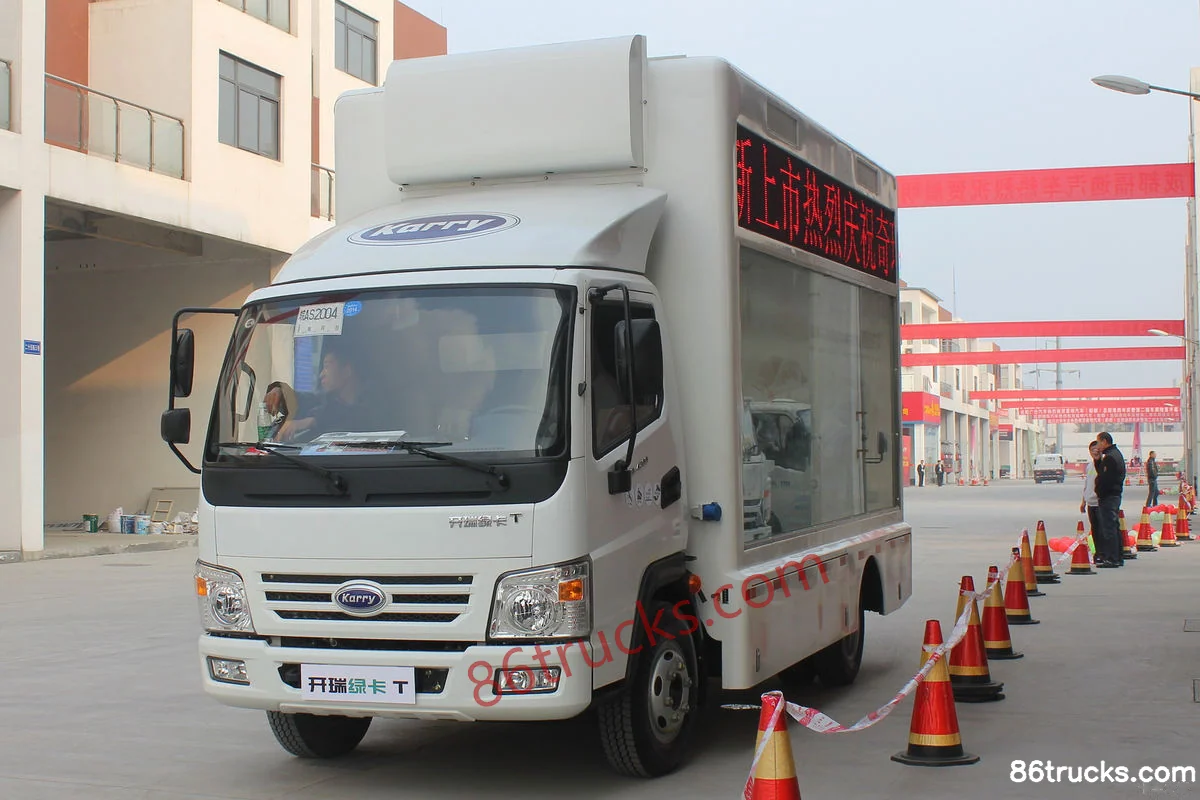

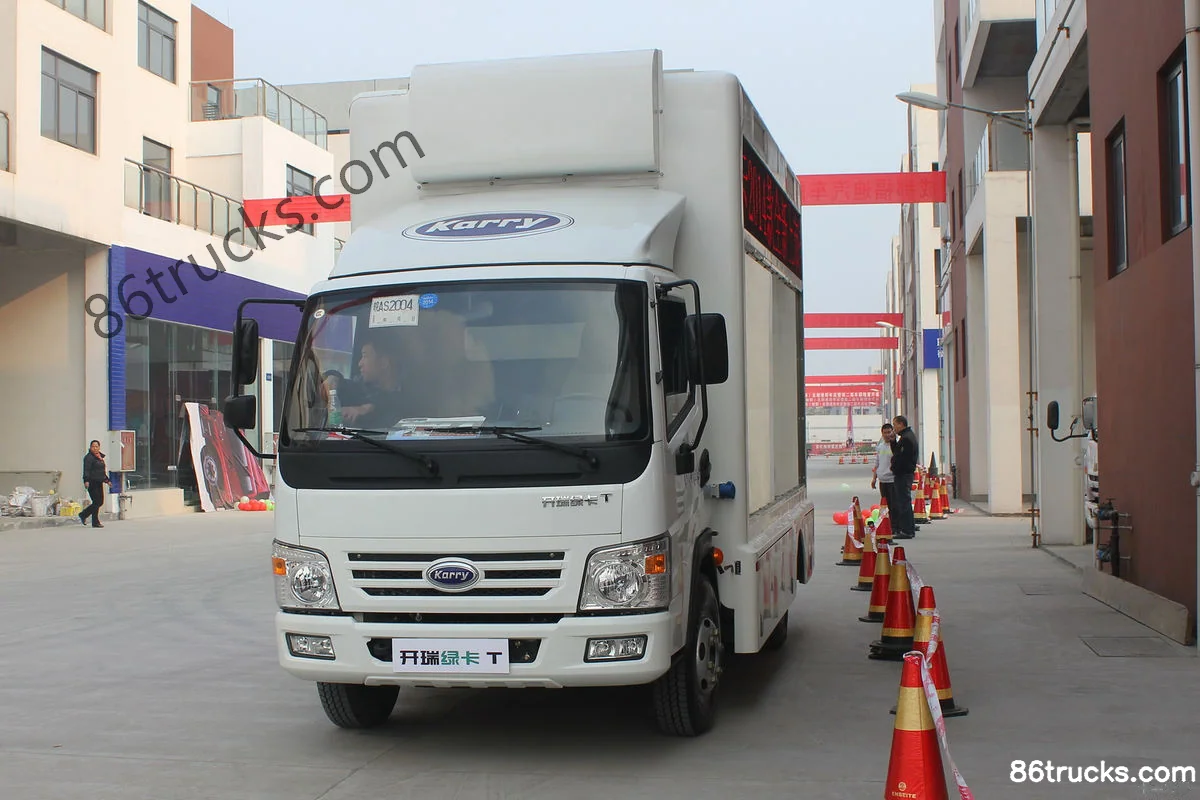

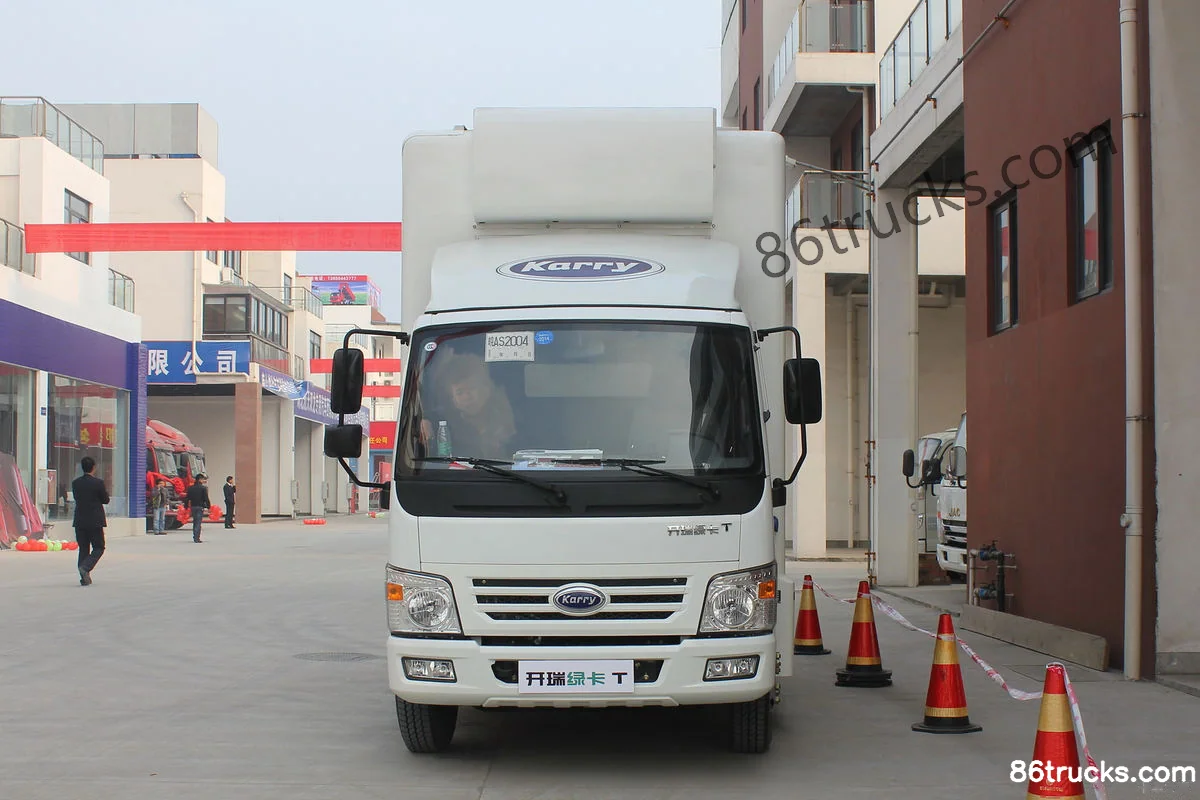

Exterior3

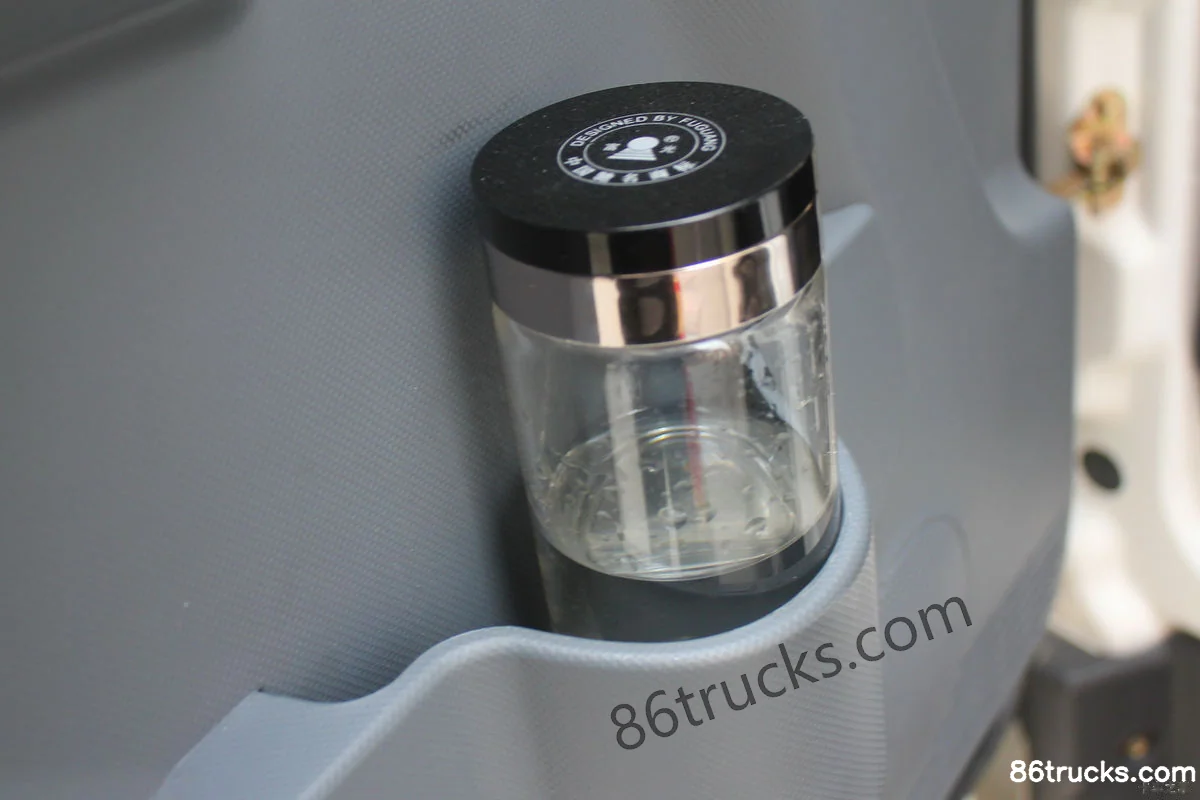

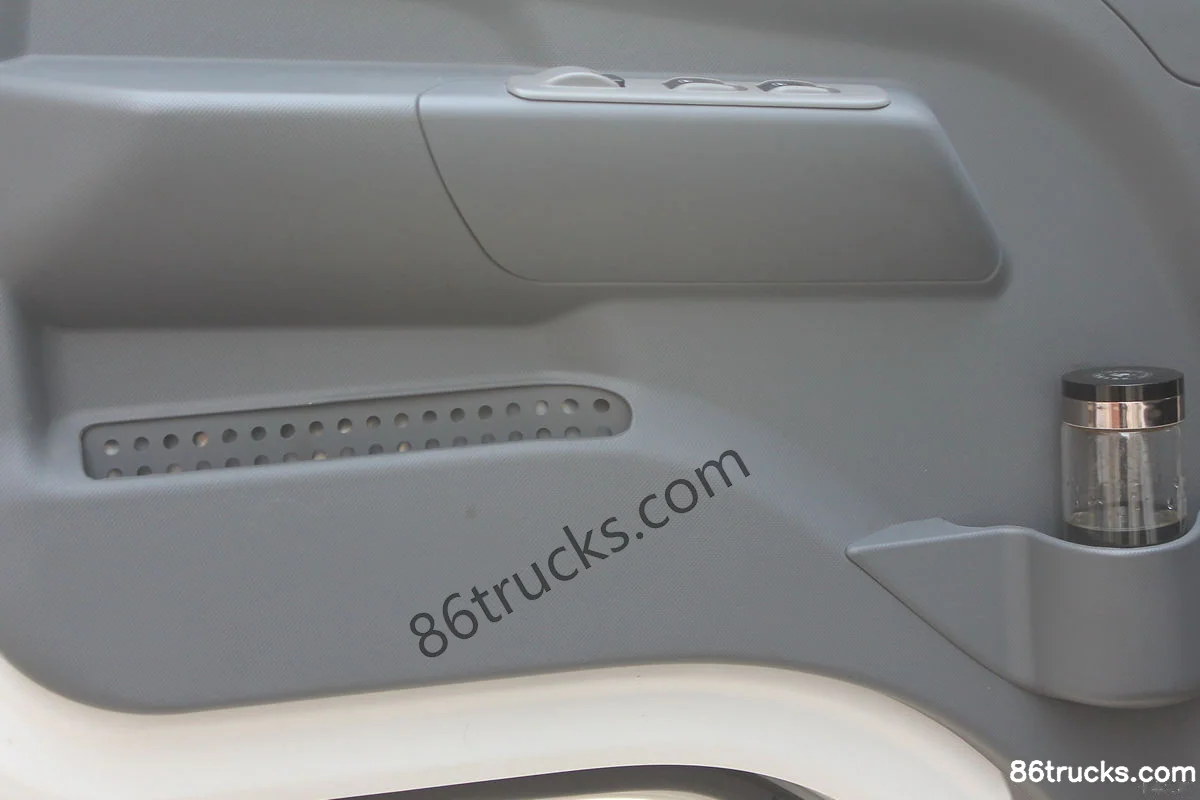

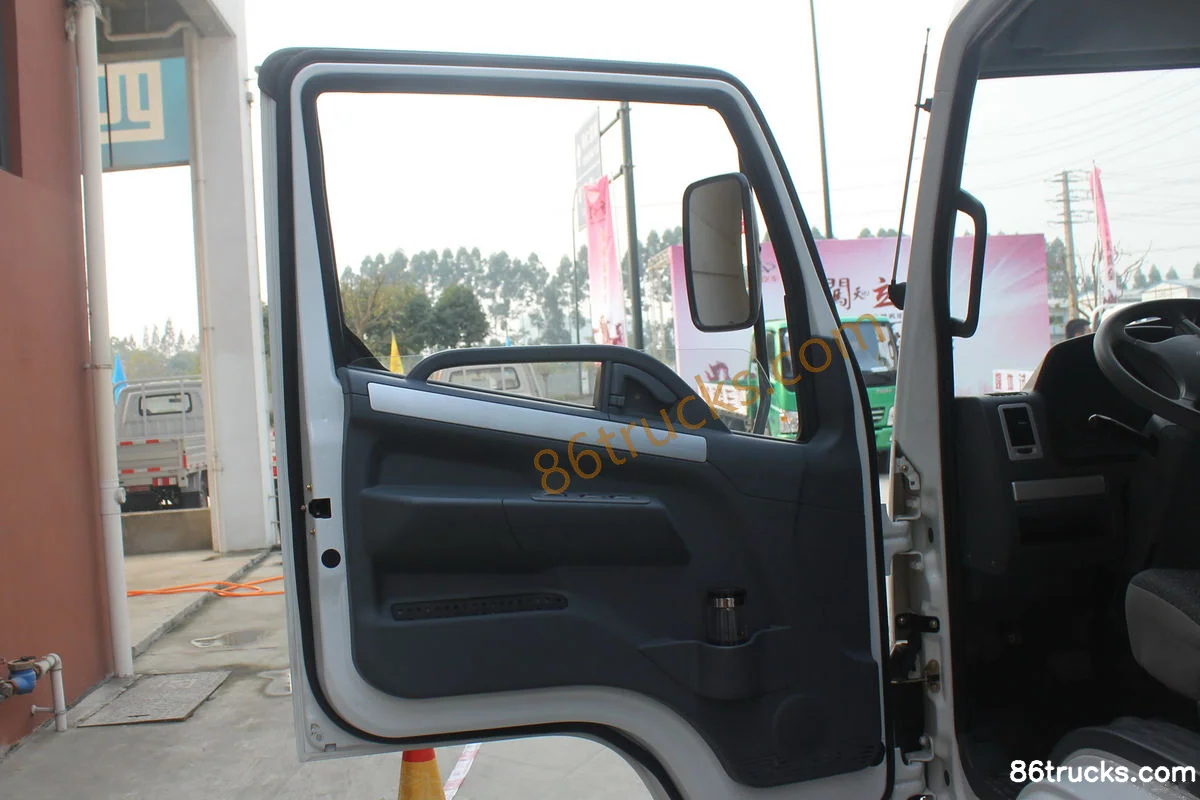

Cab3

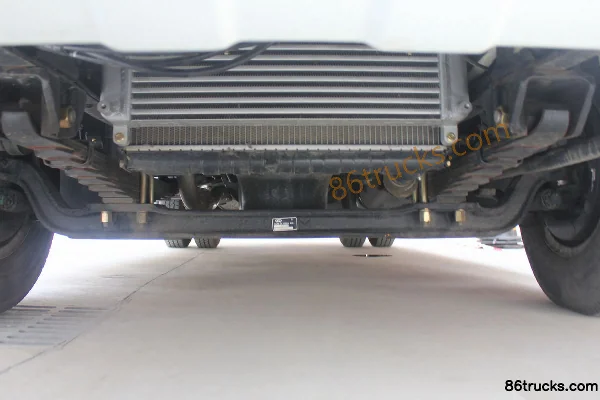

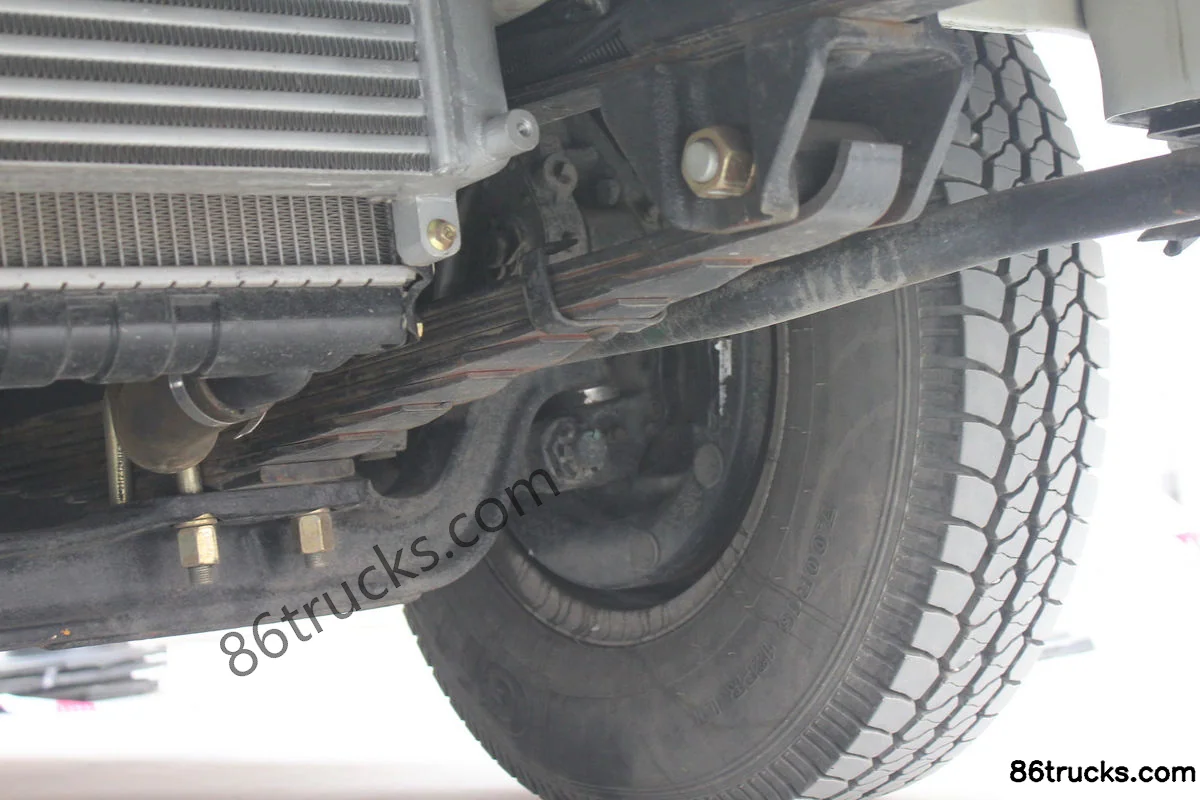

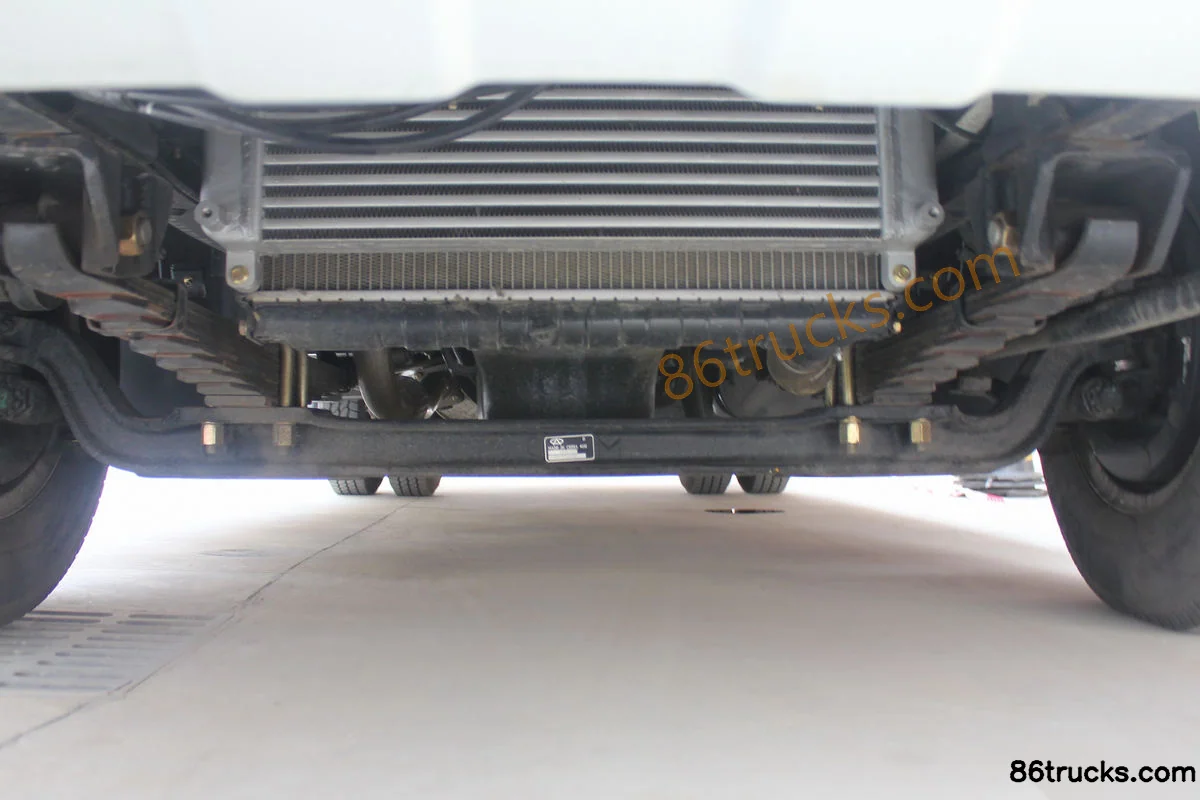

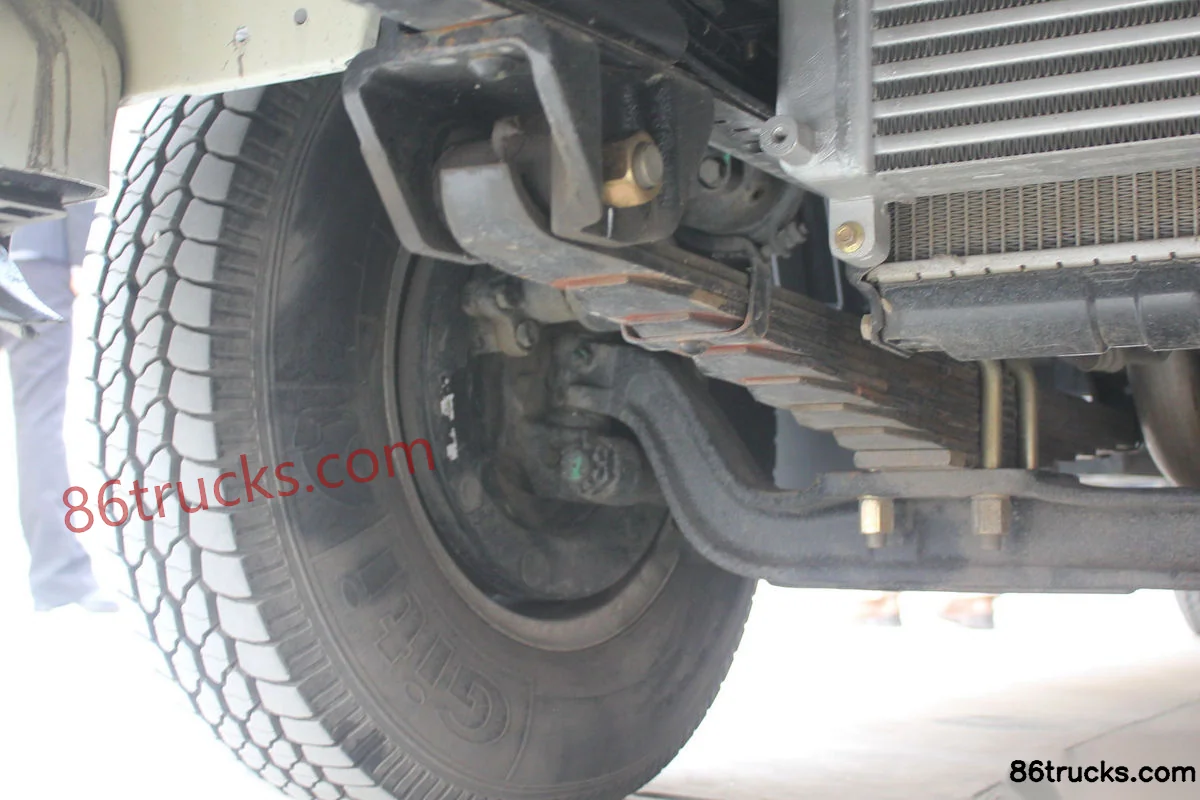

Chassis3

9 photos

FAQ

What emission standard does Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body)?

Key specs of Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body): Drive: 4x2; Horsepower: 124 hp; Emission: China IV; Fuel: Diesel; Engine: Chaochai4102; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body) suited for?

Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body) differ from other variants in the same series?

Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body) belongs to Karry Green Card T Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Green Card T 124hp 4X2(6 wheels) 3.8m Semi-Cab Van Light Truck (Wide Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
