Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck

Export reference
MSRP N/A
Horsepower: 168
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Fast Gear
Curb Weight:: 5.6ton
seating capacity: 3Personnel
Rated payload: 12.205ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck is a Light Truck featuring 6.2m cargo length, stake body cargo body, 3Personnel volume and 12.205t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China V emissions.

China V 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1180UPG3V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4700mm
Box length class: 6.2m
engine: FotonISF3.8s5168
transmission: Fast Gear6J70T
Rear Axle Ratio: 5.286
Cab length: 8.505m
Cab width: 2.55m
Cab height: 2.795m
Front track width: 1755mm
rear track: 1725mm
Curb Weight: 5.6ton
Rated payload: 12.205ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 24°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.295/2.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 592N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: Fast Gear6J70T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.2m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: K7
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 5.286
Leaf spring count: 10/12+9
Tire
Tire Size: 10.00R20,10.00-20
Number of tires: 6pcs
Control configuration
ABS:

Photos

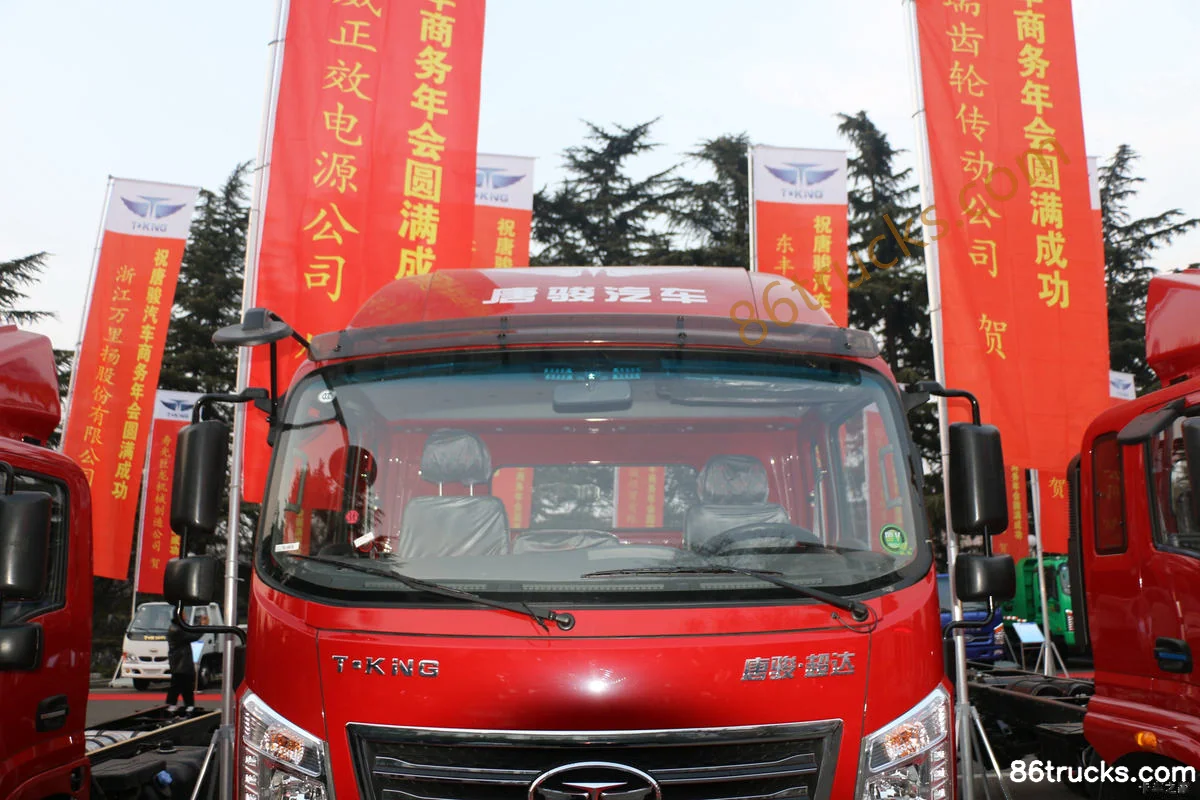

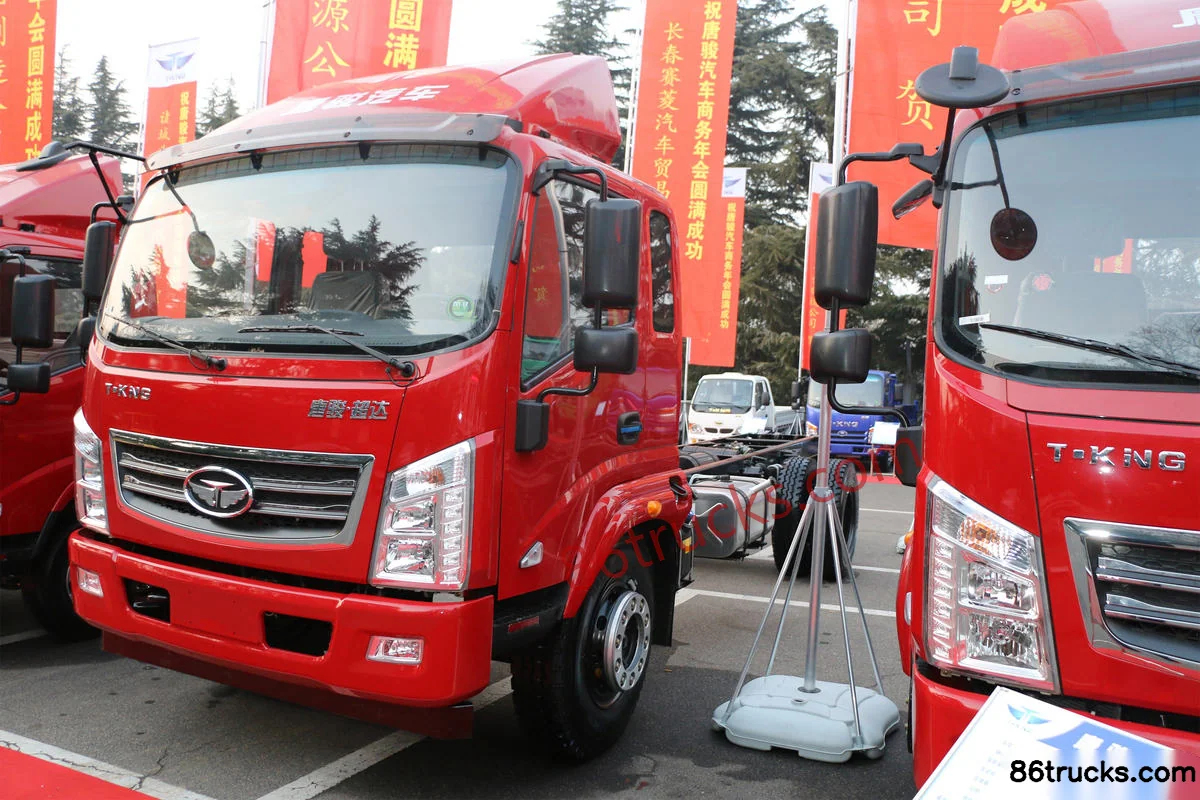

Exterior3

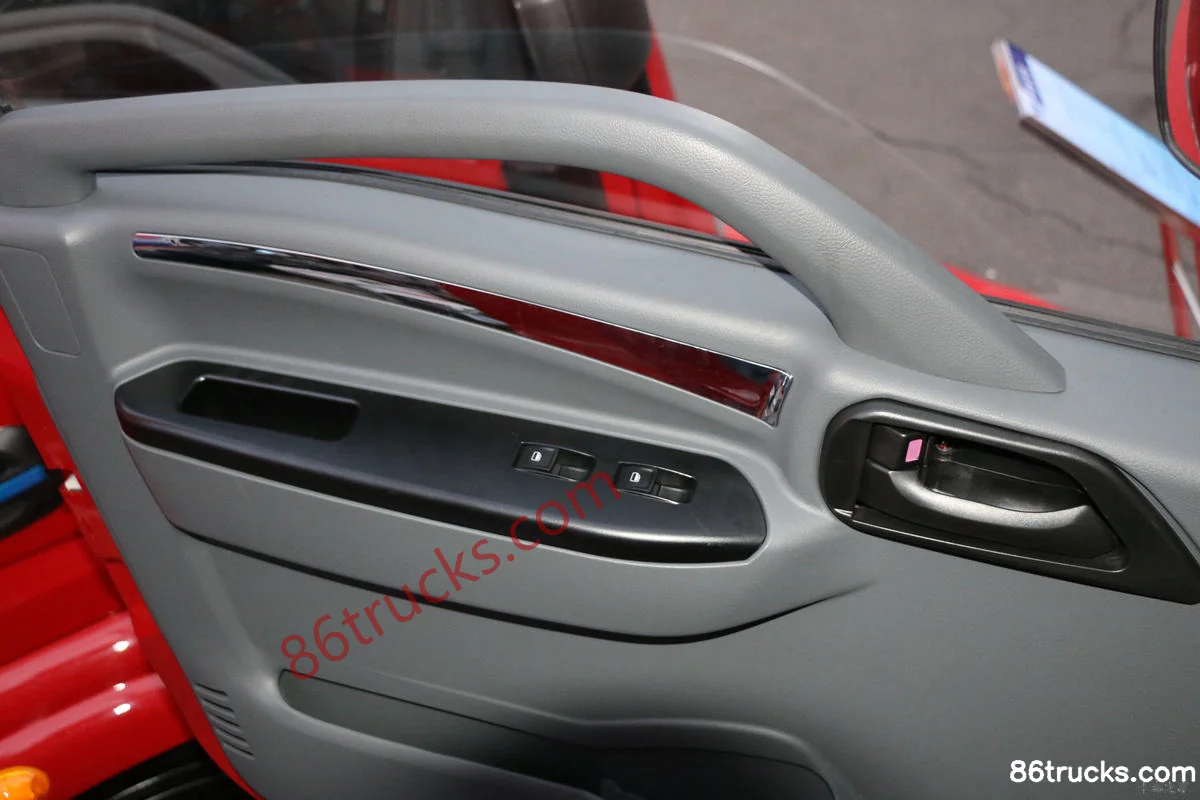

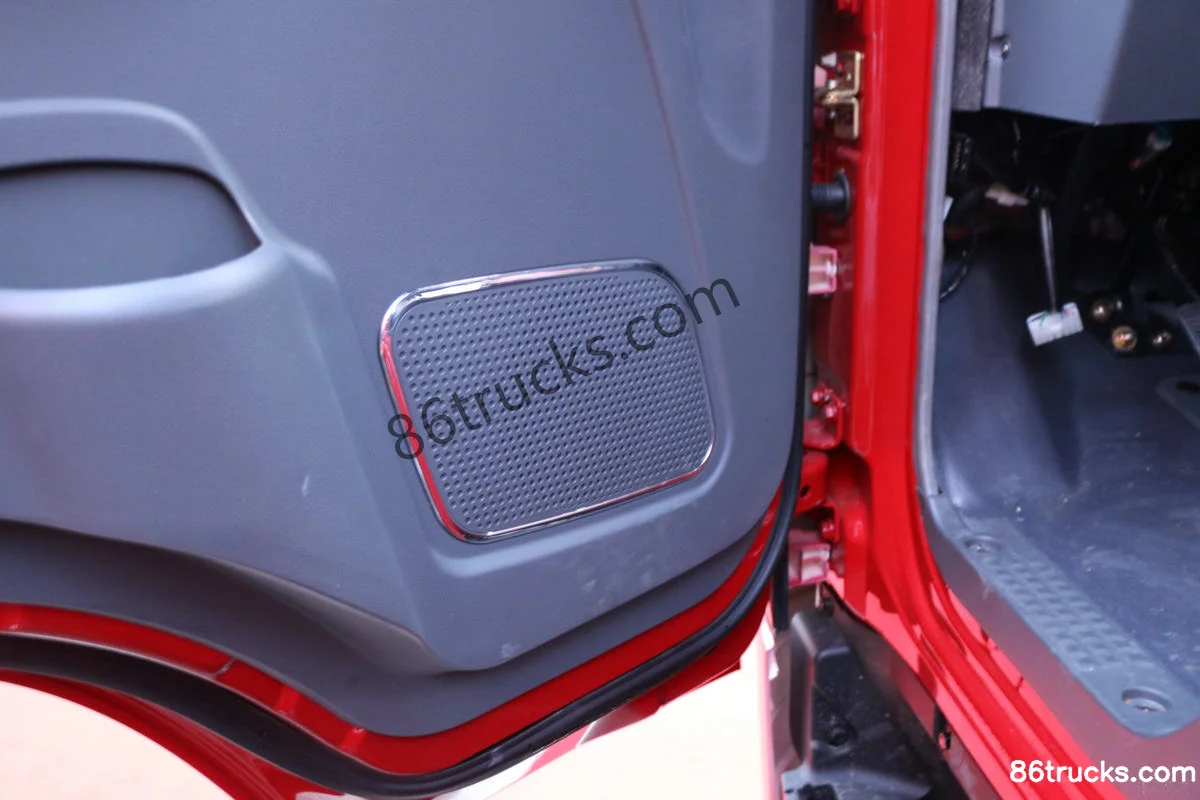

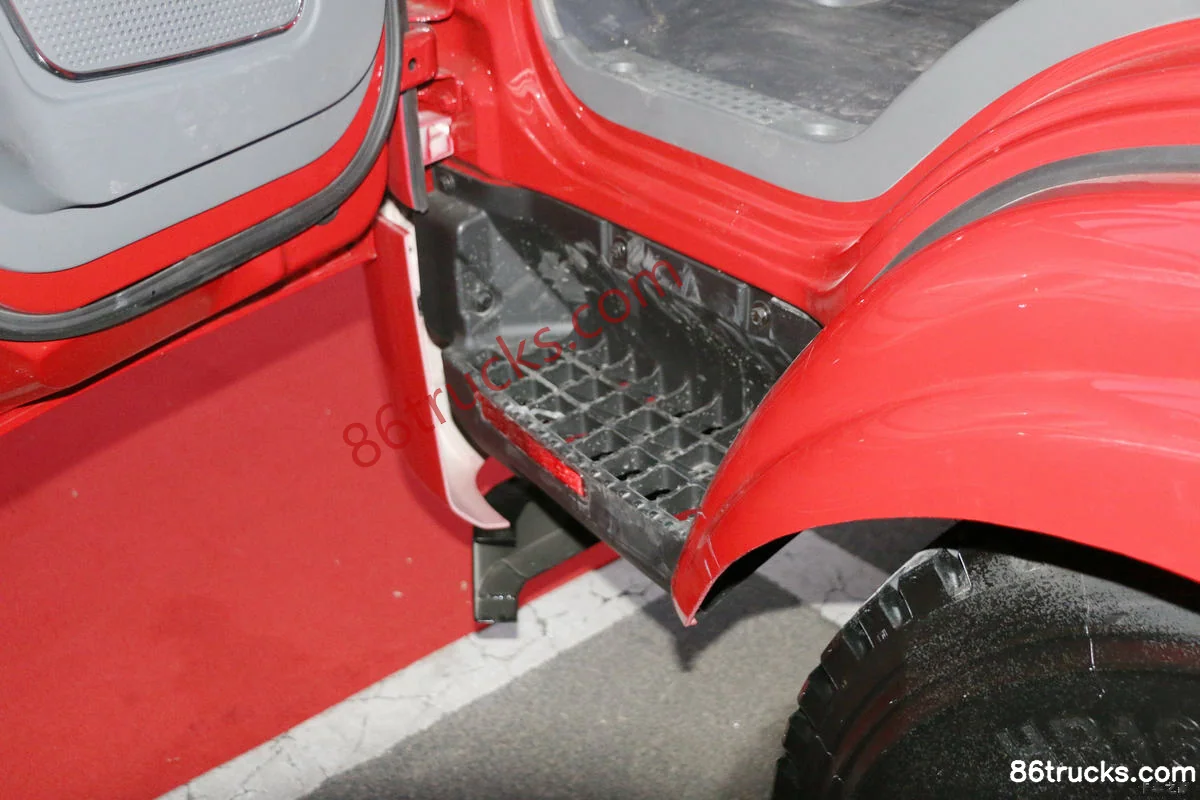

Cab3

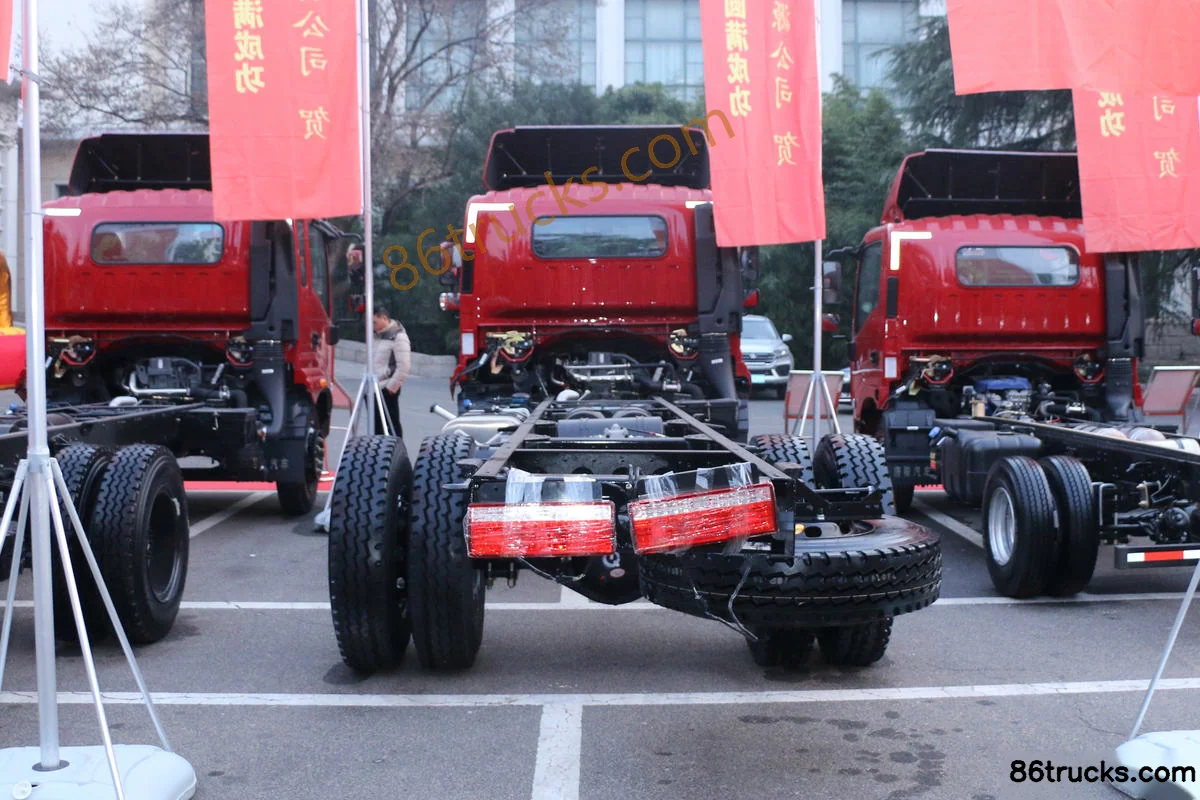

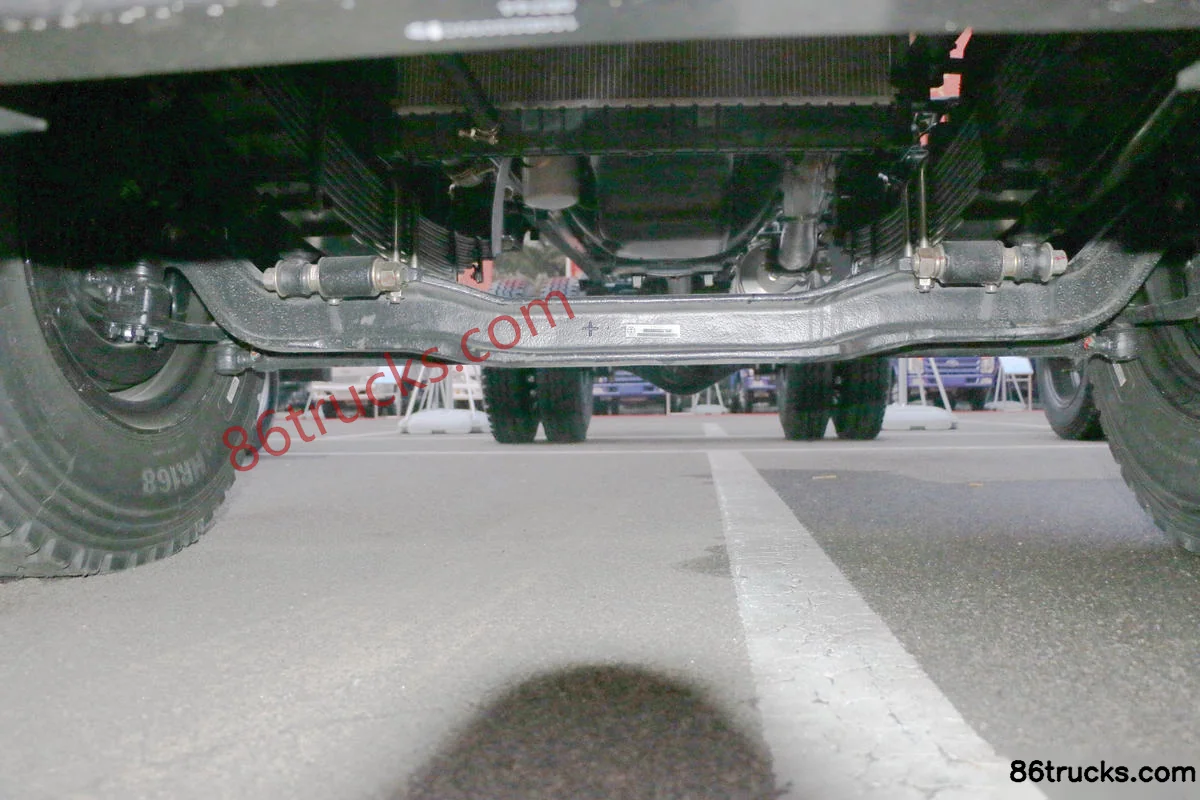

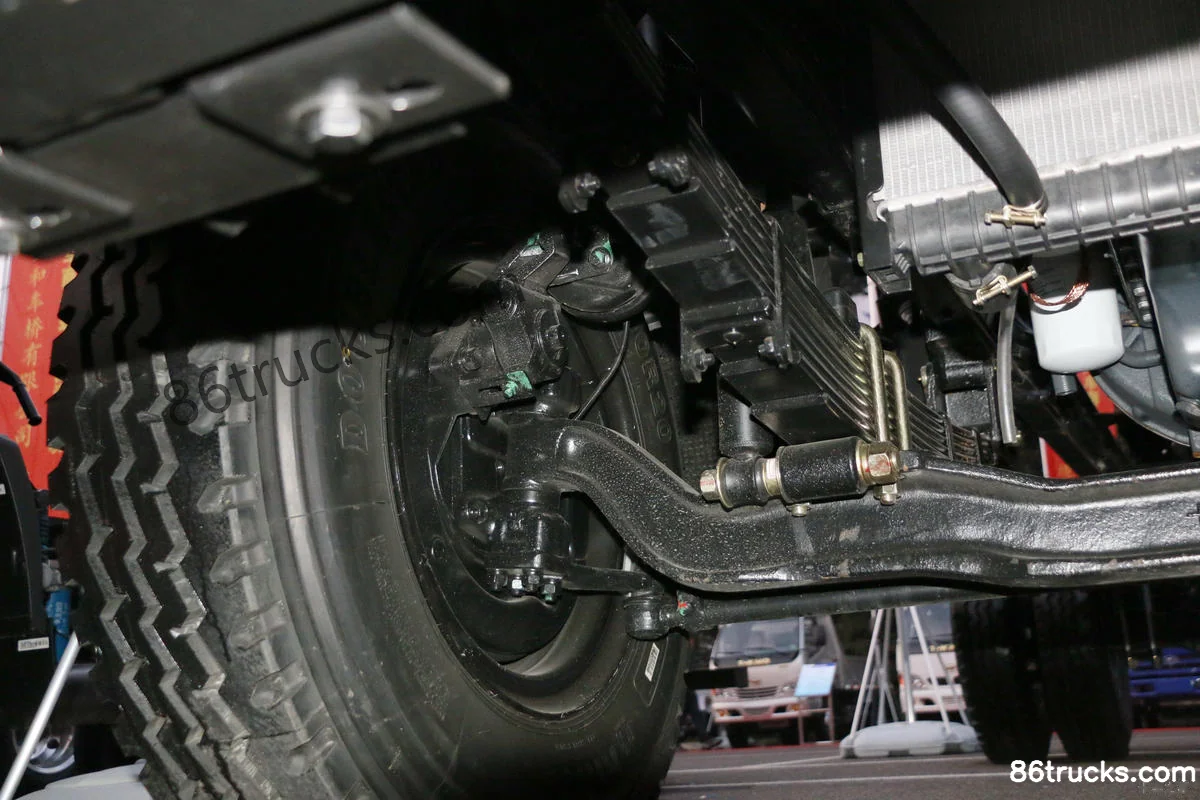

Chassis3

9 photos

FAQ

What emission standard does Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck?

Key specs of Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck: Drive: 4x2; Horsepower: 168 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck suited for?

Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck differ from other variants in the same series?

Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck belongs to Ouling K7 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling K7 Series 168 hp 4X2(6 wheels) 6.2m Row Half Panel Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
