FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 320
Fuel: Diesel
Engine: Dachai7.8L
Transmission: FAW Jiefang
Curb Weight:: 8.9ton
Wheelbase:: 7000mm
FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 8.97ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck is a Medium-duty truck featuring 9.6m cargo length, Van body cargo body, 2Personnel volume and 8.97t payload. On the powertrain side, it comes with a Dachai7.8L engine, 320 hp, 4X2 (6 wheels) drive and FAW Jiefang transmission.

320 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5181XXYP66K1L5E6
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7000mm
Box length class: 9.6m
engine: DachaiCA6DK2B32E65
transmission: FAW JiefangCA8TAX110FS1
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 8.9ton
Rated payload: 8.97ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao, Changchun
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Front/rear suspension: 1.5/3.5m
Version: Pro Elite Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: CA6DK2B32E65
Engine info: Dachai7.8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.751L
Max output power: 238kW
Max hp: 320Horsepower
Engine Type: DOC+DPF+HI+SCR
Transmission Parameters
Transmission Model: CA8TAX110FS1
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.46m
Cargo box height: 2.6m
*Cargo box interior width: 2.46
Cab parameters
Cab: High-roof large row half flat floor cab
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Chassis Specs
Front axle description: F4N
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×(6.5+4)mm
rear axle description: ф378 cast axle
rear axle allowable load: 11500kg
Leaf spring count: 7/7+3
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

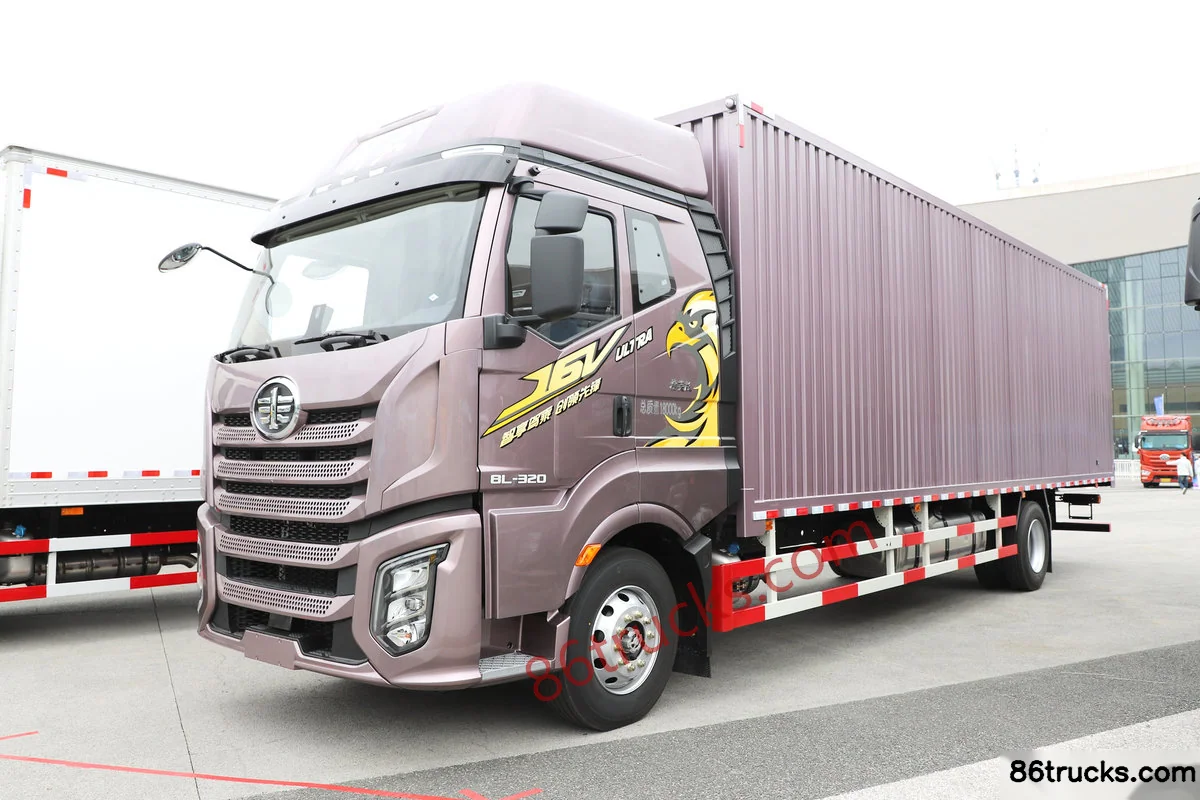

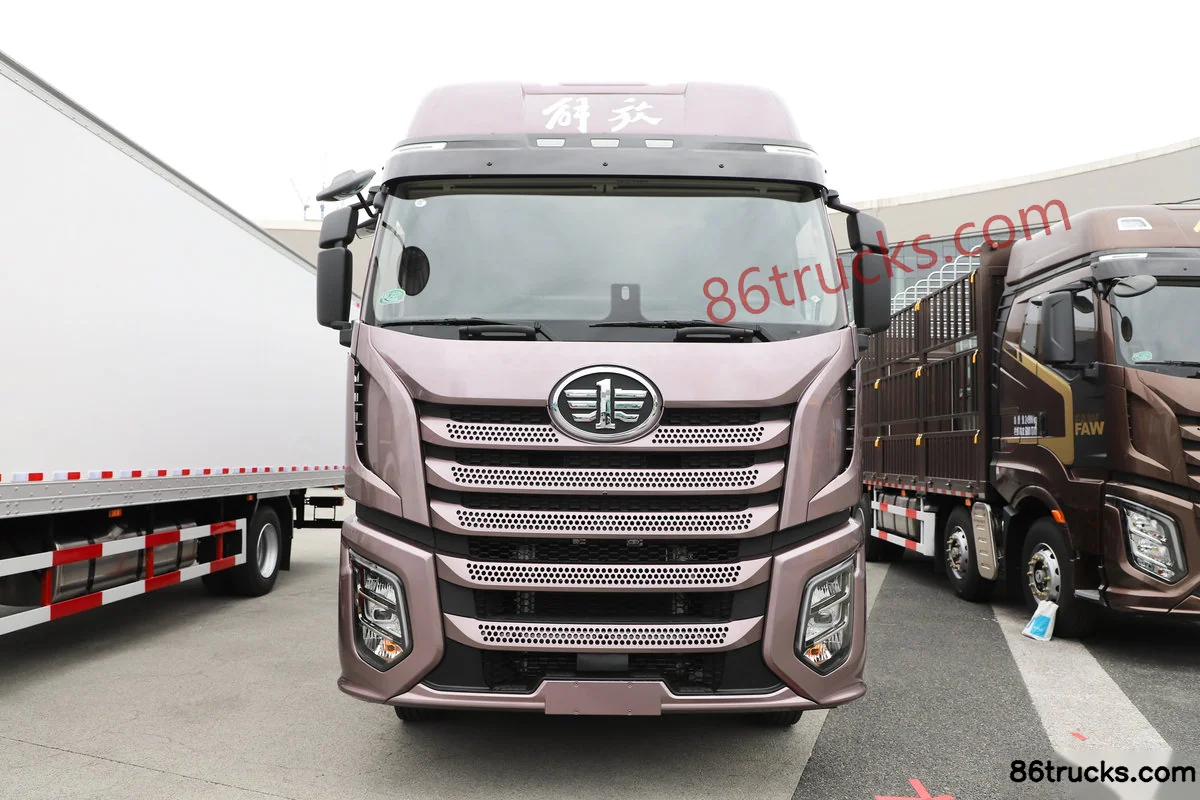

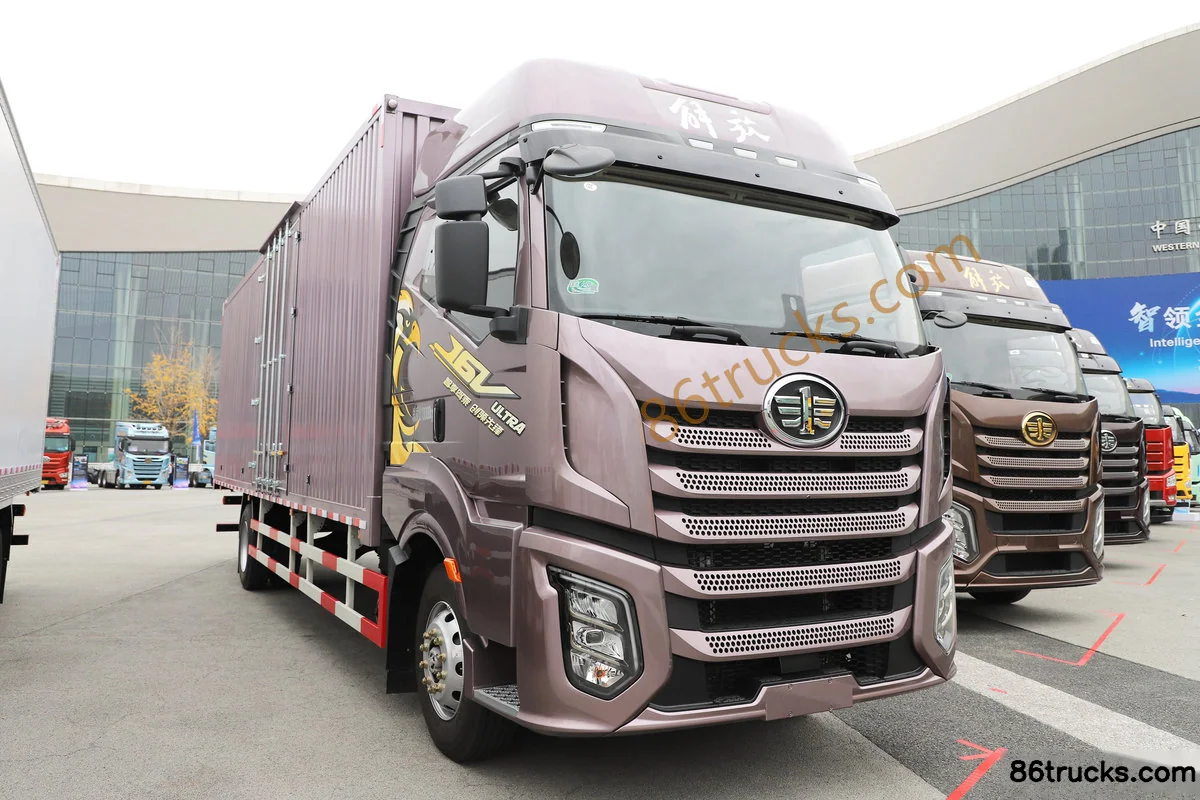

Exterior3

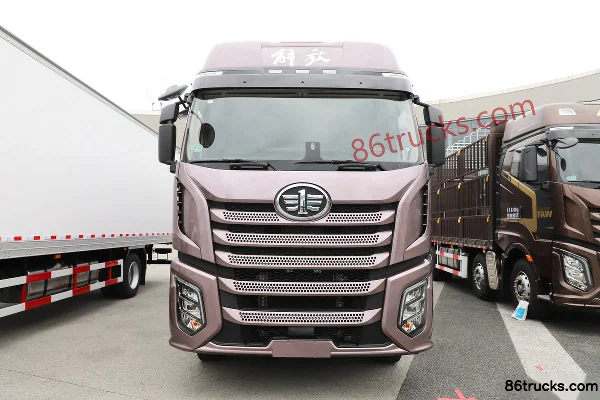

FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Exterior (1) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Exterior (2) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Exterior (3) | 86Trucks

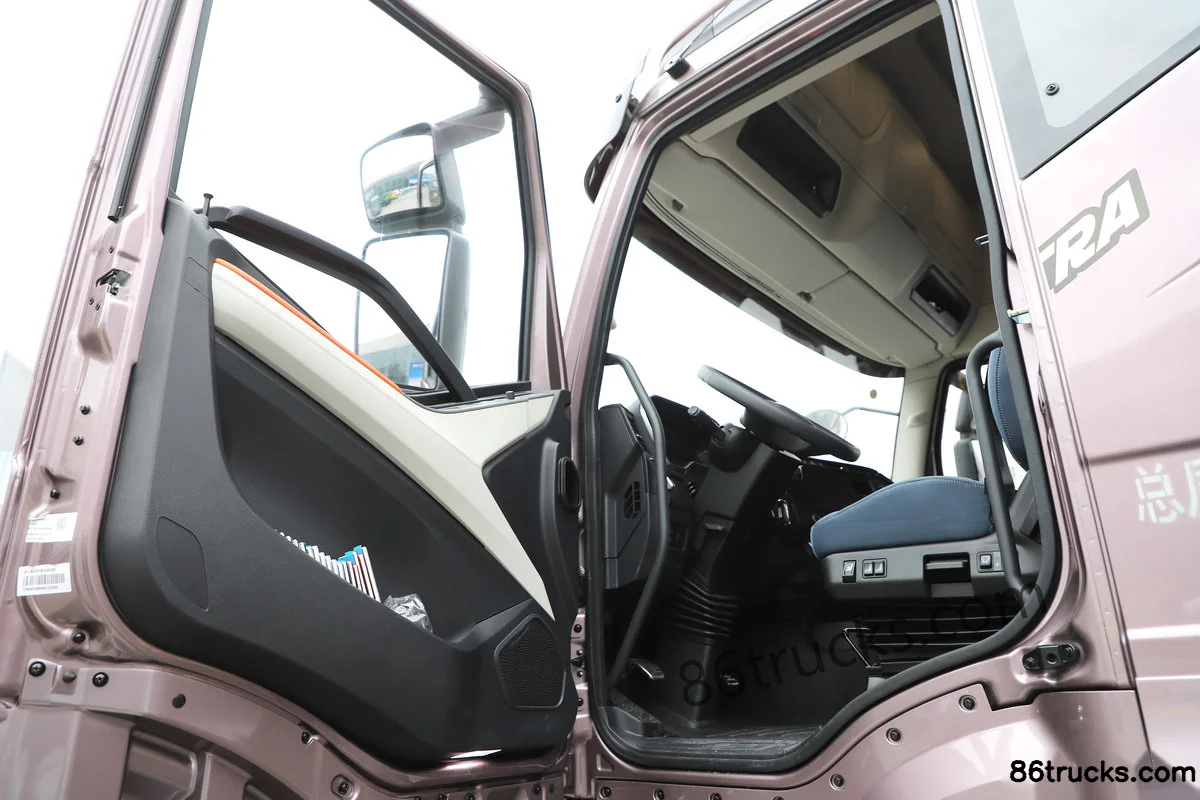

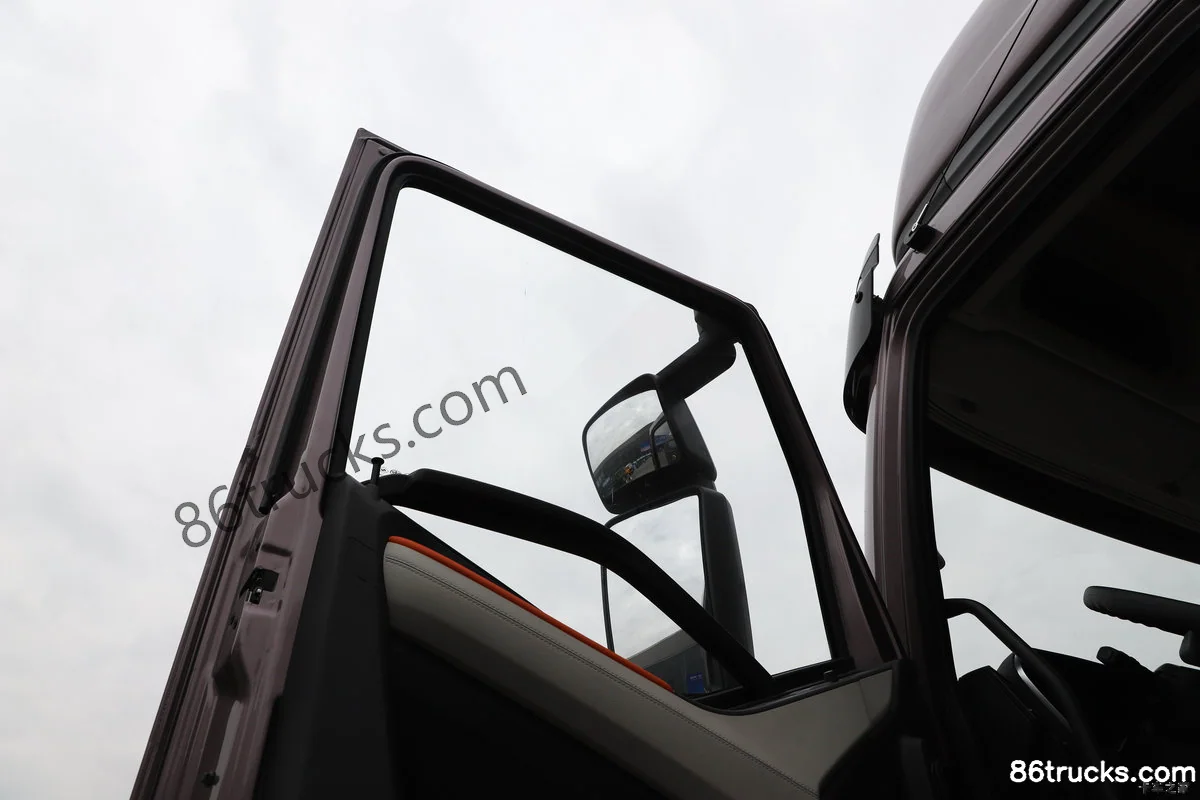

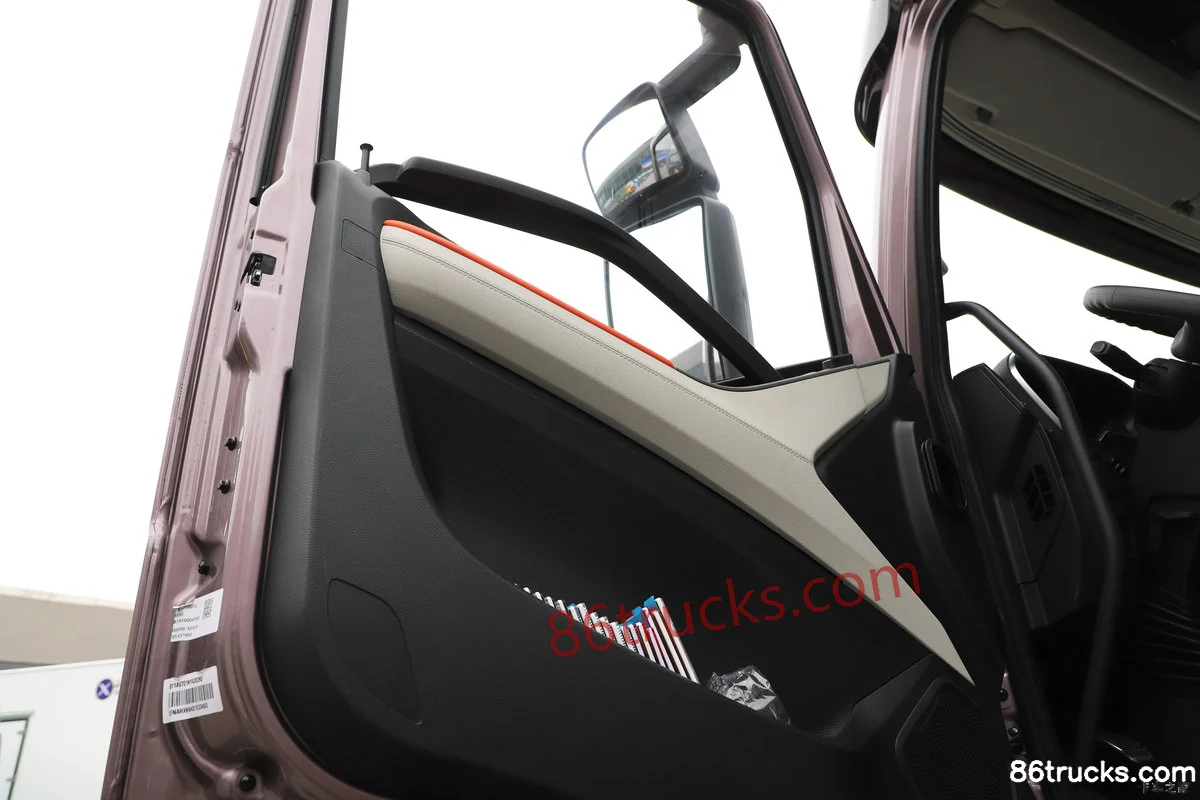

Cab3

FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Cab (1) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Cab (2) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Cab (3) | 86Trucks

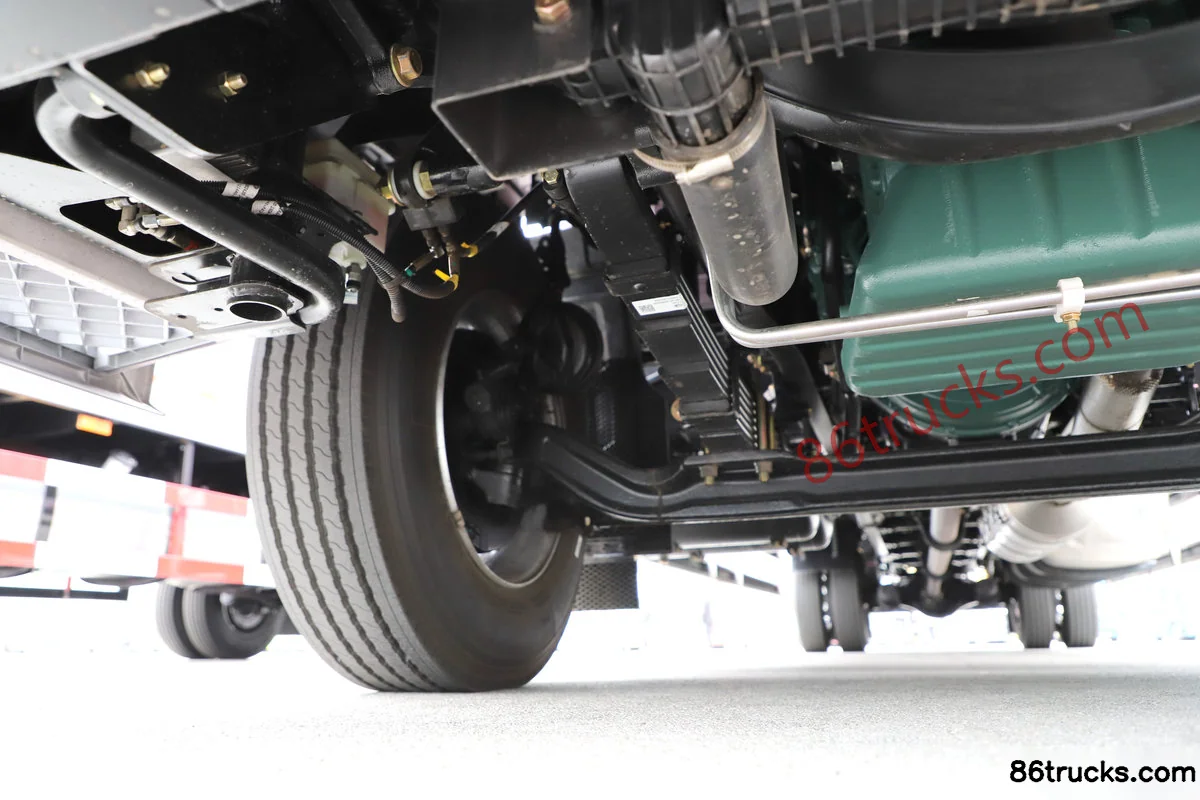

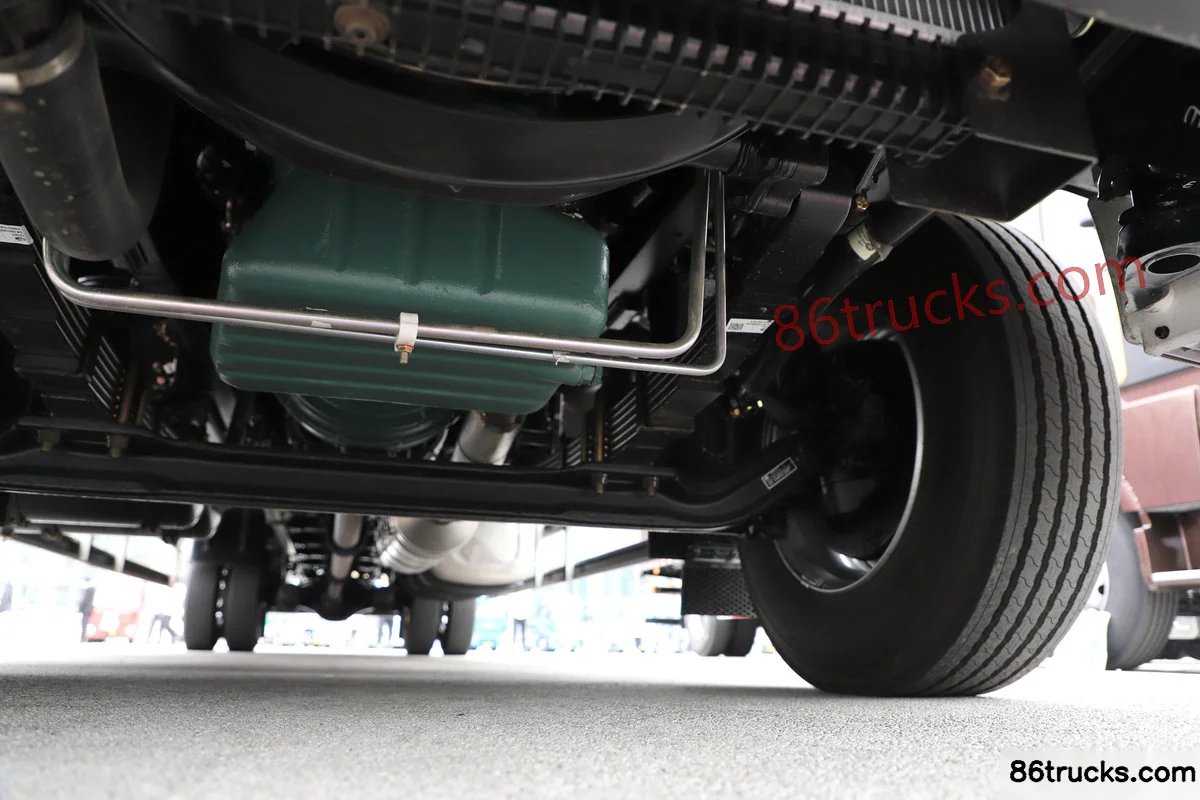

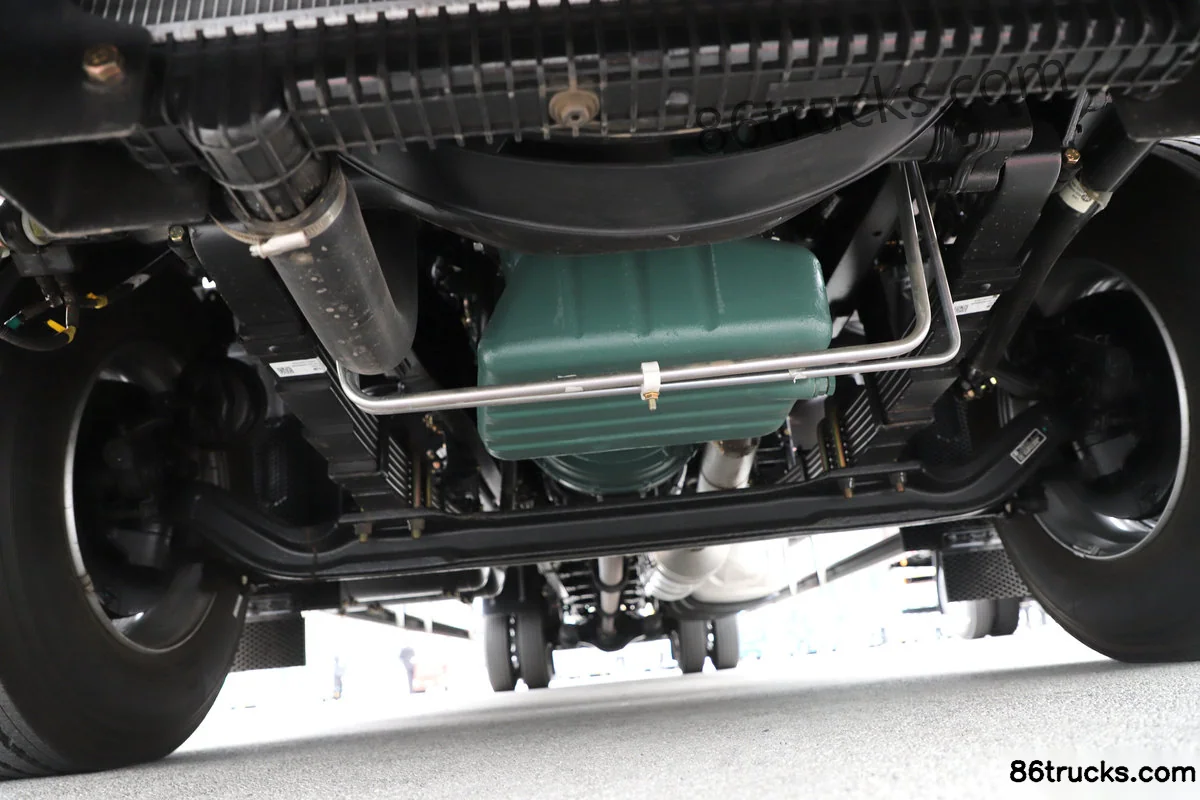

Chassis3

FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Chassis (1) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Chassis (2) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Chassis (3) | 86Trucks

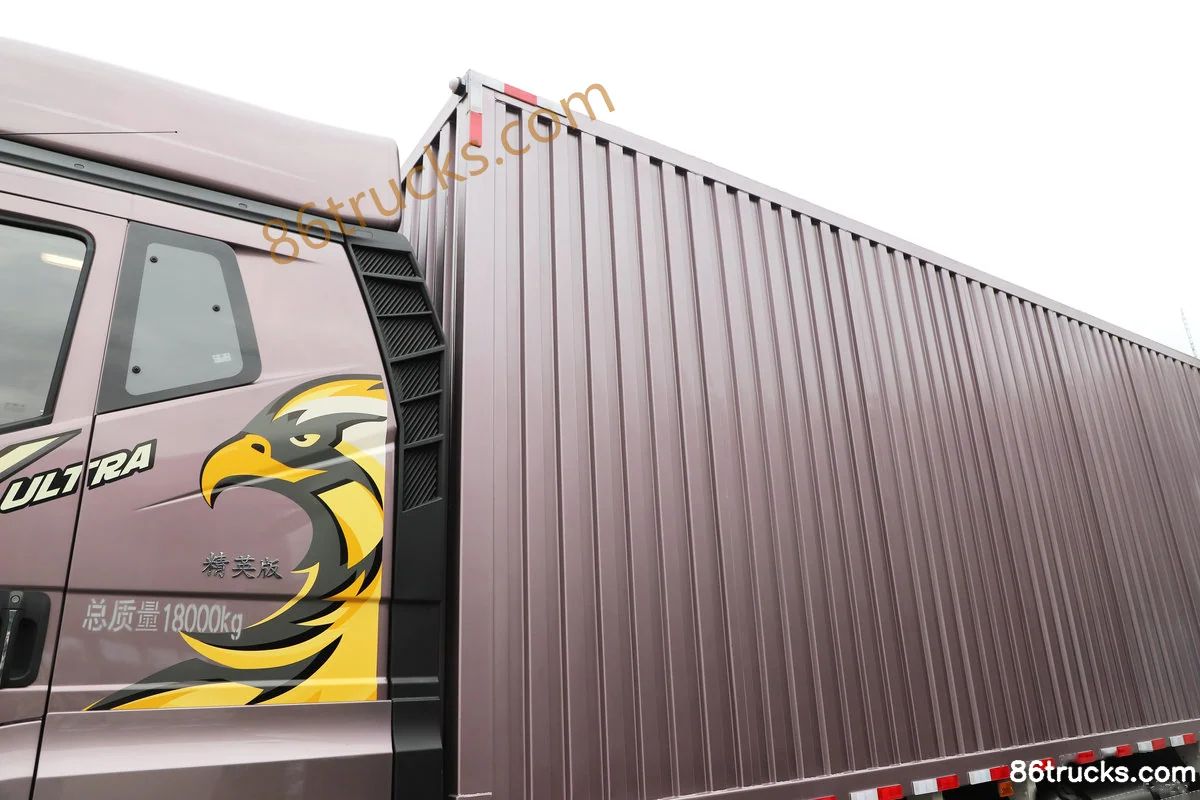

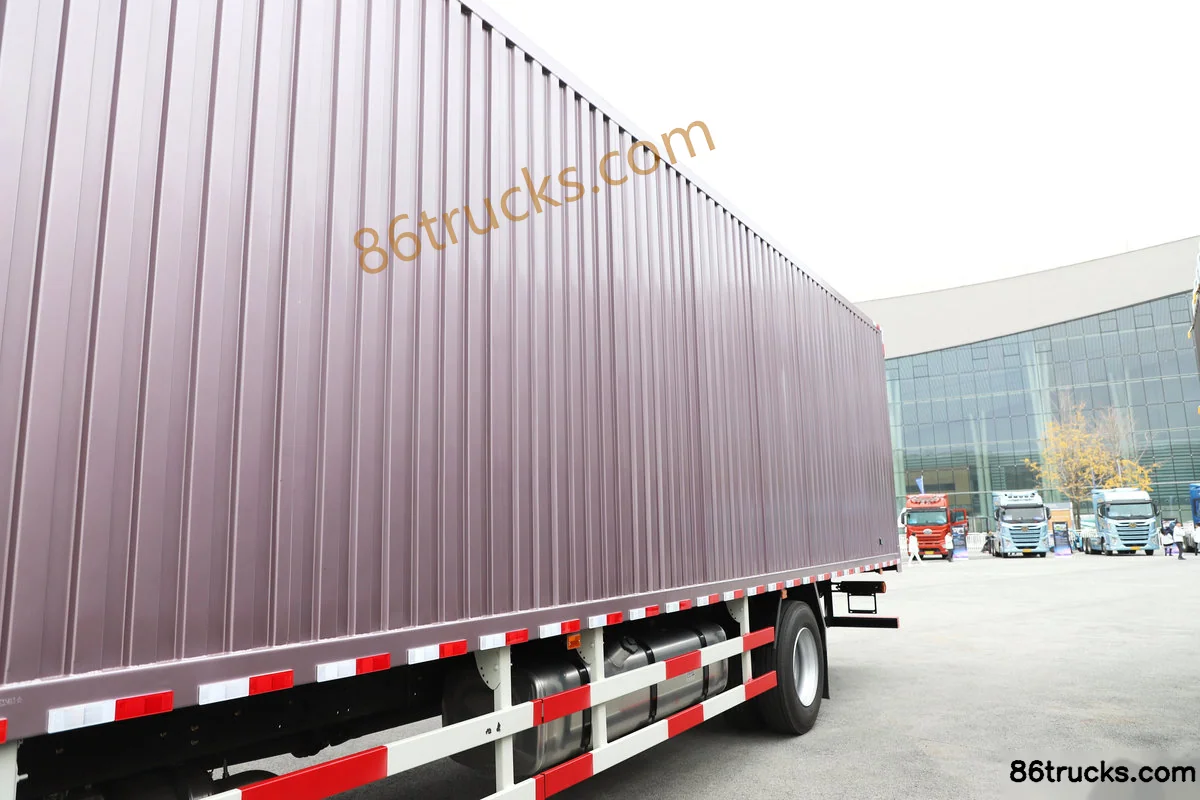

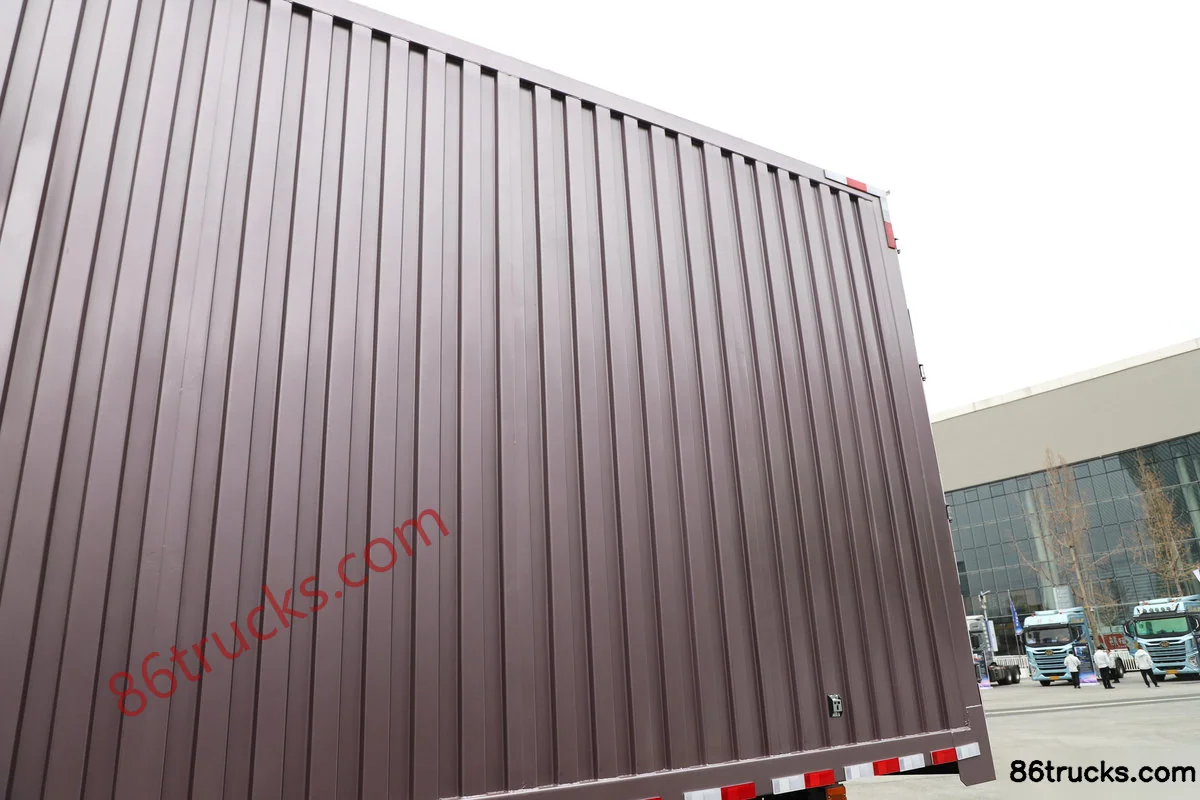

Body3

FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Body (1) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Body (2) | 86Trucks FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck?

Key specs of FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck: Drive: 4x2; Horsepower: 320 hp; Fuel: Diesel; Engine: Dachai7.8L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck suited for?

FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck differ from other variants in the same series?

FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck belongs to FAW Jiefang J6V Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6V Pro Elite Edition 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-Speed 9.6m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
