Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis

Export reference
MSRP N/A
Curb Weight:: 1.76ton
Wheelbase:: 3095mm
Front tire specification:: 245/70R16
Rated payload:: 0.485ton
Displacement:: 3L
Model code (announced):: JXW1030BSA
Drive 2WD
Horsepower 177
Emission China V
Fuel Diesel

Overview

The Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis is a pickup truck featuring 2WD drive, 177 hp, 2.69t GVW and China V emissions. On the powertrain side, it comes with Diesel fuel.

China V 177 Diesel 2WD

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JXW1030BSA
Drive type: 2WD
Front/rear track width: 1570/1570mm
Wheelbase: 3095mm
Cab length: 5.295m
Cab width: 1.86m
Cab height: 1.775m
Approach/departure angle: 25/21°
Curb Weight: 1.76ton
Rated payload: 0.485ton
Constant-speed fuel consumption per 100 km: 8.1L/100km
GVWR: 2.69ton
Max. speed: 175km/h
Origin: Jiangxi
Front/rear suspension: 0.905/1.295m
Energy Type: Diesel
Engine parameters
Engine Model: Isuzu4JJ1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3L
Emission standard: China V
Max output power: 130kW
Max hp: 177Horsepower
Max torque: 380N·m
Chassis Specs
Front axle suspension type: Double wishbone coil independent suspension
rear axle suspension type: Leaf spring non-independent suspension
Chassis Structure: Body-on-frame
power steering type: hydraulic power steering
Wheel brake
Front brake type: Disc
rear brake type: Drum Type
Front tire specification: 245/70R16
Rear Wheel Specification: 245/70R16
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Control configuration
ABS:

Photos

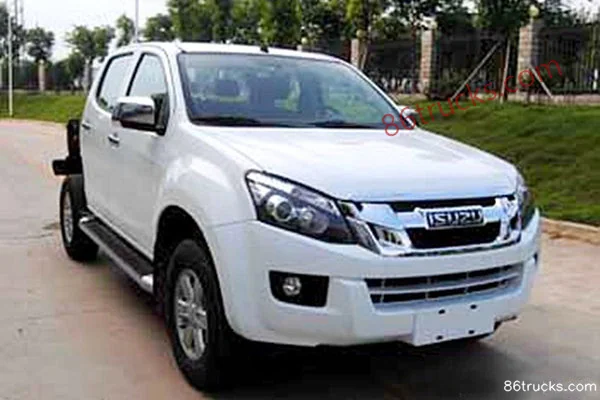

Exterior1

1 photos

FAQ

What emission standard does Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis?

Key specs of Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis: Drive: 2WD; Horsepower: 177 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis suited for?

Match Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis differ from other variants in the same series?

Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis belongs to Jiangxi IsuzuD-MAX (pickup truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jiangxi Isuzu D-MAX 3T Diesel 177hp 2WD Double Row Pickup Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
