Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI)

Export reference
From $7,097
MSRP ¥5.11M CNY
Horsepower: 116
Emission: China VI
Fuel: gasoline
Engine: Dongan1.5L
Curb Weight:: 1.205ton
Wheelbase:: 3050mm
seating capacity: 5Personnel
Rated payload: 0.69ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The CHENGGONG AUTO Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) is a mini truck featuring 2.16m cargo length, Stake type cargo body, 5Personnel volume and 0.69t payload. On the powertrain side, it comes with a Dongan1.5L engine, 116 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 116 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SCH5025CCYS1
Type: stake truck
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 2.2m
engine: DonganDAM15KR
transmission: 5-speed transmission
Cab length: 4.78m
Cab width: 1.635m
Cab height: 2.535m
Front track width: 1390mm
rear track: 1410mm
Curb Weight: 1.205ton
Rated payload: 0.69ton
GVWR: 2.22ton
Max. speed: 100km/h
Origin: Changzhi, Shanxi
tonnage class: mini truck
Approach angle: 32°
departure angle: 28°
Remarks: Brake Force Distribution
Front/rear suspension: 0.58/1.15m
Version:
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM15KR
Engine info: Dongan1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.498L
Emission standard: China VI
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 150N·m
Max torque speed: 4300-4500rpm
Rated speed: 6000rpm
Engine Type: Horizontal, inline 4-cylinder, dual overhead camshaft, multi-point electronic gasoline injection
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 2.16m
Cargo box width: 1.54m
*Cargo box interior width: 1.54
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 43L
Chassis Specs
Front axle allowable load: 757kg
rear axle allowable load: 1463kg
Leaf spring count: -/6
Suspension (front/rear): MacPherson independent suspension / leaf spring non-independent suspension
Tire
Tire brand: Sanli
Tire Size: 175R14LT
Number of tires: 4pcs
Control configuration
ABS:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

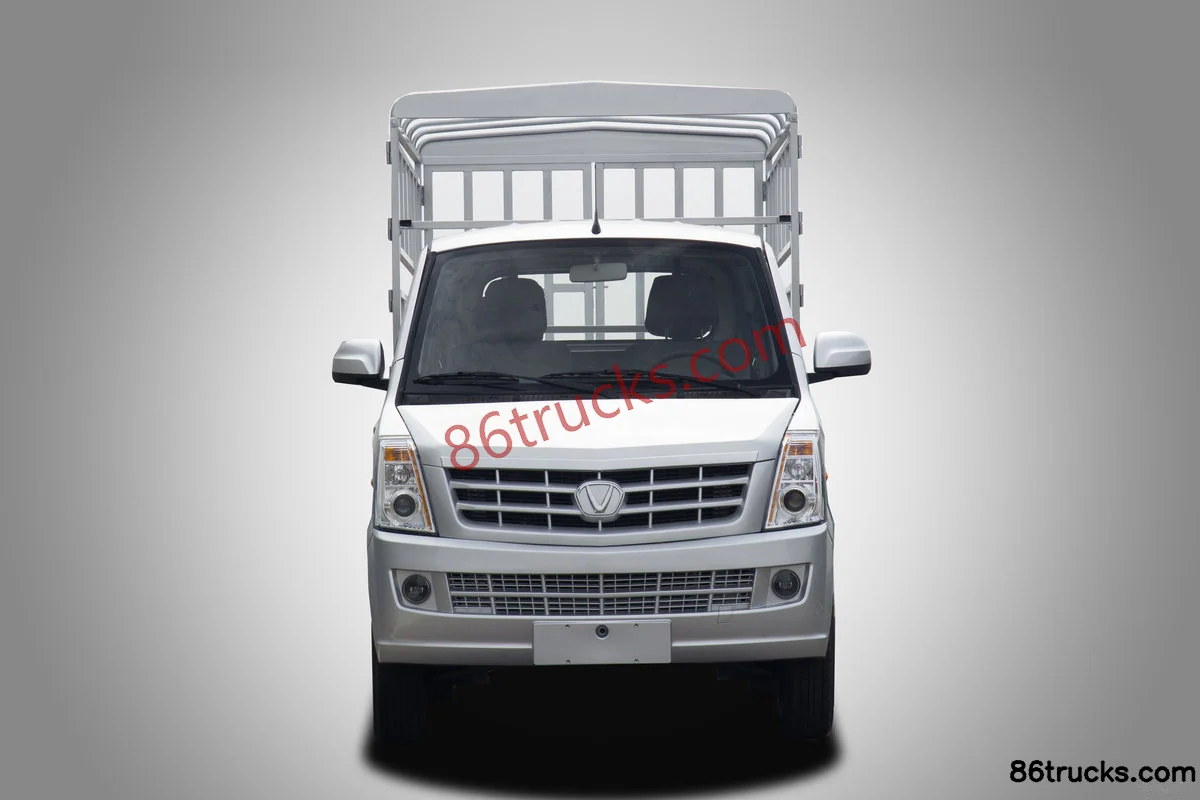

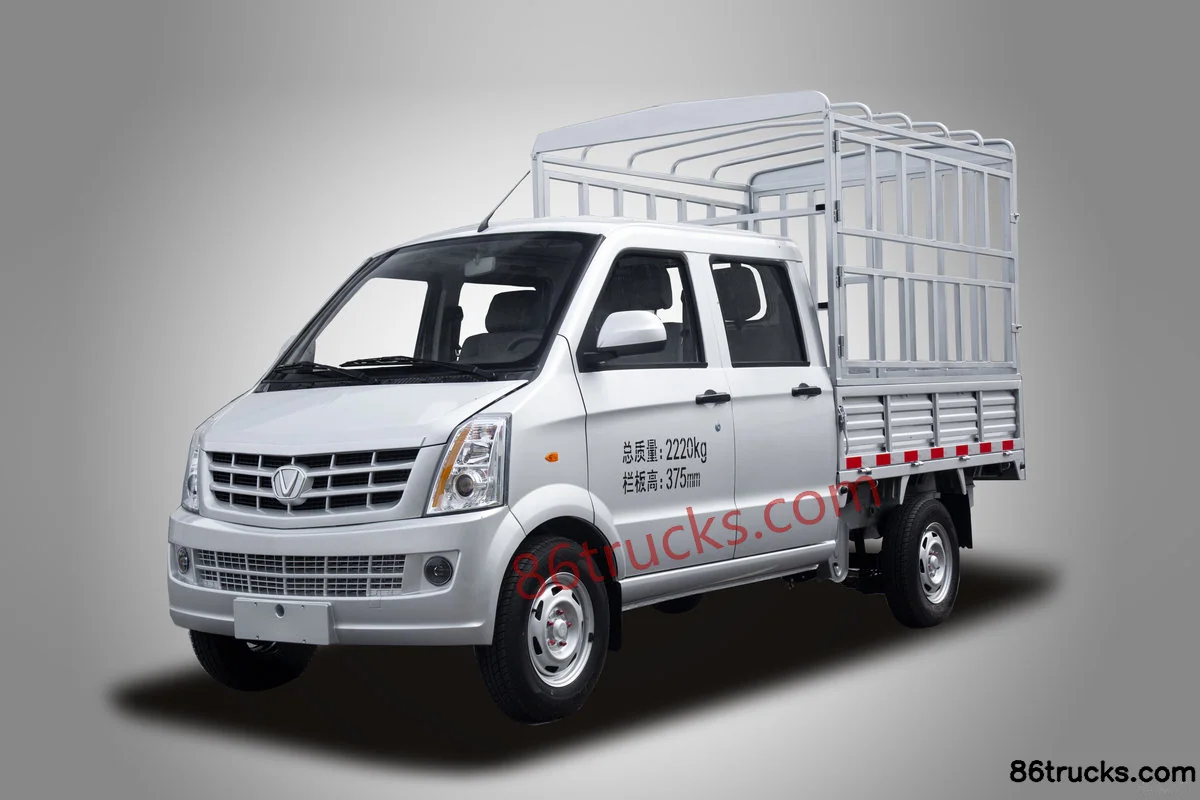

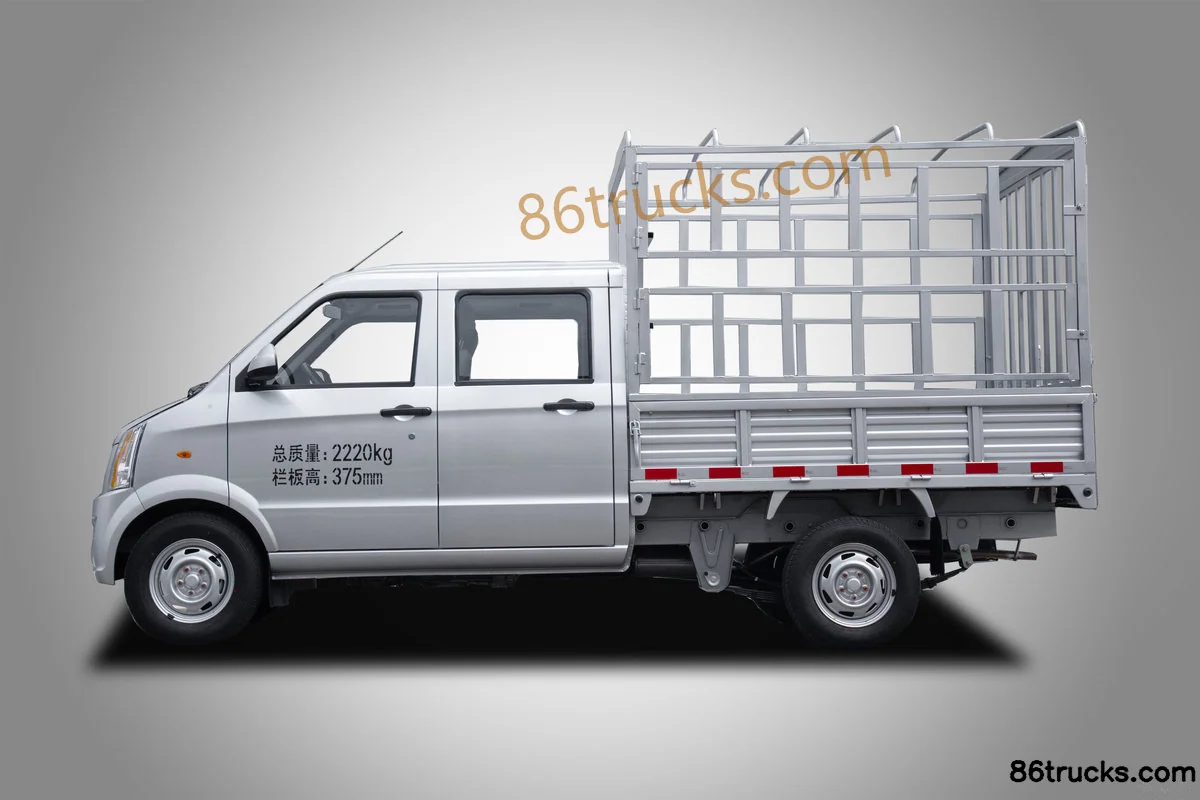

Photos

Exterior3

3 photos

FAQ

What is the export price of Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI), and what does it include?

Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) export reference is about From $7,097; MSRP is ¥5.11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI)?

Key specs of Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI): Drive: 4x2; Horsepower: 116 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan1.5L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) suited for?

Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) differ from other variants in the same series?

Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI) belongs to CHENGGONG AUTO K4 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengong K4 Basic Type 1.5L 116 hp 4X2(6 wheels) Gasoline 2.16m Double Row Stake Micro Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
