Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels)

Export reference
From $25,000
MSRP ¥18M CNY
Front axle allowable load:: 1800kg
Wheelbase:: 3100mm
Model code (announced):: CL1040JBEV
Type:: Chassis
Cab length:: 5.65m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Nanjing Yuebo
Curb Weight: 2.3ton

Overview

The Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels) is a Light Truck featuring 220km battery/range, Nanjing Yuebo motor, 4X2 (6 wheels) drive and 1800kg payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CL1040JBEV
Type: Chassis
Drive type: 4X2
Wheelbase: 3100mm
Cab length: 5.65m
Cab width: 1.91m
Cab height: 2.33m
CLTC range: 220km
Curb Weight: 2.3ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Suizhou, Hubei
tonnage class: Light Truck
Version: Lightweight version
Energy Type: Electric
electric motor
Motor 1 Brand: Nanjing Yuebo
Motor 1 Model: TZ230XS-YBM415
Max torque: 320N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 50kW
Peak power: 94kW
total rated torque: 170N·m
total peak torque: 320N·m
Electronic Control
ECU Brand: Nanjing Yuebo
Battery/Charging
Charging method: Fast Charge
Battery Brand: Jiangxi Xingying
Battery type: NMC lithium battery pack
Battery capacity: 76.65kWh
fast charge time: 1.5h
Battery rated voltage: 383.2V
Energy Density: 202
Battery total voltage: 439V
Battery Model: PK02-BAK
Cab parameters
Cab: flat front single-row, tiltable
Cab width: 1910mm
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1800kg
rear axle description: Non-independent suspension, leaf spring
rear axle allowable load: 2695kg
Tire
Tire Size: 6.50-16LT 10PR
Number of tires: 4pcs
Control configuration
ABS:
Power steering: hydraulic power steering
Load-sensing proportioning valve (SABS):
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
AC control type: Manual
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

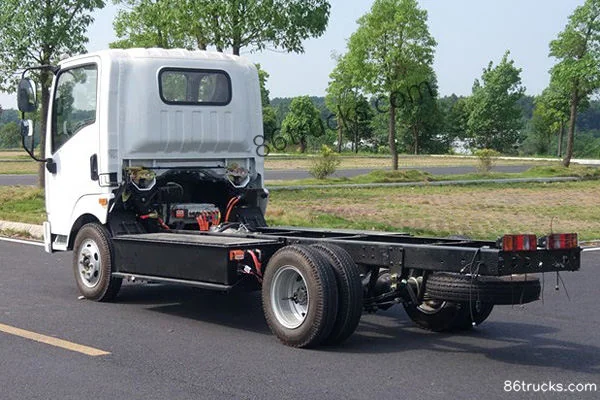

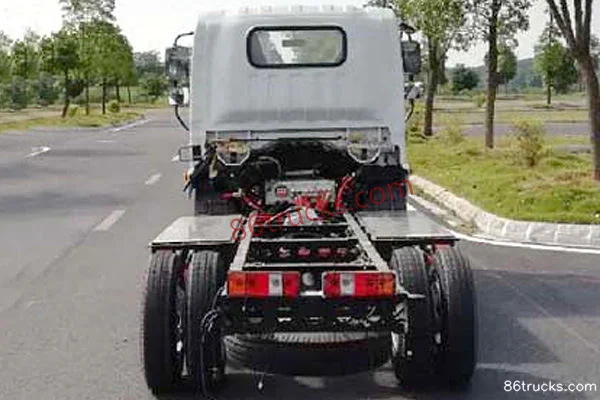

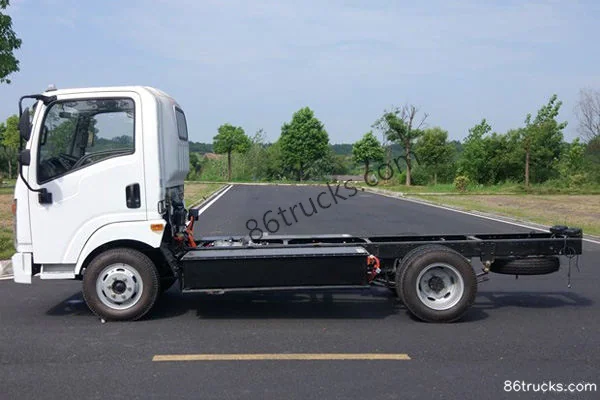

Exterior3

3 photos

FAQ

What is the export price of Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels), and what does it include?

Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels) export reference is about From $25,000; MSRP is ¥18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels)?

Key specs of Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels) suited for?

Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels) differ from other variants in the same series?

Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels) belongs to Chengli Chengli Special Vehicle Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengli New Energy Lightweight Edition 4.5T Single Row Pure Electric Cargo Truck Chassis 76.65kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
