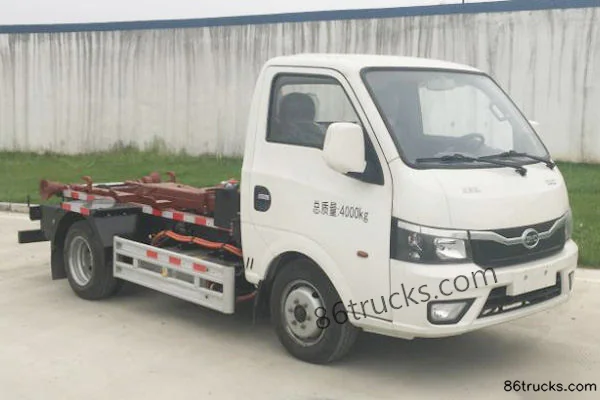

BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.41ton
Wheelbase:: 2700mm
Model code (announced):: XBE5040ZXXBEV
Cab length:: 5.2m
GVWR:: 4ton
Max. speed:: 110km/h
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: BYD
Curb Weight: 2.46ton

Overview

The BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels) is a Electric Garbage Truck featuring 280km battery/range, BYD motor, 4X2 (6 wheels) drive and 1.41t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): XBE5040ZXXBEV
Drive type: 4X2
Wheelbase: 2700mm
Cab length: 5.2m
Cab width: 1.75m
Cab height: 1.97m
CLTC range: 280km
Curb Weight: 2.46ton
Rated payload: 1.41ton
GVWR: 4ton
Max. speed: 110km/h
Origin: Hangzhou, Zhejiang
Energy Type: Electric
electric motor
Motor 1 Brand: BYD
Motor 1 Model: BYD-2217TZ-XS-W
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 100kW
total peak torque: 300N·m
Body Parameters
Special Function Description: This vehicle is equipped with hydraulic cylinders, hook lift arms, and other specialized devices for loading and unloading waste.
Body Brand: BYD brand
Battery/Charging
Battery Brand: BYD
Battery type: NMC lithium battery pack
Battery capacity: 60.23kWh
Energy Density: 151.2
Chassis Specs
Front axle load: 1450ton
Rear Axle Load: 2550ton
Chassis Series: T4
Chassis Model: BYD10411N7BEVD
Tire
Tire Size: 185R15LT
Number of tires: 6pcs

Photos

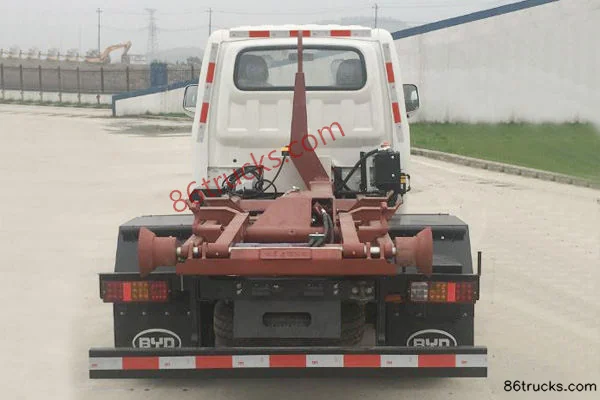

Exterior2

2 photos

FAQ

What are the key specs of BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels)?

Key specs of BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels) suited for?

BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels) differ from other variants in the same series?

BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels) belongs to BYD T4 mini truck (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T4C 4T 5.2m Single Row Electric Hook Lift Garbage Truck 60.23kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
