Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi)

Export reference
MSRP N/A
Curb Weight:: 6.41ton
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 4700mm
Cab dimensions:: 8.365×2.48×2.93m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 5×2.1×1.4m
Rated payload: 9.375ton
Drive 4X2 (6 wheels)
Horsepower 180

Overview

The Jinbi (Jinbi) Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi) is a water sprinkler truck featuring 5×2.1×1.4m tank capacity, 9.375t payload, 9.8m³ volume and 6.41ton GVW. On the powertrain side, it comes with 180 hp, 4X2 (6 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.365×2.48×2.93m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 4700mm
Vehicle origin: Panjin, Liaoning
Front track width: 1900mm
rear track: 1800mm
Curb Weight: 6.41ton
Rated payload: 9.375ton
Max. speed: 90km/h
Front/rear suspension: 1.365/2.3m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 5×2.1×1.4m
Vehicle certification code: PJQ5160GSS
Body Brand: Jinbi Brand
Others: Medium: water; density: 1000 kg/m³; vehicle equipped with reflective markings on both sides and rear.
Engine parameters
Engine Model: Xichai CA4DF3-17E3
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.752L
Emission standard: China III / Euro III
Max output power: 132kW
Max hp: 180Horsepower
Rated speed: 2300rpm
Engine Type: Inline, direct injection, turbocharged, intercooled, electronically controlled common rail
Cargo box parameters
Box volume: 9.8m³
Chassis Specs
Chassis Brand: FotonAuman
Chassis Model: BJ5163GLFFG-S
Leaf spring count: 10/10+8
Tire
Tire Size: 9.00-20,9.00R20,10.00-20,10.00R20
Number of tires: 6pcs

Photos

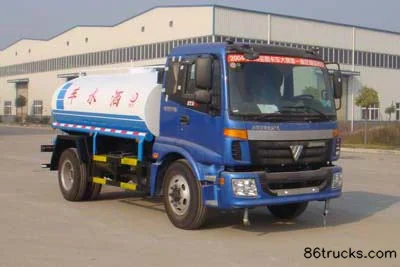

Exterior1

1 photos

FAQ

What emission standard does Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi)?

Key specs of Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi): Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi) suited for?

Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi) differ from other variants in the same series?

Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi) belongs to Jinbi (Jinbi) Foton Auman Chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman 103 hp 4X2(6 wheels) Water Sprinkler Truck (Jinbi)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
