Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand)

Export reference
MSRP N/A
Curb Weight:: 5.395ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 6.9×2.35×2.84m
Truck Type:: fuel tanker truck
Tank Size: 3.8×1.99×1.39m
Rated payload: 6.405ton
Drive 4X2 (6 wheels)
Horsepower 160

Overview

The Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand) is a fuel tanker truck featuring 3.8×1.99×1.39m tank capacity, 6.405t payload, 7.7m³ volume and 11.995t GVW. On the powertrain side, it comes with 160 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.9×2.35×2.84m
Truck Type: fuel tanker truck
Drive type: 4X2
Wheelbase: 3800mm
Vehicle origin: Jinan, Shandong
Front track width: 1776mm
rear track: 1555mm
Curb Weight: 5.395ton
Rated payload: 6.405ton
GVWR: 11.995ton
Max. speed: 80km/h
Front/rear suspension: 1.18/1.92m
Energy Type: Diesel
Body Parameters
Tank Size: 3.8×1.99×1.39m
Tank Volume: 7.7m3
Transport medium: Diesel, kerosene, gasoline
Vehicle certification code: JYJ5077GJYF
Body Brand: Luye Brand
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Max torque speed: 1400-2300rpm
Rated speed: 3000rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail
Chassis Specs
Chassis Brand: Sinotruk (China)
Chassis Series: Hohan
Chassis Model: ZZ1127H4515F1
Axle ratio: 4.875
Leaf spring count: 11/9+7,11/11+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):

Photos

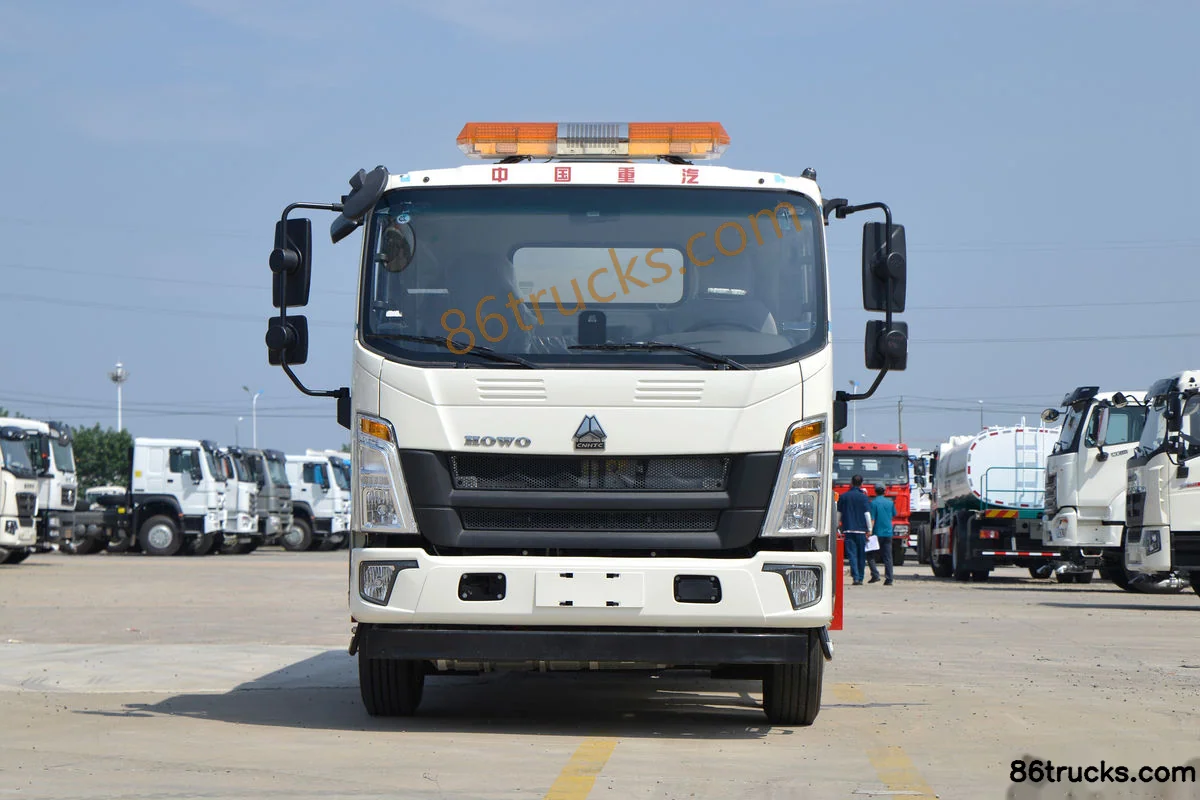

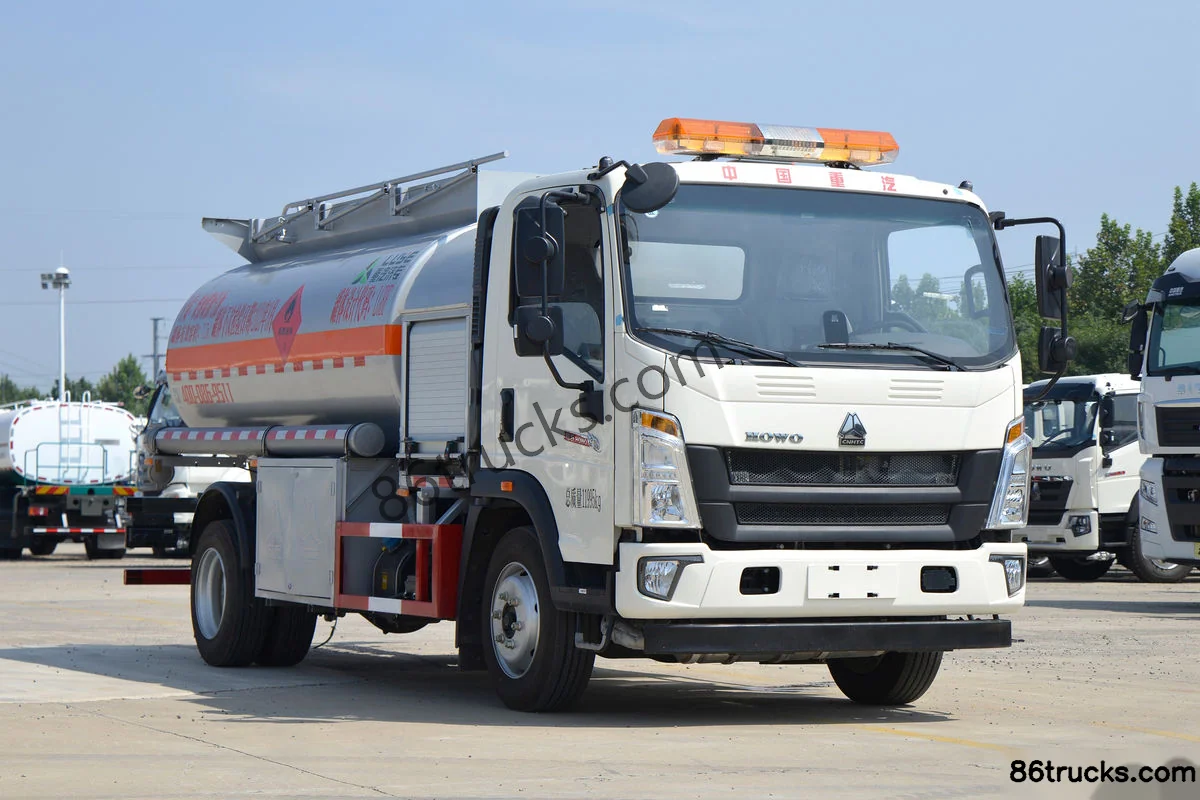

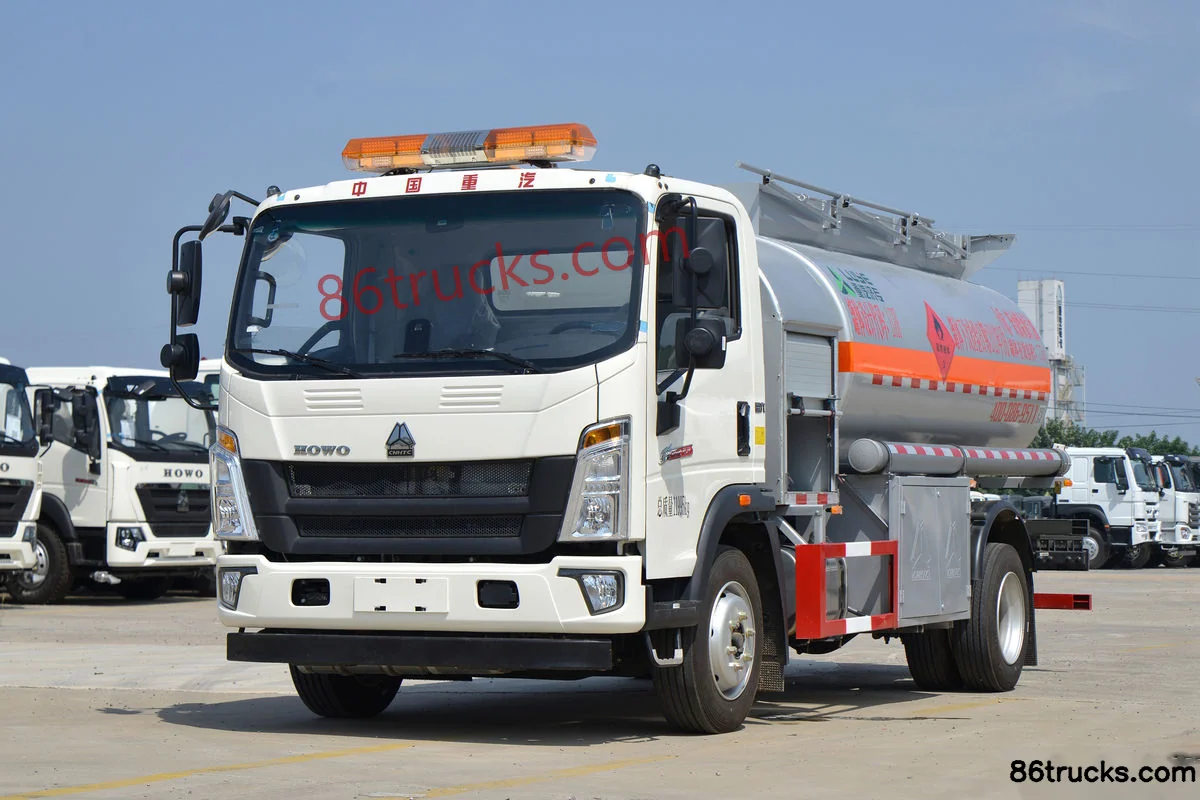

Exterior3

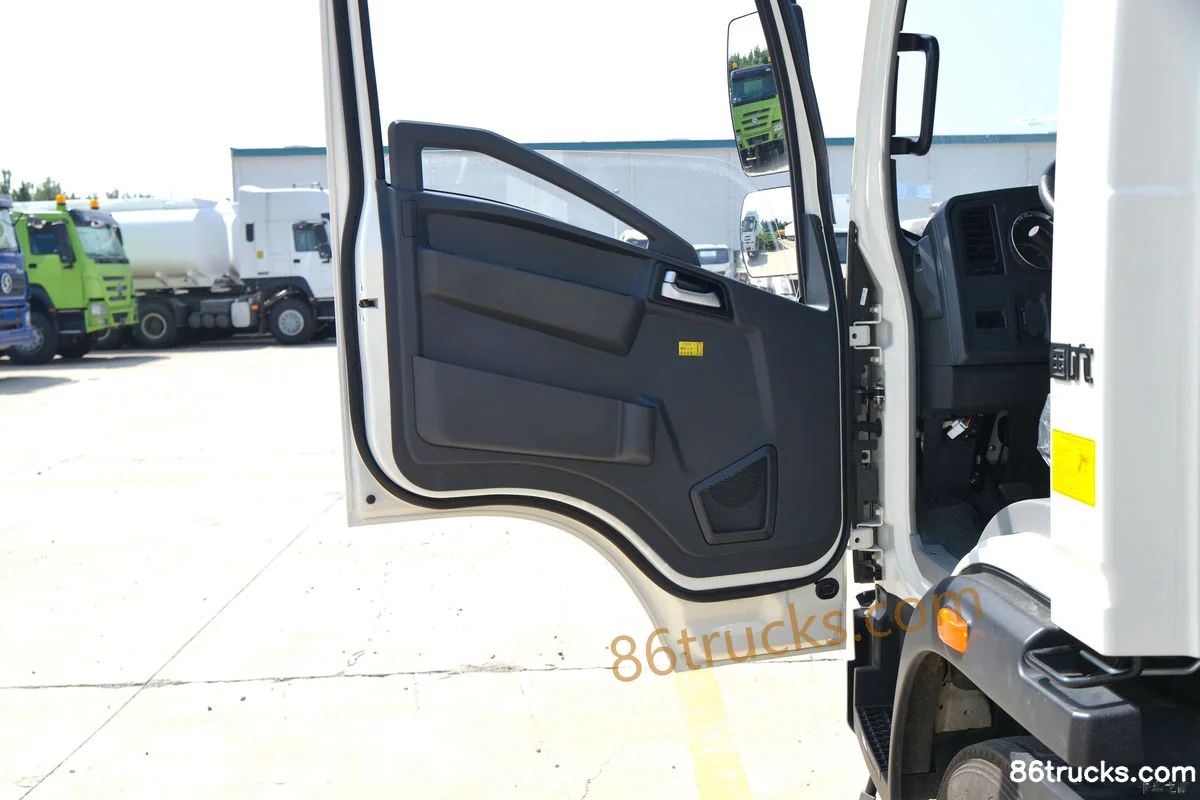

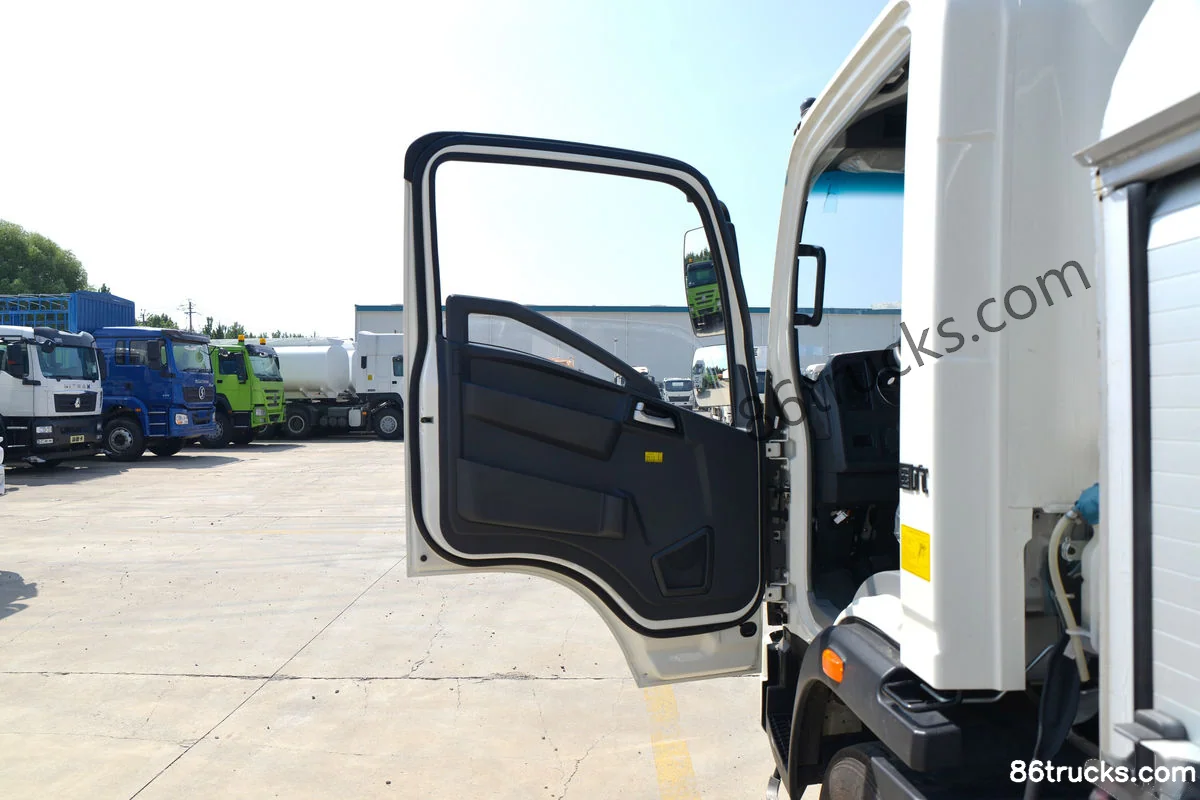

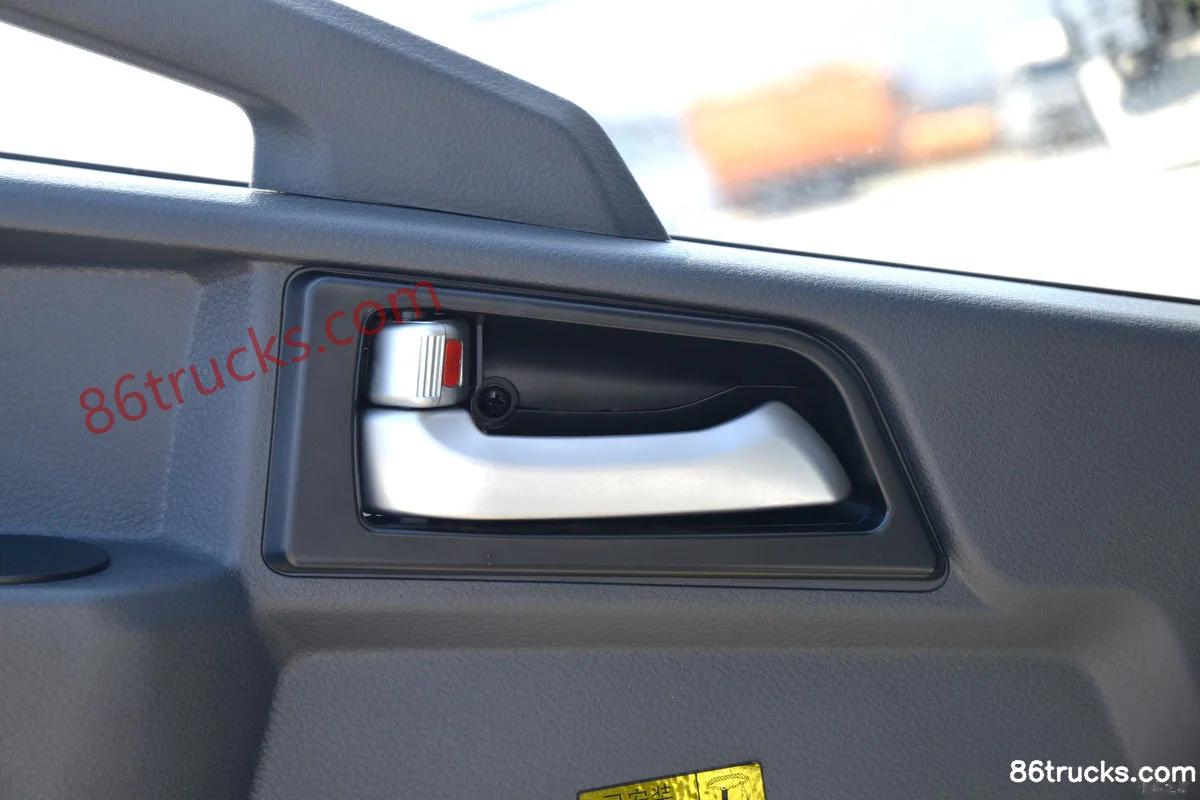

Cab3

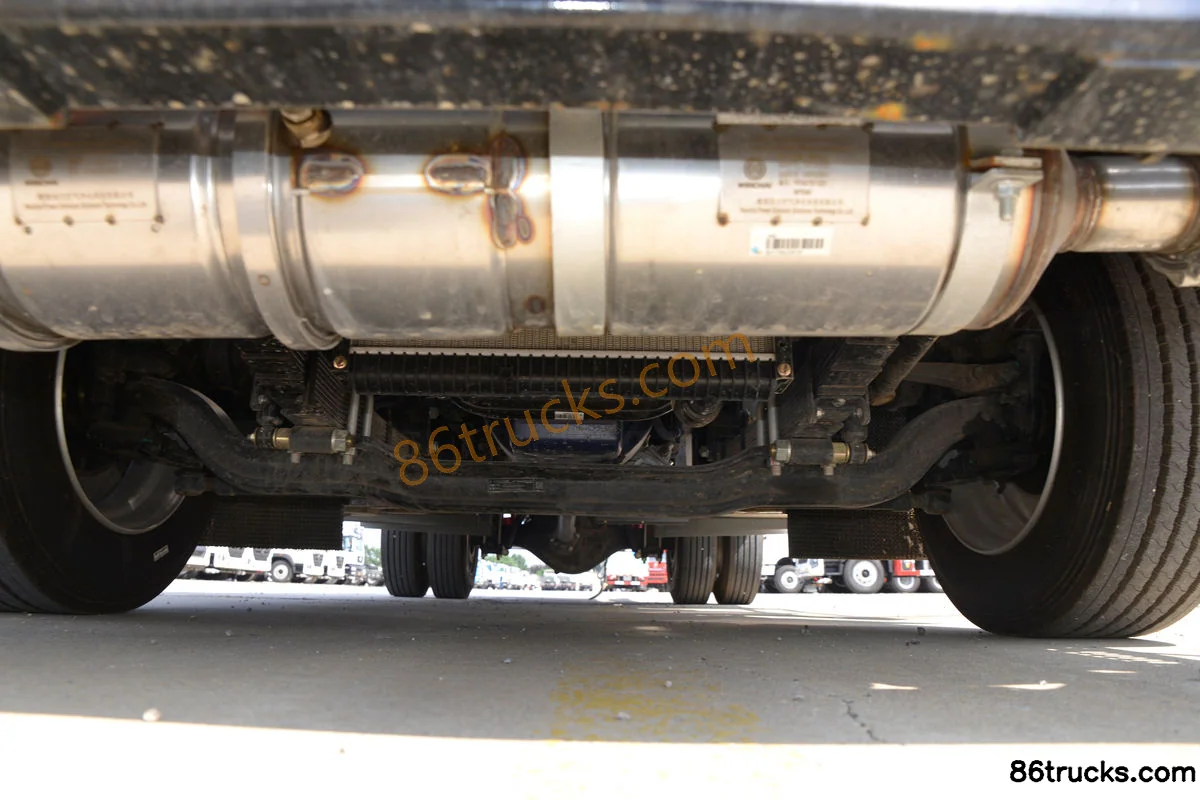

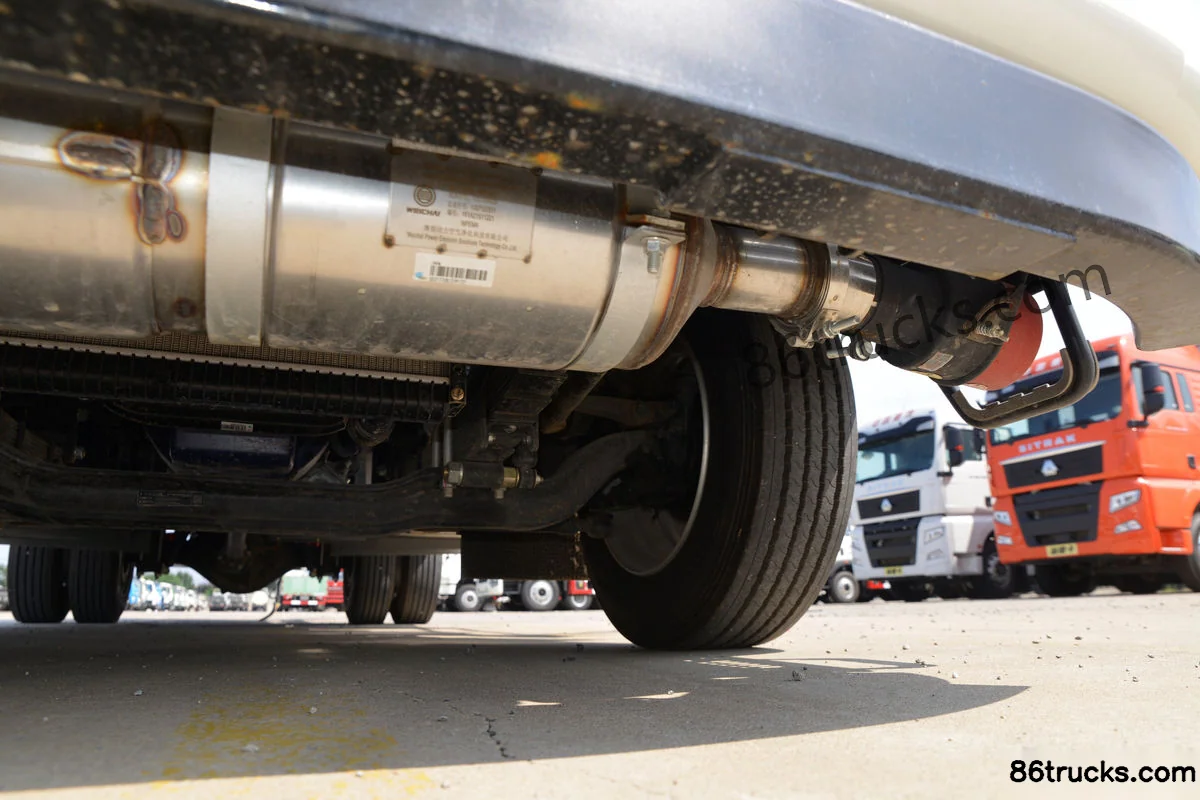

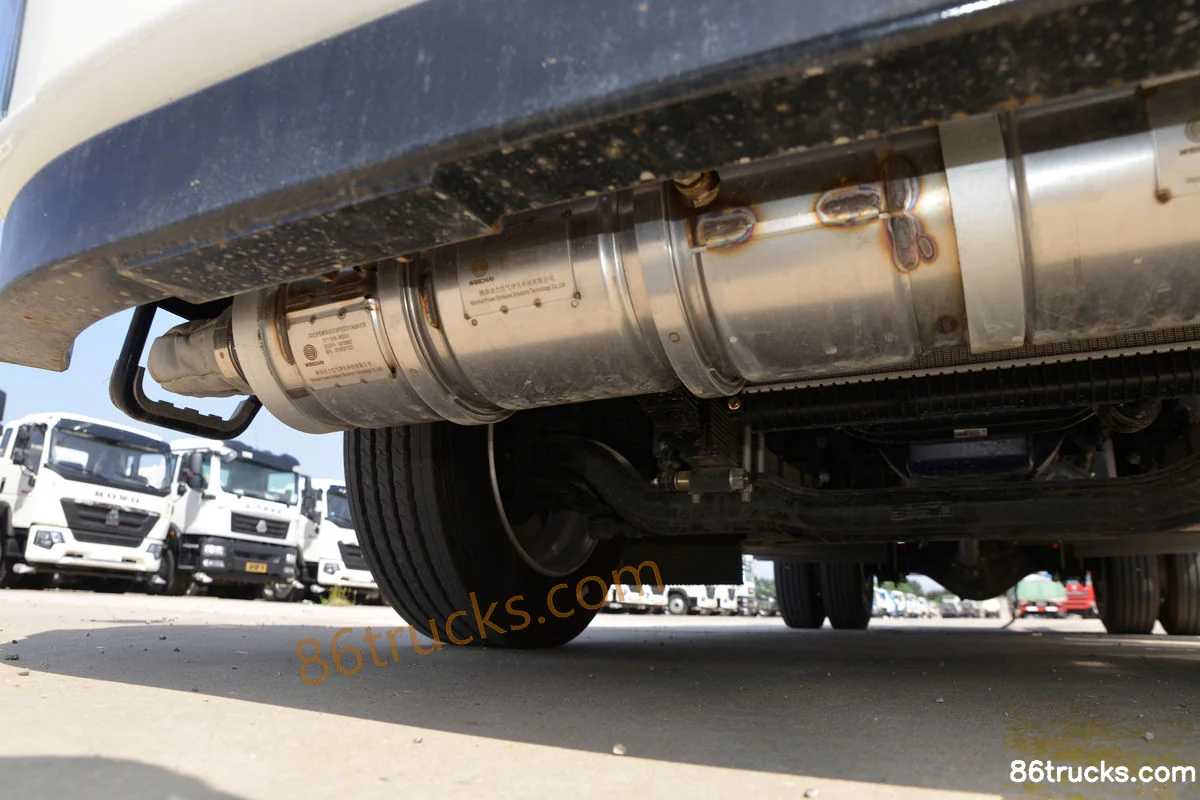

Chassis3

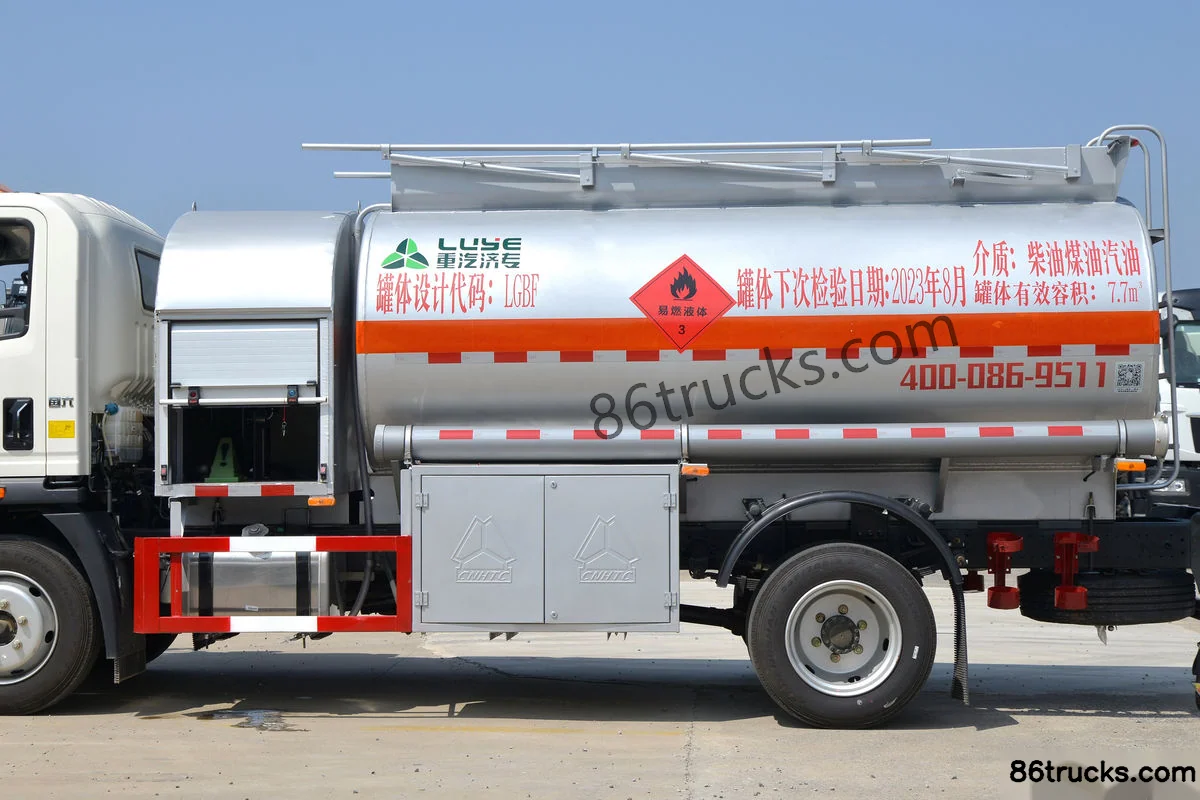

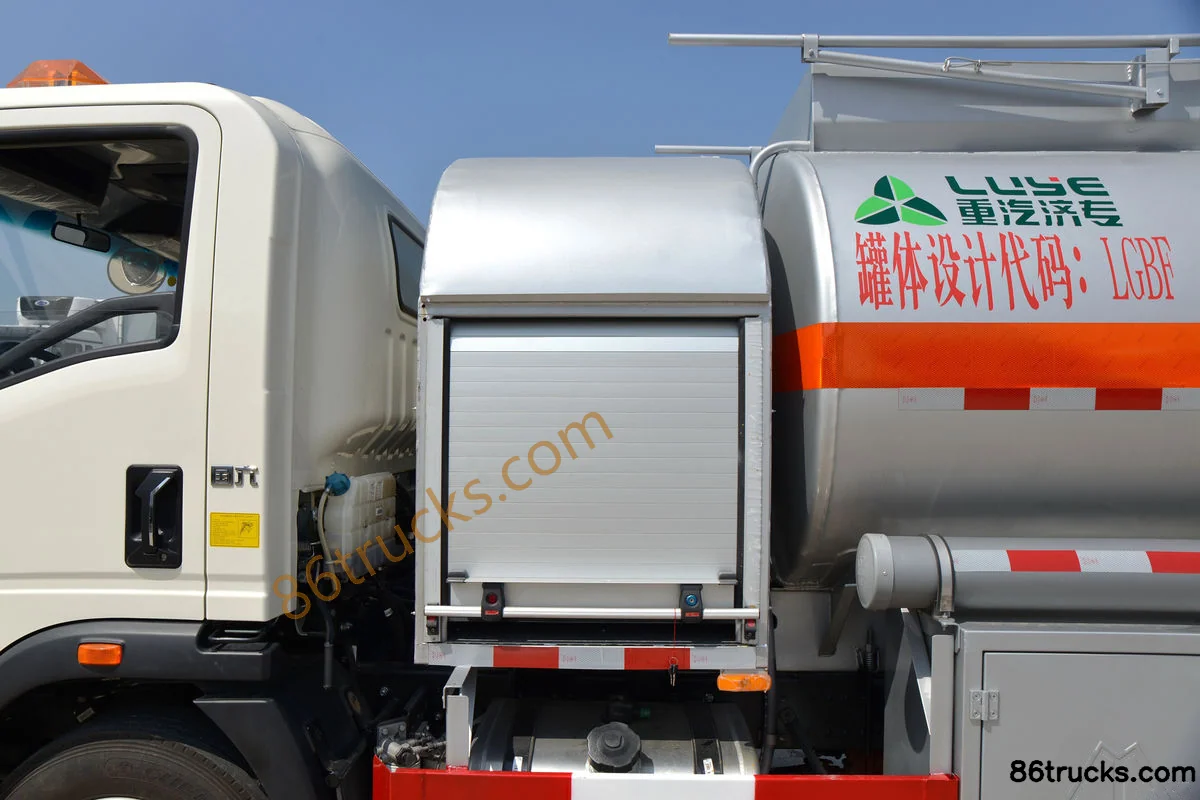

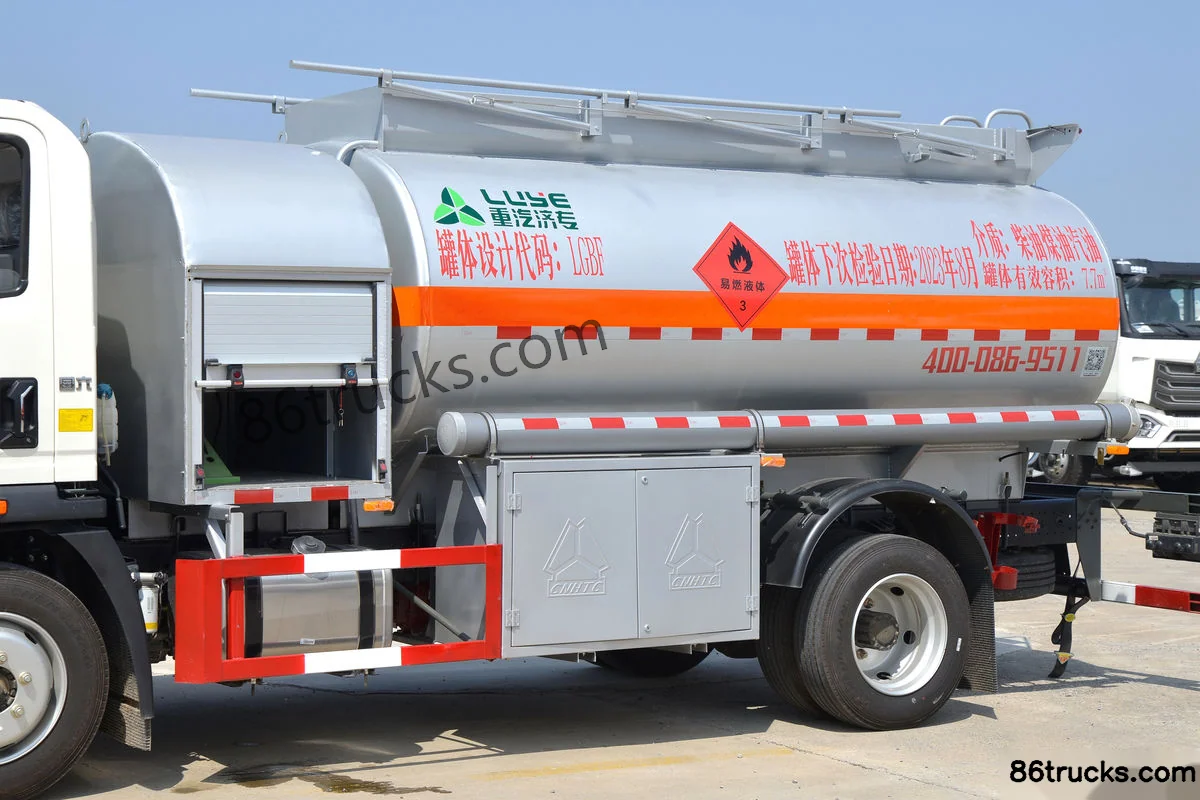

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand)?

Key specs of Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand) suited for?

Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand) belongs to Jinan Sinotruk (Lvye Brand) Jinan Sinotruk (Lvye Brand) (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 160 hp 4X2(6 wheels) Tank Truck (Lvye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
