FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle)

Export reference
From $40,222
MSRP ¥28.96M CNY
Horsepower: 320
Emission: China VI
Fuel: Diesel
Engine: Dachai7.2L
Transmission: FAW Jiefang
Curb Weight:: 10.2ton
seating capacity: 3Personnel
Rated payload: 14.67ton
Drive 6X2 (8 wheels)
Cargo box length: 9.5m

Overview

The FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) is a Heavy-duty cargo trucks featuring 9.5m cargo length, 9.5m cargo body, 3Personnel volume and 14.67t payload. On the powertrain side, it comes with a Dachai7.2L engine, 320 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 320 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P26K2L7T3E6A80
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1900+5600mm
Box length class: 9.5m
engine: DachaiCA6DK1-32E6
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.1
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2020/2020mm
rear track: 1878mm
Curb Weight: 10.2ton
Rated payload: 14.67ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 12°
Remarks: Adient ventilated seat, 220V power supply, TRW steering gear, WABCO clutch booster, ETV valve, S-shaped aftertreatment, 220Ah battery, with water-cold-proof device, all imported valves, extended oil change intervals for engine.
Front/rear suspension: 1.495/3m
Version: Linghang Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK1-32E6
Engine info: Dachai7.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.2L
Emission standard: China VI
Max output power: 239kW
Max hp: 320Horsepower
Max torque: 1300N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 9.5m
Cargo box width: 2.46m
Cargo box height: 0.8m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 800L
Chassis Specs
Front axle description: F5N front axle
Front axle allowable load: 6750/6750kg
Frame Dimensions: 300*80*(8+5)mm
rear axle description: 457 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.1
Leaf spring count: 9/9/10+9
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

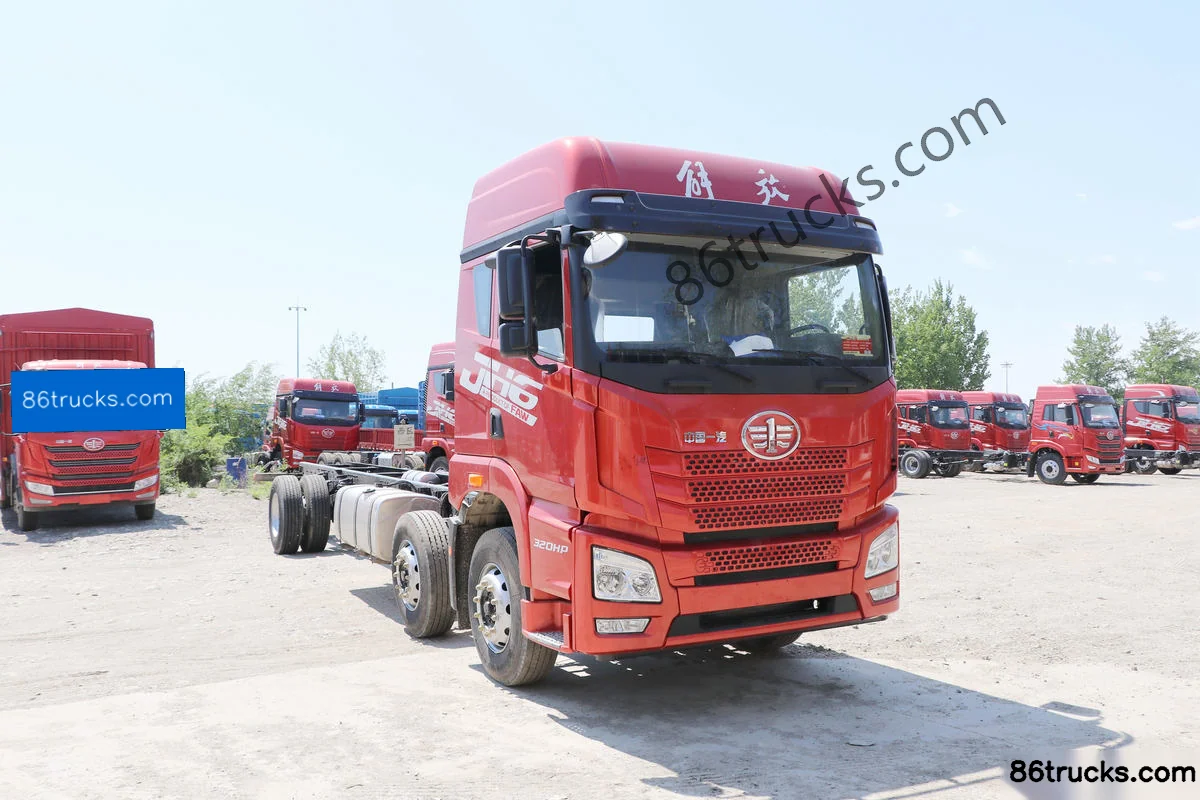

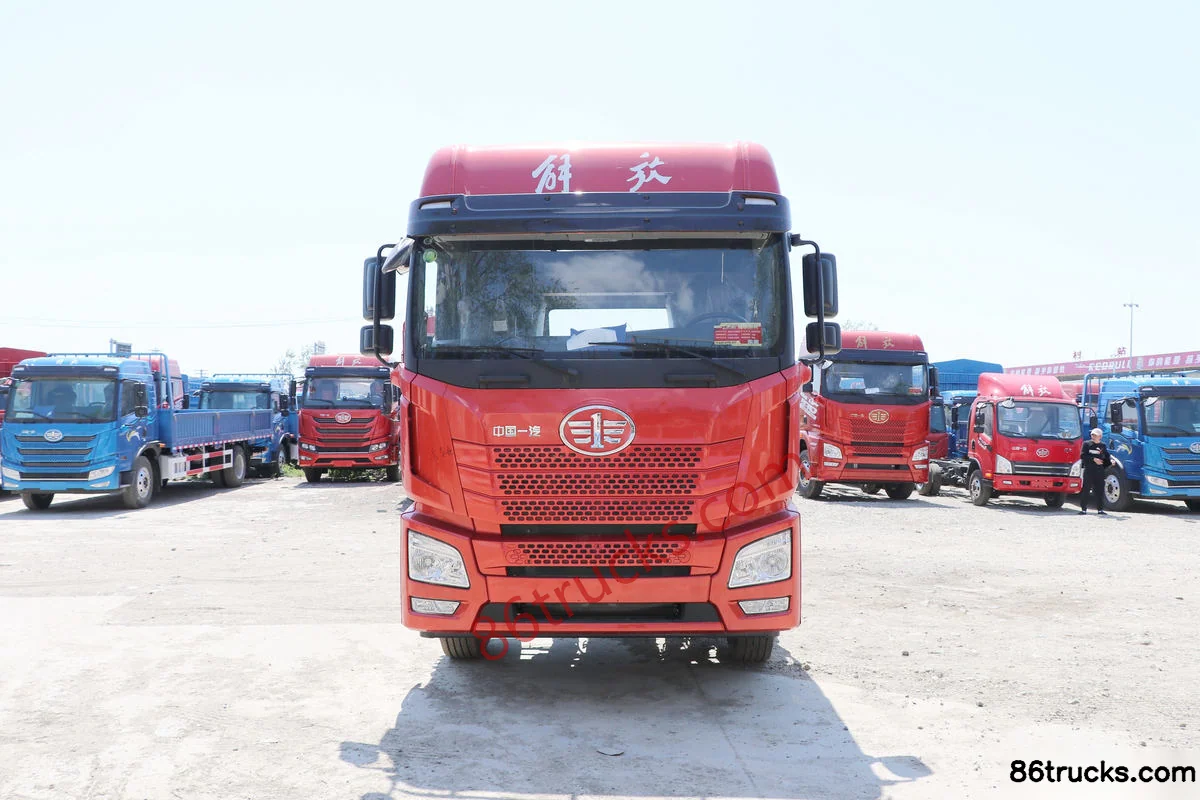

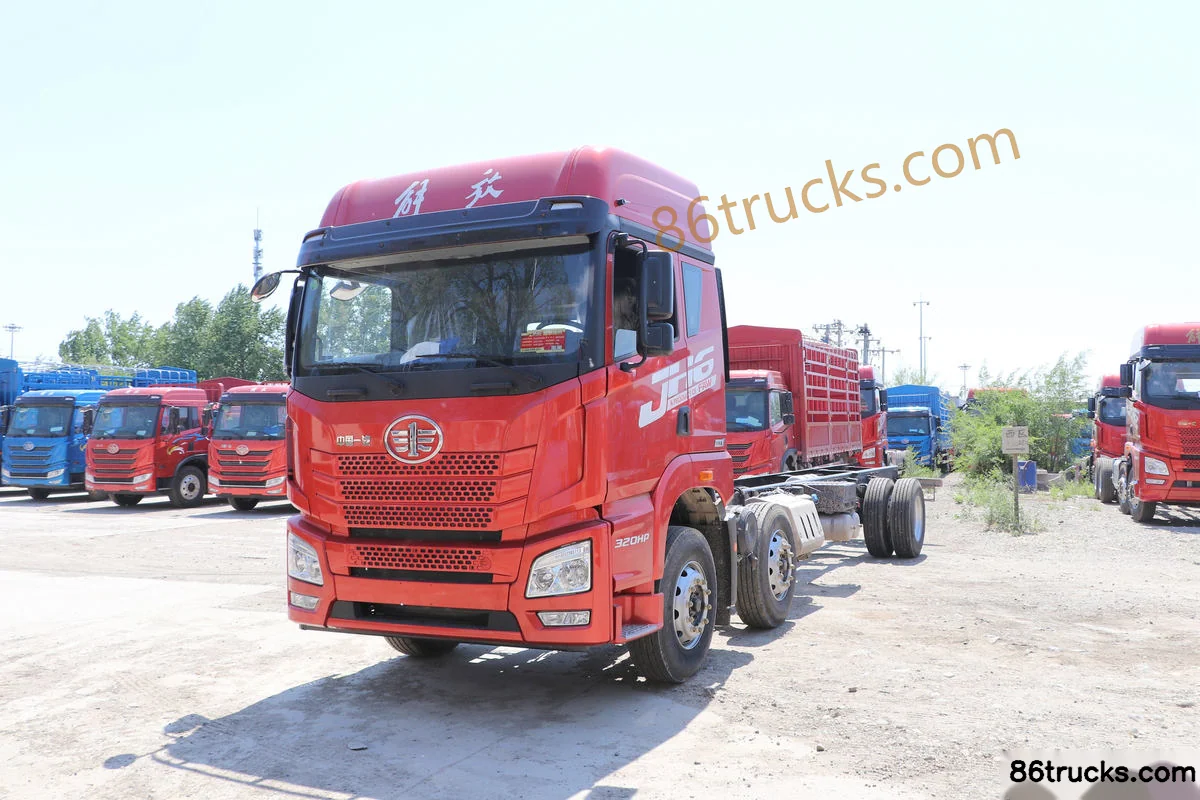

Exterior3

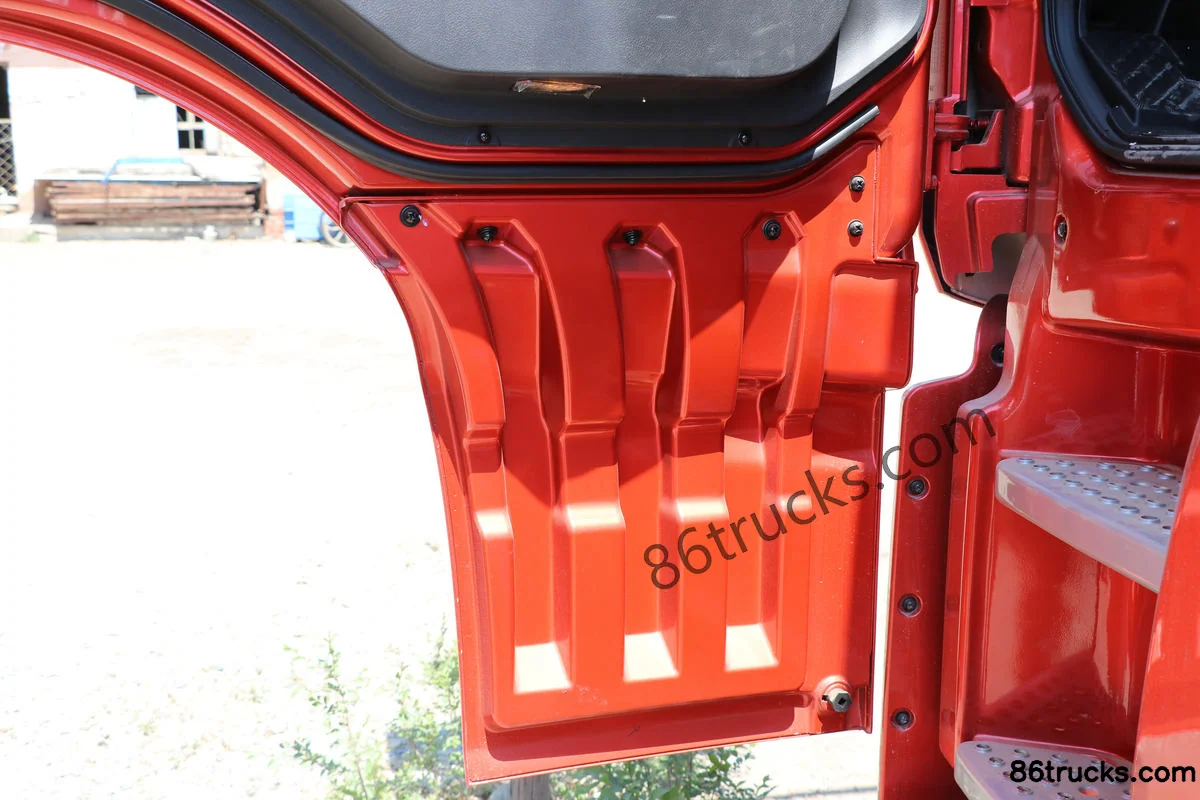

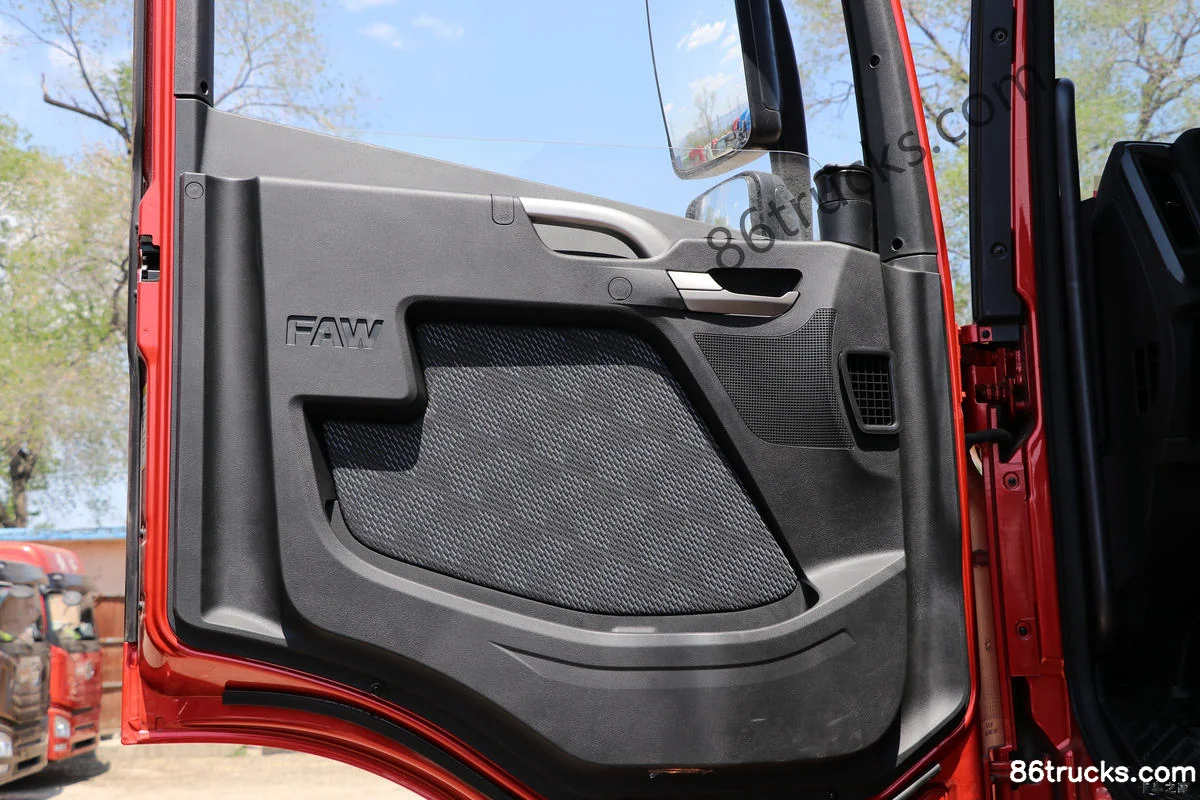

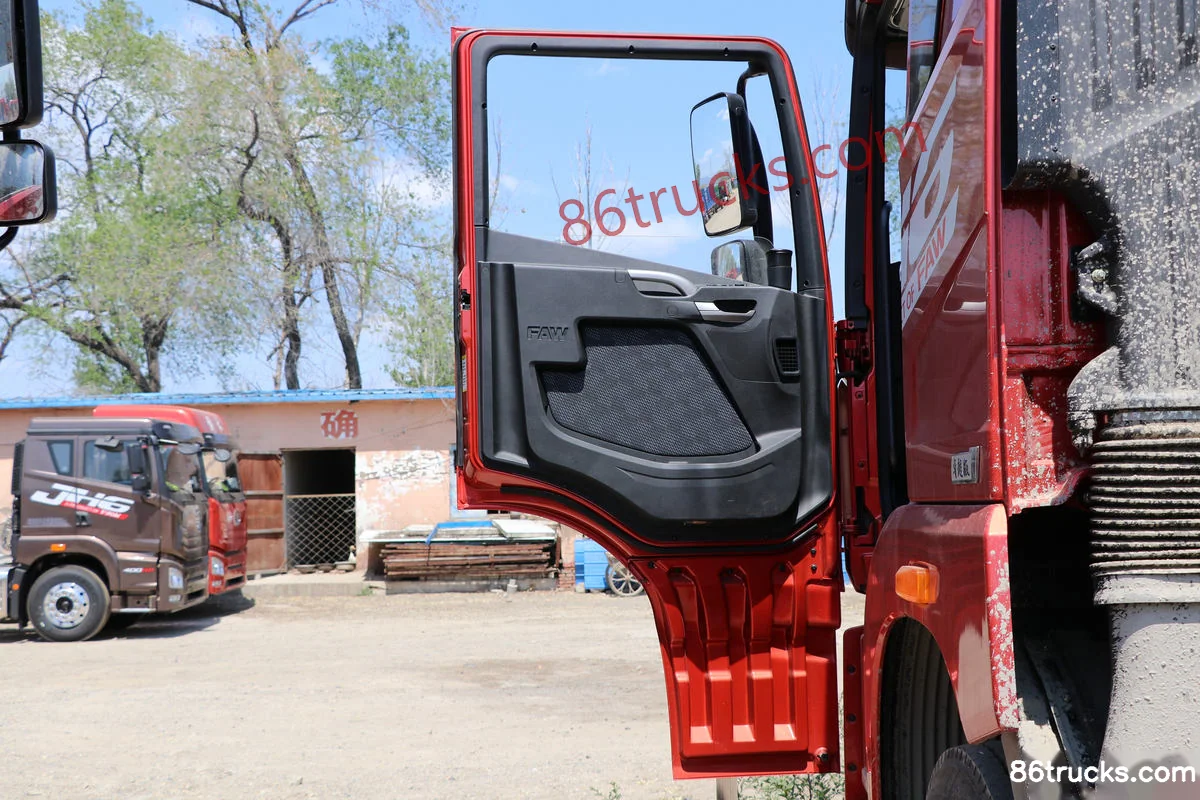

Cab3

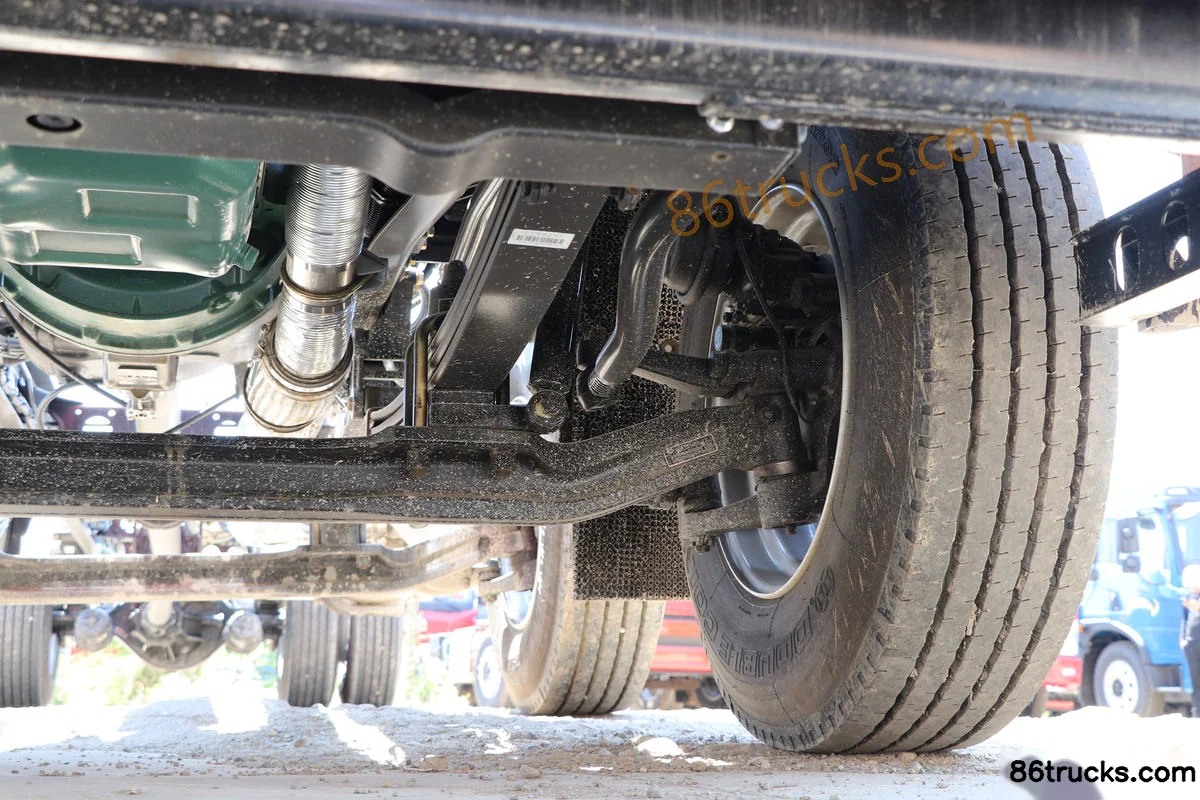

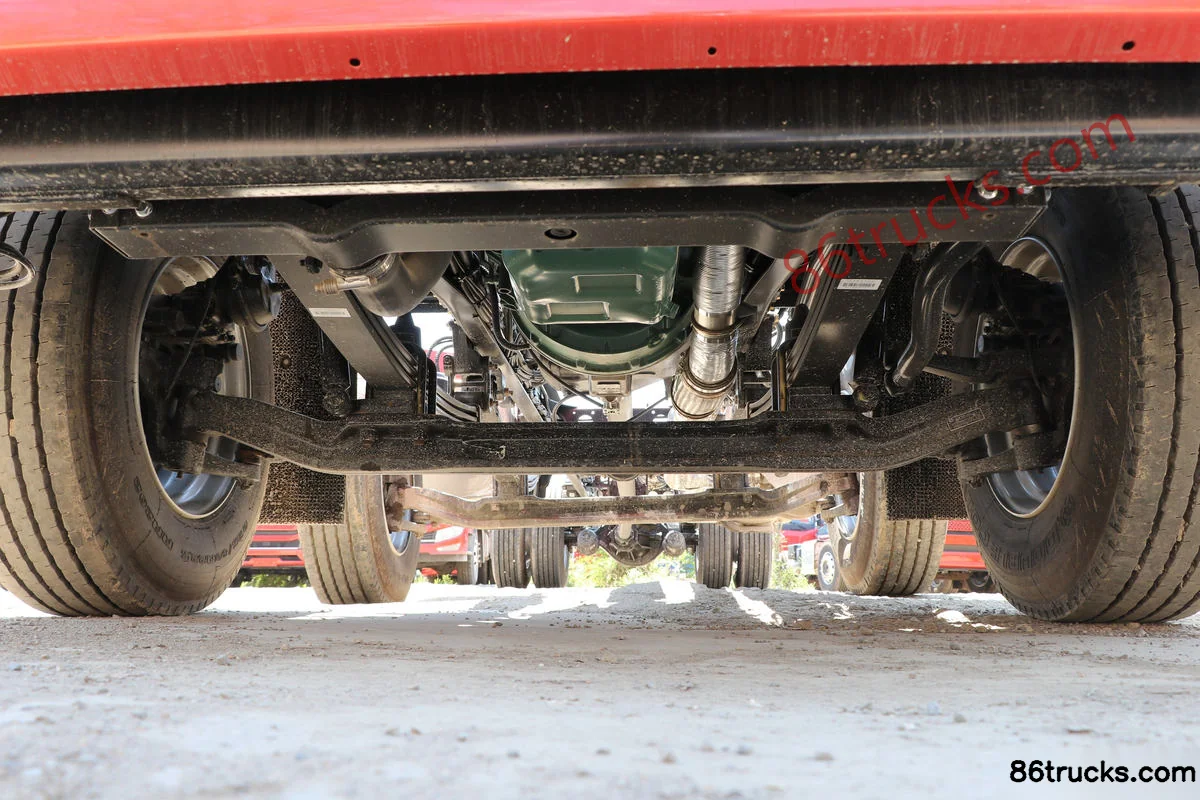

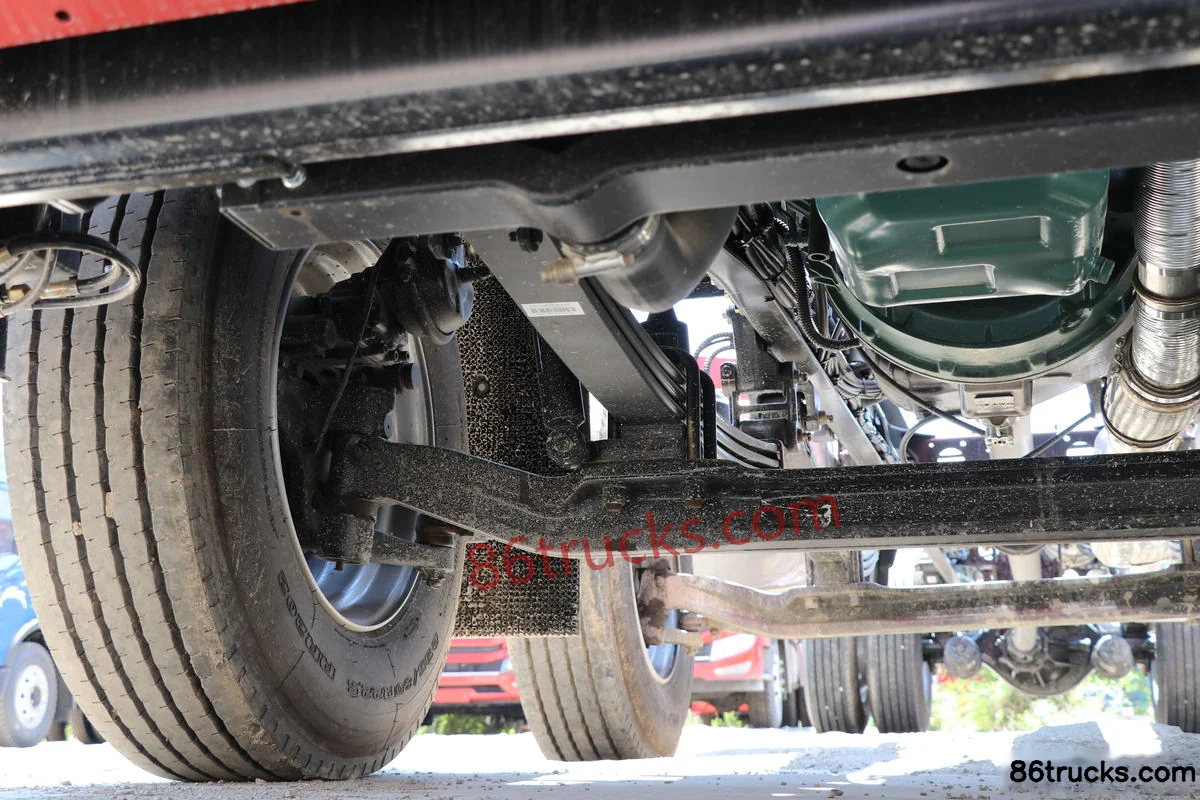

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle), and what does it include?

FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) export reference is about From $40,222; MSRP is ¥28.96M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle)?

Key specs of FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle): Drive: 6x2; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai7.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) suited for?

FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) differ from other variants in the same series?

FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle) belongs to FAW Jiefang Qingdao JH6 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 Heavy Truck Pilot Edition 2.0 Northern Version 320 hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) (F5N Front Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
