Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels)

Export reference
From $38,889
MSRP ¥28M CNY
Curb Weight:: 3.805ton
Rated payload:: 0.495ton
Wheelbase:: 3490mm
Cargo box type:: Stake type
Emission: China IV
Model code (announced):: FD5040CCYW78SHEV-1
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: CATL
Horsepower 122

Overview

The Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) is a Light Truck featuring 280km battery/range, CATL motor, 4X2 (6 wheels) drive and 0.495t payload. On the powertrain side, it comes with 122 hp.

China IV 122 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5040CCYW78SHEV-1
Type: stake truck
Drive type: 4X2
Wheelbase: 3490mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.18m
CLTC range: 280km
Curb Weight: 3.805ton
Rated payload: 0.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: CATL
Motor 1 Model: TZ220XS-HD003
Motor Type: Permanent magnet synchronous motor
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery capacity: 100.96kWh
Engine parameters
Engine Model: Chongqing Sokon Power H15RT
Number of cylinders: 4cylinder
Displacement: 1.5L
Emission standard: China IV
Max output power: 90kW
Max hp: 122Horsepower
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.1m
Cab parameters
Cab width: 2120mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1930kg
rear axle allowable load: 2565kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

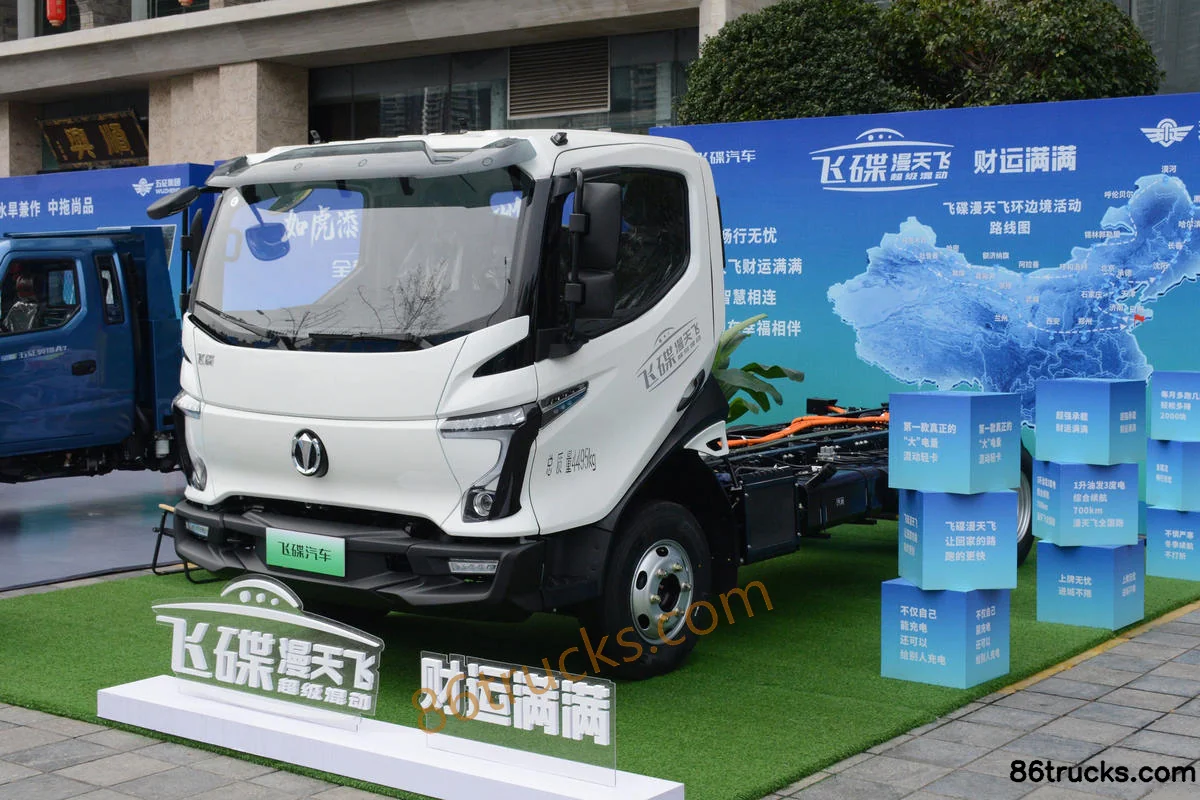

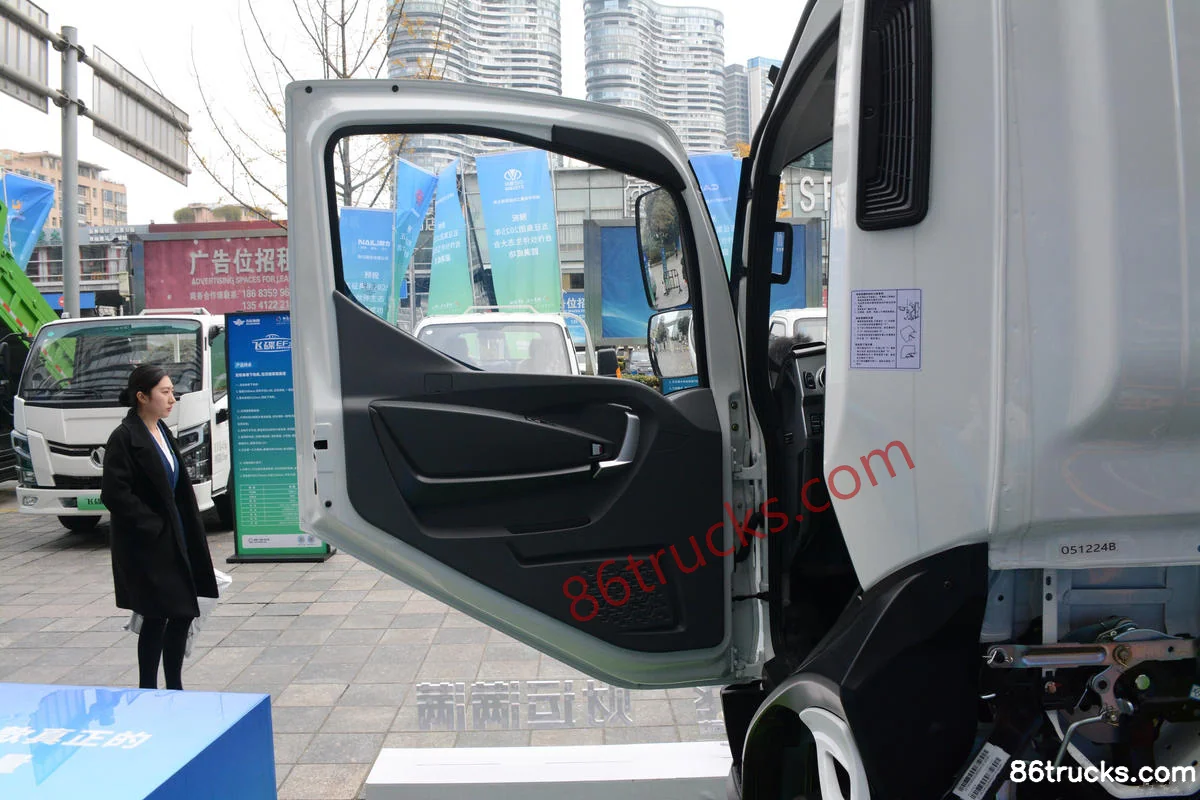

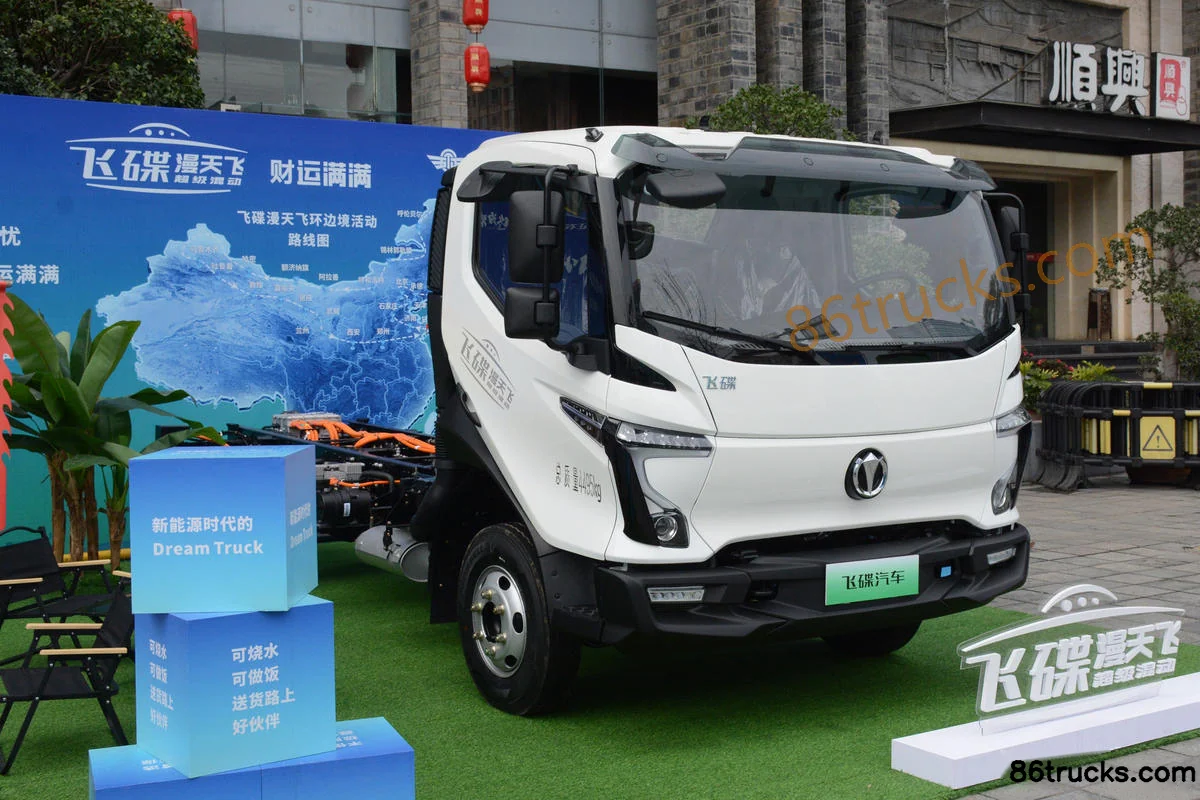

Exterior3

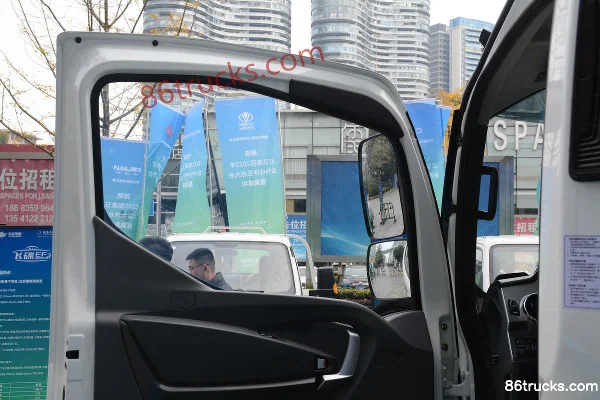

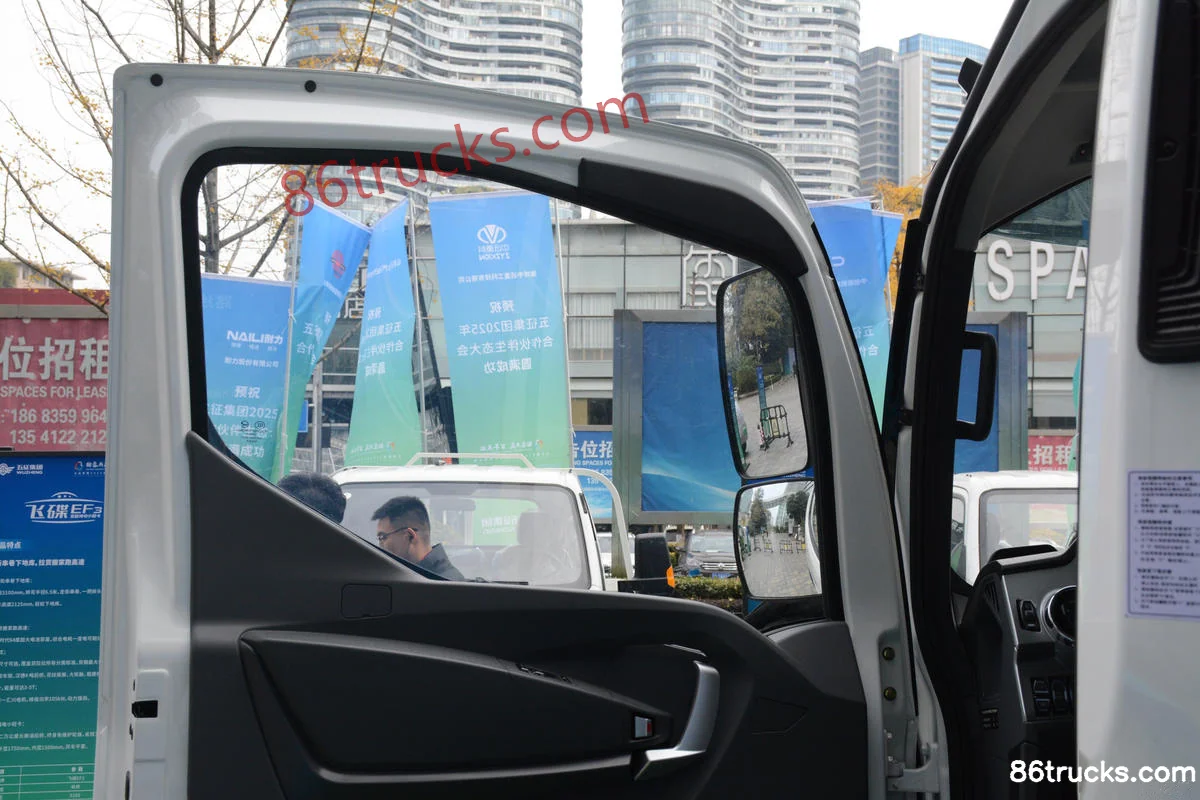

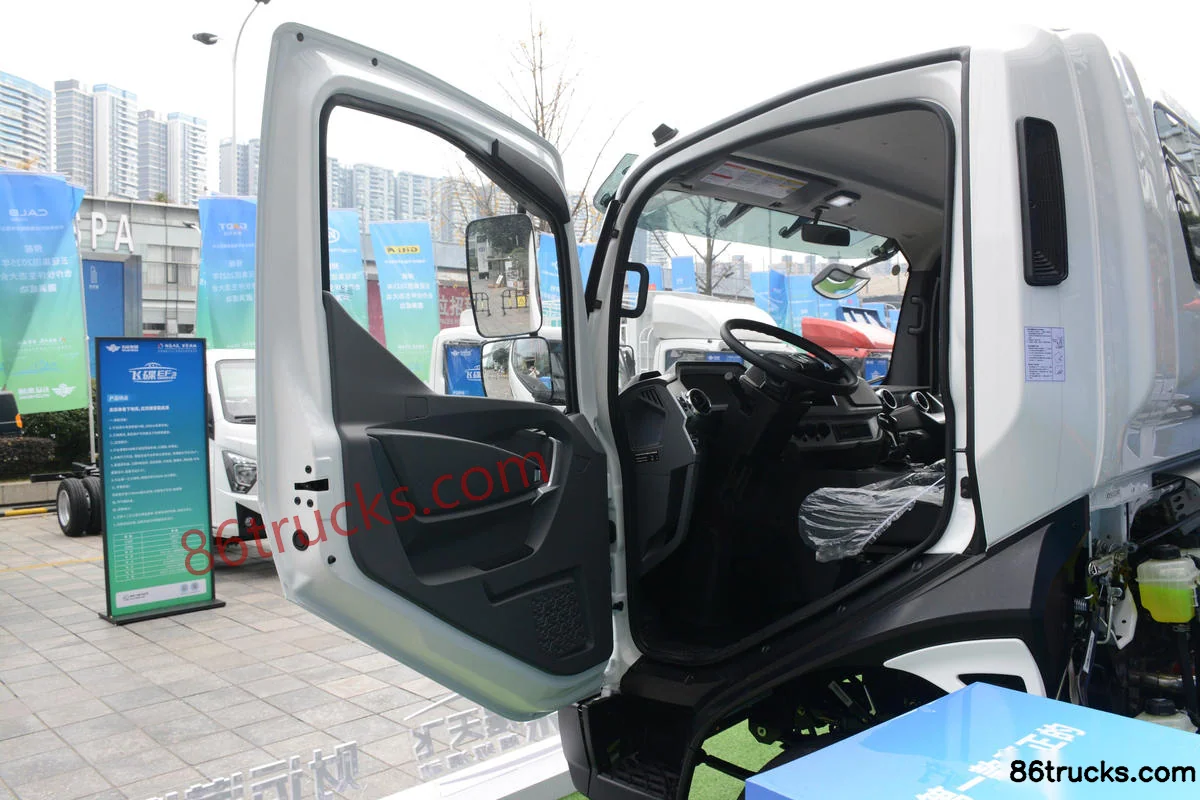

Interior3

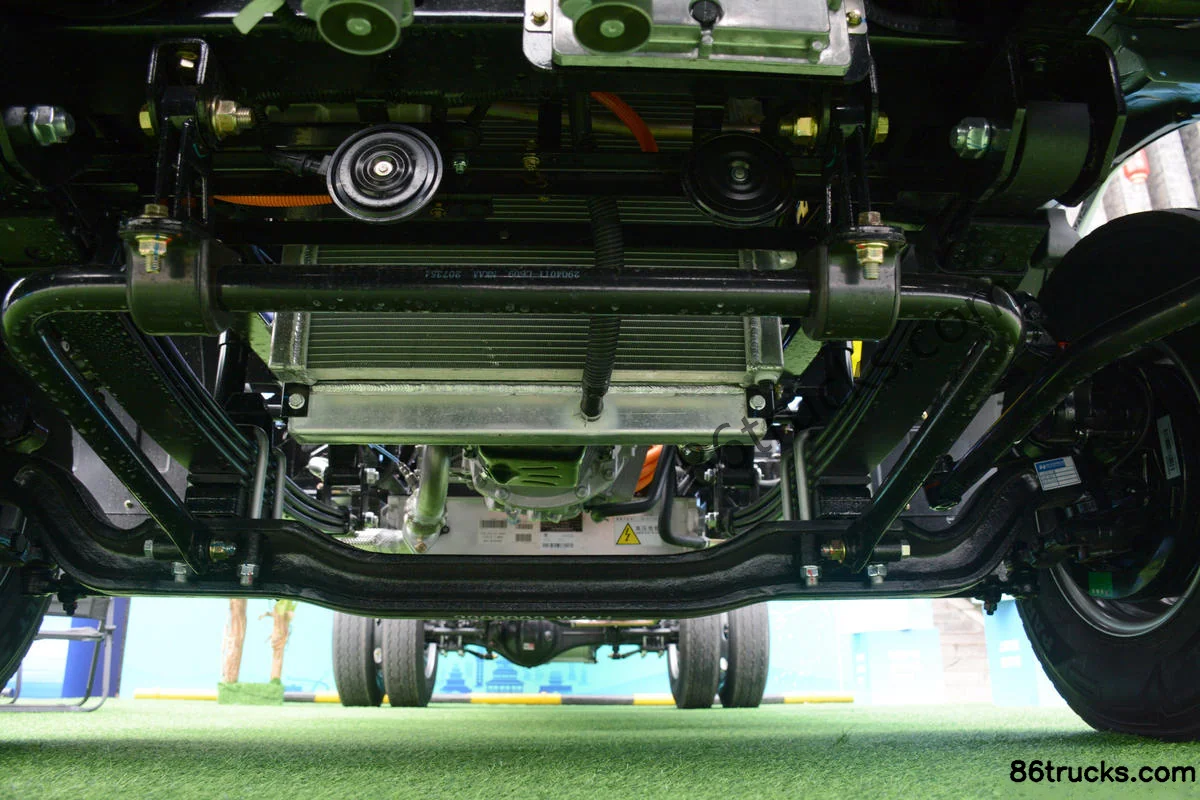

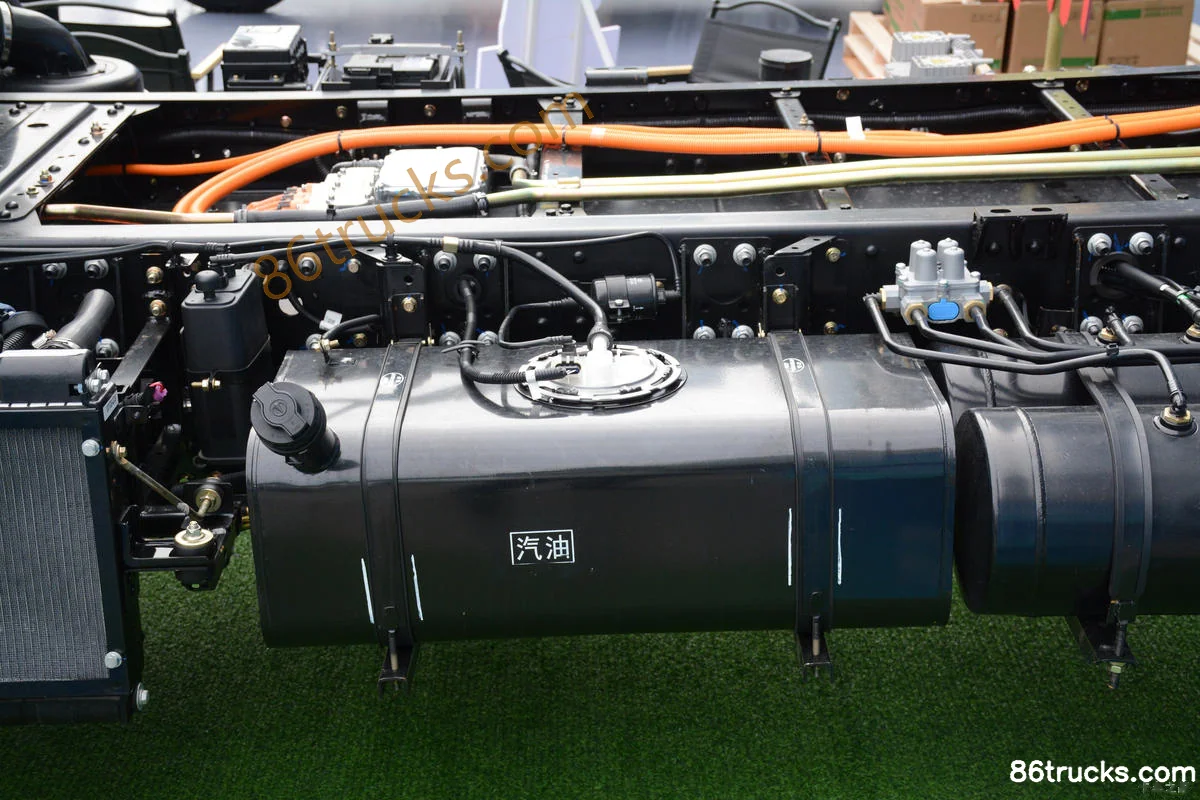

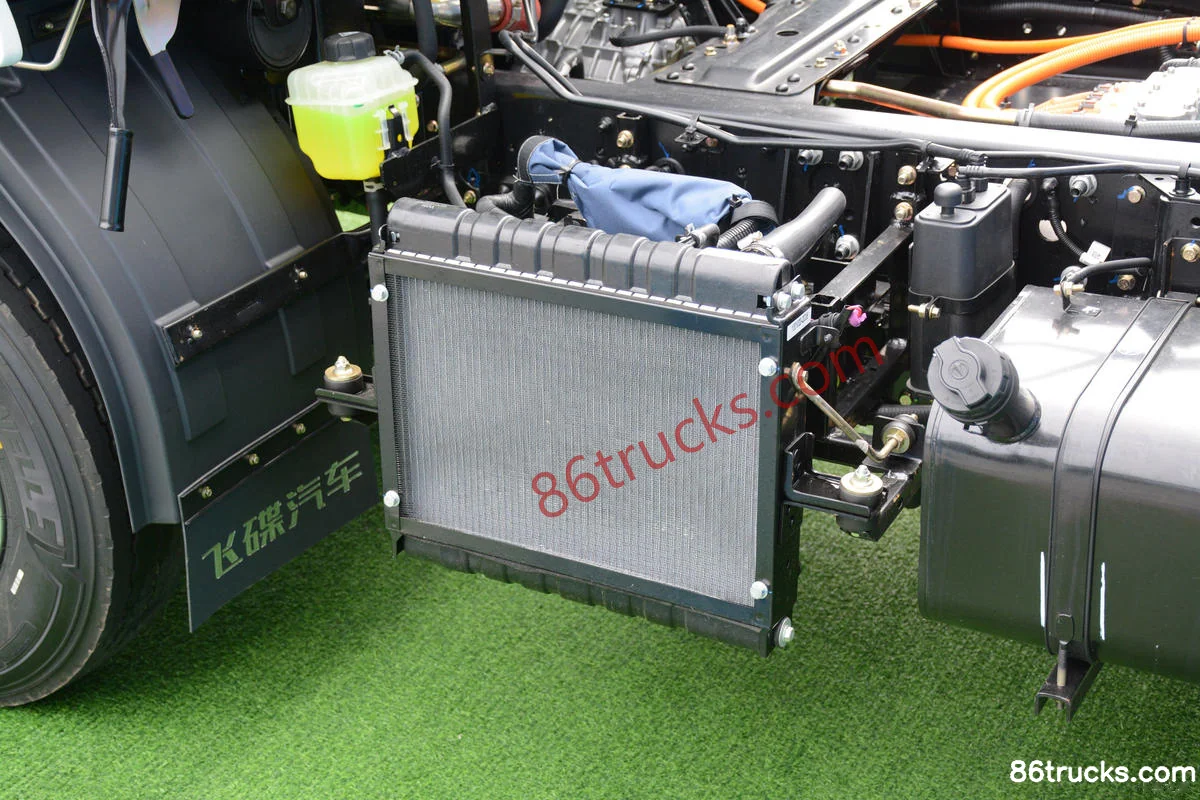

Chassis3

9 photos

FAQ

What is the export price of Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels), and what does it include?

Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) export reference is about From $38,889; MSRP is ¥28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels)?

Key specs of Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 122 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) suited for?

Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) differ from other variants in the same series?

Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels) belongs to Feidi Mantianfei (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi Mantianfei 4.5T 4.18m Single Cab Plug-in Hybrid Range-Extender Cargo Van 100.96kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
