Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck

Export reference
MSRP N/A
Curb Weight:: 2.705ton
Rated payload:: 1.495ton
Wheelbase:: 3350mm
Cargo box type:: Van body
Type:: enclosed cargo truck
Box length class:: 4.3m
Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck exterior
View more photos (9)
Drive 4X2 (6 wheels)
CLTC range: 165km
Motor 1 Brand: Taizhong Dadi
Horsepower 75

Overview

The Shenyang Jinbei Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck is a Light Truck featuring 165km battery/range, Taizhong Dadi motor, 4X2 (6 wheels) drive and 1.495t payload. On the powertrain side, it comes with 75 hp.

75 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3350mm
Box length class: 4.3m
Cab length: 5.99m
Cab width: 2m
Cab height: 2.94m
CLTC range: 165km
Curb Weight: 2.705ton
Rated payload: 1.495ton
GVWR: 4.33ton
Max. speed: 85km/h
Origin: Shenyang, Liaoning
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Taizhong Dadi
Motor 1 Model: TZ-280-X-S-D01
Fuel Type: Electric
total rated power: 55kW
Peak power: 90kW
Battery/Charging
Battery Brand: Shanghai Zhengyun
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 3.2V
Battery Model: LFP18650-1500mAh
Engine parameters
Max hp: 75Horsepower
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.28m
Cargo box width: 1.9m
Cargo box height: 1.9m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1732kg
rear axle allowable load: 2598kg
Tire
Tire Size: 6.50-16 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

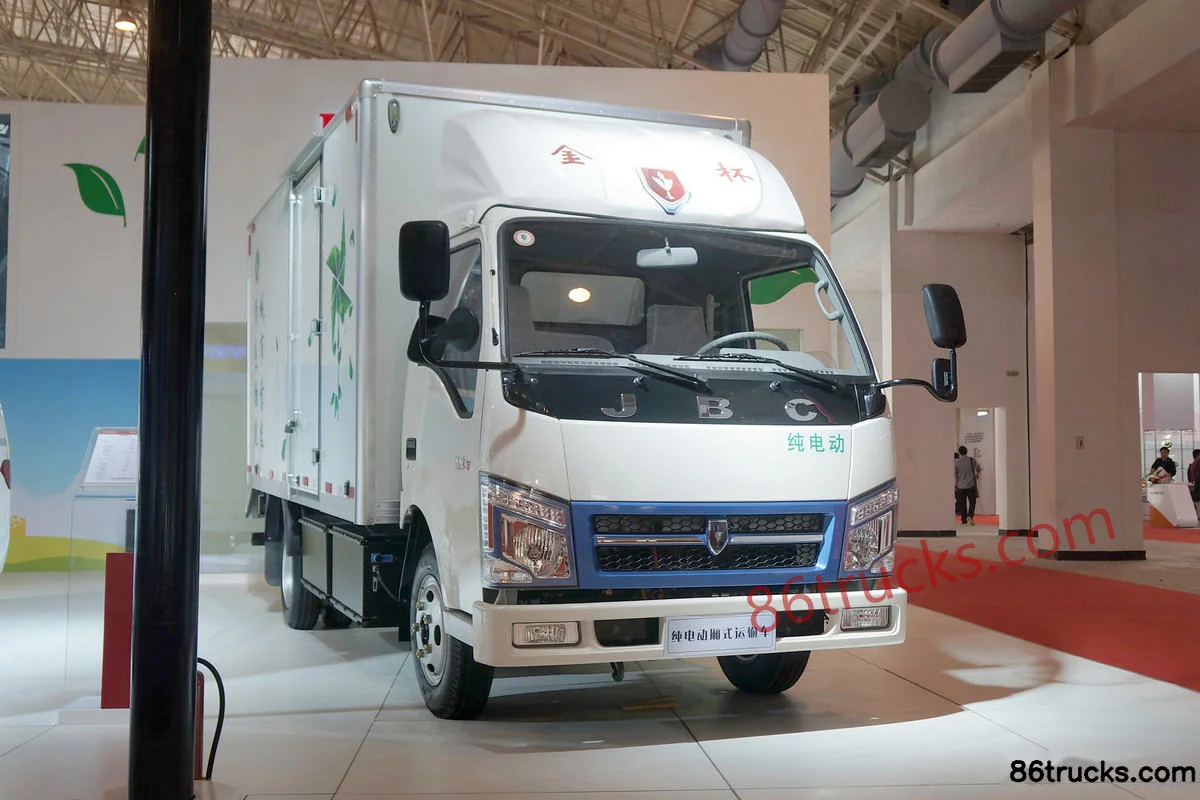

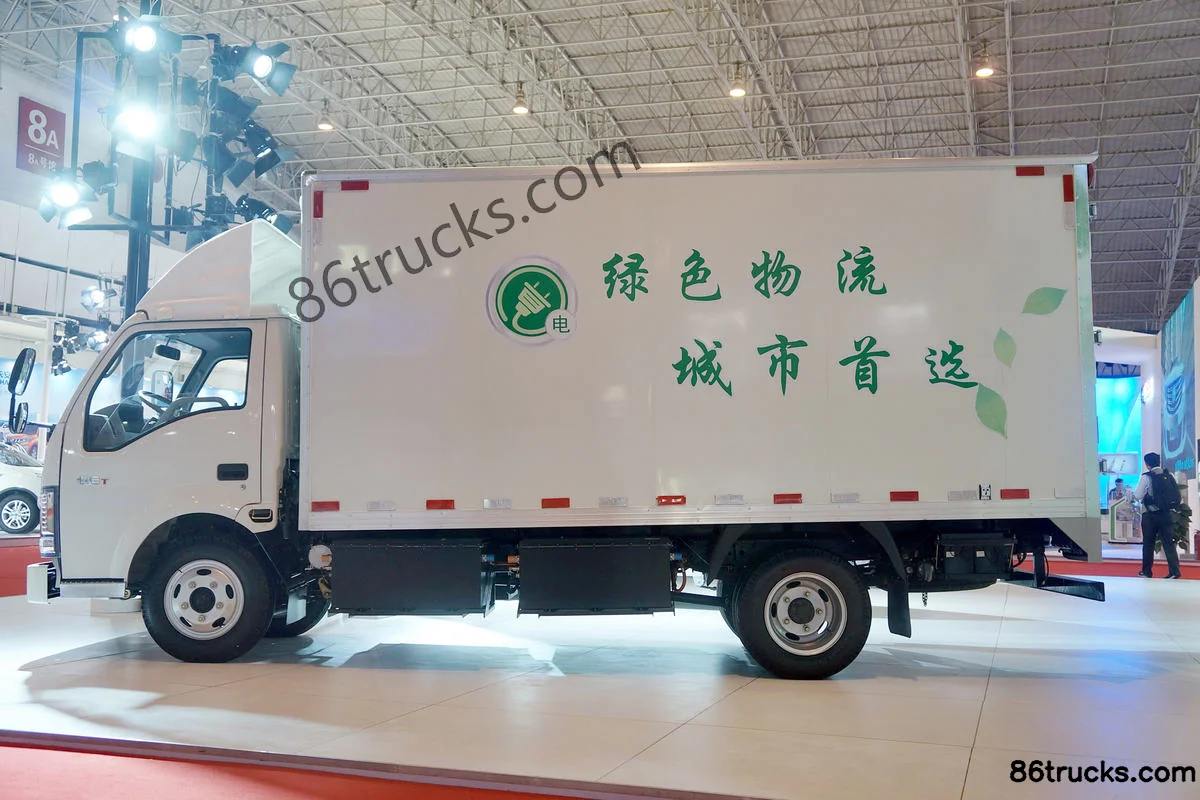

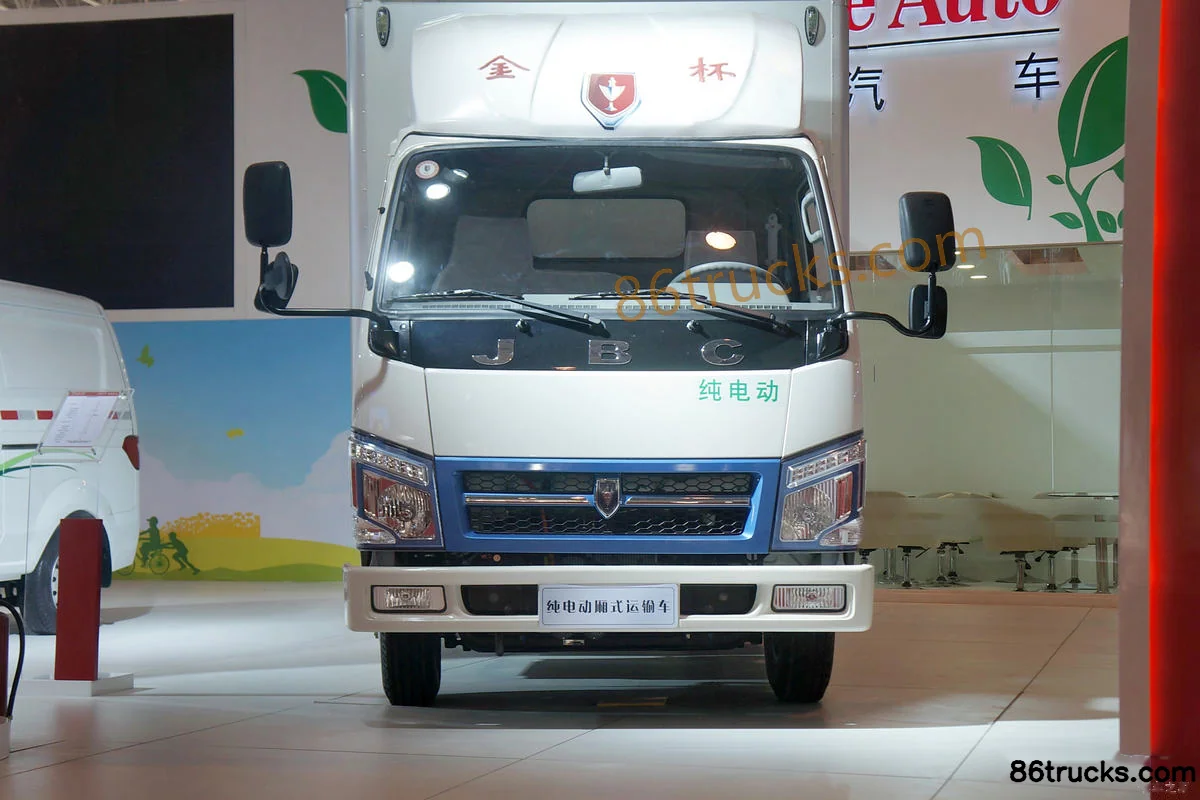

Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Exterior (1) | 86Trucks Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Exterior (2) | 86Trucks Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Exterior (3) | 86Trucks

Interior3

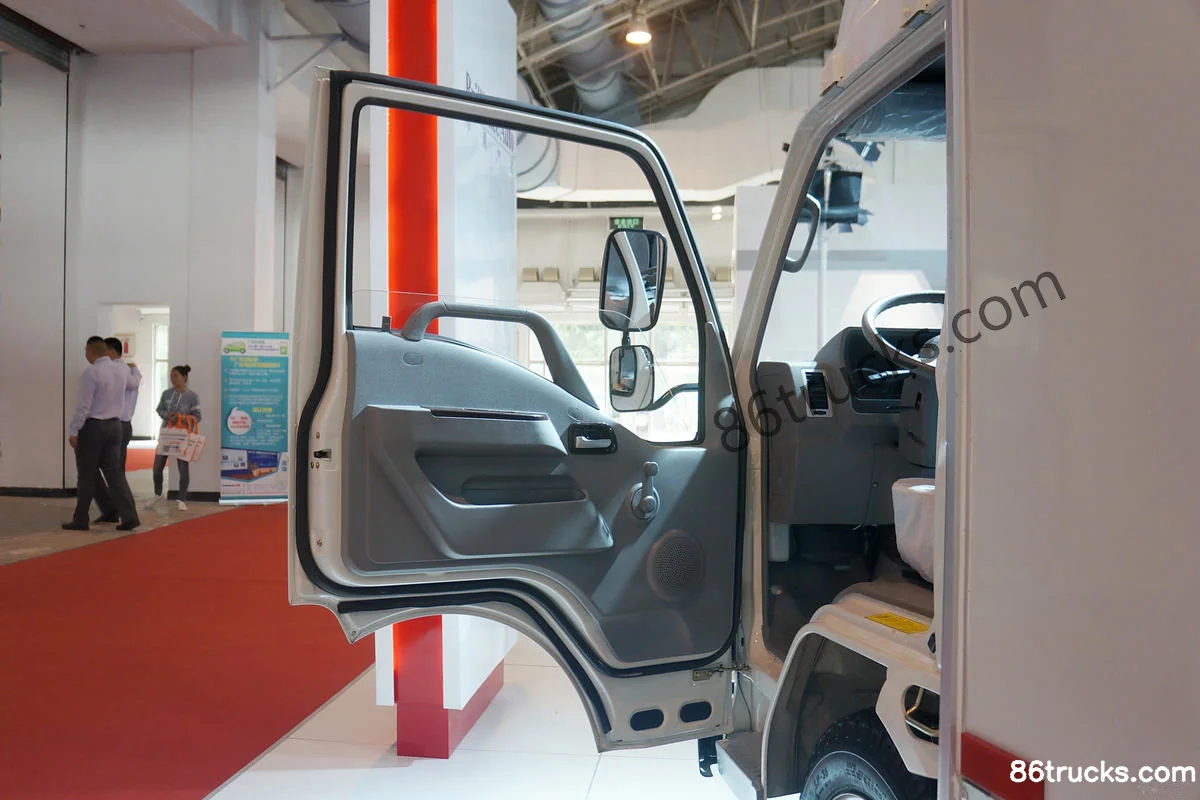

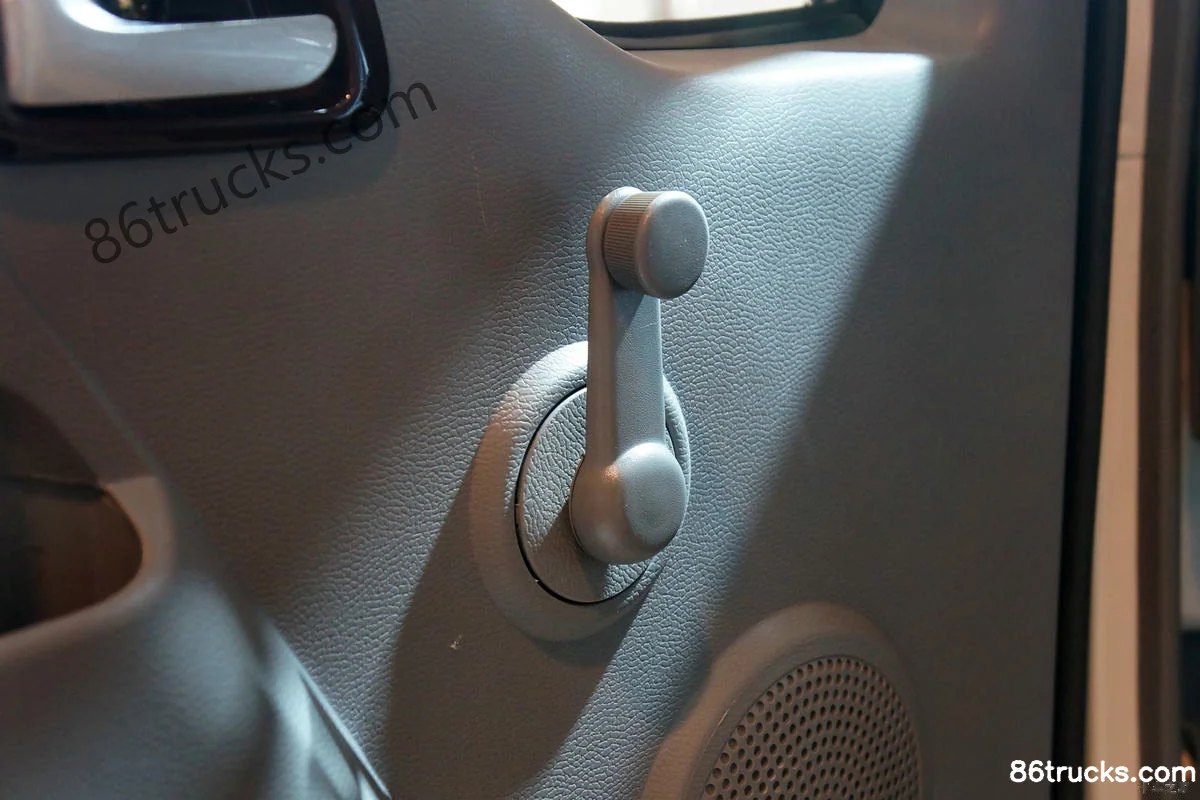

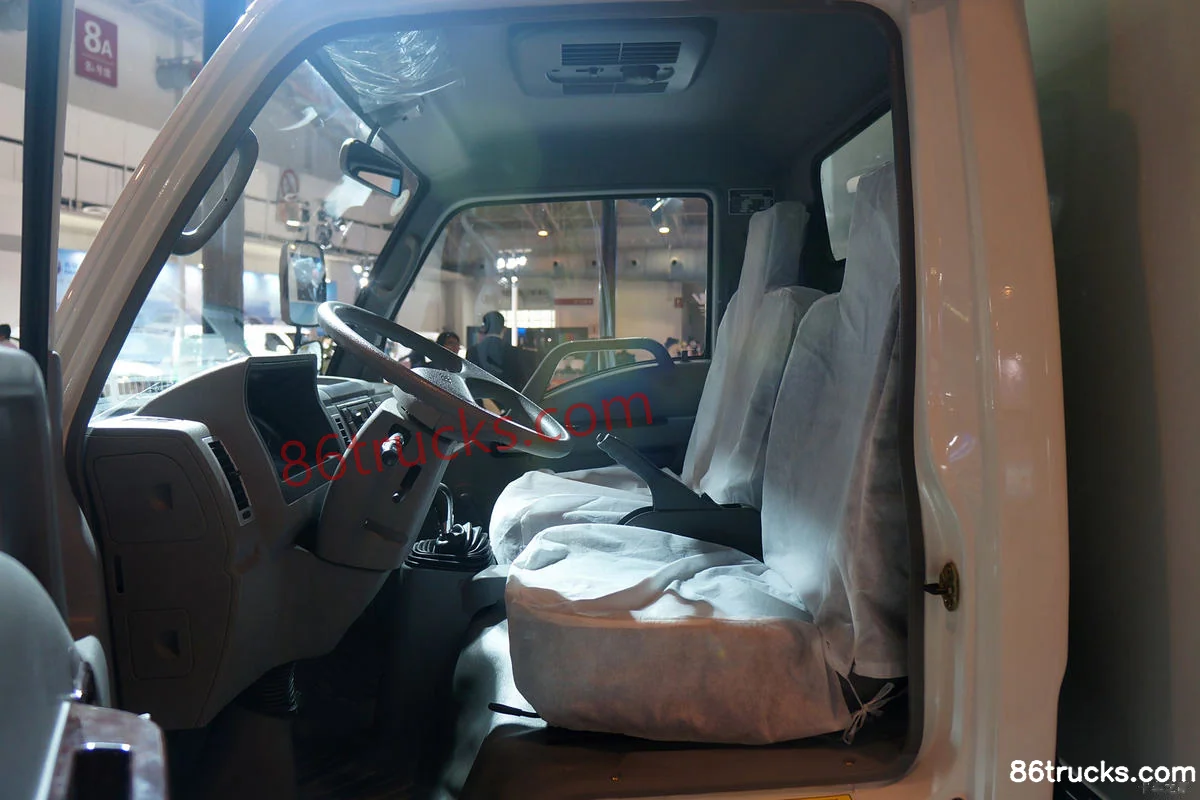

Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Interior (1) | 86Trucks Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Interior (2) | 86Trucks Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Interior (3) | 86Trucks

Chassis3

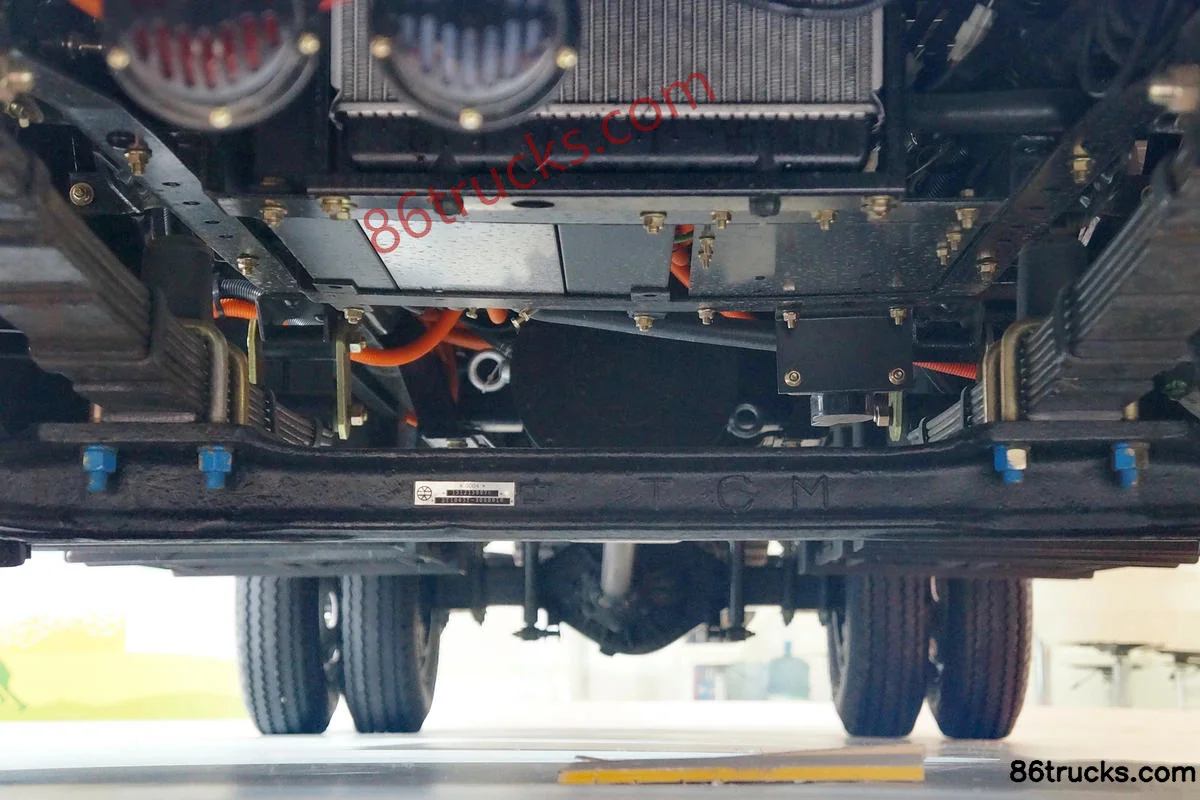

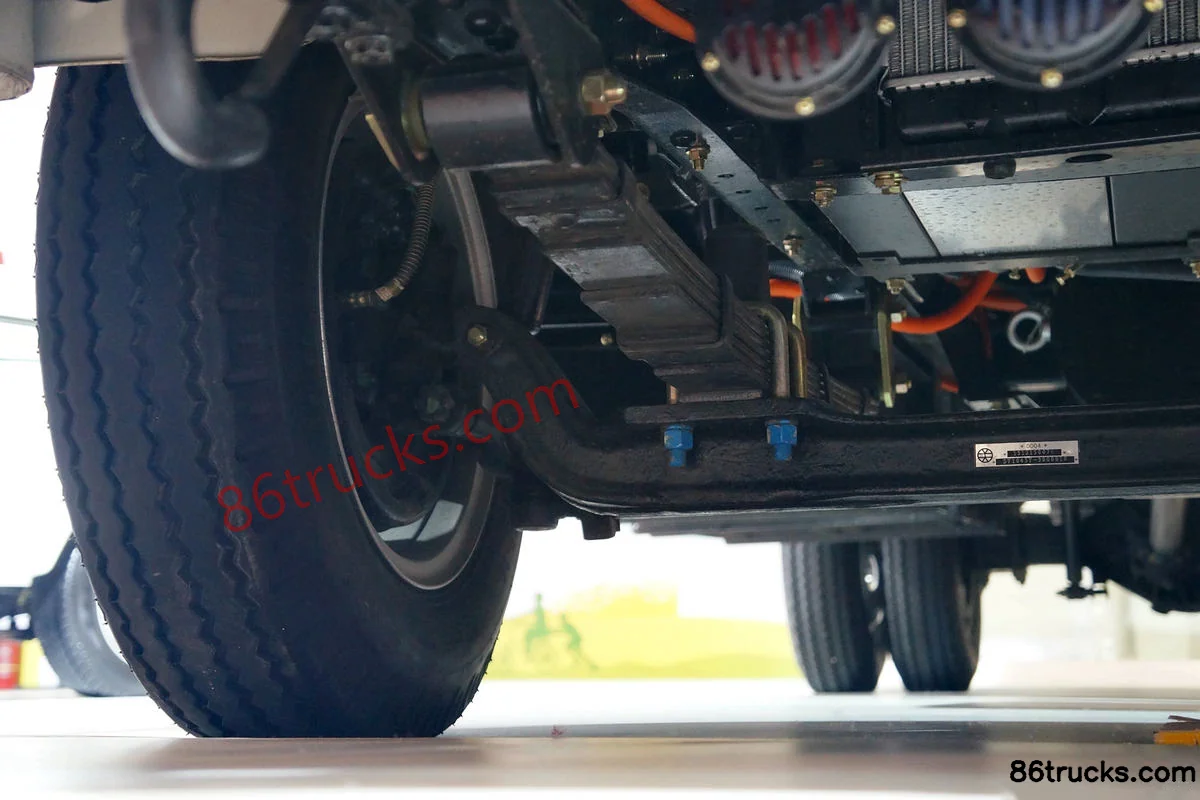

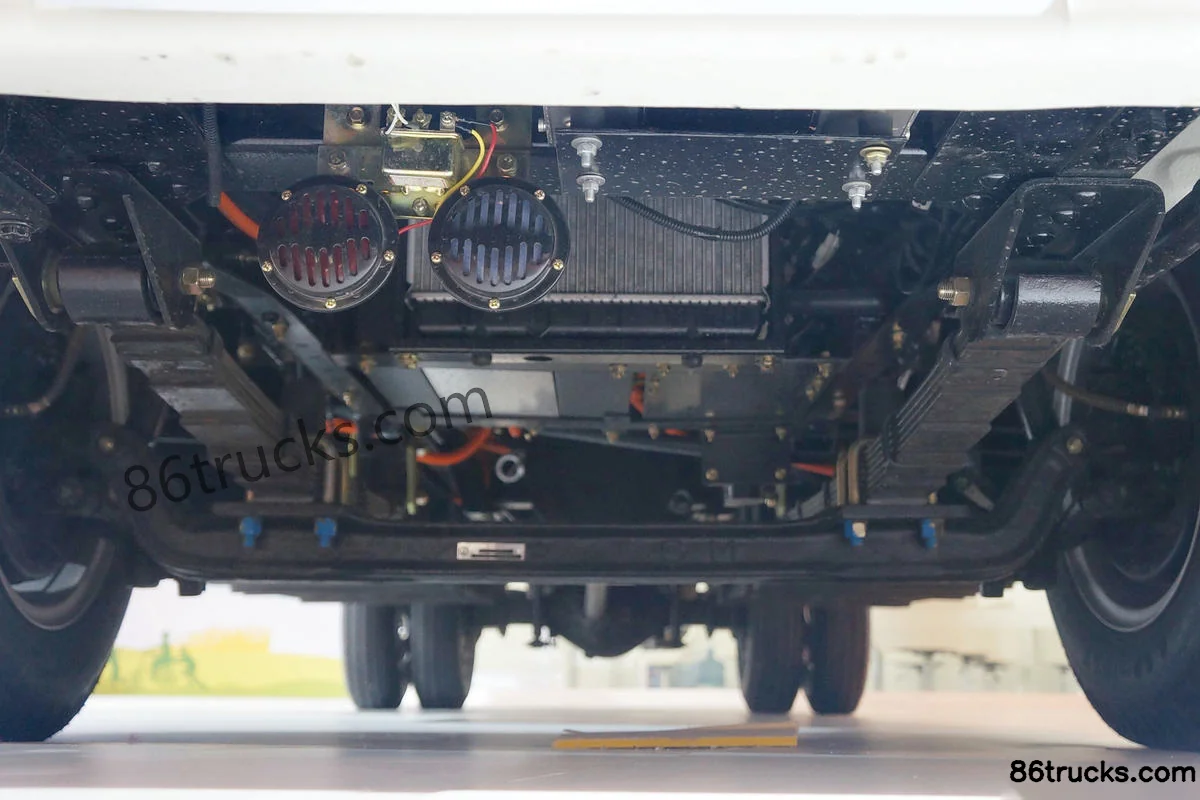

Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Chassis (1) | 86Trucks Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Chassis (2) | 86Trucks Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck?

Key specs of Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck: Drive: 4x2; Horsepower: 75 hp. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck suited for?

Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck differ from other variants in the same series?

Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck belongs to Shenyang Jinbei Qiyun light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei Qiyun 75 hp 4X2(6 wheels) 4.33T 4.28m single row pure electric van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
