Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck

Export reference
From $50,694
MSRP ¥36.5M CNY
Wheelbase:: 3800+1400mm
Other special notes:: Ratio: 6.39; Fuel tank: 360L aluminum alloy
Engine Model:: WeichaiWP10.380E32
Displacement:: 9.726L
Max hp:: 380Horsepower
Max torque speed:: 1500-1800rpm
Horsepower 380
Max output power: 280kW
Emission China V
Drive 6X4 (10 wheels)

Overview

The SAIC Hongyan Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck is a off-highway mining dump truck featuring 380 hp, 280kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.380E32 engine and China V emissions.

China V 380 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Wheelbase: 3800+1400mm
Body Parameters
Other special notes: Ratio: 6.39; Fuel tank: 360L aluminum alloy
Engine parameters
Engine Model: WeichaiWP10.380E32
Displacement: 9.726L
Emission standard: China V
Max output power: 280kW
Max hp: 380Horsepower
Max torque speed: 1500-1800rpm
Cargo box parameters
Cargo box dimensions: 5.8X2.3X1.5m
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180T
Tire
Number of tires: 10pcs

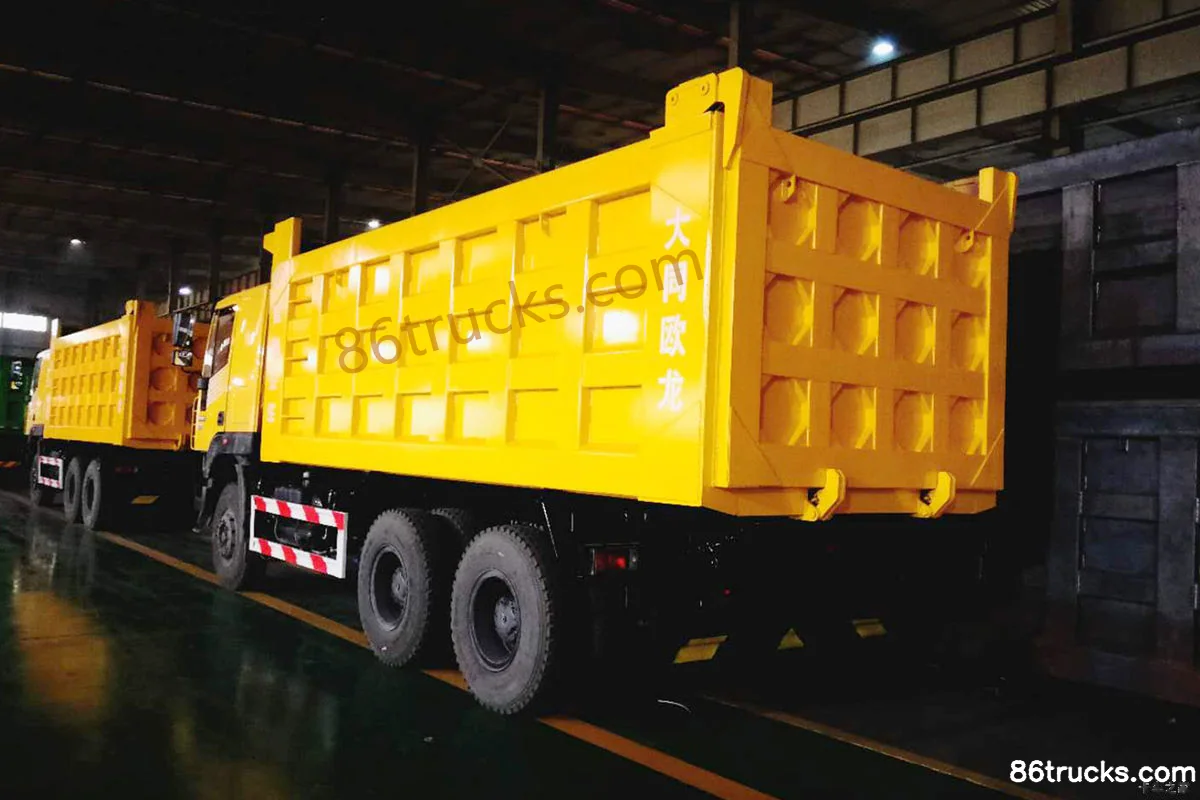

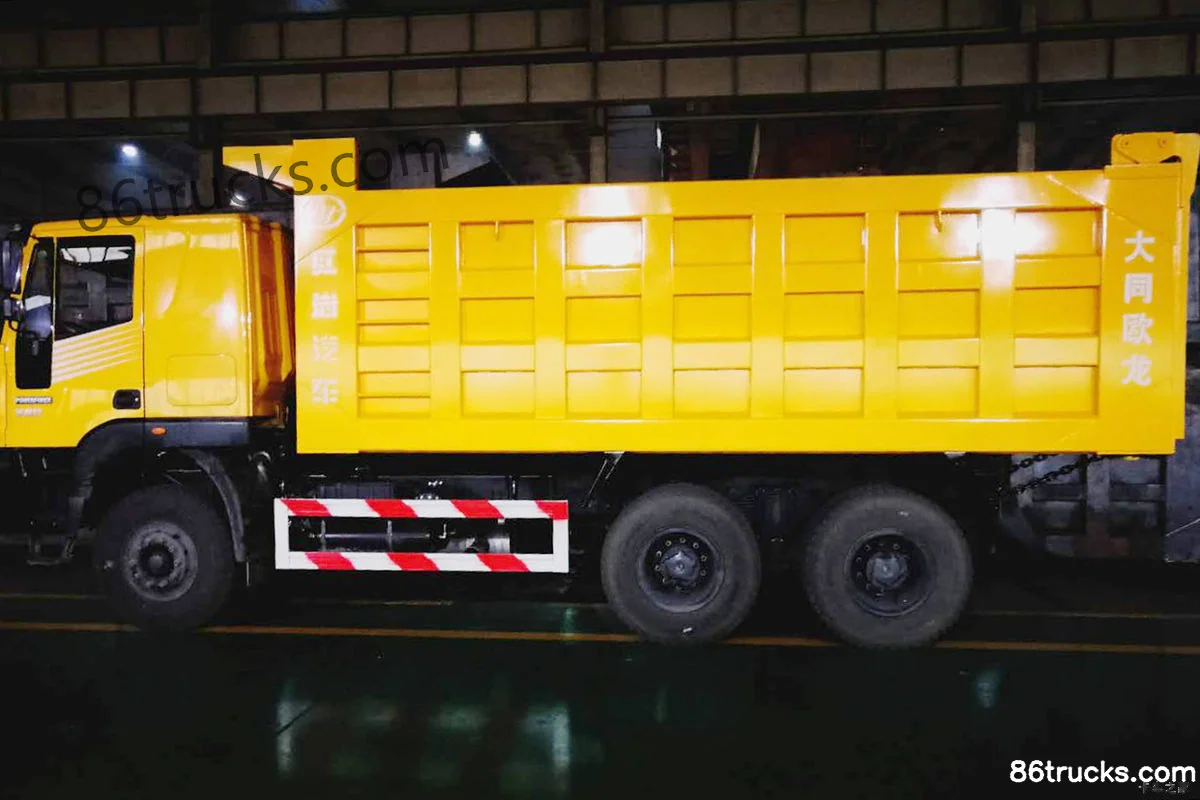

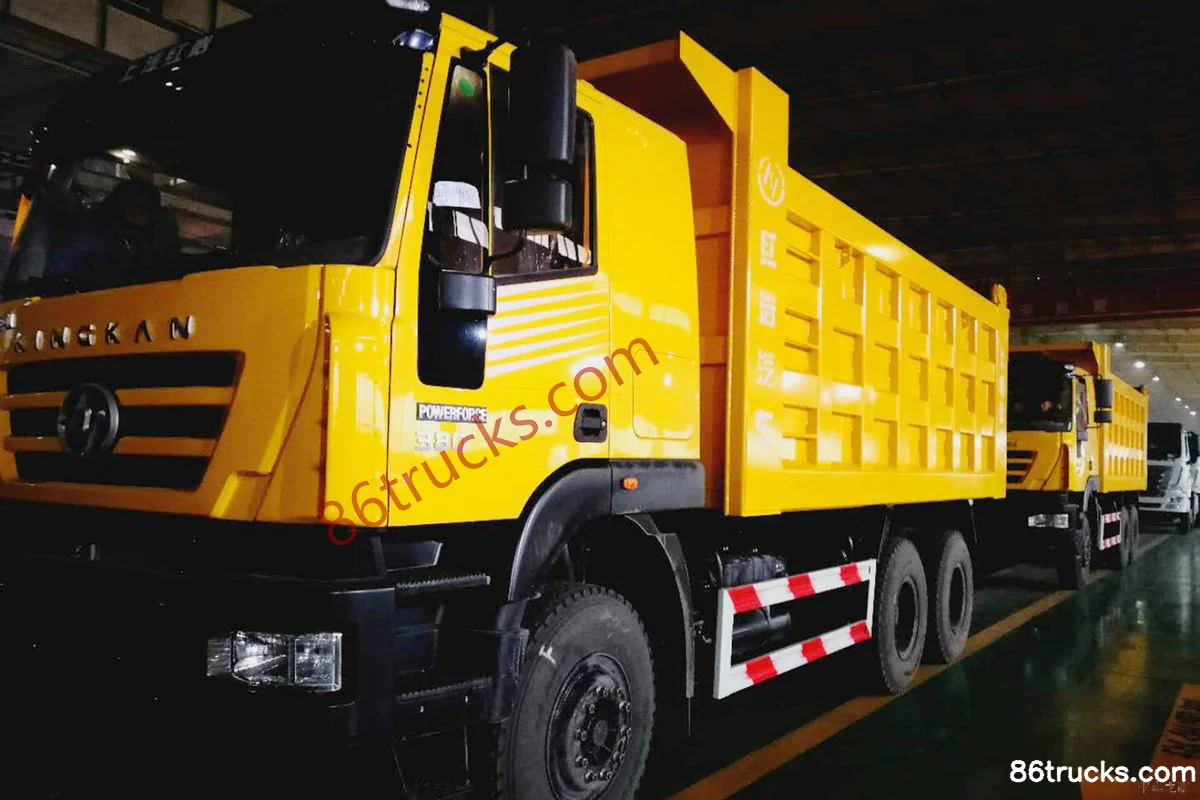

Photos

Exterior3

3 photos

FAQ

What is the export price of Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck, and what does it include?

Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck export reference is about From $50,694; MSRP is ¥36.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck?

Key specs of Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck: Drive: 6x4; Horsepower: 380 hp; Emission: China V. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck suited for?

Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck differ from other variants in the same series?

Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck belongs to SAIC Hongyan King Kong Mine King (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan Jingang Kuangba 380hp 6X4(10 wheels) Mining Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
