King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh

Export reference
From $28,889
MSRP ¥20.8M CNY
Wheelbase:: 2890mm
Cargo Box Height:: 1.66
Model code (announced):: NJL5036XXYEV5
Cab length:: 5.3m
GVWR:: 3.25ton
Max. speed:: 90km/h
King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh exterior
View more photos (4)
CLTC range: 280km
Motor 1 Brand: King Long
Curb Weight: 1.75ton
Rated payload: 1.37ton

Overview

The King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh is a Electric Panel Van featuring 280km battery/range, King Long motor, 1.37t payload and 1.66 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJL5036XXYEV5
Wheelbase: 2890mm
Cab length: 5.3m
Cab width: 1.7m
Cab height: 2.26m
CLTC range: 280km
Curb Weight: 1.75ton
Rated payload: 1.37ton
GVWR: 3.25ton
Max. speed: 90km/h
Front/rear suspension: 1.3/1.11m
Version: 2024 Model
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: TZ180XSH23
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
Battery/Charging
Battery Brand: CATL
Charging method: DC fast charge / 3.3kW AC slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 53.58kWh
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Single-side manual center sliding door
Body parameters
Max body depth: 3.275
Max body width: 1.565
Cargo Box Height: 1.66
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT 10PR
Rear Wheel Specification: 195/70R15LT 10PR
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:

Photos

Exterior2

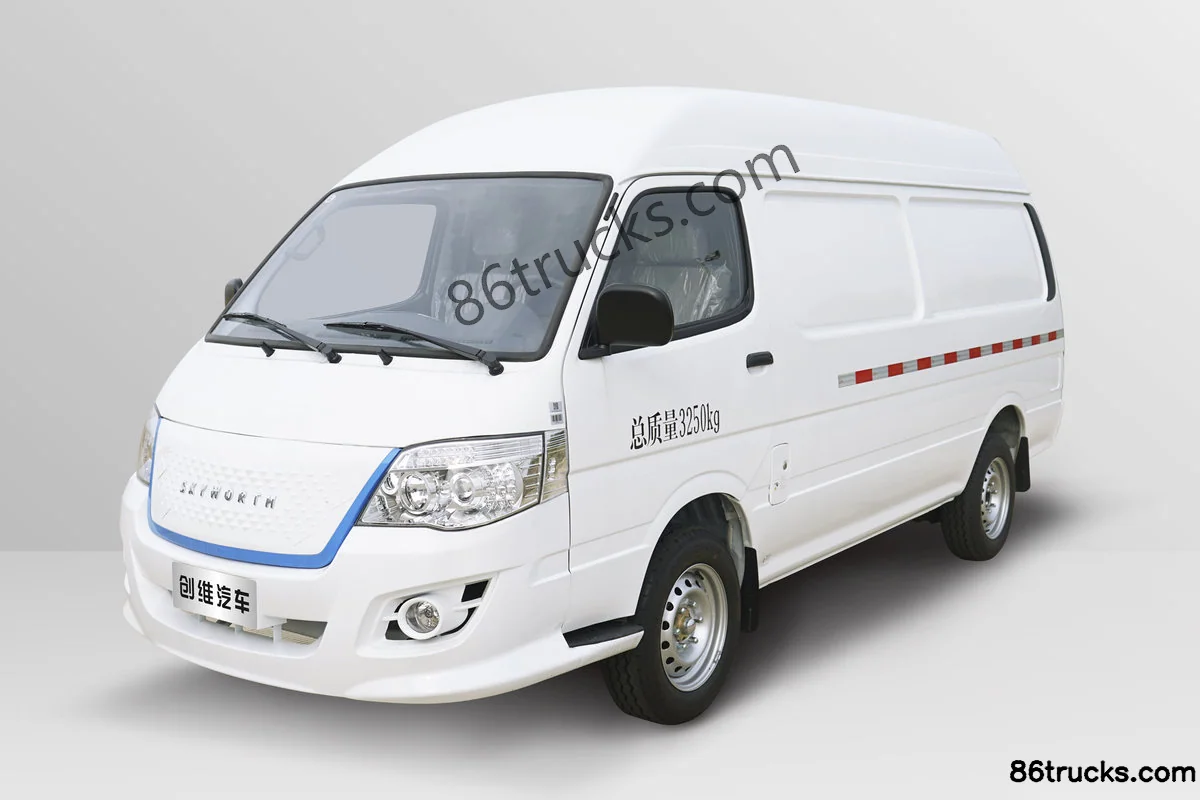

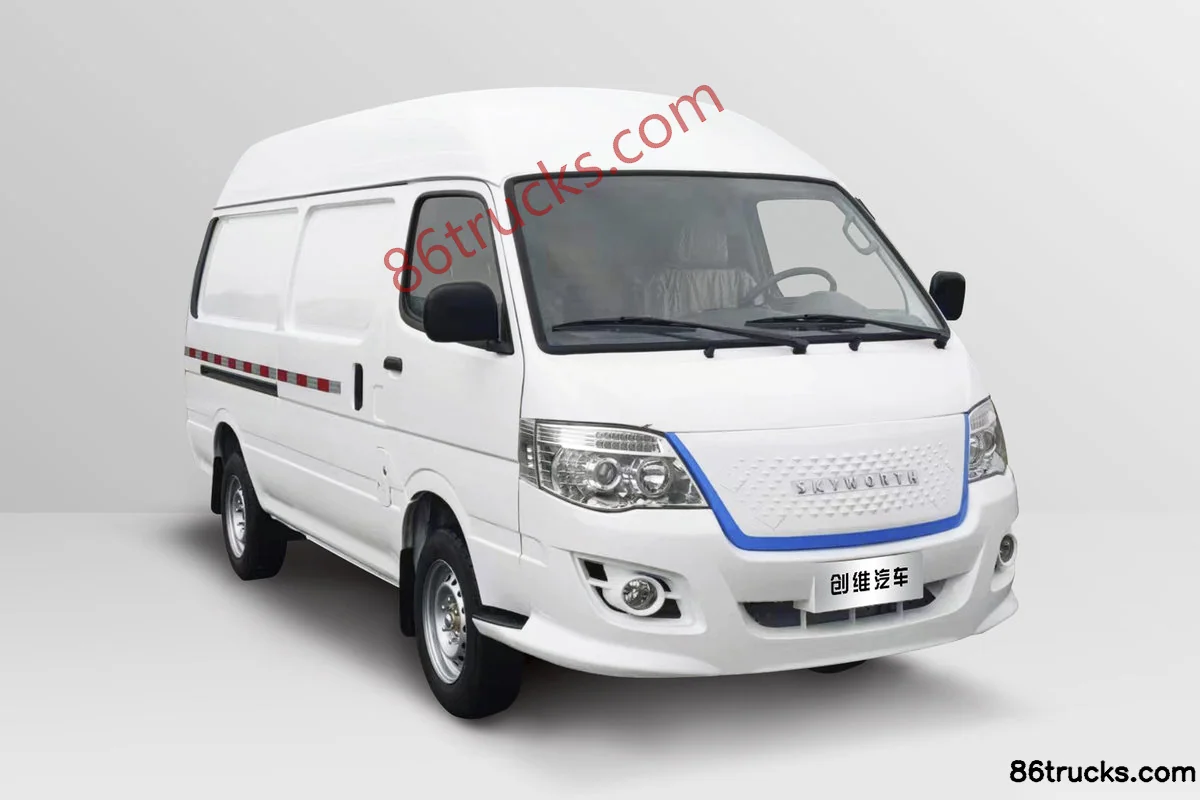

King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh Exterior (1) | 86Trucks King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh Exterior (2) | 86Trucks

Cab1

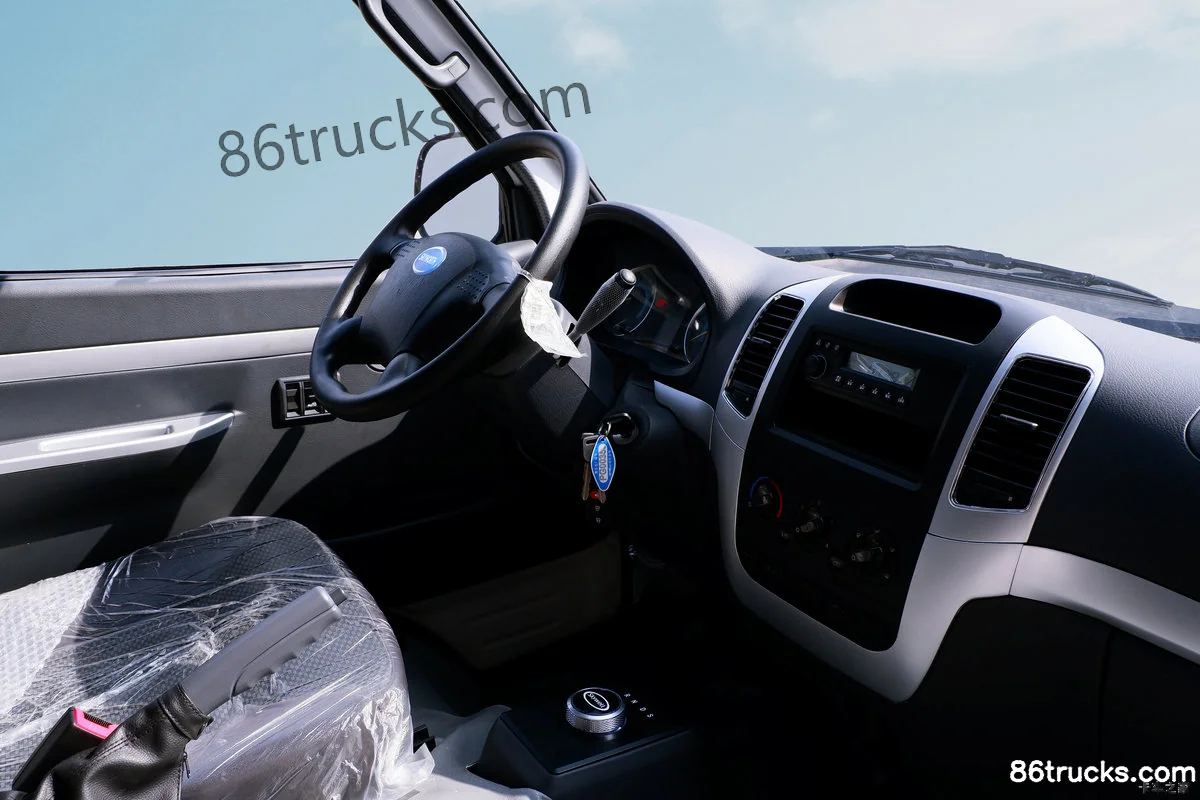

King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh Cab (1) | 86Trucks

Chassis1

King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh Chassis (1) | 86Trucks

4 photos

FAQ

What is the export price of King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh, and what does it include?

King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh export reference is about From $28,889; MSRP is ¥20.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh suited for?

King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh differ from other variants in the same series?

King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh belongs to King Long Skyworth D10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Skyworth D10 2024 2-seat High Roof 5.3m Electric Panel Van 53.58kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
