Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.17ton
Wheelbase:: 3100mm
Cargo box volume:: 14.4m³
Model code (announced):: EQ5045XLCTBEV
Type:: enclosed cargo truck
Box length class:: 4.1m
Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 240km
Motor 1 Brand: Lv Kong
Curb Weight: 3.195ton

Overview

The Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) is a Light Truck featuring 240km battery/range, Lv Kong motor, 4X2 (6 wheels) drive and 1.17t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): EQ5045XLCTBEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3100mm
Box length class: 4.1m
Cab length: 5.96m
Cab width: 2.1m
Cab height: 2.95m
CLTC range: 240km
Curb Weight: 3.195ton
Rated payload: 1.17ton
GVWR: 4.495ton
Max. speed: 85km/h
Origin: Wuhan, Hubei
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: GC-TM750-01
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 75kW
Peak power: 130kW
total rated torque: 5000N·m
total peak torque: 750N·m
Battery/Charging
Battery Brand: Penghui
Battery type: multi-element composite lithium battery
Battery capacity: 93.4kWh
fast charge time: 2h
Battery total voltage: 330V
Cargo box parameters
Cargo box volume: 14.4m³
Cargo box type: Van body
Cargo box length: 4.08m
Cargo box width: 1.95m
Cargo box height: 1.81m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2695kg
Tire
Tire Size: 6.50R16C
Number of tires: 6pcs
Control configuration
ABS:

Photos

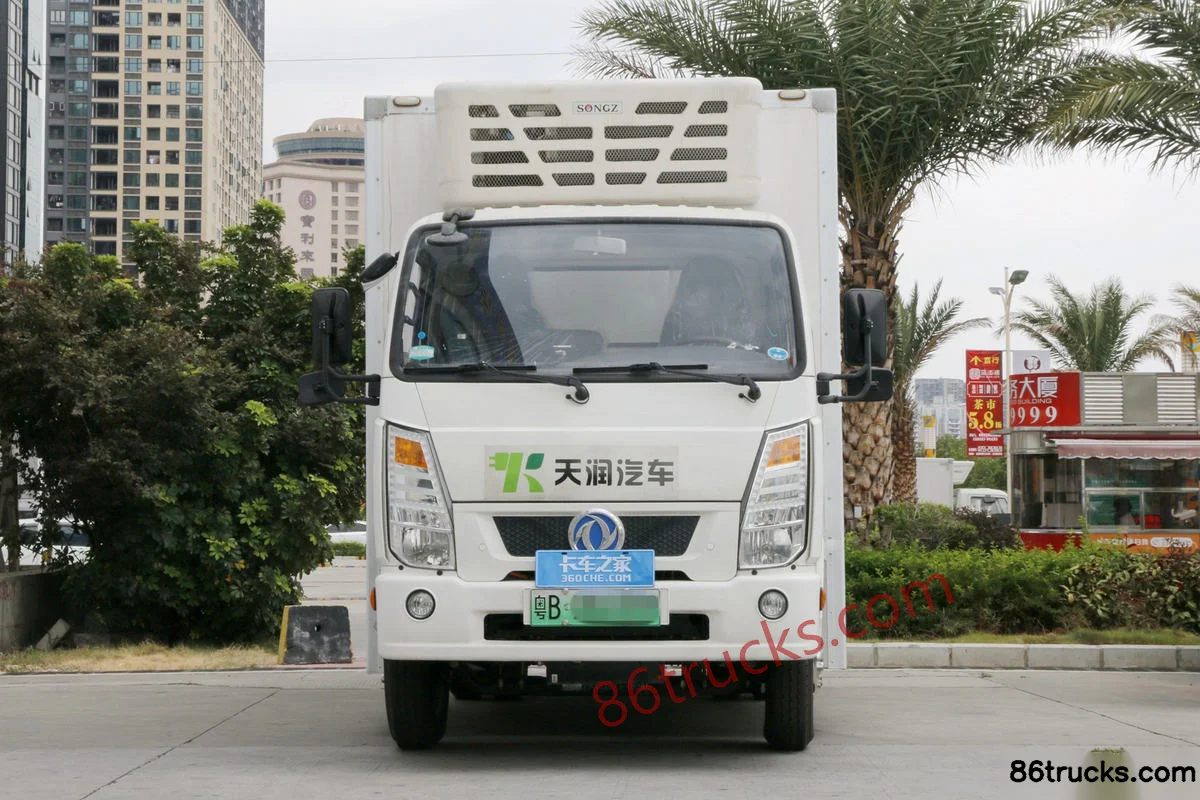

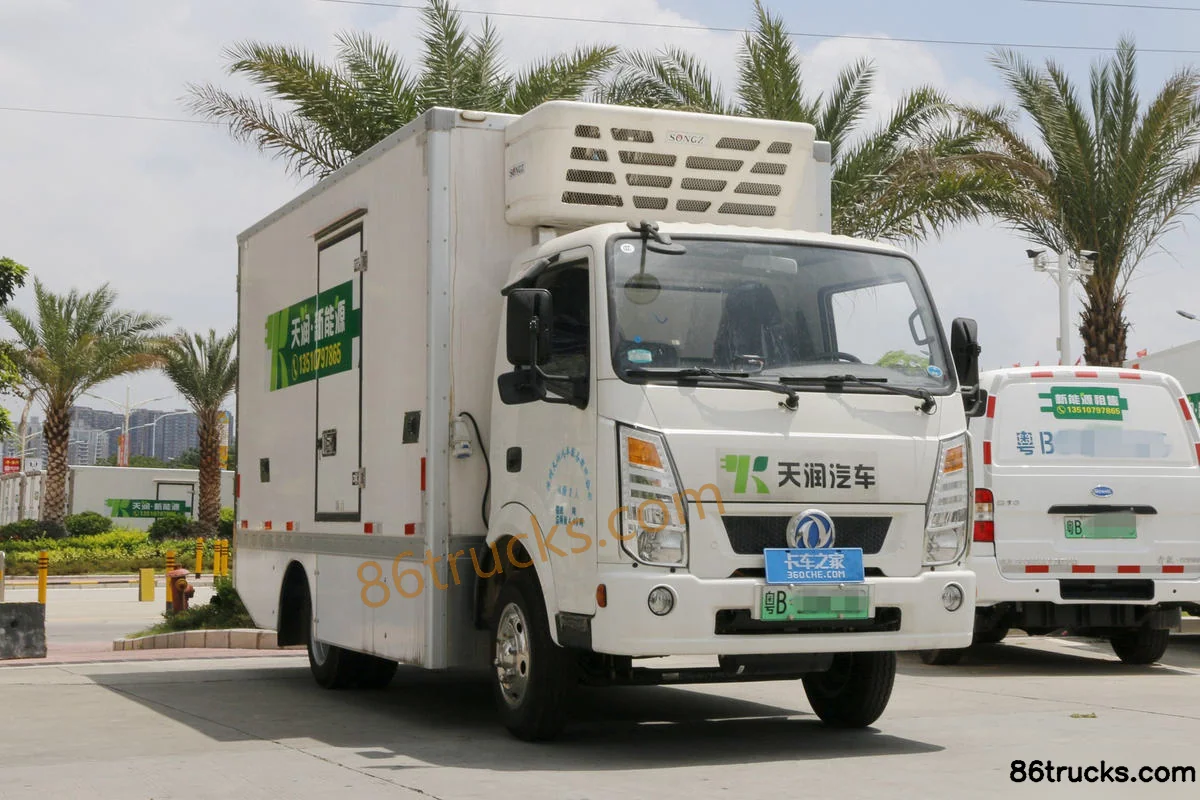

Exterior3

Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Exterior (1) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Exterior (2) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Exterior (3) | 86Trucks

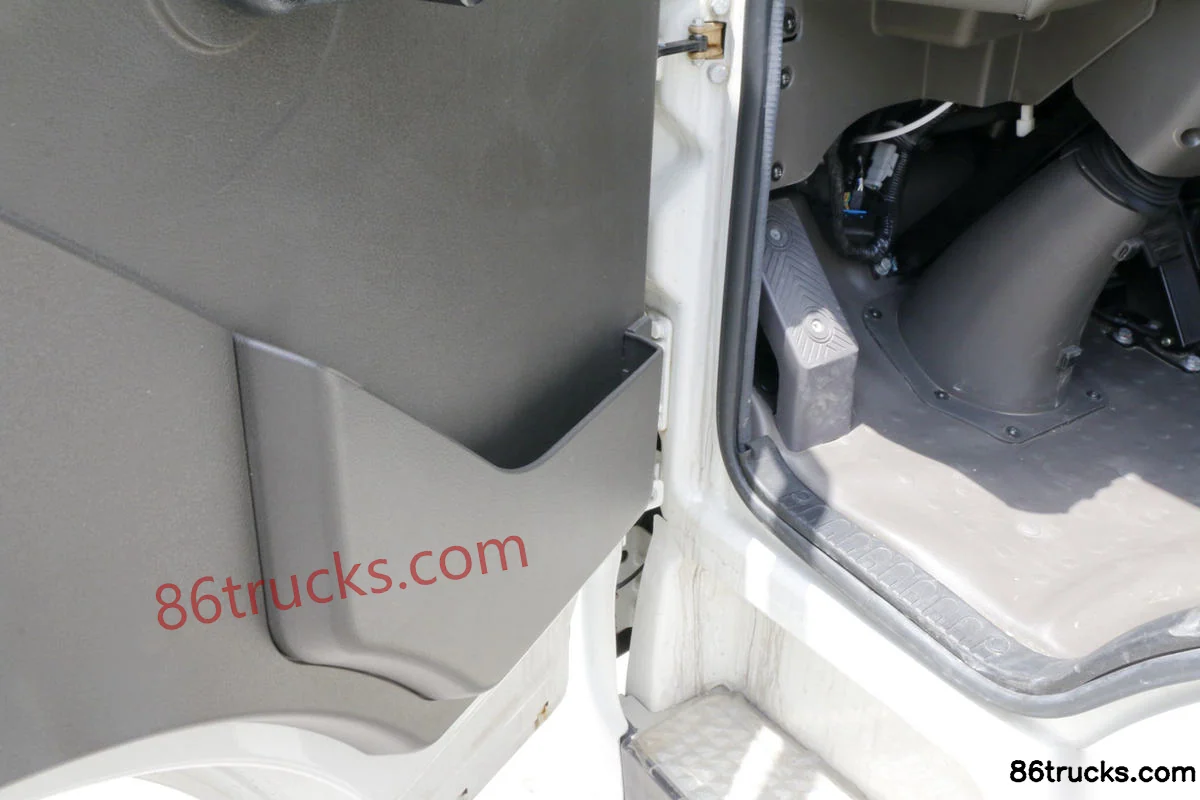

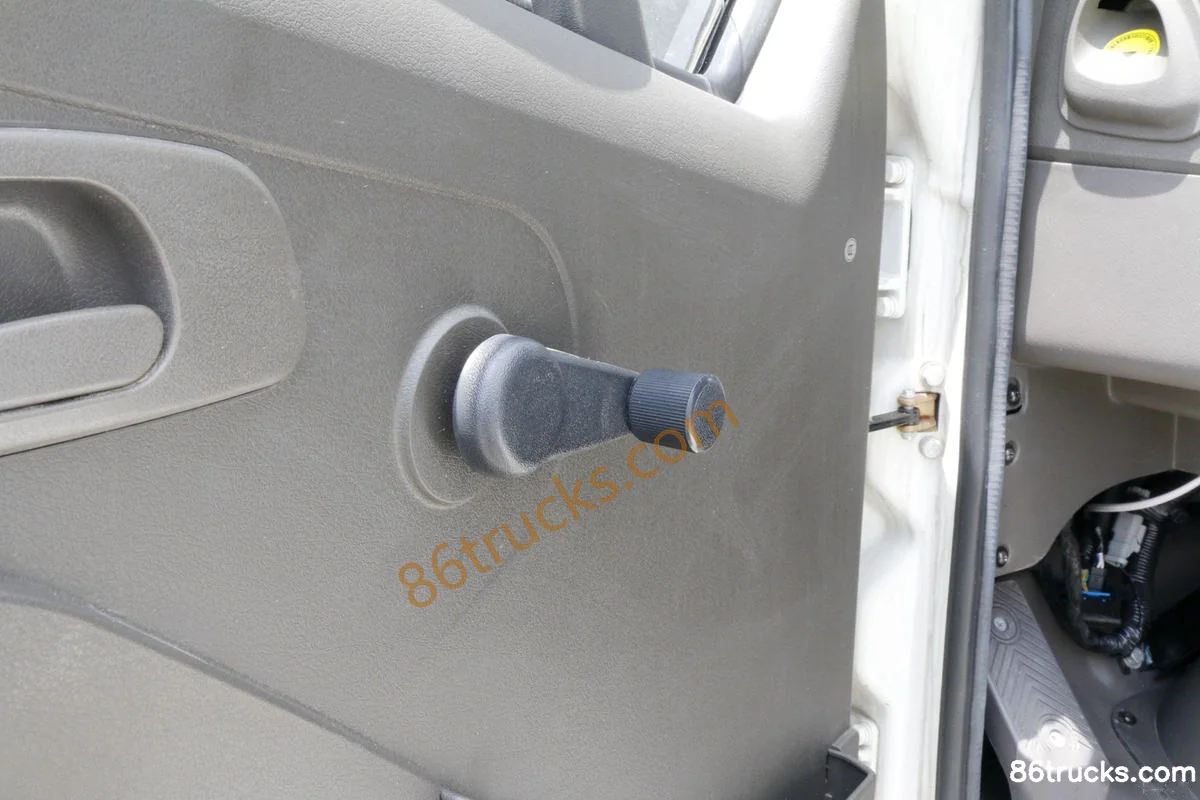

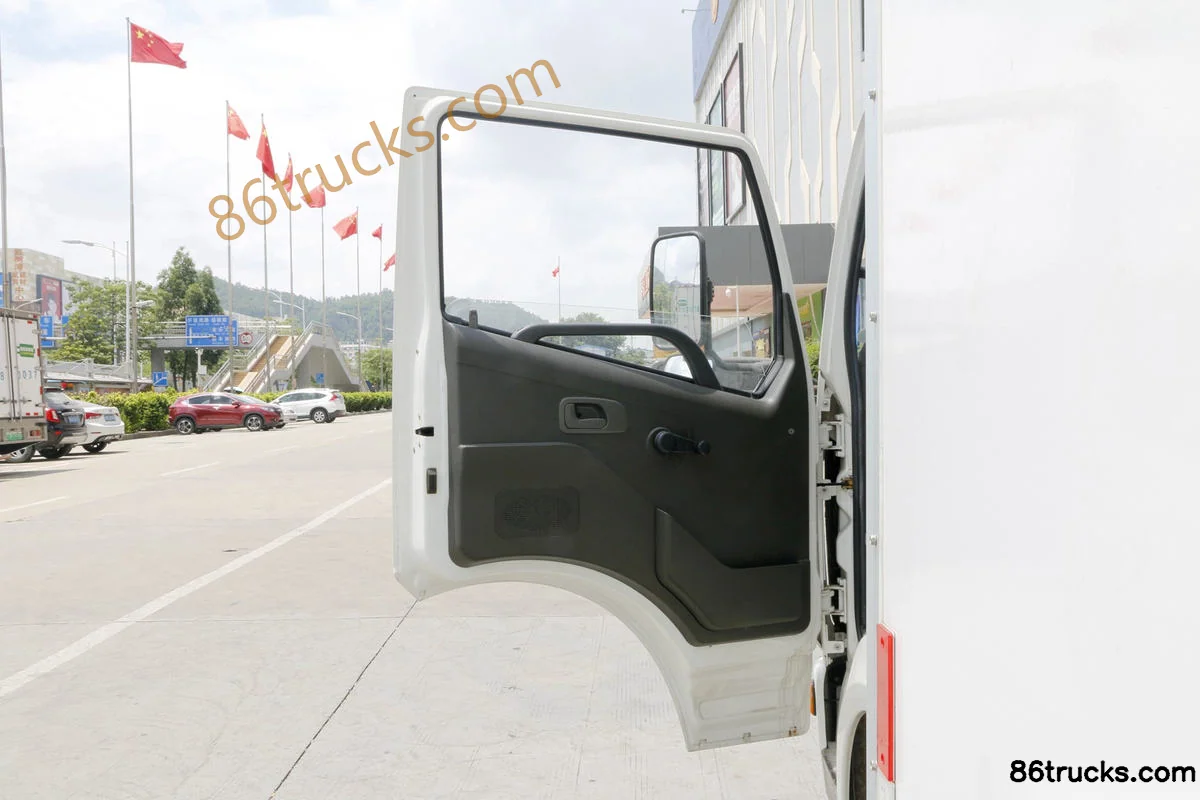

Interior3

Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Interior (1) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Interior (2) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Interior (3) | 86Trucks

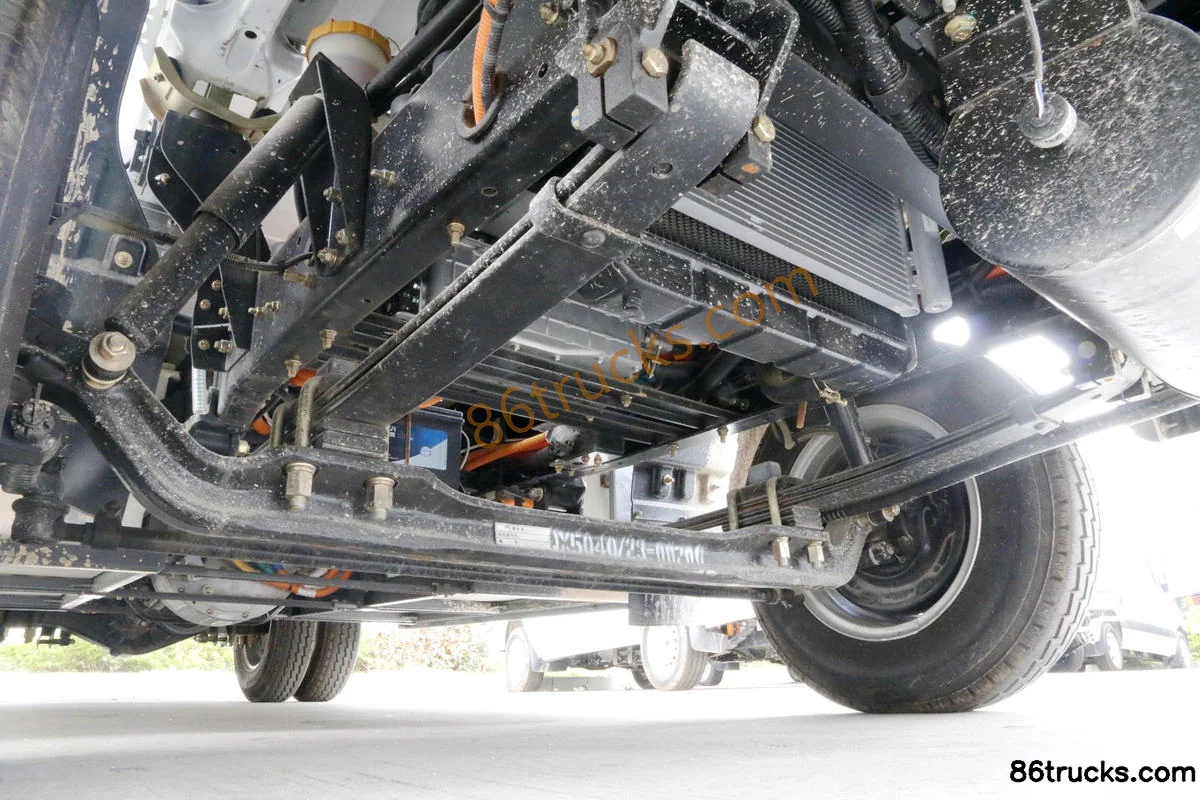

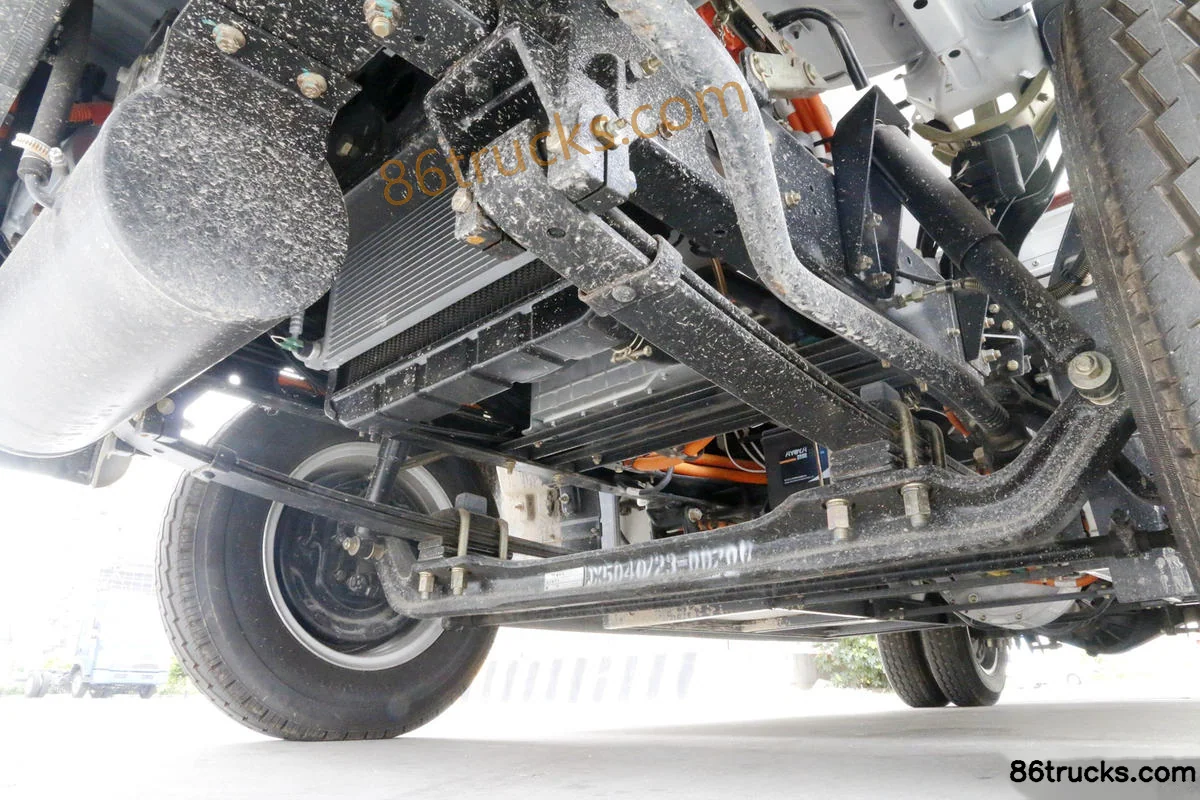

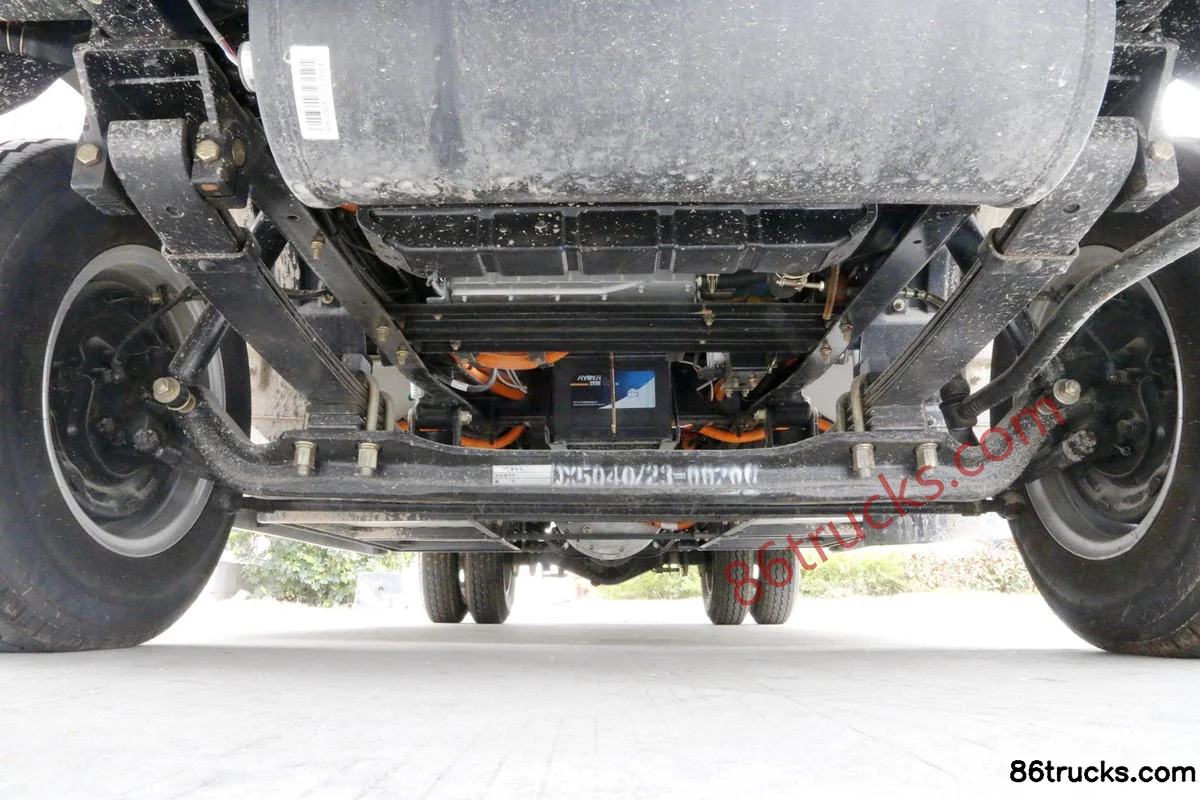

Chassis3

Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Chassis (1) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Chassis (2) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Chassis (3) | 86Trucks

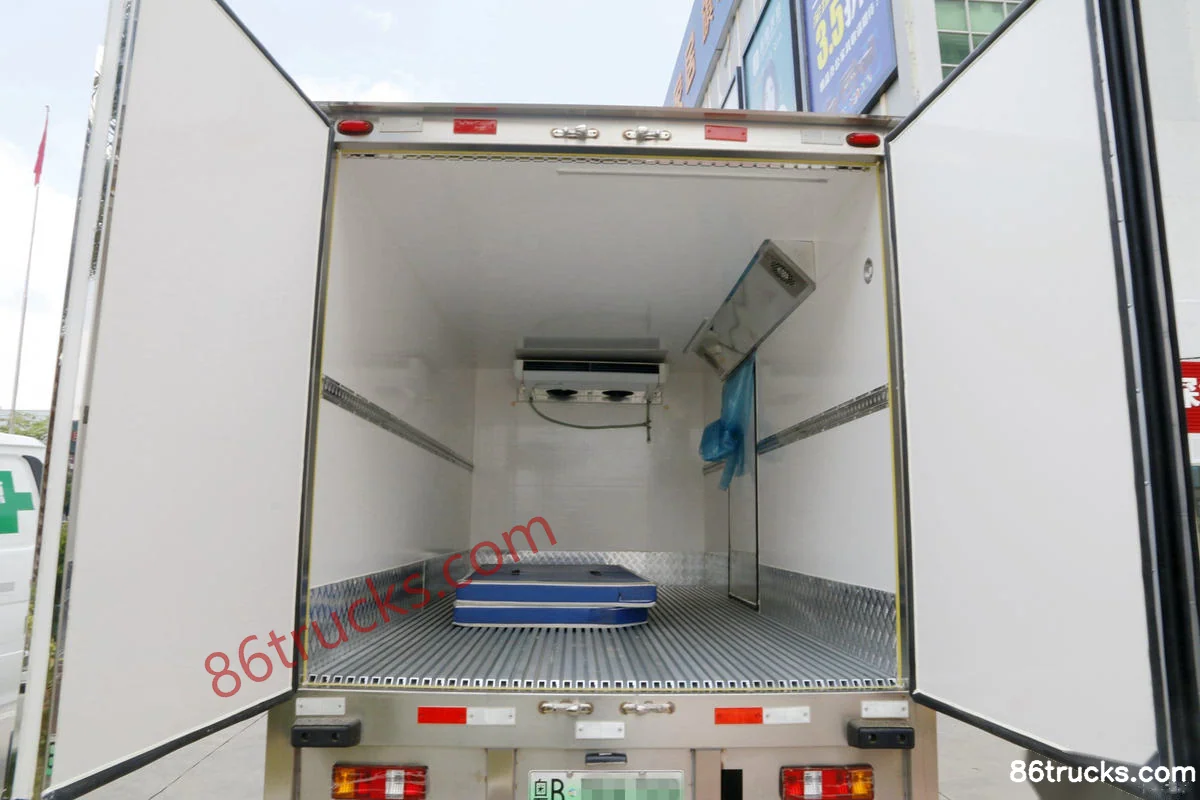

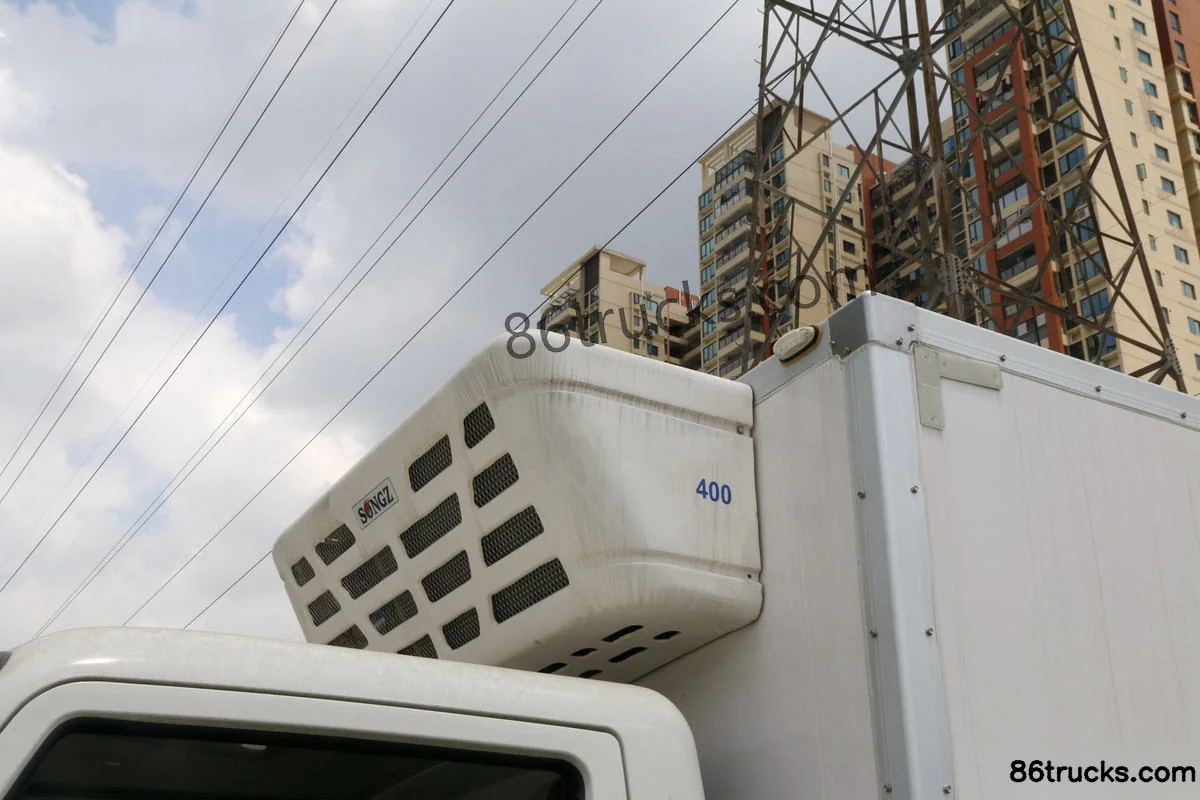

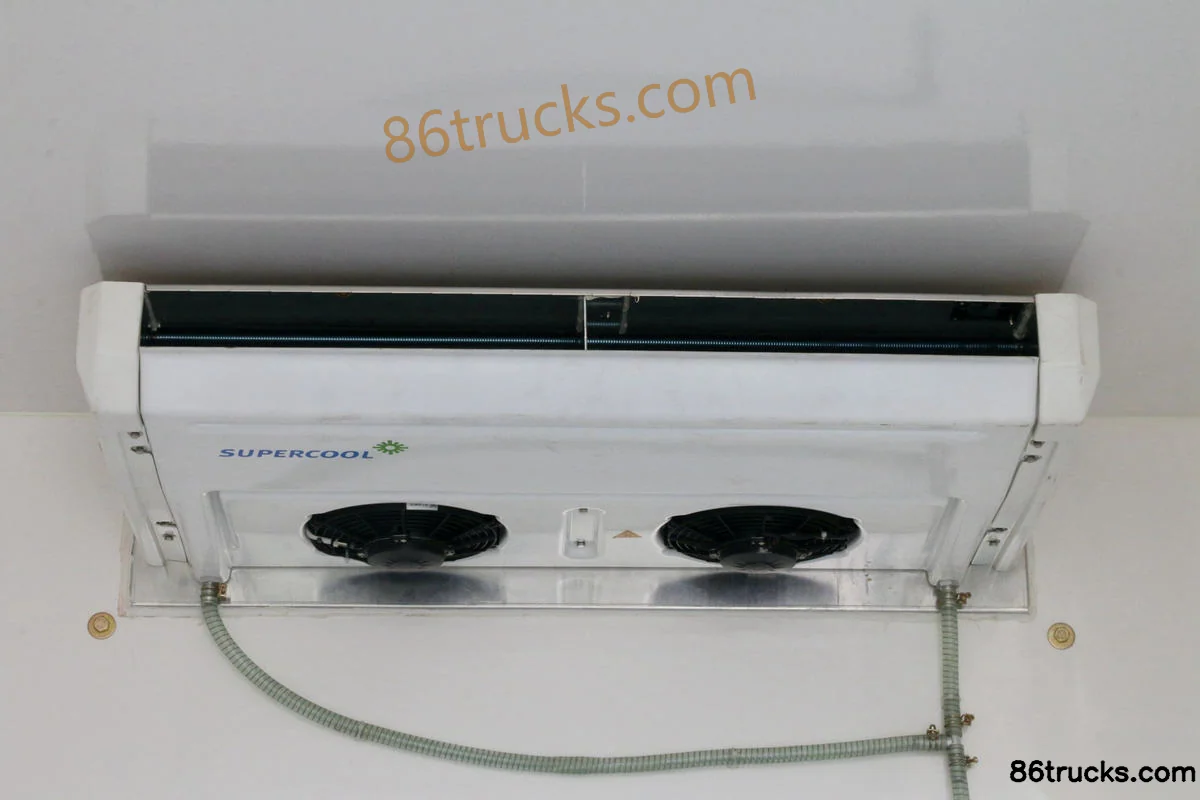

Body3

Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Body (1) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Body (2) | 86Trucks Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels)?

Key specs of Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) suited for?

Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) differ from other variants in the same series?

Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels) belongs to Dongfeng Tesun Medium Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tesun 4.5T 4.08m Electric Refrigerated Truck (EQ5045XLCTBEV) 93.4kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
