FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 2100+4700+1350mm
Cab dimensions:: 11.99×2.5×3.58m
Truck Type:: chemical liquid transport truck
Vehicle origin:: Luoyang
Front/rear track width:: Front track: 2050/2050mm; Rear track: 1830/1830mm
Tank Size: 9.1×2.45×1.6m
Rated payload: 16.005ton
Drive 8X4 (12 wheels)
Horsepower 350

Overview

The FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC) is a liquid transport truck featuring 9.1×2.45×1.6m tank capacity, 16.005t payload, 25m³ volume and 31t GVW. On the powertrain side, it comes with 350 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 350 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.5×3.58m
Drive type: 8X4
Truck Type: chemical liquid transport truck
Vehicle origin: Luoyang
Wheelbase: 2100+4700+1350mm
Front/rear track width: Front track: 2050/2050mm; Rear track: 1830/1830mm
Rated payload: 16.005ton
GVWR: 31ton
Max. speed: 90km/h
Front/rear suspension: 1.47/2.37m
Energy Type: Diesel
Body Parameters
Tank Size: 9.1×2.45×1.6m
Tank Volume: 25m3
Transport medium: Pentane
Medium Density: 0.62ton/cubic meter
Vehicle certification code: ZJV5311GHYLY
Body Brand: CIMC brand
Others: When low-top cab is selected on chassis, overall vehicle height is 3250mm; with 3-person cab, rated load mass is 14800kg; with 2-person cab, rated load mass is 14865kg; only CA6DL2-35E3 engine used; side and rear guards: Q235A steel plate, bolted connection; rear guard section dimensions/ground clearance: 100×50×4/500(mm).
Chassis Specs
Front/rear axle description: Front spring 1st axle 10 leaves; 2nd axle 10 leaves
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6
Chassis Model: CA1310P66K2L7T4E
Leaf spring count: 10/10/12
Engine parameters
Engine Model: Xichai CA6DL2-35E3
Number of cylinders: 6cylinder
Displacement: 8.6L
Emission standard: China III / Euro III
Max output power: 270kW
Max hp: 350Horsepower
Transmission Parameters
Number of gears: 9Gear
Transmission Model: FAW Eaton mechanical 9-speed
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

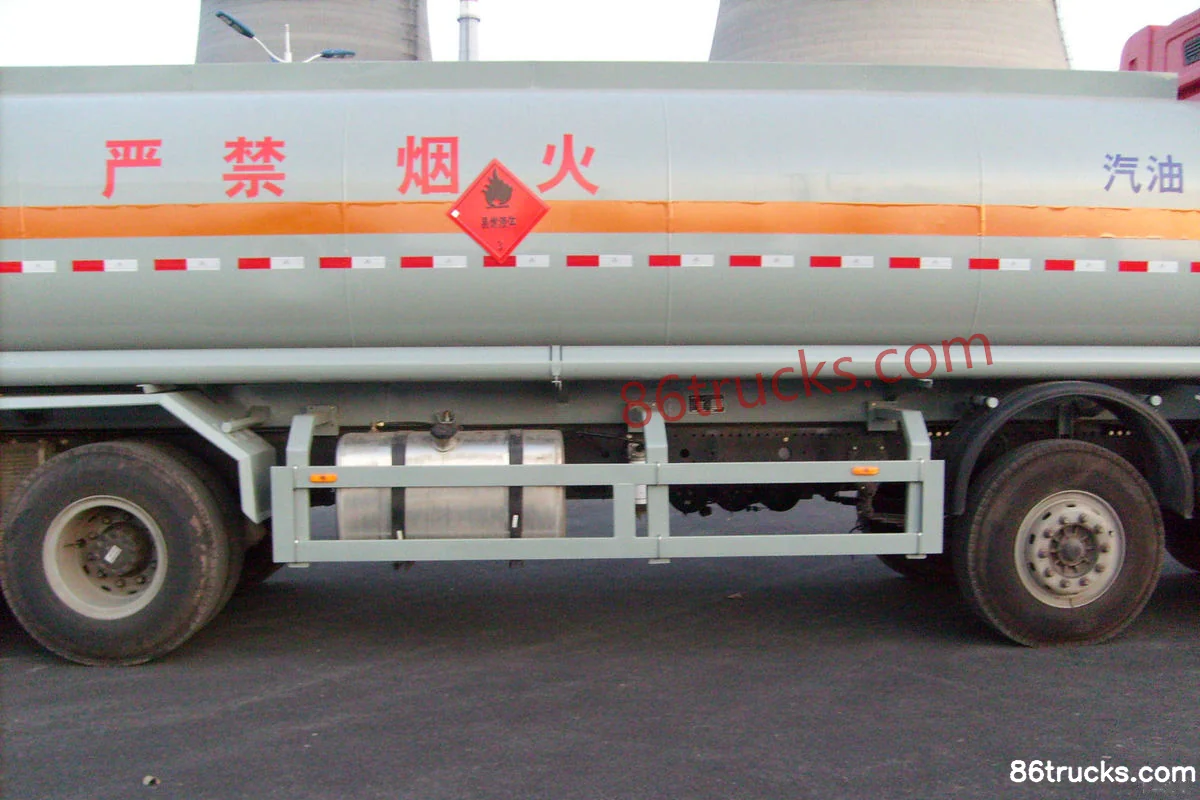

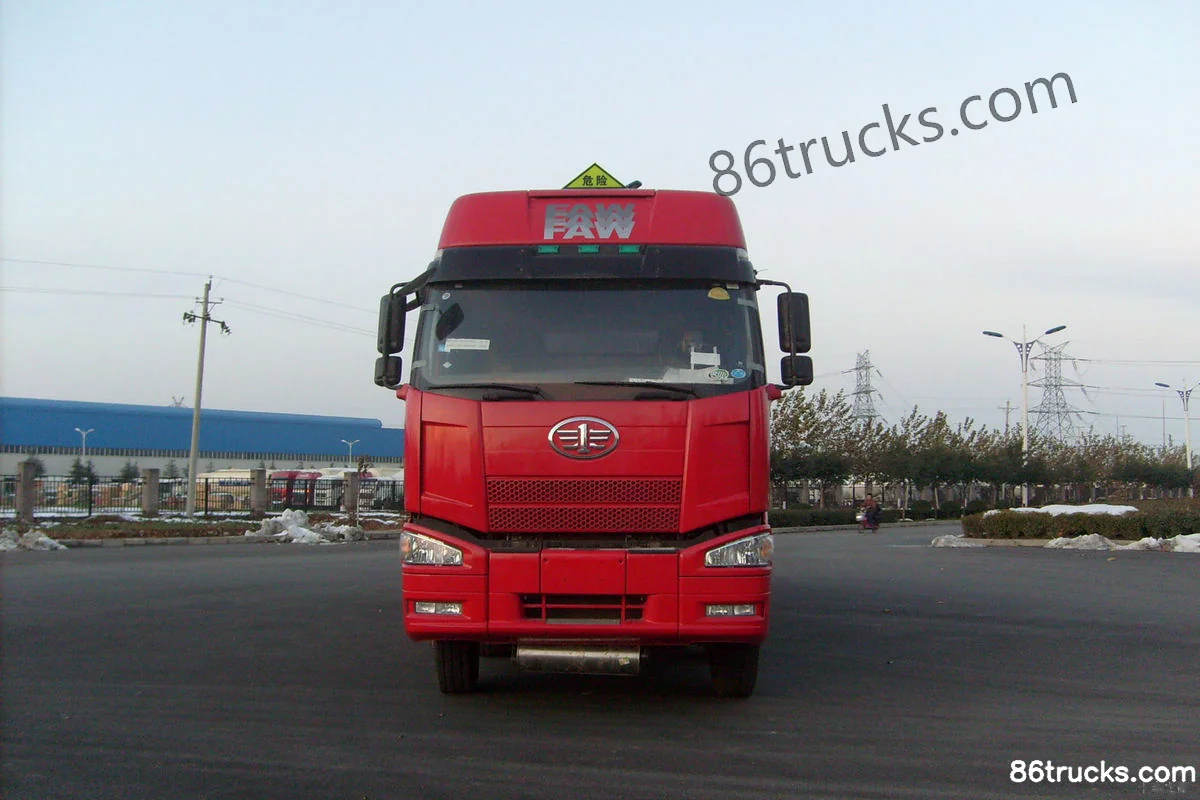

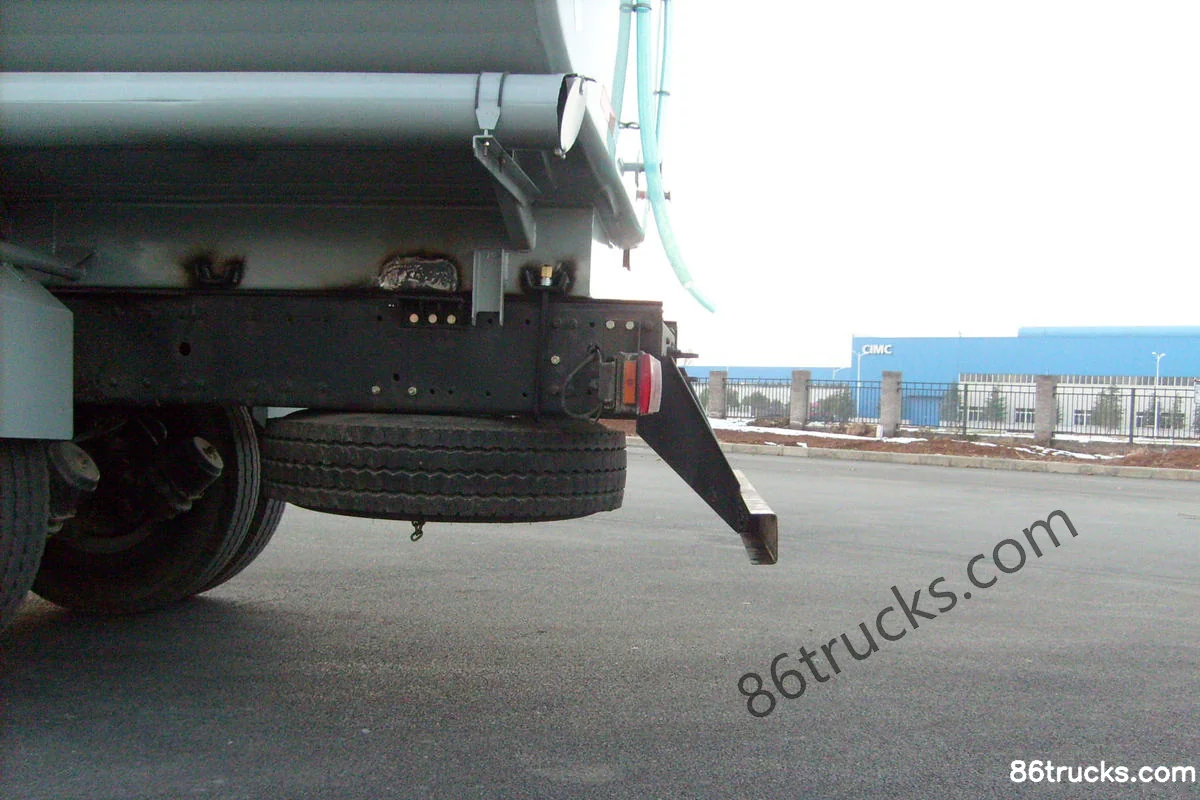

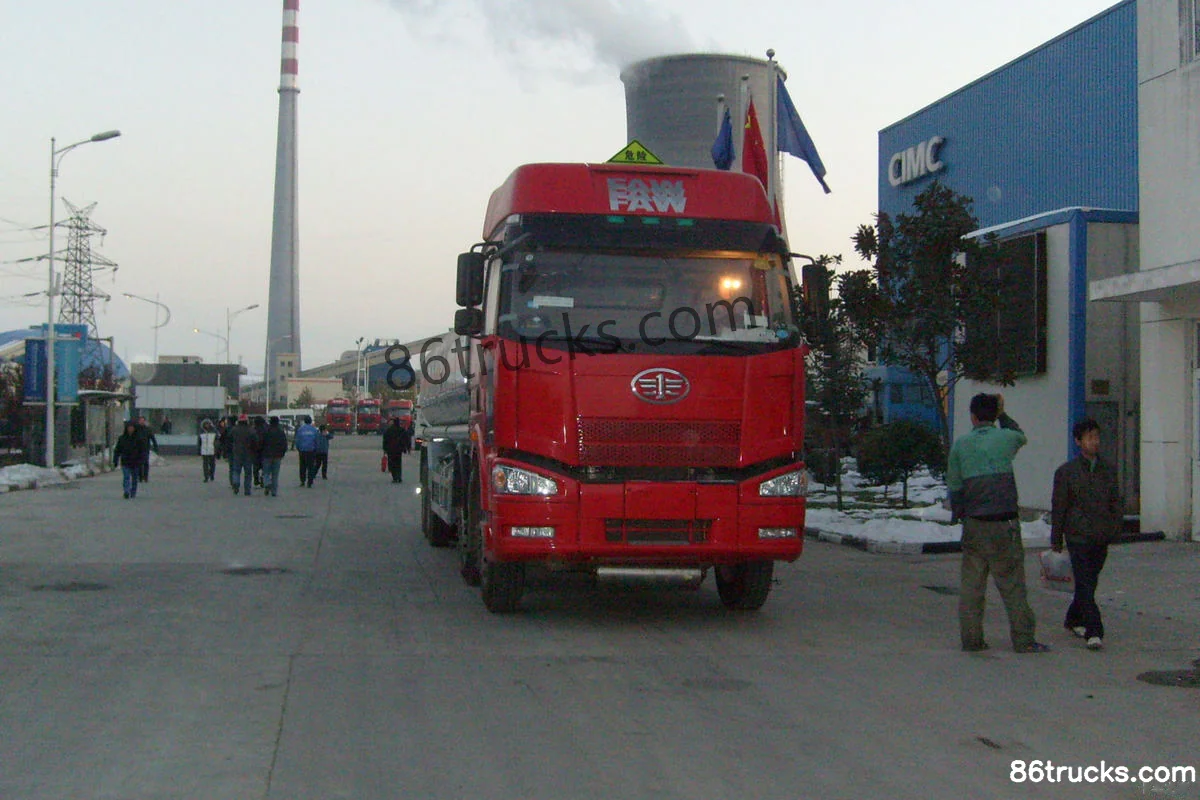

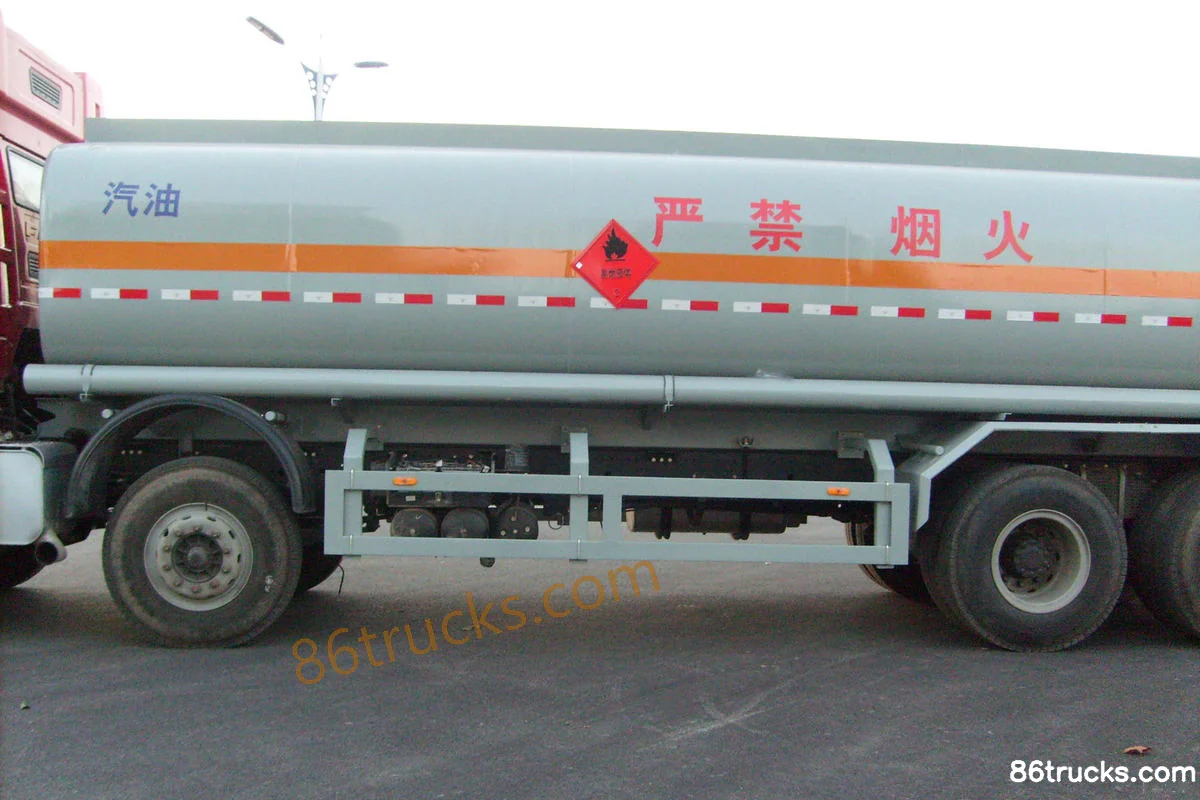

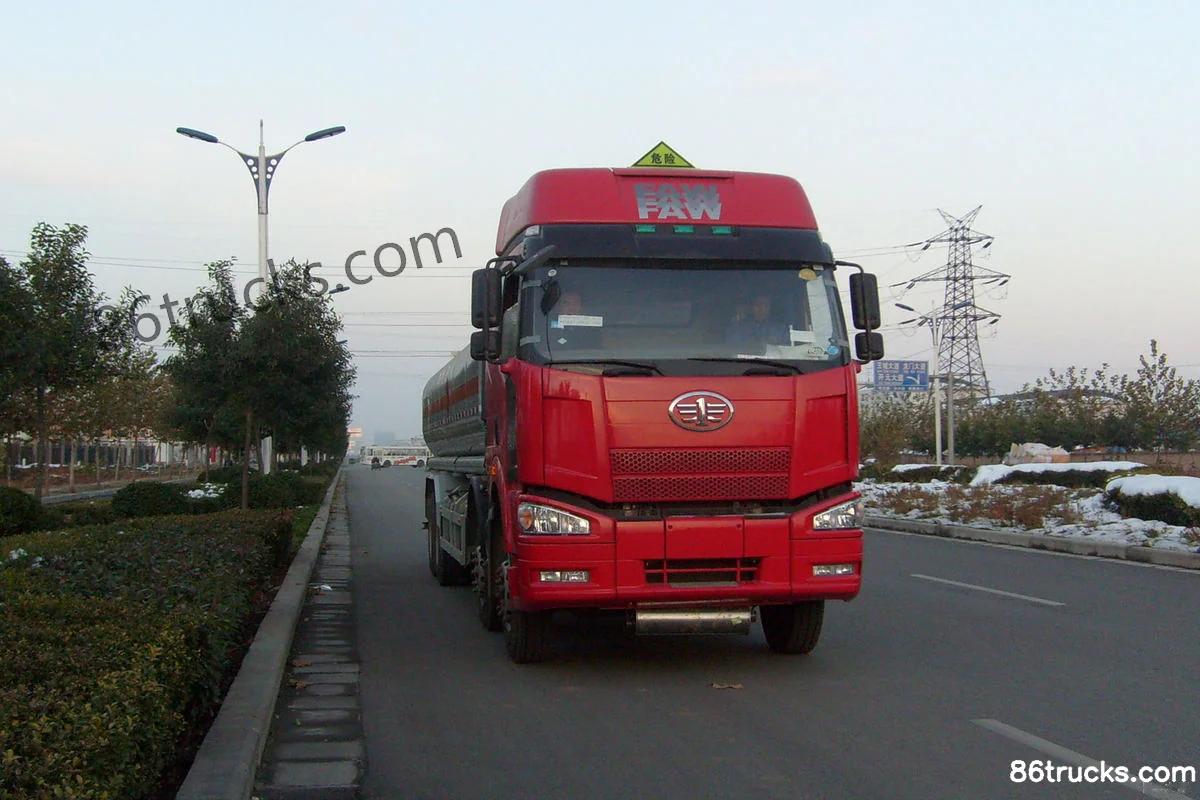

Photos

Exterior3

Cab3

6 photos

FAQ

What emission standard does FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC)?

Key specs of FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC): Drive: 8x4; Horsepower: 350 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC) suited for?

FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC) is a liquid transport truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC) differ from other variants in the same series?

FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC) belongs to CIMC FAW Jiefang Chassis (liquid transport truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6 350 hp 8X4(12 wheels) Chemical Liquid Transport Truck (CIMC)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
