Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh

Export reference
MSRP N/A
Rated payload:: 1.29ton
Wheelbase:: 3308mm
Cargo box width:: 2.1m
Model code (announced):: DFA5040XLCEBEV
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 345km
Motor 1 Brand: Dongfeng
Curb Weight: 3.01ton

Overview

The Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh is a Electric Refrigerated Truck featuring 345km battery/range, Dongfeng motor, 4X2 (6 wheels) drive and 1.29t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFA5040XLCEBEV
Drive type: 4X2
Wheelbase: 3308mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.24m
CLTC range: 345km
Curb Weight: 3.01ton
Rated payload: 1.29ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Xiangyang, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: Dongfeng
Motor 1 Model: TZ228XS035DN01
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 115kW
total rated torque: 135N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 81.14kWh
Battery rated voltage: 540.96V
Energy Density: 147
Cargo box parameters
Box volume: 18.1m³
Cargo box width: 2.1m
Cargo box height: 2.1m
Chassis Specs
Chassis Series: EV350
Chassis Model: EQ1040EACEVJ
Leaf spring count: 2/2+1
Safety features
Remote key:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Electric
Reverse Radar:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

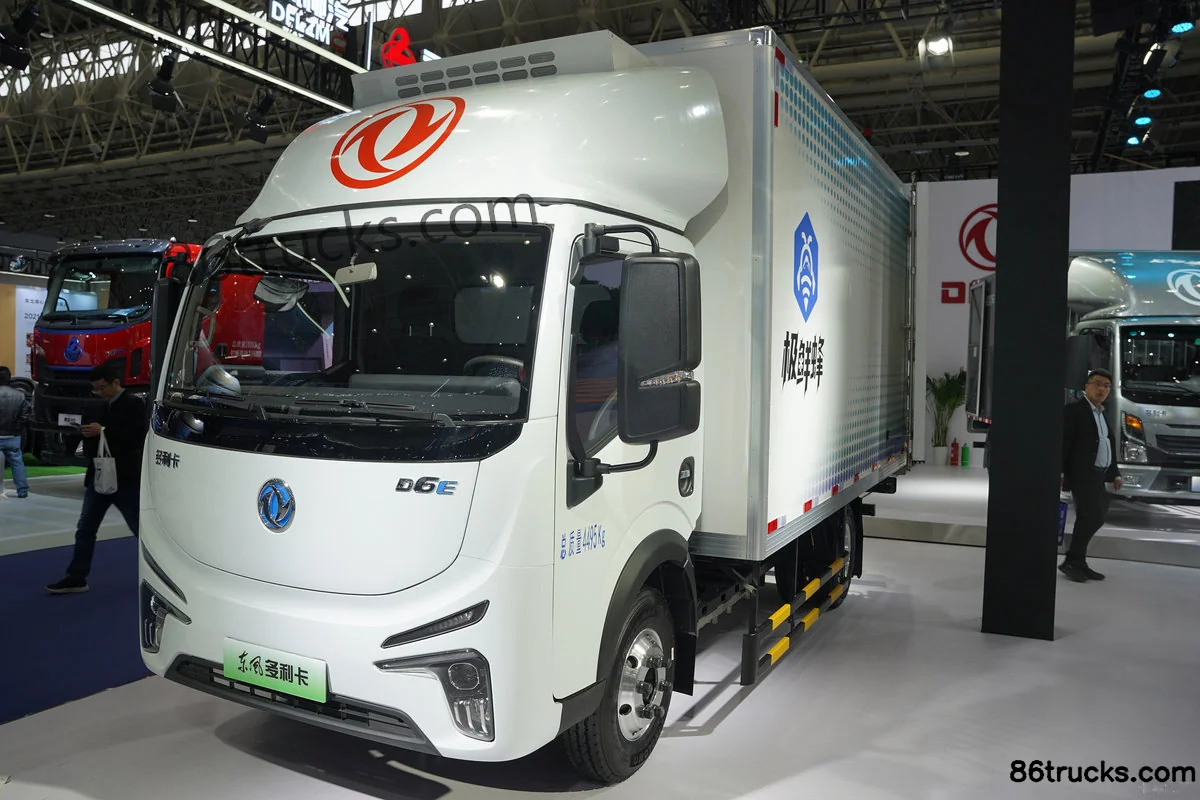

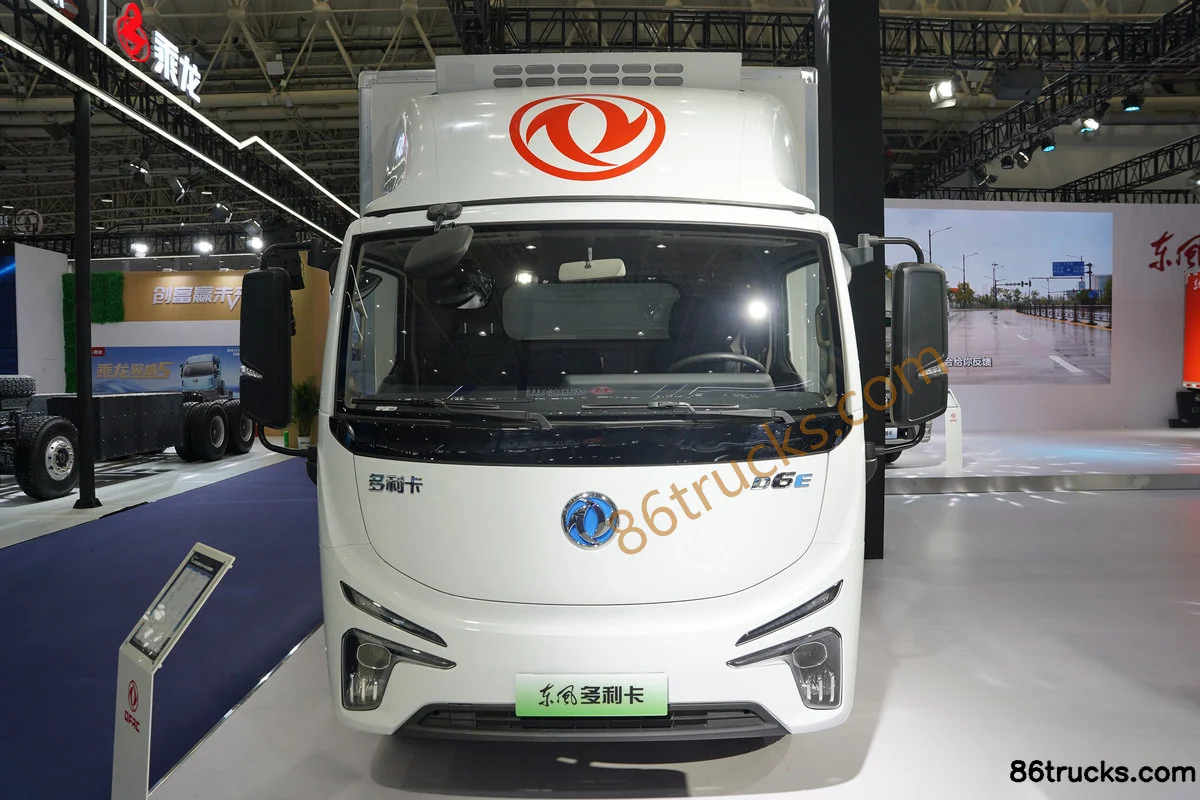

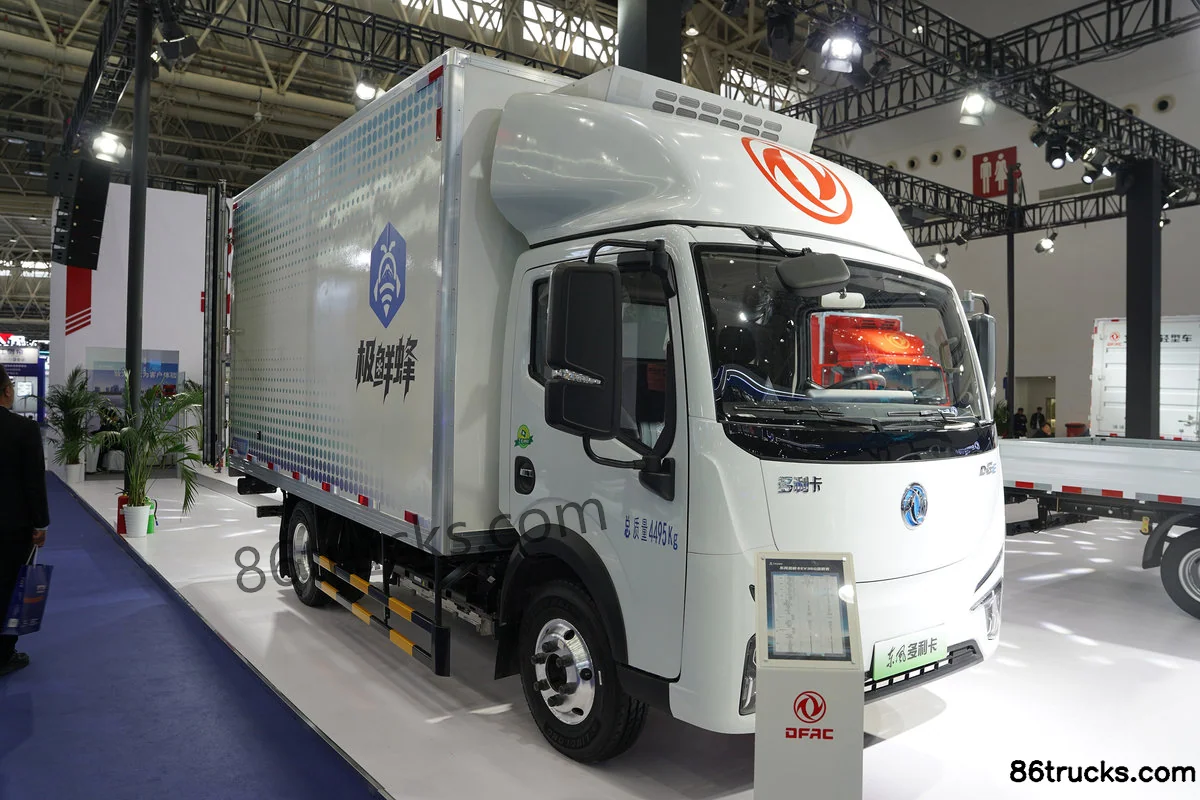

Exterior3

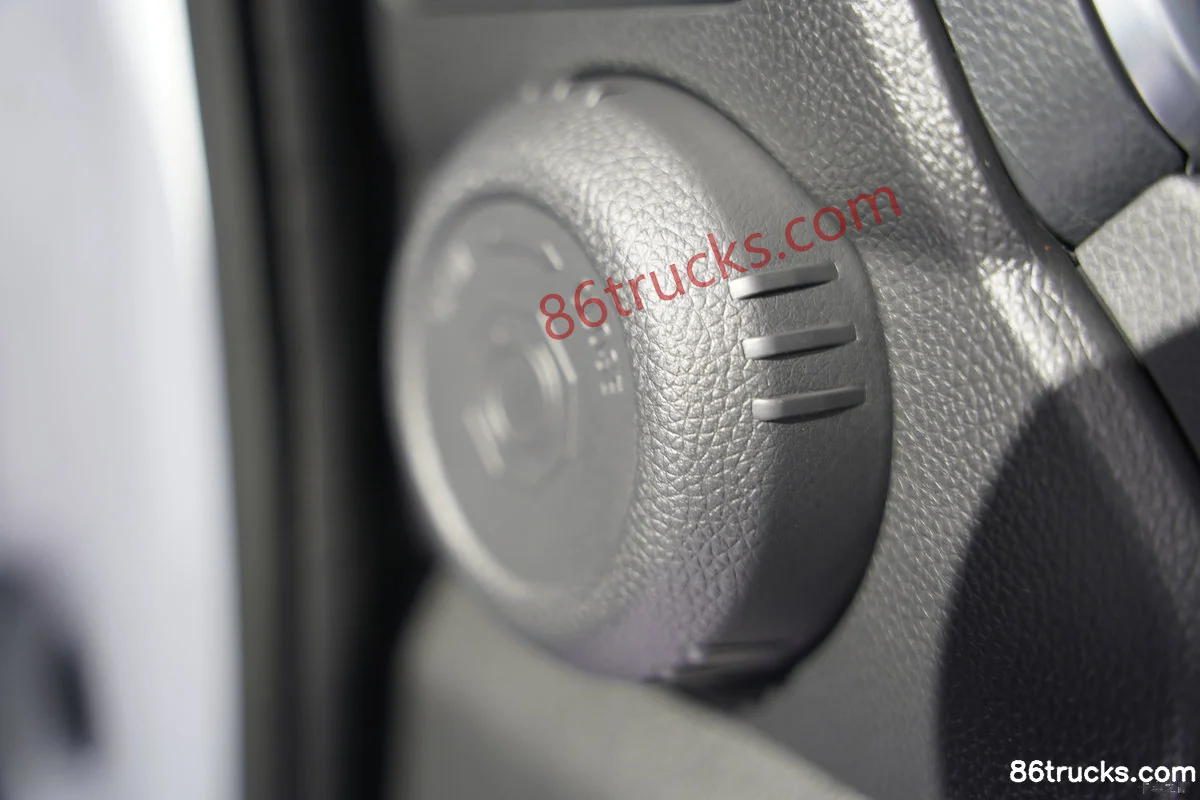

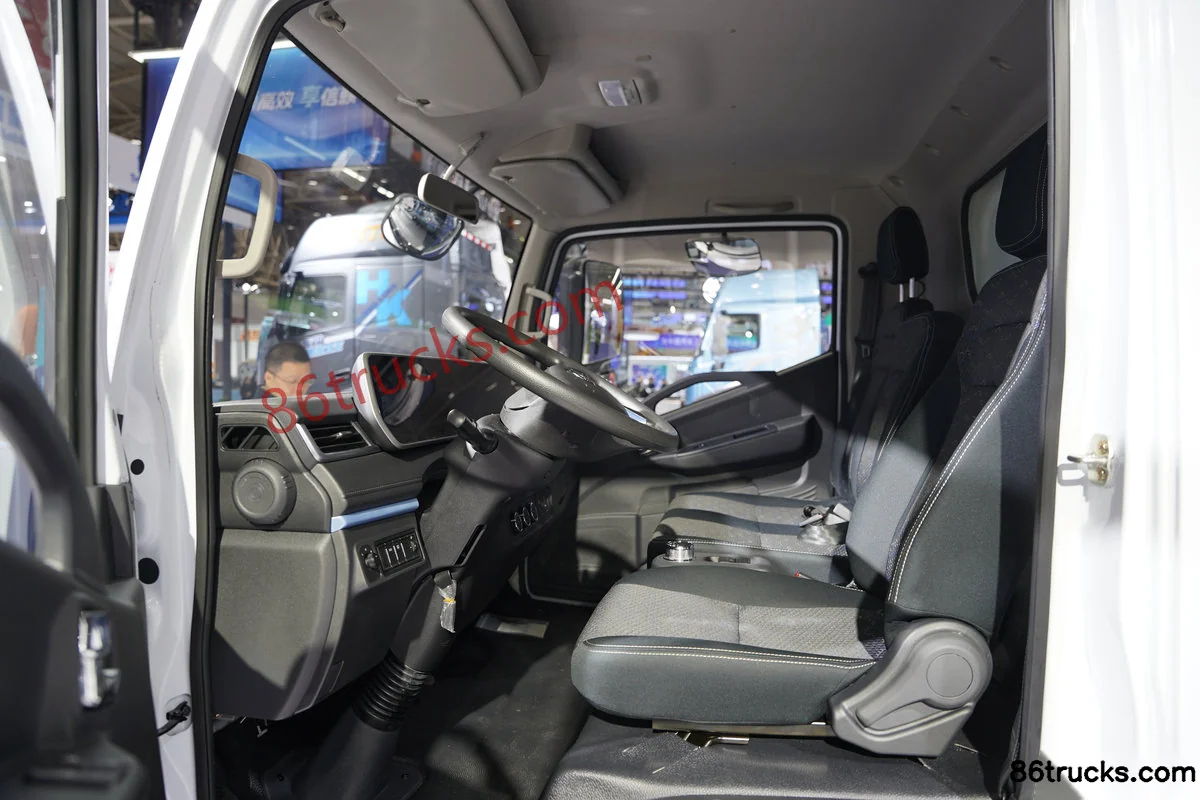

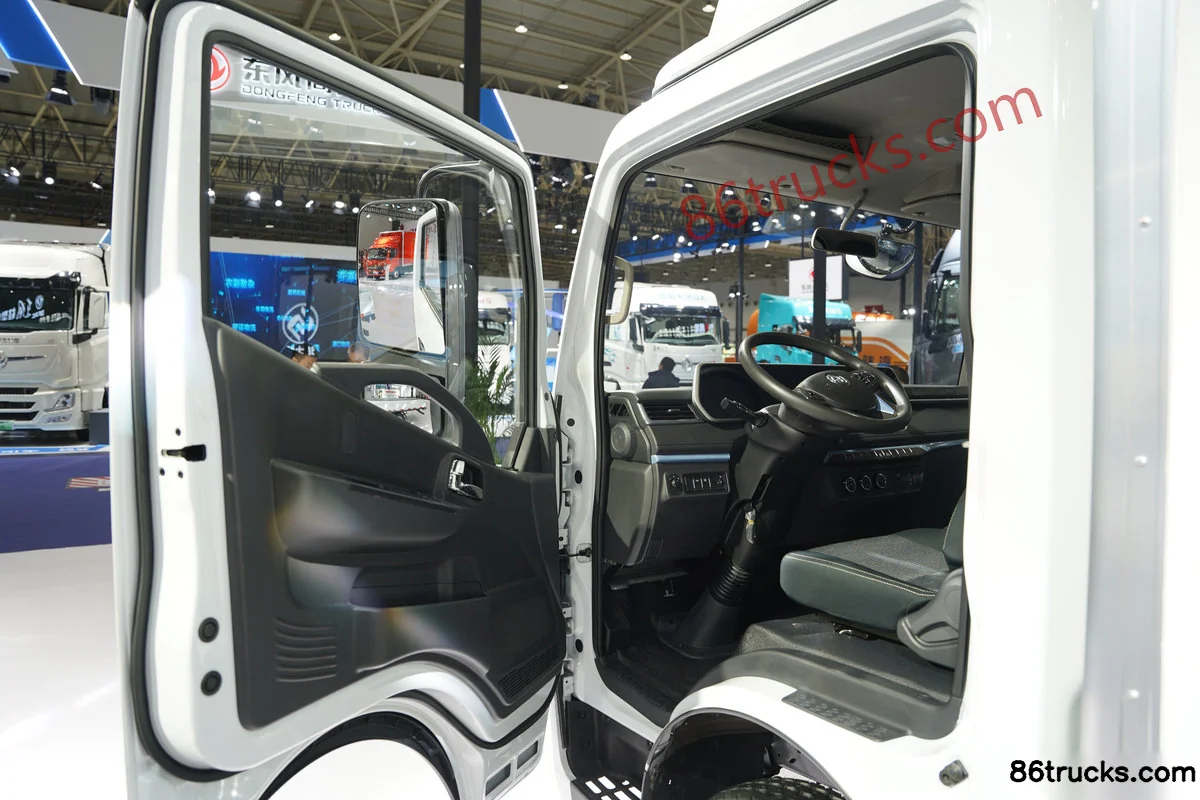

Cab3

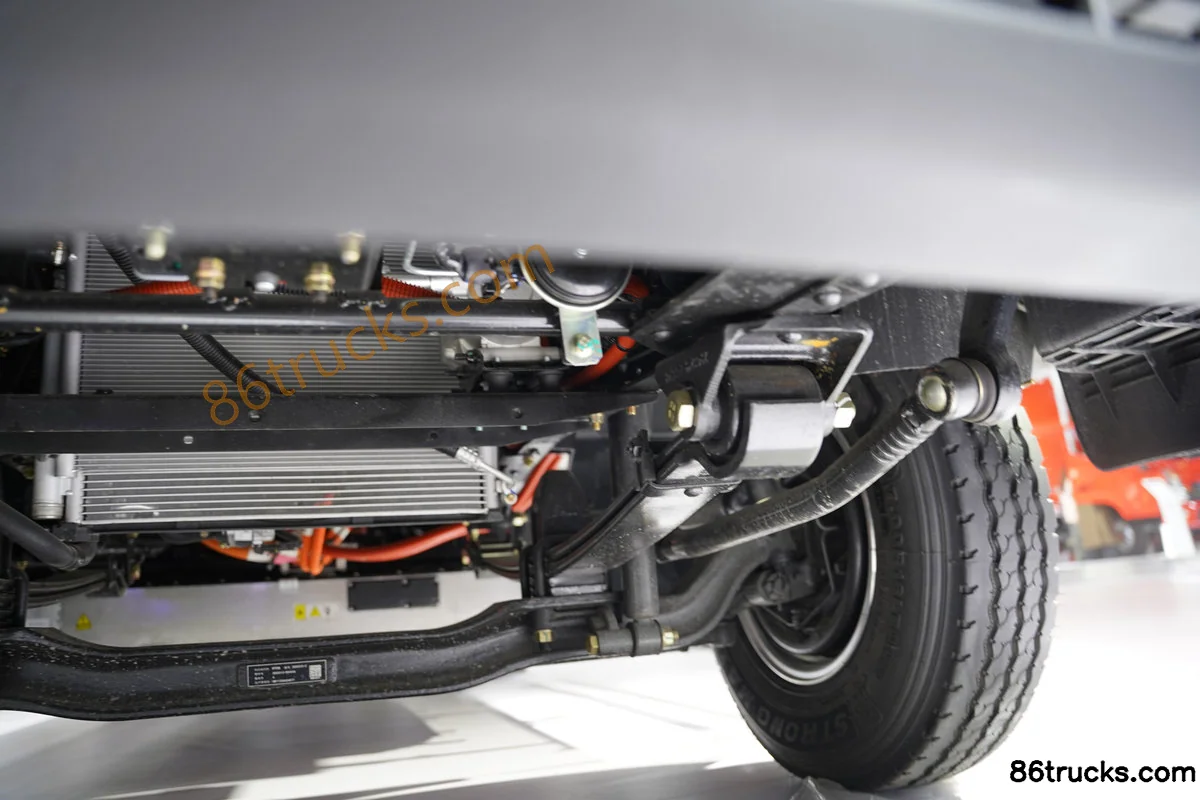

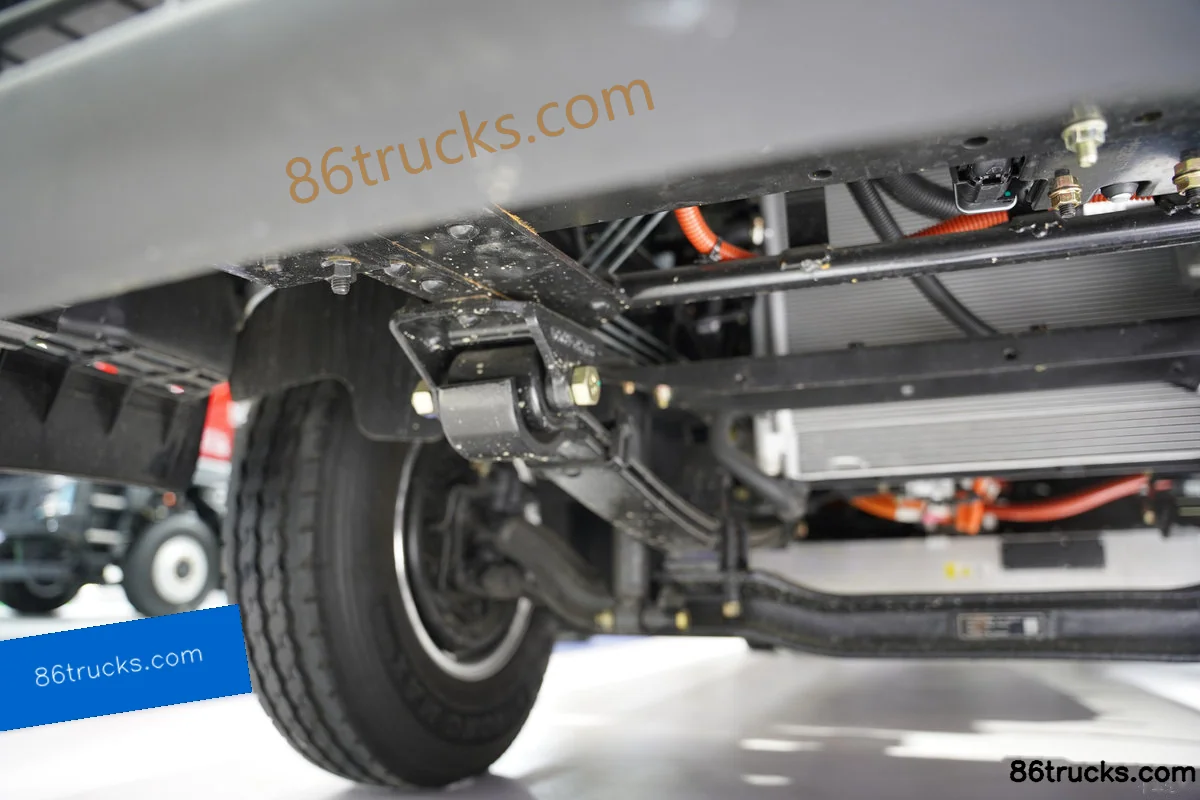

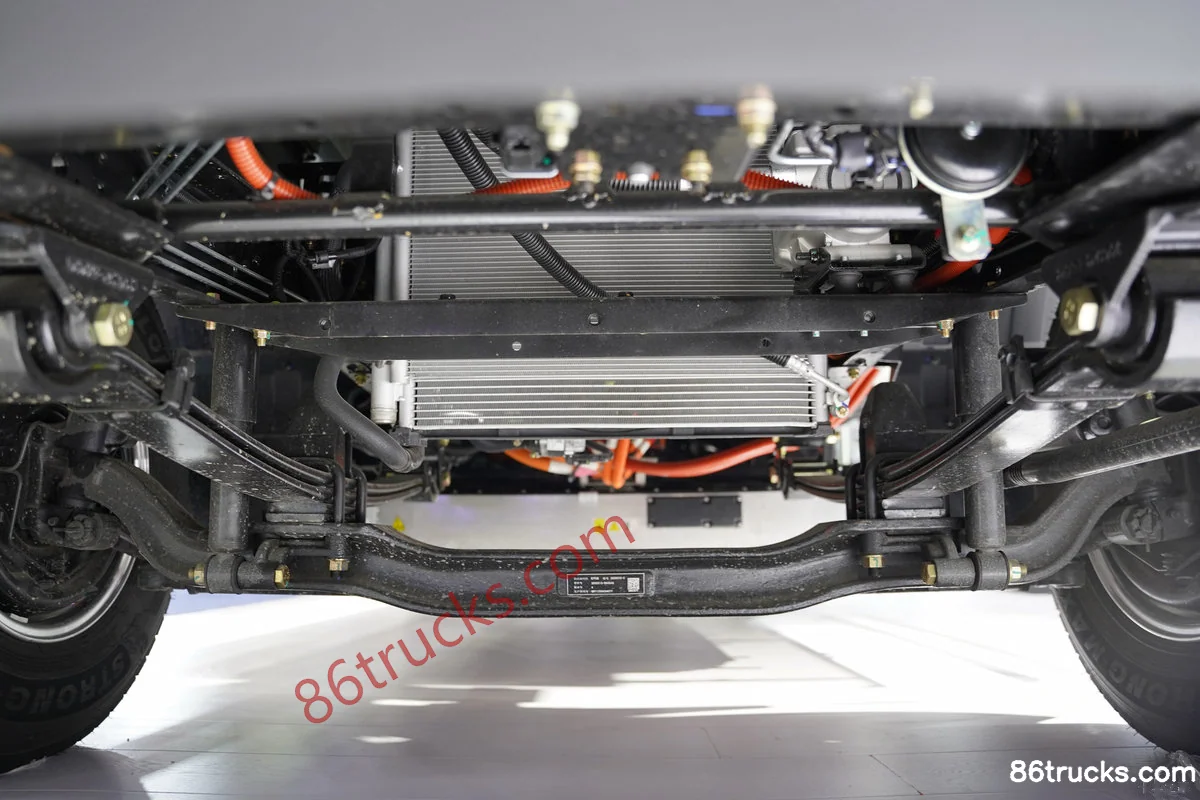

Chassis3

9 photos

FAQ

What are the key specs of Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh?

Key specs of Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh suited for?

Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh differ from other variants in the same series?

Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh belongs to DongfengEV360 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng EV360 4X2(6 wheels) 4.1m Single Row Pure Electric Refrigerated Truck CATL 81.14kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
