FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand)

Export reference
MSRP N/A
Wheelbase:: 1900+4500+1350mm
Cab dimensions:: 11.995×2.55×3.95m
Front/rear track width:: Front track: 2020/2020mm; Rear track: 1878/1878mm
Front track width:: 2020/2020mm
rear track:: 1878/1878mm
GVWR:: 32ton
FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand)
View more photos (12)
Drive 8X4 (12 wheels)
Horsepower 380
Rated mass: 20.07ton
Fuel Diesel

Overview

The FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) is a Explosives Transport Truck featuring 32t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 380 hp and Diesel fuel.

380 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 11.995×2.55×3.95m
Drive type: 8X4
Front/rear track width: Front track: 2020/2020mm; Rear track: 1878/1878mm
Wheelbase: 1900+4500+1350mm
Rated mass: 20.07ton
Curb weight: 11.8ton
Front track width: 2020/2020mm
rear track: 1878/1878mm
GVWR: 32ton
Max. speed: 79km/h
Front/rear suspension: 1.495/2.75m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: CA6DL6-38E68
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.57L
Max output power: 283kW
Max hp: 380Horsepower
Max torque: 1750N·m
Rated speed: 1900rpm
Cargo box parameters
Cargo box dimensions: 9.6×2.45×2.6m
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: QYY5322XZWCA6
Body Brand: Baijie Brand
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Yinghang
Chassis Model: CA1325P26K2L6T4BE6A81
rear axle description: 435 upgraded stamped-welded axle
Leaf spring count: 3/3/2+-/2+-
Transmission Parameters
Number of gears: 10Gear
shift type: Manual
Transmission Model: CA10TAX160F
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Mirrors:
Electric Heated Rearview Mirror:
smart configuration
Forward Collision Warning (FCW):
Fatigue driving monitoring:

Photos

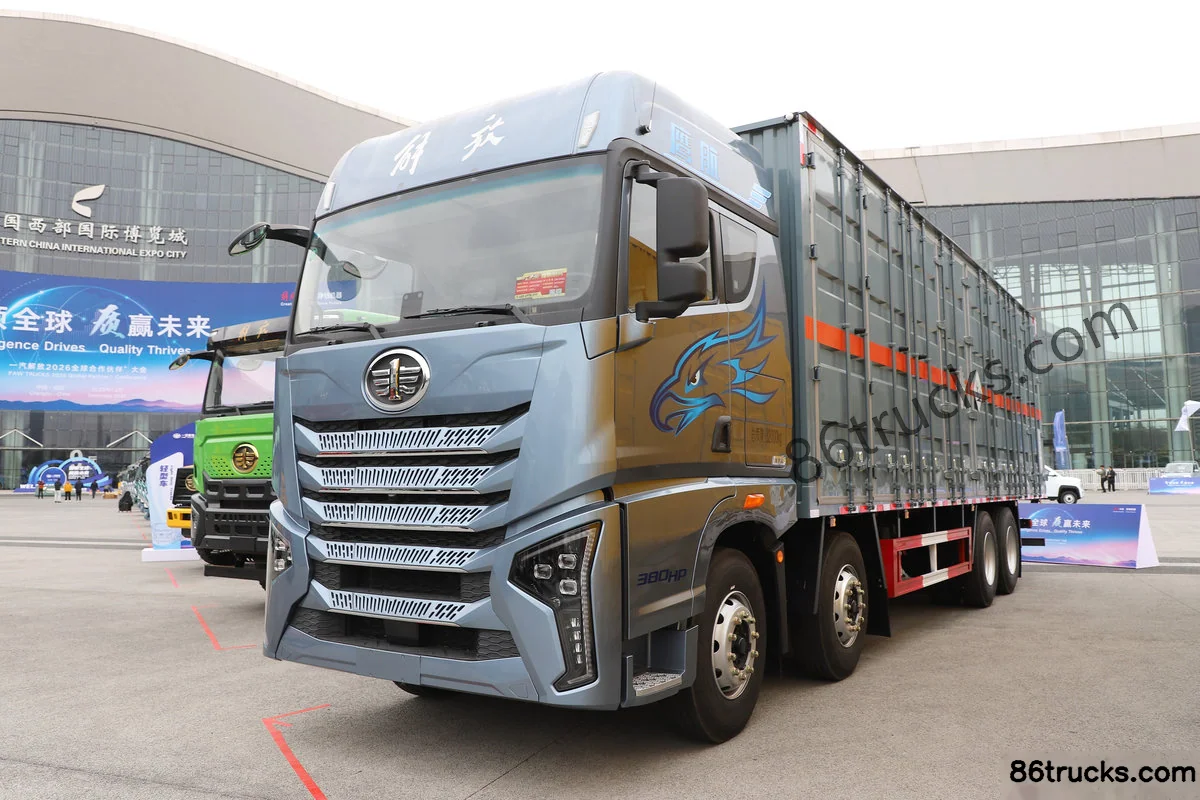

Exterior3

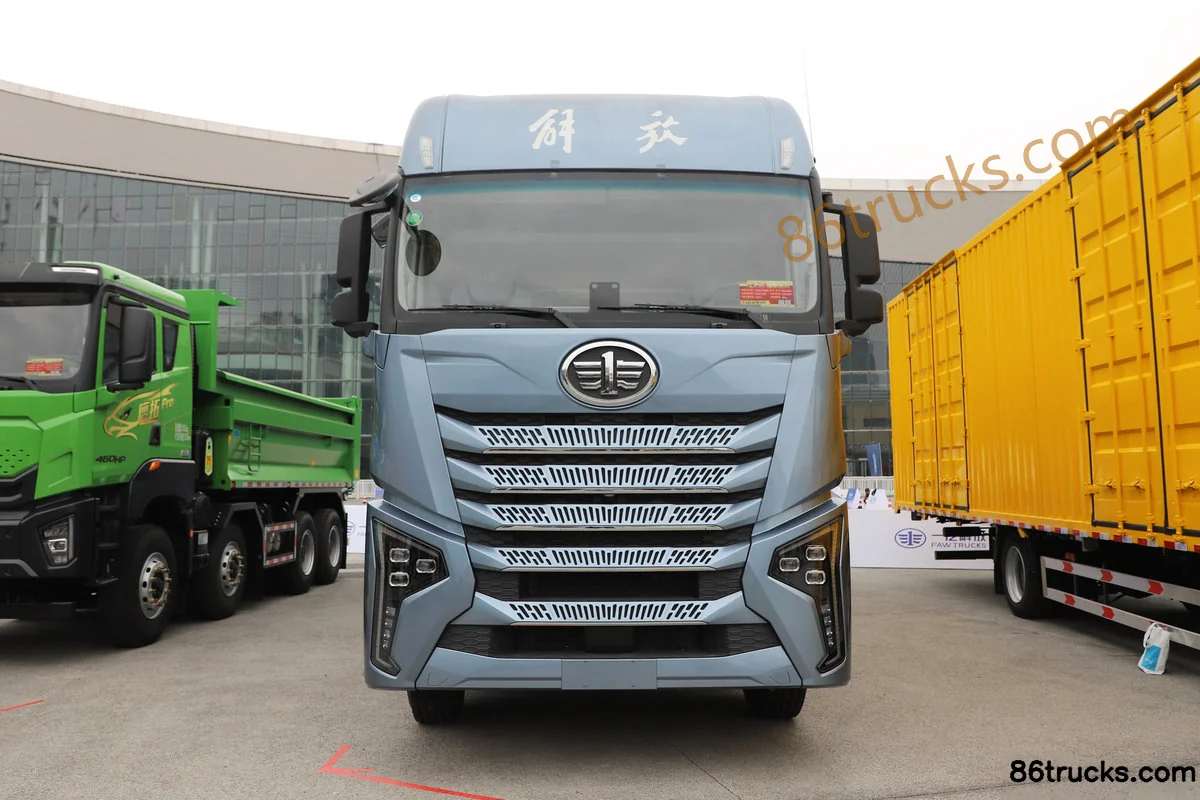

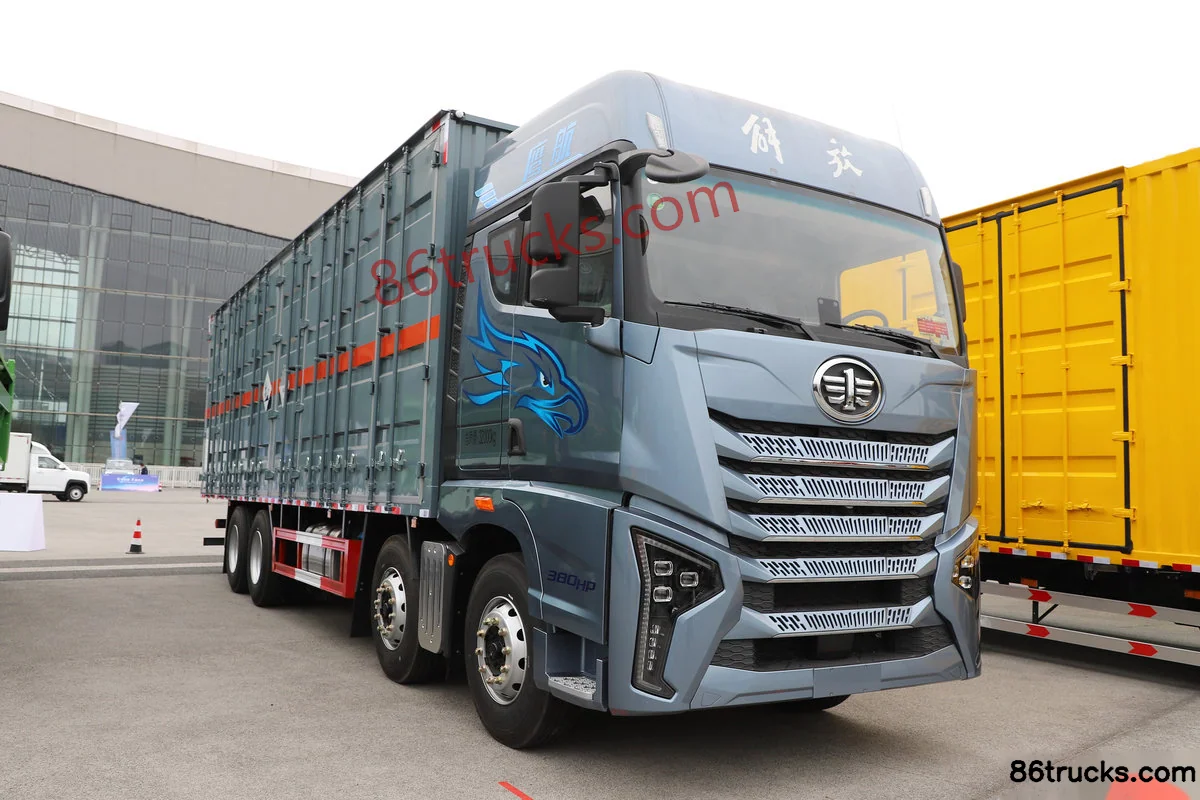

FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Exterior (1) | 86Tru FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Exterior (2) | 86Tru FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Exterior (3) | 86Tru

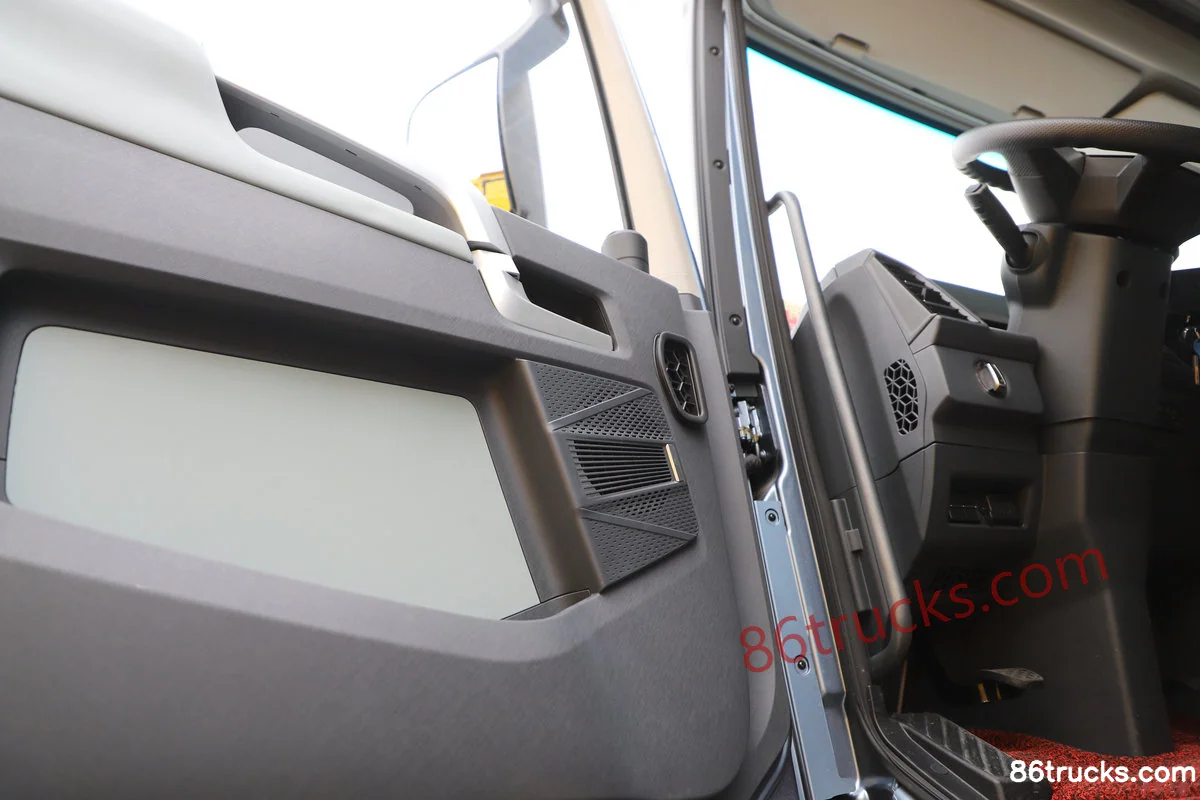

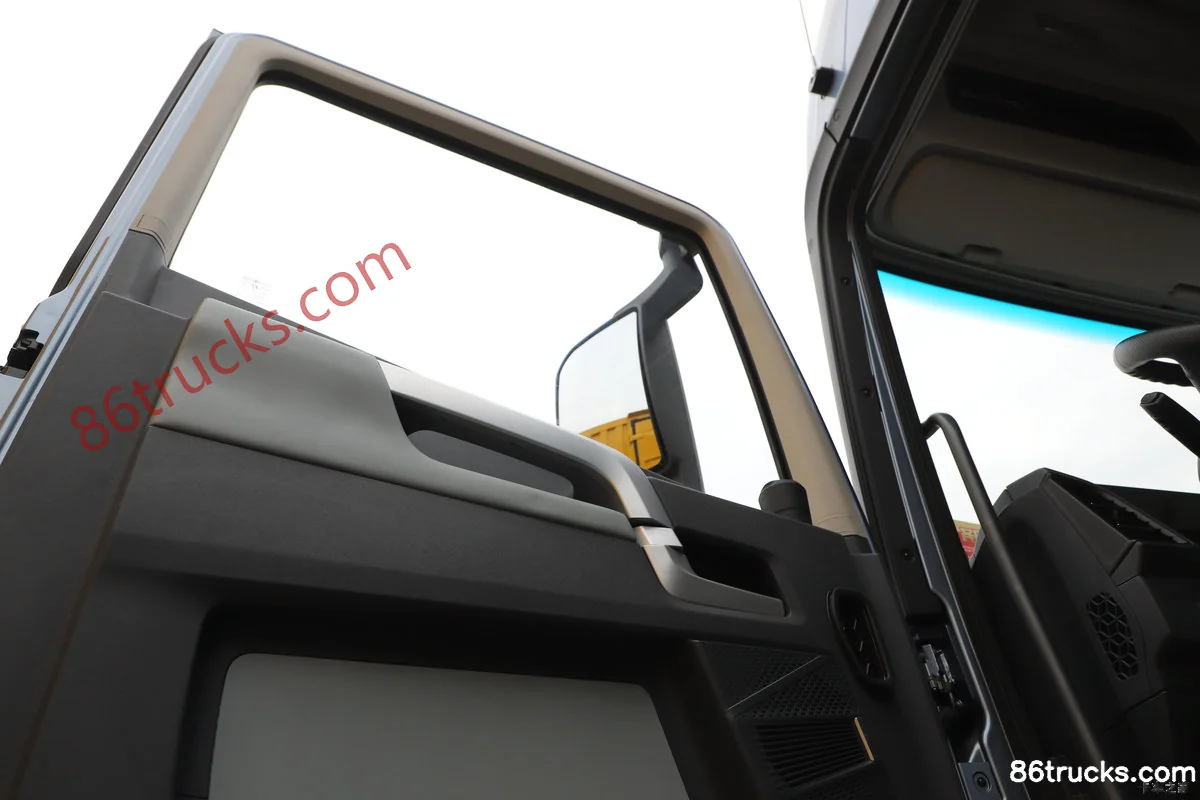

Cab3

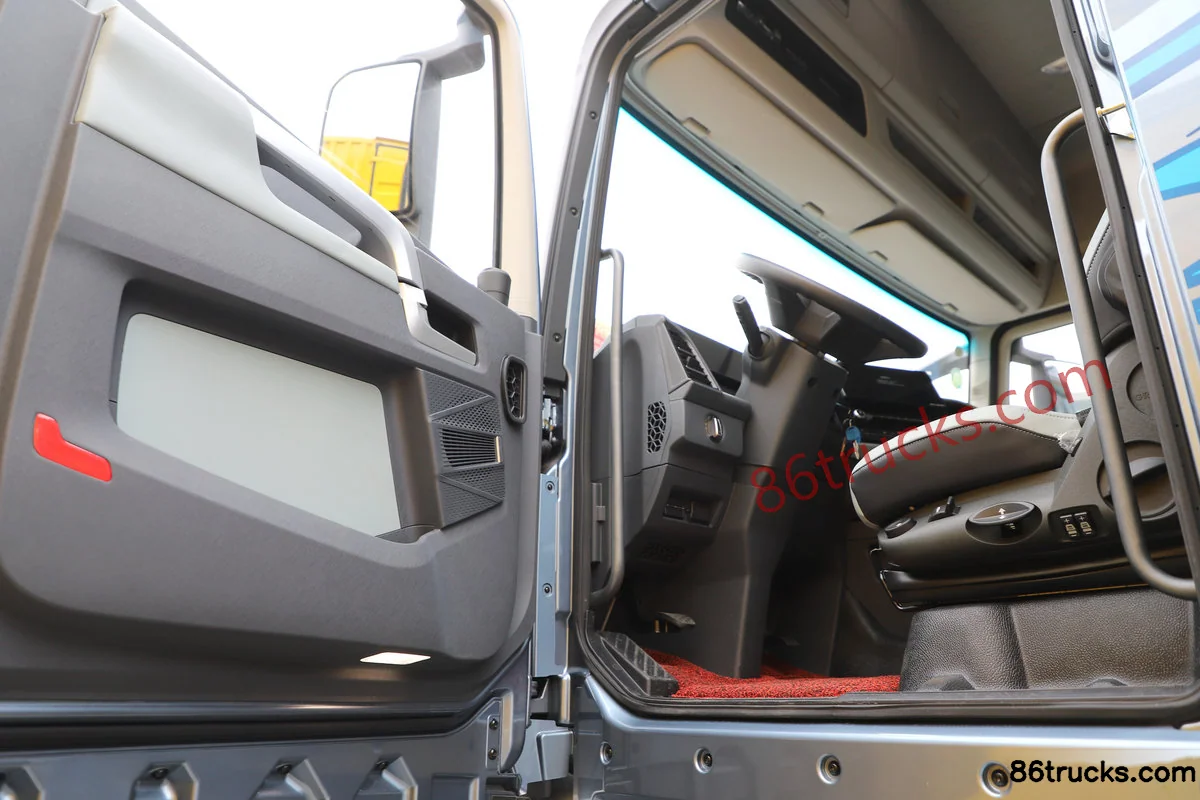

FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Cab (1) | 86Trucks FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Cab (2) | 86Trucks FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Cab (3) | 86Trucks

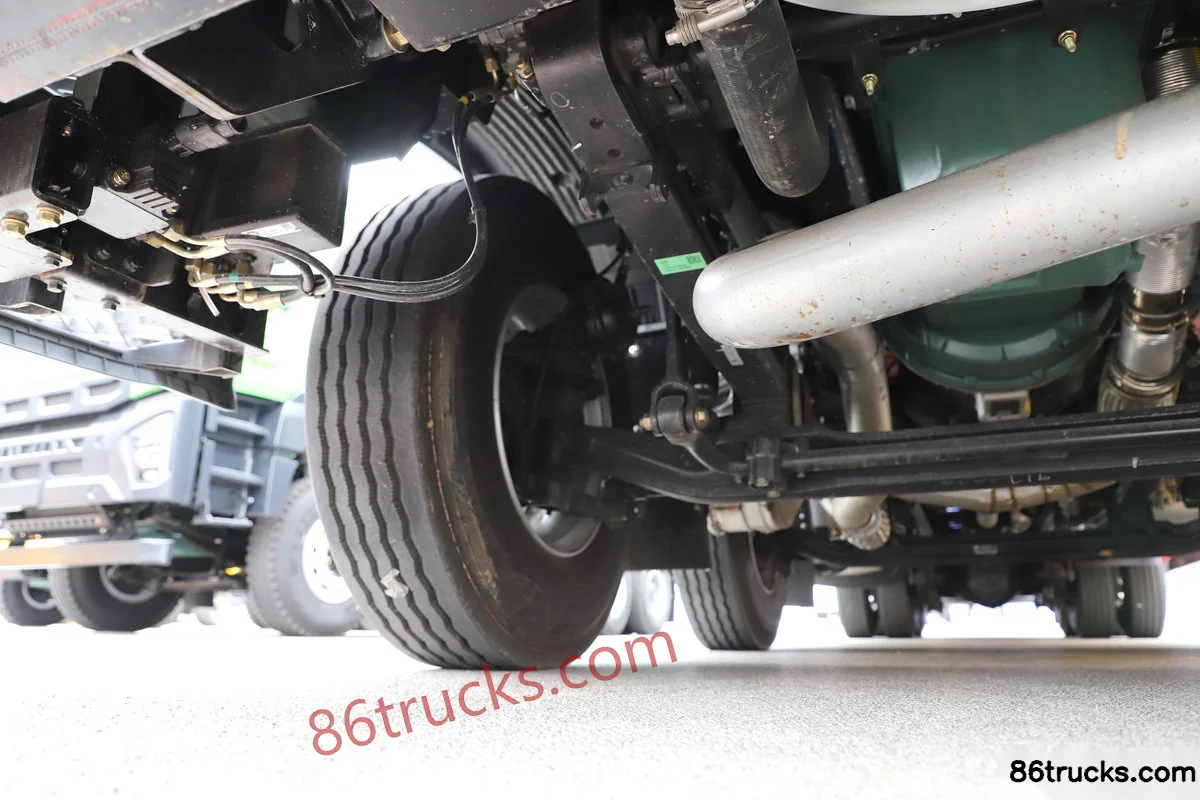

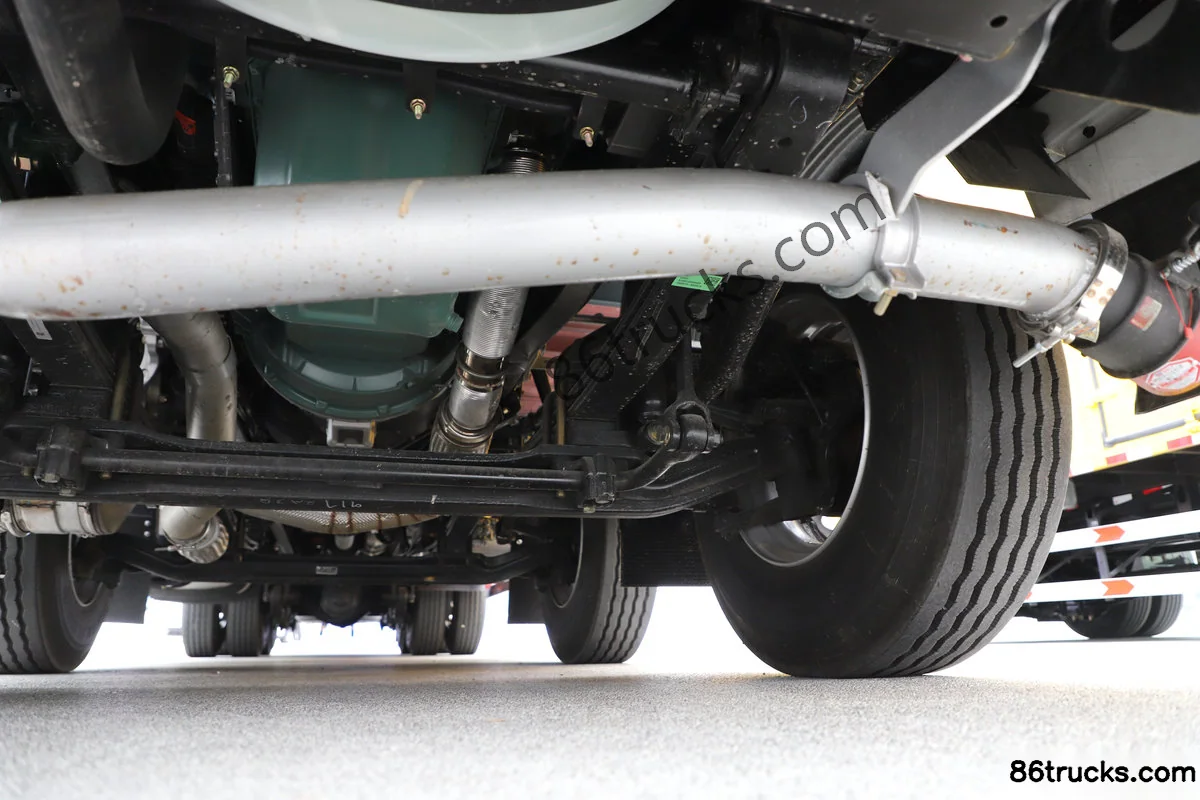

Chassis3

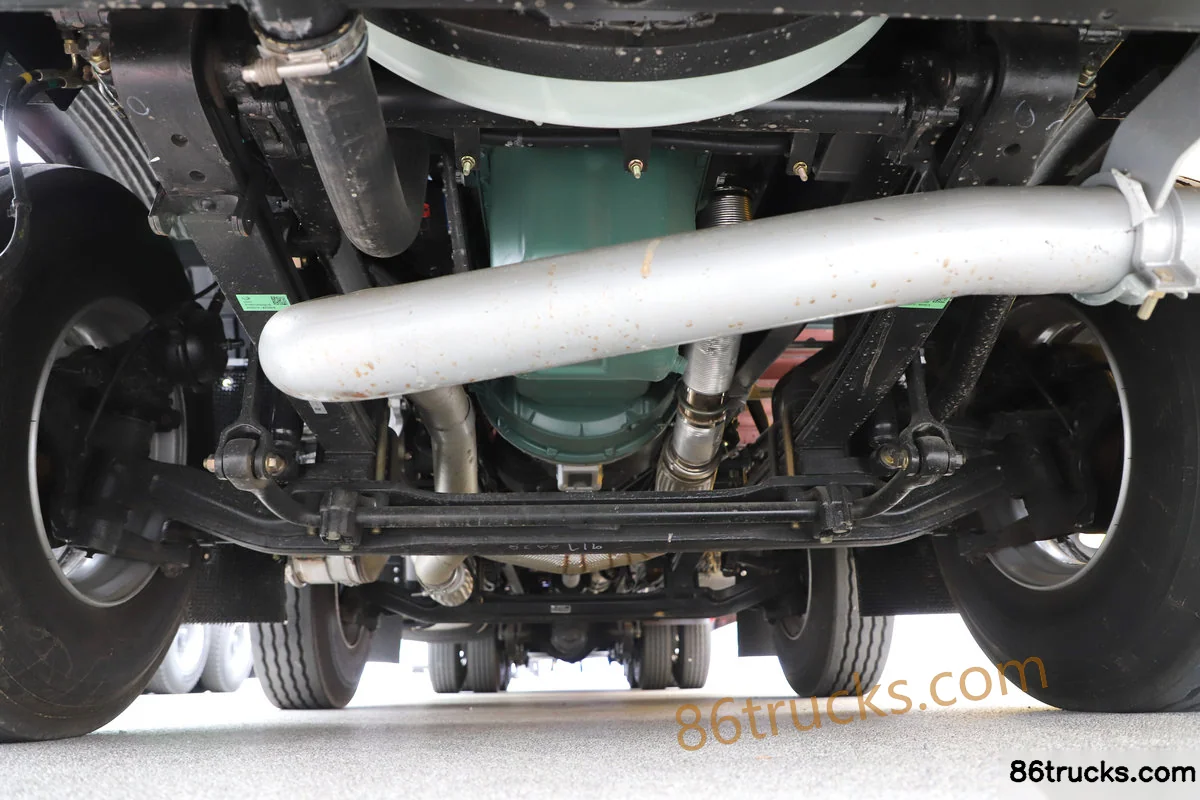

FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Chassis (1) | 86Truc FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Chassis (2) | 86Truc FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Chassis (3) | 86Truc

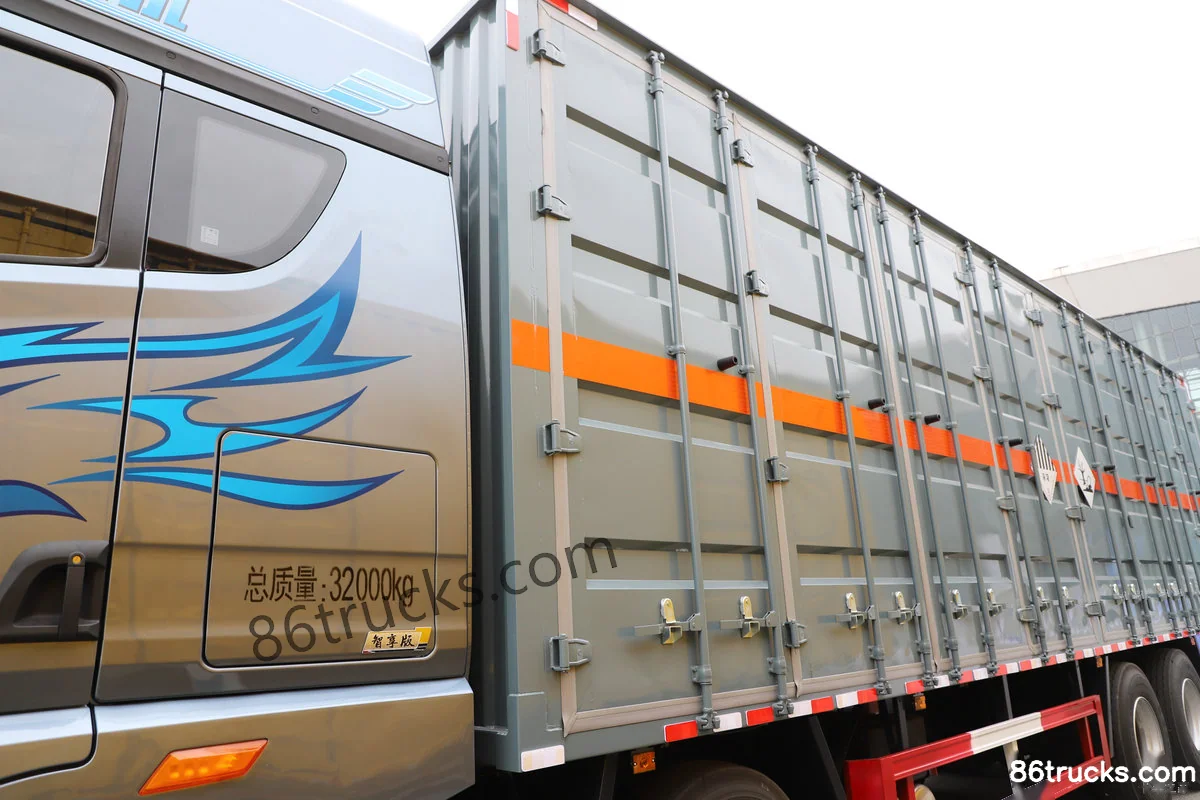

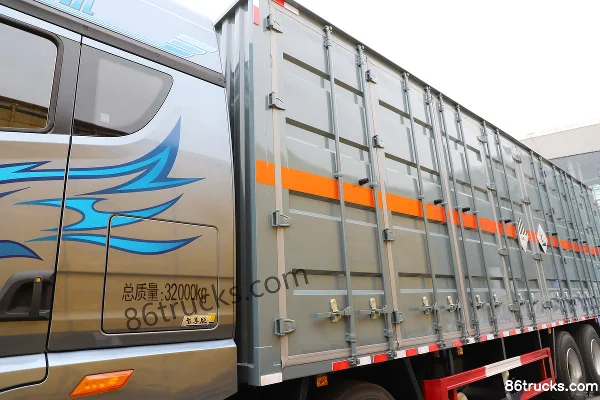

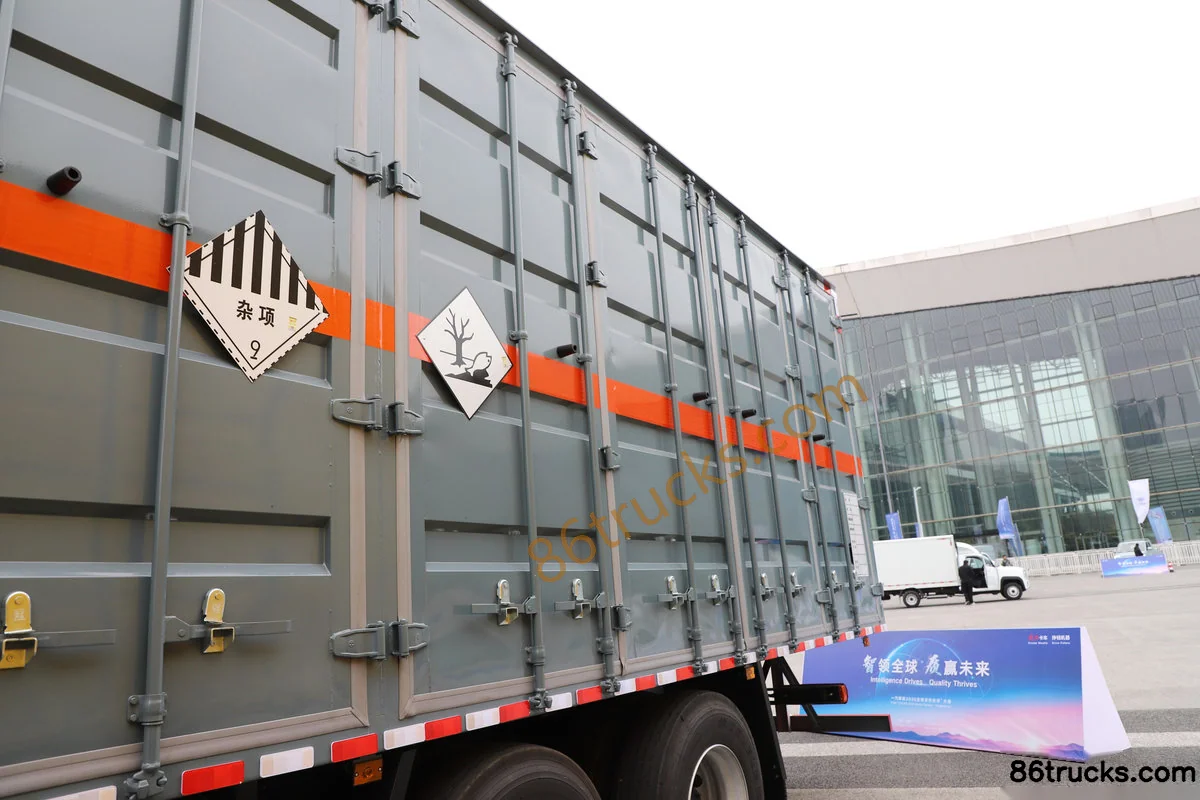

Body3

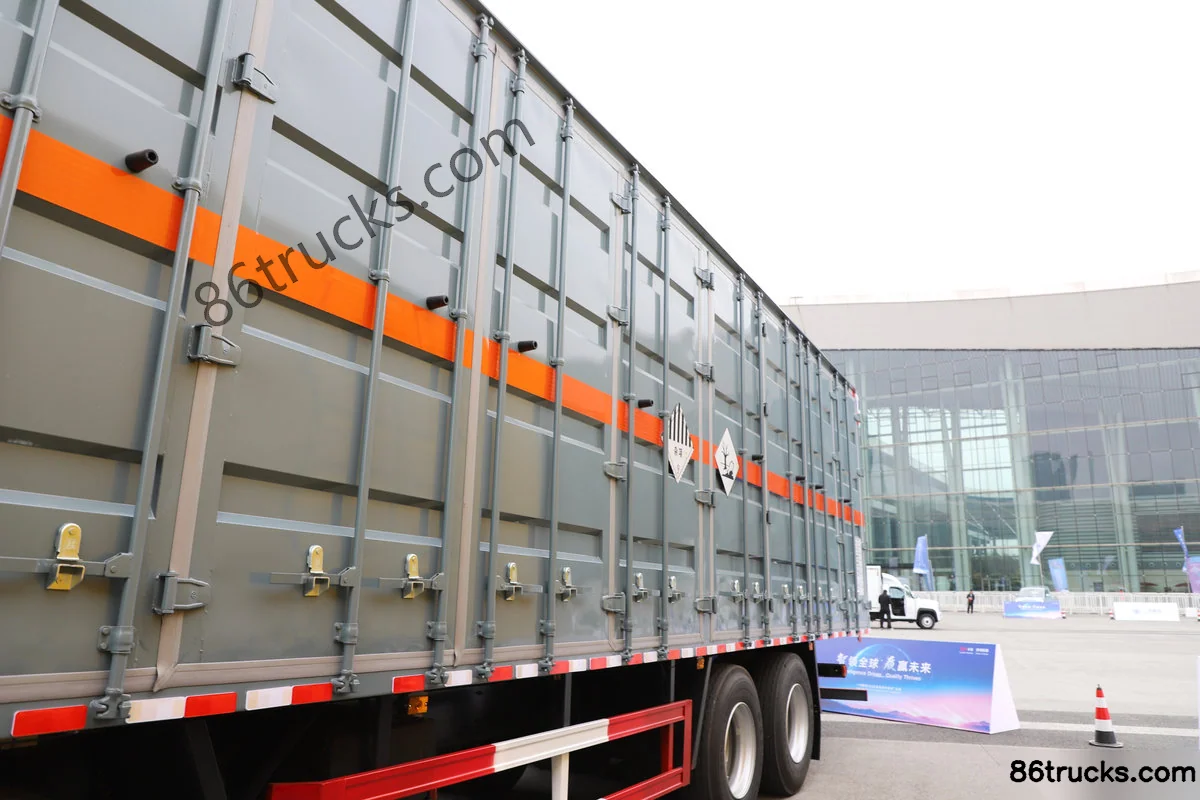

FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Body (1) | 86Trucks FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Body (2) | 86Trucks FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand)?

Key specs of FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand): Drive: 8x4; Horsepower: 380 hp; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) suited for?

FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) differ from other variants in the same series?

FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand) belongs to FAW Jiefang Qingdao Yinghang Heavy Truck (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Yinghang 380hp 8X4(12 wheels) 9.6m Miscellaneous Dangerous Goods Van Transport Truck (Baijie Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
