Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN13L
Curb Weight:: 10.5ton
Wheelbase:: 1950+3825+1350mm
Tire Size:: 11.00R20,12.00R20,12R22.5,295/80R22.5,315/80R22.5
seating capacity: 2Personnel
Drive 8X4 (12 wheels)
Cargo box type: Chassis
Horsepower 540

Overview

The Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume, High roof cab and 1950+3825+1350mm wheelbase. On the powertrain side, it comes with a SinotrukMAN13L engine, 540 hp, 8X4 (12 wheels) drive and China V emissions.

China V 540 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1326V466HE1
Type: Chassis
Drive type: 8X4
Wheelbase: 1950+3825+1350mm
engine: SinotrukMC13.54-50
Cab length: 10.905m
Cab width: 2.496m
Cab height: 3.68m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 10.5ton
GVWR: 32ton
Max. speed: 101km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 20°
Front/rear suspension: 1.475/2.305m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13.54-50
Engine info: SinotrukMAN13L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.419L
Emission standard: China V
Max output power: 400kW
Max hp: 540Horsepower
Max torque: 2500N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle allowable load: 18500 (two-axle group)kg
Leaf spring count: 4/4/-/-
Tire
Tire Size: 11.00R20,12.00R20,12R22.5,295/80R22.5,315/80R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

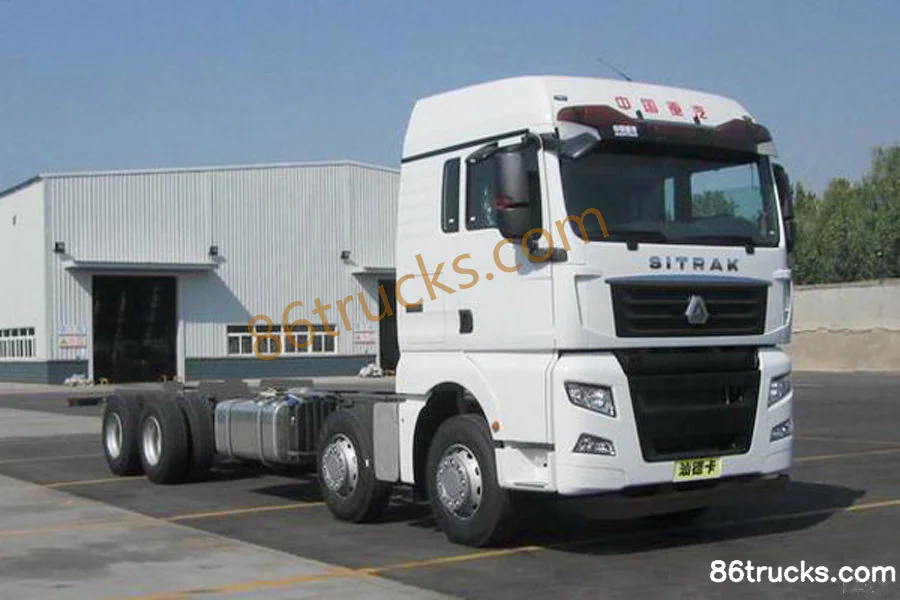

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis?

Key specs of Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis: Drive: 8x4; Horsepower: 540 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN13L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis suited for?

Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis differ from other variants in the same series?

Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis belongs to Sitrak SITRAK C7H heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK C7H Heavy Truck 540 hp 8X4(12 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
